前言：给大家讲解自定义MVC框架
码字不易，点个关注
转载请说明！
开发工具:eclipse

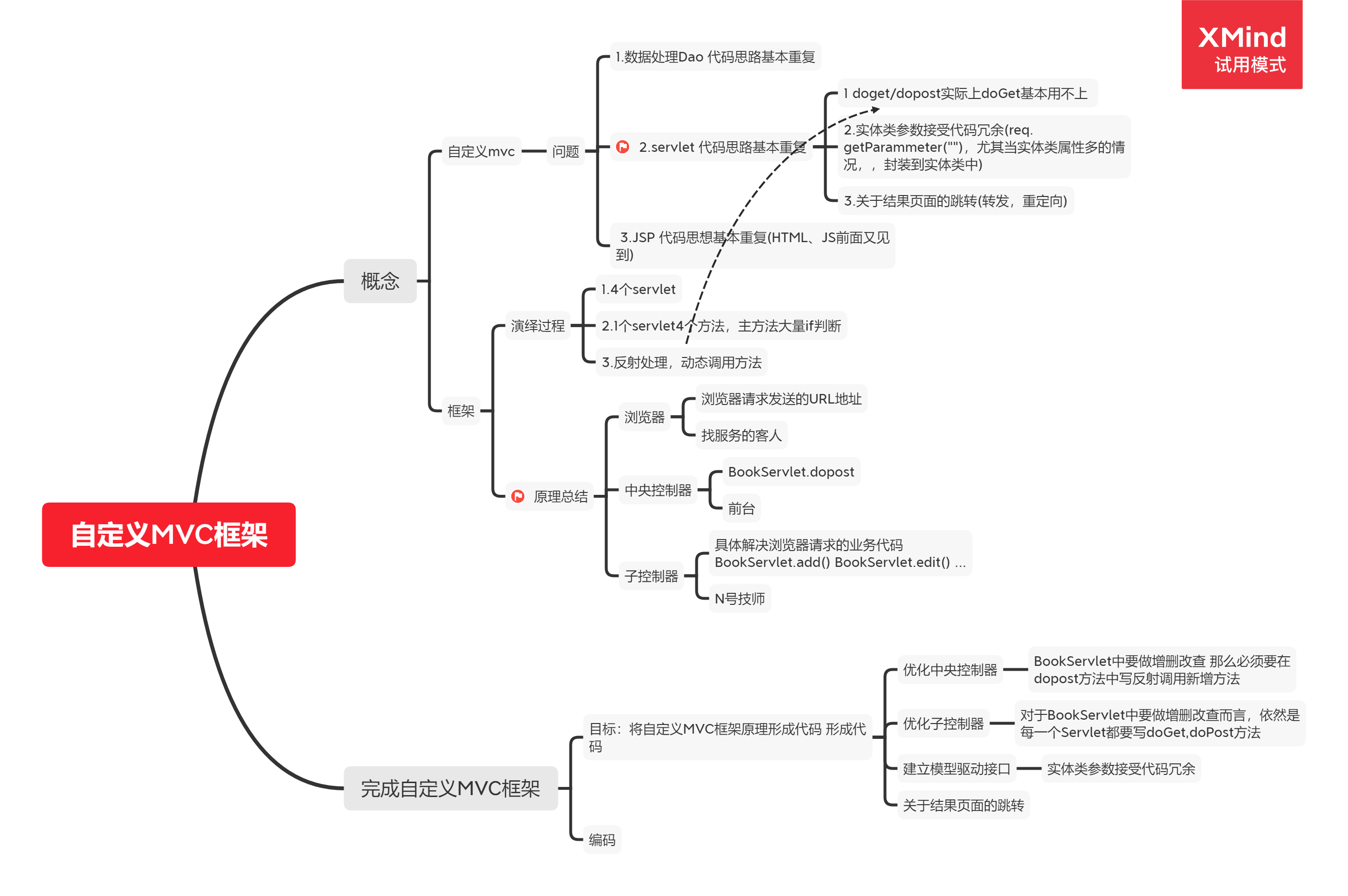

思维导图:
目录
5.2实体类参数接受代码冗余(req.getParammeter("")，尤其当实体类属性多的情况，封装到实体类中)
?
需要导的架包：
?
一、MVC模式概述
模型-视图-控制器（MVC模式）是一种非常经典的软件架构模式，在UI框架和UI设计思路中扮演着非常重要的角色。从设计模式的角度来看，MVC模式是一种复合模式，它将多个设计模式在一种解决方案中结合起来，用来解决许多设计问题。MVC模式把用户界面交互分拆到不同的三种角色中，使应用程序被分成三个核心部件：Model（模型）、View（视图）、Control（控制器）。它们各自处理自己的任务：
（1）模型：模型持有所有的数据、状态和程序逻辑。模型独立于视图和控制器。
（2）视图：用来呈现模型。视图通常直接从模型中取得它需要显示的状态与数据。对于相同的信息可以有多个不同的显示形式或视图。
（3）控制器：位于视图和模型中间，负责接受用户的输入，将输入进行解析并反馈给模型，通常一个视图具有一个控制器。
MVC模式将它们分离以提高系统的灵活性和复用性，不使用MVC模式，用户界面设计往往将这些对象混在一起。MVC模式实现了模型和视图的分离，这带来了几个好处。
（1）一个模型提供不同的多个视图表现形式，也能够为一个模型创建新的视图而无须重写模型。一旦模型的数据发生变化，模型将通知有关的视图，每个视图相应地刷新自己。
（2）模型可复用。因为模型是独立于视图的，所以可以把一个模型独立地移植到新的平台工作。
（3）提高开发效率。在开发界面显示部分时，你仅仅需要考虑的是如何布局一个好的用户界面；开发模型时，你仅仅要考虑的是业务逻辑和数据维护，这样能使开发者专注于某一方面的开发，提高开发效率。
二、自定义MVC演绎过程及原理
?注意 ： 不能跨层调用，只能由上往下进行调用；View -> Controller -> Model
?
自定义MVC工作原理：?
?
?注：ActionServlet-->DispatchServlet(Springmvc)
?.action ? ? ? ? 调度? ? ? ? ? ? ? ? ? ? ? ? ?截取*（请求路径名）? ? ?处理具体业务逻辑
?JSP ---> Servlet(中央控制器）--->Action（子控制器）--->Model(Dao、DB)

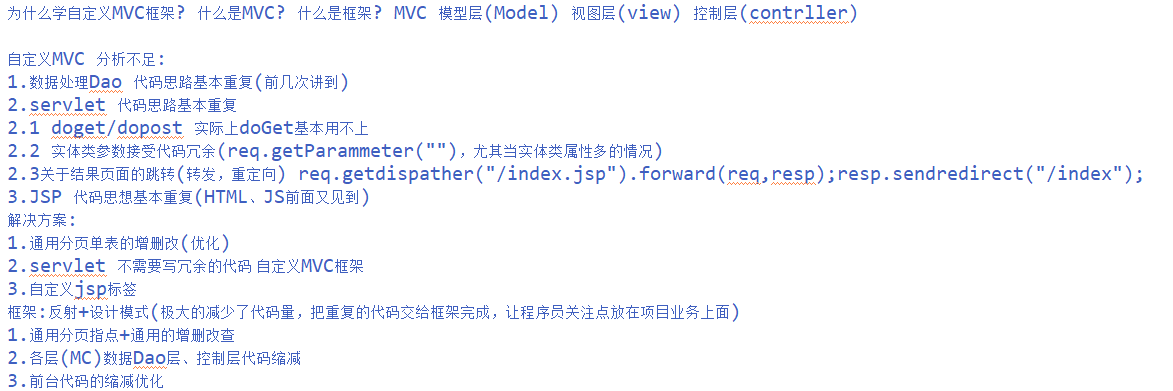

三、目的?
四、演绎过程
1、之前的开发模式
?绝大多数人采用这种方法做增删改查，需要多少个需求就建多少servlet
?增加
package com.hpw.web;
import java.io.IOException;
import javax.servlet.ServletException;
import javax.servlet.annotation.WebServlet;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
@WebServlet("/book/add")
public class AddBookServlet extends HttpServlet {
@Override
protected void doGet(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
// TODO Auto-generated method stub
doPost(req, resp);
}
@Override
protected void doPost(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
System.out.println("bookDao.add()...");
}
}
?删除
package com.hpw.web;
import java.io.IOException;
import javax.servlet.ServletException;
import javax.servlet.annotation.WebServlet;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
@WebServlet("/book/delete")
public class DeleteBookServlet extends HttpServlet {
@Override
protected void doGet(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
// TODO Auto-generated method stub
doPost(req, resp);
}
@Override
protected void doPost(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
System.out.println("bookDao.delete()...");
}
}
修改
package com.hpw.web;
import java.io.IOException;
import javax.servlet.ServletException;
import javax.servlet.annotation.WebServlet;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
@WebServlet("/book/edit")
public class EditBookServlet extends HttpServlet {
@Override
protected void doGet(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
// TODO Auto-generated method stub
doPost(req, resp);
}
@Override
protected void doPost(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
System.out.println("bookDao.edit()...");
}
}
查询
package com.hpw.web;
import java.io.IOException;
import javax.servlet.ServletException;
import javax.servlet.annotation.WebServlet;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
@WebServlet("/book/list")
public class ListBookServlet extends HttpServlet {
@Override
protected void doGet(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
// TODO Auto-generated method stub
doPost(req, resp);
}
@Override
protected void doPost(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
System.out.println("bookDao.list()...");
}
}
前端界面：
?少数人会这么写
String methodName = req.getParameter("methodName");
if ("add".equals(methodName)) {
add(req, resp);
} else if ("delete".equals(methodName)) {
delete(req, resp);
} else if ("edit".equals(methodName)) {
edit(req, resp);
} else if ("list".equals(methodName)) {
list(req, resp);
} else if ("load".equals(methodName)) {
load(req, resp);
}
private void list(HttpServletRequest req, HttpServletResponse resp) {
System.out.println("bookDao.list()...");
}
private void edit(HttpServletRequest req, HttpServletResponse resp) {
System.out.println("bookDao.edit()...");
}
private void delete(HttpServletRequest req, HttpServletResponse resp) {
System.out.println("bookDao.delete()...");
}
private void add(HttpServletRequest req, HttpServletResponse resp) {
System.out.println("bookDao.add()...");
}
private void load(HttpServletRequest req, HttpServletResponse resp) {
System.out.println("bookDao.load()...");
}前端代码?
2、反射优化
* 思考:不改动原有逻辑也能实现需求
* 解决方案:
* 调用哪个方法实际上是取决于methodName 加if不是必要条件
* 直白一点 动态调用methodName方法 并且是当前类的类实例的methodName方法
*
* 总结:
* 反射可以修复上面改动代码还能解决需求问题的bug
* 反射这段代码相当于中央控制器 并不直接处理浏览器请求
* 处理浏览器请求的是子控制器
*
* 相当于中央控制器 并不是当前类实例的methodName方法
String methodName = req.getParameter("methodName");
try {
Method m = this.getClass().getDeclaredMethod(methodName,
HttpServletRequest.class,HttpServletResponse.class);
m.setAccessible(true);
m.invoke(this,req,resp);
} catch (Exception e) {
// TODO Auto-generated catch block
e.printStackTrace();
}
private void load(HttpServletRequest req, HttpServletResponse resp) {
System.out.println("bookDao.load()...");
}
private void list(HttpServletRequest req, HttpServletResponse resp) {
System.out.println("bookDao.list()...");
}
private void edit(HttpServletRequest req, HttpServletResponse resp) {
System.out.println("bookDao.edit()...");
}
private void delete(HttpServletRequest req, HttpServletResponse resp) {
System.out.println("bookDao.delete()...");
}
private void add(HttpServletRequest req, HttpServletResponse resp) {
System.out.println("bookDao.add()...");
}
private void ref(HttpServletRequest req, HttpServletResponse resp) {
System.out.println("bookDao.ref()...");
}前端代码：
?
五，自定义MVC框架
5.1优化中央控制器，子控制器
?1.子控制器(Action接口)? ? 处理浏览器请求
package com.hpw.framework;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
/**
* 子控制器
* 它来处理浏览器请求
* 针对于add/ref进行向上抽取 抽象 abstract
* @author zjjt
*
*/
public interface Action {
//这个方法就是add/ref进行向上抽取的抽象方法
//作用能够处理浏览器的所有请求 包括add/ref...
//通过返回值来决定跳转哪一个页面(至少是重定向/转发由中央控制器决定...)
public String execute(HttpServletRequest req, HttpServletResponse resp);
}
?2.ActionSupport(实现Action接口)
package com.hpw.framework;
import java.lang.reflect.Method;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
/**
*
* @author zjjt
*
*/
public class ActionSupport implements Action {
@Override
public String execute(HttpServletRequest req, HttpServletResponse resp) {
String methodName = req.getParameter("methodName");
String res = null;
try {
Method m = this.getClass().getDeclaredMethod(methodName, HttpServletRequest.class,HttpServletResponse.class);
m.setAccessible(true);
res = (String) m.invoke(this,req,resp);
} catch (Exception e) {
e.printStackTrace();
}
return res;
}
}
3.BookAction(继承ActionSupport)
package com.hpw.web;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import com.hpw.entity.Book;
import com.hpw.framework.ActionSupport;
import com.hpw.framework.ModelDriver;
public class BookAction extends ActionSupport implements ModelDriver<Book>{
//从父类继承了execute方法 就把反射动态调用方法的代码继承过来了
//BookAction-->BookServlet
//BookAction-->GoodsAction/OrderAction...
//当前自动控制器在哪里调用?把子控制器与浏览器关联起来
public Book book = new Book();
private String add(HttpServletRequest req, HttpServletResponse resp) {
// book.setBid(req.getParameter("bid"));
// book.setBname(req.getParameter("bname"));
// book.setPrice(req.getParameter("price"));
// book.setAthor(req.getParameter("arhor"));
// book.setPublish(req.getParameter("publish"));
System.out.println(book);
System.out.println("bookDao.add(book)...");
return "list";
}
private String Edit(HttpServletRequest req, HttpServletResponse resp) {
System.out.println("bookDao.Edit()...");
return "toEdit";
}
private void list(HttpServletRequest req, HttpServletResponse resp) {
System.out.println("bookDao.list()...");
}
private void delete(HttpServletRequest req, HttpServletResponse resp) {
System.out.println("bookDao.delete()...");
}
@Override
public Book getModel() {
// TODO Auto-generated method stub
return book;
}
}
4.中央控制器（DispatchServlet）
package com.hpw.framework;
import java.io.IOException;
import java.util.HashMap;
import java.util.Map;
import javax.servlet.ServletException;
import javax.servlet.annotation.WebServlet;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import org.apache.commons.beanutils.BeanUtils;
import com.hpw.web.GoodsAction;
/**
* 中央控制器
* @author zjjt
* JSP：book.action/goods.action...
*
*/
@WebServlet("*.action")
public class DispathchServlet extends HttpServlet {
//在当前中央控制器中必然有所有子控制器的集合
// private Map<String, ActionSupport> actions = new HashMap<>();
private ConfigModel configModel = null;
/**
* 初始化所有的子控制器到当前的中央控制器中
* 缺陷:如果有商品的增删改查 -->意味着要改动代码-->代码的设计不够灵活
* 思考:在不改动代码的情况下，中央控制器也能找到对应的子控制器去处理浏览器请求
* 方案:我把加子控制器的逻辑/动作放到配置文件中完成 (Dbutil改连接信息是放在代码中完成现在是放在Properties文件中完成)
* 那么放在配置文件中完成的好处在于 代码更加灵活 修改相关信息不用动代码了
* private Map<String, ActionSupport> actions = new HashMap<>();
* ConfigModel对象又通过建模的知识，把所有的配置信息给读取过来
*/
public void init() throws ServletException {
// actions.put("/book", new BookAction());
// actions.put("/goods", new GoodsAction());
// ...
try {
configModel = ConfigModelFactory.build();
} catch (Exception e) {
// TODO Auto-generated catch block
e.printStackTrace();
}
}
@Override
protected void doGet(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
doPost(req, resp);
}
@Override
protected void doPost(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
// 把子控制器与浏览器请求关联起来 "寻找"能够处理请求的子控制器
//http://locahost:8080/book.action?methodName=add-->BookAction.add();
/**
* 1.url-->book
* 2.通过book字符串在actions找到BookAction
* 3.调用BookAction的add 实际上只要统一调用execute方法就可以了
*/
//获取到浏览器请求的地址
String url = req.getRequestURI();
//url-->book
url = url.substring(url.lastIndexOf("/"),url.lastIndexOf("."));
//通过book字符串在actions找到BookAction
// ActionSupport actrion= actions.get(url);
//原来在map集合中寻找子控制器 --> 在配置文件中找子控制器
/**
* 1.通过/book找到对应的ActionModel对象
* 2.通过ActionModel对象拿到类的全路径名 com.hpw.web.BookAction
* 3.反射实例化对象
*/
ActionModel actionModel = configModel.pop(url);
//类的全路径名
String type = actionModel.getType();
ActionSupport action=null;
try {
//BookAction/GoodsAction/..
action = (ActionSupport) Class.forName(type).newInstance();
//完成实体类参数的封装
if(action instanceof ModelDriver) {
//当前自控制器实现了模型驱动接口
ModelDriver m = (ModelDriver) action;
Object bean = m.getModel();
//所有的请求参数都在这，我们需要将所有的请求参数封装到Book/Goods/..
BeanUtils.populate(bean, req.getParameterMap());
}
//执行业务逻辑 bookAction.add方法的返回值 "list"
/**
* 1.书籍新增那么跳转书籍展示页面BookList.jsp 转发
* 2.书籍编辑跳转编辑界面BookEdit.jsp 重定向
*/
String res = action.execute(req, resp);
ForwardModel forwardModel = actionModel.pop(res);
String path = forwardModel.getPath();
boolean isRedirect = forwardModel.isRedirect();
if(isRedirect){
resp.sendRedirect(req.getContextPath()+path);
}else{
req.getRequestDispatcher(path).forward(req, resp);
}
} catch (Exception e) {
// TODO Auto-generated catch block
e.printStackTrace();
}
}
}

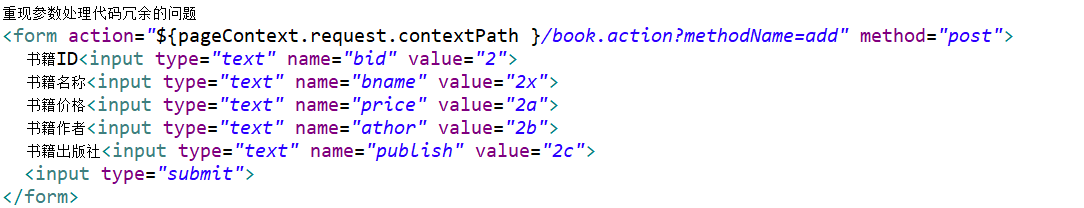

前端代码
<a href="${pageContext.request.contextPath }/book.action?methodName=add">新增</a>5.2实体类参数接受代码冗余(req.getParammeter("")，尤其当实体类属性多的情况，封装到实体类中)
1.Book实体类
package com.hpw.entity;
public class Book {
public String bid;
public String bname;
public String price;
public String athor;
public String publish;
public String getBid() {
return bid;
}
public void setBid(String bid) {
this.bid = bid;
}
public String getBname() {
return bname;
}
public void setBname(String bname) {
this.bname = bname;
}
public String getPrice() {
return price;
}
public void setPrice(String price) {
this.price = price;
}
public String getAthor() {
return athor;
}
public void setAthor(String athor) {
this.athor = athor;
}
public String getPublish() {
return publish;
}
public void setPublish(String publish) {
this.publish = publish;
}
@Override
public String toString() {
return "Book [bid=" + bid + ", bname=" + bname + ", price=" + price + ", athor=" + athor + ", publish="
+ publish + "]";
}
}
2.DispatchServlet （中央控制器）
package com.hpw.framework;
import java.io.IOException;
import java.util.HashMap;
import java.util.Map;
import javax.servlet.ServletException;
import javax.servlet.annotation.WebServlet;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import org.apache.commons.beanutils.BeanUtils;
import com.hpw.web.GoodsAction;
/**
* 中央控制器
* @author zjjt
* JSP：book.action/goods.action...
*
*/
@WebServlet("*.action")
public class DispathchServlet extends HttpServlet {
//在当前中央控制器中必然有所有子控制器的集合
// private Map<String, ActionSupport> actions = new HashMap<>();
private ConfigModel configModel = null;
/**
* 初始化所有的子控制器到当前的中央控制器中
* 缺陷:如果有商品的增删改查 -->意味着要改动代码-->代码的设计不够灵活
* 思考:在不改动代码的情况下，中央控制器也能找到对应的子控制器去处理浏览器请求
* 方案:我把加子控制器的逻辑/动作放到配置文件中完成 (Dbutil改连接信息是放在代码中完成现在是放在Properties文件中完成)
* 那么放在配置文件中完成的好处在于 代码更加灵活 修改相关信息不用动代码了
* private Map<String, ActionSupport> actions = new HashMap<>();
* ConfigModel对象又通过建模的知识，把所有的配置信息给读取过来
*/
public void init() throws ServletException {
// actions.put("/book", new BookAction());
// actions.put("/goods", new GoodsAction());
// ...
try {
configModel = ConfigModelFactory.build();
} catch (Exception e) {
// TODO Auto-generated catch block
e.printStackTrace();
}
}
@Override
protected void doGet(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
doPost(req, resp);
}
@Override
protected void doPost(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
// 把子控制器与浏览器请求关联起来 "寻找"能够处理请求的子控制器
//http://locahost:8080/book.action?methodName=add-->BookAction.add();
/**
* 1.url-->book
* 2.通过book字符串在actions找到BookAction
* 3.调用BookAction的add 实际上只要统一调用execute方法就可以了
*/
//获取到浏览器请求的地址
String url = req.getRequestURI();
//url-->book
url = url.substring(url.lastIndexOf("/"),url.lastIndexOf("."));
//通过book字符串在actions找到BookAction
// ActionSupport actrion= actions.get(url);
//原来在map集合中寻找子控制器 --> 在配置文件中找子控制器
/**
* 1.通过/book找到对应的ActionModel对象
* 2.通过ActionModel对象拿到类的全路径名 com.hpw.web.BookAction
* 3.反射实例化对象
*/
ActionModel actionModel = configModel.pop(url);
//类的全路径名
String type = actionModel.getType();
ActionSupport action=null;
try {
//BookAction/GoodsAction/..
action = (ActionSupport) Class.forName(type).newInstance();
//完成实体类参数的封装
if(action instanceof ModelDriver) {
//当前自控制器实现了模型驱动接口
ModelDriver m = (ModelDriver) action;
Object bean = m.getModel();
//所有的请求参数都在这，我们需要将所有的请求参数封装到Book/Goods/..
BeanUtils.populate(bean, req.getParameterMap());
}
//执行业务逻辑 bookAction.add方法的返回值 "list"
/**
* 1.书籍新增那么跳转书籍展示页面BookList.jsp 转发
* 2.书籍编辑跳转编辑界面BookEdit.jsp 重定向
*/
String res = action.execute(req, resp);
ForwardModel forwardModel = actionModel.pop(res);
String path = forwardModel.getPath();
boolean isRedirect = forwardModel.isRedirect();
if(isRedirect){
resp.sendRedirect(req.getContextPath()+path);
}else{
req.getRequestDispatcher(path).forward(req, resp);
}
} catch (Exception e) {
// TODO Auto-generated catch block
e.printStackTrace();
}
}
}
3.ModelDriver<T>(模型驱动接口)
package com.hpw.framework;
import com.hpw.entity.Book;
/**
* 模型驱动接口
* 作用：帮助中央控制器完成参数封装的过程
* @author zjjt
* Book book = new Book();
book.setBid(req.getParameter("bid"));
book.setBname(req.getParameter("bname"));
book.setPrice(req.getParameter("price"));
book.setAthor(req.getParameter("arhor"));
book.setPublish(req.getParameter("publish"));
System.out.println(book);
* @param <T>
*/
public interface ModelDriver<T> {
/**
* GoodsAction -->goods
* BookAction--> book
* ...
* @return
*/
T getModel();
}
4.BookAction?extends ActionSupport implements ModelDriver<Book>
package com.hpw.web;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import com.hpw.entity.Book;
import com.hpw.framework.ActionSupport;
import com.hpw.framework.ModelDriver;
public class BookAction extends ActionSupport implements ModelDriver<Book>{
//从父类继承了execute方法 就把反射动态调用方法的代码继承过来了
//BookAction-->BookServlet
//BookAction-->GoodsAction/OrderAction...
//当前自动控制器在哪里调用?把子控制器与浏览器关联起来
public Book book = new Book();
private String add(HttpServletRequest req, HttpServletResponse resp) {
// book.setBid(req.getParameter("bid"));
// book.setBname(req.getParameter("bname"));
// book.setPrice(req.getParameter("price"));
// book.setAthor(req.getParameter("arhor"));
// book.setPublish(req.getParameter("publish"));
System.out.println(book);
System.out.println("bookDao.add(book)...");
return "list";
}
private String Edit(HttpServletRequest req, HttpServletResponse resp) {
System.out.println("bookDao.Edit()...");
return "toEdit";
}
private void list(HttpServletRequest req, HttpServletResponse resp) {
System.out.println("bookDao.list()...");
}
private void delete(HttpServletRequest req, HttpServletResponse resp) {
System.out.println("bookDao.delete()...");
}
@Override
public Book getModel() {
// TODO Auto-generated method stub
return book;
}
}
5.前端代码：

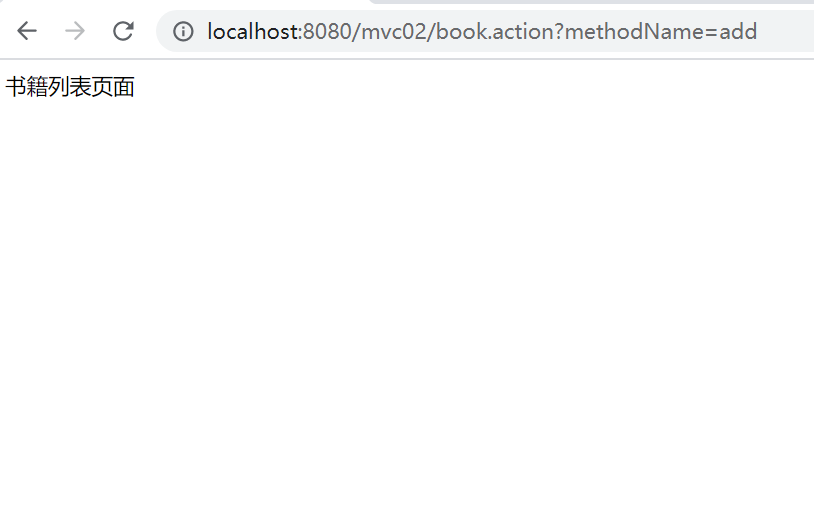

?运行结果：
5.3关于结果页面的跳转(转发，重定向)
1.Action（子控制器）
package com.hpw.framework;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
/**
* 子控制器
* 它来处理浏览器请求
* 针对于add/ref进行向上抽取 抽象 abstract
* @author zjjt
*
*/
public interface Action {
//这个方法就是add/ref进行向上抽取的抽象方法
//作用能够处理浏览器的所有请求 包括add/ref...
//通过返回值来决定跳转哪一个页面(至少是重定向/转发由中央控制器决定...)
public String execute(HttpServletRequest req, HttpServletResponse resp);
}
2.ActionSupport
package com.hpw.framework;
import java.lang.reflect.Method;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
/**
*
* @author zjjt
*
*/
public class ActionSupport implements Action {
@Override
public String execute(HttpServletRequest req, HttpServletResponse resp) {
String methodName = req.getParameter("methodName");
String res = null;
try {
Method m = this.getClass().getDeclaredMethod(methodName, HttpServletRequest.class,HttpServletResponse.class);
m.setAccessible(true);
res = (String) m.invoke(this,req,resp);
} catch (Exception e) {
e.printStackTrace();
}
return res;
}
}
3.BookAction
package com.hpw.web;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import com.hpw.entity.Book;
import com.hpw.framework.ActionSupport;
import com.hpw.framework.ModelDriver;
public class BookAction extends ActionSupport implements ModelDriver<Book>{
//从父类继承了execute方法 就把反射动态调用方法的代码继承过来了
//BookAction-->BookServlet
//BookAction-->GoodsAction/OrderAction...
//当前自动控制器在哪里调用?把子控制器与浏览器关联起来
public Book book = new Book();
private String add(HttpServletRequest req, HttpServletResponse resp) {
System.out.println(book);
System.out.println("bookDao.add(book)...");
return "list";
}
private String Edit(HttpServletRequest req, HttpServletResponse resp) {
System.out.println("bookDao.Edit()...");
return "toEdit";
}
private void list(HttpServletRequest req, HttpServletResponse resp) {
System.out.println("bookDao.list()...");
}
private void delete(HttpServletRequest req, HttpServletResponse resp) {
System.out.println("bookDao.delete()...");
}
@Override
public Book getModel() {
// TODO Auto-generated method stub
return book;
}
}
4.DispatchServlet 中央控制器
package com.hpw.framework;
import java.io.IOException;
import java.util.HashMap;
import java.util.Map;
import javax.servlet.ServletException;
import javax.servlet.annotation.WebServlet;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import org.apache.commons.beanutils.BeanUtils;
import com.hpw.web.GoodsAction;
/**
* 中央控制器
* @author zjjt
* JSP：book.action/goods.action...
*
*/
@WebServlet("*.action")
public class DispathchServlet extends HttpServlet {
//在当前中央控制器中必然有所有子控制器的集合
// private Map<String, ActionSupport> actions = new HashMap<>();
private ConfigModel configModel = null;
/**
* 初始化所有的子控制器到当前的中央控制器中
* 缺陷:如果有商品的增删改查 -->意味着要改动代码-->代码的设计不够灵活
* 思考:在不改动代码的情况下，中央控制器也能找到对应的子控制器去处理浏览器请求
* 方案:我把加子控制器的逻辑/动作放到配置文件中完成 (Dbutil改连接信息是放在代码中完成现在是放在Properties文件中完成)
* 那么放在配置文件中完成的好处在于 代码更加灵活 修改相关信息不用动代码了
* private Map<String, ActionSupport> actions = new HashMap<>();
* ConfigModel对象又通过建模的知识，把所有的配置信息给读取过来
*/
public void init() throws ServletException {
// actions.put("/book", new BookAction());
// actions.put("/goods", new GoodsAction());
// ...
try {
configModel = ConfigModelFactory.build();
} catch (Exception e) {
// TODO Auto-generated catch block
e.printStackTrace();
}
}
@Override
protected void doGet(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
doPost(req, resp);
}
@Override
protected void doPost(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
// 把子控制器与浏览器请求关联起来 "寻找"能够处理请求的子控制器
//http://locahost:8080/book.action?methodName=add-->BookAction.add();
/**
* 1.url-->book
* 2.通过book字符串在actions找到BookAction
* 3.调用BookAction的add 实际上只要统一调用execute方法就可以了
*/
//获取到浏览器请求的地址
String url = req.getRequestURI();
//url-->book
url = url.substring(url.lastIndexOf("/"),url.lastIndexOf("."));
//通过book字符串在actions找到BookAction
// ActionSupport actrion= actions.get(url);
//原来在map集合中寻找子控制器 --> 在配置文件中找子控制器
/**
* 1.通过/book找到对应的ActionModel对象
* 2.通过ActionModel对象拿到类的全路径名 com.hpw.web.BookAction
* 3.反射实例化对象
*/
ActionModel actionModel = configModel.pop(url);
//类的全路径名
String type = actionModel.getType();
ActionSupport action=null;
try {
//BookAction/GoodsAction/..
action = (ActionSupport) Class.forName(type).newInstance();
//完成实体类参数的封装
if(action instanceof ModelDriver) {
//当前自控制器实现了模型驱动接口
ModelDriver m = (ModelDriver) action;
Object bean = m.getModel();
//所有的请求参数都在这，我们需要将所有的请求参数封装到Book/Goods/..
BeanUtils.populate(bean, req.getParameterMap());
}
//执行业务逻辑 bookAction.add方法的返回值 "list"
/**
* 1.书籍新增那么跳转书籍展示页面BookList.jsp 转发
* 2.书籍编辑跳转编辑界面BookEdit.jsp 重定向
*/
String res = action.execute(req, resp);
ForwardModel forwardModel = actionModel.pop(res);
String path = forwardModel.getPath();
boolean isRedirect = forwardModel.isRedirect();
if(isRedirect){
resp.sendRedirect(req.getContextPath()+path);
}else{
req.getRequestDispatcher(path).forward(req, resp);
}
} catch (Exception e) {
// TODO Auto-generated catch block
e.printStackTrace();
}
}
}
5.config.xml（xml文件）
<?xml version="1.0" encoding="UTF-8"?>
<config>
<!--
在这里每加一个配置 就相当于actions.put("/book", new BookAction());
这样就解决了代码灵活性的问题
-->
<action path="/book" type="com.hpw.web.BookAction">
<forward name="list" path="/BookList.jsp" redirect="false" />
<forward name="toEdit" path="/BookEdit.jsp" redirect="true" />
</action>
<action path="/goods" type="com.hpw.web.GoodsAction">
<forward name="failed" path="/login.jsp" redirect="false" />
<forward name="success" path="/main.jsp" redirect="true" />
</action>
</config>6.前端代码：
?运行结果：
到这里就结束了，我依旧是那个学IT的小学生?
欢迎大佬指点?
?
?
