spring-session实现session共享
同域名同项目名session共享
1.添加pom依赖
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
<modelVersion>4.0.0</modelVersion>
<groupId>nginx-dome</groupId>
<artifactId>nginx-dome</artifactId>
<version>1.0-SNAPSHOT</version>
<packaging>war</packaging>
<name>nginx-dome Maven Webapp</name>
<!-- FIXME change it to the project's website -->
<url>http://www.example.com</url>
<properties>
<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
<maven.compiler.source>1.7</maven.compiler.source>
<maven.compiler.target>1.7</maven.compiler.target>
<spring.version>5.3.9</spring.version>
<slf4j.version>1.7.12</slf4j.version>
<log4j.version>1.2.17</log4j.version>
</properties>
<dependencies>
<!-- 单元测试 -->
<dependency>
<groupId>junit</groupId>
<artifactId>junit</artifactId>
<version>4.11</version>
<!-- 表示开发的时候引入，发布的时候不会加载此包 -->
<scope>test</scope>
</dependency>
<!-- servlet依赖的jar包start -->
<dependency>
<groupId>javax.servlet</groupId>
<artifactId>javax.servlet-api</artifactId>
<version>3.1.0</version>
</dependency>
<!-- servlet依赖的jar包start -->
<!-- jsp依赖jar包start -->
<dependency>
<groupId>javax.servlet.jsp</groupId>
<artifactId>javax.servlet.jsp-api</artifactId>
<version>2.3.1</version>
</dependency>
<!-- jsp依赖jar包end -->
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-context</artifactId>
<version>${spring.version}</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-webmvc</artifactId>
<version>${spring.version}</version>
</dependency>
<dependency>
<groupId>org.springframework.session</groupId>
<artifactId>spring-session-data-redis</artifactId>
<version>1.3.1.RELEASE</version>
</dependency>
<!-- jstl标签类 -->
<dependency>
<groupId>jstl</groupId>
<artifactId>jstl</artifactId>
<version>1.2</version>
</dependency>
<!-- log -->
<dependency>
<groupId>log4j</groupId>
<artifactId>log4j</artifactId>
<version>${log4j.version}</version>
</dependency>
<dependency>
<groupId>org.slf4j</groupId>
<artifactId>slf4j-api</artifactId>
<version>${slf4j.version}</version>
</dependency>
<dependency>
<groupId>org.slf4j</groupId>
<artifactId>slf4j-log4j12</artifactId>
<version>${slf4j.version}</version>
</dependency>
</dependencies>
<build>
<finalName>nginx-dome</finalName>
<pluginManagement><!-- lock down plugins versions to avoid using Maven defaults (may be moved to parent pom) -->
<plugins>
<plugin>
<artifactId>maven-clean-plugin</artifactId>
<version>3.1.0</version>
</plugin>
<!-- see http://maven.apache.org/ref/current/maven-core/default-bindings.html#Plugin_bindings_for_war_packaging -->
<plugin>
<artifactId>maven-resources-plugin</artifactId>
<version>3.0.2</version>
</plugin>
<plugin>
<artifactId>maven-compiler-plugin</artifactId>
<version>3.8.0</version>
</plugin>
<plugin>
<artifactId>maven-surefire-plugin</artifactId>
<version>2.22.1</version>
</plugin>
<plugin>
<artifactId>maven-war-plugin</artifactId>
<version>3.2.2</version>
</plugin>
<plugin>
<artifactId>maven-install-plugin</artifactId>
<version>2.5.2</version>
</plugin>
<plugin>
<artifactId>maven-deploy-plugin</artifactId>
<version>2.8.2</version>
</plugin>
</plugins>
</pluginManagement>
</build>
</project>
2.web.xml
<web-app xmlns="http://xmlns.jcp.org/xml/ns/javaee"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_3_1.xsd"
version="3.1">
<display-name>mavenliu</display-name>
<!--项目的欢迎页，项目运行起来后访问的页面-->
<welcome-file-list>
<welcome-file>index.jsp</welcome-file>
</welcome-file-list>
<!-- 注册ServletContext监听器，创建容器对象，并且将ApplicationContext对象放到Application域中 -->
<listener>
<listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
</listener>
<!-- 指定spring核心配置文件 -->
<context-param>
<param-name>contextConfigLocation</param-name>
<param-value>classpath:spring/applicationContext.xml</param-value>
</context-param>
<!--DelegatingFilterProxy将查找一个Bean的名字springSessionRepositoryFilter丢给一个过滤器。为每个请求
调用DelegatingFilterProxy, springSessionRepositoryFilter将被调用-->
<filter>
<filter-name>springSessionRepositoryFilter</filter-name>
<filter-class>org.springframework.web.filter.DelegatingFilterProxy</filter-class>
</filter>
<filter-mapping>
<filter-name>springSessionRepositoryFilter</filter-name>
<url-pattern>/*</url-pattern>
</filter-mapping>
<!-- 解决乱码的过滤器 -->
<filter>
<filter-name>CharacterEncodingFilter</filter-name>
<filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
<init-param>
<param-name>encoding</param-name>
<param-value>utf-8</param-value>
</init-param>
<init-param>
<param-name>forceEncoding</param-name>
<param-value>true</param-value>
</init-param>
</filter>
<filter-mapping>
<filter-name>CharacterEncodingFilter</filter-name>
<url-pattern>/*</url-pattern>
</filter-mapping>
<!-- 配置前端控制器 -->
<servlet>
<servlet-name>springmvc</servlet-name>
<servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
<!-- 指定配置文件位置和名称 如果不设置,默认找/WEB-INF/<servlet-name>-servlet.xml -->
<init-param>
<param-name>contextConfigLocation</param-name>
<param-value>classpath:spring/spring-mvc.xml</param-value>
</init-param>
<load-on-startup>1</load-on-startup>
<async-supported>true</async-supported>
</servlet>
<servlet-mapping>
<servlet-name>springmvc</servlet-name>
<url-pattern>/</url-pattern>
</servlet-mapping>
</web-app>
3.redis.properties
redis.hostName=47.110.157.82
redis.port=6379
redis.password=
redis.usePool=true
redis.timeout=10000
4.application-session.xml
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:context="http://www.springframework.org/schema/context"
xsi:schemaLocation="http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans.xsd
http://www.springframework.org/schema/context
https://www.springframework.org/schema/context/spring-context.xsd">
<context:annotation-config/>
<bean class="org.springframework.session.data.redis.config.annotation.web.http.RedisHttpSessionConfiguration"/>
<!--读取redis.properties属性配置文件-->
<context:property-placeholder location="classpath:redis.properties"/>
<!-- 配置jedis连接工厂，用于连接redis -->
<bean id="jedisConnectionFactory" class="org.springframework.data.redis.connection.jedis.JedisConnectionFactory">
<property name="hostName" value="${redis.hostName}"/>
<property name="port" value="${redis.port}"/>
<property name="password" value="${redis.password}"/>
<property name="usePool" value="${redis.usePool}"/>
<property name="timeout" value="${redis.timeout}"/>
</bean>
</beans>
5.applicationContext.xml
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:tx="http://www.springframework.org/schema/tx" xmlns:context="http://www.springframework.org/schema/context"
xsi:schemaLocation="http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans-3.1.xsd
http://www.springframework.org/schema/tx
http://www.springframework.org/schema/tx/spring-tx.xsd http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context.xsd">
<import resource="application-session.xml"/>
</beans>
6.spring-mvc.xml
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:context="http://www.springframework.org/schema/context"
xmlns:mvc="http://www.springframework.org/schema/mvc"
xsi:schemaLocation="http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans.xsd
http://www.springframework.org/schema/context
http://www.springframework.org/schema/context/spring-context.xsd
http://www.springframework.org/schema/mvc
http://www.springframework.org/schema/mvc/spring-mvc-3.0.xsd">
<!-- 扫描注解，这样com.xjt包下的文件都能被扫描 -->
<context:component-scan base-package="com.liu"/>
<!-- 开启SpringMVC注解模式 -->
<mvc:annotation-driven/>
<!-- 静态资源默认servlet配置 -->
<mvc:default-servlet-handler/>
<!-- 配置返回视图的路径，以及识别后缀是jsp文件 -->
<bean class="org.springframework.web.servlet.view.InternalResourceViewResolver">
<property name="viewClass" value="org.springframework.web.servlet.view.JstlView"/>
<property name="prefix" value="/WEB-INF/jsp/"/>
<property name="suffix" value=".jsp"/>
</bean>
</beans>
7.创建设置session的Controller
@Controller
public class TestController {
@RequestMapping("set")
@ResponseBody
public Object set(HttpServletRequest request){
request.getSession().setAttribute("mykey","my value");
return "ok";
}
}
8.修改index.jsp
<%@ page language="java" import="java.util.*" pageEncoding="UTF-8"%>
<%@ page language="java" import="java.text.SimpleDateFormat"%>
<%
SimpleDateFormat simpleDateFormat=new SimpleDateFormat("YYYY-MM-dd HH:mm:ss");
String date=simpleDateFormat.format(new Date());
%>
<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN">
<html>
<head>
<title>tomcat1</title>
</head>
<body>
SessionID:<%=session.getId()%>
<BR>
当前时间为:<%=date%>
<BR>
SessionPort:<%=request.getServerPort()%>
<BR>
mykey的值为：<%=session.getAttribute("mykey")%>
<BR>
<%
out.println("这是tomcat1");
%>
</body>
</html>
部署第二个Tomcat2项目时修改index.jsp
<%@ page language="java" import="java.util.*" pageEncoding="UTF-8"%>
<%@ page language="java" import="java.text.SimpleDateFormat"%>
<%
SimpleDateFormat simpleDateFormat=new SimpleDateFormat("YYYY-MM-dd HH:mm:ss");
String date=simpleDateFormat.format(new Date());
%>
<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN">
<html>
<head>
<title>tomcat2</title>
</head>
<body>
SessionID:<%=session.getId()%>
<BR>
当前时间为:<%=date%>
<BR>
SessionPort:<%=request.getServerPort()%>
<BR>
mykey的值为：<%=session.getAttribute("mykey")%>
<BR>
<%
out.println("这是tomcat2");
%>
</body>
</html>
测试

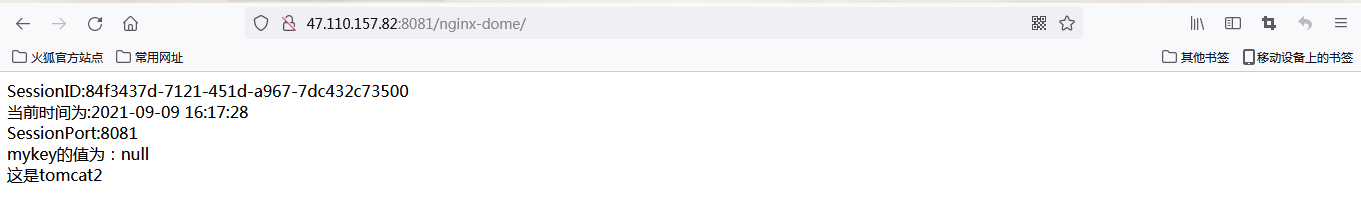

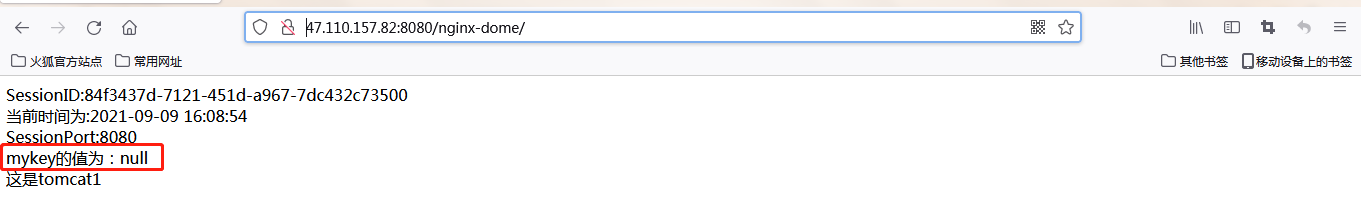

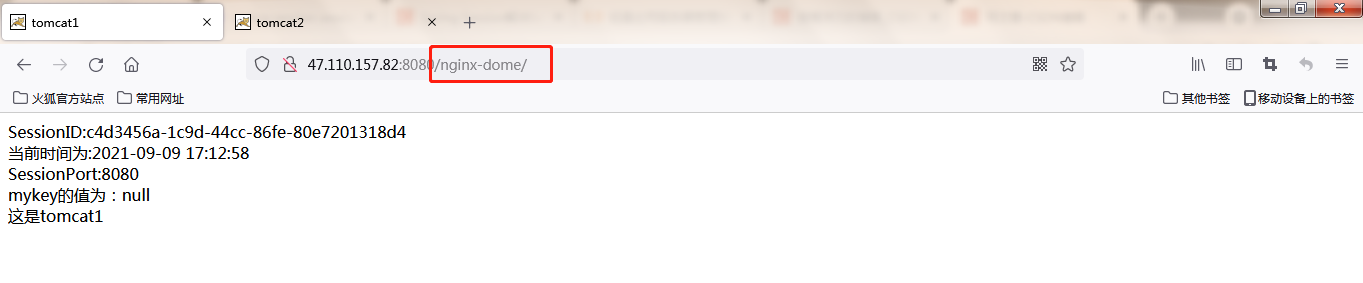

1.部署后访问Tomcat1的index.jsp页面和Tomcat2的index.jsp页面
此时两个项目的Session内容完全一样，mykey都没有值
2.调用设置session的接口

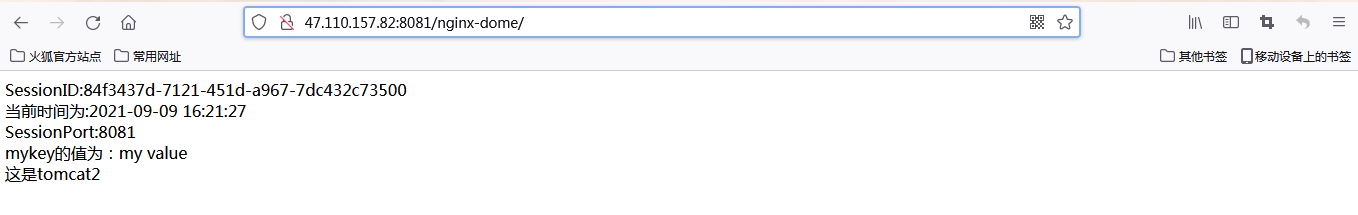

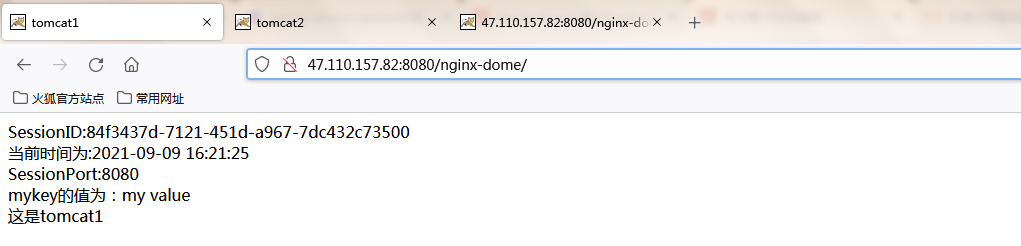

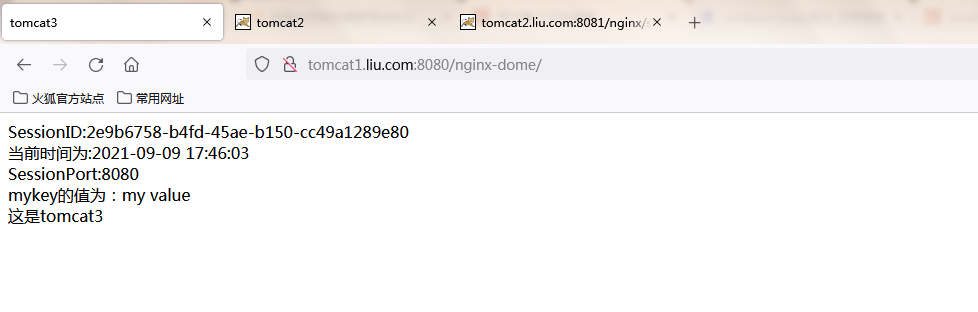

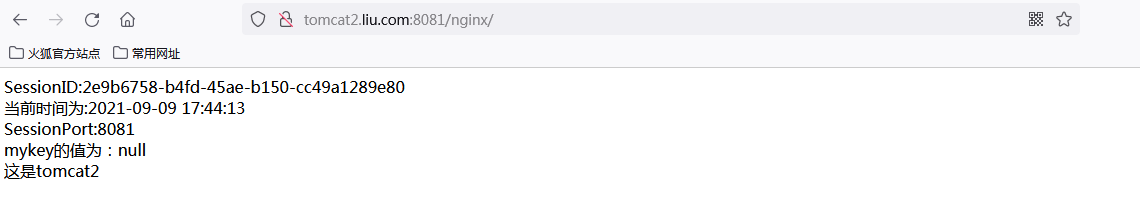

3.再次访问Tomcat1的index.jsp页面和Tomcat2的index.jsp页面
此时两个项目的mykey的值是一样的。说明两个项目session共享

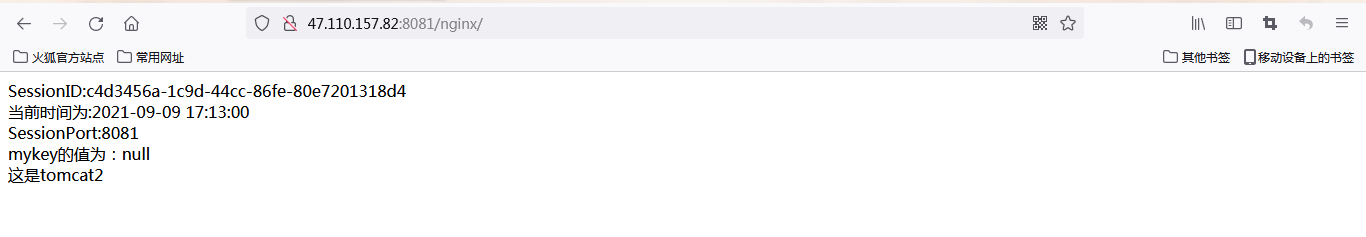

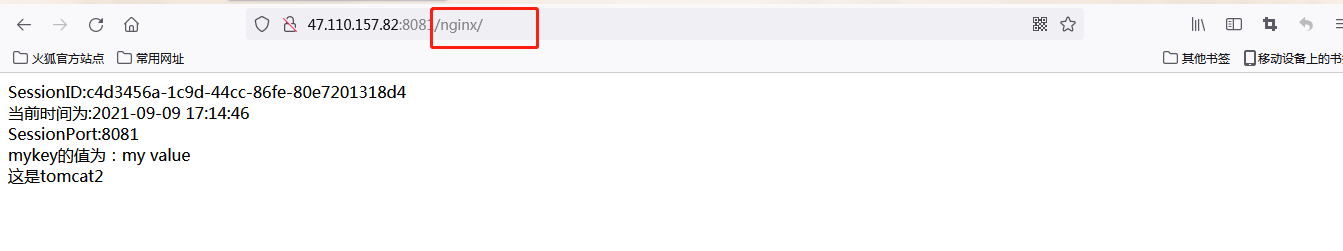

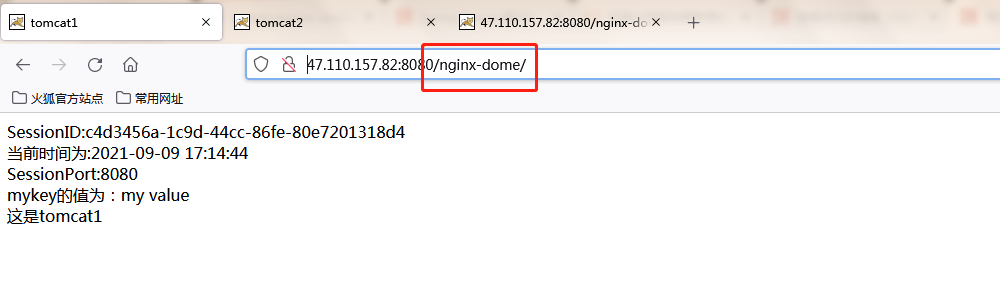

同域名不同项目名session共享

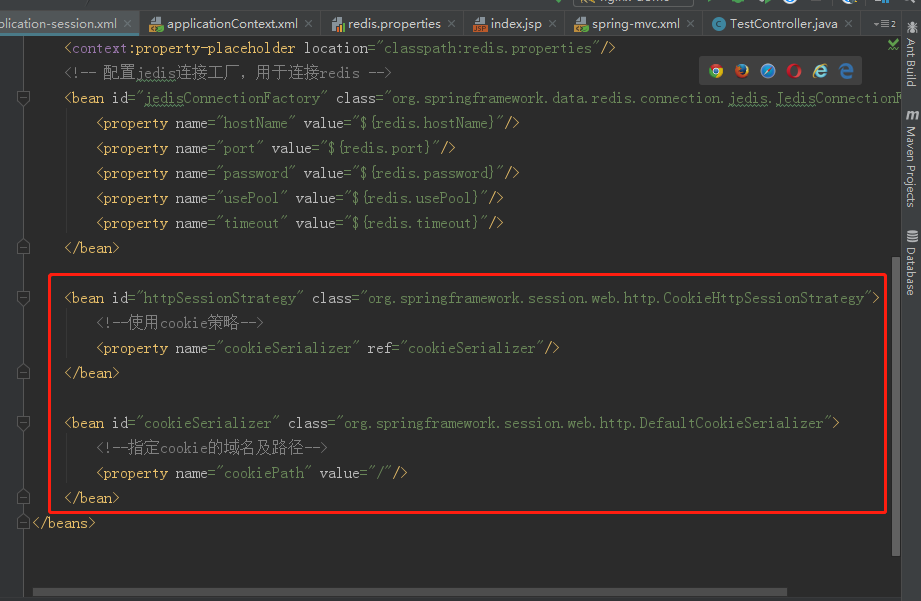

1.修改application-session.xml
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:context="http://www.springframework.org/schema/context"
xsi:schemaLocation="http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans.xsd
http://www.springframework.org/schema/context
https://www.springframework.org/schema/context/spring-context.xsd">
<context:annotation-config/>
<bean class="org.springframework.session.data.redis.config.annotation.web.http.RedisHttpSessionConfiguration"/>
<!--读取redis.properties属性配置文件-->
<context:property-placeholder location="classpath:redis.properties"/>
<!-- 配置jedis连接工厂，用于连接redis -->
<bean id="jedisConnectionFactory" class="org.springframework.data.redis.connection.jedis.JedisConnectionFactory">
<property name="hostName" value="${redis.hostName}"/>
<property name="port" value="${redis.port}"/>
<property name="password" value="${redis.password}"/>
<property name="usePool" value="${redis.usePool}"/>
<property name="timeout" value="${redis.timeout}"/>
</bean>
<bean id="httpSessionStrategy" class="org.springframework.session.web.http.CookieHttpSessionStrategy">
<!--使用cookie策略-->
<property name="cookieSerializer" ref="cookieSerializer"/>
</bean>
<bean id="cookieSerializer" class="org.springframework.session.web.http.DefaultCookieSerializer">
<!--指定cookie的域名及路径-->
<property name="cookiePath" value="/"/>
</bean>
</beans>
2.修改两个项目名分别为nginx-dome和nginx，也就是war包名为nginx-dome.war和nginx.war
测试
1.部署后访问Tomcat1的index.jsp页面和Tomcat2的index.jsp页面
此时两个项目的Session内容完全一样，mykey都没有值
2.调用设置session的接口
3.再次访问Tomcat1的index.jsp页面和Tomcat2的index.jsp页面
此时两个项目的mykey的值是一样的。说明两个项目session共享
不同域名不同项目session共享

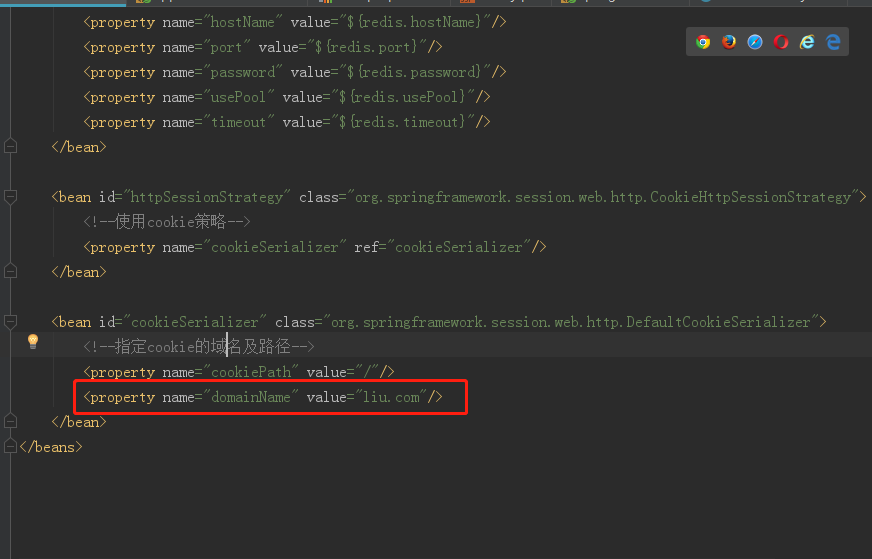

1.修改application-session.xml
2.修改两个项目名分别为nginx-dome和nginx，也就是war包名为nginx-dome.war和nginx.war
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:context="http://www.springframework.org/schema/context"
xsi:schemaLocation="http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans.xsd
http://www.springframework.org/schema/context
https://www.springframework.org/schema/context/spring-context.xsd">
<context:annotation-config/>
<bean class="org.springframework.session.data.redis.config.annotation.web.http.RedisHttpSessionConfiguration"/>
<!--读取redis.properties属性配置文件-->
<context:property-placeholder location="classpath:redis.properties"/>
<!-- 配置jedis连接工厂，用于连接redis -->
<bean id="jedisConnectionFactory" class="org.springframework.data.redis.connection.jedis.JedisConnectionFactory">
<property name="hostName" value="${redis.hostName}"/>
<property name="port" value="${redis.port}"/>
<property name="password" value="${redis.password}"/>
<property name="usePool" value="${redis.usePool}"/>
<property name="timeout" value="${redis.timeout}"/>
</bean>
<bean id="httpSessionStrategy" class="org.springframework.session.web.http.CookieHttpSessionStrategy">
<!--使用cookie策略-->
<property name="cookieSerializer" ref="cookieSerializer"/>
</bean>
<bean id="cookieSerializer" class="org.springframework.session.web.http.DefaultCookieSerializer">
<!--指定cookie的域名及路径-->
<property name="cookiePath" value="/"/>
<property name="domainName" value="liu.com"/>
</bean>
</beans>
测试

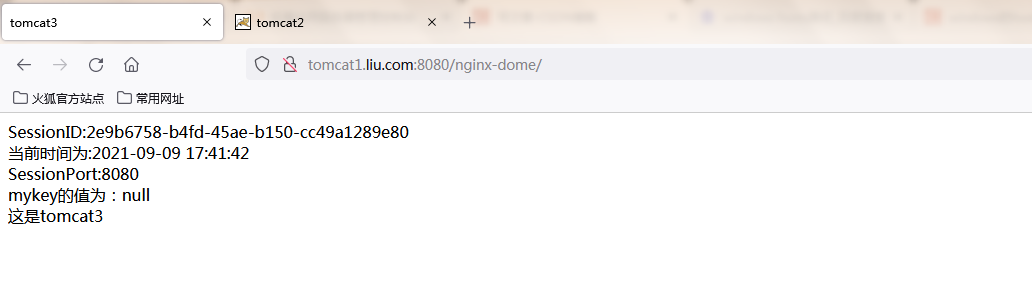

1.部署后访问Tomcat1的index.jsp页面和Tomcat2的index.jsp页面
此时两个项目的Session内容完全一样，mykey都没有值
2.调用设置session的接口
3.再次访问Tomcat1的index.jsp页面和Tomcat2的index.jsp页面
此时两个项目的mykey的值是一样的。说明两个项目session共享
