[PHP知识库]Nginx-Ingress日志持久化

1、1. 介绍

nginx-ingress-controller的日志包括三个部分：

• controller日志：输出到stdout，通过启动参数中的–log_dir可已配置输出到文件，重定向到文件后会自动轮转，但不会自动清理
• accesslog：输出到stdout，通过nginx-configuration中的字段可以配置输出到哪个文件。输出到文件后不会自动轮转或清理
• errorlog：输出到stderr，配置方式与accesslog类似。

2、落盘

2.1、在ingress nginx所在的节点，创建落盘日志目录，并赋予权限

mkdir /nfs/logs/nginx-ingress -p
chown -R 101.101 /nfs/logs/nginx-ingress/	# 在这里需要注意的是得跟自己nginx-ingress里的用户一样否则没有权限

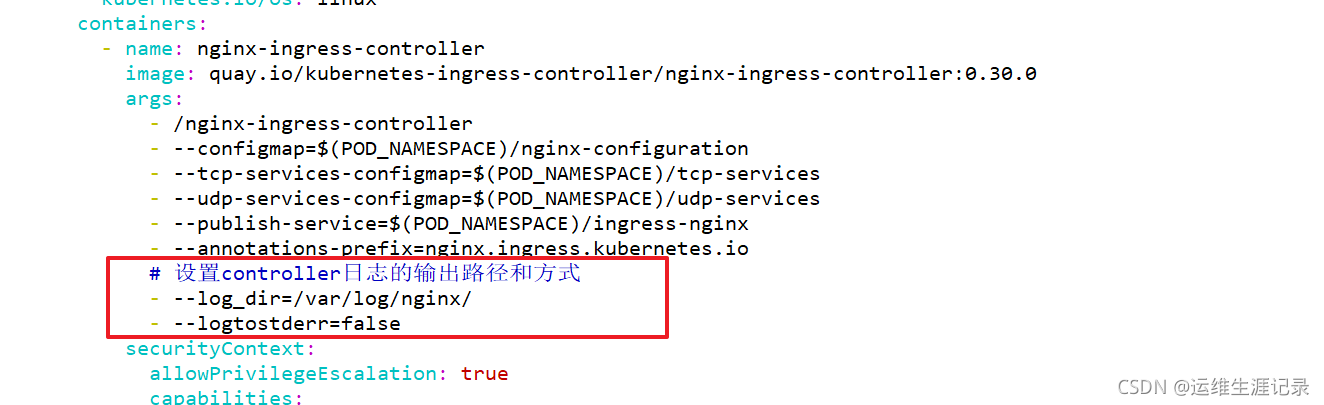

2.2、将controler日志输出到文件

修改一下nginx-ingress启动选项
            # 设置controller日志的输出路径和方式
            - --log_dir=/var/log/nginx/
            - --logtostderr=false

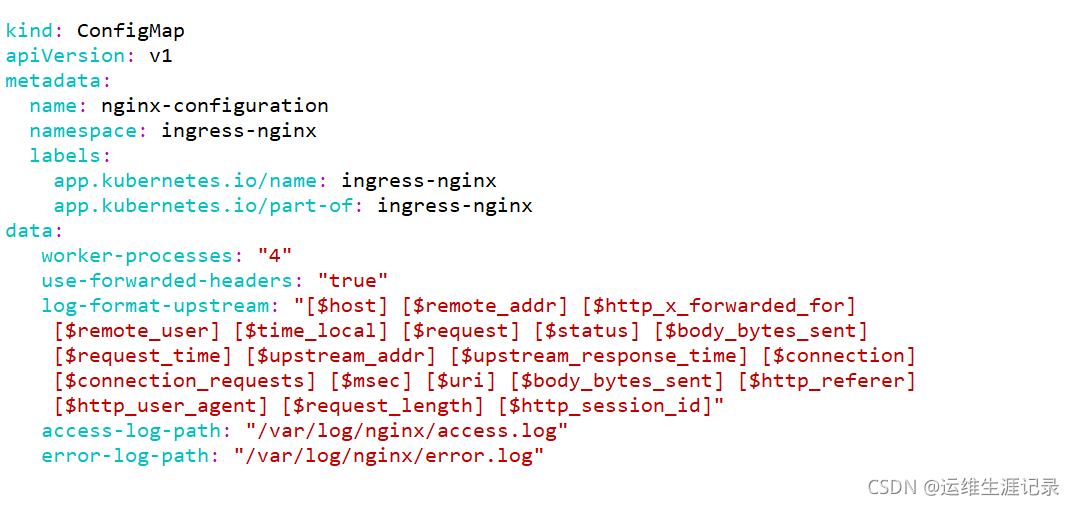

2.3、修改configmap设置access日志，error日志，以及logformat格式

data:
   worker-processes: "4"
   use-forwarded-headers: "true"
   log-format-upstream: "[$host] [$remote_addr] [$http_x_forwarded_for]
    [$remote_user] [$time_local] [$request] [$status] [$body_bytes_sent]
    [$request_time] [$upstream_addr] [$upstream_response_time] [$connection]
    [$connection_requests] [$msec] [$uri] [$body_bytes_sent] [$http_referer]
    [$http_user_agent] [$request_length] [$http_session_id]"
   access-log-path: "/var/log/nginx/access.log"
   error-log-path: "/var/log/nginx/error.log"

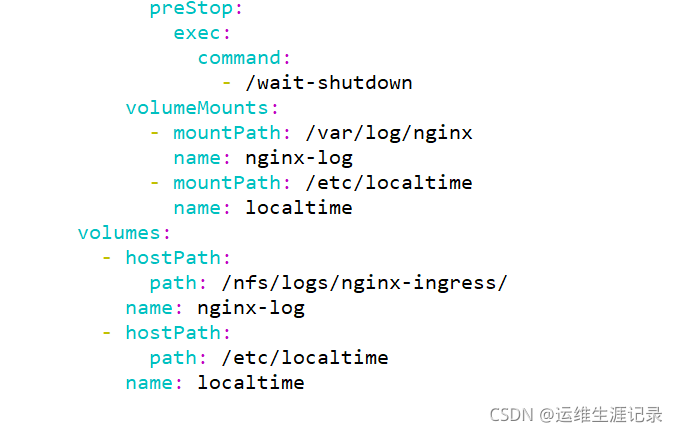

2.4、挂载日志

          volumeMounts:
            - mountPath: /var/log/nginx
              name: nginx-log
            - mountPath: /etc/localtime
              name: localtime
      volumes:
        - hostPath:
            path: /nfs/logs/nginx-ingress/
          name: nginx-log
        - hostPath:
            path: /etc/localtime
          name: localtime

2.5、重启一下Ingress查看一下效果

[root@k8s-m1 nginx-ingress]# ll /nfs/logs/nginx-ingress/
total 188
-rw-r--r-- 1 101 101 14229 Sep 11 17:30 access.log
-rw-r--r-- 1 101 101   539 Sep 12 14:01 error.log
lrwxrwxrwx 1 101 101    68 Sep 12 14:24 nginx-ingress-controller.ERROR -> nginx-ingress-controller.k8s-n3.www-data.log.ERROR.20210912-142434.6
lrwxrwxrwx 1 101 101    67 Sep 12 14:00 nginx-ingress-controller.INFO -> nginx-ingress-controller.k8s-n3.www-data.log.INFO.20210912-140059.6
-rw-r--r-- 1 101 101  8217 Sep 12 13:18 nginx-ingress-controller.k8s-n1.www-data.log.ERROR.20210911-135853.7
-rw-r--r-- 1 101 101 25589 Sep 12 13:18 nginx-ingress-controller.k8s-n1.www-data.log.INFO.20210911-134055.7
-rw-r--r-- 1 101 101 12091 Sep 12 13:18 nginx-ingress-controller.k8s-n1.www-data.log.WARNING.20210911-134055.7
-rw-r--r-- 1 101 101  5912 Sep 12 13:01 nginx-ingress-controller.k8s-n2.www-data.log.ERROR.20210911-135900.6
-rw-r--r-- 1 101 101 11022 Sep 12 13:01 nginx-ingress-controller.k8s-n2.www-data.log.INFO.20210911-133925.6
-rw-r--r-- 1 101 101  6190 Sep 12 13:01 nginx-ingress-controller.k8s-n2.www-data.log.WARNING.20210911-133925.6
-rw-r--r-- 1 101 101  7544 Sep 12 14:00 nginx-ingress-controller.k8s-n3.www-data.log.ERROR.20210911-135900.6
-rw-r--r-- 1 101 101   344 Sep 12 14:24 nginx-ingress-controller.k8s-n3.www-data.log.ERROR.20210912-142434.6
-rw-r--r-- 1 101 101 13627 Sep 12 14:00 nginx-ingress-controller.k8s-n3.www-data.log.INFO.20210911-134029.6
-rw-r--r-- 1 101 101  4120 Sep 12 14:24 nginx-ingress-controller.k8s-n3.www-data.log.INFO.20210912-140059.6
-rw-r--r-- 1 101 101  7822 Sep 12 14:00 nginx-ingress-controller.k8s-n3.www-data.log.WARNING.20210911-134029.6
-rw-r--r-- 1 101 101   622 Sep 12 14:24 nginx-ingress-controller.k8s-n3.www-data.log.WARNING.20210912-140059.6
-rw-r--r-- 1 101 101  7802 Sep 12 14:19 nginx-ingress-controller.k8s-n4.www-data.log.ERROR.20210911-140334.6
-rw-r--r-- 1 101 101 18859 Sep 12 14:19 nginx-ingress-controller.k8s-n4.www-data.log.INFO.20210911-133959.6
-rw-r--r-- 1 101 101  9427 Sep 12 14:19 nginx-ingress-controller.k8s-n4.www-data.log.WARNING.20210911-133959.6
lrwxrwxrwx 1 101 101    70 Sep 12 14:00 nginx-ingress-controller.WARNING -> nginx-ingress-controller.k8s-n3.www-data.log.WARNING.20210912-140059.6

3、带域名访问一下

apiVersion: networking.k8s.io/v1beta1
kind: Ingress
metadata:
  name: lzulms-myapp
  namespace: lzulms
spec:
  rules:
    - host: lzulmsconfig.chinaedu.net
      http:
        paths:
          - backend:
              serviceName: lzulms-myapp
              servicePort: 80
            path: /

cat /nfs/logs/nginx-ingress/access.log
[lzulmsconfig.chinaedu.net] [172.16.28.138] [-] [-] [11/Sep/2021:17:30:12 +0800] [GET /hostname.html HTTP/1.1] [200] [29] [0.003] [10.244.4.230:80] [0.002] [170314] [15] [1631352612.452] [/hostname.html] [29] [http://lzulmsconfig.chinaedu.net/] [Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/93.0.4577.63 Safari/537.36 Edg/93.0.961.38] [777] [-]
