[PHP知识库]saltStack之zabbix部署状态文件编写

一、saltStack之zabbix部署状态文件编写

环境说明:

centos8

主机名IP地址部署功能性能
master192.168.143.101salt-master salt-minion4核8G
minion192.168.143.103salt-minion zabbix -server zabbix-age lamp4核2G
[root@master salt]# tree prod/
prod/
├── modules
│   ├── application
│   │   └── php
│   │       ├── files
│   │       │   ├── install.sh
│   │       │   ├── oniguruma-devel-6.8.2-2.el8.x86_64.rpm
│   │       │   ├── php-7.4.24.tar.xz
│   │       │   ├── php-fpm
│   │       │   ├── php-fpm.conf
│   │       │   ├── php-fpm.service
│   │       │   └── www.conf
│   │       └── install.sls
│   ├── database
│   │   └── mysql
│   │       ├── files
│   │       │   ├── install.sh
│   │       │   ├── my.cnf
│   │       │   ├── mysql-5.7.33-linux-glibc2.12-x86_64.tar.gz
│   │       │   ├── mysqld.service
│   │       │   └── mysql.server
│   │       ├── install.sls
│   │       └── install.sls-bask
│   └── web
│       └── apache
│           ├── files
│           │   ├── apr-1.7.0.tar.gz
│           │   ├── apr-util-1.6.1.tar.gz
│           │   ├── httpd-2.4.51.tar.gz
│           │   ├── httpd.conf
│           │   ├── httpd.service
│           │   └── install.sh
│           └── install.sls
└── zabbix
    ├── apache.sls
    ├── files
    │   ├── httpd.conf
    │   ├── index.php
    │   ├── install.sh
    │   ├── my.cnf
    │   ├── mysql.conf
    │   ├── php.ini
    │   ├── vhosts.conf
    │   ├── zabbix-5.4.4.tar.gz
    │   └── zabbix_server.conf
    ├── install.sls
    ├── main.sls
    ├── mysql.sls
    └── php.sls

apache的安装状态

[root@master salt]# vim prod/modules/web/apache/install.sls
apache-dep-package:
  pkg.installed:
    - pkgs:
      - epel-release
      - openssl-devel
      - pcre-devel
      - expat-devel
      - libtool
      - gcc
      - gcc-c++
      - make

apache:
  user.present:
    - shell: /sbin/nologin
    - createhome: false
    - system: true

apache-download:
  file.managed:
    - names:
      - /usr/src/apr-1.7.0.tar.gz:
        - source: salt://modules/web/apache/files/apr-1.7.0.tar.gz
      - /usr/src/apr-util-1.6.1.tar.gz:
        - source: salt://modules/web/apache/files/apr-util-1.6.1.tar.gz
      - /usr/src/httpd-2.4.51.tar.gz:
        - source: salt://modules/web/apache/files/httpd-2.4.51.tar.gz
      - /usr/lib/systemd/system/httpd.service:
        - source: salt://modules/web/apache/files/httpd.service

salt://modules/web/apache/files/install.sh:
  cmd.script

/usr/local/apache/conf/httpd.conf:
  file.managed:
    - source: salt://modules/web/apache/files/httpd.conf
    - user: root
    - group: root
    - mode: '0644'

mysql的安装状态

[root@master salt]# cat prod/modules/database/mysql/install.sls
ncurses-compat-libs:
  pkg.installed

create-mysql-user:
  user.present:
    - name: mysql
    - system: true
    - createhome: fales
    - shell: /sbin/nologin

create_datadir:
  file.directory:
    - name: /opt/data
    - user: mysql
    - group: mysql
    - mode: '0755'
    - makedirs: true

/usr/src/mysql-5.7.33-linux-glibc2.12-x86_64.tar.gz:
  file.managed:
    - source: salt://modules/database/mysql/files/mysql-5.7.33-linux-glibc2.12-x86_64.tar.gz
    - user: root
    - group: root
    - mode: '0644'

salt://modules/database/mysql/files/install.sh:
  cmd.script

trasfer-files:
  file.managed:
    - names:
      - /usr/local/mysql/support-files/mysql.server:
        - source: salt://modules/database/mysql/files/mysql.server
      - /usr/lib/systemd/system/mysqld.service:
        - source: salt://modules/database/mysql/files/mysqld.service

php的安装状态

dep-package-install:
  pkg.installed:
    - pkgs:
      - libxml2
      - libxml2-devel
      - openssl
      - openssl-devel
      - bzip2
      - bzip2-devel
      - libcurl
      - libcurl-devel
      - libicu-devel
      - libjpeg
      - libjpeg-devel
      - libpng
      - libpng-devel
      - openldap-devel
      - pcre-devel
      - freetype
      - freetype-devel
      - gmp
      - gmp-devel
      - libmcrypt
      - libmcrypt-devel
      - readline
      - readline-devel
      - libxslt
      - libxslt-devel
      - mhash
      - mhash-devel
      - php-mysqlnd
      - libsqlite3x
      - libsqlite3x-devel
      - libzip-devel

/usr/src/oniguruma-devel-6.8.2-2.el8.x86_64.rpm:
  file.managed:
    - source: salt://modules/application/php/files/oniguruma-devel-6.8.2-2.el8.x86_64.rpm
    - user: root
    - group: root
    - mode: '0644'
  cmd.run:
    - name: yum install -y /usr/src/oniguruma-devel-6.8.2-2.el8.x86_64.rpm

/usr/src/php-7.4.24.tar.xz:
  file.managed:
    - source: salt://modules/application/php/files/php-7.4.24.tar.xz
    - user: root
    - group: root
    - mode: '0644'

salt://modules/application/php/files/install.sh:
  cmd.script

copysoft:
  file.managed:
    - names:
      - /etc/init.d/php-fpm:
        - source: salt://modules/application/php/files/php-fpm
        - user: root
        - group: root
        - mode: '0755'
      - /usr/local/php7/etc/php-fpm.conf:
        - source: salt://modules/application/php/files/php-fpm.conf
      - /usr/local/php7/etc/php-fpm.d/www.conf:
        - source: salt://modules/application/php/files/www.conf
      - /usr/lib/systemd/system/php-fpm.service:
        - source: salt://modules/application/php/files/php-fpm.service

php-fpm.service:
  service.running:
    - enable: true

apache的配置状态

[root@master salt]# cat prod/zabbix/apache.sls
"Development Tools":
  pkg.group_installed

include:
  - modules.web.apache.install

/usr/include/httpd:
  file.symlink:
    - target: /usr/local/apache/include

/usr/local/apache/htdocs/:
  file.directory:
    - user: apache
    - group: apache
    - mode: '0755'
    - makedirs: True

mkdir /usr/local/apache/htdocs/zabbix:
  cmd.run:
    - creates: /usr/local/apache/htdocs/zabbix

/usr/local/apache/htdocs/zabbix/index.php:
  file.managed:
    - source: salt://zabbix/files/index.php
    - user: root
    - group: root
    - mode: '0644'

/usr/local/apache/conf/extra/vhosts.conf:
  file.managed:
    - source: salt://zabbix/files/vhosts.conf

zabbix-apache-service:
  service.running:
    - name: httpd
    - enable: true

mysqld的配置状态

include:
  - modules.database.mysql.install

provides-mysql-file:
  file.managed:
    - user: root
    - group: root
    - mode: '0644'
    - names:
      - /etc/my.cnf:
        - source: salt://zabbix/files/my.cnf
      - /etc/ld.so.conf.d/mysql.conf:
        - source: salt://zabbix/files/mysql.conf

/usr/local/include/mysql:
  file.symlink:
    - target: /usr/local/mysql/include/

mysqld.service:
  service.running:
    - enable: true

set-password:
  cmd.run:
    - name: /usr/local/mysql/bin/mysql -e "set password=password('123456');"

lamp的状态文件

[root@master zabbix]# cat main.sls
include:
  - zabbix.apache
  - zabbix.mysql
  - modules.application.php.install

zabbix安装的状态文件

[root@master zabbix]# vim install.sls
include:
  - zabbix.main

dep-zabbix-install:
  pkg.installed:
    - pkgs:
      - net-snmp-devel
      - libevent-devel

zabbix:
  user.present:
    - shell: /sbin/nologin
    - createhome: false
    - system: true

/usr/src/zabbix-5.4.4.tar.gz:
  file.managed:
    - source: salt://zabbix/files/zabbix-5.4.4.tar.gz
    - user: root
    - group: root
    - mode: '0644'

salt://zabbix/files/install.sh:
  cmd.script

/usr/local/etc/zabbix_server.conf:
  file.managed:
    - source: salt://zabbix/files/zabbix_server.conf
    - user: root
    - group: root
    - mode: '0644'

mkdir /var/lib/mysql:
  cmd.run:
    - creates: /var/lib/mysql

/var/lib/mysql/mysql.sock:
  file.symlink:
    - target: /tmp/mysql.sock

/etc/php.ini:
  file.managed:
    - source: salt://zabbix/files/php.ini
    - user: root
    - group: root
    - mode: '0644'

restart php:
  cmd.run:
    - name: systemctl restart php-fpm

zabbix.file:
  cmd.run:
    - name: cp -a /usr/src/zabbix-5.4.4/ui/* /usr/local/apache/htdocs/zabbix/

/usr/local/apache/htdocs/zabbix/conf/:
  file.drectory:
    - user: root
    - group: root
    - mode: '0777'
    - makedirs: True

restart httpd:
  cmd.run:
    - name: systemctl restart httpd

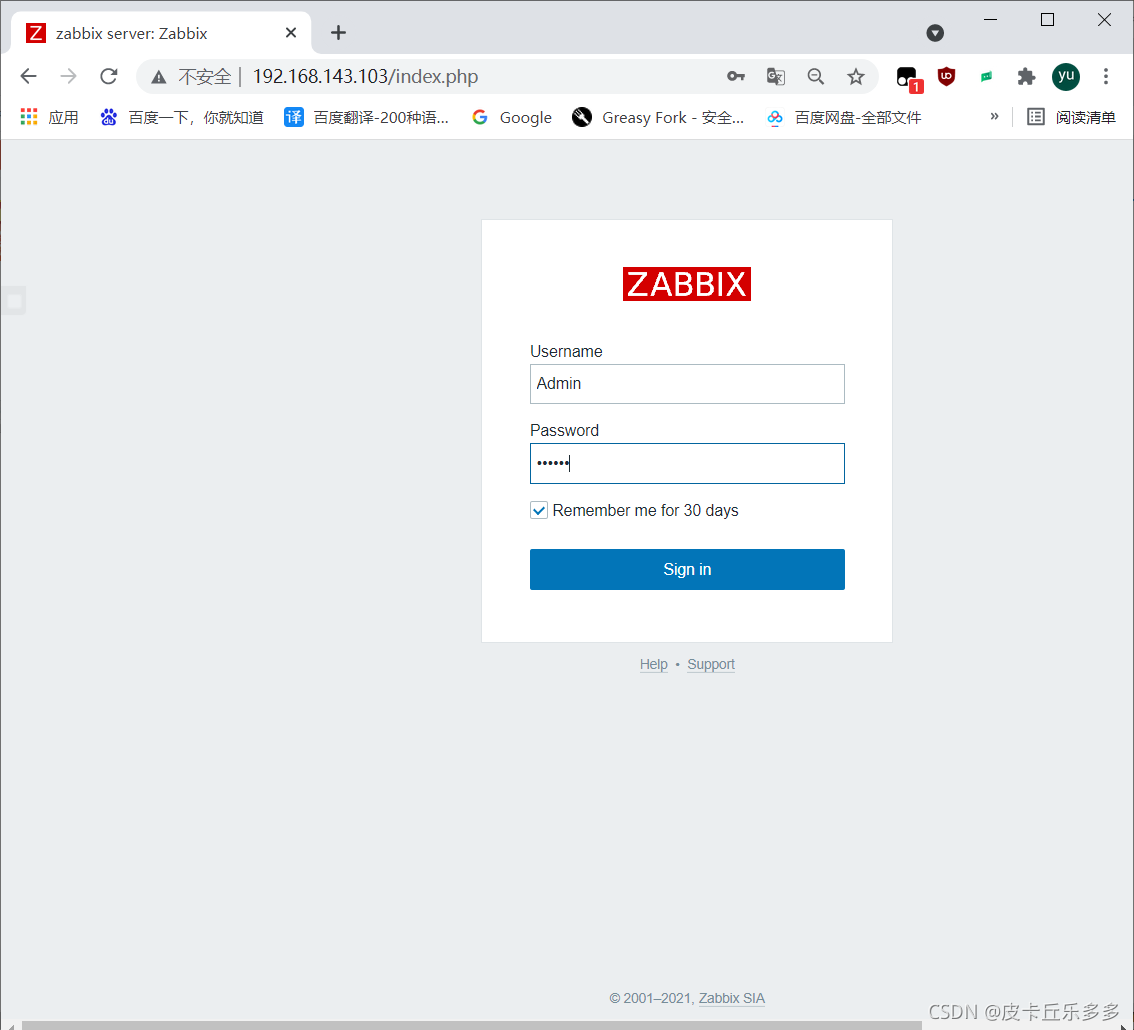

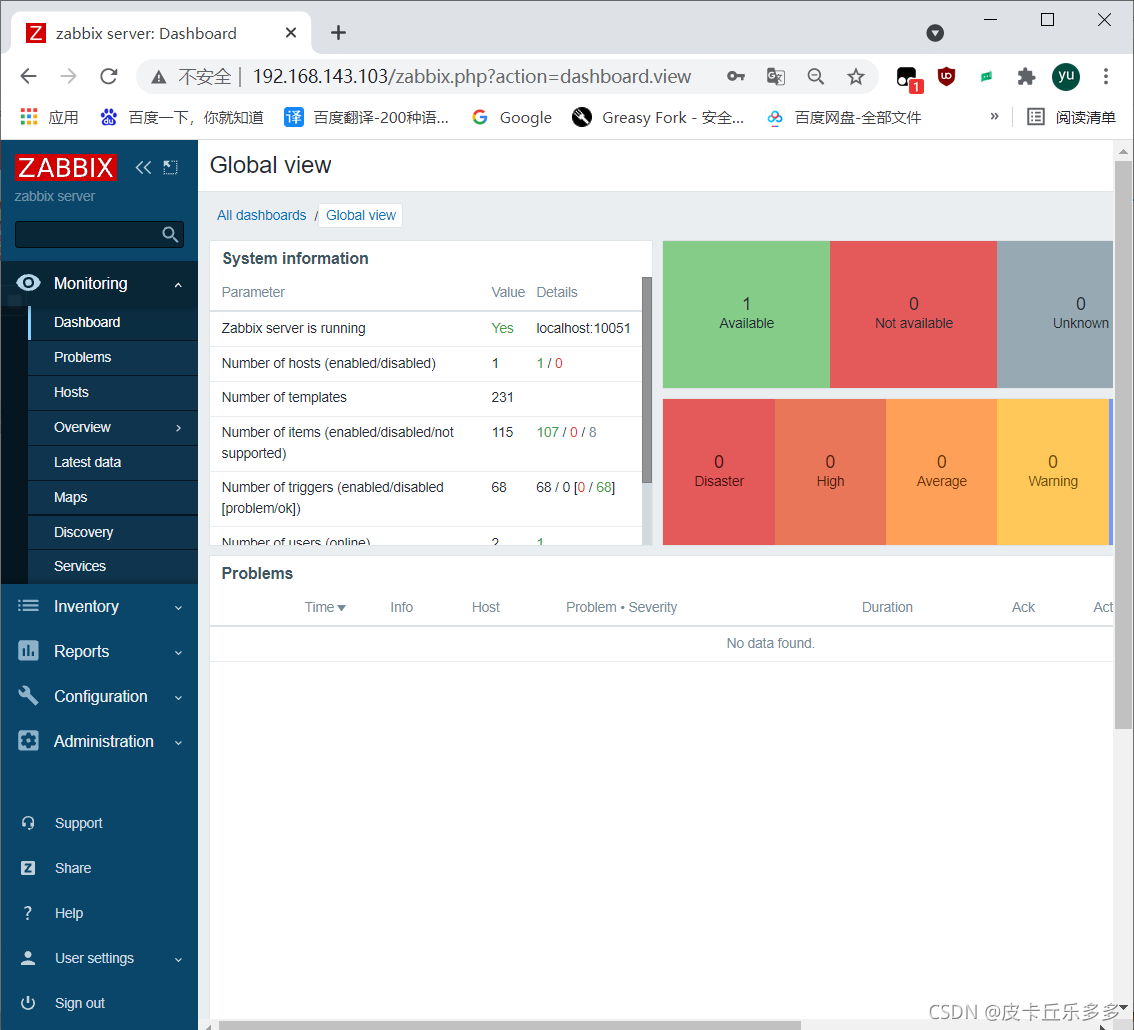

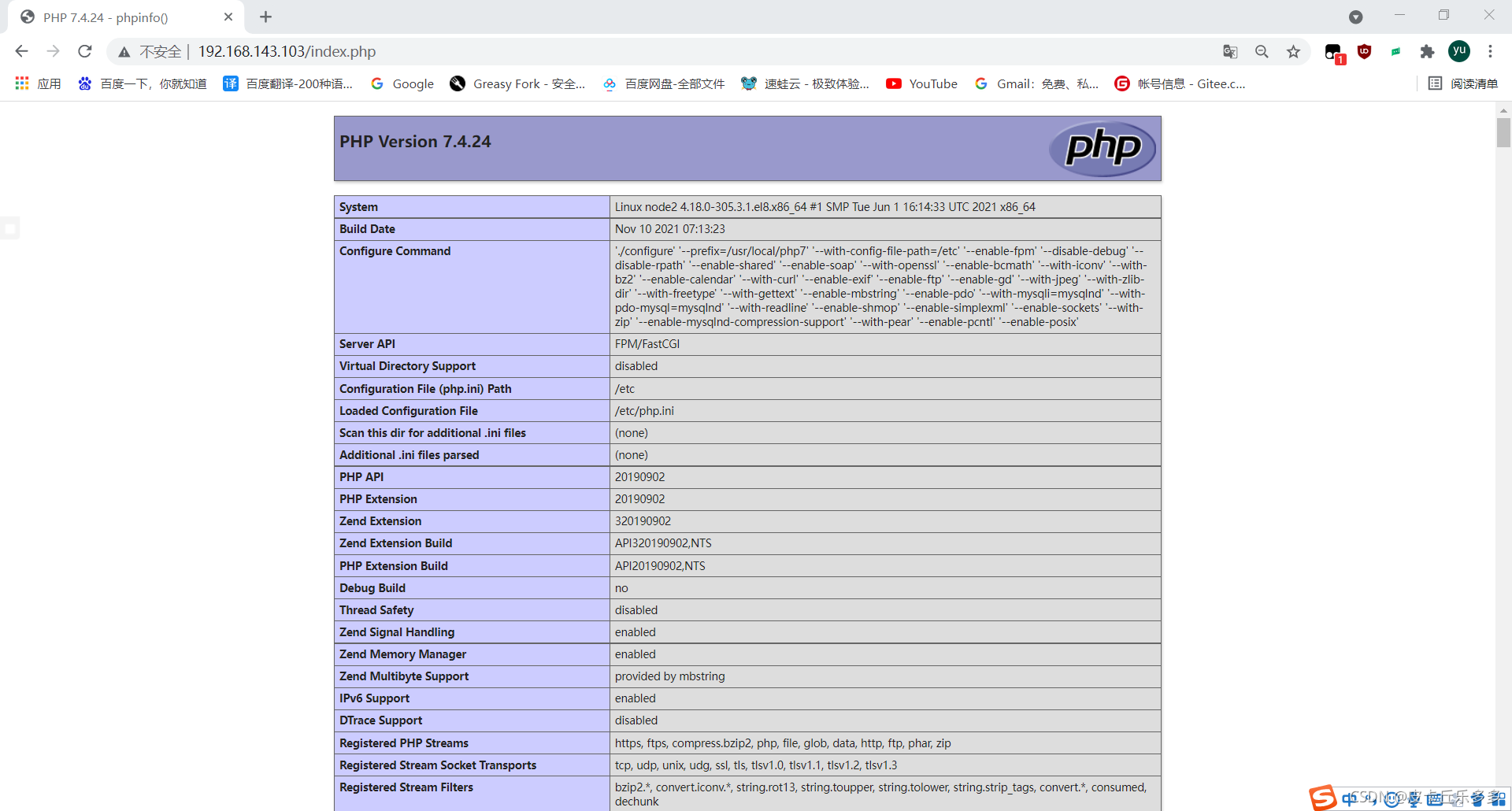

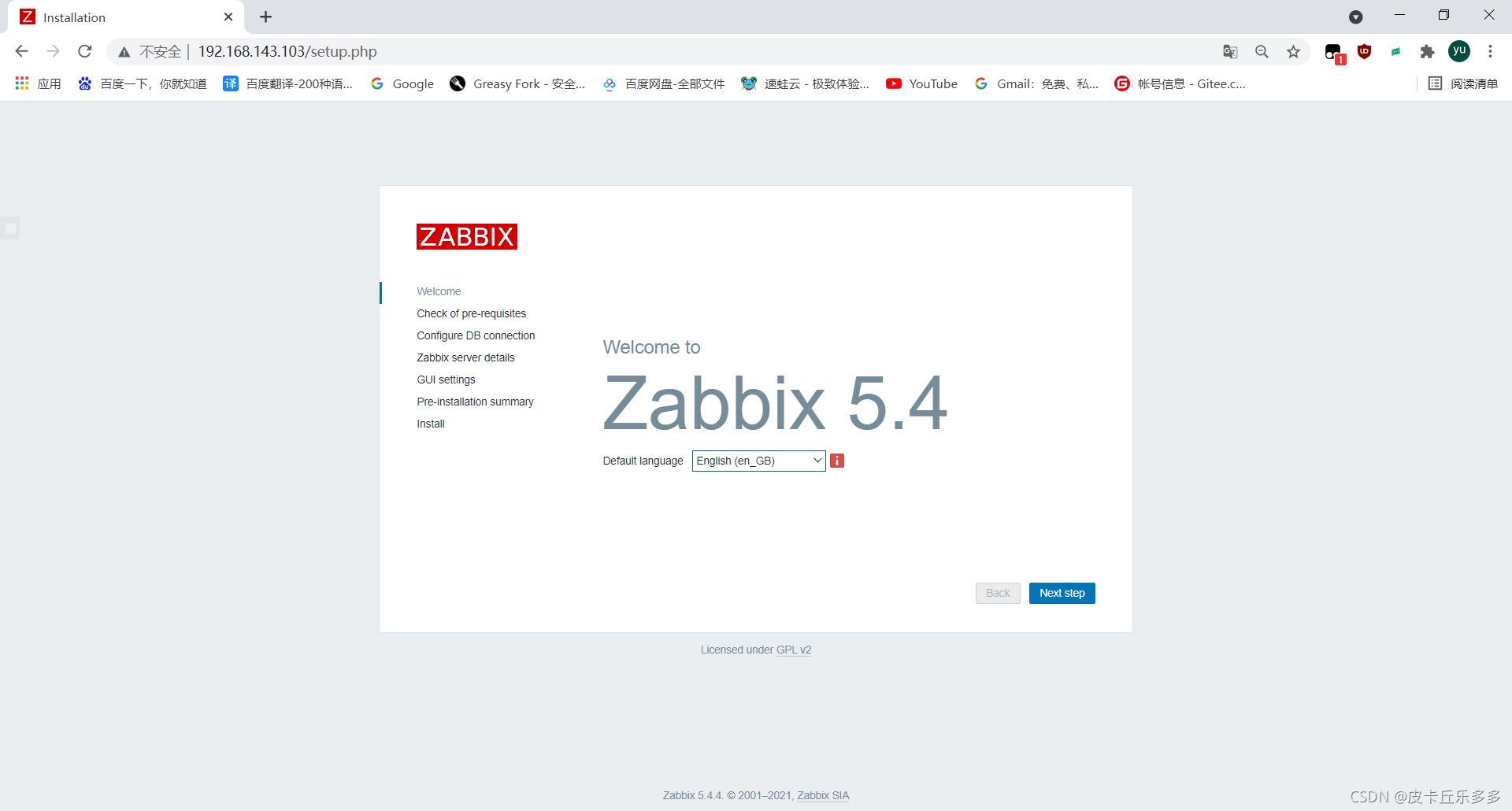

二、实现效果

在这里插入图片描述

在这里插入图片描述
在这里插入图片描述
在这里插入图片描述
