easyX是什么
EasyX Graphics Library 是针对 Visual C++ 的免费绘图库，支持 VC6.0 ~VC2019，简单易用，学习成本极低，应用领域广泛。目前已有许多大学将 EasyX 应用在教学当中。
在编译器中所需要包含的头文件 #include <graphics.h>
安装easyX
首先，我们要实现这个项目，需要用到图形库，我们选择用简单easyX的图形库，可以去到官网下载，可点击下面的链接。
点击easyX官网
然后再点击下载

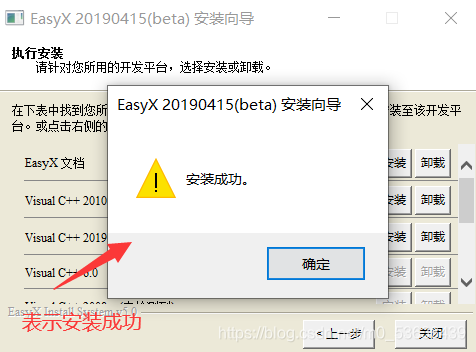

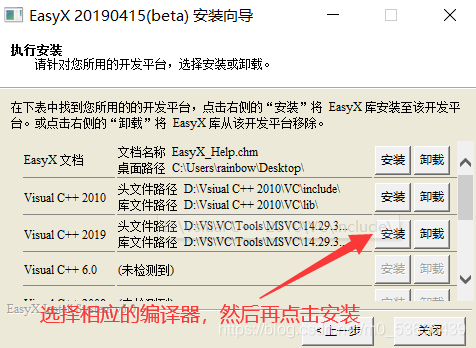

下载完之后，我们点击easyX安装，刚开始直接点下一步，然后进入到以下页面
这个呢，选择自己相应的编辑器，然后选择安装，这里以vs2019为主(用其他编辑器的都一样的，点安装即可)，也可以安装easyX文档，有助于自己学习。
在vs2019中创建一个新的项目
如果有不知道vs2019怎么用的，可以看这篇文章
vs2019的安装及使用
源码
这边有一个头文件和两个CPP文件
date_set.h
//date_set.h
#pragma once
void getDate(int* year, int* month, int* day, char* longliStr);
void getWeek(int y, int m, int d, char* str);
void getTime(int* hour, int* minute, int* second);
date_set.cpp
//date_set.cpp
#include <time.h>
#include <stdio.h>
#include <string.h>
unsigned int LunarCalendarDay;
unsigned int LunarCalendarTable[199] =
{
0x04AE53,0x0A5748,0x5526BD,0x0D2650,0x0D9544,0x46AAB9,0x056A4D,0x09AD42,0x24AEB6,0x04AE4A,/*1901-1910*/
0x6A4DBE,0x0A4D52,0x0D2546,0x5D52BA,0x0B544E,0x0D6A43,0x296D37,0x095B4B,0x749BC1,0x049754,/*1911-1920*/
0x0A4B48,0x5B25BC,0x06A550,0x06D445,0x4ADAB8,0x02B64D,0x095742,0x2497B7,0x04974A,0x664B3E,/*1921-1930*/
0x0D4A51,0x0EA546,0x56D4BA,0x05AD4E,0x02B644,0x393738,0x092E4B,0x7C96BF,0x0C9553,0x0D4A48,/*1931-1940*/
0x6DA53B,0x0B554F,0x056A45,0x4AADB9,0x025D4D,0x092D42,0x2C95B6,0x0A954A,0x7B4ABD,0x06CA51,/*1941-1950*/
0x0B5546,0x555ABB,0x04DA4E,0x0A5B43,0x352BB8,0x052B4C,0x8A953F,0x0E9552,0x06AA48,0x6AD53C,/*1951-1960*/
0x0AB54F,0x04B645,0x4A5739,0x0A574D,0x052642,0x3E9335,0x0D9549,0x75AABE,0x056A51,0x096D46,/*1961-1970*/
0x54AEBB,0x04AD4F,0x0A4D43,0x4D26B7,0x0D254B,0x8D52BF,0x0B5452,0x0B6A47,0x696D3C,0x095B50,/*1971-1980*/
0x049B45,0x4A4BB9,0x0A4B4D,0xAB25C2,0x06A554,0x06D449,0x6ADA3D,0x0AB651,0x093746,0x5497BB,/*1981-1990*/
0x04974F,0x064B44,0x36A537,0x0EA54A,0x86B2BF,0x05AC53,0x0AB647,0x5936BC,0x092E50,0x0C9645,/*1991-2000*/
0x4D4AB8,0x0D4A4C,0x0DA541,0x25AAB6,0x056A49,0x7AADBD,0x025D52,0x092D47,0x5C95BA,0x0A954E,/*2001-2010*/
0x0B4A43,0x4B5537,0x0AD54A,0x955ABF,0x04BA53,0x0A5B48,0x652BBC,0x052B50,0x0A9345,0x474AB9,/*2011-2020*/
0x06AA4C,0x0AD541,0x24DAB6,0x04B64A,0x69573D,0x0A4E51,0x0D2646,0x5E933A,0x0D534D,0x05AA43,/*2021-2030*/
0x36B537,0x096D4B,0xB4AEBF,0x04AD53,0x0A4D48,0x6D25BC,0x0D254F,0x0D5244,0x5DAA38,0x0B5A4C,/*2031-2040*/
0x056D41,0x24ADB6,0x049B4A,0x7A4BBE,0x0A4B51,0x0AA546,0x5B52BA,0x06D24E,0x0ADA42,0x355B37,/*2041-2050*/
0x09374B,0x8497C1,0x049753,0x064B48,0x66A53C,0x0EA54F,0x06B244,0x4AB638,0x0AAE4C,0x092E42,/*2051-2060*/
0x3C9735,0x0C9649,0x7D4ABD,0x0D4A51,0x0DA545,0x55AABA,0x056A4E,0x0A6D43,0x452EB7,0x052D4B,/*2061-2070*/
0x8A95BF,0x0A9553,0x0B4A47,0x6B553B,0x0AD54F,0x055A45,0x4A5D38,0x0A5B4C,0x052B42,0x3A93B6,/*2071-2080*/
0x069349,0x7729BD,0x06AA51,0x0AD546,0x54DABA,0x04B64E,0x0A5743,0x452738,0x0D264A,0x8E933E,/*2081-2090*/
0x0D5252,0x0DAA47,0x66B53B,0x056D4F,0x04AE45,0x4A4EB9,0x0A4D4C,0x0D1541,0x2D92B5 /*2091-2099*/
};
int MonthAdd[12] = { 0,31,59,90,120,151,181,212,243,273,304,334 };
int LunarCalendar(int year, int month, int day)
{
int Spring_NY, Sun_NY, StaticDayCount;
int index, flag;
//Spring_NY 记录春节离当年元旦的天数。
//Sun_NY 记录阳历日离当年元旦的天数。
if (((LunarCalendarTable[year - 1901] & 0x0060) >> 5) == 1)
Spring_NY = (LunarCalendarTable[year - 1901] & 0x001F) - 1;
else
Spring_NY = (LunarCalendarTable[year - 1901] & 0x001F) - 1 + 31;
Sun_NY = MonthAdd[month - 1] + day - 1;
if ((!(year % 4)) && (month > 2))
Sun_NY++;
//StaticDayCount记录大小月的天数 29 或30
//index 记录从哪个月开始来计算。
//flag 是用来对闰月的特殊处理。
//判断阳历日在春节前还是春节后
if (Sun_NY >= Spring_NY)//阳历日在春节后（含春节那天）
{
Sun_NY -= Spring_NY;
month = 1;
index = 1;
flag = 0;
if ((LunarCalendarTable[year - 1901] & (0x80000 >> (index - 1))) == 0)
StaticDayCount = 29;
else
StaticDayCount = 30;
while (Sun_NY >= StaticDayCount)
{
Sun_NY -= StaticDayCount;
index++;
if (month == ((LunarCalendarTable[year - 1901] & 0xF00000) >> 20))
{
flag = ~flag;
if (flag == 0)
month++;
}
else
month++;
if ((LunarCalendarTable[year - 1901] & (0x80000 >> (index - 1))) == 0)
StaticDayCount = 29;
else
StaticDayCount = 30;
}
day = Sun_NY + 1;
}
else //阳历日在春节前
{
Spring_NY -= Sun_NY;
year--;
month = 12;
if (((LunarCalendarTable[year - 1901] & 0xF00000) >> 20) == 0)
index = 12;
else
index = 13;
flag = 0;
if ((LunarCalendarTable[year - 1901] & (0x80000 >> (index - 1))) == 0)
StaticDayCount = 29;
else
StaticDayCount = 30;
while (Spring_NY > StaticDayCount)
{
Spring_NY -= StaticDayCount;
index--;
if (flag == 0)
month--;
if (month == ((LunarCalendarTable[year - 1901] & 0xF00000) >> 20))
flag = ~flag;
if ((LunarCalendarTable[year - 1901] & (0x80000 >> (index - 1))) == 0)
StaticDayCount = 29;
else
StaticDayCount = 30;
}
day = StaticDayCount - Spring_NY + 1;
}
LunarCalendarDay |= day;
LunarCalendarDay |= (month << 6);
if (month == ((LunarCalendarTable[year - 1901] & 0xF00000) >> 20))
return 1;
else
return 0;
}
void getDate(int* year, int* month, int* day, char* str)
{
const char* ChDay[] = { "*","初一","初二","初三","初四","初五",
"初六","初七","初八","初九","初十",
"十一","十二","十三","十四","十五",
"十六","十七","十八","十九","二十",
"廿一","廿二","廿三","廿四","廿五",
"廿六","廿七","廿八","廿九","三十"
};
const char* ChMonth[] = { "*","正","二","三","四","五","六","七","八","九","十","十一","腊" };
struct tm* Local;
long t;
//int year, month, day;
//char str[13] = "";
#if 1
time_t t2 = time(NULL);
Local = localtime(&t2);
*year = Local->tm_year + 1900;
*month = Local->tm_mon + 1;
*day = Local->tm_mday;
#else
year = 2021;
month = 3;
day = 27;
printf("请依次输入公历的年月日（例如2021年3月27日，输入：2013-1-2）");
scanf("%d-%d-%d", &year, &month, &day);
#endif
//printf("%d年%d月%d日\t", year, month, day);
if (LunarCalendar(*year, *month, *day))
{
strcat(str, "闰");
strcat(str, ChMonth[(LunarCalendarDay & 0x3C0) >> 6]);
}
else
strcat(str, ChMonth[(LunarCalendarDay & 0x3C0) >> 6]);
strcat(str, "月");
strcat(str, ChDay[LunarCalendarDay & 0x3F]);
//puts(str);
//getchar();
}
void getWeek(int y, int m, int d, char* str)
{
if (m == 1 || m == 2) {
m += 12;
y--;
}
int iWeek = (d + 2 * m + 3 * (m + 1) / 5 + y + y / 4 - y / 100 + y / 400) % 7;
switch (iWeek)
{
case 0: strcpy(str, "周一"); break;
case 1: strcpy(str, "周二"); break;
case 2: strcpy(str, "周三"); break;
case 3: strcpy(str, "周四"); break;
case 4: strcpy(str, "周五"); break;
case 5: strcpy(str, "周六"); break;
case 6: strcpy(str, "周日"); break;
}
}
void getTime(int* hour, int* minute, int* second) {
time_t t = time(NULL);
struct tm* local = localtime(&t);
*hour = local->tm_hour;
*minute = local->tm_min;
*second = local->tm_sec;
}
main.cpp
//main.cpp
#include <graphics.h>
#include <conio.h>
#include <stdio.h>
#include <mmsystem.h>
#include "date_set.h"
#pragma comment(lib, "winmm.lib")
IMAGE imgs[71];
IMAGE sz[11];
IMAGE sz2[10]; //显示秒
void drawDate() {
char str[16] = "";
int year, month, day;
getDate(&year, &month, &day, str);
setbkcolor(RGB(223, 230, 240));
settextcolor(RGB(15, 15, 15)); //设置字体颜色
settextstyle(25, 0, "微软雅黑"); //设置字体样式
outtextxy(70, 0, str); //在指定位置输出文本
getWeek(year, month, day, str);
outtextxy(65, 30, str);
sprintf(str, "%d-%d", month, day);
outtextxy(110, 30, str);
}
void drawTime() {
static int last_hour=-1, last_minute=-1, last_second = -1;
int hour, minute, second;
getTime(&hour, &minute, &second);
int posX = -130;
int posY = -90;
int h1 = hour / 10;
int h2 = hour % 10;
if (last_hour != hour) putimage(posX, posY, &sz[h1]);
posX += 50;
if (last_hour != hour) putimage(posX, posY, &sz[h2]);
posX += 50;
posY += 15;
static bool first = true;
if(first) putimage(posX, posY, &sz[10]);
posY += 30;
if (first) putimage(posX, posY, &sz[10]);
posX += 20;
posY = -90;
int m1 = minute / 10;
int m2 = minute % 10;
if (last_minute != minute) putimage(posX, posY, &sz[m1]);
posX += 50;
if (last_minute != minute) putimage(posX, posY, &sz[m2]);
posX += 50;
posY += 35;
if(last_second/10 != second/10) putimage(posX, posY, &sz2[second/10]);
posX += 30;
if (last_second % 10 != second % 10) putimage(posX, posY, &sz2[second%10]);
if (first || (hour==0 && minute==0 && second<3)) {
drawDate();
}
first = false;
last_hour = hour;
last_minute = minute;
last_second = second;
}
int main()
{
initgraph(
GetSystemMetrics(SM_CXSCREEN), //桌面宽度
GetSystemMetrics(SM_CYSCREEN));//桌面高度
HWND hwnd = GetHWnd(); //获取当前窗口句柄
SetWindowLong( //设置窗口属性说
hwnd,
GWL_STYLE, //设定一个新的窗口风格。
//GetWindowLong 获取指定串口的属性
GetWindowLong(hwnd, GWL_STYLE) - WS_CAPTION);//WS_CAPTION带标题栏的窗口风格
SetWindowPos(hwnd, HWND_TOPMOST, 0, 0, GetSystemMetrics(SM_CXSCREEN), GetSystemMetrics(SM_CYSCREEN), SWP_SHOWWINDOW);
设置坐标原点
setorigin(
GetSystemMetrics(SM_CXSCREEN)/2,
GetSystemMetrics(SM_CYSCREEN)/2);
setbkcolor(RGB(0, 0, 0));
setfillcolor(RGB(0, 0, 0));
cleardevice();
// 以上是全部黑屏效果
IMAGE bg;
loadimage(&bg, "bg3.jpg", 400, 400, true); //背景图片
putimage(-200, -200, &bg);
//设置透明
// GWL_EXSTYLE 窗口的扩展样式
// WS_EX_LAYERED 分层窗口
LONG lWindowLong = GetWindowLong(hwnd, GWL_EXSTYLE) | WS_EX_LAYERED;
::SetWindowLong(hwnd, GWL_EXSTYLE, lWindowLong);
// 设置分层窗口的透明度
SetLayeredWindowAttributes(
hwnd,
RGB(0, 0, 0), //指定需要透明的背景颜色值
0, //设置透明度，0表示完全透明，255表示不透明
LWA_COLORKEY); // 透明方式:窗体中的所有颜色为参数2的地方将变为透明
// 设置绘图样式
setlinecolor(BLACK); // 设置线条颜色为白色
setlinestyle(PS_SOLID | PS_ENDCAP_FLAT, 8); // 设置线条样式为宽度 10 的实线，端点是平的
circle(0, 0, 202);
char imgName[64];
for (int i = 0; i < 71; i++) {
sprintf_s(imgName, sizeof(imgName), "img/human_%04d_图层 %d.jpg", i, 71 - i); //太空人旋转图片加载
loadimage(&imgs[i], imgName, 105, 105, true);
}
for (int i = 0; i < 10; i++) { //表盘时间图片加载
sprintf_s(imgName, sizeof(imgName), "img/%d.jpg", i);
loadimage(&sz[i], imgName, 40, 70, true);
loadimage(&sz2[i], imgName, 20, 35, true);
}
loadimage(&sz[10], "img/rect.jpg", 10, 10, true);
int k = 0;
mciSendString("play MJ.mp3 repeat", 0, 0, 0); //播放音乐
while (1) {
putimage(-50, -15, &imgs[k]);
k = (k + 1) % 71;
drawTime();
Sleep(30);
}
closegraph();
return 0;
}

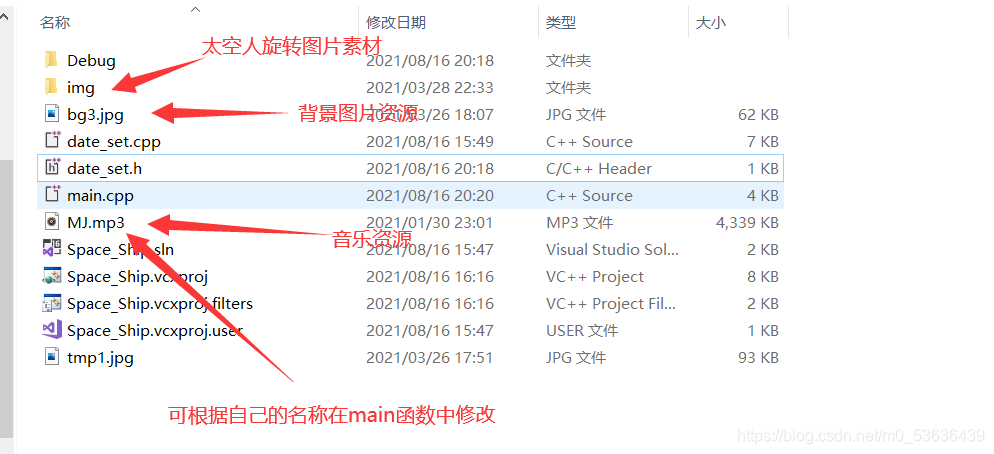

项目所需要素材
如果想需要素材资源的，可以通过我的资源里面下载
太空人素材资源
解决在vs2019中使用图形库遇到的错误

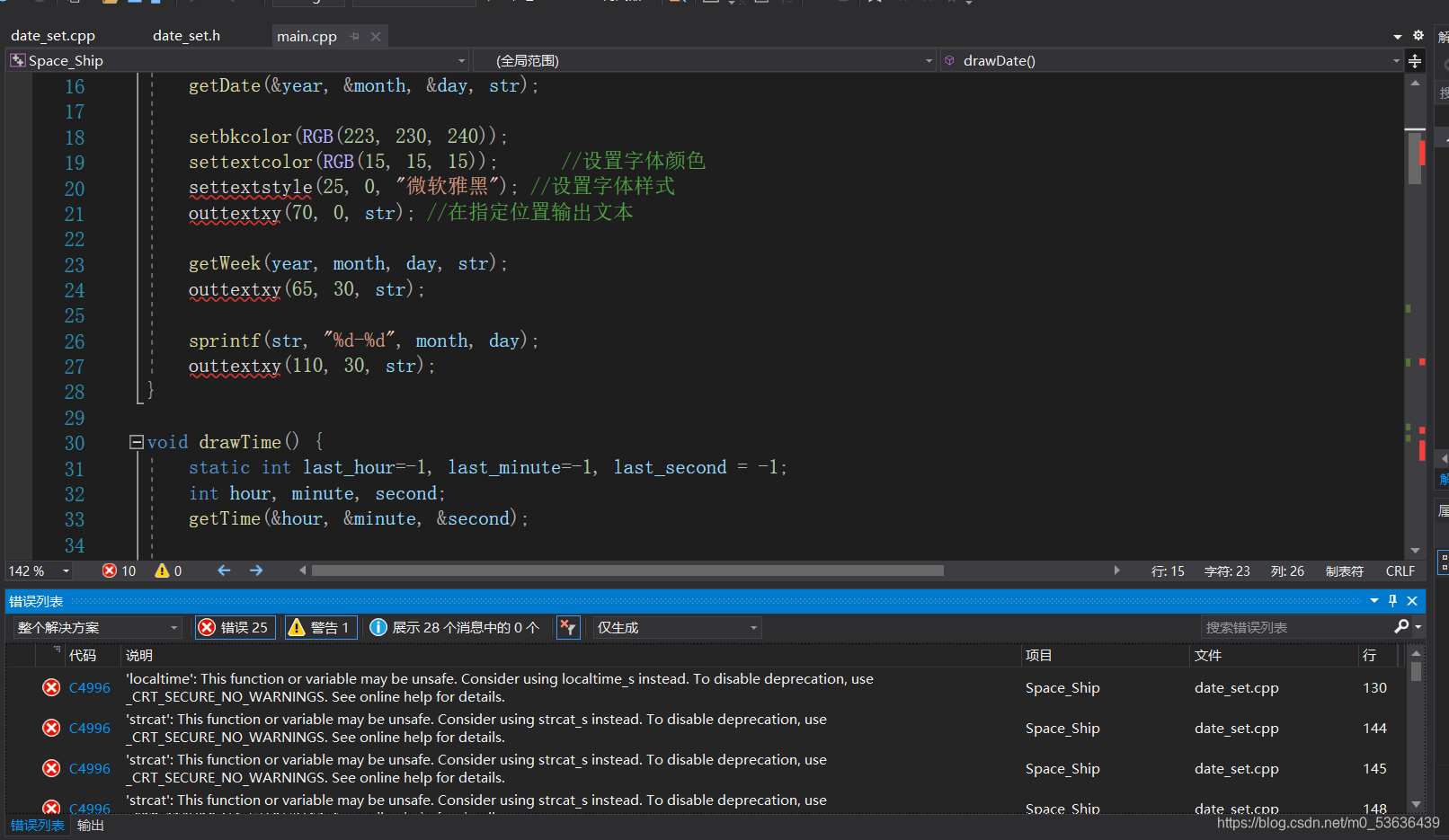

当我们都准备好之后，编译时却发现了以下的报错
这是因为我们使用的字符集不匹配，所以函数才会出现这样的错误

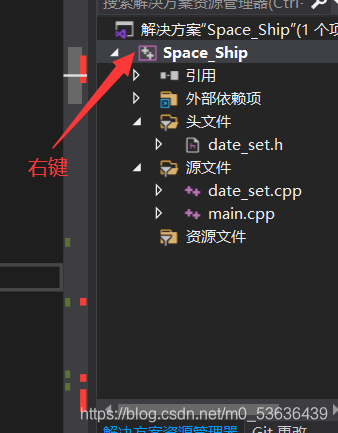

要解决这个问题很简单，这里就使用设置项目属性的方法来解决这个问题。

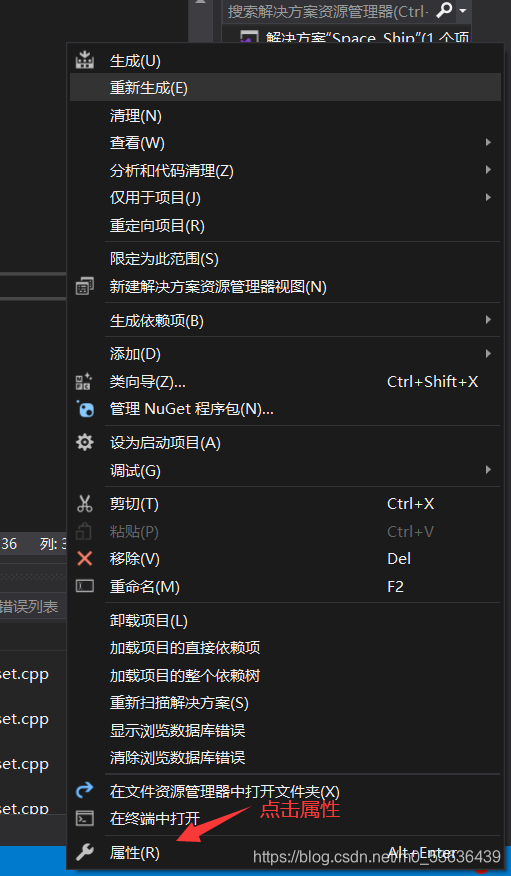

然后点击属性

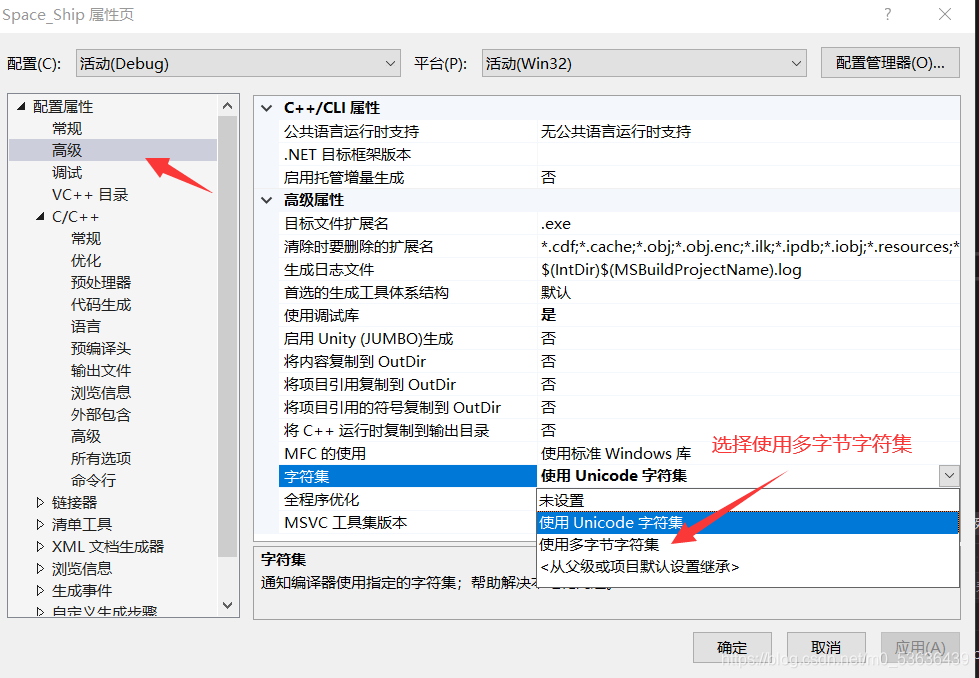

选择多字节字符集，然后点击确定即可

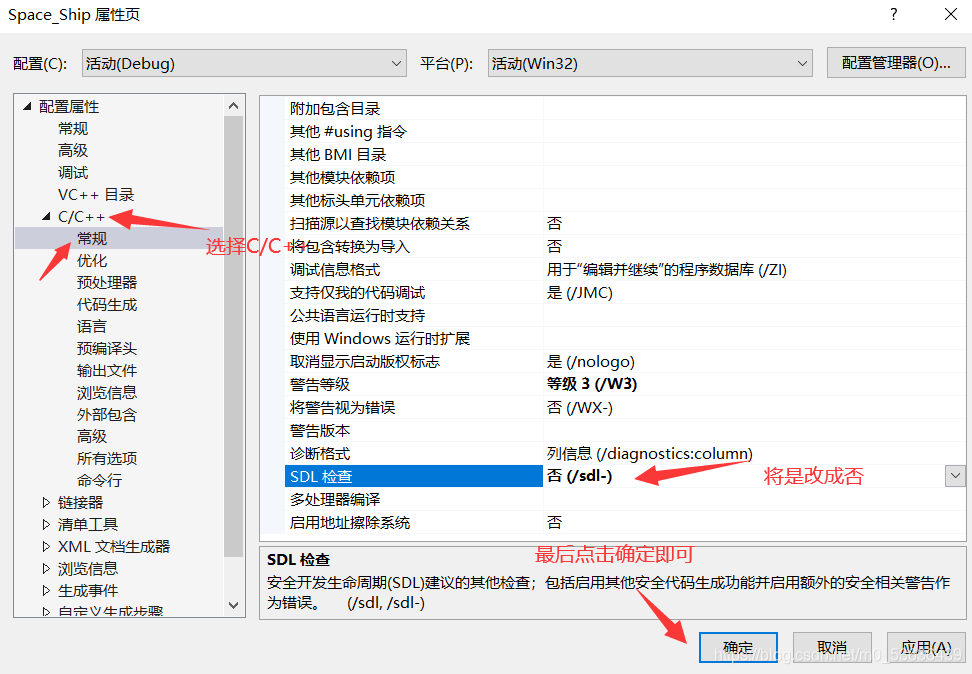

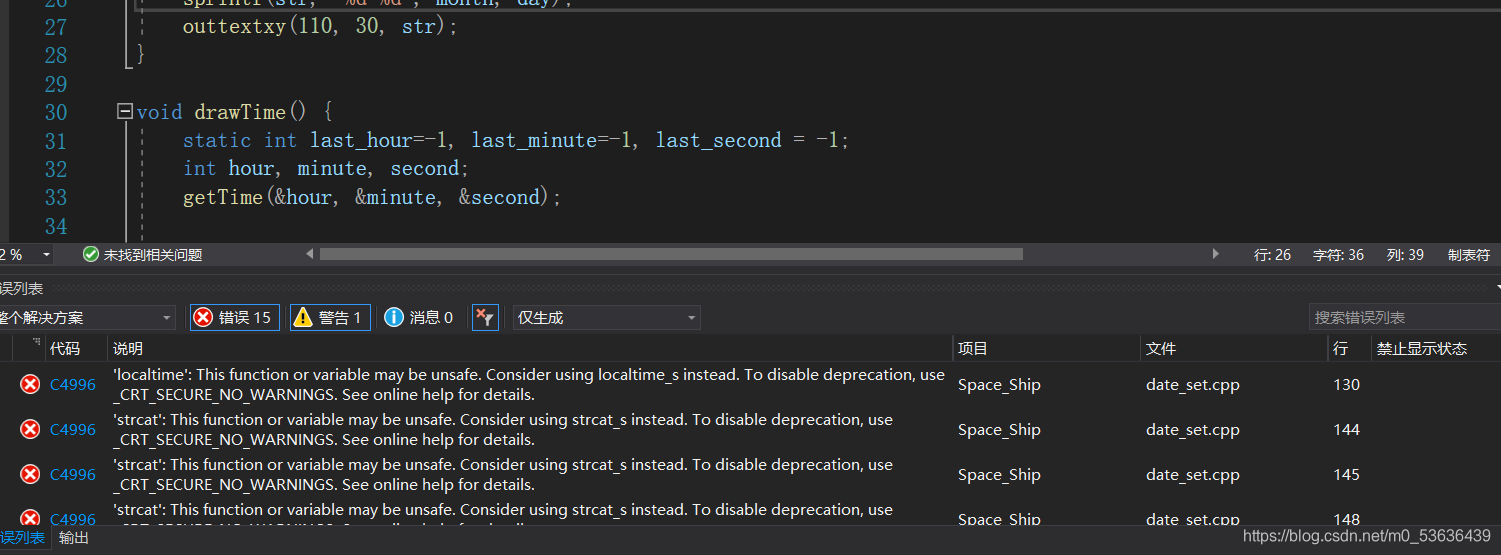

解决函数警告问题
解决方法和上面的一样，打开项目属性

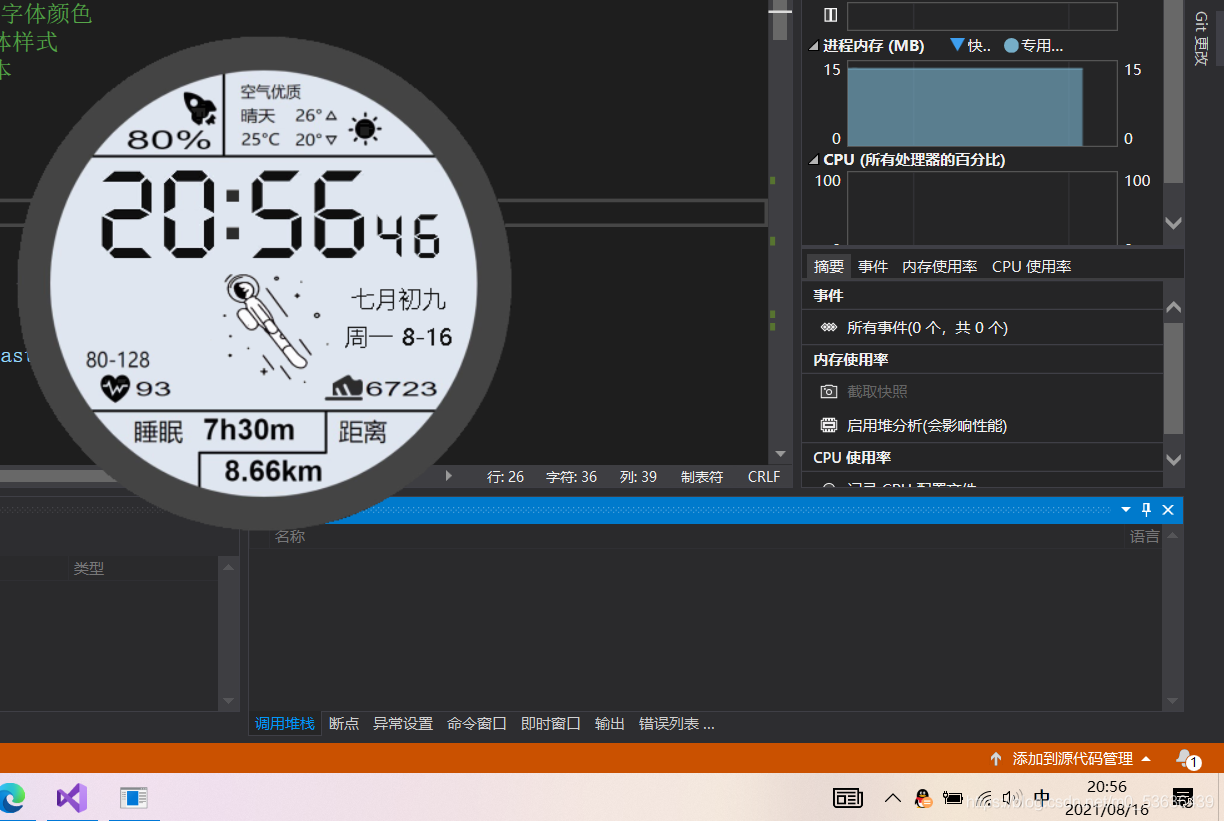

太空人表盘示例
这样我们的太空人表盘就实现了
