[C++知识库]483-手写C++muduo库(socket封装fdAcceptor)

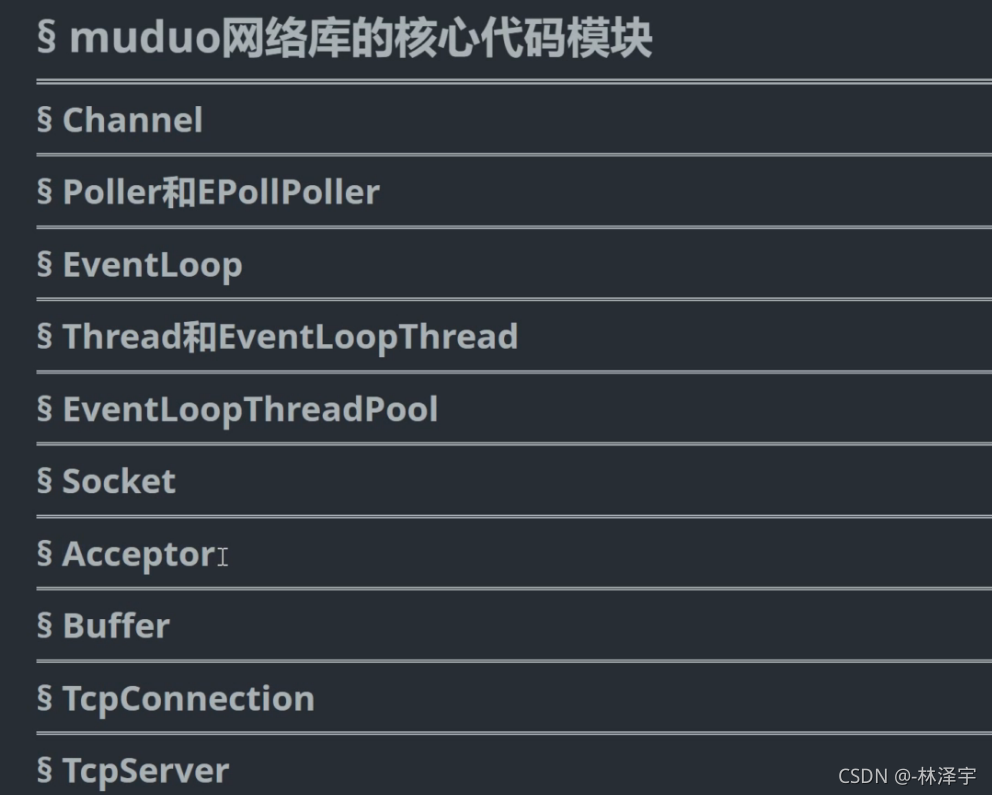

我们在之前已经完成了对前面5个模块的剖析和重写。
现在我们看Acceptor

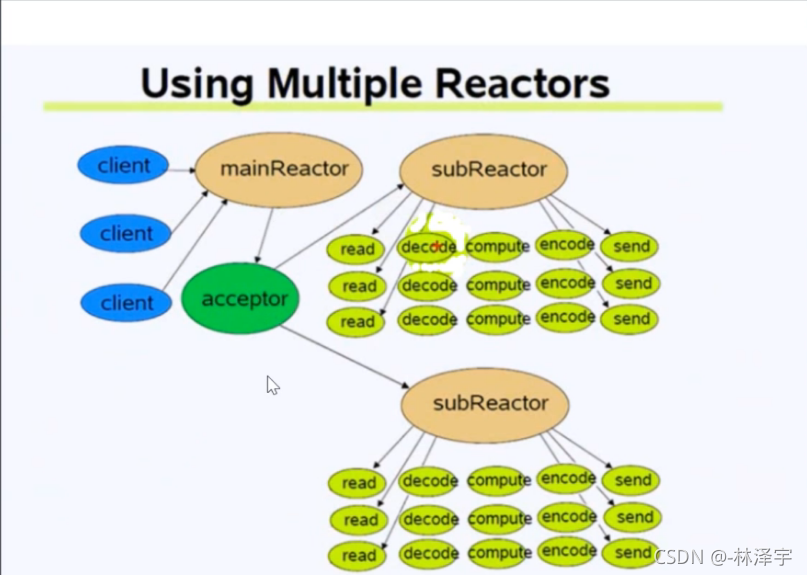

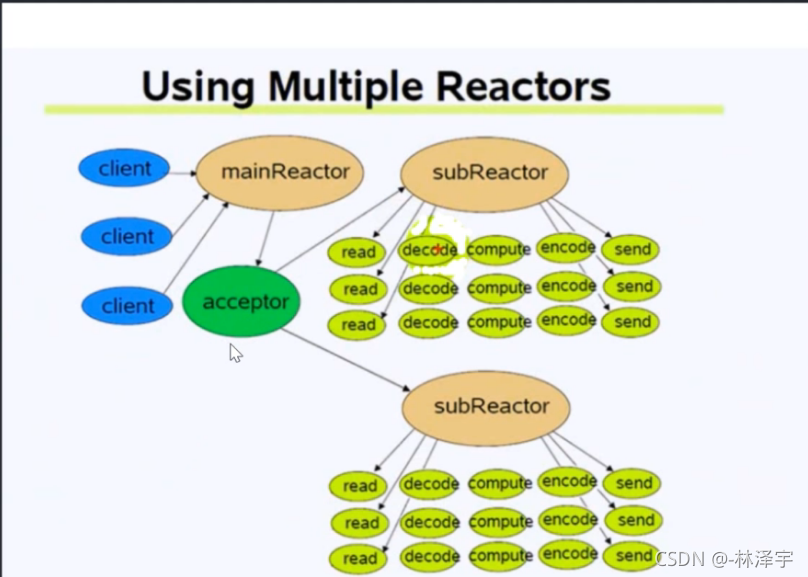

Acceptor就是处理accept，监听新用户的连接，拿到跟客户端通信的clientfd，打包成channel，根据muduo的轮询算法找一个subloop，把subloop唤醒，把接收的channel给subloop。

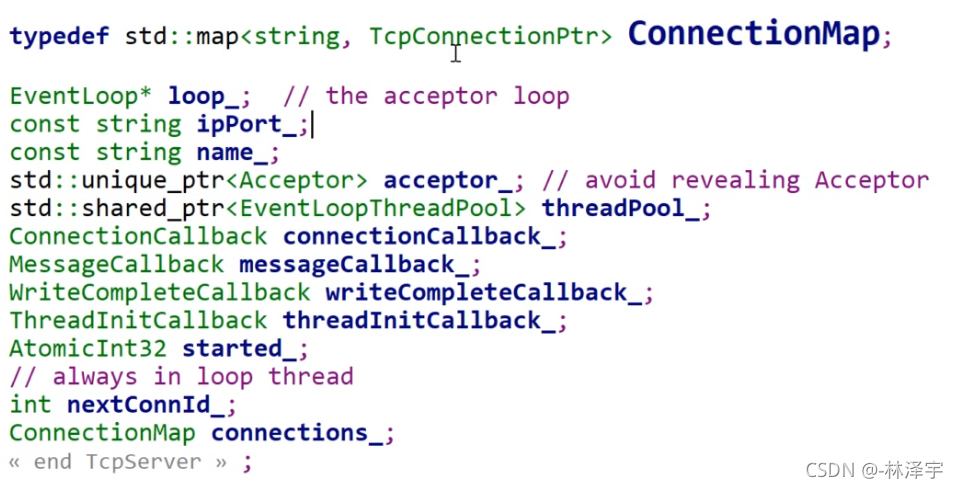

我们打开TCPServer，处理一下Acceptor


Acceptor运行在我们的baseloop（mainreactor）里面

封装了socket

socket封装fd

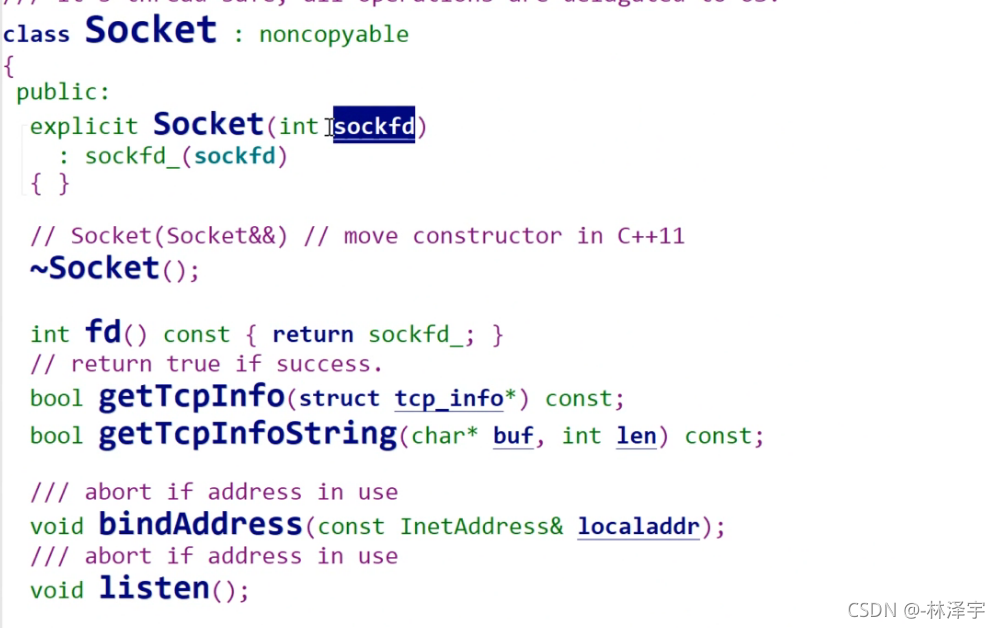

Socket.h

#pragma once

#include "noncopyable.h"

class InetAddress;

//封装socket fd
class Socket : noncopyable
{
public:
    explicit Socket(int sockfd)
        : sockfd_(sockfd)
    {}

    ~Socket();

    int fd() const { return sockfd_; }
    void bindAddress(const InetAddress &localaddr);
    void listen();
    int accept(InetAddress *peeraddr);

    void shutdownWrite();

    void setTcpNoDelay(bool on);//直接发送，数据不进行TCP缓存
    void setReuseAddr(bool on);
    void setReusePort(bool on);
    void setKeepAlive(bool on);
private:
    const int sockfd_;
};

Socket.cc

#include "Socket.h"
#include "Logger.h"
#include "InetAddress.h"

#include <unistd.h>
#include <sys/types.h>
#include <sys/socket.h>
#include <strings.h>
#include <netinet/tcp.h>
#include <sys/socket.h>

Socket::~Socket()
{
    close(sockfd_);//调用系统的close
}

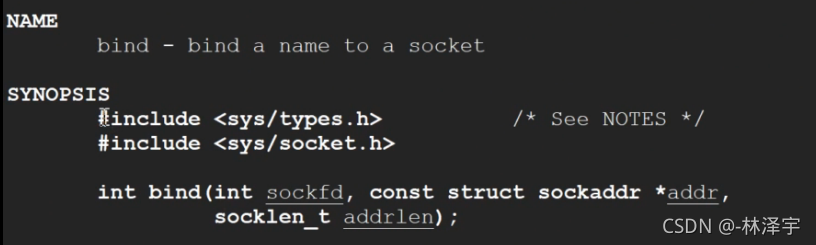

void Socket::bindAddress(const InetAddress &localaddr)
{
    if (0 != ::bind(sockfd_, (sockaddr*)localaddr.getSockAddr(), sizeof(sockaddr_in)))
    {
        LOG_FATAL("bind sockfd:%d fail \n", sockfd_);
    }
}

void Socket::listen()
{
    if (0 != ::listen(sockfd_, 1024))
    {
        LOG_FATAL("listen sockfd:%d fail \n", sockfd_);
    }
}

int Socket::accept(InetAddress *peeraddr)
{
    /**
     * 1. accept函数的参数不合法
     * 2. 对返回的connfd没有设置非阻塞
     * Reactor模型 one loop per thread
     * poller + non-blocking IO
     */
    sockaddr_in addr;
    socklen_t len = sizeof addr;
    bzero(&addr, sizeof addr);
    int connfd = ::accept4(sockfd_, (sockaddr*)&addr, &len, SOCK_NONBLOCK | SOCK_CLOEXEC);
    if (connfd >= 0)
    {
        peeraddr->setSockAddr(addr);
    }
    return connfd;
}

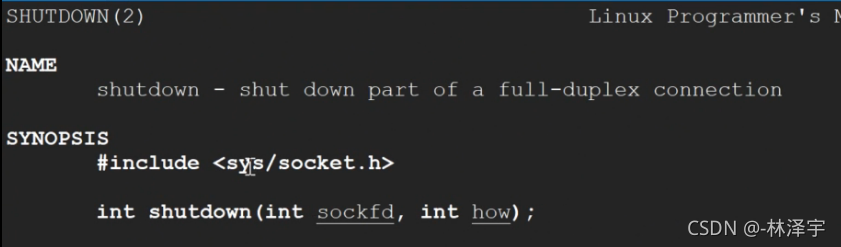

void Socket::shutdownWrite()
{
    if (::shutdown(sockfd_, SHUT_WR) < 0)
    {
        LOG_ERROR("shutdownWrite error");
    }
}

void Socket::setTcpNoDelay(bool on)
{
    int optval = on ? 1 : 0;
    ::setsockopt(sockfd_, IPPROTO_TCP, TCP_NODELAY, &optval, sizeof optval);
}

void Socket::setReuseAddr(bool on)
{
    int optval = on ? 1 : 0;
    ::setsockopt(sockfd_, SOL_SOCKET, SO_REUSEADDR, &optval, sizeof optval);
}

void Socket::setReusePort(bool on)
{
    int optval = on ? 1 : 0;
    ::setsockopt(sockfd_, SOL_SOCKET, SO_REUSEPORT, &optval, sizeof optval);
}

void Socket::setKeepAlive(bool on)
{
    int optval = on ? 1 : 0;
    ::setsockopt(sockfd_, SOL_SOCKET, SO_KEEPALIVE, &optval, sizeof optval);
}

Acceptor

Acceptor底层是listenfd，运行在baseloop（mainreactor），

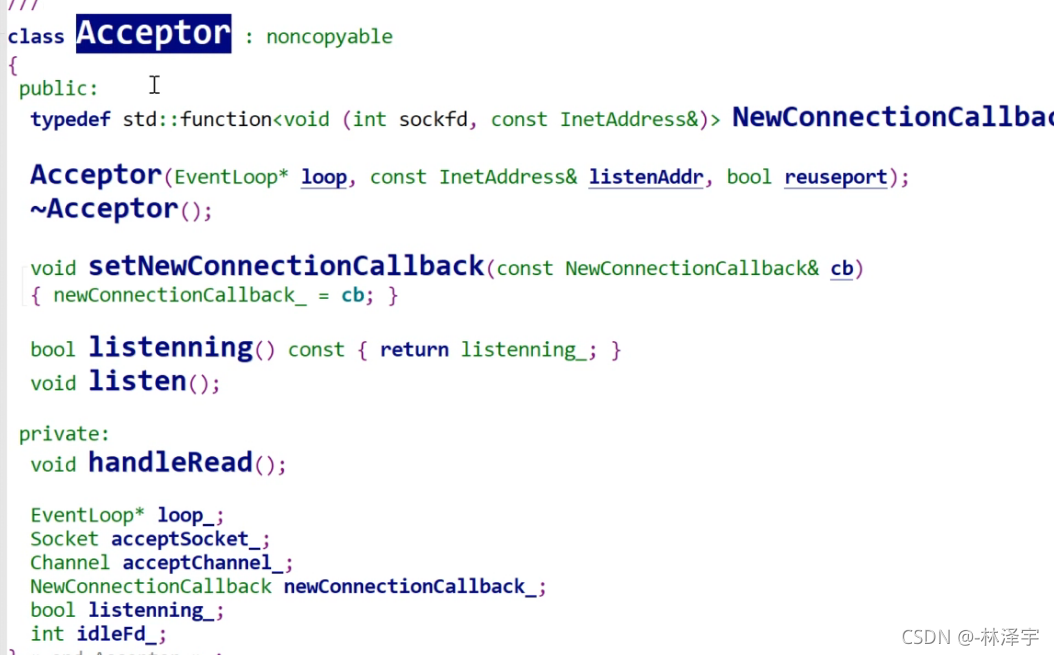

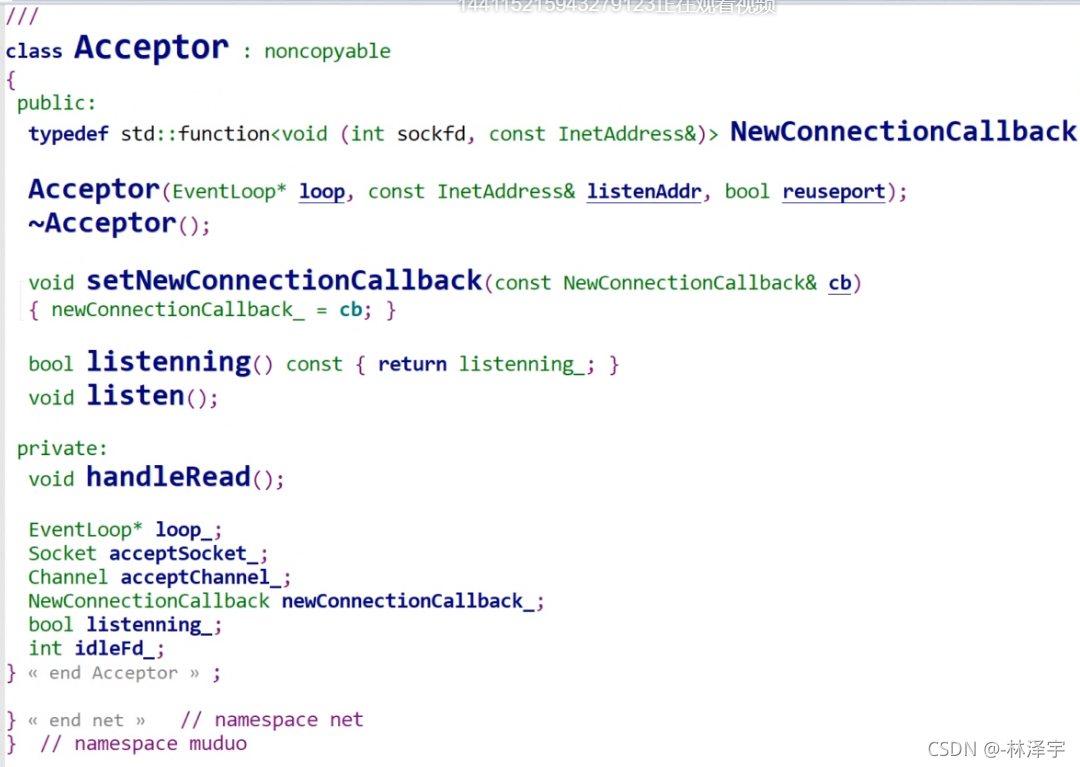

Acceptor.h

#pragma once
#include "noncopyable.h"
#include "Socket.h"
#include "Channel.h"

#include <functional>

class EventLoop;
class InetAddress;

class Acceptor : noncopyable
{
public:
    using NewConnectionCallback = std::function<void(int sockfd, const InetAddress&)>;
    Acceptor(EventLoop *loop, const InetAddress &listenAddr, bool reuseport);
    ~Acceptor();

    void setNewConnectionCallback(const NewConnectionCallback &cb)
    {
        newConnectionCallback_ = cb;
    }

    bool listenning() const { return listenning_; }
    void listen();
private:
    void handleRead();

    EventLoop *loop_;//Acceptor用的就是用户定义的那个baseLoop，也称作mainLoop
    Socket acceptSocket_;
    Channel acceptChannel_;
    NewConnectionCallback newConnectionCallback_;
    bool listenning_;
};

Acceptor.cc

#include "Acceptor.h"
#include "Logger.h"
#include "InetAddress.h"

#include <sys/types.h>
#include <sys/socket.h>
#include <errno.h>
#include <unistd.h>

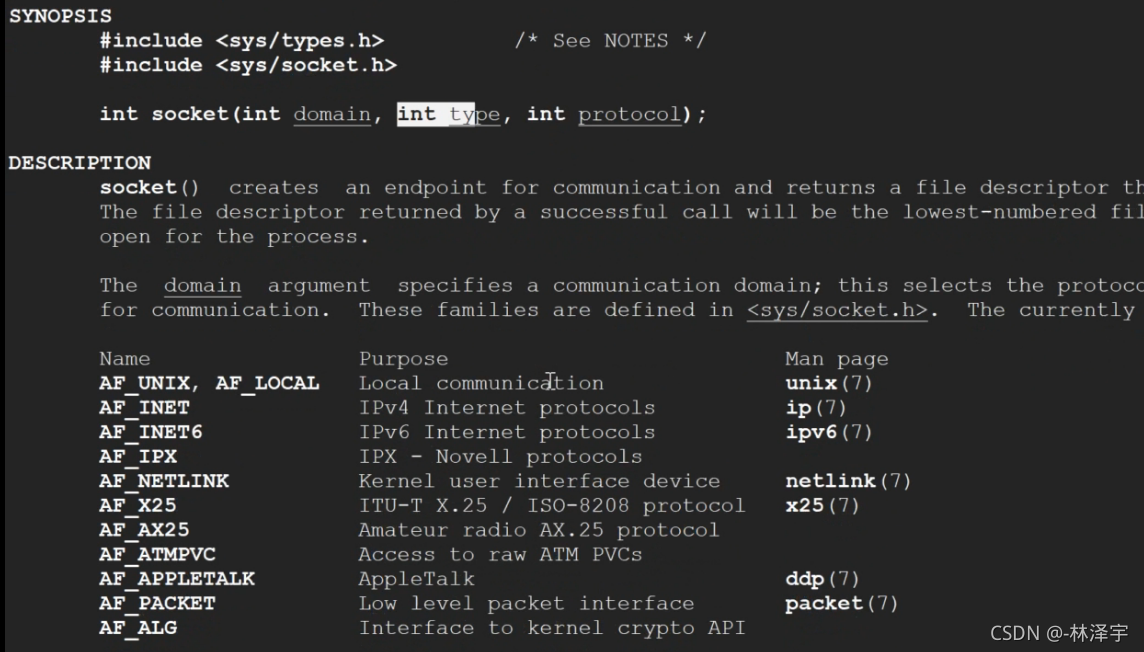

static int createNonblocking()//创建非阻塞的I/O
{

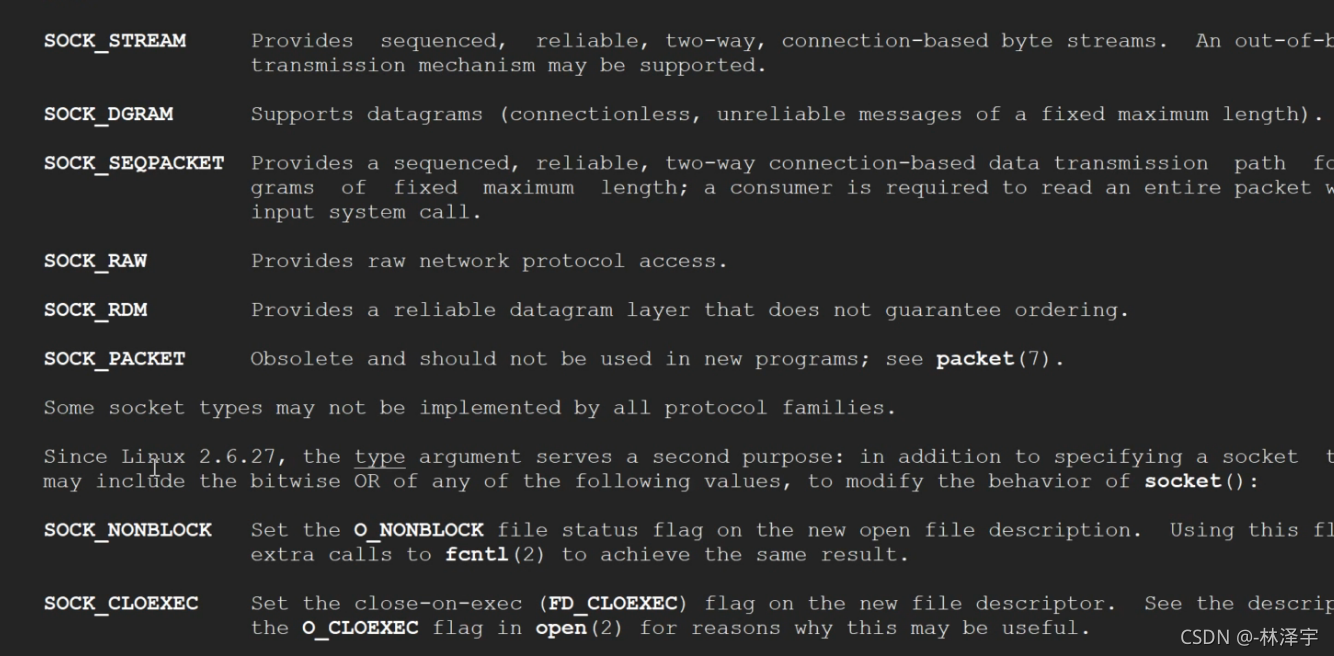

    int sockfd = ::socket(AF_INET, SOCK_STREAM | SOCK_NONBLOCK | SOCK_CLOEXEC, 0);
    if (sockfd < 0)
    {
        LOG_FATAL("%s:%s:%d listen socket create err:%d \n", __FILE__, __FUNCTION__, __LINE__, errno);
    }
}

Acceptor::Acceptor(EventLoop *loop, const InetAddress &listenAddr, bool reuseport)//构造函数
    : loop_(loop)
    , acceptSocket_(createNonblocking())//创建socket套接字
    , acceptChannel_(loop, acceptSocket_.fd())//channel和poller都是通过请求本线程的loop和poller通信
    , listenning_(false)
{
    acceptSocket_.setReuseAddr(true);
    acceptSocket_.setReusePort(true);
    acceptSocket_.bindAddress(listenAddr);//bind绑定套接字
    //TcpServer::start() Acceptor.listen  如果有新用户的连接，就要执行一个回调（connfd=》打包成channel=》唤醒subloop）
    //baseLoop => acceptChannel_(listenfd)有事件发生 => 底层反应堆调用回调
    acceptChannel_.setReadCallback(std::bind(&Acceptor::handleRead, this));//绑定回调
}

Acceptor::~Acceptor()
{
    acceptChannel_.disableAll();
    acceptChannel_.remove();
}

void Acceptor::listen()
{
    listenning_ = true;
    acceptSocket_.listen();//listen
    acceptChannel_.enableReading();//acceptChannel_ => Poller
}

//listenfd有事件发生了，就是有新用户连接了
void Acceptor::handleRead()
{
    InetAddress peerAddr;
    int connfd = acceptSocket_.accept(&peerAddr);
    if (connfd >= 0)
    {
        if (newConnectionCallback_)
        {
            newConnectionCallback_(connfd, peerAddr);//轮询找到subLoop，唤醒，分发当前的新客户端的Channel
        }
        else//客户端没有办法去服务
        {
            ::close(connfd);
        }
    }
    else
    {
        LOG_ERROR("%s:%s:%d accept err:%d \n", __FILE__, __FUNCTION__, __LINE__, errno);
        if (errno == EMFILE)
        {
            LOG_ERROR("%s:%s:%d sockfd reached limit! \n", __FILE__, __FUNCTION__, __LINE__);
        }
    }
}
