[C++知识库]植物分形图

植物分形

原理：分形之分叉结构 迭代法

绘图库：Easy Graphics Engine （EGE）
编程语言：c++

示例：树叶

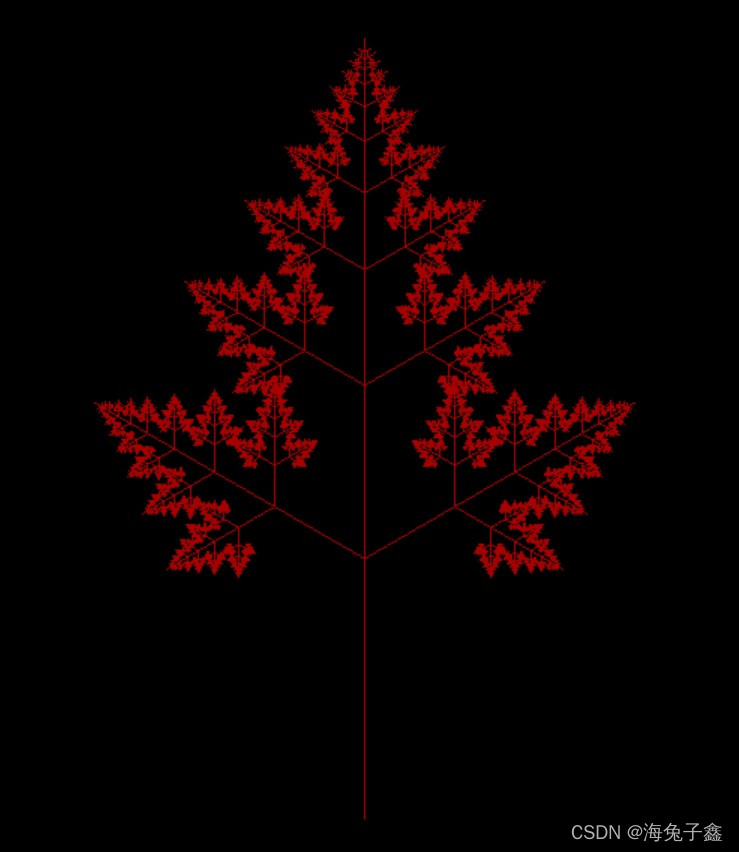

角度60度 伸缩率0.6

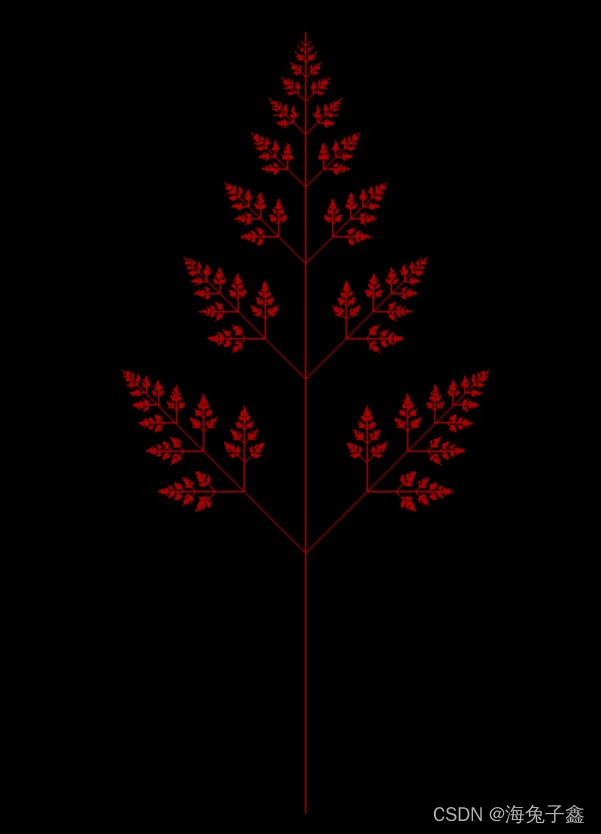

角度45度 伸缩率0.5

代码：

#include <graphics.h>
#include <stdio.h>
#include <stdlib.h>
#include <conio.h>
#include <math.h>
#include <time.h>
const double pi = 3.1415926536;

struct Point
{
	double x;
	double y;
};

Point Rotate(Point p1, Point p2, double A)
{
	Point r;
	r.x = p1.x + (p2.x - p1.x) * cos(A) + (p2.y - p1.y) * sin(A);
	r.y = p1.y + (p2.y - p1.y) * cos(A) - (p2.x - p1.x) * sin(A);
	return r;
}

Point Zoom(Point p1, Point p2, double a)
{
	Point r;
	r.x = p1.x + (p2.x - p1.x) * a;
	r.y = p1.y + (p2.y - p1.y) * a;
	return r;
}
void D1(Point p1, Point p2,double u,double k,int n)
{
        if(n>0)
         {
            Point p3,p4,p5,p,p6,p7;
            p3.x=p1.x+(p2.x-p1.x)/3;
            p3.y=p1.y+(p2.y-p1.y)/3;
            p=Zoom(p3,p2,k);
            p4=Rotate(p3,p,u*pi/180);
            p5=Rotate(p3,p,2*pi-u*pi/180);
            line_f(p3.x,p3.y,p4.x,p4.y);
            line_f(p3.x,p3.y,p5.x,p5.y);
            line_f(p1.x,p1.y,p2.x,p2.y);
            D1(p3,p4,u,k,n-1);
            D1(p3,p5,u,k,n-1);
            D1(p3,p2,u,k,n-1);
         }
}

int main()
{
    double u,k;
    struct Point p1,p2;
    p1.x=300;
    p1.y=570;
    p2.x=300;
    p2.y=50;
    printf("             树叶\n");
cc:
    printf("角度：\n");
    scanf("%lf",&u);
    printf("伸缩率：\n");
    scanf("%lf",&k);
    printf("\n\n");
    initgraph(600,600);
    setcolor(RED);
    D1(p1,p2,u,k,10);
    goto cc;
	return 0;
}
