[C++知识库]短小精悍的tinyhttpd

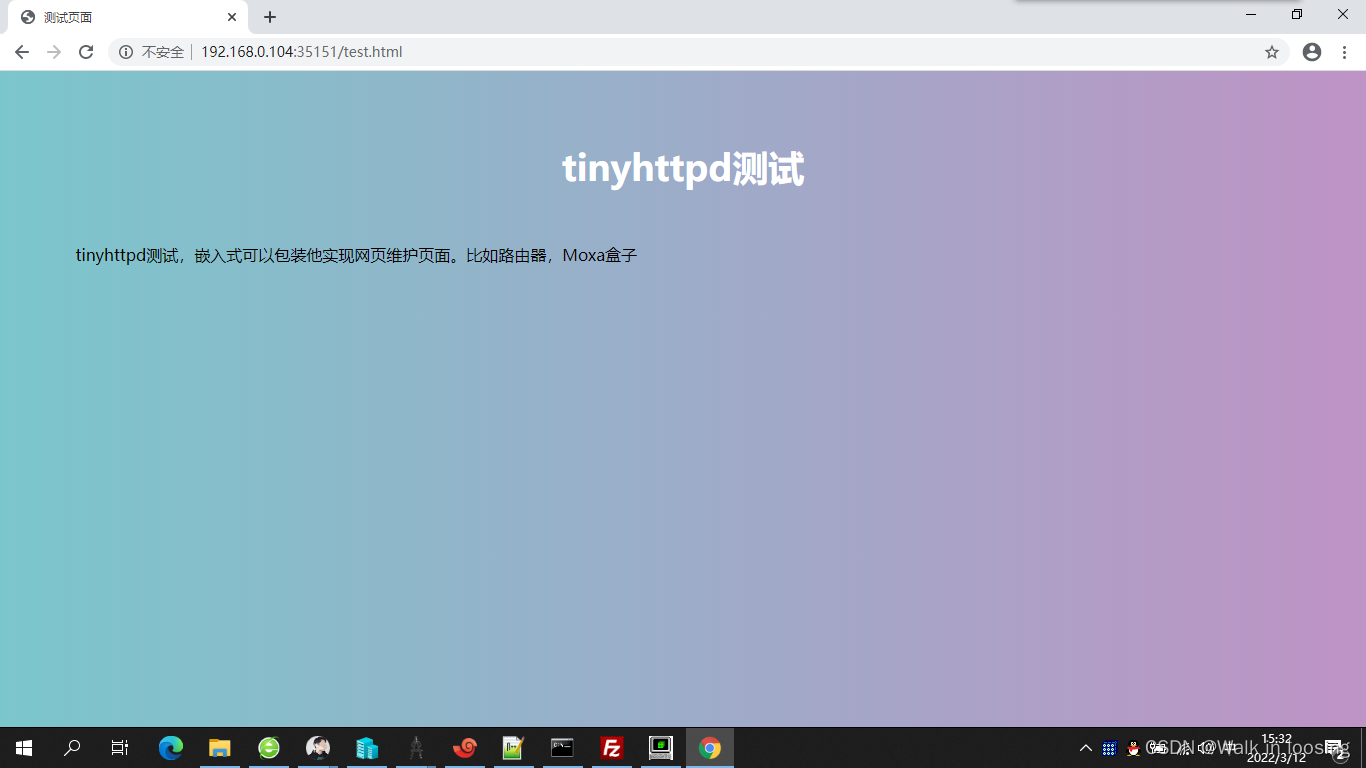

tinyhttpd是一个开源的c语言写的一个很小的http的服务程序，整个代码不到500行左右，可以发布http服务。为什么用c写微型的http服务很有用？
c跨平台性好，c简单，没运行时依赖，因此可以把这种程序编译后跑在嵌入式芯片里。然后借助发布的web实现嵌入式设备的操作。

为啥c跨平台性好？
c语言简单，没有C#那种要依赖庞大的运行时才能运行。也没复杂的库行数。只要有对应的c编译器就能把C编译成各种硬件运行的程序，硬件可以基于开源的gcc编译器做对应硬件的c编译器就可以让开发用c写硬件程序了。

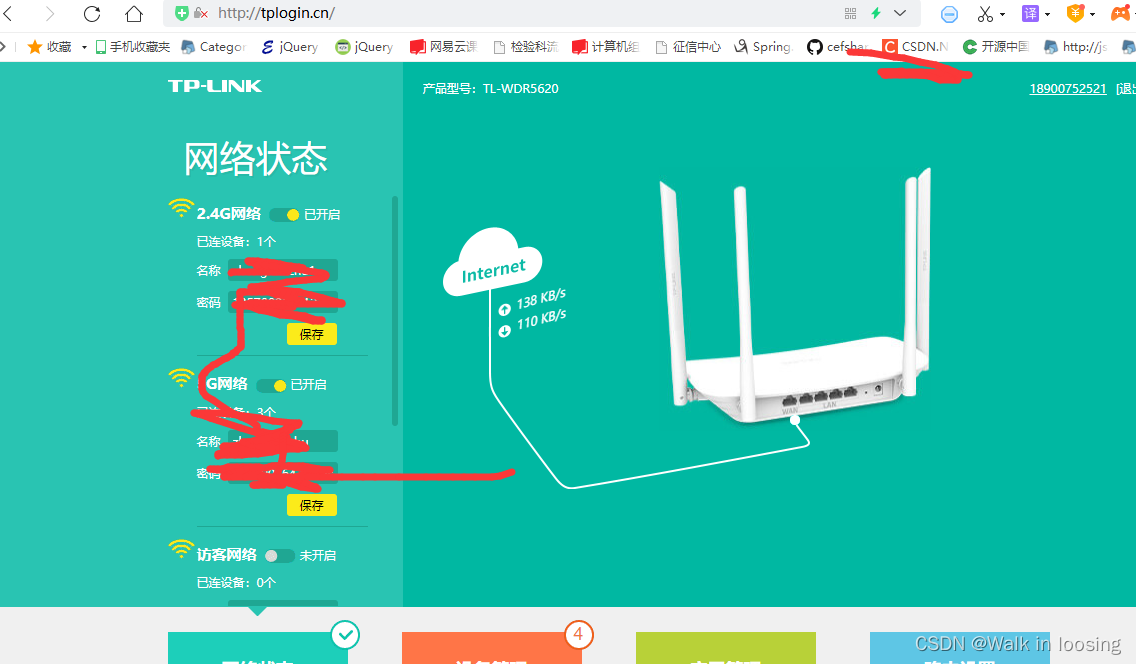

像这种路由器配置界面。和MoXa盒子的设置界面等等，嵌入式还是挺有意思的。

c源码

/* J. David's webserver */
/* This is a simple webserver.
 * Created November 1999 by J. David Blackstone.
 * CSE 4344 (Network concepts), Prof. Zeigler
 * University of Texas at Arlington
 */
 /* This program compiles for Sparc Solaris 2.6.
  * To compile for Linux:
  *  1) Comment out the #include <pthread.h> line.
  *  2) Comment out the line that defines the variable newthread.
  *  3) Comment out the two lines that run pthread_create().
  *  4) Uncomment the line that runs accept_request().
  *  5) Remove -lsocket from the Makefile.
  */
#include <stdio.h>
#include <sys/socket.h>
#include <sys/types.h>
#include <netinet/in.h>
#include <arpa/inet.h>
#include <unistd.h>
#include <ctype.h>
#include <strings.h>
#include <string.h>
#include <sys/stat.h>
#include <pthread.h>
#include <sys/wait.h>
#include <stdlib.h>

#define ISspace(x) isspace((int)(x))

#define SERVER_STRING "Server: jdbhttpd/0.1.0\r\n"

void accept_request(int);
void bad_request(int);
void cat(int, FILE*);
void cannot_execute(int);
void error_die(const char*);
void execute_cgi(int, const char*, const char*, const char*);
int get_line(int, char*, int);
void headers(int, const char*);
void not_found(int);
void serve_file(int, const char*);
int startup(u_short*);
void unimplemented(int);

/**********************************************************************/
/* A request has caused a call to accept() on the server port to
 * return.  Process the request appropriately.
 * Parameters: the socket connected to the client */
 /**********************************************************************/
void accept_request(int client)
{
    char buf[1024];
    int numchars;
    char method[255];
    char url[255];
    char path[512];
    size_t i, j;
    struct stat st;
    int cgi = 0;      /* becomes true if server decides this is a CGI program */
    char* query_string = NULL;

    /*得到请求的第一行*/
    numchars = get_line(client, buf, sizeof(buf));
    i = 0; j = 0;
    /*把客户端的请求方法存到 method 数组*/
    while (!ISspace(buf[j]) && (i < sizeof(method) - 1))
    {
        method[i] = buf[j];
        i++; j++;
    }
    method[i] = '\0';

    /*如果既不是 GET 又不是 POST 则无法处理 */
    if (strcasecmp(method, "GET") && strcasecmp(method, "POST"))
    {
        unimplemented(client);
        return;
    }

    /* POST 的时候开启 cgi */
    if (strcasecmp(method, "POST") == 0)
        cgi = 1;

    /*读取 url 地址*/
    i = 0;
    while (ISspace(buf[j]) && (j < sizeof(buf)))
        j++;
    while (!ISspace(buf[j]) && (i < sizeof(url) - 1) && (j < sizeof(buf)))
    {
        /*存下 url */
        url[i] = buf[j];
        i++; j++;
    }
    url[i] = '\0';

    /*处理 GET 方法*/
    if (strcasecmp(method, "GET") == 0)
    {
        /* 待处理请求为 url */
        query_string = url;
        while ((*query_string != '?') && (*query_string != '\0'))
            query_string++;
        /* GET 方法特点，? 后面为参数*/
        if (*query_string == '?')
        {
            /*开启 cgi */
            cgi = 1;
            *query_string = '\0';
            query_string++;
        }
    }

    /*格式化 url 到 path 数组，html 文件都在 htdocs 中*/
    sprintf(path, "htdocs%s", url);
    /*默认情况为 index.html */
    if (path[strlen(path) - 1] == '/')
        strcat(path, "index.html");
    /*根据路径找到对应文件 */
    if (stat(path, &st) == -1) {
        /*把所有 headers 的信息都丢弃*/
        while ((numchars > 0) && strcmp("\n", buf))  /* read & discard headers */
            numchars = get_line(client, buf, sizeof(buf));
        /*回应客户端找不到*/
        not_found(client);
    }
    else
    {
        /*如果是个目录，则默认使用该目录下 index.html 文件*/
        if ((st.st_mode & S_IFMT) == S_IFDIR)
            strcat(path, "/index.html");
        if ((st.st_mode & S_IXUSR) || (st.st_mode & S_IXGRP) || (st.st_mode & S_IXOTH))
            cgi = 1;
        /*不是 cgi,直接把服务器文件返回，否则执行 cgi */
        if (!cgi)
            serve_file(client, path);
        else
            execute_cgi(client, path, method, query_string);
    }

    /*断开与客户端的连接（HTTP 特点：无连接）*/
    close(client);
}

/**********************************************************************/
/* Inform the client that a request it has made has a problem.
 * Parameters: client socket */
 /**********************************************************************/
void bad_request(int client)
{
    char buf[1024];

    /*回应客户端错误的 HTTP 请求 */
    sprintf(buf, "HTTP/1.0 400 BAD REQUEST\r\n");
    send(client, buf, sizeof(buf), 0);
    sprintf(buf, "Content-type: text/html\r\n");
    send(client, buf, sizeof(buf), 0);
    sprintf(buf, "\r\n");
    send(client, buf, sizeof(buf), 0);
    sprintf(buf, "<P>Your browser sent a bad request, ");
    send(client, buf, sizeof(buf), 0);
    sprintf(buf, "such as a POST without a Content-Length.\r\n");
    send(client, buf, sizeof(buf), 0);
}

/**********************************************************************/
/* Put the entire contents of a file out on a socket.  This function
 * is named after the UNIX "cat" command, because it might have been
 * easier just to do something like pipe, fork, and exec("cat").
 * Parameters: the client socket descriptor
 *             FILE pointer for the file to cat */
 /**********************************************************************/
void cat(int client, FILE* resource)
{
    char buf[1024];

    /*读取文件中的所有数据写到 socket */
    fgets(buf, sizeof(buf), resource);
    while (!feof(resource))
    {
        send(client, buf, strlen(buf), 0);
        fgets(buf, sizeof(buf), resource);
    }
}

/**********************************************************************/
/* Inform the client that a CGI script could not be executed.
 * Parameter: the client socket descriptor. */
 /**********************************************************************/
void cannot_execute(int client)
{
    char buf[1024];

    /* 回应客户端 cgi 无法执行*/
    sprintf(buf, "HTTP/1.0 500 Internal Server Error\r\n");
    send(client, buf, strlen(buf), 0);
    sprintf(buf, "Content-type: text/html\r\n");
    send(client, buf, strlen(buf), 0);
    sprintf(buf, "\r\n");
    send(client, buf, strlen(buf), 0);
    sprintf(buf, "<P>Error prohibited CGI execution.\r\n");
    send(client, buf, strlen(buf), 0);
}

/**********************************************************************/
/* Print out an error message with perror() (for system errors; based
 * on value of errno, which indicates system call errors) and exit the
 * program indicating an error. */
 /**********************************************************************/
void error_die(const char* sc)
{
    /*出错信息处理 */
    perror(sc);
    exit(1);
}

/**********************************************************************/
/* Execute a CGI script.  Will need to set environment variables as
 * appropriate.
 * Parameters: client socket descriptor
 *             path to the CGI script */
 /**********************************************************************/
void execute_cgi(int client, const char* path, const char* method, const char* query_string)
{
    char buf[1024];
    int cgi_output[2];
    int cgi_input[2];
    pid_t pid;
    int status;
    int i;
    char c;
    int numchars = 1;
    int content_length = -1;

    buf[0] = 'A'; buf[1] = '\0';
    if (strcasecmp(method, "GET") == 0)
        /*把所有的 HTTP header 读取并丢弃*/
        while ((numchars > 0) && strcmp("\n", buf))  /* read & discard headers */
            numchars = get_line(client, buf, sizeof(buf));
    else    /* POST */
    {
        /* 对 POST 的 HTTP 请求中找出 content_length */
        numchars = get_line(client, buf, sizeof(buf));
        while ((numchars > 0) && strcmp("\n", buf))
        {
            /*利用 \0 进行分隔 */
            buf[15] = '\0';
            /* HTTP 请求的特点*/
            if (strcasecmp(buf, "Content-Length:") == 0)
                content_length = atoi(&(buf[16]));
            numchars = get_line(client, buf, sizeof(buf));
        }
        /*没有找到 content_length */
        if (content_length == -1) {
            /*错误请求*/
            bad_request(client);
            return;
        }
    }

    /* 正确，HTTP 状态码 200 */
    sprintf(buf, "HTTP/1.0 200 OK\r\n");
    send(client, buf, strlen(buf), 0);

    /* 建立管道*/
    if (pipe(cgi_output) < 0) {
        /*错误处理*/
        cannot_execute(client);
        return;
    }
    /*建立管道*/
    if (pipe(cgi_input) < 0) {
        /*错误处理*/
        cannot_execute(client);
        return;
    }

    if ((pid = fork()) < 0) {
        /*错误处理*/
        cannot_execute(client);
        return;
    }
    if (pid == 0)  /* child: CGI script */
    {
        char meth_env[255];
        char query_env[255];
        char length_env[255];

        /* 把 STDOUT 重定向到 cgi_output 的写入端 */
        dup2(cgi_output[1], 1);
        /* 把 STDIN 重定向到 cgi_input 的读取端 */
        dup2(cgi_input[0], 0);
        /* 关闭 cgi_input 的写入端 和 cgi_output 的读取端 */
        close(cgi_output[0]);
        close(cgi_input[1]);
        /*设置 request_method 的环境变量*/
        sprintf(meth_env, "REQUEST_METHOD=%s", method);
        putenv(meth_env);
        if (strcasecmp(method, "GET") == 0) {
            /*设置 query_string 的环境变量*/
            sprintf(query_env, "QUERY_STRING=%s", query_string);
            putenv(query_env);
        }
        else {   /* POST */
            /*设置 content_length 的环境变量*/
            sprintf(length_env, "CONTENT_LENGTH=%d", content_length);
            putenv(length_env);
        }
        /*用 execl 运行 cgi 程序*/
        execl(path, path, NULL);
        exit(0);
    }
    else {    /* parent */
     /* 关闭 cgi_input 的读取端 和 cgi_output 的写入端 */
        close(cgi_output[1]);
        close(cgi_input[0]);
        if (strcasecmp(method, "POST") == 0)
            /*接收 POST 过来的数据*/
            for (i = 0; i < content_length; i++) {
                recv(client, &c, 1, 0);
                /*把 POST 数据写入 cgi_input，现在重定向到 STDIN */
                write(cgi_input[1], &c, 1);
            }
        /*读取 cgi_output 的管道输出到客户端，该管道输入是 STDOUT */
        while (read(cgi_output[0], &c, 1) > 0)
            send(client, &c, 1, 0);

        /*关闭管道*/
        close(cgi_output[0]);
        close(cgi_input[1]);
        /*等待子进程*/
        waitpid(pid, &status, 0);
    }
}

/**********************************************************************/
/* Get a line from a socket, whether the line ends in a newline,
 * carriage return, or a CRLF combination.  Terminates the string read
 * with a null character.  If no newline indicator is found before the
 * end of the buffer, the string is terminated with a null.  If any of
 * the above three line terminators is read, the last character of the
 * string will be a linefeed and the string will be terminated with a
 * null character.
 * Parameters: the socket descriptor
 *             the buffer to save the data in
 *             the size of the buffer
 * Returns: the number of bytes stored (excluding null) */
 /**********************************************************************/
int get_line(int sock, char* buf, int size)
{
    int i = 0;
    char c = '\0';
    int n;

    /*把终止条件统一为 \n 换行符，标准化 buf 数组*/
    while ((i < size - 1) && (c != '\n'))
    {
        /*一次仅接收一个字节*/
        n = recv(sock, &c, 1, 0);
        /* DEBUG printf("%02X\n", c); */
        if (n > 0)
        {
            /*收到 \r 则继续接收下个字节，因为换行符可能是 \r\n */
            if (c == '\r')
            {
                /*使用 MSG_PEEK 标志使下一次读取依然可以得到这次读取的内容，可认为接收窗口不滑动*/
                n = recv(sock, &c, 1, MSG_PEEK);
                /* DEBUG printf("%02X\n", c); */
                /*但如果是换行符则把它吸收掉*/
                if ((n > 0) && (c == '\n'))
                    recv(sock, &c, 1, 0);
                else
                    c = '\n';
            }
            /*存到缓冲区*/
            buf[i] = c;
            i++;
        }
        else
            c = '\n';
    }
    buf[i] = '\0';

    /*返回 buf 数组大小*/
    return(i);
}

/**********************************************************************/
/* Return the informational HTTP headers about a file. */
/* Parameters: the socket to print the headers on
 *             the name of the file */
 /**********************************************************************/
void headers(int client, const char* filename)
{
    char buf[1024];
    (void)filename;  /* could use filename to determine file type */

    /*正常的 HTTP header */
    strcpy(buf, "HTTP/1.0 200 OK\r\n");
    send(client, buf, strlen(buf), 0);
    /*服务器信息*/
    strcpy(buf, SERVER_STRING);
    send(client, buf, strlen(buf), 0);
    sprintf(buf, "Content-Type: text/html\r\n");
    send(client, buf, strlen(buf), 0);
    strcpy(buf, "\r\n");
    send(client, buf, strlen(buf), 0);
}

/**********************************************************************/
/* Give a client a 404 not found status message. */
/**********************************************************************/
void not_found(int client)
{
    char buf[1024];

    /* 404 页面 */
    sprintf(buf, "HTTP/1.0 404 NOT FOUND\r\n");
    send(client, buf, strlen(buf), 0);
    /*服务器信息*/
    sprintf(buf, SERVER_STRING);
    send(client, buf, strlen(buf), 0);
    sprintf(buf, "Content-Type: text/html\r\n");
    send(client, buf, strlen(buf), 0);
    sprintf(buf, "\r\n");
    send(client, buf, strlen(buf), 0);
    sprintf(buf, "<HTML><TITLE>Not Found</TITLE>\r\n");
    send(client, buf, strlen(buf), 0);
    sprintf(buf, "<BODY><P>The server could not fulfill\r\n");
    send(client, buf, strlen(buf), 0);
    sprintf(buf, "your request because the resource specified\r\n");
    send(client, buf, strlen(buf), 0);
    sprintf(buf, "is unavailable or nonexistent.\r\n");
    send(client, buf, strlen(buf), 0);
    sprintf(buf, "</BODY></HTML>\r\n");
    send(client, buf, strlen(buf), 0);
}

/**********************************************************************/
/* Send a regular file to the client.  Use headers, and report
 * errors to client if they occur.
 * Parameters: a pointer to a file structure produced from the socket
 *              file descriptor
 *             the name of the file to serve */
 /**********************************************************************/
void serve_file(int client, const char* filename)
{
    FILE* resource = NULL;
    int numchars = 1;
    char buf[1024];

    /*读取并丢弃 header */
    buf[0] = 'A'; buf[1] = '\0';
    while ((numchars > 0) && strcmp("\n", buf))  /* read & discard headers */
        numchars = get_line(client, buf, sizeof(buf));

    /*打开 sever 的文件*/
    resource = fopen(filename, "r");
    if (resource == NULL)
        not_found(client);
    else
    {
        /*写 HTTP header */
        headers(client, filename);
        /*复制文件*/
        cat(client, resource);
    }
    fclose(resource);
}

/**********************************************************************/
/* This function starts the process of listening for web connections
 * on a specified port.  If the port is 0, then dynamically allocate a
 * port and modify the original port variable to reflect the actual
 * port.
 * Parameters: pointer to variable containing the port to connect on
 * Returns: the socket */
 /**********************************************************************/
int startup(u_short* port)
{
    int httpd = 0;
    struct sockaddr_in name;

    /*建立 socket */
    httpd = socket(PF_INET, SOCK_STREAM, 0);
    if (httpd == -1)
        error_die("socket");
    memset(&name, 0, sizeof(name));
    name.sin_family = AF_INET;
    name.sin_port = htons(*port);
    name.sin_addr.s_addr = htonl(INADDR_ANY);
    if (bind(httpd, (struct sockaddr*)&name, sizeof(name)) < 0)
        error_die("bind");
    /*如果当前指定端口是 0，则动态随机分配一个端口*/
    if (*port == 0)  /* if dynamically allocating a port */
    {
        int namelen = sizeof(name);
        if (getsockname(httpd, (struct sockaddr*)&name, &namelen) == -1)
            error_die("getsockname");
        *port = ntohs(name.sin_port);
    }
    /*开始监听*/
    if (listen(httpd, 5) < 0)
        error_die("listen");
    /*返回 socket id */
    return(httpd);
}

/**********************************************************************/
/* Inform the client that the requested web method has not been
 * implemented.
 * Parameter: the client socket */
 /**********************************************************************/
void unimplemented(int client)
{
    char buf[1024];

    /* HTTP method 不被支持*/
    sprintf(buf, "HTTP/1.0 501 Method Not Implemented\r\n");
    send(client, buf, strlen(buf), 0);
    /*服务器信息*/
    sprintf(buf, SERVER_STRING);
    send(client, buf, strlen(buf), 0);
    sprintf(buf, "Content-Type: text/html\r\n");
    send(client, buf, strlen(buf), 0);
    sprintf(buf, "\r\n");
    send(client, buf, strlen(buf), 0);
    sprintf(buf, "<HTML><HEAD><TITLE>Method Not Implemented\r\n");
    send(client, buf, strlen(buf), 0);
    sprintf(buf, "</TITLE></HEAD>\r\n");
    send(client, buf, strlen(buf), 0);
    sprintf(buf, "<BODY><P>HTTP request method not supported.\r\n");
    send(client, buf, strlen(buf), 0);
    sprintf(buf, "</BODY></HTML>\r\n");
    send(client, buf, strlen(buf), 0);
}

/**********************************************************************/

int main(void)
{
    int server_sock = -1;
    u_short port = 0;
    int client_sock = -1;
    struct sockaddr_in client_name;
    int client_name_len = sizeof(client_name);
    pthread_t newthread;

    /*在对应端口建立 httpd 服务*/
    server_sock = startup(&port);
    printf("httpd running on port %d\n", port);

    while (1)
    {
        /*套接字收到客户端连接请求*/
        client_sock = accept(server_sock, (struct sockaddr*)&client_name, &client_name_len);
        if (client_sock == -1)
            error_die("accept");
        /*派生新线程用 accept_request 函数处理新请求*/
        /* accept_request(client_sock); */
        if (pthread_create(&newthread, NULL, accept_request, client_sock) != 0)
            perror("pthread_create");
    }

    close(server_sock);

    return(0);
}

编译运行

[root@zlzlinux tinyhttpd]# make
gcc -W -Wall -lpthread -o httpd httpd.c
httpd.c: 在函数‘startup’中:
httpd.c:498:57: 警告：传递‘getsockname’的第 3 个参数给指针时，目标与指针符号不一致 [-Wpointer-sign]
         if (getsockname(httpd, (struct sockaddr*)&name, &namelen) == -1)
                                                         ^~~~~~~~
In file included from httpd.c:16:
/usr/include/sys/socket.h:116:12: 附注：需要类型‘socklen_t * restrict’ {或称 ‘unsigned int * restrict’}，但实参的类型为‘int *’
 extern int getsockname (int __fd, __SOCKADDR_ARG __addr,
            ^~~~~~~~~~~
httpd.c: 在函数‘main’中:
httpd.c:556:75: 警告：传递‘accept’的第 3 个参数给指针时，目标与指针符号不一致 [-Wpointer-sign]
         client_sock = accept(server_sock, (struct sockaddr*)&client_name, &client_name_len);
                                                                           ^~~~~~~~~~~~~~~~
In file included from httpd.c:16:
/usr/include/sys/socket.h:232:12: 附注：需要类型‘socklen_t * restrict’ {或称 ‘unsigned int * restrict’}，但实参的类型为‘int *’
 extern int accept (int __fd, __SOCKADDR_ARG __addr,
            ^~~~~~
httpd.c:561:46: 警告：传递‘pthread_create’的第 3 个参数时在不兼容的指针类型间转换 [-Wincompatible-pointer-types]
         if (pthread_create(&newthread, NULL, accept_request, client_sock) != 0)
                                              ^~~~~~~~~~~~~~
In file included from httpd.c:25:
/usr/include/pthread.h:236:15: 附注：需要类型‘void * (*)(void *)’，但实参的类型为‘void (*)(int)’
       void *(*__start_routine) (void *),
       ~~~~~~~~^~~~~~~~~~~~~~~~~~~~~~~~~
httpd.c:561:62: 警告：传递‘pthread_create’的第 4 个参数时将整数赋给指针，未作类型转换 [-Wint-conversion]
         if (pthread_create(&newthread, NULL, accept_request, client_sock) != 0)
                                                              ^~~~~~~~~~~
In file included from httpd.c:25:
/usr/include/pthread.h:237:24: 附注：需要类型‘void * restrict’，但实参的类型为‘int’
       void *__restrict __arg) __THROWNL __nonnull ((1, 3));
       ~~~~~~~~~~~~~~~~~^~~~~
[root@zlzlinux tinyhttpd]# ll
总用量 64
drwxr-xr-x 2 root root    72 3月  12 14:32 htdocs
-rwxr-xr-x 1 root root 30736 3月  12 14:35 httpd
-rw-r--r-- 1 root root 18922 3月  12 14:32 httpd.c
-rw-r--r-- 1 root root    86 3月  12 14:35 Makefile
-rw-r--r-- 1 root root  1904 3月  12 14:32 README
-rw-r--r-- 1 root root   673 3月  12 14:32 simpleclient.c
[root@zlzlinux tinyhttpd]# httpd
AH00558: httpd: Could not reliably determine the server's fully qualified domain name, using fe80::4d0b:c4d6:c845:87fd. Set the 'ServerName' directive globally to suppress this message
httpd (pid 2623) already running
[root@zlzlinux tinyhttpd]# ./httpd
httpd running on port 39507
^C
[root@zlzlinux tinyhttpd]#
[root@zlzlinux tinyhttpd]#
[root@zlzlinux tinyhttpd]#
[root@zlzlinux tinyhttpd]#
[root@zlzlinux tinyhttpd]# ls
htdocs  httpd  httpd.c  Makefile  README  simpleclient.c
[root@zlzlinux tinyhttpd]# cd htdocs
[root@zlzlinux htdocs]# ll
总用量 36
-rw-r--r-- 1 root root   479 3月  12 14:32 check.cgi
-rw-r--r-- 1 root root   320 3月  12 14:32 color.cgi
-rw-r--r-- 1 root root 20052 3月  12 14:38 httpspage.html
-rw-r--r-- 1 root root   218 3月  12 14:32 index.html
-rw-r--r-- 1 root root   308 3月  12 14:32 README
[root@zlzlinux htdocs]# cd ..
[root@zlzlinux tinyhttpd]# ./httpd
httpd running on port 35151
