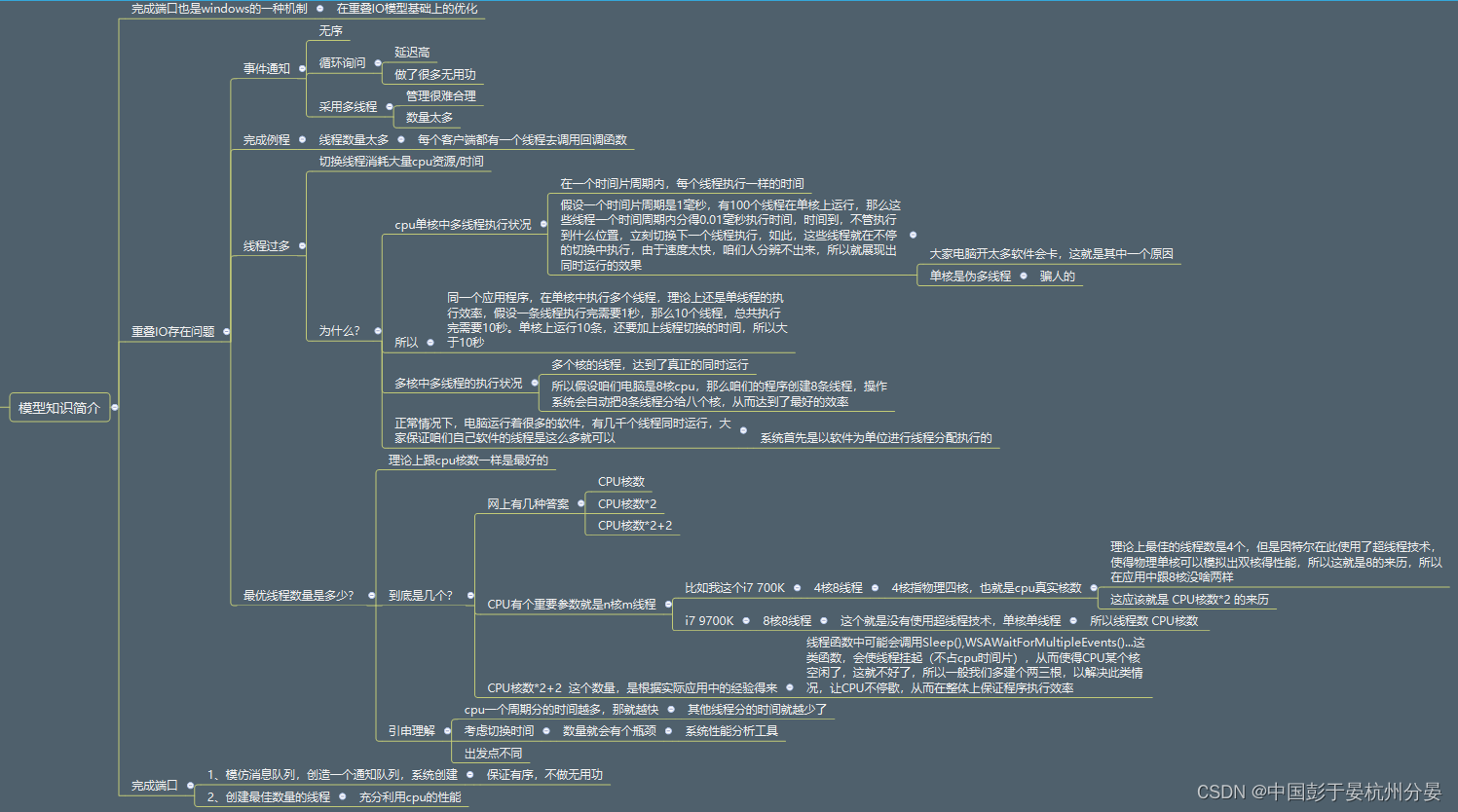

1 完成端口模型介绍

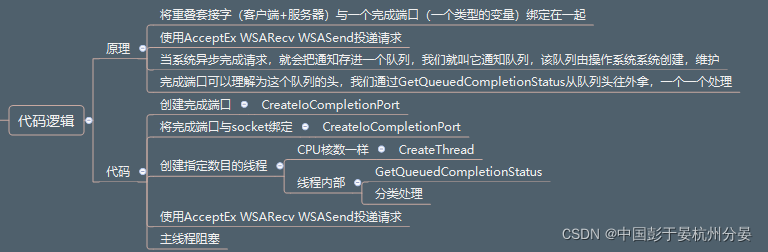

2 代码逻辑

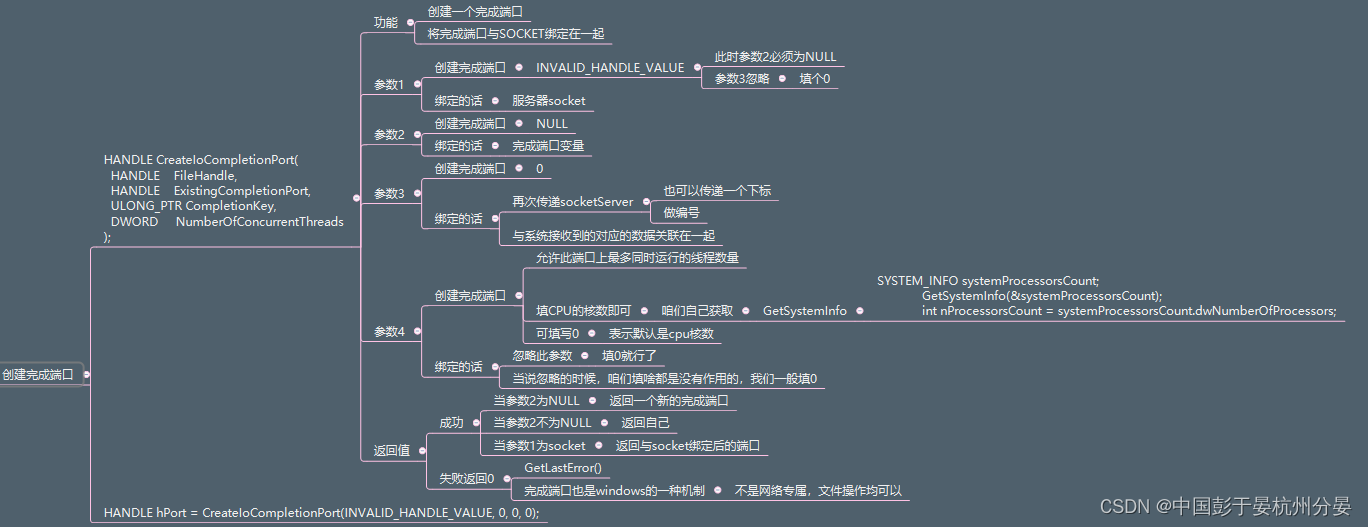

2.1 创建完成端口
2.2 完成端口与socketServer绑定
HANDLE hRes = CreateIoCompletionPort((HANDLE)sockListen, hPort, sockListen, 0);

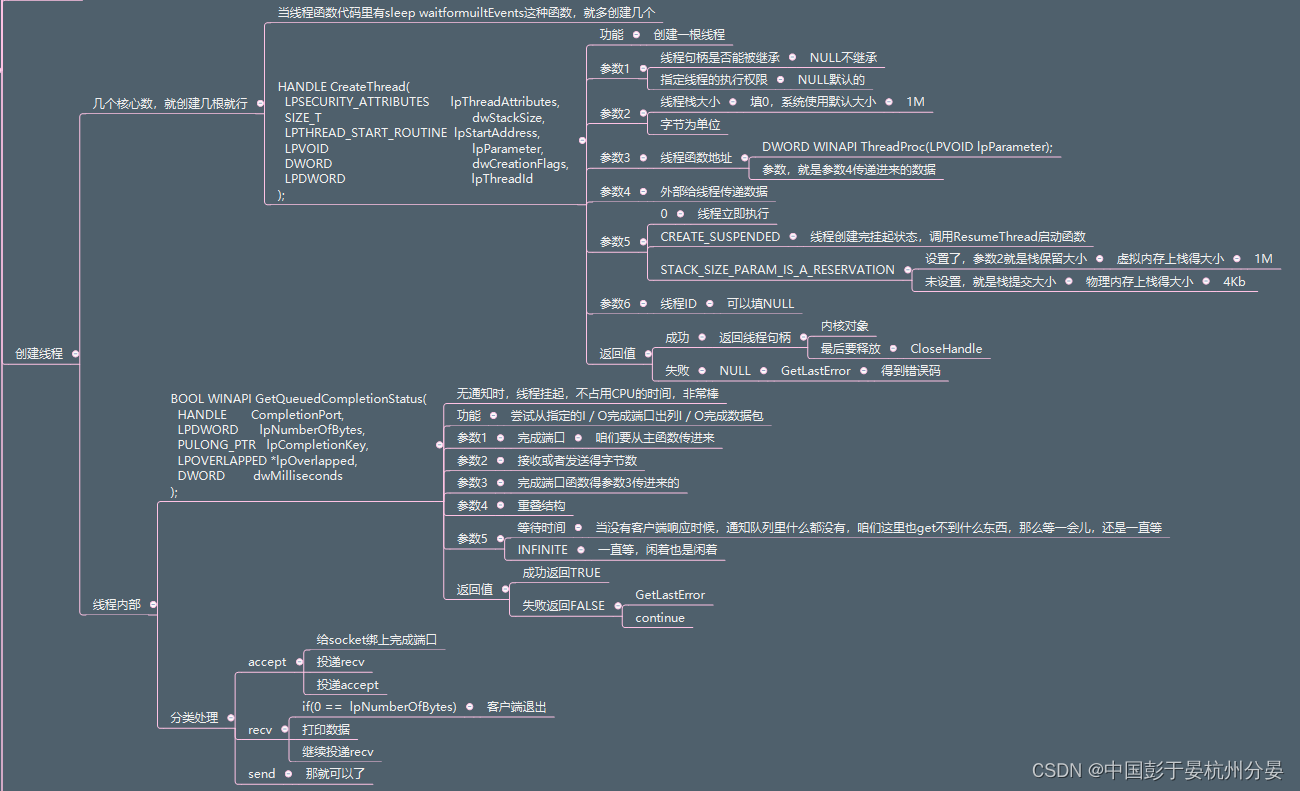

2.3 创建线程
2.4 完成端口

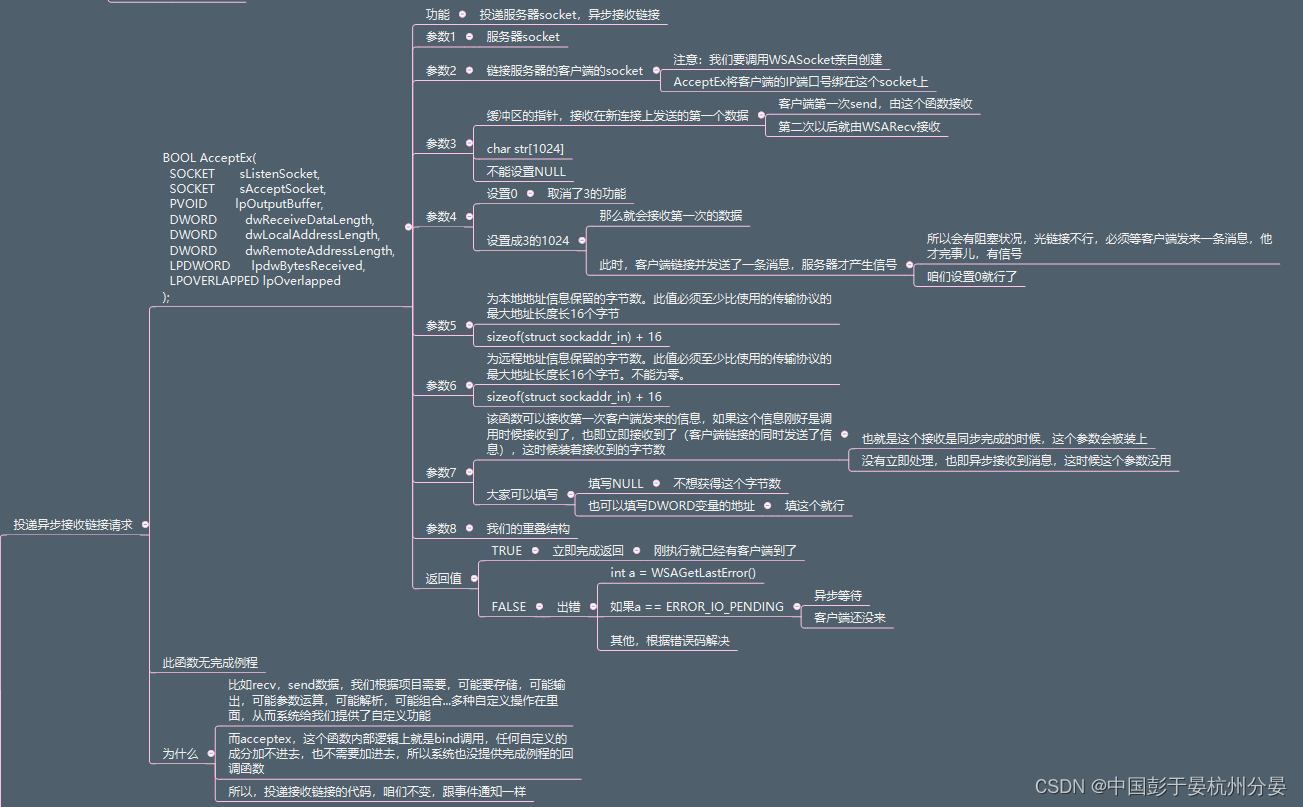

2.4.1 投递异步接收链接请求

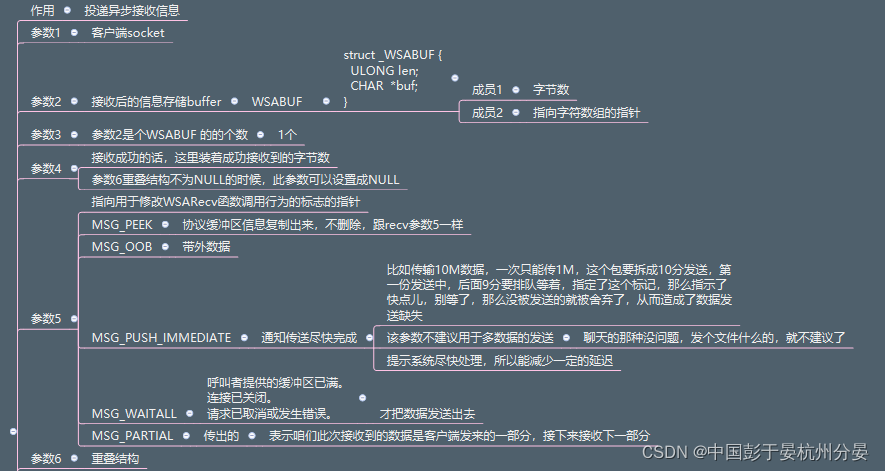

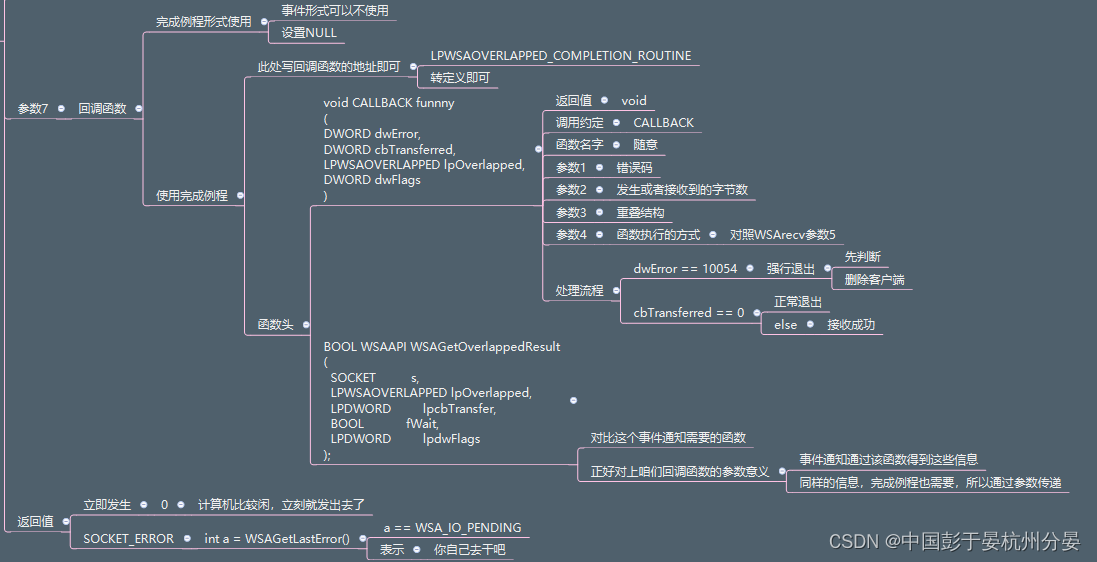

2.4.2 WSARecv 投递异步接收信息
int WSAAPI WSARecv(
[in] SOCKET s,
[in, out] LPWSABUF lpBuffers,
[in] DWORD dwBufferCount,
[out] LPDWORD lpNumberOfBytesRecvd,
[in, out] LPDWORD lpFlags,
[in] LPWSAOVERLAPPED lpOverlapped,
[in] LPWSAOVERLAPPED_COMPLETION_ROUTINE lpCompletionRoutine
);

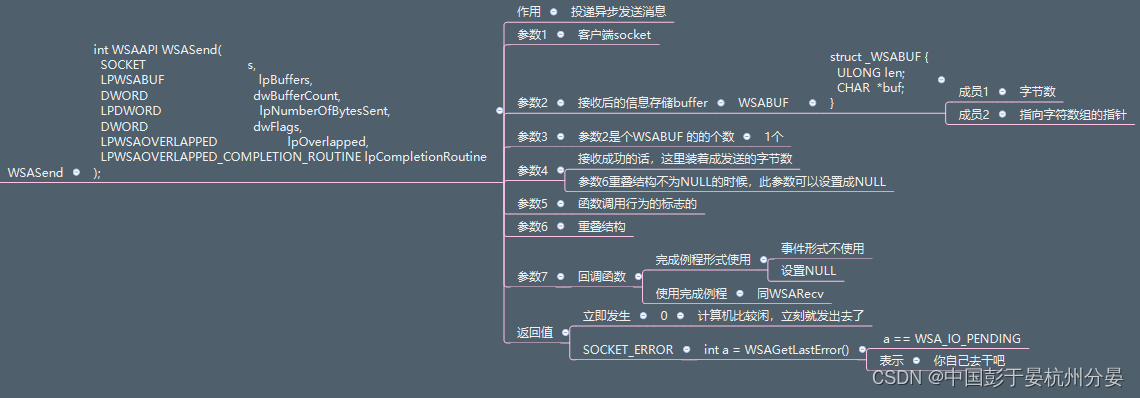

2.4.3 WSASend 投递异步发送消息
#define _CRT_SECURE_NO_WARNINGS
#include <stdio.h>
#include <stdlib.h>
#include <Winsock2.h>
#include <mswsock.h>
#include <string.h>
#pragma comment(lib, "Ws2_32.lib")
#pragma comment(lib, "Mswsock.lib")
#define MAX_COUNT 1024
#define MAX_RECV_COUNT 1024
SOCKET all_socks[MAX_COUNT];
OVERLAPPED all_olp[MAX_COUNT];
int count;
HANDLE hPort;
HANDLE *pThread;
int process_count;
//接收缓冲区
char recv_buf[MAX_RECV_COUNT];
int PostAccept(void);
int PostRecv(int index);
int PostSend(int index);
void Clear(void)
{
for (int i = 0; i < count; i++)
{
if (0 == all_socks[i])
continue;
closesocket(all_socks[i]);
WSACloseEvent(all_olp[i].hEvent);
}
}
BOOL g_flag = TRUE;
BOOL WINAPI fun(DWORD dwCtrlType)
{
switch (dwCtrlType)
{
case CTRL_CLOSE_EVENT:
//释放所有socket
CloseHandle(hPort);
Clear();
g_flag = FALSE;
//释放线程句柄
for (int i = 0; i < process_count; i++)
{
//TerminateThread(pThread[i],);
CloseHandle(pThread[i]);
}
free(pThread);
break;
}
return TRUE;
}
DWORD WINAPI ThreadProc(LPVOID lpParameter);
int main(void)
{
SetConsoleCtrlHandler(fun, TRUE);
WORD wdVersion = MAKEWORD(2, 2);
WSADATA wdScokMsg;
int nRes = WSAStartup(wdVersion, &wdScokMsg);
if (0 != nRes)
{
switch (nRes)
{
case WSASYSNOTREADY:
printf("重启下电脑试试，或者检查网络库");
break;
case WSAVERNOTSUPPORTED:
printf("请更新网络库");
break;
case WSAEINPROGRESS:
printf("请重新启动");
break;
case WSAEPROCLIM:
printf("请尝试关掉不必要的软件，以为当前网络运行提供充足资源");
break;
}
return 0;
}
//校验版本
if (2 != HIBYTE(wdScokMsg.wVersion) || 2 != LOBYTE(wdScokMsg.wVersion))
{
//说明版本不对
//清理网络库
WSACleanup();
return 0;
}
SOCKET socketServer = WSASocket(AF_INET, SOCK_STREAM, IPPROTO_TCP, NULL, 0, WSA_FLAG_OVERLAPPED);
//int a = WSAGetLastError();
if (INVALID_SOCKET == socketServer)
{
int a = WSAGetLastError();
//清理网络库
WSACleanup();
return 0;
}
struct sockaddr_in si;
si.sin_family = AF_INET;
si.sin_port = htons(12345);
si.sin_addr.S_un.S_addr = inet_addr("127.0.0.1");
//int a = ~0;
if (SOCKET_ERROR == bind(socketServer, (const struct sockaddr *)&si, sizeof(si)))
{
//出错了
int a = WSAGetLastError();
//释放
closesocket(socketServer);
//清理网络库
WSACleanup();
return 0;
}
all_socks[count] = socketServer;
all_olp[count].hEvent = WSACreateEvent();
count++;
//创建完成端口
hPort = CreateIoCompletionPort(INVALID_HANDLE_VALUE, NULL, 0, 0);
if (0 == hPort)
{
int a = GetLastError();
printf("%d\n", a);
closesocket(socketServer);
//清理网络库
WSACleanup();
return 0;
}
//绑定
HANDLE hPort1 = CreateIoCompletionPort((HANDLE)socketServer, hPort, 0, 0);
if (hPort1 != hPort)
{
int a = GetLastError();
printf("%d\n", a);
CloseHandle(hPort);
closesocket(socketServer);
//清理网络库
WSACleanup();
return 0;
}
if (SOCKET_ERROR == listen(socketServer, SOMAXCONN))
{
//出错了
int a = WSAGetLastError();
//释放
CloseHandle(hPort);
closesocket(socketServer);
//清理网络库
WSACleanup();
return 0;
}
if (0 != PostAccept())
{
Clear();
//清理网络库
WSACleanup();
return 0;
}
//创建线程数量有了
SYSTEM_INFO system_processors_count;
GetSystemInfo(&system_processors_count);
process_count = system_processors_count.dwNumberOfProcessors;
//创建
pThread = (HANDLE*)malloc(sizeof(HANDLE)*process_count);
for (int i = 0; i < process_count; i++)
{
pThread[i] = CreateThread(NULL, 0, ThreadProc, hPort, 0, NULL);
if (NULL == pThread[i])
{
int a = GetLastError();
printf("%d\n", a);
CloseHandle(hPort);
closesocket(socketServer);
//清理网络库
WSACleanup();
return 0;
}
}
//阻塞
while (1)
{
Sleep(1000);
}
//释放线程句柄
for (int i = 0; i < process_count; i++)
{
CloseHandle(pThread[i]);
}
free(pThread);
CloseHandle(hPort);
Clear();
//清理网络库
WSACleanup();
system("pause");
return 0;
}
DWORD WINAPI ThreadProc(LPVOID lpParameter)
{
HANDLE port = (HANDLE)lpParameter;
DWORD number_of_bytes;
ULONG_PTR index;
LPOVERLAPPED lpOverlapped;
while (g_flag)
{
BOOL bFlag = GetQueuedCompletionStatus(port, &number_of_bytes, &index, &lpOverlapped, INFINITE);
if (FALSE == bFlag)
{
int a = GetLastError();
if (64 == a)
{
printf("force close\n");
}
printf("%d\n", a);
continue;
}
//处理
//accept
if (0 == index)
{
printf("accept\n");
//绑定到完成端口
HANDLE hPort1 = CreateIoCompletionPort((HANDLE)all_socks[count], hPort, count, 0);
if (hPort1 != hPort)
{
int a = GetLastError();
printf("%d\n", a);
closesocket(all_socks[count]);
continue;
}
PostSend(count);
//新客户端投递recv
PostRecv(count);
count++;
PostAccept();
}
else
{
if (0 == number_of_bytes)
{
//客户端下线
printf("close\n");
//关闭
closesocket(all_socks[index]);
WSACloseEvent(all_olp[index].hEvent);
//从数组中删掉
all_socks[index] = 0;
all_olp[index].hEvent = NULL;
}
else
{
if (0 != recv_buf[0])
{
//收到 recv
printf("%s\n", recv_buf);
memset(recv_buf, 0, sizeof(recv_buf));
//
PostRecv(index);
}
else
{
//send
printf("send ok\n");
}
}
}
}
return 0;
}
int PostAccept()
{
all_socks[count] = WSASocket(AF_INET, SOCK_STREAM, IPPROTO_TCP, NULL, 0, WSA_FLAG_OVERLAPPED);
all_olp[count].hEvent = WSACreateEvent();
char str[1024] = { 0 };
DWORD dwRecvcount;
BOOL bRes = AcceptEx(all_socks[0], all_socks[count], str, 0, sizeof(struct sockaddr_in) + 16,
sizeof(struct sockaddr_in) + 16, &dwRecvcount, &all_olp[0]);
int a = WSAGetLastError();
if (ERROR_IO_PENDING != a)
{
//函数执行出错
return 1;
}
return 0;
}
int PostRecv(int index)
{
WSABUF wsabuf;
wsabuf.buf = recv_buf;
wsabuf.len = MAX_RECV_COUNT;
DWORD dwRecvCount;
DWORD dwFlag = 0;
int nRes = WSARecv(all_socks[index], &wsabuf, 1, &dwRecvCount, &dwFlag, &all_olp[index], NULL);
int a = WSAGetLastError();
if (ERROR_IO_PENDING != a)
{
//函数执行出错
return 1;
}
return 0;
}
int PostSend(int index)
{
WSABUF wsabuf;
wsabuf.buf = "你好";
wsabuf.len = MAX_RECV_COUNT;
DWORD dwSendCount;
DWORD dwFlag = 0;
int nRes = WSASend(all_socks[index], &wsabuf, 1, &dwSendCount, dwFlag, &all_olp[index], NULL);
int a = WSAGetLastError();
if (ERROR_IO_PENDING != a)
{
//延迟处理
//函数执行出错
return 1;
}
return 0;
}
