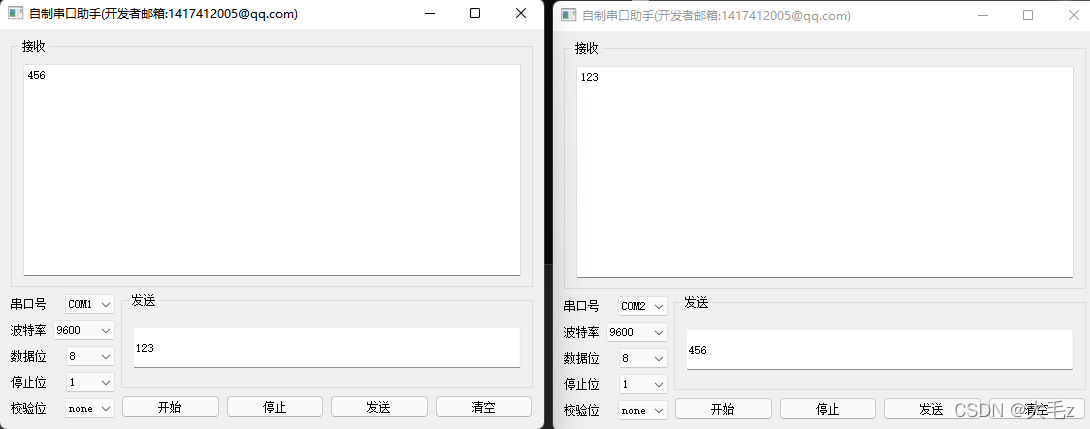

成品效果

代码地址:https://gitee.com/itengfei/serial-assistant
在这里插入图片描述

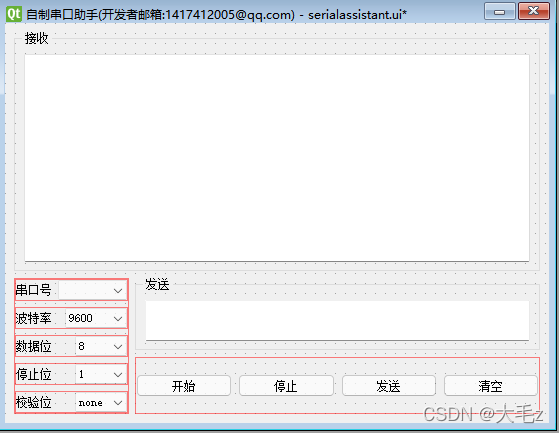

ui布局

代码链接:
在这里插入图片描述

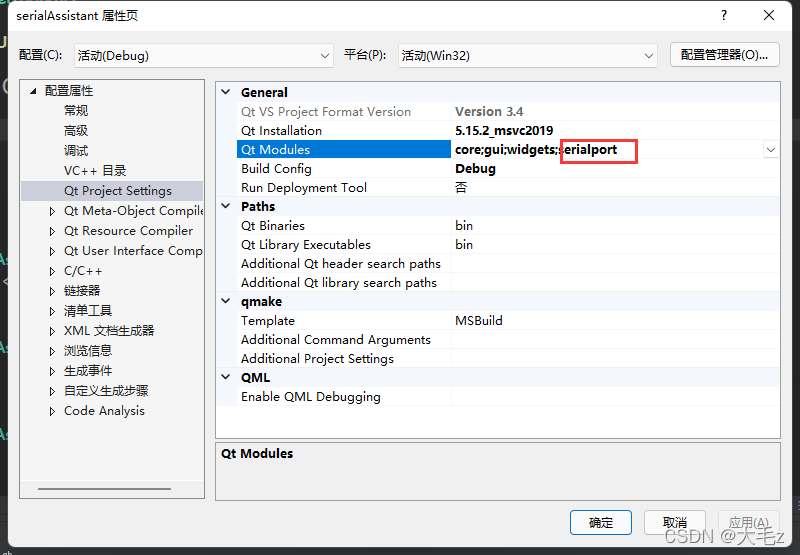

编码

在这里插入图片描述
串口助手
 虚拟串口

serialAssistant.h代码

#pragma once

#include <QtWidgets/QWidget>
#include "ui_serialassistant.h"

#include <QSerialPort>        //提供访问串口的功能
#include <QSerialPortInfo>    //提供系统中存在的串口的信息
#include<qmessagebox.h>

class serialAssistant : public QWidget
{
    Q_OBJECT

public:
    serialAssistant(QWidget* parent = Q_NULLPTR) ;
    ~serialAssistant() {};


    QSerialPort* serialPort;
    QSerialPort::BaudRate baudRate{};
    QSerialPort::StopBits stopBits{};
    QSerialPort::DataBits dataBits{};
    QSerialPort::Parity checkBits{};

public slots:
    void start();
    void stop();
    void clear();
    void send();
    void receive();


private:
    Ui::serialAssistantClass ui;
};

serialAssistant.cpp代码

#include "serialassistant.h"
#include <iostream>



serialAssistant::serialAssistant(QWidget *parent)
    : QWidget(parent)
{

    ui.setupUi(this);

    serialPort = new QSerialPort(this);

    // get and show  ports
    for each (const QSerialPortInfo &info in QSerialPortInfo::availablePorts())
    {
        ui.serialPortComBox->addItem(info.portName());
    }

    connect(serialPort, SIGNAL(readyRead()),this, SLOT(receive()));
}

void serialAssistant::start() {
    if (ui.baudRatCombox->currentText() == "4800") {
        serialAssistant::baudRate = QSerialPort::Baud4800;
    }
    else if (ui.baudRatCombox->currentText() == "9600") {
        serialAssistant::baudRate = QSerialPort::Baud9600;
    }
    else if (ui.baudRatCombox->currentText() == "115200") {
        serialAssistant::baudRate = QSerialPort::Baud115200;
    }


    if (ui.dataBitComBox->currentText() == "5") {
        serialAssistant::dataBits = QSerialPort::Data5;
    }
    else if (ui.dataBitComBox->currentText() == "6") {
        serialAssistant::dataBits = QSerialPort::Data6;
    }
    else if (ui.dataBitComBox->currentText() == "7") {
        serialAssistant::dataBits = QSerialPort::Data7;
    }
    else if (ui.dataBitComBox->currentText() == "8") {
        serialAssistant::dataBits = QSerialPort::Data8;
    }


    if (ui.stopBitComBox->currentText() == "1") {
        serialAssistant::stopBits = QSerialPort::OneStop;
    }
    else if (ui.stopBitComBox->currentText() == "1.5") {
        serialAssistant::stopBits = QSerialPort::OneAndHalfStop;
    }
    else if (ui.stopBitComBox->currentText() == "2") {
        serialAssistant::stopBits = QSerialPort::TwoStop;
    }

    if (ui.checkComBox->currentText() == "none") {
        serialAssistant::checkBits = QSerialPort::NoParity;
    }

    serialPort->setPortName(ui.serialPortComBox->currentText());
    serialPort->setBaudRate(serialAssistant::baudRate);
    serialPort->setDataBits(serialAssistant::dataBits);
    serialPort->setStopBits(serialAssistant::stopBits);
    serialPort->setParity(serialAssistant::checkBits);

   // std::cout << serialAssistant::baudRate << std::endl;
    // std::cout << serialAssistant::dataBits << std::endl;
    // std::cout << serialAssistant::stopBits << std::endl;
    // std::cout << serialAssistant::checkBits << std::endl;

    // chek status
    if (serialPort->open(QIODevice::ReadWrite) == true) {

        QMessageBox::information(this, "tip", "ok");
    }
    else {
        QMessageBox::critical(this, "tip", "fail");
    }

}

void serialAssistant::stop()
{
    QMessageBox::information(this, "tip", "closed");
    serialPort->close();
}

void serialAssistant::clear()
{
    ui.sendLineEdit->clear();
}

void serialAssistant::send()
{
    serialPort->write(ui.sendLineEdit->text().toLocal8Bit().data());
    //std::cout << ui.sendLineEdit->text().toLocal8Bit().data() << std::endl;
}

void serialAssistant::receive()
{
    QString buffer;
    buffer =  QString(serialPort->readAll());
    ui.receivePlainTextEdit->appendPlainText(buffer);
    //std::cout << buffer.toStdString() << std::endl;
}
