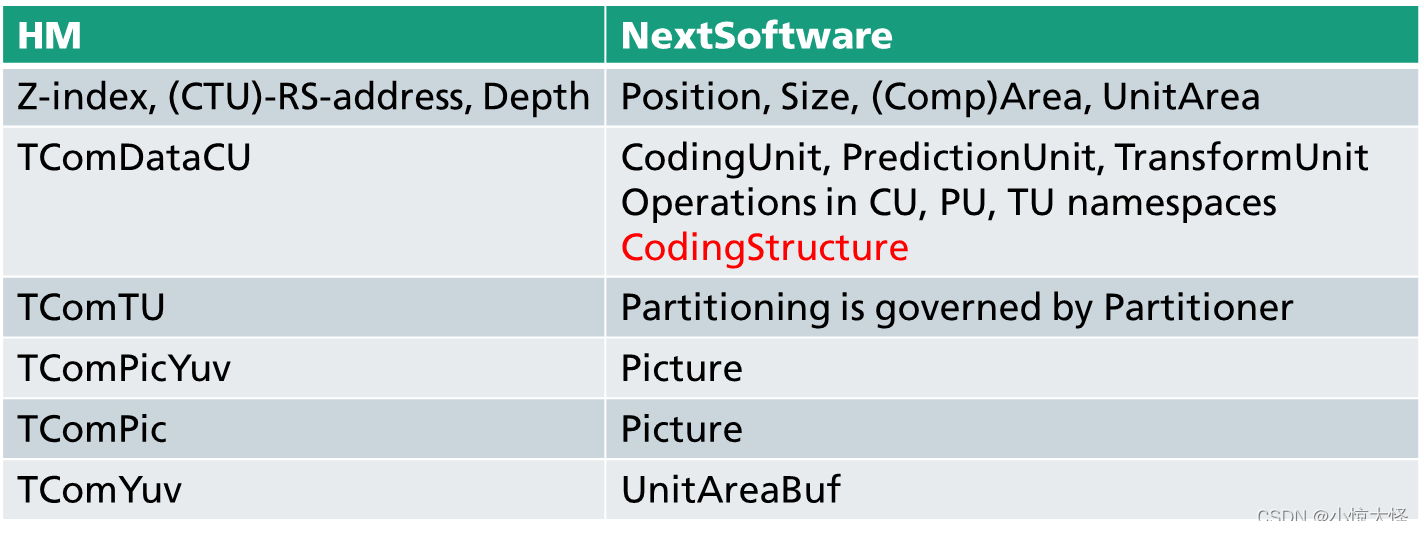

新的视频编码标准参考软件相较于上一代参考软件HM，
有着z-index 类等函数叠加顺序上不优，TcomdataCU这个数据模型太模糊等等细节问题。
新加入了面向对象设计程序，取消了z-index的使用，消除CTU->z-index的信号寻址。

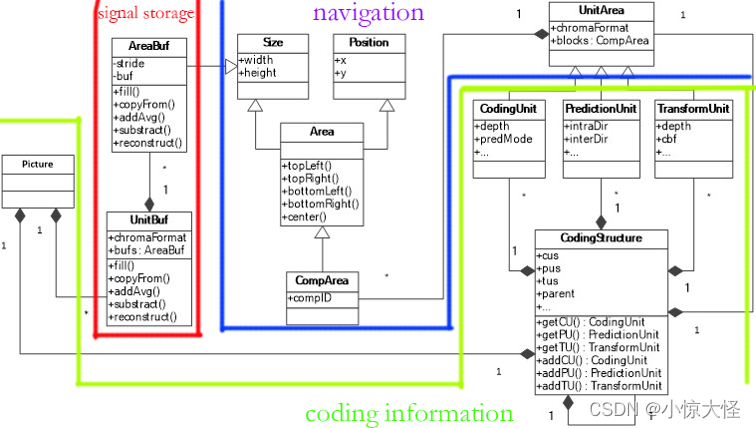

整体的数据结构模型
引导位置部分 Navigation
- Size, Position, Area (Position + Size)
代表基本的二维导航信息
Size
宽度、高度:UInt–描述矩形的大小
Position
x，y:Int–描述一个点的2D位置
Area:Position + Size
位于特定位置的特定大小的矩形
CompArea:Area
多分量信号的特定分量(compID)内的区域
struct Size
{
SizeType width; //数据成员宽和高。typedef uint32_t SizeType;
SizeType height;
Size() : width(0), height(0) { }//构造函数列表初始化为0
Size(const SizeType _width, const SizeType _height) : width(_width), height(_height) { }//构造函数
bool operator!=(const Size &other) const { return (width != other.width) || (height != other.height); }//常量成员函数
bool operator==(const Size &other) const { return (width == other.width) && (height == other.height); }
uint32_t area() const { return (uint32_t) width * (uint32_t) height; }//常量成员函数，area 返回长乘宽等于面积
#if REUSE_CU_RESULTS_WITH_MULTIPLE_TUS
void resizeTo(const Size newSize) { width = newSize.width; height = newSize.height; }
#endif
};
struct Position
{
PosType x;//typedef int PosType; int型，此刻的坐标值
PosType y;
Position() : x(0), y(0) { }//构造函数
Position(const PosType _x, const PosType _y) : x(_x), y(_y) { }
bool operator!=(const Position &other) const { return x != other.x || y != other.y; }//两个区域是否是同一区域，不相等则返回true;下面函数相反
bool operator==(const Position &other) const { return x == other.x && y == other.y; }
Position offset(const Position pos) const { return Position(x + pos.x, y + pos.y); }//常量偏移值函数，返回偏移后的坐标
Position offset(const PosType _x, const PosType _y) const { return Position(x + _x , y + _y ); }
void repositionTo(const Position newPos) { x = newPos.x; y = newPos.y; }//更新位置信息，去到新位置
void relativeTo (const Position origin) { x -= origin.x; y -= origin.y; }//
//得到新位置和上一个位置的相对距离
Position operator-( const Position &other ) const { return{ x - other.x, y - other.y }; //位置操作函数常量，返回当前位置与某一位置的距离}
};
struct Area : public Position, public Size//继承两个类
{
Area() : Position(), Size() { }
Area(const Position &_pos, const Size &_size) : Position(_pos), Size(_size) { }
Area(const PosType _x, const PosType _y, const SizeType _w, const SizeType _h) : Position(_x, _y), Size(_w, _h) { }
Position& pos() { return *this; } //pos引用函数返回对象以作为引用//返回引用在内存中不产生被返回值的副本，局部变量不要引用返回
const Position& pos() const { return *this; }
Size& size() { return *this; }// size()函数返回对象
const Size& size() const { return *this; }
const Position& topLeft() const { return *this; } //topleft函数返回对象
Position topRight() const { return { (PosType) (x + width - 1), y }; //返回块右上位置，下面类似函数用于返回区域的左下右下中心位置}
Position bottomLeft() const { return { x , (PosType) (y + height - 1) }; }
Position bottomRight() const { return { (PosType) (x + width - 1), (PosType) (y + height - 1) }; }
Position center() const { return { (PosType) (x + width / 2), (PosType) (y + height / 2) }; }
bool contains(const Position &_pos) const { return (_pos.x >= x) && (_pos.x < (x + width)) && (_pos.y >= y) && (_pos.y < (y + height)); }//判断某个位置是否在此位置内，在的话返回true
bool contains(const Area &_area) const { return contains(_area.pos()) && contains(_area.bottomRight()); }//判断一个区域的右下位置加上高宽度后与左上位置是否是都在当前区域内
bool operator!=(const Area &other) const { return (Size::operator!=(other)) || (Position::operator!=(other)); } // 判断区域是否与当前区域一致
bool operator==(const Area &other) const { return (Size::operator==(other)) && (Position::operator==(other)); }
};
- compArea
给定组件(块)中的区域 - UnitArea
表示多通道信号中的一个区域
描述协同定位的组件的组成的一组块
enum ComponentID//通道部分
{
COMPONENT_Y = 0,
COMPONENT_Cb = 1,
COMPONENT_Cr = 2,
MAX_NUM_COMPONENT = 3,
JOINT_CbCr = MAX_NUM_COMPONENT,
MAX_NUM_TBLOCKS = MAX_NUM_COMPONENT
};
struct CompArea : public Area
{
CompArea() : Area(), chromaFormat(NUM_CHROMA_FORMAT), compID(MAX_NUM_TBLOCKS) { }//构造函数初始化列表，采样格式以及区域所在通道初始化
CompArea(const ComponentID _compID, const ChromaFormat _cf, const Area &_area, const bool isLuma = false) : Area(_area), chromaFormat(_cf), compID(_compID) { if (isLuma) xRecalcLumaToChroma(); }//构造函数重载+5
CompArea(const ComponentID _compID, const ChromaFormat _cf, const Position& _pos, const Size& _size, const bool isLuma = false) : Area(_pos, _size), chromaFormat(_cf), compID(_compID) { if (isLuma) xRecalcLumaToChroma(); }
CompArea(const ComponentID _compID, const ChromaFormat _cf, const uint32_t _x, const uint32_t _y, const uint32_t _w, const uint32_t _h, const bool isLuma = false) : Area(_x, _y, _w, _h), chromaFormat(_cf), compID(_compID) { if (isLuma) xRecalcLumaToChroma(); }
ChromaFormat chromaFormat; //采样方式
ComponentID compID;//通道
Position chromaPos() const;//声明色度位置
Position lumaPos() const;//声明亮度位置常量
Size chromaSize() const;//声明
Size lumaSize() const;
Position compPos( const ComponentID compID ) const; //yuv哪个通道
Position chanPos( const ChannelType chType ) const;//y uv哪个通道
//声明与定义获取comp部分的的位置函数
Position topLeftComp (const ComponentID _compID) const { return recalcPosition(chromaFormat, compID, _compID, *this); }
Position topRightComp (const ComponentID _compID) const { return recalcPosition(chromaFormat, compID, _compID, { (PosType) (x + width - 1), y }); }
Position bottomLeftComp (const ComponentID _compID) const { return recalcPosition(chromaFormat, compID, _compID, { x , (PosType) (y + height - 1 )}); }
Position bottomRightComp(const ComponentID _compID) const { return recalcPosition(chromaFormat, compID, _compID, { (PosType) (x + width - 1), (PosType) (y + height - 1 )}); }
//常量函数，判断取样格式、通道数目、区域的宽高不为零 是否正确有效
bool valid() const { return chromaFormat < NUM_CHROMA_FORMAT && compID < MAX_NUM_TBLOCKS && width != 0 && height != 0; }
//判断other位置与当前位置是否一致，
const bool operator==(const CompArea &other) const
{
if (chromaFormat != other.chromaFormat) return false;
if (compID != other.compID) return false;
return Position::operator==(other) && Size::operator==(other);
}
const bool operator!=(const CompArea &other) const { return !(operator==(other)); }
#if REUSE_CU_RESULTS_WITH_MULTIPLE_TUS
void resizeTo (const Size& newSize) { Size::resizeTo(newSize); }//继承size重新调整当前unit的大小，
#endif
//继承position 的重新调整位置，得到两个位置的距离
void repositionTo (const Position& newPos) { Position::repositionTo(newPos); }
void positionRelativeTo(const CompArea& origCompArea) { Position::relativeTo(origCompArea); }
private:
//亮度到色度，中间是移位操作
void xRecalcLumaToChroma();
};
struct UnitArea
{
ChromaFormat chromaFormat; //色度格式，默认都用 CHROMA_420 =1
UnitBlocksType blocks; //二维数组typedef static_vector<CompArea, MAX_NUM_TBLOCKS> UnitBlocksType; 此单元块类型是个二维数组
UnitArea() : chromaFormat(NUM_CHROMA_FORMAT) { }//构造函数初始列表先初始化采样格式
UnitArea(const ChromaFormat _chromaFormat);//重载
UnitArea(const ChromaFormat _chromaFormat, const Area &area);
UnitArea(const ChromaFormat _chromaFormat, const CompArea &blkY);
UnitArea(const ChromaFormat _chromaFormat, CompArea &&blkY);
UnitArea(const ChromaFormat _chromaFormat, const CompArea &blkY, const CompArea &blkCb, const CompArea &blkCr);
UnitArea(const ChromaFormat _chromaFormat, CompArea &&blkY, CompArea &&blkCb, CompArea &&blkCr);
CompArea& Y() { return blocks[COMPONENT_Y]; }
//y通道部分的区域函数，返回 区域的块类型数组的第一个数据（下标为0），因为是Y通道，下面类似
const CompArea& Y() const { return blocks[COMPONENT_Y]; }
CompArea& Cb() { return blocks[COMPONENT_Cb]; }
const CompArea& Cb() const { return blocks[COMPONENT_Cb]; }
CompArea& Cr() { return blocks[COMPONENT_Cr]; }
const CompArea& Cr() const { return blocks[COMPONENT_Cr]; }
CompArea& block(const ComponentID comp) { return blocks[comp]; }//根据不同通道返回块的第几个元素
const CompArea& block(const ComponentID comp) const { return blocks[comp]; }
bool contains(const UnitArea& other) const; //声明包含函数，判断单元区域是否相互包含
bool contains(const UnitArea& other, const ChannelType chType) const;
CompArea& operator[]( const int n ) { return blocks[n]; }// 返回blocks数组
const CompArea& operator[]( const int n ) const { return blocks[n]; }
//判断是否是相同的单元区域
const bool operator==(const UnitArea &other) const
{
if (chromaFormat != other.chromaFormat) return false;
if (blocks.size() != other.blocks.size()) return false;
for (uint32_t i = 0; i < blocks.size(); i++)
{
if (blocks[i] != other.blocks[i]) return false;
}
return true;
}
// 继承父类的一些操作
#if REUSE_CU_RESULTS_WITH_MULTIPLE_TUS
void resizeTo (const UnitArea& unit);
#endif
void repositionTo(const UnitArea& unit);
const bool operator!=(const UnitArea &other) const { return !(*this == other); }
//继承返回y通道色度通道blocks里元素的位置
const Position& lumaPos () const { return Y(); }
const Size& lumaSize() const { return Y(); }
const Position& chromaPos () const { return Cb(); }
const Size& chromaSize() const { return Cb(); }
// 声明单通道的comp channal 单元区域函数
const UnitArea singleComp(const ComponentID compID) const;
const UnitArea singleChan(const ChannelType chType) const;
const SizeType lwidth() const { return Y().width; } /*! luma width */
const SizeType lheight() const { return Y().height; } /*! luma height */
const PosType lx() const { return Y().x; } /*! luma x-pos */
const PosType ly() const { return Y().y; } /*! luma y-pos */
//blocks里面有元素才是正常
bool valid() const { return chromaFormat != NUM_CHROMA_FORMAT && blocks.size() > 0; }
};
UnitArea
blocks [0…N-1]: CompArea
由N个块组成的组合体，a multi-component compound consisting of N blocks
CodingUnit : UnitArea
描述如何对这个UnitArea描述的区域进行编码
PredictionUnit : UnitArea
描述如何生成该UnitArea的预测信号
TransformUnit : UnitArea
描述如何应用此UnitArea的转换编码
信号存储器部分（signal storage）
- AreaBuf
描述二维信号在线性存储器中的存储布局
包含简单的操作(复制、填充等)。)
(1) AreaBuf (defined for Pel and TCoeff as PelAreaBuf and CoeffAreaBuf)
at(x，y) –返回位置(x，y)处的信号值
bufAt(x，y) –返回指向缓冲区位置(x，y)的原始指针
subBuf(x，y，w，h) -返回一个AreaBuf，描述一个大小为(w，h)的区域偏移量(x，y)
fill(val) –用定义的值填充指定区域
copy from(other) –从其他区域复制内容
substract、addAvg、reconstruct、removeHighFreq –替代TComYuv功能的方法
(2) UnitBuf (similar interface to AreaBuf)
bufs[0…n-1]:Areabuf–包含不同组件的信号描述
- UnitAreaBuf
描述了多分量二维信号在线性存储器中的存储布局
包含简单的操作(复制、填充等)。) - PelStorage
一个UnitAreaBuf，它也分配自己的内存
编码信息（coding information）
- picture
包含输入和输出信号以及元数据(切片信息等。) - CodingUnit, PredictionUnit, TransformUnit
单个单元的单个对象
包含相应的信息
包括位置信息(从UnitArea获得) - CodingStructure
管理编码单元，将它们与图片链接
包含自上而下RD搜索的附加功能
struct CodingUnit : public UnitArea //继承自Unitarea
{
CodingStructure *cs; //父级CU的cs
Slice *slice; //cu所在的slice
ChannelType chType; //通道类型
PredMode predMode; //预测类型enum PredMode MODE_INTER = 0, ///< inter-prediction mode
uint8_t depth; // number of all splits, applied with generalized splits
uint8_t qtDepth; // number of applied quad-splits, before switching to the multi-type-tree (mtt)
// a triple split would increase the mtDepth by 1, but the qtDepth by 2 in the first and last part and by 1 in the middle part (because of the 1-2-1 split proportions)
uint8_t btDepth; // number of applied binary splits, after switching to the mtt (or it's equivalent)
uint8_t mtDepth; // the actual number of splits after switching to mtt (equals btDepth if only binary splits are allowed)
int8_t chromaQpAdj; //色度qp偏移值
int8_t qp; //cu的编码qp
SplitSeries splitSeries; //uint64_t 生成当前cu尺寸时，ctu划分顺序
TreeType treeType; //default tree status (for single-tree slice, TREE_D means joint tree; for dual-tree I slice, TREE_D means TREE_L for luma and TREE_C for chroma)
ModeType modeType;//intra inter ibc palette几种模式类型
ModeTypeSeries modeTypeSeries; //用于对不同拆分深度的Modetype进行编码uint64_t
bool skip; //skip模式
bool mmvdSkip; //skipwith mmvd模式
bool affine; //是否是仿射模式
int affineType; //仿射运动类型（4,6 参数）
bool colorTransform; //颜色变换？
bool geoFlag; //
int bdpcmMode; //
int bdpcmModeChroma;
uint8_t imv; //运动矢量的精度
bool rootCbf; //coding block flag (三通道都为零则为零）
uint8_t sbtInfo; //sub block transform info
uint32_t tileIdx; //hevc中的tile
//好多还不知道的变量
uint8_t mtsFlag;
uint32_t lfnstIdx;
uint8_t BcwIdx;
int refIdxBi[2];
bool mipFlag;
// needed for fast imv mode decisions
int8_t imvNumCand;
uint8_t smvdMode;
uint8_t ispMode;
bool useEscape[MAX_NUM_CHANNEL_TYPE];
bool useRotation[MAX_NUM_CHANNEL_TYPE];
bool reuseflag[MAX_NUM_CHANNEL_TYPE][MAXPLTPREDSIZE];
uint8_t lastPLTSize[MAX_NUM_CHANNEL_TYPE];
uint8_t reusePLTSize[MAX_NUM_CHANNEL_TYPE];
uint8_t curPLTSize[MAX_NUM_CHANNEL_TYPE];
Pel curPLT[MAX_NUM_COMPONENT][MAXPLTSIZE];
//构造函数
CodingUnit() : chType( CH_L ) { }
CodingUnit(const UnitArea &unit);
CodingUnit(const ChromaFormat _chromaFormat, const Area &area);
CodingUnit& operator=( const CodingUnit& other ); //运算符重载
void initData();//声明初始化cu信息
unsigned idx; //在上层CU中的索引
CodingUnit *next;//指向下一个cu,stack里
PredictionUnit *firstPU; // 指向所包含的第一个PU
PredictionUnit *lastPU;
TransformUnit *firstTU;
TransformUnit *lastTU;
#if ENABLE_SPLIT_PARALLELISM
int64_t cacheId;
bool cacheUsed;
#endif
const uint8_t getSbtIdx() const { assert( ( ( sbtInfo >> 0 ) & 0xf ) < NUMBER_SBT_IDX ); return ( sbtInfo >> 0 ) & 0xf; }
const uint8_t getSbtPos() const { return ( sbtInfo >> 4 ) & 0x3; }
void setSbtIdx( uint8_t idx ) { CHECK( idx >= NUMBER_SBT_IDX, "sbt_idx wrong" ); sbtInfo = ( idx << 0 ) + ( sbtInfo & 0xf0 ); }
void setSbtPos( uint8_t pos ) { CHECK( pos >= 4, "sbt_pos wrong" ); sbtInfo = ( pos << 4 ) + ( sbtInfo & 0xcf ); }
//声明一些函数
uint8_t getSbtTuSplit() const;
const uint8_t checkAllowedSbt() const;
const bool checkCCLMAllowed() const;
const bool isSepTree() const;
const bool isLocalSepTree() const;
const bool isConsInter() const { return modeType == MODE_TYPE_INTER; }
const bool isConsIntra() const { return modeType == MODE_TYPE_INTRA; }
};

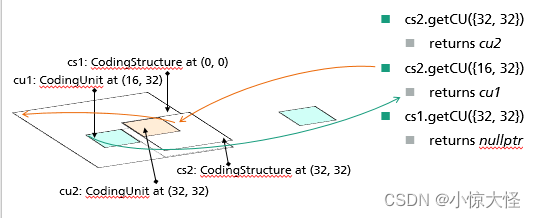

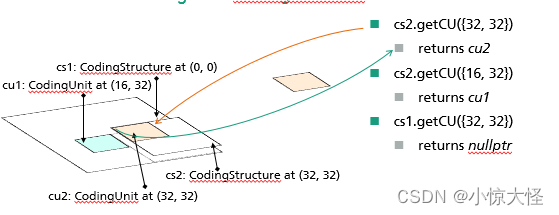

编码结构结构体
class CodingStructure
{
public:
UnitArea area; //cs所包含的区域
Picture *picture;//与picture的映射
CodingStructure *parent; //上层的cs
CodingStructure *bestCS;//最佳的cs
Slice *slice;//所在的slice
UnitScale unitScale[MAX_NUM_COMPONENT];//单元的尺寸数组enum ComponentID的数组大小
int baseQP;//cs下的基础qp值
int prevQP[MAX_NUM_CHANNEL_TYPE];//
int currQP[MAX_NUM_CHANNEL_TYPE];//当前qp值数组
int chromaQpAdj; //色度qp偏移值
const SPS *sps; //
const PPS *pps;//
PicHeader *picHeader; // picture header class
APS* alfApss[ALF_CTB_MAX_NUM_APS];
APS * lmcsAps;
APS * scalinglistAps;
const VPS *vps;
const PreCalcValues* pcv; // 预定义和计算得到的block相关参数
CodingStructure(CUCache&, PUCache&, TUCache&);//构造函数
void create(const UnitArea &_unit, const bool isTopLayer, const bool isPLTused); //通过UnitArea声明创造cs
void create(const ChromaFormat &_chromaFormat, const Area& _area, const bool isTopLayer, const bool isPLTused);
void destroy(); //销毁函数
void releaseIntermediateData(); //解除中间数据
void rebindPicBufs(); //重更新picture缓冲
void createCoeffs(const bool isPLTused); 分配coeff空间
void destroyCoeffs();
void allocateVectorsAtPicLevel(); // 给编码信息（CUs，pus，tus）分配预留空间
// ---------------------------------------------------------------------------
// global accessors 可全局访问
// ---------------------------------------------------------------------------
bool isDecomp (const Position &pos, const ChannelType _chType) const; //position处的信息是否生成
bool isDecomp (const Position &pos, const ChannelType _chType);
void setDecomp(const CompArea &area, const bool _isCoded = true); //设定特定颜色通道重建标志
void setDecomp(const UnitArea &area, const bool _isCoded = true); // 多通道区域重建标志
const CodingUnit *getCU(const Position &pos, const ChannelType _chType) const; //获取position处的cu
const PredictionUnit *getPU(const Position &pos, const ChannelType _chType) const;
const TransformUnit *getTU(const Position &pos, const ChannelType _chType, const int subTuIdx = -1) const;
CodingUnit *getCU(const Position &pos, const ChannelType _chType);
CodingUnit *getLumaCU( const Position &pos );
PredictionUnit *getPU(const Position &pos, const ChannelType _chType);
TransformUnit *getTU(const Position &pos, const ChannelType _chType, const int subTuIdx = -1);
//获取position处的cu pu tu
const CodingUnit *getCU(const ChannelType &_chType) const { return getCU(area.blocks[_chType].pos(), _chType); }
const PredictionUnit *getPU(const ChannelType &_chType) const { return getPU(area.blocks[_chType].pos(), _chType); }
const TransformUnit *getTU(const ChannelType &_chType) const { return getTU(area.blocks[_chType].pos(), _chType); }
CodingUnit *getCU(const ChannelType &_chType ) { return getCU(area.blocks[_chType].pos(), _chType); }
PredictionUnit *getPU(const ChannelType &_chType ) { return getPU(area.blocks[_chType].pos(), _chType); }
TransformUnit *getTU(const ChannelType &_chType ) { return getTU(area.blocks[_chType].pos(), _chType); }
// 获取cu,判断是否在一个slice或tile中，为了并行编码
const CodingUnit *getCURestricted(const Position &pos, const Position curPos, const unsigned curSliceIdx, const unsigned curTileIdx, const ChannelType _chType) const;
const CodingUnit *getCURestricted(const Position &pos, const CodingUnit& curCu, const ChannelType _chType) const;
const PredictionUnit *getPURestricted(const Position &pos, const PredictionUnit& curPu, const ChannelType _chType) const;
const TransformUnit *getTURestricted(const Position &pos, const TransformUnit& curTu, const ChannelType _chType) const;
//为cs在unitarea处创建cu pu tu
CodingUnit& addCU(const UnitArea &unit, const ChannelType _chType);
PredictionUnit& addPU(const UnitArea &unit, const ChannelType _chType);
TransformUnit& addTU(const UnitArea &unit, const ChannelType _chType);
void addEmptyTUs(Partitioner &partitioner);
//遍历 unitarea cs中的cu, typedef UnitTraverser<CodingUnit> CUTraverser;
CUTraverser traverseCUs(const UnitArea& _unit, const ChannelType _chType);
PUTraverser traversePUs(const UnitArea& _unit, const ChannelType _chType);
TUTraverser traverseTUs(const UnitArea& _unit, const ChannelType _chType);
cCUTraverser traverseCUs(const UnitArea& _unit, const ChannelType _chType) const;
cPUTraverser traversePUs(const UnitArea& _unit, const ChannelType _chType) const;
cTUTraverser traverseTUs(const UnitArea& _unit, const ChannelType _chType) const;
// ---------------------------------------------------------------------------
// encoding search utilities 编码rd搜索相关参数和方法
// ---------------------------------------------------------------------------
static_vector<double, NUM_ENC_FEATURES> features; //enum EncModeFeature
double cost;
bool useDbCost;
double costDbOffset;
double lumaCost; //亮度代价
uint64_t fracBits;
Distortion dist;
Distortion interHad;
TreeType treeType; //because partitioner can not go deep to tu and cu coding (e.g., addCU()), need another variable for indicating treeType
ModeType modeType;
//clear所有数据信号buf和编码信息
void initStructData (const int &QP = MAX_INT, const bool &skipMotBuf = false);
void initSubStructure( CodingStructure& cs, const ChannelType chType, const UnitArea &subArea, const bool &isTuEnc);
//从cs中复制编码信息
void copyStructure (const CodingStructure& cs, const ChannelType chType, const bool copyTUs = false, const bool copyRecoBuffer = false);
// 从底层CS复制编码信息到当前层cs
void useSubStructure (const CodingStructure& cs, const ChannelType chType, const UnitArea &subArea, const bool cpyPred, const bool cpyReco, const bool cpyOrgResi, const bool cpyResi, const bool updateCost);
void useSubStructure (const CodingStructure& cs, const ChannelType chType, const bool cpyPred, const bool cpyReco, const bool cpyOrgResi, const bool cpyResi, const bool updateCost) { useSubStructure(cs, chType, cs.area, cpyPred, cpyReco, cpyOrgResi, cpyResi, updateCost); }
// 清空编码信息
void clearTUs();
void clearPUs();
void clearCUs();
const int signalModeCons( const PartSplit split, Partitioner &partitioner, const ModeType modeTypeParent ) const;
void clearCuPuTuIdxMap ( const UnitArea &_area, uint32_t numCu, uint32_t numPu, uint32_t numTu, uint32_t* pOffset );
void getNumCuPuTuOffset ( uint32_t* pArray )
{
pArray[0] = m_numCUs; pArray[1] = m_numPUs; pArray[2] = m_numTUs;
pArray[3] = m_offsets[0]; pArray[4] = m_offsets[1]; pArray[5] = m_offsets[2];
}
private:
void createInternals(const UnitArea& _unit, const bool isTopLayer, const bool isPLTused);// 预分配空间，并清空数据
public:
// 存放CS中所有cu，pu，tu
std::vector< CodingUnit*> cus;
std::vector<PredictionUnit*> pus;
std::vector< TransformUnit*> tus;
LutMotionCand motionLut;
void addMiToLut(static_vector<MotionInfo, MAX_NUM_HMVP_CANDS>& lut, const MotionInfo &mi);
PLTBuf prevPLT;
void resetPrevPLT(PLTBuf& prevPLT);
void reorderPrevPLT(PLTBuf& prevPLT, uint8_t curPLTSize[MAX_NUM_CHANNEL_TYPE], Pel curPLT[MAX_NUM_COMPONENT][MAXPLTSIZE], bool reuseflag[MAX_NUM_CHANNEL_TYPE][MAXPLTPREDSIZE], uint32_t compBegin, uint32_t numComp, bool jointPLT);
void setPrevPLT(PLTBuf predictor);
void storePrevPLT(PLTBuf& predictor);
private:
// needed for TU encoding
bool m_isTuEnc;
unsigned *m_cuIdx [MAX_NUM_CHANNEL_TYPE];
unsigned *m_puIdx [MAX_NUM_CHANNEL_TYPE];
unsigned *m_tuIdx [MAX_NUM_CHANNEL_TYPE];
bool *m_isDecomp[MAX_NUM_CHANNEL_TYPE];
unsigned m_numCUs;
unsigned m_numPUs;
unsigned m_numTUs;
CUCache& m_cuCache;
PUCache& m_puCache;
TUCache& m_tuCache;
std::vector<SAOBlkParam> m_sao;
PelStorage m_pred;
PelStorage m_resi;
PelStorage m_reco;
PelStorage m_orgr;
TCoeff *m_coeffs [ MAX_NUM_COMPONENT ];
Pel *m_pcmbuf [ MAX_NUM_COMPONENT ];
bool *m_runType[ MAX_NUM_CHANNEL_TYPE ];
int m_offsets[ MAX_NUM_COMPONENT ];
MotionInfo *m_motionBuf; // 存储CS运动信息
public:
CodingStructure *bestParent;
double tmpColorSpaceCost;
bool firstColorSpaceSelected;
double tmpColorSpaceIntraCost[2];
bool firstColorSpaceTestOnly;
bool resetIBCBuffer;
MotionBuf getMotionBuf( const Area& _area ); //获取特定区域area的运动场motion field
MotionBuf getMotionBuf( const UnitArea& _area ) { return getMotionBuf( _area.Y() ); }
MotionBuf getMotionBuf() { return getMotionBuf( area.Y() ); }
const CMotionBuf getMotionBuf( const Area& _area ) const;
const CMotionBuf getMotionBuf( const UnitArea& _area ) const { return getMotionBuf( _area.Y() // UnitArea的亮度的area的motion field); }
const CMotionBuf getMotionBuf() const { return getMotionBuf( area.Y() );// cs的motion field }
MotionInfo& getMotionInfo( const Position& pos );// 特定位置的运动信息
const MotionInfo& getMotionInfo( const Position& pos ) const;
public:
// ---------------------------------------------------------------------------
// temporary (shadowed) data accessors 数据访问接口
// ---------------------------------------------------------------------------
PelBuf getPredBuf(const CompArea &blk);
const CPelBuf getPredBuf(const CompArea &blk) const;
PelUnitBuf getPredBuf(const UnitArea &unit);
const CPelUnitBuf getPredBuf(const UnitArea &unit) const;
PelBuf getResiBuf(const CompArea &blk);
const CPelBuf getResiBuf(const CompArea &blk) const;
PelUnitBuf getResiBuf(const UnitArea &unit);
const CPelUnitBuf getResiBuf(const UnitArea &unit) const;
PelBuf getRecoBuf(const CompArea &blk);
const CPelBuf getRecoBuf(const CompArea &blk) const;
PelUnitBuf getRecoBuf(const UnitArea &unit);
const CPelUnitBuf getRecoBuf(const UnitArea &unit) const;
PelUnitBuf& getRecoBufRef() { return m_reco; }
PelBuf getOrgResiBuf(const CompArea &blk);
const CPelBuf getOrgResiBuf(const CompArea &blk) const;
PelUnitBuf getOrgResiBuf(const UnitArea &unit);
const CPelUnitBuf getOrgResiBuf(const UnitArea &unit) const;
PelBuf getOrgBuf(const CompArea &blk);
const CPelBuf getOrgBuf(const CompArea &blk) const;
PelUnitBuf getOrgBuf(const UnitArea &unit);
const CPelUnitBuf getOrgBuf(const UnitArea &unit) const;
PelBuf getOrgBuf(const ComponentID &compID);
const CPelBuf getOrgBuf(const ComponentID &compID) const;
PelUnitBuf getOrgBuf();
const CPelUnitBuf getOrgBuf() const;
// pred buffer
PelBuf getPredBuf(const ComponentID &compID) { return m_pred.get(compID); }
const CPelBuf getPredBuf(const ComponentID &compID) const { return m_pred.get(compID); }
PelUnitBuf getPredBuf() { return m_pred; }
const CPelUnitBuf getPredBuf() const { return m_pred; }
// resi buffer
PelBuf getResiBuf(const ComponentID compID) { return m_resi.get(compID); }
const CPelBuf getResiBuf(const ComponentID compID) const { return m_resi.get(compID); }
PelUnitBuf getResiBuf() { return m_resi; }
const CPelUnitBuf getResiBuf() const { return m_resi; }
// org-resi buffer
PelBuf getOrgResiBuf(const ComponentID &compID) { return m_orgr.get(compID); }
const CPelBuf getOrgResiBuf(const ComponentID &compID) const { return m_orgr.get(compID); }
PelUnitBuf getOrgResiBuf() { return m_orgr; }
const CPelUnitBuf getOrgResiBuf() const { return m_orgr; }
// reco buffer
PelBuf getRecoBuf(const ComponentID compID) { return m_reco.get(compID); }
const CPelBuf getRecoBuf(const ComponentID compID) const { return m_reco.get(compID); }
PelUnitBuf getRecoBuf() { return m_reco; }
const CPelUnitBuf getRecoBuf() const { return m_reco; }
private:
inline PelBuf getBuf(const CompArea &blk, const PictureType &type);
inline const CPelBuf getBuf(const CompArea &blk, const PictureType &type) const;
inline PelUnitBuf getBuf(const UnitArea &unit, const PictureType &type);
inline const CPelUnitBuf getBuf(const UnitArea &unit, const PictureType &type) const;
};
struct Picture : public UnitArea
{
uint32_t margin;
Picture();
void create( const ChromaFormat &_chromaFormat, const Size &size, const unsigned _maxCUSize, const unsigned margin, const bool bDecoder, const int layerId, const bool gopBasedTemporalFilterEnabled = false );
void destroy();
void createTempBuffers( const unsigned _maxCUSize );
void destroyTempBuffers();
PelBuf getOrigBuf(const CompArea &blk);
const CPelBuf getOrigBuf(const CompArea &blk) const;
PelUnitBuf getOrigBuf(const UnitArea &unit);
const CPelUnitBuf getOrigBuf(const UnitArea &unit) const;
PelUnitBuf getOrigBuf();
const CPelUnitBuf getOrigBuf() const;
PelBuf getOrigBuf(const ComponentID compID);
const CPelBuf getOrigBuf(const ComponentID compID) const;
PelUnitBuf getTrueOrigBuf();
const CPelUnitBuf getTrueOrigBuf() const;
PelBuf getTrueOrigBuf(const CompArea &blk);
const CPelBuf getTrueOrigBuf(const CompArea &blk) const;
PelUnitBuf getFilteredOrigBuf();
const CPelUnitBuf getFilteredOrigBuf() const;
PelBuf getFilteredOrigBuf(const CompArea &blk);
const CPelBuf getFilteredOrigBuf(const CompArea &blk) const;
PelBuf getPredBuf(const CompArea &blk);
const CPelBuf getPredBuf(const CompArea &blk) const;
PelUnitBuf getPredBuf(const UnitArea &unit);
const CPelUnitBuf getPredBuf(const UnitArea &unit) const;
PelBuf getResiBuf(const CompArea &blk);
const CPelBuf getResiBuf(const CompArea &blk) const;
PelUnitBuf getResiBuf(const UnitArea &unit);
const CPelUnitBuf getResiBuf(const UnitArea &unit) const;
PelBuf getRecoBuf(const ComponentID compID, bool wrap=false);
const CPelBuf getRecoBuf(const ComponentID compID, bool wrap=false) const;
PelBuf getRecoBuf(const CompArea &blk, bool wrap=false);
const CPelBuf getRecoBuf(const CompArea &blk, bool wrap=false) const;
PelUnitBuf getRecoBuf(const UnitArea &unit, bool wrap=false);
const CPelUnitBuf getRecoBuf(const UnitArea &unit, bool wrap=false) const;
PelUnitBuf getRecoBuf(bool wrap=false);
const CPelUnitBuf getRecoBuf(bool wrap=false) const;
PelBuf getBuf(const ComponentID compID, const PictureType &type);
const CPelBuf getBuf(const ComponentID compID, const PictureType &type) const;
PelBuf getBuf(const CompArea &blk, const PictureType &type);
const CPelBuf getBuf(const CompArea &blk, const PictureType &type) const;
PelUnitBuf getBuf(const UnitArea &unit, const PictureType &type);
const CPelUnitBuf getBuf(const UnitArea &unit, const PictureType &type) const;
void extendPicBorder( const PPS *pps );
void extendWrapBorder( const PPS *pps );
void finalInit( const VPS* vps, const SPS& sps, const PPS& pps, PicHeader *picHeader, APS** alfApss, APS* lmcsAps, APS* scalingListAps );
int getPOC() const { return poc; }
int getDecodingOrderNumber() const { return m_decodingOrderNumber; }
void setDecodingOrderNumber(const int val) { m_decodingOrderNumber = val; }
NalUnitType getPictureType() const { return m_pictureType; }
void setPictureType(const NalUnitType val) { m_pictureType = val; }
void setBorderExtension( bool bFlag) { m_bIsBorderExtended = bFlag;}
Pel* getOrigin( const PictureType &type, const ComponentID compID ) const;
void setLossyQPValue(int i) { m_lossyQP = i; }
int getLossyQPValue() const { return m_lossyQP; }
void fillSliceLossyLosslessArray(std::vector<uint16_t> sliceLosslessArray, bool mixedLossyLossless);
bool losslessSlice(uint32_t sliceIdx) const { return m_lossylosslessSliceArray[sliceIdx]; }
int getSpliceIdx(uint32_t idx) const { return m_spliceIdx[idx]; }
void setSpliceIdx(uint32_t idx, int poc) { m_spliceIdx[idx] = poc; }
void createSpliceIdx(int nums);
bool getSpliceFull();
static void sampleRateConv( const std::pair<int, int> scalingRatio, const std::pair<int, int> compScale,
const CPelBuf& beforeScale, const int beforeScaleLeftOffset, const int beforeScaleTopOffset,
const PelBuf& afterScale, const int afterScaleLeftOffset, const int afterScaleTopOffset,
const int bitDepth, const bool useLumaFilter, const bool downsampling,
const bool horCollocatedPositionFlag, const bool verCollocatedPositionFlag );
static void rescalePicture( const std::pair<int, int> scalingRatio,
const CPelUnitBuf& beforeScaling, const Window& scalingWindowBefore,
const PelUnitBuf& afterScaling, const Window& scalingWindowAfter,
const ChromaFormat chromaFormatIDC, const BitDepths& bitDepths, const bool useLumaFilter, const bool downsampling,
const bool horCollocatedChromaFlag, const bool verCollocatedChromaFlag );
private:
Window m_conformanceWindow;
Window m_scalingWindow;
int m_decodingOrderNumber;
NalUnitType m_pictureType;
public:
bool m_isSubPicBorderSaved;
PelStorage m_bufSubPicAbove;
PelStorage m_bufSubPicBelow;
PelStorage m_bufSubPicLeft;
PelStorage m_bufSubPicRight;
PelStorage m_bufWrapSubPicAbove;
PelStorage m_bufWrapSubPicBelow;
void saveSubPicBorder(int POC, int subPicX0, int subPicY0, int subPicWidth, int subPicHeight);
void extendSubPicBorder(int POC, int subPicX0, int subPicY0, int subPicWidth, int subPicHeight);
void restoreSubPicBorder(int POC, int subPicX0, int subPicY0, int subPicWidth, int subPicHeight);
bool getSubPicSaved() { return m_isSubPicBorderSaved; }
void setSubPicSaved(bool bVal) { m_isSubPicBorderSaved = bVal; }
bool m_bIsBorderExtended;
bool m_wrapAroundValid;
unsigned m_wrapAroundOffset;
bool referenced;
bool reconstructed;
bool neededForOutput;
bool usedByCurr;
bool longTerm;
bool topField;
bool fieldPic;
int m_prevQP[MAX_NUM_CHANNEL_TYPE];
bool precedingDRAP; // preceding a DRAP picture in decoding order
bool nonReferencePictureFlag;
int poc;
uint32_t temporalId;
int layerId;
std::vector<SubPic> subPictures;
int numSlices;
std::vector<int> sliceSubpicIdx;
bool subLayerNonReferencePictureDueToSTSA;
int* m_spliceIdx;
int m_ctuNums;
int m_lossyQP;
std::vector<bool> m_lossylosslessSliceArray;
bool interLayerRefPicFlag;
#if ENABLE_SPLIT_PARALLELISM
PelStorage m_bufs[PARL_SPLIT_MAX_NUM_JOBS][NUM_PIC_TYPES];
#else
PelStorage m_bufs[NUM_PIC_TYPES];
#endif
const Picture* unscaledPic;
TComHash m_hashMap;
TComHash* getHashMap() { return &m_hashMap; }
const TComHash* getHashMap() const { return &m_hashMap; }
void addPictureToHashMapForInter();
CodingStructure* cs;
std::deque<Slice*> slices;
SEIMessages SEIs;
uint32_t getPicWidthInLumaSamples() const { return getRecoBuf( COMPONENT_Y ).width; }
uint32_t getPicHeightInLumaSamples() const { return getRecoBuf( COMPONENT_Y ).height; }
Window& getConformanceWindow() { return m_conformanceWindow; }
const Window& getConformanceWindow() const { return m_conformanceWindow; }
Window& getScalingWindow() { return m_scalingWindow; }
const Window& getScalingWindow() const { return m_scalingWindow; }
bool isRefScaled( const PPS* pps ) const { return unscaledPic->getPicWidthInLumaSamples() != pps->getPicWidthInLumaSamples() ||
unscaledPic->getPicHeightInLumaSamples() != pps->getPicHeightInLumaSamples() ||
getScalingWindow().getWindowLeftOffset() != pps->getScalingWindow().getWindowLeftOffset() ||
getScalingWindow().getWindowRightOffset() != pps->getScalingWindow().getWindowRightOffset() ||
getScalingWindow().getWindowTopOffset() != pps->getScalingWindow().getWindowTopOffset() ||
getScalingWindow().getWindowBottomOffset() != pps->getScalingWindow().getWindowBottomOffset(); }
bool isWrapAroundEnabled( const PPS* pps ) const { return pps->getWrapAroundEnabledFlag() && !isRefScaled( pps ); }
void allocateNewSlice();
Slice *swapSliceObject(Slice * p, uint32_t i);
void clearSliceBuffer();
MCTSInfo mctsInfo;
std::vector<AQpLayer*> aqlayer;
#if !KEEP_PRED_AND_RESI_SIGNALS
private:
UnitArea m_ctuArea;
#endif
#if ENABLE_SPLIT_PARALLELISM
public:
void finishParallelPart ( const UnitArea& ctuArea );
#endif
#if ENABLE_SPLIT_PARALLELISM
public:
Scheduler scheduler;
#endif
public:
SAOBlkParam *getSAO(int id = 0) { return &m_sao[id][0]; };
void resizeSAO(unsigned numEntries, int dstid) { m_sao[dstid].resize(numEntries); }
void copySAO(const Picture& src, int dstid) { std::copy(src.m_sao[0].begin(), src.m_sao[0].end(), m_sao[dstid].begin()); }
#if ENABLE_QPA
std::vector<double> m_uEnerHpCtu; ///< CTU-wise L2 or squared L1 norm of high-passed luma input
std::vector<Pel> m_iOffsetCtu; ///< CTU-wise DC offset (later QP index offset) of luma input
#if ENABLE_QPA_SUB_CTU
std::vector<int8_t> m_subCtuQP; ///< sub-CTU-wise adapted QPs for delta-QP depth of 1 or more
#endif
#endif
std::vector<SAOBlkParam> m_sao[2];
std::vector<uint8_t> m_alfCtuEnableFlag[MAX_NUM_COMPONENT];
uint8_t* getAlfCtuEnableFlag( int compIdx ) { return m_alfCtuEnableFlag[compIdx].data(); }
std::vector<uint8_t>* getAlfCtuEnableFlag() { return m_alfCtuEnableFlag; }
void resizeAlfCtuEnableFlag( int numEntries )
{
for( int compIdx = 0; compIdx < MAX_NUM_COMPONENT; compIdx++ )
{
m_alfCtuEnableFlag[compIdx].resize( numEntries );
std::fill( m_alfCtuEnableFlag[compIdx].begin(), m_alfCtuEnableFlag[compIdx].end(), 0 );
}
}
std::vector<short> m_alfCtbFilterIndex;
short* getAlfCtbFilterIndex() { return m_alfCtbFilterIndex.data(); }
std::vector<short>& getAlfCtbFilterIndexVec() { return m_alfCtbFilterIndex; }
void resizeAlfCtbFilterIndex(int numEntries)
{
m_alfCtbFilterIndex.resize(numEntries);
for (int i = 0; i < numEntries; i++)
{
m_alfCtbFilterIndex[i] = 0;
}
}
std::vector<uint8_t> m_alfCtuAlternative[MAX_NUM_COMPONENT];
std::vector<uint8_t>& getAlfCtuAlternative( int compIdx ) { return m_alfCtuAlternative[compIdx]; }
uint8_t* getAlfCtuAlternativeData( int compIdx ) { return m_alfCtuAlternative[compIdx].data(); }
void resizeAlfCtuAlternative( int numEntries )
{
for( int compIdx = 1; compIdx < MAX_NUM_COMPONENT; compIdx++ )
{
m_alfCtuAlternative[compIdx].resize( numEntries );
std::fill( m_alfCtuAlternative[compIdx].begin(), m_alfCtuAlternative[compIdx].end(), 0 );
}
}
};
编码结构codingstructure：
为了便于管理，新增了一个类CodingStructure把一帧中的CU全都放在了这里，这样对CU的操作变得更加方便，可以直接通过坐标来取得所要的CU
- 包含CodingUnit等。实例化并映射它们到picture上
- TComDataCU的替换，但全局分配
顶层编码结构包含帧中的所有CU、PU和TU信息
子级编码结构包含一个特定单位区域的表示 - 创建之后，它是空的，需要被填充
addCU/PU/TU方法创建并映射特定的对象
getCU/PU/TU获取使用全局位置寻址的特定对象 - 动态分配所需的资源
使用dynamic_cache（动态缓存）提高性能
codingStructure中的几个操作：
area:unit area——描述编码结构跨越图片中的哪个区域
addCU(UnitArea)-创建并定位一个跨越UnitArea的编码单元
getCU(Position)–返回位于指定位置的编码单位
(PredictionUnit, TransformUnit有模拟接口)
set decomp(CompArea)–将指定的CompArea设置为重建的
set decomp(UnitArea)-模拟多通道操作
is decomp(Position)-告知该位置的重建信号是否已生成
initStructData(…)–清除当前包含的所有数据(信号和编码信息)
init substructure(…)–在层次结构的底部链接新的编码结构
use substructure(…)–从子结构中复制编码数据
copy structure(…)–从另一个结构复制编码数据，不依赖于父子绑定
codingstructure 的 rdcost过程
通过codingstruture的分层级联搜索：
best-temp搜索方案。
codingstructure在一个局部的区域建立，访问UnitArea之外需要返回上层的cs。
cs1是cs2的父节点，父节点不知道子节点，但是最好的子节点将传递给父节点。
通过cs2访问（32,32）位置的CU，直接就返回cu2这个cu单元。
而想要获取非cs2所在的area的cu,可以通过父节点cs1,最后返回[16,32]的cu单元。
想要通过cs1父节点访问子节点位置的cu,访问不到，只能返回null。
partitioner
- 一个简单的类管理分裂(CU和TU，四叉树和MTT)
- 建模为一个堆栈——在当前处理的区域上创建新的拆分作为拆分级别
- 比较于HEVC
包含当前拆分信息的访问器(partitioner.curr*)
深度(CU，TU)以及实际的当前UnitArea - 对于QTBT和其他(除HEVC功能外)
允许设置分割限制(例如，特定级别的约束分割)
允许执行分割合理性检查(canSplit)
// 需提前了解其他数据结构
typedef std::vector <UnitArea> Partitioning;//最划分区数，>=4
struct PartLevel
{//划分的级别结构体，包含
PartSplit split; //划分的方式
Partitioning parts; //
unsigned idx; //处理到当前子块的编号
bool checkdIfImplicit;
bool isImplicit;
PartSplit implicitSplit;
PartSplit firstSubPartSplit;
bool canQtSplit; //是否可以四叉树划分
bool qgEnable; //qg?
bool qgChromaEnable;
int modeType; //模式的类型
//构造
PartLevel();
PartLevel( const PartSplit _split, const Partitioning& _parts );
PartLevel( const PartSplit _split, Partitioning&& _parts );
};
typedef static_vector<PartLevel, 2 * MAX_CU_DEPTH + 1> PartitioningStack; //PartLevel的堆栈，二维数组 ，存放ctu不同级别的块划分树 static const int MAX_CU_DEPTH = 7; ///< log2(CTUSize)
class Partitioner
{//partitioner用于记录ctu递归中的划分树，通过堆栈记录ctu的划分树，
protected:
PartitioningStack m_partStack; //划分块的栈， 记录每一层划分树的情况
#if _DEBUG
UnitArea m_currArea;//当前处理的区域
#endif
public:
unsigned currDepth; //当前划分的深度，总的吧
unsigned currQtDepth;//当前qt的深度
unsigned currTrDepth;//tu深度
unsigned currBtDepth;//btshendu
unsigned currMtDepth;//当前mtt的深度
unsigned currSubdiv; //
Position currQgPos;
Position currQgChromaPos;
unsigned currImplicitBtDepth;
ChannelType chType;
TreeType treeType; //树类型
ModeType modeType;
virtual ~Partitioner () { }
//一些堆栈的操作：
const PartLevel& currPartLevel () const { return m_partStack.back(); }//出栈？当前的等级
const UnitArea& currArea () const { return currPartLevel().parts[currPartIdx()]; }
const unsigned currPartIdx () const { return currPartLevel().idx; }
const PartitioningStack& getPartStack () const { return m_partStack; }//返回树划分堆栈
const bool currQgEnable () const { return currPartLevel().qgEnable; }
const bool currQgChromaEnable () const { return currPartLevel().qgChromaEnable; }
//typedef uint64_t SplitSeries; ///< used to encoded the splits that caused a particular CU size
//typedef uint64_t ModeTypeSeries; ///< used to encoded the ModeType at different split depth
SplitSeries getSplitSeries () const;//声明获取划分列表
ModeTypeSeries getModeTypeSeries () const;
virtual void initCtu ( const UnitArea& ctuArea, const ChannelType _chType, const Slice& slice ) = 0;
virtual void splitCurrArea ( const PartSplit split, const CodingStructure &cs ) = 0;
virtual void exitCurrSplit () = 0;
virtual bool nextPart ( const CodingStructure &cs, bool autoPop = false ) = 0;
virtual bool hasNextPart () = 0;
virtual void setCUData ( CodingUnit& cu );
virtual void copyState ( const Partitioner& other );
public:
virtual void canSplit ( const CodingStructure &cs, bool& canNo, bool& canQt, bool& canBh, bool& canBv, bool& canTh, bool& canTv ) = 0;
virtual bool canSplit ( const PartSplit split, const CodingStructure &cs ) = 0;
virtual bool isSplitImplicit ( const PartSplit split, const CodingStructure &cs ) = 0;
virtual PartSplit getImplicitSplit ( const CodingStructure &cs ) = 0;
bool isSepTree ( const CodingStructure &cs );
bool isLocalSepTree ( const CodingStructure &cs );
bool isConsInter () { return modeType == MODE_TYPE_INTER; }
bool isConsIntra () { return modeType == MODE_TYPE_INTRA; }
};
所有权
每个数据块都由某个对象拥有，该对象需要分配和释放它
画
由EncLib或DecLib拥有
拥有信号缓冲区、切片对象、SEI消息和TileMap
AreaBuf，UnitBuf
不拥有任何数据
像素存储
可能拥有缓冲区(取决于create或createFromBuf是否用于创建)
拥有的数据存储在m_origin成员中
编码结构
顶层:归图片所有
链接到图片的信号缓冲区，不拥有它们
其他(RD-Search中的临时):归EncCu或IntraSearch所有
包含自己的信号缓冲器，拥有它们
总是拥有描述结构和布局的缓冲区(不是信号)
拥有变换系数缓冲器
不拥有CodingUnit等。，只通过dynamic_cache链接到它们
编码单元，预测单元，转换单元
归dynamic_cache所有–对象需要由get获取，由cache释放
变压器单元
不拥有变换系数缓冲器
从编码结构到缓冲区的链接
动态缓存
顶层缓存是全局的(在运行时动态分配，在退出时释放)
RD-搜索缓存归EncCu和IntraSearch所有
