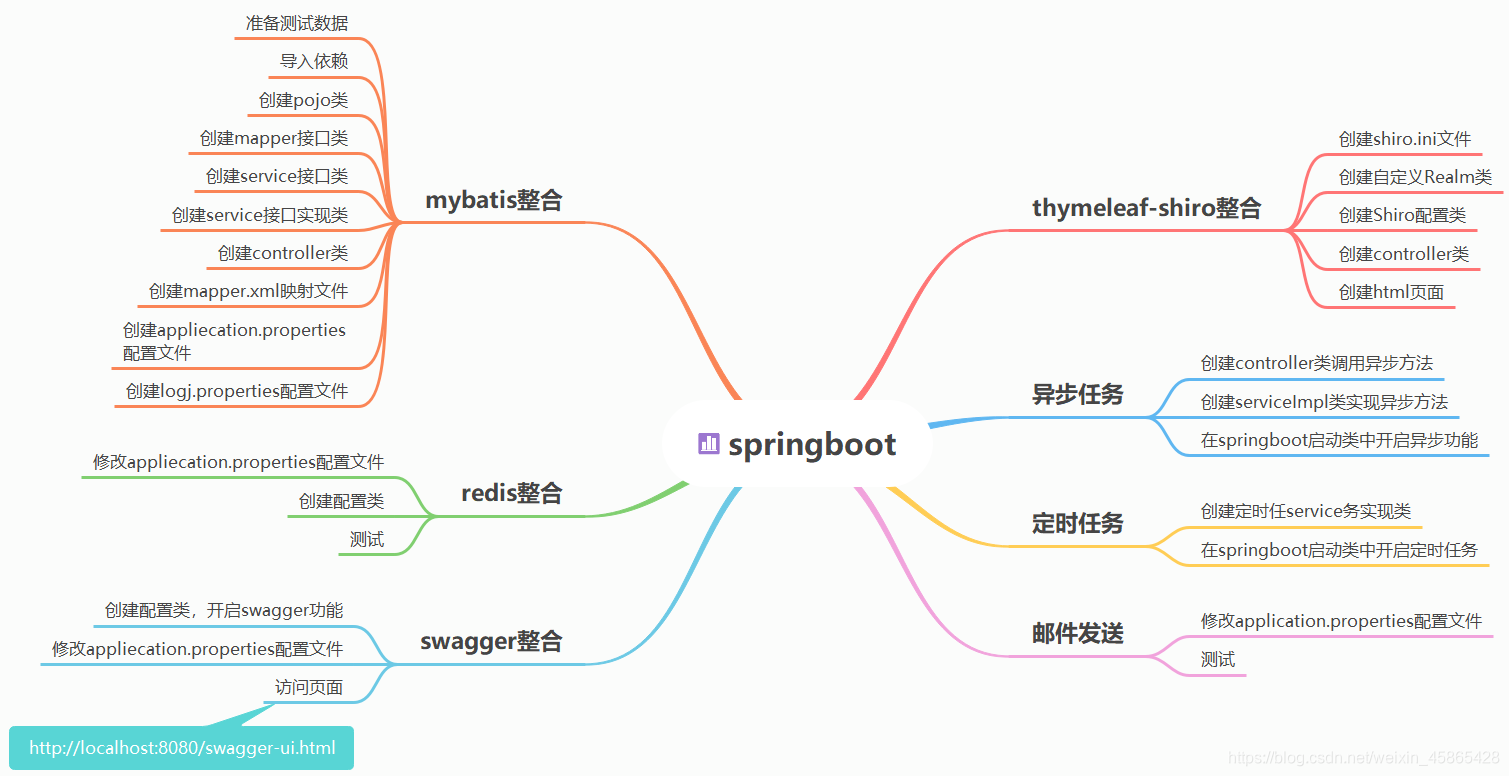

前言：springboot整合mybatis、swagger、redis、thymeleaf-shiro、异步、定时任务以及mail邮件发送

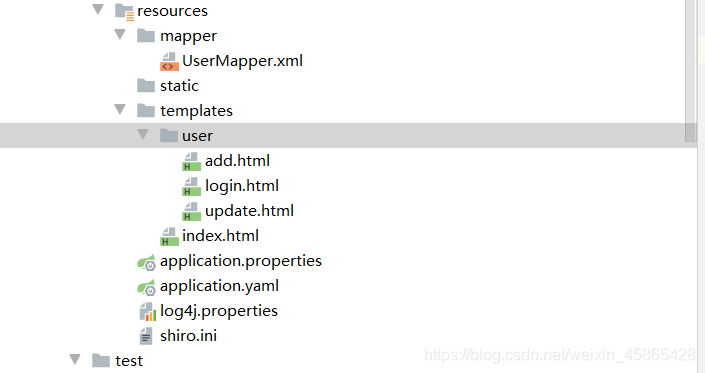

项目结构：

一、整合mybatis

1、准备测试数据

SET NAMES utf8mb4;
SET FOREIGN_KEY_CHECKS = 0;

-- ----------------------------
-- Table structure for user
-- ----------------------------
DROP TABLE IF EXISTS `user`;
CREATE TABLE `user`  (
  `id` int(10) NOT NULL AUTO_INCREMENT,
  `name` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
  `age` int(10) NULL DEFAULT NULL,
  `pwd` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
  `perms` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
  PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 7 CHARACTER SET = utf8 COLLATE = utf8_general_ci ROW_FORMAT = DYNAMIC;

-- ----------------------------
-- Records of user
-- ----------------------------
INSERT INTO `user` VALUES (1, '张三', 45, '123456', 'user:add');
INSERT INTO `user` VALUES (2, '张三丰', 88, '123456', 'user:add');
INSERT INTO `user` VALUES (3, '郡主', 28, '888888', 'user:add');
INSERT INTO `user` VALUES (6, '李四', 33, '666666', 'user:add,user:update');

SET FOREIGN_KEY_CHECKS = 1;

2、导入依赖（所有的）

<parent>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-parent</artifactId>
    <version>2.4.5</version>
    <relativePath/> <!-- lookup parent from repository -->
</parent>

<properties>
    <java.version>1.8</java.version>
</properties>
<dependencies>
    <!--web-->
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-web</artifactId>
    </dependency>
    <!--redis整合-->
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-data-redis</artifactId>
        <version>2.4.4</version>
    </dependency>
    <!--mail邮件发送-->
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-mail</artifactId>
        <version>2.4.5</version>
    </dependency>
    <!--shiro整合spring的包-->
    <!--<dependency>
        <groupId>org.apache.shiro</groupId>
        <artifactId>shiro-spring-boot-web-starter</artifactId>
        <version>1.7.1</version>
    </dependency>-->
    <!--
    Subject:用户
    SecurityManager：管理所有用户
    Realm：连接数据
    -->
    <!--整合mybatis连接数据库-->
    <dependency>
        <groupId>org.mybatis.spring.boot</groupId>
        <artifactId>mybatis-spring-boot-starter</artifactId>
        <version>2.1.1</version>
    </dependency>
    <dependency>
        <groupId>mysql</groupId>
        <artifactId>mysql-connector-java</artifactId>
        <version>5.1.47</version>
    </dependency>
    <dependency>
        <groupId>com.alibaba</groupId>
        <artifactId>druid</artifactId>
        <version>1.1.22</version>
    </dependency>
    <dependency>
        <groupId>log4j</groupId>
        <artifactId>log4j</artifactId>
        <version>1.2.17</version>
    </dependency>
    <!--thymeleaf-shiro整合-->
    <dependency>
        <groupId>com.github.theborakompanioni</groupId>
        <artifactId>thymeleaf-extras-shiro</artifactId>
        <version>2.0.0</version>
    </dependency>
    <!--shiro整合spring的包-->
    <dependency>
        <groupId>org.apache.shiro</groupId>
        <artifactId>shiro-spring</artifactId>
        <version>1.7.1</version>
    </dependency>
    <!--Thymeleaf 基于3.x(2.x的会报错)-->
    <dependency>
        <groupId>org.thymeleaf</groupId>
        <artifactId>thymeleaf-spring5</artifactId>
    </dependency>
    <dependency>
        <groupId>org.thymeleaf.extras</groupId>
        <artifactId>thymeleaf-extras-java8time</artifactId>
    </dependency>
    <!--shiro-->
    <dependency>
        <groupId>org.apache.shiro</groupId>
        <artifactId>shiro-core</artifactId>
        <version>1.4.1</version>
    </dependency>
    <!--logging-->
    <dependency>
        <groupId>org.slf4j</groupId>
        <artifactId>jcl-over-slf4j</artifactId>
        <version>1.7.30</version>
    </dependency>
    <dependency>
        <groupId>org.projectlombok</groupId>
        <artifactId>lombok</artifactId>
        <version>1.18.18</version>
    </dependency>

    <!--swagger整合springboot-->
    <dependency>
        <groupId>io.springfox</groupId>
        <artifactId>springfox-swagger2</artifactId>
        <version>2.7.0</version>
    </dependency>
    <dependency>
        <groupId>io.springfox</groupId>
        <artifactId>springfox-swagger-ui</artifactId>
        <version>2.7.0</version>
    </dependency>

    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-test</artifactId>
        <scope>test</scope>
    </dependency>
</dependencies>

<build>
    <plugins>
        <plugin>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-maven-plugin</artifactId>
        </plugin>
    </plugins>
</build>

3、创建pojo类

@Data
@AllArgsConstructor
@NoArgsConstructor
@ApiModel("用户实体类")  //此处是swagger的用法
@Component  //表示这是组件
public class User implements Serializable {
    //controller的返回值为此实体类，则此实体类便会被扫描到swagger中
    @ApiModelProperty("用户id")  //此处是swagger的用法
    private int id;
    private String name;
    private int age;
    private String pwd;
    private String perms;
}

4、创建mapper接口类

@org.apache.ibatis.annotations.Mapper  //这个注解表示这是一个mybatis的mapper类
@Repository
public interface UserMapper {

    List<User> getList();

    User findByName(String name);
}

5、创建service接口类

public interface UserService {
    List<User> getList();

    User findByName(String name);
}

6、创建service接口实现类

@Service
public class UserServiceImpl implements UserService {

    @Autowired
    UserMapper userMapper;

    @Override
    public List<User> getList() {
        return userMapper.getList();
    }

    @Override
    public User findByName(String name) {
        return userMapper.findByName(name);
    }
}

7、创建controller类

@Controller
public class UserController {

    @Autowired
    private UserService userService;

    @RequestMapping("/findList")
    @ResponseBody
    public Object findList(){
        return  userService.getList();
    }

    @RequestMapping("/user")
    @ResponseBody
    public User getUser(){
        return  new User();
    }

    @ApiOperation("根据用户名查找用户")
    @RequestMapping("/findByName")
    @ResponseBody
    public String findByName(@ApiParam("用户名") String name){
        return "findByName";
    }

}

8、创建实体类的mapper映射文件

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
        PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.springboot.mapper.UserMapper">

    <select id="getList" resultType="user">
        select * from user
    </select>
    <select id="findByName" resultType="user" parameterType="String">
        select * from user where name = #{name}
    </select>
</mapper>

9、创建application.properties配置文件

#mybatis配置
mybatis.type-aliases-package=com.springboot.pojo
mybatis.mapper-locations=classpath:mapper/*.xml

10、创建application.yaml文件

spring:
  datasource:
    username: root
    driver-class-name: com.mysql.jdbc.Driver
    password: 123456
    url: jdbc:mysql://localhost:3306/springboot_test?useUnicode=true&characterEncoding=utf8&useSSL=false&useSSL=false&serverTimezone=UTC
    type: com.alibaba.druid.pool.DruidDataSource

    druid:
      # 连接池配置
      initial-size: 1
      max-active: 20
      min-idle: 1
      max-wait: 10000
      pool-prepared-statements: true
      max-open-prepared-statements: 20
      validation-query: SELECT 1 FROM DUAL
      validation-query-timeout: 5000
      test-on-borrow: false
      test-on-return: false
      test-while-idle: true
      time-between-eviction-runs-millis: 60000
      min-evictable-idle-time-millis: 30000
      max-evictable-idle-time-millis: 60000
      removeAbandoned: true
      removeAbandonedTimeout: 1800

      filters: stat,wall,log4j
      max-pool-prepared-statement-per-connection-size: 20
      use-global-data-source-stat: true
      connection-properties: druid.stat.mergeSql=true;druid.stat.slowSqlMillis=500

11、创建log4j.properties日志配置文件

log4j.rootLogger=INFO, stdout

log4j.appender.stdout=org.apache.log4j.ConsoleAppender
log4j.appender.stdout.layout=org.apache.log4j.PatternLayout
log4j.appender.stdout.layout.ConversionPattern=%d %p [%c] - %m %n

# General Apache libraries
log4j.logger.org.apache=WARN

# Spring
log4j.logger.org.springframework=WARN

# Default Shiro logging
log4j.logger.org.apache.shiro=INFO

# Disable verbose logging
log4j.logger.org.apache.shiro.util.ThreadContext=WARN
log4j.logger.org.apache.shiro.cache.ehcache.EhCache=WARN

二、整合swagger

1、导入依赖包（此处忽略）

2、创建配置类，并开启swagger功能

@Configuration
@EnableSwagger2 //开启swagger2
public class SwaggerConfig {

    //配置了swagger的docket的bean实例
    @Bean
    public Docket docket(Environment environment){
        //获取设置的swagger项目环境
        Profiles profiles = Profiles.of("dev","test");
        //通过environment.acceptsProfiles判断是否处在自己设置的环境中
        boolean flag = environment.acceptsProfiles(profiles);

        return new Docket(DocumentationType.SWAGGER_2)
                .apiInfo(apiInfo())
                //.groupName("测试")  //分组，多个分组可以新建多个Docket实例
                //.enable(flag)  //是否开启swagger功能，false为关闭，true为开启
                .select()
                //RequestHandlerSelectors配置要扫描接口的方式
                //.apis(RequestHandlerSelectors.any())
                //.apis(RequestHandlerSelectors.withClassAnnotation(RequestMapping.class))
                //过滤扫描什么路径
                //.paths(PathSelectors.ant("/ces/**"))
                .build();
    }

    //配置swagger信息apiInfo
    public ApiInfo apiInfo(){
        //作者信息
        Contact contact = new Contact("my", "http://127.0.0.1", "");
        return new ApiInfo(
                "my test",
                "Api Documentation",
                "1.0",
                "urn:tos",
                contact,
                "Apache 2.0",
                "http://www.apache.org/licenses/LICENSE-2.0",
                new ArrayList<VendorExtension>());
    }
}

3、在application.properties配置文件中设置环境

#环境设置
spring.profiles.active=dev

4、访问swagger页面

在浏览器中输入 http://localhost:8080/swagger-ui.html 访问

三、整合redis

1、导入依赖包（此处忽略）

2、在application.properties配置文件中配置

#配置redis
spring.redis.host=localhost
spring.redis.port=6379

3、创建配置类

//自定义redisTemplate模板
@Configuration
public class RedisConfig {

    //固定模板，在企业中可以直接使用
    @Bean
    public RedisTemplate<String, Object> redisTemplate(RedisConnectionFactory factory) {
        // 我们为了自己开发方便，一般直接使用 <String, Object>
        RedisTemplate<String, Object> template = new RedisTemplate();
        template.setConnectionFactory(factory);
        // Json序列化配置
        Jackson2JsonRedisSerializer jackson2JsonRedisSerializer = new
                Jackson2JsonRedisSerializer(Object.class);
        ObjectMapper om = new ObjectMapper();
        om.setVisibility(PropertyAccessor.ALL, JsonAutoDetect.Visibility.ANY);
        om.enableDefaultTyping(ObjectMapper.DefaultTyping.NON_FINAL);
        jackson2JsonRedisSerializer.setObjectMapper(om);
        // String 的序列化
        StringRedisSerializer stringRedisSerializer = new StringRedisSerializer();
        // key采用String的序列化方式
        template.setKeySerializer(stringRedisSerializer);
        // hash的key也采用String的序列化方式
        template.setHashKeySerializer(stringRedisSerializer);
        // value序列化方式采用jackson
        template.setValueSerializer(jackson2JsonRedisSerializer);
        // hash的value序列化方式采用jackson
        template.setHashValueSerializer(jackson2JsonRedisSerializer);
        template.afterPropertiesSet();
        return template;
    }
}

4、测试

注：先开启本地redis服务

@Autowired
RedisTemplate redisTemplate;

@Test
public void test(){
    redisTemplate.opsForValue().set("name1","你好");
    String name = (String)redisTemplate.opsForValue().get("name1");
    System.out.println(name);
}

四、整合thymeleaf-shiro

1、导入依赖（此处忽略）

2、创建shiro.ini文件，并放到resources目录下

[users]
# user 'root' with password 'secret' and the 'admin' role
root = secret, admin
# user 'guest' with the password 'guest' and the 'guest' role
guest = guest, guest
# user 'presidentskroob' with password '12345' ("That's the same combination on
# my luggage!!!" ;)), and role 'president'
presidentskroob = 12345, president
# user 'darkhelmet' with password 'ludicrousspeed' and roles 'darklord' and 'schwartz'
darkhelmet = ludicrousspeed, darklord, schwartz
# user 'lonestarr' with password 'vespa' and roles 'goodguy' and 'schwartz'
lonestarr = vespa, goodguy, schwartz

# -----------------------------------------------------------------------------
# Roles with assigned permissions
#
# Each line conforms to the format defined in the
# org.apache.shiro.realm.text.TextConfigurationRealm#setRoleDefinitions JavaDoc
# -----------------------------------------------------------------------------
[roles]
# 'admin' role has all permissions, indicated by the wildcard '*'
admin = *
# The 'schwartz' role can do anything (*) with any lightsaber:
schwartz = lightsaber:*
# The 'goodguy' role is allowed to 'drive' (action) the winnebago (type) with
# license plate 'eagle5' (instance specific id)
goodguy = winnebago:drive:eagle5

3、创建自定义Realm类

public class UserRealm extends AuthorizingRealm {
    @Autowired
    UserServiceImpl userService;
    //授权
    @Override
    protected AuthorizationInfo doGetAuthorizationInfo(PrincipalCollection principalCollection) {
        System.out.println("执行了授权 =》 doGetAuthorizationInfo");
        SimpleAuthorizationInfo info = new SimpleAuthorizationInfo();

        //获取当前登录的对象
        Subject subject = SecurityUtils.getSubject();
        User user = (User)subject.getPrincipal();
        info.addStringPermission(user.getPerms());
        return info;
    }

    //认证
    @Override
    protected AuthenticationInfo doGetAuthenticationInfo(AuthenticationToken authenticationToken) throws AuthenticationException {
        System.out.println("执行了认证 =》 doGetAuthenticationInfo");
        //用户名、密码~ 数据库中取
        UsernamePasswordToken token = (UsernamePasswordToken)authenticationToken;
        User user = userService.findByName(token.getUsername());
        if (user == null){
            return null; //抛出异常  UnknownAccountException
        }
        Subject subject = SecurityUtils.getSubject();
        Session session = subject.getSession();
        session.setAttribute("loginUser",user);
        return new SimpleAuthenticationInfo(user,user.getPwd(),"");
    }
}

4、创建Shiro配置类

@Configuration
public class ShiroConfig {

    //ShiroFilterFactoryBean:3
    @Bean
    public ShiroFilterFactoryBean getShiroFilterFactoryBean(@Qualifier("securityManager") DefaultWebSecurityManager defaultWebSecurityManager){
        ShiroFilterFactoryBean bean = new ShiroFilterFactoryBean();
        //设置安全管理器，关联创建的 DefaultWebSecurityManager
        bean.setSecurityManager(defaultWebSecurityManager);
        /**
         * Shiro内置的过滤器
         * anon:无需认证就能访问
         * authc:必须认证才能访问
         * user:必须拥有记住我功能才能访问
         * perms:必须拥有对某个资源的访问权限才能访问
         * role:拥有某个角色的权限才能访问
         */
        //添加shiro的内置过滤器
        Map<String, String> filterChainDefinitionMap = new LinkedHashMap<>();
       /* filterChainDefinitionMap.put("/user/add","anon");
        filterChainDefinitionMap.put("/user/update","authc");*/
        //授权，正常情况下，没有授权会跳转到没有授权的页面
        filterChainDefinitionMap.put("/user/add","perms[user:add]");
        //拦截
        filterChainDefinitionMap.put("/user/**","authc");
        bean.setFilterChainDefinitionMap(filterChainDefinitionMap);
        //设置未授权页面
        bean.setUnauthorizedUrl("/unauthor");
        //设置登录的请求
        bean.setLoginUrl("/toLogin");
        return bean;
    }

    //DefaultWebSecurityManager:2
    @Bean(name = "securityManager")
    public DefaultWebSecurityManager getDefaultWebSecurityManager(@Qualifier("userRealm") UserRealm userRealm){
        DefaultWebSecurityManager securityManager = new DefaultWebSecurityManager();
        //关联自定义的realm对象
        securityManager.setRealm(userRealm);
        return securityManager;
    }

    //创建realm对象，需要自定义:1
    @Bean
    public UserRealm userRealm(){
        return new UserRealm();
    }

    //整合 thymeleaf-shiro
    @Bean
    public ShiroDialect getShiroDialect(){
        return  new ShiroDialect();
    }

}

5、创建controller类

@Controller
public class ShiroController {

    @RequestMapping({"/","/index"})
    public String index(Model model){
        model.addAttribute("msg","hello shiro");
        return "index";
    }

    @RequestMapping("/user/add")
    public String add(){
        return "user/add";
    }

    @RequestMapping("/user/update")
    public String update(){
        return "user/update";
    }

    @RequestMapping("/toLogin")
    public String login(Model model){
        model.addAttribute("msg","登录失败");
        return "user/login";
    }

    @RequestMapping("/login")
    public String login(String username,String password,Model model){
        Subject subject = SecurityUtils.getSubject();
        UsernamePasswordToken token = new UsernamePasswordToken(username, password);
        try {
            subject.login(token);
        } catch (UnknownAccountException uae) {
            model.addAttribute("msg","用户名不存在");
            return "user/login";
        } catch (IncorrectCredentialsException ice) {
            model.addAttribute("msg","密码错误");
            return "user/login";
        }
        return "index";
    }

    @RequestMapping("/unauthor")
    @ResponseBody
    public String unauthor(){

        return "用户未授权，无法访问";
    }
}

6、创建html页面，整合thymeleaf-shiro

1、index.html

<!DOCTYPE html>
<html lang="en" xmlns:th="http://www.thymeleaf.org"
      xmlns:shiro="http://www.thymeleaf.org/thymeleaf-extras-shiro">
<head>
    <meta charset="UTF-8">
    <title>Title</title>
</head>
<body>
<h1>首页</h1>
    <div th:if="${session.loginUser == null} ">
        <a th:href="@{/toLogin}">登录</a>
    </div>
    <h2 th:text="${msg}"></h2>

    <div shiro:hasPermission="user:add">
        <a th:href="@{/user/add}">add</a>
    </div>
    <div shiro:hasPermission="user:update">
        <a th:href="@{/user/update}">update</a>
    </div>

</body>
</html>

2、login.html

<!DOCTYPE html>
<html lang="en" xmlns:th="http://www.thymeleaf.org">
<head>
    <meta charset="UTF-8">
    <title>Title</title>
</head>
<body>
<h1>登录</h1>
<hr/>
<p th:text="${msg}" style="color: red"></p>
<form th:action="@{/login}" method="post">
    用户名：<input type="text" name="username"/><br/>
    密码:<input type="text" name="password"/><br/>
    <input type="submit" value="提交"/>
</form>
</body>
</html>

3、add.html

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <title>Title</title>
</head>
<body>
add
</body>
</html>

4、update.html

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <title>Title</title>
</head>
<body>
update
</body>
</html>

五、异步

1、创建controller类调用异步方法

@Controller
public class AsyncController {

    @Autowired
    private AsyncServiceImpl asyncService;

    @RequestMapping("/async")
    public String async(){
        asyncService.async();//调用异步方法
        return "index";
    }
}

2、创建serviceImpl类实现异步方法

@Service
public class AsyncServiceImpl {

    //告诉springboot此方法是异步方法
    @Async
    public void async()  {
        try {
            Thread.sleep(3000);
        }catch (Exception e){
            e.printStackTrace();
        }
        System.out.println("这是异步任务");
    }
}

3、在springboot启动类中开启异步功能

@SpringBootApplication
@EnableAsync //开启异步任务
public class Springboot04Application {

    public static void main(String[] args) {
        SpringApplication.run(Springboot04Application.class, args);
    }
}

六、定时任务

1、创建定时任service务实现类

@Service
public class SchedulingServiceImpl {

    //cron : 秒  分  时  日  月  周几
    @Scheduled(cron = "0 * * * * 0-7")
    public void scheduling(){
        System.out.println("定时任务执行了");
    }
}

2、在springboot启动类中开启定时任务

@SpringBootApplication
@EnableAsync //开启异步任务
@EnableScheduling //开启定时任务
public class Springboot04Application {

    public static void main(String[] args) {
        SpringApplication.run(Springboot04Application.class, args);
    }

}

七、mail邮件发送

1、导入依赖包（此处忽略）

2、修改application.properties配置文件

#mail邮件发送设置
spring.mail.username=141xxxxx@qq.com
spring.mail.password=nvrpclgtypxxxx
spring.mail.host=smtp.qq.com
#开启邮件加密验证（QQ）
spring.mail.properties.mail.smtp.ssl.enable=true

3、测试

@Autowired
JavaMailSenderImpl javaMailSender;

/**
 * 简单邮件发送
 */
@Test
void contextLoads() {
    SimpleMailMessage simpleMailMessage = new SimpleMailMessage();
    simpleMailMessage.setSubject("这是测试");
    simpleMailMessage.setText("这是测试的内容");
    simpleMailMessage.setTo("141xxxxx@qq.com");
    simpleMailMessage.setFrom("141xxxxx@qq.com");
    javaMailSender.send(simpleMailMessage);
}

/**
 复杂邮件发送
 */
@Test
void contextLoads1() throws MessagingException {
    //一个复杂的邮件
    MimeMessage mimeMessage = javaMailSender.createMimeMessage();
    //组装
    MimeMessageHelper helper = new MimeMessageHelper(mimeMessage,true);
    helper.setSubject("这是复杂邮件");
    helper.setText("<p style='color:red'>这是复杂邮件的内容</p>",true);
    //附件
    helper.addAttachment("1.png",new File("C:\\Users\\Desktop\\苏宁售后服务流程.png"));
    helper.addAttachment("接口开发.txt",new File("C:\\Users\\Desktop\\接口开发.txt"));

    helper.setTo("141xxxxxx@qq.com");
    helper.setFrom("141xxxxx@qq.com");
    javaMailSender.send(mimeMessage);
}

完成！！！
