配置文件的处理
Spring Boot可以通过指定profile，将指定profile的配置加载到环境中，从而实现不同环境使用不同配置
背后的主要原理就是在应用启动的过程中，在不同阶段会向阶段监听器发送相应的阶段事件
当发送ApplicationEnvironmentPreparedEvent事件时，ConfigFileApplicationListener就会根据当前的profile，将满足条件的配置加载到环境中
下面详细看下源码
触发事件
当应用启动执行到prepareEnvironment时，会触发ApplicationEnvironmentPreparedEvent事件
// SpringApplication
private ConfigurableEnvironment prepareEnvironment(SpringApplicationRunListeners listeners,
ApplicationArguments applicationArguments) {
// Create and configure the environment
ConfigurableEnvironment environment = getOrCreateEnvironment();
configureEnvironment(environment, applicationArguments.getSourceArgs());
ConfigurationPropertySources.attach(environment);
// 触发事件
listeners.environmentPrepared(environment);
bindToSpringApplication(environment);
if (!this.isCustomEnvironment) {
environment = new EnvironmentConverter(getClassLoader()).convertEnvironmentIfNecessary(environment,
deduceEnvironmentClass());
}
ConfigurationPropertySources.attach(environment);
return environment;
}
// SpringApplicationRunListener
void environmentPrepared(ConfigurableEnvironment environment) {
for (SpringApplicationRunListener listener : this.listeners) {
listener.environmentPrepared(environment);
}
}
// EventPublishingRunListener
public void environmentPrepared(ConfigurableEnvironment environment) {
// 广播ApplicationEnvironmentPreparedEvent
this.initialMulticaster
.multicastEvent(new ApplicationEnvironmentPreparedEvent(this.application, this.args, environment));
}
解析配置

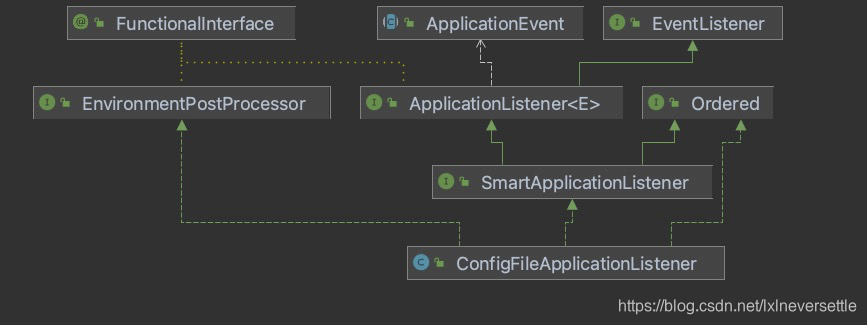

首先看下ConfigFileApplicationListener的继承结构
可以看到实现了EnvironmentPostProcessor接口，因此可以对Environment进行修改
下面看下ConfigFileApplicationListener是如何响应ApplicationEnvironmentPreparedEvent事件的
// ConfigFileApplicationListener
public void onApplicationEvent(ApplicationEvent event) {
if (event instanceof ApplicationEnvironmentPreparedEvent) {
onApplicationEnvironmentPreparedEvent((ApplicationEnvironmentPreparedEvent) event);
}
if (event instanceof ApplicationPreparedEvent) {
onApplicationPreparedEvent(event);
}
}
// ConfigFileApplicationListener
private void onApplicationEnvironmentPreparedEvent(ApplicationEnvironmentPreparedEvent event) {
// <1> 通过spi的方式加载EnvironmentPostProcessor的子类实例
List<EnvironmentPostProcessor> postProcessors = loadPostProcessors();
// <2> 将ConfigFileApplicationListener加入到postProcessors中
postProcessors.add(this);
// <3> 对多个postProcessor进行排序
AnnotationAwareOrderComparator.sort(postProcessors);
// <4> 遍历postProcessor,对environment进行处理
for (EnvironmentPostProcessor postProcessor : postProcessors) {
postProcessor.postProcessEnvironment(event.getEnvironment(), event.getSpringApplication());
}
}
// ConfigFileApplicationListener
public void postProcessEnvironment(ConfigurableEnvironment environment, SpringApplication application) {
addPropertySources(environment, application.getResourceLoader());
}
// ConfigFileApplicationListener
protected void addPropertySources(ConfigurableEnvironment environment, ResourceLoader resourceLoader) {
// <1> 将RandomValuePropertySource添加到systemEnvironment之后
RandomValuePropertySource.addToEnvironment(environment);
// <2> 创创建Loader并调用load方法进行加载
new Loader(environment, resourceLoader).load();
}
此时environment的propertySource中有如下几个配置来源
实际的解析操作交给内部类Loader进行处理
Loader
构造方法
Loader(ConfigurableEnvironment environment, ResourceLoader resourceLoader) {
// 需要处理的environment
this.environment = environment;
// 用来将配置中的占位符解析成实际的值
this.placeholdersResolver = new PropertySourcesPlaceholdersResolver(this.environment);
// 统一资源加载
this.resourceLoader = (resourceLoader != null) ? resourceLoader : new DefaultResourceLoader();
// 通过spi的方式加载PropertySourceLoader的实现类实例，PropertySourceLoader用来加载PropertSource
this.propertySourceLoaders = SpringFactoriesLoader.loadFactories(PropertySourceLoader.class,
getClass().getClassLoader());
}
默认情况下，有如下两个ResourceLoader
load
void load() {
// DEFAULT_PROPERTIES的值为defaultProperties
// LOAD_FILTERED_PROPERTY 是一个set，包含spring.profiles.include和spring.profiles.active
FilteredPropertySource.apply(this.environment, DEFAULT_PROPERTIES, LOAD_FILTERED_PROPERTY,
(defaultProperties) -> {
this.profiles = new LinkedList<>();
this.processedProfiles = new LinkedList<>();
this.activatedProfiles = false;
this.loaded = new LinkedHashMap<>();
initializeProfiles();
while (!this.profiles.isEmpty()) {
Profile profile = this.profiles.poll();
if (isDefaultProfile(profile)) {
addProfileToEnvironment(profile.getName());
}
load(profile, this::getPositiveProfileFilter,
addToLoaded(MutablePropertySources::addLast, false));
this.processedProfiles.add(profile);
}
load(null, this::getNegativeProfileFilter, addToLoaded(MutablePropertySources::addFirst, true));
addLoadedPropertySources();
applyActiveProfiles(defaultProperties);
});
}
FilteredPropertySource.apply
// FilteredPropertySource
static void apply(ConfigurableEnvironment environment, String propertySourceName, Set<String> filteredProperties,
Consumer<PropertySource<?>> operation) {
// <1> 从environment中获取当前需要处理的所有PropertySource
MutablePropertySources propertySources = environment.getPropertySources();
// <2> 不存在defaultProperties
PropertySource<?> original = propertySources.get(propertySourceName);
if (original == null) {
operation.accept(null);
return;
}
// <3> 存在defaultProperties，那么使用对应的PropertySource创建一个FilteredPropertySource
propertySources.replace(propertySourceName, new FilteredPropertySource(original, filteredProperties));
try {
operation.accept(original);
}
finally {
// 再替换回来
propertySources.replace(propertySourceName, original);
}
}
上面的操作主要就是判断是否存在defaultProperties
- 不存在，operation.accept传入null
- 存在，operation.accept传入使用defaultProperties创建的FilteredPropertySource
accept
// ConfigFileApplicationListener
(defaultProperties) -> {
this.profiles = new LinkedList<>();
this.processedProfiles = new LinkedList<>();
this.activatedProfiles = false;
this.loaded = new LinkedHashMap<>();
initializeProfiles();
// 遍历profile
while (!this.profiles.isEmpty()) {
Profile profile = this.profiles.poll();
// 如果不是默认profile，将当前profile作为生效profile，添加到environment中
if (isDefaultProfile(profile)) {
addProfileToEnvironment(profile.getName());
}
// <1> 加载配置
load(profile, this::getPositiveProfileFilter,
addToLoaded(MutablePropertySources::addLast, false));
this.processedProfiles.add(profile);
}
load(null, this::getNegativeProfileFilter, addToLoaded(MutablePropertySources::addFirst, true));
// <2> 将加载到的配置添加到environment中
addLoadedPropertySources();
// <3> 重新设置activeProfile
applyActiveProfiles(defaultProperties);
});
initializeProfiles
这个方法的左右就是初始化profile，通过读取environment中的spring.profiles.active和spring.profiles.include属性，将对应的profile添加到一个集合中
如果都没有指定，会创建一个名称为default的Profile添加到集合中
private void initializeProfiles() {
// The default profile for these purposes is represented as null. We add it
// first so that it is processed first and has lowest priority.
// <1> 使用null代表默认的profile，具有最低的优先级
this.profiles.add(null);
// <2> 从所有的配置中获取spring.profiles.active对应的值
Set<Profile> activatedViaProperty = getProfilesFromProperty(ACTIVE_PROFILES_PROPERTY);
// <3> 从所有的配置中获取spring.profiles.include对应的值
Set<Profile> includedViaProperty = getProfilesFromProperty(INCLUDE_PROFILES_PROPERTY);
// <4> 从environment中获取除了上面两个profile之外的active profile
List<Profile> otherActiveProfiles = getOtherActiveProfiles(activatedViaProperty, includedViaProperty);
this.profiles.addAll(otherActiveProfiles);
// Any pre-existing active profiles set via property sources (e.g.
// System properties) take precedence over those added in config files.
this.profiles.addAll(includedViaProperty);
// 如果activatedViaProperty不为空，将profiles中defaultProfile为true的profile移除掉，并且将activatedViaProperty加入到profiles中
addActiveProfiles(activatedViaProperty);
// <5> 当没有显式指定profile时，会通过environment来获取默认profile的名称，然后添加到profile中
if (this.profiles.size() == 1) { // only has null profile
for (String defaultProfileName : this.environment.getDefaultProfiles()) {
Profile defaultProfile = new Profile(defaultProfileName, true);
this.profiles.add(defaultProfile);
}
}
}
load
// ConfigFileApplicationListener
private void load(Profile profile, DocumentFilterFactory filterFactory, DocumentConsumer consumer) {
// 通过读取配置来生成配置文件的路径，并进行加载
getSearchLocations().forEach((location) -> {
boolean isFolder = location.endsWith("/");
Set<String> names = isFolder ? getSearchNames() : NO_SEARCH_NAMES;
names.forEach((name) -> load(location, name, profile, filterFactory, consumer));
});
}
下面的方法用来生成配置文件的搜索路径
// ConfigFileApplicationListener
private Set<String> getSearchLocations() {
// 判断是否指定了spring.config.location属性，如果指定了，使用该属性的值作为配置文件搜索路径
if (this.environment.containsProperty(CONFIG_LOCATION_PROPERTY)) {
return getSearchLocations(CONFIG_LOCATION_PROPERTY);
}
// 没有指定spring.config.location
// 将spring.config.additional-location属性的值作为搜索路径
Set<String> locations = getSearchLocations(CONFIG_ADDITIONAL_LOCATION_PROPERTY);
// 如果ConfigFileApplicationListener指定了searchLocations，那么添加到搜索路径中，否则将classpath:/,classpath:/config/,file:./,file:./config/添加到搜索路径
locations.addAll(
asResolvedSet(ConfigFileApplicationListener.this.searchLocations, DEFAULT_SEARCH_LOCATIONS));
return locations;
}
一般情况下，我们不会指定spring.config.location和spring.config.additional-location，因此默认况下，配置文件的搜索目录就是下面四个
- classpath:/
- classpath:/config/
- file:./
- file:./config/
当搜索路径是目录时，会调用下面的方法来获取配置文件名，从而生成完整的配置文件路径
// ConfigFileApplicationListener
private Set<String> getSearchNames() {
// 如果指定了spring.config.name配置，使用该配置的值作为配置文件的名称
if (this.environment.containsProperty(CONFIG_NAME_PROPERTY)) {
String property = this.environment.getProperty(CONFIG_NAME_PROPERTY);
return asResolvedSet(property, null);
}
// 判断ConfigFileApplicationListener是否指定了names属性，如果指定了使用该属性，否则使用application
return asResolvedSet(ConfigFileApplicationListener.this.names, DEFAULT_NAMES);
}
一般情况下，我们不会指定spring.config.name，因此配置文件的名称就是application
下面看下加载具体配置文件的逻辑
// ConfigFileApplicationListener
private void load(String location, String name, Profile profile, DocumentFilterFactory filterFactory,
DocumentConsumer consumer) {
// <1> location是一个完整的文件路径
// 遍历PropertySourceLoader,来判断是否可以处理该类型的文件
if (!StringUtils.hasText(name)) {
for (PropertySourceLoader loader : this.propertySourceLoaders) {
if (canLoadFileExtension(loader, location)) {
load(loader, location, profile, filterFactory.getDocumentFilter(profile), consumer);
return;
}
}
throw new IllegalStateException("File extension of config file location '" + location
+ "' is not known to any PropertySourceLoader. If the location is meant to reference "
+ "a directory, it must end in '/'");
}
// <2> location是一个目录
// 遍历PropertySourceLoader，对配置文件进行加载
Set<String> processed = new HashSet<>();
for (PropertySourceLoader loader : this.propertySourceLoaders) {
for (String fileExtension : loader.getFileExtensions()) {
if (processed.add(fileExtension)) {
loadForFileExtension(loader, location + name, "." + fileExtension, profile, filterFactory,
consumer);
}
}
}
}
接下来看下loadForFileExtension
private void loadForFileExtension(PropertySourceLoader loader, String prefix, String fileExtension,
Profile profile, DocumentFilterFactory filterFactory, DocumentConsumer consumer) {
// DocumentFiler用来对找到的配置文件进行过滤
// <1> 创建DocumentFilter
DocumentFilter defaultFilter = filterFactory.getDocumentFilter(null);
DocumentFilter profileFilter = filterFactory.getDocumentFilter(profile);
// <2> profile不为null，配置文件中带有profile的名称
if (profile != null) {
// Try profile-specific file & profile section in profile file (gh-340)
// 比如application-default.properties，此时文件名中包含当前profile的名称
String profileSpecificFile = prefix + "-" + profile + fileExtension;
// 分别使用两个Document对找到的配置文件进行过滤，分别进行加载
load(loader, profileSpecificFile, profile, defaultFilter, consumer);
load(loader, profileSpecificFile, profile, profileFilter, consumer);
// Try profile specific sections in files we've already processed
// <3> 遍历之前已经处理过的profile的文件，将profile设置为当前profile，重新处理一遍
for (Profile processedProfile : this.processedProfiles) {
if (processedProfile != null) {
String previouslyLoaded = prefix + "-" + processedProfile + fileExtension;
load(loader, previouslyLoaded, profile, profileFilter, consumer);
}
}
}
// Also try the profile-specific section (if any) of the normal file
// <4> 比如application.properties，此时文件名中不包含当前profile的名称
load(loader, prefix + fileExtension, profile, profileFilter, consumer);
}
下面继续看下load
private void load(PropertySourceLoader loader, String location, Profile profile, DocumentFilter filter,
DocumentConsumer consumer) {
try {
// <1> 加载配置文件
Resource resource = this.resourceLoader.getResource(location);
// <2> 判断文件是否存在
if (resource == null || !resource.exists()) {
if (this.logger.isTraceEnabled()) {
StringBuilder description = getDescription("Skipped missing config ", location, resource,
profile);
this.logger.trace(description);
}
return;
}
// <3> 判断文件是否有拓展名
if (!StringUtils.hasText(StringUtils.getFilenameExtension(resource.getFilename()))) {
if (this.logger.isTraceEnabled()) {
StringBuilder description = getDescription("Skipped empty config extension ", location,
resource, profile);
this.logger.trace(description);
}
return;
}
String name = "applicationConfig: [" + location + "]";
// <4> 将配置文件解析成Document
List<Document> documents = loadDocuments(loader, name, resource);
if (CollectionUtils.isEmpty(documents)) {
if (this.logger.isTraceEnabled()) {
StringBuilder description = getDescription("Skipped unloaded config ", location, resource,
profile);
this.logger.trace(description);
}
return;
}
List<Document> loaded = new ArrayList<>();
// <5> 使用documentFilter对document进行过滤
for (Document document : documents) {
if (filter.match(document)) {
// 将当前document中指定的activeProfiles加入到environment的activeProfile
addActiveProfiles(document.getActiveProfiles());
// 将当前document中指定的includeProfiles加入到需要解析的profiles队列中
addIncludedProfiles(document.getIncludeProfiles());
// 标记为已经加载
loaded.add(document);
}
}
Collections.reverse(loaded);
// <6> 针对加载的document，调用consumer
if (!loaded.isEmpty()) {
//
loaded.forEach((document) -> consumer.accept(profile, document));
if (this.logger.isDebugEnabled()) {
StringBuilder description = getDescription("Loaded config file ", location, resource, profile);
this.logger.debug(description);
}
}
}
catch (Exception ex) {
throw new IllegalStateException("Failed to load property source from location '" + location + "'", ex);
}
}
下面看下是如何将Resource解析成Document的
private List<Document> loadDocuments(PropertySourceLoader loader, String name, Resource resource)
throws IOException {
// 添加缓存逻辑，避免重复处理
DocumentsCacheKey cacheKey = new DocumentsCacheKey(loader, resource);
List<Document> documents = this.loadDocumentsCache.get(cacheKey);
if (documents == null) {
// <1> 使用PropertySourceLoader加载配置文件，生成PropertySource
// PropertiesPropertySourceLoader 用来加载properties为拓展名的配置文件
// YamlPropertySourceLoader 用来加载yml为拓展名的配置文件
List<PropertySource<?>> loaded = loader.load(name, resource);
// <2> 将PropertySource转换成document
documents = asDocuments(loaded);
this.loadDocumentsCache.put(cacheKey, documents);
}
return documents;
}
这里不详细看如何加载配置文件，我们只要知道能将解析指定的文件解析成PropertySource即可，PropertySource中包含该文件指定的一些配置
这里详细看下asDocuments
private List<Document> asDocuments(List<PropertySource<?>> loaded) {
if (loaded == null) {
return Collections.emptyList();
}
// 这里在创建配置文件对应的Document对象时，同时会从解析后的结果中取出spring.profiles spring.profiles.active spring.profiles.include的结果，作为构造参数，来构造Document
return loaded.stream().map((propertySource) -> {
Binder binder = new Binder(ConfigurationPropertySources.from(propertySource),
this.placeholdersResolver);
return new Document(propertySource, binder.bind("spring.profiles", STRING_ARRAY).orElse(null),
getProfiles(binder, ACTIVE_PROFILES_PROPERTY), getProfiles(binder, INCLUDE_PROFILES_PROPERTY));
}).collect(Collectors.toList());
}
DocumentFilter
DocumentFilter用于对配置文件生成的Documen进行过滤
有两个实现
- getPositiveProfileFilter
- getNegativeProfileFilter
首先看下getPositiveProfileFilter
private DocumentFilter getPositiveProfileFilter(Profile profile) {
return (Document document) -> {
// <1> 如果入参profile为null，那么只会返回没有指定spring.profiles的配置文件
if (profile == null) {
return ObjectUtils.isEmpty(document.getProfiles());
}
// <2> 如果指定了profile，那么只会返回指定了spring.profiles，并且包含当前profile，并且当前profile包含在environment的activeProfiles中的配置文件
return ObjectUtils.containsElement(document.getProfiles(), profile.getName())
&& this.environment.acceptsProfiles(Profiles.of(document.getProfiles()));
};
}
接下来看下getNegativeProfileFilter
private DocumentFilter getNegativeProfileFilter(Profile profile) {
// 首先，只有入参为null的时候才会返回文档
// 其次，配置文件中指定了spring.profiles属性，并且spring.profiles中的值出现在activeProfiles中
return (Document document) -> (profile == null && !ObjectUtils.isEmpty(document.getProfiles())
&& this.environment.acceptsProfiles(Profiles.of(document.getProfiles())));
}
DocumentConsumer
当生成配置文件对应的Document之后，会使用DocumentConsumer处理Document
具体实现如下
private DocumentConsumer addToLoaded(BiConsumer<MutablePropertySources, PropertySource<?>> addMethod,
boolean checkForExisting) {
return (profile, document) -> {
// <1> 如果该配置文件已经加入到了loaded中，并且设置了checkForExisting为true，那么不会重复处理
if (checkForExisting) {
for (MutablePropertySources merged : this.loaded.values()) {
if (merged.contains(document.getPropertySource().getName())) {
return;
}
}
}
// 获取当前profile对应的MutablePropertySources
MutablePropertySources merged = this.loaded.computeIfAbsent(profile,
(k) -> new MutablePropertySources());
// 调用addMethod,将当前document对应的propertySource加到merged的最后或者最前
addMethod.accept(merged, document.getPropertySource());
};
}
其中,loader保存每个Profile和对应该Profile下的配置
private Map<Profile, MutablePropertySources> loaded;
addLoadedPropertySources
private void addLoadedPropertySources() {
MutablePropertySources destination = this.environment.getPropertySources();
List<MutablePropertySources> loaded = new ArrayList<>(this.loaded.values());
Collections.reverse(loaded);
String lastAdded = null;
Set<String> added = new HashSet<>();
for (MutablePropertySources sources : loaded) {
for (PropertySource<?> source : sources) {
if (added.add(source.getName())) {
addLoadedPropertySource(destination, lastAdded, source);
lastAdded = source.getName();
}
}
}
}
private void addLoadedPropertySource(MutablePropertySources destination, String lastAdded,
PropertySource<?> source) {
// 如果包含defaultProperties,将当前配置添加到defaultProperties之前
// 如果没有，就添加到最后，具有最低的优先级
if (lastAdded == null) {
if (destination.contains(DEFAULT_PROPERTIES)) {
destination.addBefore(DEFAULT_PROPERTIES, source);
}
else {
destination.addLast(source);
}
}
else {
destination.addAfter(lastAdded, source);
}
}
