[Java知识库]SpringBoot与SpringMVC中参数传递的原理

一:普通参数与基本注解

HandlerMapping中找到能处理请求的Handler(Controller,method())
为当前Handler找一个适配器HandlerAdapter:RequestMappingHandlerAdapter

1.HandlerAdapter

0-支持方法上标注@RequestMapping
1-支持函数式编程的
xxxx

2.执行目标方法


3.参数解析器:确定要执行的目标方法每一个参数的值是什么

boolean supportsParameter(MethodParameter parameter);
Object resolveArgument(MethodParameter parameter, @Nullable ModelAndViewContainer mavContainer,
先判断是否支持该参数类型, 如果支持, 就调用resolveArgument解析方法

4.返回值处理器

5.挨个判断所有参数解析器哪个支持这个参数:HandlerMethodArgumentResolver: 把控着支持的方法参数类型

请求进来后, 首先从handlerMapping中查找是否有对应的映射处理, 得到映射适配器Adapter,再通过适配器,查找有哪些方法匹配请求,首先判断方法名,以及参数类型是否匹配,首先获得方法中声明的参数名字, 放到数组里,循环遍历27种解析器判断是否有支持处理对应参数名字类型的解析器,如果有的话,根据名字进行解析参数,根据名字获得域数据中的参数, 循环每个参数名字进行判断, 从而为每个参数进行赋值.

对于自定义的POJO类参数:
ServletRequestMethodArgumentResolver 这个解析器用来解析: 是通过主要是通过判断是否是简单类型得到的

	@Override
	public boolean supportsParameter(MethodParameter parameter) {
		return (parameter.hasParameterAnnotation(ModelAttribute.class) ||
				(this.annotationNotRequired && !BeanUtils.isSimpleProperty(parameter.getParameterType())));
	}

public static boolean isSimpleValueType(Class<?> type) {
		return (Void.class != type && void.class != type &&
				(ClassUtils.isPrimitiveOrWrapper(type) ||
				Enum.class.isAssignableFrom(type) ||
				CharSequence.class.isAssignableFrom(type) ||
				Number.class.isAssignableFrom(type) ||
				Date.class.isAssignableFrom(type) ||
				Temporal.class.isAssignableFrom(type) ||
				URI.class == type ||
				URL.class == type ||
				Locale.class == type ||
				Class.class == type));
	}


public final Object resolveArgument(MethodParameter parameter, @Nullable ModelAndViewContainer mavContainer,
			NativeWebRequest webRequest, @Nullable WebDataBinderFactory binderFactory) throws Exception {

		Assert.state(mavContainer != null, "ModelAttributeMethodProcessor requires ModelAndViewContainer");
		Assert.state(binderFactory != null, "ModelAttributeMethodProcessor requires WebDataBinderFactory");

		String name = ModelFactory.getNameForParameter(parameter);
		ModelAttribute ann = parameter.getParameterAnnotation(ModelAttribute.class);
		if (ann != null) {
			mavContainer.setBinding(name, ann.binding());
		}

		Object attribute = null;
		BindingResult bindingResult = null;

		if (mavContainer.containsAttribute(name)) {
			attribute = mavContainer.getModel().get(name);
		}
		else {
			// Create attribute instance
			try {
				attribute = createAttribute(name, parameter, binderFactory, webRequest);
			}
			catch (BindException ex) {
				if (isBindExceptionRequired(parameter)) {
					// No BindingResult parameter -> fail with BindException
					throw ex;
				}
				// Otherwise, expose null/empty value and associated BindingResult
				if (parameter.getParameterType() == Optional.class) {
					attribute = Optional.empty();
				}
				else {
					attribute = ex.getTarget();
				}
				bindingResult = ex.getBindingResult();
			}
		}

		if (bindingResult == null) {
			// Bean property binding and validation;
			// skipped in case of binding failure on construction.
			WebDataBinder binder = binderFactory.createBinder(webRequest, attribute, name);
			if (binder.getTarget() != null) {
				if (!mavContainer.isBindingDisabled(name)) {
					bindRequestParameters(binder, webRequest);
				}
				validateIfApplicable(binder, parameter);
				if (binder.getBindingResult().hasErrors() && isBindExceptionRequired(binder, parameter)) {
					throw new BindException(binder.getBindingResult());
				}
			}
			// Value type adaptation, also covering java.util.Optional
			if (!parameter.getParameterType().isInstance(attribute)) {
				attribute = binder.convertIfNecessary(binder.getTarget(), parameter.getParameterType(), parameter);
			}
			bindingResult = binder.getBindingResult();
		}

		// Add resolved attribute and BindingResult at the end of the model
		Map<String, Object> bindingResultModel = bindingResult.getModel();
		mavContainer.removeAttributes(bindingResultModel);
		mavContainer.addAllAttributes(bindingResultModel);

		return attribute;
	}


WebDataBinder binder =binderFactory.createBinder(webRequest,attribute,name)

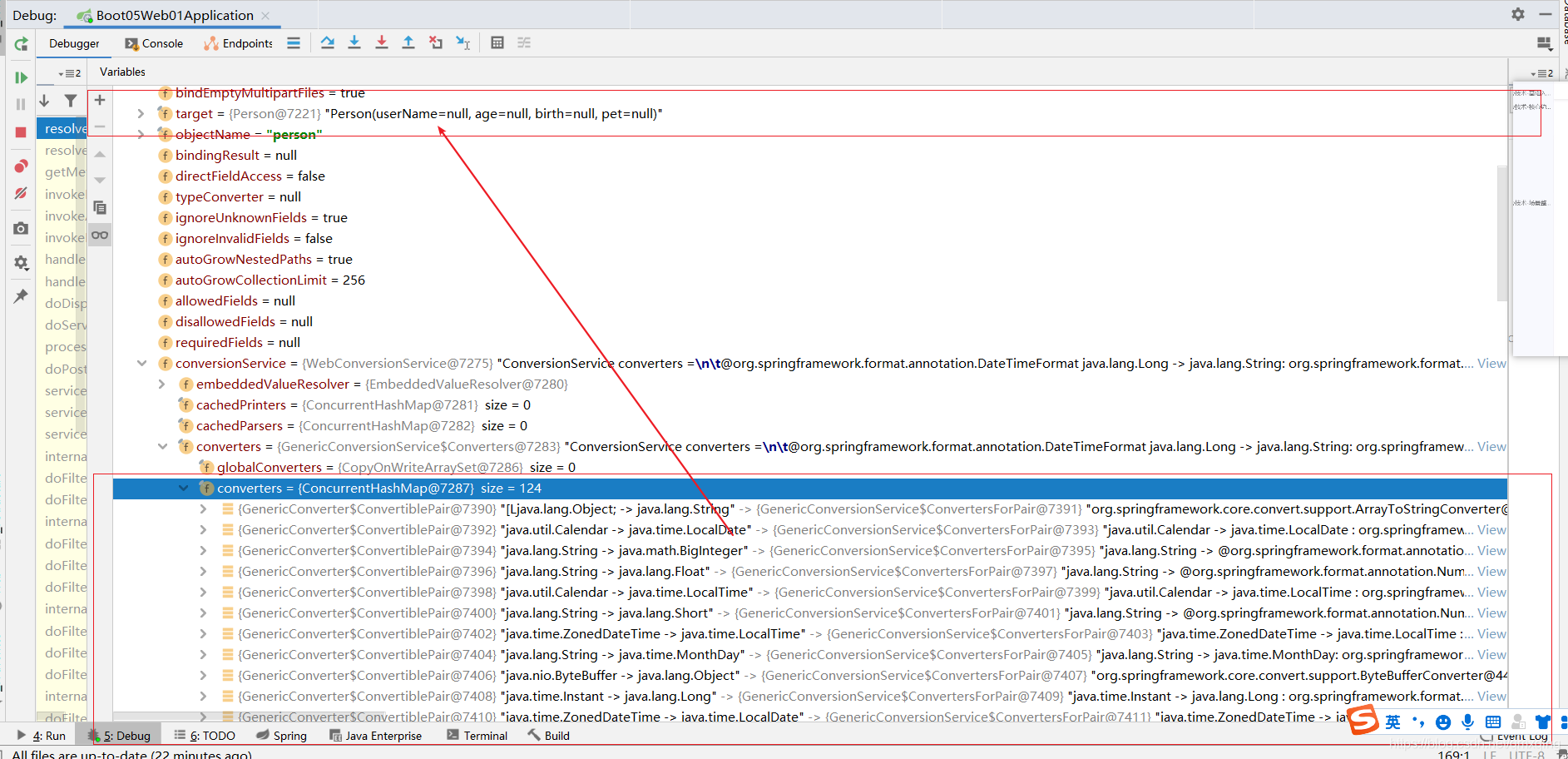

WebDataBinder:web数据绑定器,将请求参数的值绑定到指定的javaBean里面
WebDataBinder 利用它里面的Converters将请求数据转成指定的数据类型,通过反射一系列操作,再次封装到javabean中

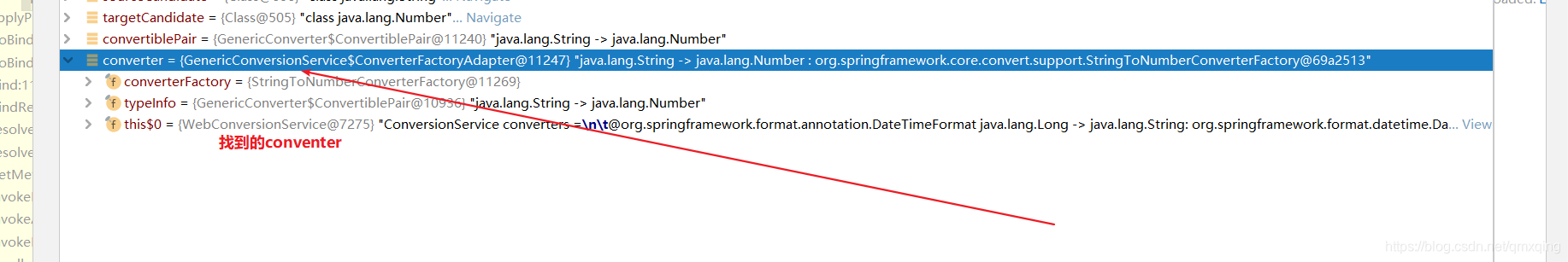

GenericConversionService:在设置每一个值的时候,找它里面所有的converter哪个可以将这个数据类型(request带来参数的字符串)转换到指定的类型(javabean—某一个类型)

未来我们可以给WebDataBinder里面放自己的Converter
private static final class StringToNumber implements Converter<String, T> {

converter总接口:
@FunctionalInterface
public interface Converter<S, T> {

//自定义转换器:实现按照自己的规则给相应对象赋值

 @Override
    public void addFormatters(FormatterRegistry registry) {
            registry.addConverter(new Converter<String, Pet>() {
                @Override
                public Pet convert(String source) {
                    if (!StringUtils.isEmpty(source)){
                        Pet pet = new Pet();
                        String[] split = source.split(",");
                        pet.setName(split[0]);
                        pet.setAge(split[1]);
                        return pet;
                    }

                    return null;
                }
            });
    }

二:复杂参数

Map/Model(map/model里面的数据会被放在request的请求域 相当于request.setAttribute)/Errors/BindingResult/RedirectAttributes(重定向携带数据)/ServletRespons().SessionStaus.UriComponentsBuilder

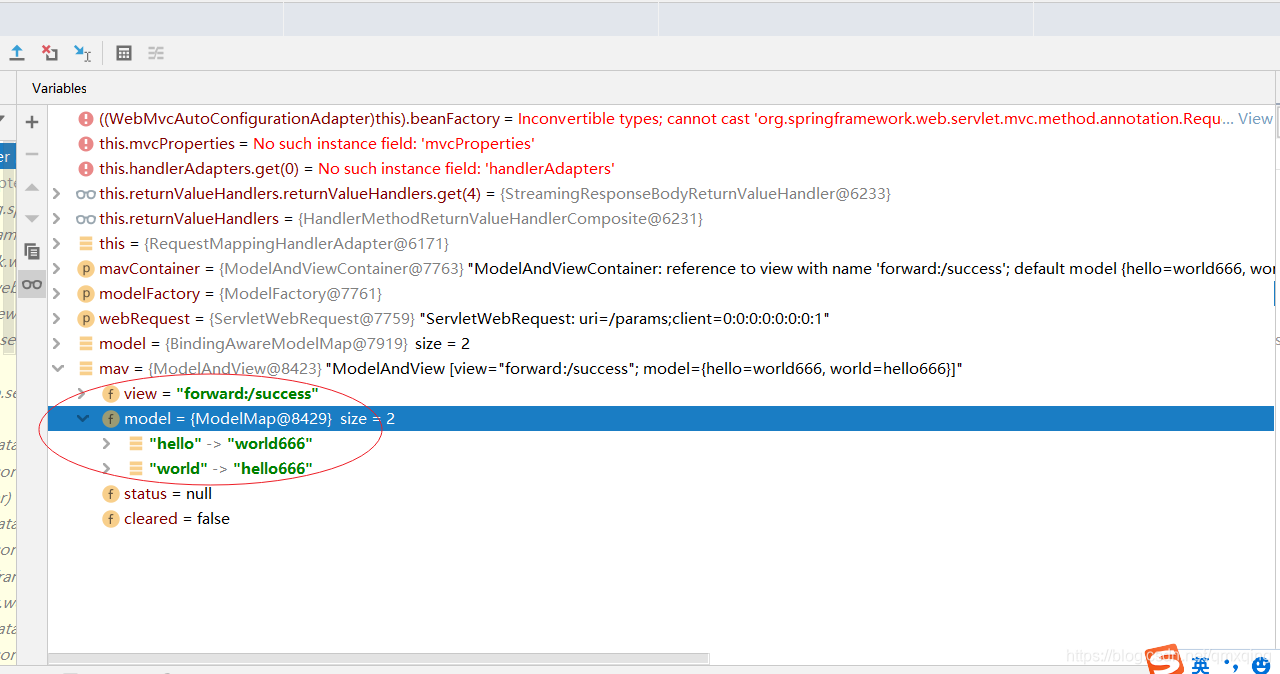

6.在上面第五步目标方法执行完成后:
将所有的数据都放在ModelAdnViewContainer;包含要去的页面地址View,还包含Model数据

7.处理派发结果
processDispatchResult(processedRequest, response, mappedHandler, mv, dispatchException);

在页面进行响应前, 进行视图渲染的时候:
exposeModelAsRequestAttributes(model, request); 该方法将model中所有参数都放在请求域数据中

protected void renderMergedOutputModel(
			Map<String, Object> model, HttpServletRequest request, HttpServletResponse response) throws Exception {

		// Expose the model object as request attributes.
		exposeModelAsRequestAttributes(model, request);

		// Expose helpers as request attributes, if any.
		exposeHelpers(request);

		// Determine the path for the request dispatcher.
		String dispatcherPath = prepareForRendering(request, response);

		// Obtain a RequestDispatcher for the target resource (typically a JSP).
		RequestDispatcher rd = getRequestDispatcher(request, dispatcherPath);
		if (rd == null) {
			throw new ServletException("Could not get RequestDispatcher for [" + getUrl() +
					"]: Check that the corresponding file exists within your web application archive!");
		}

		// If already included or response already committed, perform include, else forward.
		if (useInclude(request, response)) {
			response.setContentType(getContentType());
			if (logger.isDebugEnabled()) {
				logger.debug("Including [" + getUrl() + "]");
			}
			rd.include(request, response);
		}

		else {
			// Note: The forwarded resource is supposed to determine the content type itself.
			if (logger.isDebugEnabled()) {
				logger.debug("Forwarding to [" + getUrl() + "]");
			}
			rd.forward(request, response);
		}
	}

通过循环遍历model中的所有数据放在请求域中

protected void exposeModelAsRequestAttributes(Map<String, Object> model,
			HttpServletRequest request) throws Exception {

		model.forEach((name, value) -> {
			if (value != null) {
				request.setAttribute(name, value);
			}
			else {
				request.removeAttribute(name);
			}
		});
	}

不管我们在方法形参位置放 Map集合或者Molde 最终在底层源码都是同一个对象在mvcContainer容器中进行保存
