[Java知识库]java入门-springboot整合mybatis+layui

源码地址:https://codechina.csdn.net/wwwzhouzy/springboot-ssm

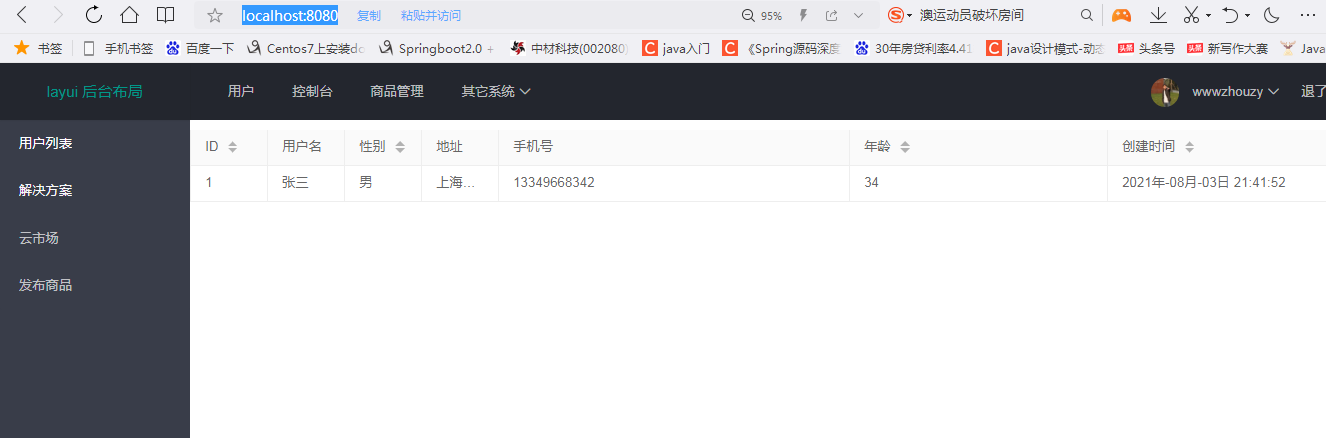

先看看项目启动，访问页面的效果图：

需要注意的地方?：

1、引入layui相关资源文件时注意路径，尤其是引用Thymeleaf标签时

静态资源默认从static目录下查找?

2、注意json传送数据的编码问题，不然会有乱码

继承WebMvcConfigurationSupport类，重写方法：

    @Bean
    public HttpMessageConverter<String> responseBodyConverter() {
        return new StringHttpMessageConverter(Charset.forName("UTF-8"));
    }
	@Override
    public void configureMessageConverters(List<HttpMessageConverter<?>> converters) {
        super.configureMessageConverters(converters);
        converters.add(responseBodyConverter());
    }
    @Override
   	protected void extendMessageConverters(List<HttpMessageConverter<?>> converters) {
   		for (HttpMessageConverter<?> converter : converters) {
               // 解决controller返回普通文本中文乱码问题
   			if (converter instanceof StringHttpMessageConverter) {
   				((StringHttpMessageConverter) converter).setDefaultCharset(StandardCharsets.UTF_8);
               }
               // 解决controller返回json对象中文乱码问题
   			if (converter instanceof MappingJackson2HttpMessageConverter) {
   				((MappingJackson2HttpMessageConverter) converter).setDefaultCharset(StandardCharsets.UTF_8);
   			}
   		}
   	}

?3、我用的mysql5.0版本，所以springboot采用了2.0.5

    <parent>
		<groupId>org.springframework.boot</groupId>
		<artifactId>spring-boot-starter-parent</artifactId>
		<version>2.0.5.RELEASE</version>
	</parent>

一、项目架构

二、核心代码?

1、pom引包

<?xml version="1.0" encoding="UTF-8"?>

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
  <modelVersion>4.0.0</modelVersion>

  <groupId>com.zhouzy.ssm</groupId>
  <artifactId>zhouzySsm</artifactId>
  <version>0.0.1-SNAPSHOT</version>

  <name>zhouzySsm</name>
  <!-- FIXME change it to the project's website -->
  <url>http://www.example.com</url>

	<parent>
		<groupId>org.springframework.boot</groupId>
		<artifactId>spring-boot-starter-parent</artifactId>
		<version>2.0.5.RELEASE</version>
	</parent>
    <!--修改jdk版本号-->
	<properties>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
        <java.version>1.8</java.version>
        <spring-cloud.version>Finchley.SR1</spring-cloud.version>
    </properties>

  <dependencies>
      <!-- web模块 -->
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-web</artifactId>
		</dependency>

		<!-- thmeleaf模板引擎 -->
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-thymeleaf</artifactId>
		</dependency>

		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-jdbc</artifactId>
		</dependency>
		<dependency>
			<groupId>org.mybatis.spring.boot</groupId>
			<artifactId>mybatis-spring-boot-starter</artifactId>
			<version>1.3.2</version>
		</dependency>

		<dependency>
			<groupId>mysql</groupId>
			<artifactId>mysql-connector-java</artifactId>
			<scope>runtime</scope>
		</dependency>

		<dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>fastjson</artifactId>
            <version>1.2.30</version>
		</dependency>

		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-test</artifactId>
			<scope>test</scope>
		</dependency>
  </dependencies>


	<build>
		<plugins>
			<plugin>
				<groupId>org.springframework.boot</groupId>
				<artifactId>spring-boot-maven-plugin</artifactId>
			</plugin>
		</plugins>
	</build>
</project>

2、配置文件

application.yml

server:
  port: 8080

spring:
  application:
    mame: ssm
  thymeleaf:
    prefix: classpath:/templates/
    cache: false
  datasource:
    username: root
    password: 123456
    url: jdbc:mysql://localhost:3306/zhouzy?useUnicode=true&characterEncoding=utf-8&useSSL=true&serverTimezone=UTC
    driver-class-name: com.mysql.jdbc.Driver

mybatis:
  mapper-locations: classpath:mapper/*Mapper.xml
  type-aliases-package: com.zhouzy.ssm.model

#showSql
logging:
  level:
    com:
      example:
        mapper : debug

3、html文件

userList.html

<!DOCTYPE html>
<html>
<head>
    <meta charset="utf-8">
    <meta name="viewport" content="width=device-width, initial-scale=1, maximum-scale=1">
    <title>layout 后台大布局 - Layui</title>
    <link rel="stylesheet" href="/css/layui.css">
    <script src="/layui.js" type="text/javascript"></script>
</head>
<body class="layui-layout-body">
<div class="layui-layout layui-layout-admin">
    <div class="layui-header">
        <div class="layui-logo">layui 后台布局</div>
        <!-- 头部区域（可配合layui已有的水平导航） -->
        <ul class="layui-nav layui-layout-left">
        	<li class="layui-nav-item"><a href="">用户</a></li>
            <li class="layui-nav-item"><a href="">控制台</a></li>
            <li class="layui-nav-item"><a href="">商品管理</a></li>
            <li class="layui-nav-item">
                <a href="javascript:;">其它系统</a>
                <dl class="layui-nav-child">
                    <dd><a href="">邮件管理</a></dd>
                    <dd><a href="">消息管理</a></dd>
                    <dd><a href="">授权管理</a></dd>
                </dl>
            </li>
        </ul>
        <ul class="layui-nav layui-layout-right">
            <li class="layui-nav-item">
                <a href="javascript:;">
                    <img src="https://profile.csdnimg.cn/6/D/2/0_wwwzhouzy" class="layui-nav-img">
                    wwwzhouzy
                </a>
                <dl class="layui-nav-child">
                    <dd><a href="">基本资料</a></dd>
                    <dd><a href="">安全设置</a></dd>
                </dl>
            </li>
            <li class="layui-nav-item"><a href="">退了</a></li>
        </ul>
    </div>

    <div class="layui-side layui-bg-black">
        <div class="layui-side-scroll">
            <!-- 左侧导航区域（可配合layui已有的垂直导航） -->
            <ul class="layui-nav layui-nav-tree"  lay-filter="test">
                <li class="layui-nav-item layui-nav-itemed">
                    <a class="" href="javascript:;">用户列表</a>
                </li>
                <li class="layui-nav-item">
                    <a href="javascript:;">解决方案</a>
                </li>
                <li class="layui-nav-item"><a href="">云市场</a></li>
                <li class="layui-nav-item"><a href="">发布商品</a></li>
            </ul>
        </div>
    </div>

    <div class="layui-body">
        <!-- 内容主体区域 -->
        <table class="layui-hide" id="userList" lay-filter="userList"></table>

    </div>

    <div class="layui-footer">
        <!-- 底部固定区域 -->
        ? layui.com - 底部固定区域
    </div>
</div>
<script type="text/javascript" th:inline="none">
	layui.use('table', function(){
		var table = layui.table;

		table.render({
		    elem: '#userList'
		    ,url:'/user/listData'
		    ,cellMinWidth: 80 //全局定义常规单元格的最小宽度，layui 2.2.1 新增
		    ,cols: [[
		       {field:'id', width:80, title: 'ID', sort: true}
		      ,{field:'name', width:80, title: '用户名'}
		      ,{field:'sex', width:80, title: '性别', sort: true,templet: function (d){
		    	  var sex = d.sex;
		    	  if(sex == 0){
		    		  return '男';
		    	  }else if(sex == 0){
		    		  return '女';
		    	  }else{
		    		  return '未知';
		    	  }
		      }}
		      ,{field:'address', width:80, title: '地址'}
		      ,{field:'mobile', title: '手机号', width: '30%', minWidth: 100} //minWidth：局部定义当前单元格的最小宽度，layui 2.2.1 新增
		      ,{field:'age', title: '年龄', sort: true}
		      ,{field:'createTime', title: '创建时间', sort: true,templet : "<div>{{layui.util.toDateString(d.createTime, 'yyyy年-MM月-dd日 HH:mm:ss')}}</div>"}
		    ]]
		 });
	});
</script>
</body>
</html>

4、mybatis映射文件

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.zhouzy.ssm.mapper.UserInfoMapper">

    <resultMap id="BaseResultMap" type="com.zhouzy.ssm.model.UserInfo" >
                <result column="id" property="id" />
                <result column="name" property="name" />
                <result column="age" property="age" />
                <result column="sex" property="sex" />
                <result column="address" property="address" />
                <result column="mobile" property="mobile" />
                <result column="create_time" property="createTime" />
                <result column="update_time" property="updateTime" />
    </resultMap>

    <sql id="Base_Column_List">
                id,
                name,
                age,
                sex,
                address,
                mobile,
                create_time,
                update_time
    </sql>

    <insert id="insert" useGeneratedKeys="true" keyColumn="id" keyProperty="id" parameterType="com.zhouzy.ssm.model.UserInfo">
        INSERT INTO t_user_info
        <trim prefix="(" suffix=")" suffixOverrides=",">
                        <if test="null != name and '' != name">
                        name,
                        </if>
                        <if test="null != age and '' != age">
                        age,
                        </if>
                        <if test="null != sex and '' != sex">
                        sex,
                        </if>
                        <if test="null != address and '' != address">
                        address,
                        </if>
                        <if test="null != mobile and '' != mobile">
                        mobile,
                        </if>
                        <if test="null != createTime and '' != createTime">
                        create_time,
                        </if>
                        <if test="null != updateTime and '' != updateTime">
                        update_time
                        </if>
        </trim>
        <trim prefix="values (" suffix=")" suffixOverrides=",">
                        <if test="null != name and '' != name">
                        #{name},
                        </if>
                        <if test="null != age and '' != age">
                        #{age},
                        </if>
                        <if test="null != sex and '' != sex">
                        #{sex},
                        </if>
                        <if test="null != address and '' != address">
                        #{address},
                        </if>
                        <if test="null != mobile and '' != mobile">
                        #{mobile},
                        </if>
                        <if test="null != createTime and '' != createTime">
                        #{createTime},
                        </if>
                        <if test="null != updateTime and '' != updateTime">
                        #{updateTime}
                        </if>
        </trim>
    </insert>

    <delete id="delete" >
        DELETE FROM t_user_info
        WHERE id = #{id}
    </delete>

    <update id="update" parameterType="com.zhouzy.ssm.model.UserInfo">
        UPDATE t_user_info
        <set>
                    <if test="null != name and '' != name">name = #{name},</if>
                    <if test="null != age and '' != age">age = #{age},</if>
                    <if test="null != sex and '' != sex">sex = #{sex},</if>
                    <if test="null != address and '' != address">address = #{address},</if>
                    <if test="null != mobile and '' != mobile">mobile = #{mobile},</if>
                    <if test="null != createTime and '' != createTime">create_time = #{createTime},</if>
                    <if test="null != updateTime and '' != updateTime">update_time = #{updateTime}</if>
        </set>
        WHERE id = #{id}
    </update>


    <select id="load" resultMap="BaseResultMap">
        SELECT <include refid="Base_Column_List" />
        FROM t_user_info
        WHERE id = #{id}
    </select>

    <select id="pageList" resultMap="BaseResultMap">
        SELECT <include refid="Base_Column_List" />
        FROM t_user_info
        LIMIT #{offset}, #{pageSize}
    </select>

    <select id="pageListCount" resultType="java.lang.Integer">
        SELECT count(1)
        FROM t_user_info
    </select>

</mapper>

5、mvc配置类

package com.zhouzy.ssm.config;

import java.nio.charset.Charset;
import java.nio.charset.StandardCharsets;
import java.util.List;

import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.http.converter.HttpMessageConverter;
import org.springframework.http.converter.StringHttpMessageConverter;
import org.springframework.http.converter.json.MappingJackson2HttpMessageConverter;
import org.springframework.web.servlet.config.annotation.ResourceHandlerRegistry;
import org.springframework.web.servlet.config.annotation.WebMvcConfigurationSupport;

@Configuration
public class WebMvcConfig extends WebMvcConfigurationSupport {

	//通过重写配置方法覆盖
    @Override
    public void addResourceHandlers(ResourceHandlerRegistry registry) {
   registry.addResourceHandler("/mapper/**").addResourceLocations("classpath:/mapper/");//mapper.xml
        registry.addResourceHandler("/**")
                .addResourceLocations("classpath:/static/")
                .addResourceLocations("classpath:/templates/");
        super.addResourceHandlers(registry);
    }

    @Bean
    public HttpMessageConverter<String> responseBodyConverter() {
        return new StringHttpMessageConverter(Charset.forName("UTF-8"));
    }
	@Override
    public void configureMessageConverters(List<HttpMessageConverter<?>> converters) {
        super.configureMessageConverters(converters);
        converters.add(responseBodyConverter());
    }
    @Override
   	protected void extendMessageConverters(List<HttpMessageConverter<?>> converters) {
   		for (HttpMessageConverter<?> converter : converters) {
               // 解决controller返回普通文本中文乱码问题
   			if (converter instanceof StringHttpMessageConverter) {
   				((StringHttpMessageConverter) converter).setDefaultCharset(StandardCharsets.UTF_8);
               }
               // 解决controller返回json对象中文乱码问题
   			if (converter instanceof MappingJackson2HttpMessageConverter) {
   				((MappingJackson2HttpMessageConverter) converter).setDefaultCharset(StandardCharsets.UTF_8);
   			}
   		}
   	}
}

6、启动类

package com.zhouzy.ssm;

import org.mybatis.spring.annotation.MapperScan;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;


@MapperScan("com.zhouzy.ssm.mapper") //扫描的mapper
@SpringBootApplication
public class Webapplication {
	public static void main(String[] args) {
		SpringApplication.run(Webapplication.class, args);
	}
}

7、控制层

package com.zhouzy.ssm.controller;

import java.util.List;
import java.util.Map;

import javax.annotation.Resource;

import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.ResponseBody;

import com.alibaba.fastjson.JSONObject;
import com.zhouzy.ssm.model.DataGrid;
import com.zhouzy.ssm.model.PageInfo;
import com.zhouzy.ssm.model.UserInfo;
import com.zhouzy.ssm.service.UserInfoService;

@Controller
@RequestMapping("/user")
public class UserInfoController {
	@Resource
    private UserInfoService userInfoService;

    /**
    * 新增
    * @author zhouzhiyao
    * @date 2021/08/03
    **/
    @RequestMapping("/insert")
    public void insert(UserInfo userInfo){
        userInfoService.insert(userInfo);
    }

    /**
    * 刪除
    * @author zhouzhiyao
    * @date 2021/08/03
    **/
    @RequestMapping("/delete")
    public void delete(int id){
        userInfoService.delete(id);
    }

    /**
    * 更新
    * @author zhouzhiyao
    * @date 2021/08/03
    **/
    @RequestMapping("/update")
    public void update(UserInfo userInfo){
        userInfoService.update(userInfo);
    }

    /**
    * 查询 根据主键 id 查询
    * @author zhouzhiyao
    * @date 2021/08/03
    **/
    @RequestMapping("/load")
    public Object load(int id){
        return userInfoService.load(id);
    }

    /**
    * 查询 分页查询
    * @author zhouzhiyao
    * @date 2021/08/03
    **/
    @RequestMapping("/list")
    public String pageList() {
        return "user/userList";
    }


    /**
     * 查询 分页查询
     * @author zhouzhiyao
     * @date 2021/08/03
     **/
     @SuppressWarnings("unchecked")
     @RequestMapping("/listData")
     @ResponseBody
     public String listData(PageInfo page) {
     	int pageNum = page.getPage();
     	int size = page.getLimit();
     	Map<String,Object> map = userInfoService.pageList((pageNum-1)*size, size);
     	List<UserInfo> data = (List<UserInfo>)map.get("data");
     	int count =  (Integer)map.get("count");
     	DataGrid<UserInfo> grid = new DataGrid<UserInfo>(data,count,0,null);
        return JSONObject.toJSONString(grid);
     }
}

8、service层

package com.zhouzy.ssm.service;

import java.util.Map;

import com.zhouzy.ssm.model.UserInfo;

/**
 * @description 用户信息表
 * @author zhouzhiyao
 * @date 2021-08-03
 */
public interface UserInfoService {

    /**
    * 新增
    */
    public void insert(UserInfo userInfo);

    /**
    * 删除
    */
    public void delete(int id);

    /**
    * 更新
    */
    public void update(UserInfo userInfo);

    /**
    * 根据主键 id 查询
    */
    public UserInfo load(int id);

    /**
    * 分页查询
    */
    public Map<String,Object> pageList(int offset, int pagesize);

}

package com.zhouzy.ssm.service.impl;

import java.util.HashMap;
import java.util.List;
import java.util.Map;

import javax.annotation.Resource;

import org.springframework.stereotype.Service;

import com.zhouzy.ssm.mapper.UserInfoMapper;
import com.zhouzy.ssm.model.UserInfo;
import com.zhouzy.ssm.service.UserInfoService;

/**
 * @description 用户信息表
 * @author zhouzhiyao
 * @date 2021-08-03
 */
@Service
public class UserInfoServiceImpl implements UserInfoService {

	@Resource
	private UserInfoMapper userInfoMapper;


	public void insert(UserInfo userInfo) {

		userInfoMapper.insert(userInfo);
	}


	 public void delete(int id) {
		userInfoMapper.delete(id);
	}


	public void update(UserInfo userInfo) {
		userInfoMapper.update(userInfo);
	}


	public UserInfo load(int id) {
		return userInfoMapper.load(id);
	}


	public Map<String,Object> pageList(int offset, int pagesize) {

		List<UserInfo> pageList = userInfoMapper.pageList(offset, pagesize);
		int totalCount = userInfoMapper.pageListCount();

		// result
		Map<String, Object> result = new HashMap<String, Object>();
		result.put("data", pageList);
		result.put("count", totalCount);

		return result;
	}

}

9、mapper层

package com.zhouzy.ssm.mapper;

import java.util.List;

import org.apache.ibatis.annotations.Param;
import org.springframework.stereotype.Repository;

import com.zhouzy.ssm.model.UserInfo;

/**
 * @description 用户信息表
 * @author zhouzhiyao
 * @date 2021-08-03
 */
@Repository
public interface UserInfoMapper {

    /**
    * 新增
    * @author zhouzhiyao
    * @date 2021/08/03
    **/
    int insert(UserInfo userInfo);

    /**
    * 刪除
    * @author zhouzhiyao
    * @date 2021/08/03
    **/
    int delete(int id);

    /**
    * 更新
    * @author zhouzhiyao
    * @date 2021/08/03
    **/
    int update(UserInfo userInfo);

    /**
    * 查询 根据主键 id 查询
    * @author zhouzhiyao
    * @date 2021/08/03
    **/
    UserInfo load(int id);

    /**
    * 查询 分页查询
    * @author zhouzhiyao
    * @date 2021/08/03
    **/
    List<UserInfo> pageList(@Param("offset")int offset,@Param("pageSize")int pageSize);

    /**
    * 查询 分页查询 count
    * @author zhouzhiyao
    * @date 2021/08/03
    **/
    int pageListCount();

}

10、mdelo对象

实体类

package com.zhouzy.ssm.model;

import java.io.Serializable;
import java.util.Date;

/**
 * @description 用户信息表
 * @author zhouzhiyao
 * @date 2021-08-03
 */

public class UserInfo implements Serializable {

    private static final long serialVersionUID = 1L;

    /**
    * id
    */
    private Long id;

    public Long getId() {
        return id;
    }

    public void setId(Long id) {
        this.id = id;
    }
    /**
    * 姓名
    */
    private String name;

    public String getName() {
        return name;
    }

    public void setName(String name) {
        this.name = name;
    }
    /**
    * 年龄
    */
    private Integer age;

    public Integer getAge() {
        return age;
    }

    public void setAge(Integer age) {
        this.age = age;
    }
    /**
    * 性别：0：男 1：女
    */
    private Integer sex;

    public Integer getSex() {
        return sex;
    }

    public void setSex(Integer sex) {
        this.sex = sex;
    }
    /**
    * 地址
    */
    private String address;

    public String getAddress() {
        return address;
    }

    public void setAddress(String address) {
        this.address = address;
    }
    /**
    * 手机号
    */
    private String mobile;

    public String getMobile() {
        return mobile;
    }

    public void setMobile(String mobile) {
        this.mobile = mobile;
    }
    /**
    * 创建时间
    */
    private Date createTime;

    public Date getCreateTime() {
        return createTime;
    }

    public void setCreateTime(Date createTime) {
        this.createTime = createTime;
    }
    /**
    * 更新时间
    */
    private Date updateTime;

    public Date getUpdateTime() {
        return updateTime;
    }

    public void setUpdateTime(Date updateTime) {
        this.updateTime = updateTime;
    }
    public UserInfo() {}
}

layui表格对应的对象类

package com.zhouzy.ssm.model;

import java.io.Serializable;
import java.util.List;

public class DataGrid<T> implements Serializable{
	/**
	 *
	 */
	private static final long serialVersionUID = 1L;

	private int code;

	private String msg;

	private List<T> data;

	private int count;
	public DataGrid(){

	}

	public DataGrid(List<T> data,int count,int code,String msg){
		this.data = data;
		this.count = count;
		this.code = code;
		this.msg = msg;
	}



	public int getCode() {
		return code;
	}

	public void setCode(int code) {
		this.code = code;
	}

	public String getMsg() {
		return msg;
	}

	public void setMsg(String msg) {
		this.msg = msg;
	}

	public List<T> getData() {
		return data;
	}

	public void setData(List<T> data) {
		this.data = data;
	}

	public int getCount() {
		return count;
	}

	public void setCount(int count) {
		this.count = count;
	}



}

package com.zhouzy.ssm.model;

public class PageInfo {

	private int page = 1;

	private int limit = 20;

	public int getPage() {
		return page;
	}

	public void setPage(int page) {
		this.page = page;
	}

	public int getLimit() {
		return limit;
	}

	public void setLimit(int limit) {
		this.limit = limit;
	}




}
