使用idea搭建ssm项目

新建web项目

之后就是命名包，项目

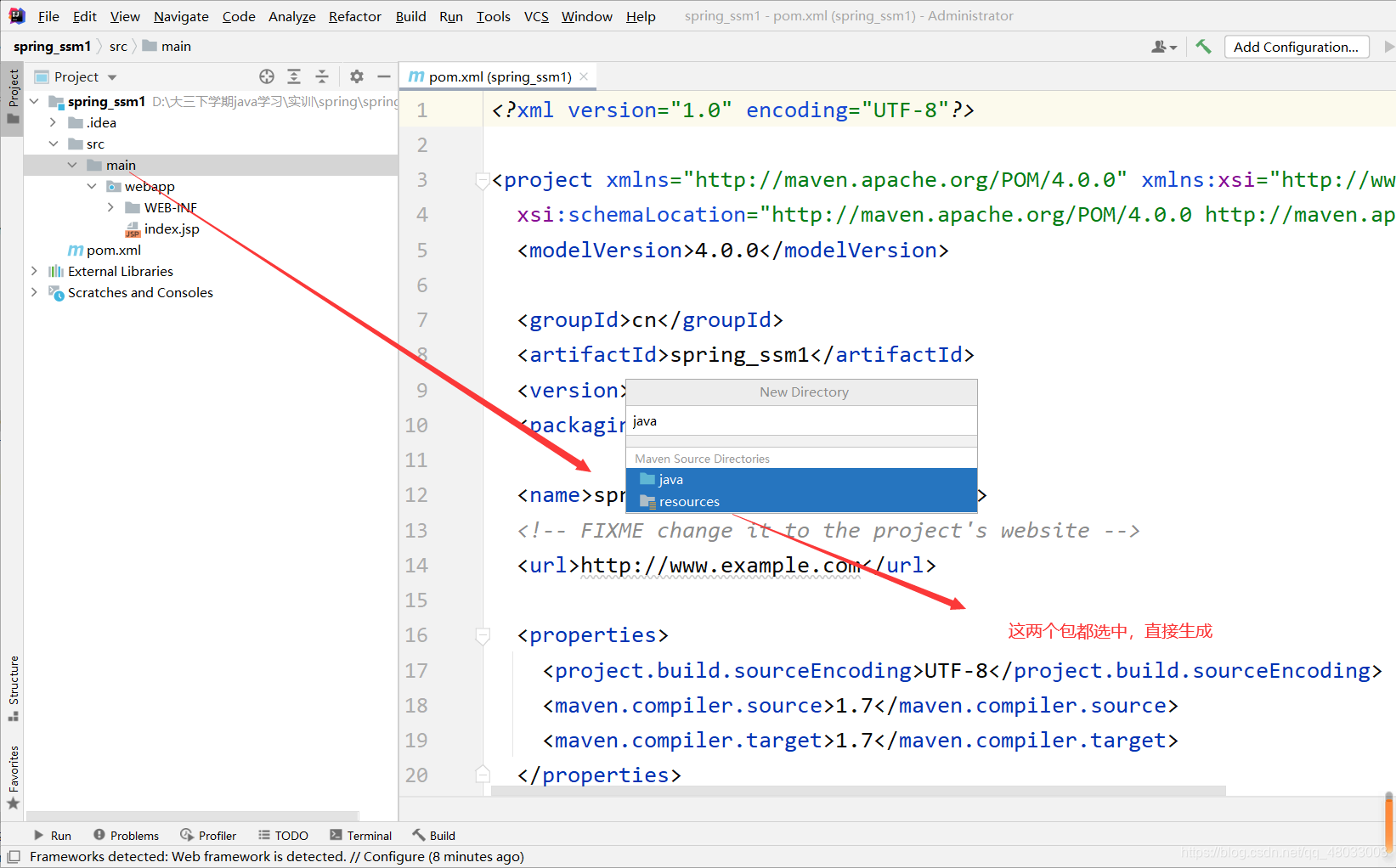

创建java的包

导入jar包

  <dependencies>
    <dependency>
      <groupId>junit</groupId>
      <artifactId>junit</artifactId>
      <version>4.11</version>
      <scope>test</scope>
    </dependency>


    <!--jstl标签库-->
    <dependency>
      <groupId>jstl</groupId>
      <artifactId>jstl</artifactId>
      <version>1.2</version>
    </dependency>
    <!--springmvc的jar-->
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-webmvc</artifactId>
      <version>5.3.0</version>
    </dependency>
    <!--阿里的数据池jar-->
    <dependency>
      <groupId>com.alibaba</groupId>
      <artifactId>druid</artifactId>
      <version>1.2.0</version>
    </dependency>
    <dependency>
      <groupId>org.hibernate.validator</groupId>
      <artifactId>hibernate-validator</artifactId>
      <version>6.1.5.Final</version>
    </dependency>
    <!--spring jdbc的jar-->
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-jdbc</artifactId>
      <version>5.3.0</version>
    </dependency>
    <!--面向切面的jar-->
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-aop</artifactId>
      <version>5.3.0</version>
    </dependency>
    <dependency>
      <groupId>org.aspectj</groupId>
      <artifactId>aspectjweaver</artifactId>
      <version>1.9.6</version>
      <scope>runtime</scope>
    </dependency>
    <!--mybatis，spring的整合jar-->
    <dependency>
      <groupId>org.mybatis</groupId>
      <artifactId>mybatis-spring</artifactId>
      <version>2.0.3</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-context</artifactId>
      <version>5.3.0</version>
    </dependency>
    <!--mybatis的jar-->
    <dependency>
      <groupId>org.mybatis</groupId>
      <artifactId>mybatis</artifactId>
      <version>3.5.7</version>
    </dependency>
    <!--数据库的驱动jar-->
    <dependency>
      <groupId>com.oracle</groupId>
      <artifactId>ojdbc10</artifactId>
      <version>11.2.0.2.0</version>
    </dependency>
    <dependency>
      <groupId>log4j</groupId>
      <artifactId>log4j</artifactId>
      <version>1.2.17</version>
    </dependency>
    <!---->
    <dependency>
      <groupId>javax</groupId>
      <artifactId>javaee-api</artifactId>
      <version>8.0</version>
    </dependency>
    <dependency>
      <groupId>org.eclipse</groupId>
      <artifactId>yasson</artifactId>
      <version>1.0</version>
    </dependency>
    <dependency>
      <groupId>javax.json</groupId>
      <artifactId>javax.json-api</artifactId>
      <version>1.1</version>
    </dependency>
    <dependency>
      <groupId>org.glassfish</groupId>
      <artifactId>javax.json</artifactId>
      <version>1.1</version>
    </dependency>
  </dependencies>

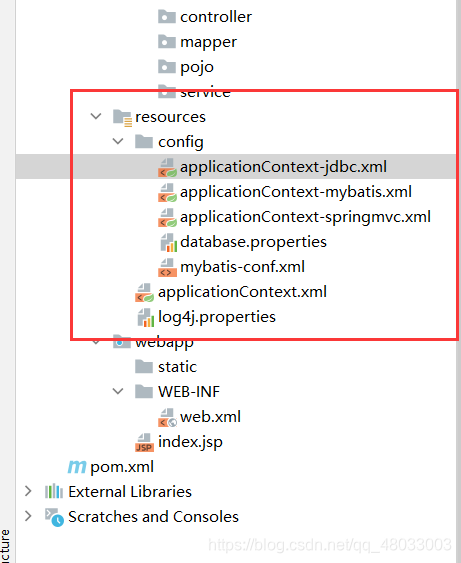

配置xml文件

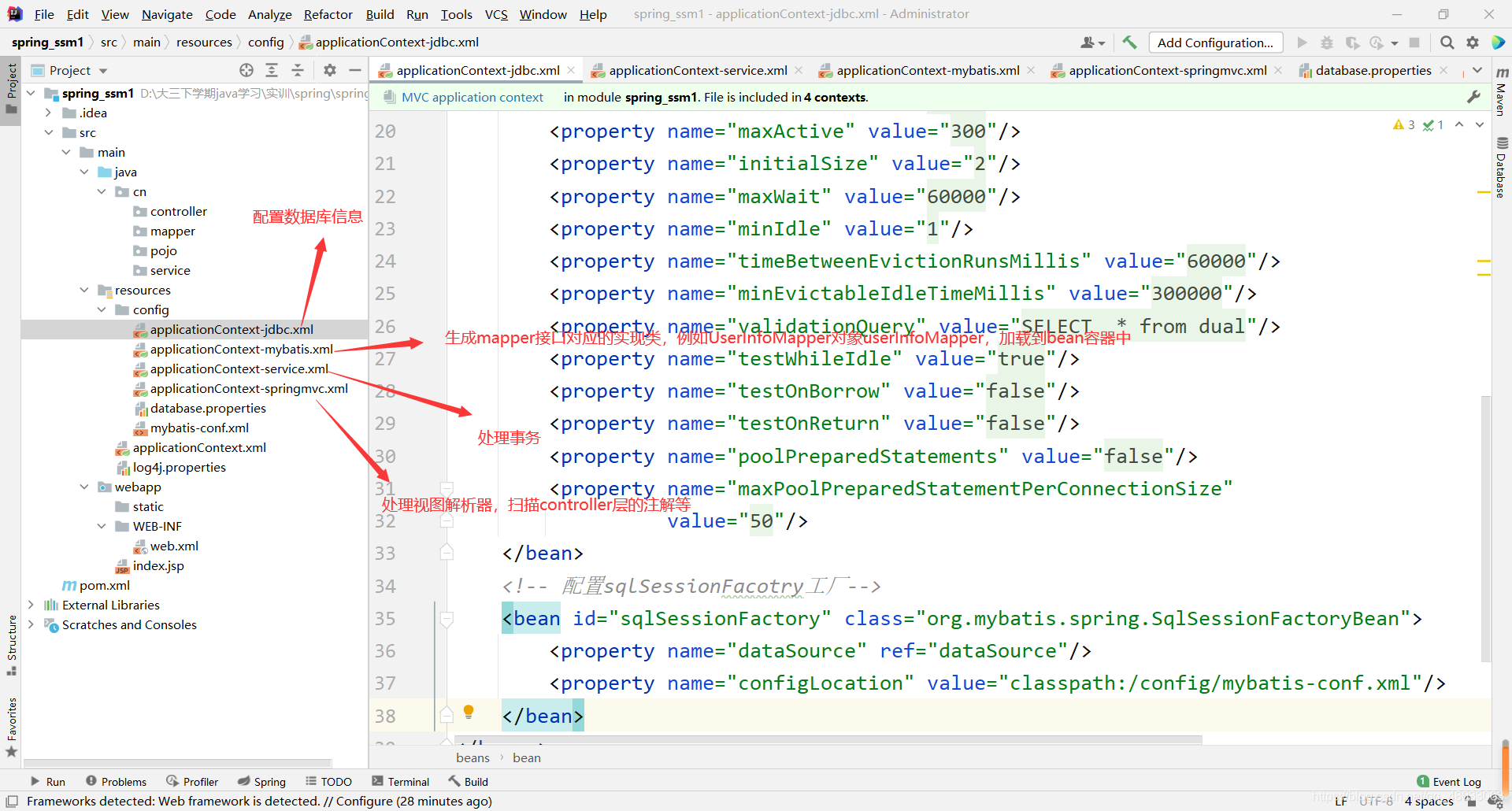

解读各个文件的功能

applicationContext-jdbc.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:tx="http://www.springframework.org/schema/tx"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
    http://www.springframework.org/schema/beans/spring-beans-3.2.xsd
    http://www.springframework.org/schema/context
    http://www.springframework.org/schema/context/spring-context-3.2.xsd
    http://www.springframework.org/schema/tx
    http://www.springframework.org/schema/tx/spring-tx-3.2.xsd">
    <context:property-placeholder location="classpath:/config/database.properties"/>

    <!-- 配置数据源连接池 -->
    <bean id="dataSource" class="com.alibaba.druid.pool.DruidDataSource" init-method="init" destroy-method="close">
        <property name="url" value="${jdbc.url}"/>
        <property name="username" value="${jdbc.username}"/>
        <property name="password" value="${jdbc.password}"/>
        <property name="filters" value="${jdbc.filters}"/>
        <property name="maxActive" value="${jdbc.maxActive}"/>
        <property name="initialSize" value="${jdbc.initialSize}"/>
        <property name="maxWait" value="${jdbc.maxWait}"/>
        <property name="minIdle" value="${jdbc.minIdle}"/>
        <property name="timeBetweenEvictionRunsMillis" value="${jdbc.timeBetweenEvictionRunsMillis}"/>
        <property name="minEvictableIdleTimeMillis" value="${jdbc.minEvictableIdleTimeMillis}"/>
        <property name="validationQuery" value="${jdbc.validationQuery}"/>
        <property name="testWhileIdle" value="${jdbc.testWhileIdle}"/>
        <property name="testOnBorrow" value="${jdbc.testOnBorrow}"/>
        <property name="testOnReturn" value="${jdbc.testOnReturn}"/>
        <property name="poolPreparedStatements" value="${jdbc.poolPreparedStatements}"/>
        <property name="maxPoolPreparedStatementPerConnectionSize"
                  value="${jdbc.maxPoolPreparedStatementPerConnectionSize}"/>
    </bean>
    <!-- 配置sqlSessionFacotry工厂-->
    <bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
        <property name="dataSource" ref="dataSource"/>
        <property name="configLocation" value="classpath:/config/mybatis-conf.xml"/>
    </bean>
</beans>

applicationContext-mybatis.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
    http://www.springframework.org/schema/beans/spring-beans-3.2.xsd">
    <!--指定MyBatis到哪个包下扫描映射文件-->
    <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
        <property name="basePackage" value="cn.mapper"/>
    </bean>

</beans>

applicationContext-service.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:tx="http://www.springframework.org/schema/tx"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
    http://www.springframework.org/schema/beans/spring-beans-3.2.xsd
    http://www.springframework.org/schema/context
    http://www.springframework.org/schema/context/spring-context-3.2.xsd
    http://www.springframework.org/schema/tx
    http://www.springframework.org/schema/tx/spring-tx-3.2.xsd">
    <context:property-placeholder location="classpath:/config/database.properties"/>

    <!--指定事务要扫描的包-->
    <context:component-scan base-package="cn.service"/>
    <!--引入数据连接池，事务需要-->
    <import resource="applicationContext-jdbc.xml"/>
    <!--配置事务管理器-->
    <bean id="transactionManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
        <property name="dataSource" ref="dataSource"/>
    </bean>
    <!--开启Spring事务注解-->
    <tx:annotation-driven transaction-manager="transactionManager"/>


</beans>

applicationContext-springmvc.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:mvc="http://www.springframework.org/schema/mvc"
       xmlns:p="http://www.springframework.org/schema/p"
       xmlns:context="http://www.springframework.org/schema/context"
       xsi:schemaLocation="
        http://www.springframework.org/schema/beans
        http://www.springframework.org/schema/beans/spring-beans.xsd
        http://www.springframework.org/schema/context
        http://www.springframework.org/schema/context/spring-context.xsd
        http://www.springframework.org/schema/mvc
        http://www.springframework.org/schema/mvc/spring-mvc.xsd">

    <!--SpringMVC 主配置文件-->

    <!--指定Spring要扫描的包-->
        <context:component-scan base-package="cn.controller"/>
    <!--启用SpringMVC注解-->
        <mvc:annotation-driven/>
    <!--视图解析器 配置前后缀-->
    <bean class="org.springframework.web.servlet.view.InternalResourceViewResolver">
        <property name="suffix" value=".jsp"/>
        <property name="prefix" value="/WEB-INF/jsp/"/>
    </bean>

    <!--加载静态资源-->
    <mvc:resources mapping="/static/**/" location="/static/"/>

    <!--异常处理-->
    <bean class="org.springframework.web.servlet.handler.SimpleMappingExceptionResolver">
        <!-- 定义异常处理页面用来获取异常信息的变量名，默认名为exception -->
        <property name="exceptionAttribute" value="ex"/>
        <property name="exceptionMappings">
            <props>
                <!--输出到WEB-INF下的page.jsp页面-->
                <prop key="java.lang.RuntimeException">error</prop>
            </props>
        </property>
    </bean>


</beans>

db.properties

#数据库驱动
jdbc.driverClassName=oracle.jdbc.driver.OracleDriver
#数据库
jdbc.url=jdbc:oracle:thin:@localhost:1521:orcl1
#用户名
jdbc.username=
#密码
jdbc.password=
#别名方式，扩展插件，监控统计用的filter:stat，日志用的filter:log4j，防御sql注入的filter:wall
jdbc.filters=stat
#最大连接数
jdbc.maxActive=300
#初始化连接数
jdbc.initialSize=2
#获取连接最大等待时间
jdbc.maxWait=60000
#最小连接数
jdbc.minIdle=1
#检测连接有效性的时间间隔
jdbc.timeBetweenEvictionRunsMillis=60000
#连接保持空闲而不被驱逐的最长时间
jdbc.minEvictableIdleTimeMillis=300000
#连接有效性，检测sql
jdbc.validationQuery=SELECT  * from dual
#定时检测空闲连接有效性
jdbc.testWhileIdle=true
#检测获取的连接的有效性
jdbc.testOnBorrow=false
#检测要归还的连接的有效性
jdbc.testOnReturn=false
#是否缓存preparedStatement，即PSCache。PSCache对支持游标的数据库性能提升巨大，比如说oracle。在mysql下建议关闭。
jdbc.poolPreparedStatements=false
jdbc.maxPoolPreparedStatementPerConnectionSize=50

mybatis-conf.xml

mybatis主配置文件，可以打印日志，二级缓存等

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration
        PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>
    <!--设置MyBatis控制台输出为log4j-->
    <settings>
        <setting name="logImpl" value="log4j"/>
        <setting name="autoMappingBehavior" value="FULL"/>
        <!--开启二级缓存-->
        <setting name="cacheEnabled" value="true"/>
    </settings>

    <typeAliases>
        <package name="cn.leave.pojo"/>
    </typeAliases>

</configuration>

applicationContext.xml

将多个xml文件进行整合导入

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
    http://www.springframework.org/schema/beans/spring-beans-3.2.xsd">
    <!--Spring 主配置文件-->
    <import resource="config/applicationContext-jdbc.xml"/>
    <import resource="config/applicationContext-mybatis.xml"/>
    <import resource="config/applicationContext-service.xml"/>
</beans>

log4j日志配置

log4j.rootLogger=DEBUG,CONSOLE
#log4j.rootLogger=ERROR,ROLLING_FILE
log4j.logger.cn.dao=debug
log4j.logger.com.ibatis=debug
log4j.logger.com.ibatis.common.jdbc.SimpleDataSource=debug
log4j.logger.com.ibatis.common.jdbc.ScriptRunner=debug
log4j.logger.com.ibatis.sqlmap.engine.impl.SqlMapClientDelegate=debug
log4j.logger.java.sql.Connection=debug
log4j.logger.java.sql.Statement=debug
log4j.logger.java.sql.PreparedStatement=debug
log4j.logger.java.sql.ResultSet=debug
######################################################################################
# Console Appender  \u65e5\u5fd7\u5728\u63a7\u5236\u8f93\u51fa\u914d\u7f6e
######################################################################################
log4j.appender.CONSOLE=org.apache.log4j.ConsoleAppender
log4j.appender.Threshold=error
log4j.appender.CONSOLE.Target=System.out
log4j.appender.CONSOLE.layout=org.apache.log4j.PatternLayout
log4j.appender.CONSOLE.layout.ConversionPattern=[%p] %d %c - %m%n

web.xml文件配置

<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns="http://xmlns.jcp.org/xml/ns/javaee"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee
                      http://xmlns.jcp.org/xml/ns/javaee/web-app_3_1.xsd"
         version="3.1">
  <display-name>Archetype Created Web Application</display-name>

  <context-param>
    <param-name>contextConfigLocation</param-name>
    <param-value>classpath:applicationContext.xml</param-value>
  </context-param>
  <listener>
    <listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
  </listener>
  <servlet>
    <servlet-name>springmvc</servlet-name>
    <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
    <init-param>
      <param-name>contextConfigLocation</param-name>
      <param-value>classpath:config/applicationContext-springmvc.xml</param-value>
    </init-param>
    <load-on-startup>1</load-on-startup>
  </servlet>
  <servlet-mapping>
    <servlet-name>springmvc</servlet-name>
    <url-pattern>/</url-pattern>
  </servlet-mapping>
</web-app>

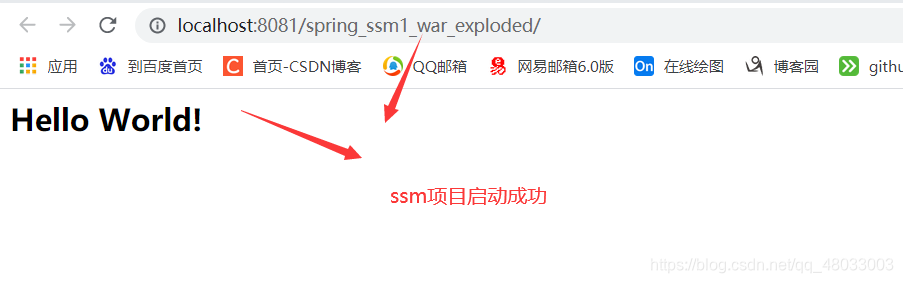

测试启动

编写一个简单的登录业务

pojo

package cn.pojo;


public class TbUserInfo {
    private String  userid;
    private String  jobNo;
    private String  username;
    private String  department;
    private String  Profession;
    private String  className;
    private String  Gender;
    private String  Phone;
    private String  Email;
    private String  Password;

    @Override
    public String toString() {
        return "TbUserInfo{" +
                "userid='" + userid + '\'' +
                ", jobNo='" + jobNo + '\'' +
                ", username='" + username + '\'' +
                ", department='" + department + '\'' +
                ", Profession='" + Profession + '\'' +
                ", className='" + className + '\'' +
                ", Gender='" + Gender + '\'' +
                ", Phone='" + Phone + '\'' +
                ", Email='" + Email + '\'' +
                ", Password='" + Password + '\'' +
                '}';
    }



    public String getUserid() {
        return userid;
    }

    public void setUserid(String userid) {
        this.userid = userid;
    }

    public String getJobNo() {
        return jobNo;
    }

    public void setJobNo(String jobNo) {
        this.jobNo = jobNo;
    }
    public String getUsername() {
        return username;
    }

    public void setUsername(String username) {
        this.username = username;
    }

    public String getDepartment() {
        return department;
    }

    public void setDepartment(String department) {
        this.department = department;
    }

    public String getProfession() {
        return Profession;
    }

    public void setProfession(String profession) {
        Profession = profession;
    }

    public String getClassName() {
        return className;
    }

    public void setClassName(String className) {
        this.className = className;
    }

    public String getGender() {
        return Gender;
    }

    public void setGender(String gender) {
        Gender = gender;
    }

    public String getPhone() {
        return Phone;
    }

    public void setPhone(String phone) {
        Phone = phone;
    }

    public String getEmail() {
        return Email;
    }

    public void setEmail(String email) {
        Email = email;
    }

    public String getPassword() {
        return Password;
    }

    public void setPassword(String password) {
        Password = password;
    }
}

dao

package cn.mapper;


import cn.pojo.TbUserInfo;

public interface TbUserInfoMapper {
    public TbUserInfo login(TbUserInfo tbUserInfo);
}

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
        PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="cn.mapper.TbUserInfoMapper">

    <select id="login" resultType="cn.pojo.TbUserInfo" parameterType="cn.pojo.TbUserInfo">
        select * from tb_userinfo where  jobNo=#{jobNo} and password=#{password}
    </select>

</mapper>

service

package cn.service;


import cn.pojo.TbUserInfo;

public interface TbUserInfoService {
    public TbUserInfo login(TbUserInfo tbUserInfo);
}

package cn.service.impl;


import cn.mapper.TbUserInfoMapper;
import cn.pojo.TbUserInfo;
import cn.service.TbUserInfoService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

@Service
public class TbUserInfoServiceImpl implements TbUserInfoService {
    @Autowired
    TbUserInfoMapper tbUserInfoMapper;
    @Override
    public TbUserInfo login(TbUserInfo tbUserInfo) {
        return tbUserInfoMapper.login(tbUserInfo);
    }


}

controller

package cn.controller;

import cn.pojo.TbUserInfo;
import cn.service.TbUserInfoService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestMapping;

@Controller
public class TbUserInfoController {
    @Autowired
    TbUserInfoService tbUserInfoService;
    @GetMapping("toLogin")
    public String toLogin(){
        return "login";
    }
    @PostMapping("doLogin")
    public String doLogin(TbUserInfo tbUserInfo){
        TbUserInfo user= tbUserInfoService.login(tbUserInfo);
        if (user==null){
        return "login";
        }else{
            return "index";
        }
    }

}

login页面

<form method="post" action="doLogin">

    <div class="metro double-size green">

            <div class="input-append lock-input">
                <input id="jobNo"  type="text" class="" name="jobNo" placeholder="用户名">
            </div>

    </div>
    <div class="metro double-size yellow">

            <div class="input-append lock-input">
                <input id="password" type="password" class="" name="password" placeholder="密码">
            </div>

    </div>
    <div class="metro single-size terques login">

            <button id="btn_submit" type="submit" class="btn login-btn">
                登录

                <i class=" icon-long-arrow-right"></i>
            </button>

    </div>

</div>
</form>

测试Ok
