[Java知识库]SpringMVC教务系统管理小项目实战

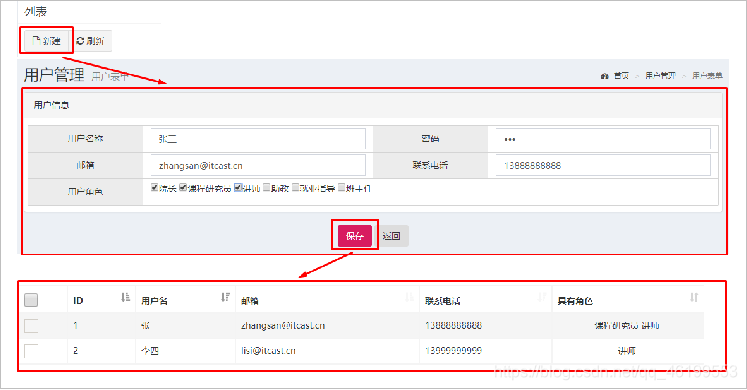

效果展示图
在这里插入图片描述
项目的目录：

1.1 Spring环境搭建步骤

创建工程（Project&Module）
导入静态页面（见资料jsp页面）
导入需要坐标（见资料中的pom.xml）
创建包结构（controller、service、dao、domain、utils）
导入数据库脚本（见资料test.sql）
创建POJO类（见资料User.java和Role.java）
创建配置文件（applicationContext.xml、spring-mvc.xml、jdbc.properties、log4j.properties）

1.2 用户和角色的关系

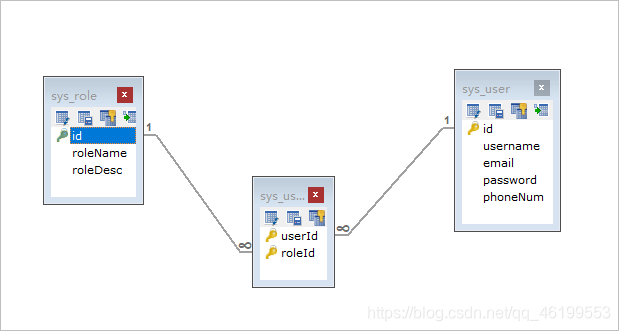

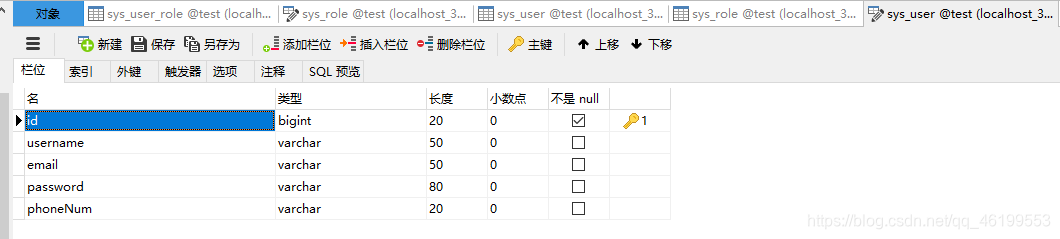

1.创建表
在这里插入图片描述

2.角色列表的展示和添加操作

2.1 角色列表的展示效果
在这里插入图片描述
2.2 角色列表的展示步骤分析
点击角色管理菜单发送请求到服务器端（修改角色管理菜单的url地址）
创建RoleController和showList()方法
创建RoleService和showList()方法
创建RoleDao和findAll()方法
使用JdbcTemplate完成查询操作
将查询数据存储到Model中
转发到role-list.jsp页面进行展示

2.3下面开始对代码进行展示：
首先我们来到了默认的页面：
index.jsp

<%@ page language="java" contentType="text/html; charset=UTF-8"
	pageEncoding="UTF-8"%>
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN"
"http://www.w3.org/TR/html4/loose.dtd">
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
<title>主页</title>
</head>
<body>
	<%
		response.sendRedirect(request.getContextPath()+"/pages/main.jsp");
	%>
</body>
</html>

然后来到main.jsp文件

<%@ page language="java" contentType="text/html; charset=UTF-8"
	pageEncoding="UTF-8"%>
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<html>
<head>
<!-- 页面meta -->
<meta charset="utf-8">
<meta http-equiv="X-UA-Compatible" content="IE=edge">

<title>ITCAST - AdminLTE2定制版</title>
<meta name="description" content="AdminLTE2定制版">
<meta name="keywords" content="AdminLTE2定制版">

<!-- Tell the browser to be responsive to screen width -->
<meta
	content="width=device-width,initial-scale=1,maximum-scale=1,user-scalable=no"
	name="viewport">
<link rel="stylesheet"
	href="${pageContext.request.contextPath}/plugins/bootstrap/css/bootstrap.min.css">
<link rel="stylesheet"
	href="${pageContext.request.contextPath}/plugins/font-awesome/css/font-awesome.min.css">
<link rel="stylesheet"
	href="${pageContext.request.contextPath}/plugins/ionicons/css/ionicons.min.css">
<link rel="stylesheet"
	href="${pageContext.request.contextPath}/plugins/iCheck/square/blue.css">
<link rel="stylesheet"
	href="${pageContext.request.contextPath}/plugins/morris/morris.css">
<link rel="stylesheet"
	href="${pageContext.request.contextPath}/plugins/jvectormap/jquery-jvectormap-1.2.2.css">
<link rel="stylesheet"
	href="${pageContext.request.contextPath}/plugins/datepicker/datepicker3.css">
<link rel="stylesheet"
	href="${pageContext.request.contextPath}/plugins/daterangepicker/daterangepicker.css">
<link rel="stylesheet"
	href="${pageContext.request.contextPath}/plugins/bootstrap-wysihtml5/bootstrap3-wysihtml5.min.css">
<link rel="stylesheet"
	href="${pageContext.request.contextPath}/plugins/datatables/dataTables.bootstrap.css">
<link rel="stylesheet"
	href="${pageContext.request.contextPath}/plugins/treeTable/jquery.treetable.css">
<link rel="stylesheet"
	href="${pageContext.request.contextPath}/plugins/treeTable/jquery.treetable.theme.default.css">
<link rel="stylesheet"
	href="${pageContext.request.contextPath}/plugins/select2/select2.css">
<link rel="stylesheet"
	href="${pageContext.request.contextPath}/plugins/colorpicker/bootstrap-colorpicker.min.css">
<link rel="stylesheet"
	href="${pageContext.request.contextPath}/plugins/bootstrap-markdown/css/bootstrap-markdown.min.css">
<link rel="stylesheet"
	href="${pageContext.request.contextPath}/plugins/adminLTE/css/AdminLTE.css">
<link rel="stylesheet"
	href="${pageContext.request.contextPath}/plugins/adminLTE/css/skins/_all-skins.min.css">
<link rel="stylesheet"
	href="${pageContext.request.contextPath}/css/style.css">
<link rel="stylesheet"
	href="${pageContext.request.contextPath}/plugins/ionslider/ion.rangeSlider.css">
<link rel="stylesheet"
	href="${pageContext.request.contextPath}/plugins/ionslider/ion.rangeSlider.skinNice.css">
<link rel="stylesheet"
	href="${pageContext.request.contextPath}/plugins/bootstrap-slider/slider.css">
</head>

<body class="hold-transition skin-blue sidebar-mini">

	<div class="wrapper">

		<!-- 页面头部 -->
		<jsp:include page="header.jsp"></jsp:include>
			<!-- 页面头部 /-->

		<!-- 导航侧栏 -->
		<jsp:include page="aside.jsp"></jsp:include>
		<!-- 导航侧栏 /-->

		<!-- 内容区域 -->
		<div class="content-wrapper">

		</div>
		<!-- 内容区域 /-->

		<!-- 底部导航 -->
		<footer class="main-footer">
		<div class="pull-right hidden-xs">
			<b>Version</b> 1.0.8
		</div>
		<strong>Copyright &copy; 2014-2017 <a
			href="http://www.itcast.cn">研究院研发部</a>.
		</strong> All rights reserved. </footer>
		<!-- 底部导航 /-->

	</div>

	<script
		src="${pageContext.request.contextPath}/plugins/jQuery/jquery-2.2.3.min.js"></script>
	<script
		src="${pageContext.request.contextPath}/plugins/jQueryUI/jquery-ui.min.js"></script>
	<script>
		$.widget.bridge('uibutton', $.ui.button);
	</script>
	<script
		src="${pageContext.request.contextPath}/plugins/bootstrap/js/bootstrap.min.js"></script>
	<script
		src="${pageContext.request.contextPath}/plugins/raphael/raphael-min.js"></script>
	<script
		src="${pageContext.request.contextPath}/plugins/morris/morris.min.js"></script>
	<script
		src="${pageContext.request.contextPath}/plugins/sparkline/jquery.sparkline.min.js"></script>
	<script
		src="${pageContext.request.contextPath}/plugins/jvectormap/jquery-jvectormap-1.2.2.min.js"></script>
	<script
		src="${pageContext.request.contextPath}/plugins/jvectormap/jquery-jvectormap-world-mill-en.js"></script>
	<script
		src="${pageContext.request.contextPath}/plugins/knob/jquery.knob.js"></script>
	<script
		src="${pageContext.request.contextPath}/plugins/daterangepicker/moment.min.js"></script>
	<script
		src="${pageContext.request.contextPath}/plugins/daterangepicker/daterangepicker.js"></script>
	<script
		src="${pageContext.request.contextPath}/plugins/daterangepicker/daterangepicker.zh-CN.js"></script>
	<script
		src="${pageContext.request.contextPath}/plugins/datepicker/bootstrap-datepicker.js"></script>
	<script
		src="${pageContext.request.contextPath}/plugins/datepicker/locales/bootstrap-datepicker.zh-CN.js"></script>
	<script
		src="${pageContext.request.contextPath}/plugins/bootstrap-wysihtml5/bootstrap3-wysihtml5.all.min.js"></script>
	<script
		src="${pageContext.request.contextPath}/plugins/slimScroll/jquery.slimscroll.min.js"></script>
	<script
		src="${pageContext.request.contextPath}/plugins/fastclick/fastclick.js"></script>
	<script
		src="${pageContext.request.contextPath}/plugins/iCheck/icheck.min.js"></script>
	<script
		src="${pageContext.request.contextPath}/plugins/adminLTE/js/app.min.js"></script>
	<script
		src="${pageContext.request.contextPath}/plugins/treeTable/jquery.treetable.js"></script>
	<script
		src="${pageContext.request.contextPath}/plugins/select2/select2.full.min.js"></script>
	<script
		src="${pageContext.request.contextPath}/plugins/colorpicker/bootstrap-colorpicker.min.js"></script>
	<script
		src="${pageContext.request.contextPath}/plugins/bootstrap-wysihtml5/bootstrap-wysihtml5.zh-CN.js"></script>
	<script
		src="${pageContext.request.contextPath}/plugins/bootstrap-markdown/js/bootstrap-markdown.js"></script>
	<script
		src="${pageContext.request.contextPath}/plugins/bootstrap-markdown/locale/bootstrap-markdown.zh.js"></script>
	<script
		src="${pageContext.request.contextPath}/plugins/bootstrap-markdown/js/markdown.js"></script>
	<script
		src="${pageContext.request.contextPath}/plugins/bootstrap-markdown/js/to-markdown.js"></script>
	<script
		src="${pageContext.request.contextPath}/plugins/ckeditor/ckeditor.js"></script>
	<script
		src="${pageContext.request.contextPath}/plugins/input-mask/jquery.inputmask.js"></script>
	<script
		src="${pageContext.request.contextPath}/plugins/input-mask/jquery.inputmask.date.extensions.js"></script>
	<script
		src="${pageContext.request.contextPath}/plugins/input-mask/jquery.inputmask.extensions.js"></script>
	<script
		src="${pageContext.request.contextPath}/plugins/datatables/jquery.dataTables.min.js"></script>
	<script
		src="${pageContext.request.contextPath}/plugins/datatables/dataTables.bootstrap.min.js"></script>
	<script
		src="${pageContext.request.contextPath}/plugins/chartjs/Chart.min.js"></script>
	<script
		src="${pageContext.request.contextPath}/plugins/flot/jquery.flot.min.js"></script>
	<script
		src="${pageContext.request.contextPath}/plugins/flot/jquery.flot.resize.min.js"></script>
	<script
		src="${pageContext.request.contextPath}/plugins/flot/jquery.flot.pie.min.js"></script>
	<script
		src="${pageContext.request.contextPath}/plugins/flot/jquery.flot.categories.min.js"></script>
	<script
		src="${pageContext.request.contextPath}/plugins/ionslider/ion.rangeSlider.min.js"></script>
	<script
		src="${pageContext.request.contextPath}/plugins/bootstrap-slider/bootstrap-slider.js"></script>
	<script>
		$(document).ready(function() {
			// 选择框
			$(".select2").select2();

			// WYSIHTML5编辑器
			$(".textarea").wysihtml5({
				locale : 'zh-CN'
			});
		});

		// 设置激活菜单
		function setSidebarActive(tagUri) {
			var liObj = $("#" + tagUri);
			if (liObj.length > 0) {
				liObj.parent().parent().addClass("active");
				liObj.addClass("active");
			}
		}

		$(document).ready(function() {
			// 激活导航位置
			setSidebarActive("admin-index");
		});
	</script>
</body>

</html>

接下来我们来到role的页面

<%@ page language="java" contentType="text/html; charset=UTF-8"
	pageEncoding="UTF-8"%>
<aside class="main-sidebar">
	<!-- sidebar: style can be found in sidebar.less -->
	<section class="sidebar">
		<!-- Sidebar user panel -->
		<div class="user-panel">
			<div class="pull-left image">
				<img src="${pageContext.request.contextPath}/img/user2-160x160.jpg"
					class="img-circle" alt="User Image">
			</div>
			<div class="pull-left info">
				<p>
					<security:authentication property="principal.username" />
				</p>
				<a href="#"><i class="fa fa-circle text-success"></i> 在线</a>
			</div>
		</div>

		<!-- sidebar menu: : style can be found in sidebar.less -->
		<ul class="sidebar-menu">
			<li class="header">菜单</li>
			<li id="admin-index"><a
				href="${pageContext.request.contextPath}/pages/main.jsp"><i
					class="fa fa-dashboard"></i> <span>首页</span></a></li>

			<li class="treeview"><a href="#"> <i class="fa fa-cogs"></i>
					<span>系统管理</span> <span class="pull-right-container"> <i
						class="fa fa-angle-left pull-right"></i>
				</span>


			</a>
				<ul class="treeview-menu">

					<li><a
						href="${pageContext.request.contextPath}/user/list"> <i
							class="fa fa-circle-o"></i> 用户管理
					</a></li>
					<li><a
						href="${pageContext.request.contextPath}/role/list"> <i
							class="fa fa-circle-o"></i> 角色管理
					</a></li>
					<li><a
						href="${pageContext.request.contextPath}/pages/syslog-list.jsp"> <i
							class="fa fa-circle-o"></i> 访问日志
					</a></li>
				</ul></li>
			<li class="treeview"><a href="#"> <i class="fa fa-cube"></i>
					<span>基础数据</span> <span class="pull-right-container"> <i
						class="fa fa-angle-left pull-right"></i>
				</span>
			</a>
				<ul class="treeview-menu">

					<li><a
						href="#">
							<i class="fa fa-circle-o"></i> 产品管理
					</a></li>
					<li><a
						href="#">
							<i class="fa fa-circle-o"></i> 订单管理
					</a></li>

				</ul></li>

		</ul>
	</section>
	<!-- /.sidebar -->
</aside>

再次我们是对角色进行功能的书写，这时我们来到了Java代码的书写：

package com.itheima.controller;

import com.itheima.domain.Role;
import com.itheima.domain.User;
import com.itheima.service.RoleService;
import com.itheima.service.UserService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.servlet.ModelAndView;

import java.util.List;

@Controller
@RequestMapping("/user")
public class UserController {

    @Autowired
    private UserService userService;

    @Autowired
    private RoleService roleService;

    @RequestMapping("/del/{userId}")
    public String del(@PathVariable("userId") Long userId){
        userService.del(userId);
        return "redirect:/user/list";
    }

    @RequestMapping("/save")
    public String save(User user,Long[] roleIds){
        userService.save(user,roleIds);
        return "redirect:/user/list";
    }

    @RequestMapping("/saveUI")
    public ModelAndView saveUI(){
        ModelAndView modelAndView = new ModelAndView();
        List<Role> roleList = roleService.list();
        modelAndView.addObject("roleList",roleList);
        modelAndView.setViewName("user-add");
        return modelAndView;
    }
//查询全部的role，角色
    @RequestMapping("/list")
    public ModelAndView list(){
        List<User> userList = userService.list();
        ModelAndView modelAndView = new ModelAndView();
        modelAndView.addObject("userList",userList);
        modelAndView.setViewName("user-list");
        return modelAndView;
    }

}

service层代码

```java
package com.itheima.service;

import com.itheima.domain.User;

import java.util.List;

public interface UserService {
    List<User> list();

    void save(User user, Long[] roleIds);

    void del(Long userId);
}

package com.itheima.service.impl;

import com.itheima.dao.RoleDao;
import com.itheima.dao.UserDao;
import com.itheima.domain.Role;
import com.itheima.domain.User;
import com.itheima.service.UserService;

import java.util.List;

public class UserServiceImpl implements UserService {

    private UserDao userDao;
    public void setUserDao(UserDao userDao) {
        this.userDao = userDao;
    }

    private RoleDao roleDao;
    public void setRoleDao(RoleDao roleDao) {
        this.roleDao = roleDao;
    }

    public List<User> list() {
        List<User> userList = userDao.findAll();
        //封装userList中的每一个User的roles数据
        for (User user : userList) {
            //获得user的id
            Long id = user.getId();
            //将id作为参数 查询当前userId对应的Role集合数据
            List<Role> roles = roleDao.findRoleByUserId(id);
            user.setRoles(roles);
        }
        return userList;
    }

    public void save(User user, Long[] roleIds) {
        //第一步 向sys_user表中存储数据
        Long userId = userDao.save(user);
        //第二步 向sys_user_role 关系表中存储多条数据
        userDao.saveUserRoleRel(userId,roleIds);
    }

    public void del(Long userId) {
        //1、删除sys_user_role关系表
        userDao.delUserRoleRel(userId);
        //2、删除sys_user表
        userDao.del(userId);
    }
}

然后进行配置xml文件，

```xml
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xsi:schemaLocation="
       http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
       http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context.xsd
">

    <!--1、加载jdbc.properties-->
    <context:property-placeholder location="classpath:jdbc.properties"/>

    <!--2、配置数据源对象-->
    <bean id="dataSource" class="com.mchange.v2.c3p0.ComboPooledDataSource">
        <property name="driverClass" value="${jdbc.driver}"/>
        <property name="jdbcUrl" value="${jdbc.url}"/>
        <property name="user" value="${jdbc.username}"/>
        <property name="password" value="${jdbc.password}"/>
    </bean>

    <!--3、配置JdbcTemplate对象-->
    <bean id="jdbcTemplate" class="org.springframework.jdbc.core.JdbcTemplate">
        <property name="dataSource" ref="dataSource"></property>
    </bean>

    <!--配置RoleService-->
    <bean id="roleService" class="com.itheima.service.impl.RoleServiceImpl">
        <property name="roleDao" ref="roleDao"/>
    </bean>

    <!--配置RoleDao-->
    <bean id="roleDao" class="com.itheima.dao.impl.RoleDaoImpl">
        <property name="jdbcTemplate" ref="jdbcTemplate"/>
    </bean>

    <!--配置UserService-->
    <bean id="userService" class="com.itheima.service.impl.UserServiceImpl">
        <property name="userDao" ref="userDao"/>
        <property name="roleDao" ref="roleDao"/>
    </bean>

    <!--配置UserDao-->
    <bean id="userDao" class="com.itheima.dao.impl.UserDaoImpl">
        <property name="jdbcTemplate" ref="jdbcTemplate"/>
    </bean>


</beans>

jdbc.driver=com.mysql.jdbc.Driver
jdbc.url=jdbc:mysql://localhost:3306/test
jdbc.username=root
jdbc.password=root
``

```xml
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:mvc="http://www.springframework.org/schema/mvc"
       xmlns:context="http://www.springframework.org/schema/context"
       xsi:schemaLocation="
       http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
       http://www.springframework.org/schema/mvc http://www.springframework.org/schema/mvc/spring-mvc.xsd
       http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context.xsd
">

    <!--1、mvc注解驱动-->
    <mvc:annotation-driven/>

    <!--2、配置视图解析器-->
    <bean class="org.springframework.web.servlet.view.InternalResourceViewResolver">
        <property name="prefix" value="/pages/"/>
        <property name="suffix" value=".jsp"/>
    </bean>

    <!--3、静态资源权限开放-->
    <mvc:default-servlet-handler/>

    <!--4、组件扫描  扫描Controller-->
    <context:component-scan base-package="com.itheima.controller"/>

</beans>

需要 <c:forEach>标签来进行遍历和循环，对全部的元素来进行展示

2.3 角色添加的效果
在这里插入图片描述
role-add.jsp文件

<%@ page language="java" contentType="text/html; charset=UTF-8"
	pageEncoding="UTF-8"%>
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<html>
<head>
<!-- 页面meta -->
<meta charset="utf-8">
<meta http-equiv="X-UA-Compatible" content="IE=edge">
<title>数据 - AdminLTE2定制版</title>
<meta name="description" content="AdminLTE2定制版">
<meta name="keywords" content="AdminLTE2定制版">

<!-- Tell the browser to be responsive to screen width -->
<meta
	content="width=device-width,initial-scale=1,maximum-scale=1,user-scalable=no"
	name="viewport">


<link rel="stylesheet"
	href="${pageContext.request.contextPath}/plugins/bootstrap/css/bootstrap.min.css">
<link rel="stylesheet"
	href="${pageContext.request.contextPath}/plugins/font-awesome/css/font-awesome.min.css">
<link rel="stylesheet"
	href="${pageContext.request.contextPath}/plugins/ionicons/css/ionicons.min.css">
<link rel="stylesheet"
	href="${pageContext.request.contextPath}/plugins/iCheck/square/blue.css">
<link rel="stylesheet"
	href="${pageContext.request.contextPath}/plugins/morris/morris.css">
<link rel="stylesheet"
	href="${pageContext.request.contextPath}/plugins/jvectormap/jquery-jvectormap-1.2.2.css">
<link rel="stylesheet"
	href="${pageContext.request.contextPath}/plugins/datepicker/datepicker3.css">
<link rel="stylesheet"
	href="${pageContext.request.contextPath}/plugins/daterangepicker/daterangepicker.css">
<link rel="stylesheet"
	href="${pageContext.request.contextPath}/plugins/bootstrap-wysihtml5/bootstrap3-wysihtml5.min.css">
<link rel="stylesheet"
	href="${pageContext.request.contextPath}/plugins/datatables/dataTables.bootstrap.css">
<link rel="stylesheet"
	href="${pageContext.request.contextPath}/plugins/treeTable/jquery.treetable.css">
<link rel="stylesheet"
	href="${pageContext.request.contextPath}/plugins/treeTable/jquery.treetable.theme.default.css">
<link rel="stylesheet"
	href="${pageContext.request.contextPath}/plugins/select2/select2.css">
<link rel="stylesheet"
	href="${pageContext.request.contextPath}/plugins/colorpicker/bootstrap-colorpicker.min.css">
<link rel="stylesheet"
	href="${pageContext.request.contextPath}/plugins/bootstrap-markdown/css/bootstrap-markdown.min.css">
<link rel="stylesheet"
	href="${pageContext.request.contextPath}/plugins/adminLTE/css/AdminLTE.css">
<link rel="stylesheet"
	href="${pageContext.request.contextPath}/plugins/adminLTE/css/skins/_all-skins.min.css">
<link rel="stylesheet"
	href="${pageContext.request.contextPath}/css/style.css">
<link rel="stylesheet"
	href="${pageContext.request.contextPath}/plugins/ionslider/ion.rangeSlider.css">
<link rel="stylesheet"
	href="${pageContext.request.contextPath}/plugins/ionslider/ion.rangeSlider.skinNice.css">
<link rel="stylesheet"
	href="${pageContext.request.contextPath}/plugins/bootstrap-slider/slider.css">
<link rel="stylesheet"
	href="${pageContext.request.contextPath}/plugins/bootstrap-datetimepicker/bootstrap-datetimepicker.css">
</head>

	<body class="hold-transition skin-purple sidebar-mini">

	<div class="wrapper">

		<!-- 页面头部 -->
		<jsp:include page="header.jsp"></jsp:include>
		<!-- 页面头部 /-->
		<!-- 导航侧栏 -->
		<jsp:include page="aside.jsp"></jsp:include>
		<!-- 导航侧栏 /-->

		<!-- 内容区域 -->
		<div class="content-wrapper">

			<!-- 内容头部 -->
			<section class="content-header">
			<h1>
				角色管理 <small>角色表单</small>
			</h1>
			<ol class="breadcrumb">
				<li><a href="${pageContext.request.contextPath}/index.jsp"><i
						class="fa fa-dashboard"></i> 首页</a></li>
				<li><a href="${pageContext.request.contextPath}/role/findAll.do">角色管理</a></li>
				<li class="active">角色表单</li>
			</ol>
			</section>
			<!-- 内容头部 /-->

			<form action="${pageContext.request.contextPath}/role/save"
				method="post">
				<!-- 正文区域 -->
				<section class="content"> <!--产品信息-->

				<div class="panel panel-default">
					<div class="panel-heading">角色信息</div>
					<div class="row data-type">

						<div class="col-md-2 title">角色名称</div>
						<div class="col-md-4 data">
							<input type="text" class="form-control" name="roleName"
								placeholder="角色名称" value="">
						</div>
						<div class="col-md-2 title">角色描述</div>
						<div class="col-md-4 data">
							<input type="text" class="form-control" name="roleDesc"
								placeholder="角色描述" value="">
						</div>


					</div>
				</div>
				<!--订单信息/--> <!--工具栏-->
				<div class="box-tools text-center">
					<button type="submit" class="btn bg-maroon">保存</button>
					<button type="button" class="btn bg-default"
						onclick="history.back(-1);">返回</button>
				</div>
				<!--工具栏/--> </section>
				<!-- 正文区域 /-->
			</form>
		</div>
		<!-- 内容区域 /-->

		<!-- 底部导航 -->
		<footer class="main-footer">
		<div class="pull-right hidden-xs">
			<b>Version</b> 1.0.8
		</div>
		<strong>Copyright &copy; 2014-2017 <a
			href="http://www.itcast.cn">研究院研发部</a>.
		</strong> All rights reserved. </footer>
		<!-- 底部导航 /-->

	</div>


	<script
		src="${pageContext.request.contextPath}/plugins/jQuery/jquery-2.2.3.min.js"></script>
	<script
		src="${pageContext.request.contextPath}/plugins/jQueryUI/jquery-ui.min.js"></script>
	<script>
		$.widget.bridge('uibutton', $.ui.button);
	</script>
	<script
		src="${pageContext.request.contextPath}/plugins/bootstrap/js/bootstrap.min.js"></script>
	<script
		src="${pageContext.request.contextPath}/plugins/raphael/raphael-min.js"></script>
	<script
		src="${pageContext.request.contextPath}/plugins/morris/morris.min.js"></script>
	<script
		src="${pageContext.request.contextPath}/plugins/sparkline/jquery.sparkline.min.js"></script>
	<script
		src="${pageContext.request.contextPath}/plugins/jvectormap/jquery-jvectormap-1.2.2.min.js"></script>
	<script
		src="${pageContext.request.contextPath}/plugins/jvectormap/jquery-jvectormap-world-mill-en.js"></script>
	<script
		src="${pageContext.request.contextPath}/plugins/knob/jquery.knob.js"></script>
	<script
		src="${pageContext.request.contextPath}/plugins/daterangepicker/moment.min.js"></script>
	<script
		src="${pageContext.request.contextPath}/plugins/daterangepicker/daterangepicker.js"></script>
	<script
		src="${pageContext.request.contextPath}/plugins/daterangepicker/daterangepicker.zh-CN.js"></script>
	<script
		src="${pageContext.request.contextPath}/plugins/datepicker/bootstrap-datepicker.js"></script>
	<script
		src="${pageContext.request.contextPath}/plugins/datepicker/locales/bootstrap-datepicker.zh-CN.js"></script>
	<script
		src="${pageContext.request.contextPath}/plugins/bootstrap-wysihtml5/bootstrap3-wysihtml5.all.min.js"></script>
	<script
		src="${pageContext.request.contextPath}/plugins/slimScroll/jquery.slimscroll.min.js"></script>
	<script
		src="${pageContext.request.contextPath}/plugins/fastclick/fastclick.js"></script>
	<script
		src="${pageContext.request.contextPath}/plugins/iCheck/icheck.min.js"></script>
	<script
		src="${pageContext.request.contextPath}/plugins/adminLTE/js/app.min.js"></script>
	<script
		src="${pageContext.request.contextPath}/plugins/treeTable/jquery.treetable.js"></script>
	<script
		src="${pageContext.request.contextPath}/plugins/select2/select2.full.min.js"></script>
	<script
		src="${pageContext.request.contextPath}/plugins/colorpicker/bootstrap-colorpicker.min.js"></script>
	<script
		src="${pageContext.request.contextPath}/plugins/bootstrap-wysihtml5/bootstrap-wysihtml5.zh-CN.js"></script>
	<script
		src="${pageContext.request.contextPath}/plugins/bootstrap-markdown/js/bootstrap-markdown.js"></script>
	<script
		src="${pageContext.request.contextPath}/plugins/bootstrap-markdown/locale/bootstrap-markdown.zh.js"></script>
	<script
		src="${pageContext.request.contextPath}/plugins/bootstrap-markdown/js/markdown.js"></script>
	<script
		src="${pageContext.request.contextPath}/plugins/bootstrap-markdown/js/to-markdown.js"></script>
	<script
		src="${pageContext.request.contextPath}/plugins/ckeditor/ckeditor.js"></script>
	<script
		src="${pageContext.request.contextPath}/plugins/input-mask/jquery.inputmask.js"></script>
	<script
		src="${pageContext.request.contextPath}/plugins/input-mask/jquery.inputmask.date.extensions.js"></script>
	<script
		src="${pageContext.request.contextPath}/plugins/input-mask/jquery.inputmask.extensions.js"></script>
	<script
		src="${pageContext.request.contextPath}/plugins/datatables/jquery.dataTables.min.js"></script>
	<script
		src="${pageContext.request.contextPath}/plugins/datatables/dataTables.bootstrap.min.js"></script>
	<script
		src="${pageContext.request.contextPath}/plugins/chartjs/Chart.min.js"></script>
	<script
		src="${pageContext.request.contextPath}/plugins/flot/jquery.flot.min.js"></script>
	<script
		src="${pageContext.request.contextPath}/plugins/flot/jquery.flot.resize.min.js"></script>
	<script
		src="${pageContext.request.contextPath}/plugins/flot/jquery.flot.pie.min.js"></script>
	<script
		src="${pageContext.request.contextPath}/plugins/flot/jquery.flot.categories.min.js"></script>
	<script
		src="${pageContext.request.contextPath}/plugins/ionslider/ion.rangeSlider.min.js"></script>
	<script
		src="${pageContext.request.contextPath}/plugins/bootstrap-slider/bootstrap-slider.js"></script>
	<script
		src="${pageContext.request.contextPath}/plugins/bootstrap-datetimepicker/bootstrap-datetimepicker.min.js"></script>

	<script>
		$(document).ready(function() {
			// 选择框
			$(".select2").select2();

			// WYSIHTML5编辑器
			$(".textarea").wysihtml5({
				locale : 'zh-CN'
			});
		});

		// 设置激活菜单
		function setSidebarActive(tagUri) {
			var liObj = $("#" + tagUri);
			if (liObj.length > 0) {
				liObj.parent().parent().addClass("active");
				liObj.addClass("active");
			}
		}

	</script>


</body>

</html>

在这里插入图片描述
然后到controller层进行操作

2.4 角色添加的步骤分析
点击列表页面新建按钮跳转到角色添加页面
输入角色信息，点击保存按钮，表单数据提交服务器
编写RoleController的save()方法
编写RoleService的save()方法
编写RoleDao的save()方法
使用JdbcTemplate保存Role数据到sys_role
跳转回角色列表页面

3.用户列表的展示和添加操作

3.1 用户列表的展示效果
在这里插入图片描述

3.2 用户列表的展示步骤分析
点击用户管理菜单发送请求到服务器端（修改用户管理菜单的url地址）
创建RoleController和showList()方法
创建RoleService和showList()方法
创建RoleDao和findAll()方法
使用JdbcTemplate完成查询操作
将查询数据存储到Model中
转发到user-list.jsp页面进行展示

3.3 用户添加的效果
在这里插入图片描述

3.4 用户添加的步骤分析
点击列表页面新建按钮跳转到角色添加页面
输入角色信息，点击保存按钮，表单数据提交服务器
编写RoleController的save()方法
编写RoleService的save()方法
编写RoleDao的save()方法
使用JdbcTemplate保存Role数据到sys_role
跳转回角色列表页面

4. 删除用户操作

4.1 删除用户的效果
在这里插入图片描述

4.2 删除用户的步骤分析
点击用户列表的删除按钮，发送请求到服务器端
编写UserController的deleteById()方法
编写UserService的deleteById()方法
编写UserDao的deleteById()方法
编写UserDao的deleteRelByUid()方法
跳回当前用户列表页面

由于代码较多这里就不在述说了.
附上源码：
链接：https://pan.baidu.com/s/14wnkf1wzmXPSxE_lG1Y6rQ
提取码：k13w
