[Java知识库]3-3 Spring+SpringMVC综合练习

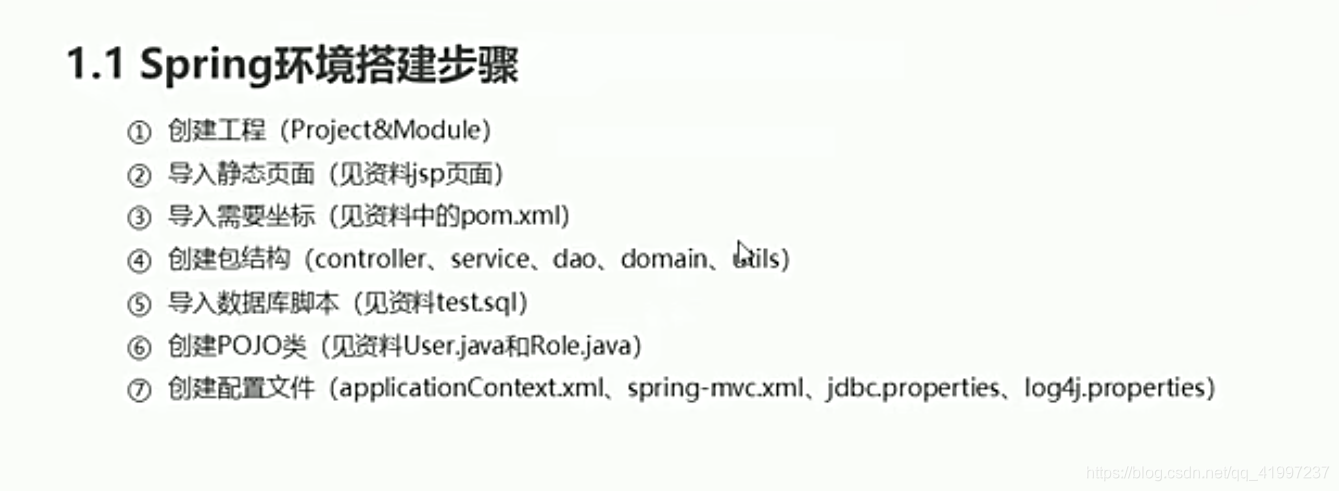

1.1 Spring 环境搭建步骤

web.xml文件 配置Spring和Spring-mvc

<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns="http://xmlns.jcp.org/xml/ns/javaee"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_4_0.xsd"
         version="4.0">

    <!-- 将Spring和SpringMVC 加载到web里 -->

	<!-- 1 -->
    <!-- 全局初始化参数 -->
    <context-param>
        <param-name>contextConfigLocation</param-name>
        <param-value>classpath:applicationContext.xml</param-value>
    </context-param>
    <!-- Spring的监听器 -->
    <listener>
        <listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
    </listener>


	<!-- 2 -->
    <!-- SpringMVC前端控制器 -->
    <servlet>
        <servlet-name>DispatcherServlet</servlet-name>
        <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
        <init-param>
            <param-name>contextConfigLocation</param-name>
            <param-value>classpath:spring-mvc.xml</param-value>
        </init-param>
        <load-on-startup>1</load-on-startup>
    </servlet>
    <servlet-mapping>
        <servlet-name>DispatcherServlet</servlet-name>
        <url-pattern>/</url-pattern>     <!--表示所有资源都找它，所以在spring-mvc.xml中需要开放静态资源-->
    </servlet-mapping>
</web-app>

spring-mvc.xml文件 配置注解驱动、视图解析器、静态资源权限

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:mvc="http://www.springframework.org/schema/mvc"
       xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
                    http://www.springframework.org/schema/mvc http://www.springframework.org/schema/mvc/spring-mvc.xsd
">

    <!-- 1. mvc注解驱动 -->
    <mvc:annotation-driven/>

    <!-- 2. 内部资源视图解析器-->
    <bean class="org.springframework.web.servlet.view.InternalResourceViewResolver">
        <property name="prefix" value="/pages/"/>
        <property name="suffix" value=".jsp"/>
    </bean>

    <!-- 3. 静态资源放行 开放访问权限-->
    <mvc:default-servlet-handler/>

</beans>

applicaContext.xml文件 配置jdbc

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
        http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context.xsd
">


    <!-- 1. 加载jdbc.properties-->
    <context:property-placeholder location="classpath:jdbc.properties"/>

    <!-- 2. 配置数据源对象-->
    <bean id="dataSource" class="com.mchange.v2.c3p0.ComboPooledDataSource">
        <property name="driverClass" value="${jdbc.driver}"/>
        <property name="jdbcUrl" value="${jdbc.url}"/>
        <property name="user" value="${jdbc.username}"/>
        <property name="password" value="${jdbc.password}"/>
    </bean>

    <!-- 3. 配置jdbc模板对象-->
    <bean id="jdbcTemplate" class="org.springframework.jdbc.core.JdbcTemplate">
        <property name="dataSource" ref="dataSource"></property>
    </bean>

</beans>

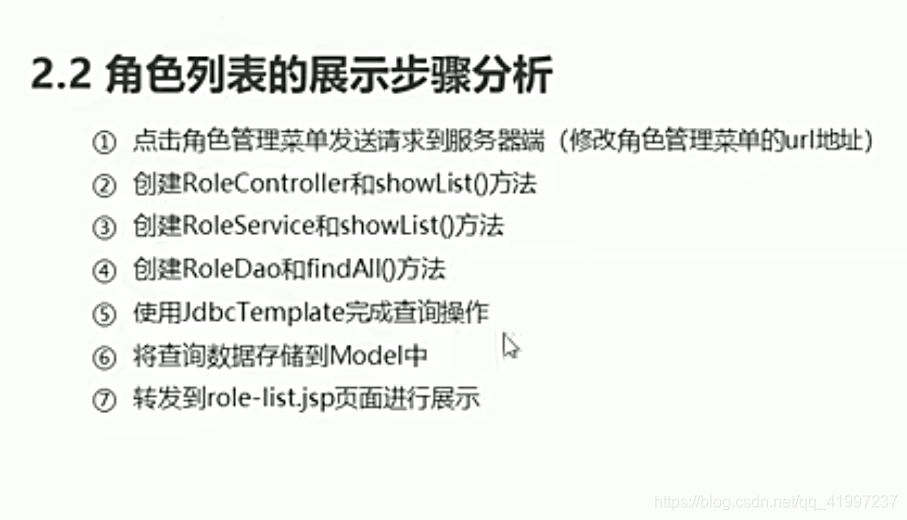

首先找到入口：在main.jsp导航栏找到aside.jsp，将角色管理的href改成要做的实现效果的Controller


RoleController.java 中实现

package com.itheima.controller;

import com.itheima.domain.Role;
import com.itheima.service.RoleService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.servlet.ModelAndView;

import java.util.List;

@RequestMapping("/role")
@Controller
public class RoleController {

    @Autowired //注入
    private RoleService roleService;

    @RequestMapping("/list")
    public ModelAndView list(){
        ModelAndView modelAndView = new ModelAndView();
        List<Role> roleList = roleService.list();
        //设置模型
        modelAndView.addObject("roleList",roleList);
        //设置视图
        modelAndView.setViewName("role-list");
        return modelAndView;
    }
}

创建RoleService接口，以及实现类

package com.itheima.service;

import com.itheima.domain.Role;

import java.util.List;

public interface RoleService {
    public List<Role> list();
}





package com.itheima.service.impl;

import com.itheima.dao.RoleDao;
import com.itheima.domain.Role;
import com.itheima.service.RoleService;

import java.util.List;

public class RoleServiceImpl implements RoleService {

    private RoleDao roleDao;
    public void setRoleDao(RoleDao roleDao) {
        this.roleDao = roleDao;
    }

    @Override
    public List<Role> list() {
        List<Role> roleList = roleDao.findAll();
        return roleList;
    }
}

创建RoleDao接口和实现类

package com.itheima.dao;

import com.itheima.domain.Role;

import java.util.List;

public interface RoleDao {
    List<Role> findAll();
}



package com.itheima.dao.impl;

import com.itheima.dao.RoleDao;
import com.itheima.domain.Role;
import org.springframework.jdbc.core.BeanPropertyRowMapper;
import org.springframework.jdbc.core.JdbcTemplate;

import java.util.List;

public class RoleDaoImpl implements RoleDao {

    private JdbcTemplate jdbcTemplate;
    public void setJdbcTemplate(JdbcTemplate jdbcTemplate) {
        this.jdbcTemplate = jdbcTemplate;
    }


    @Override
    public List<Role> findAll() {
        List<Role> rolesList = jdbcTemplate.query("select * from sys_role", new BeanPropertyRowMapper<Role>(Role.class));
        return rolesList;
    }
}

在spring-mvc使用注解配置，在配置文件中添加组件扫描

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:mvc="http://www.springframework.org/schema/mvc"
       xmlns:context="http://www.springframework.org/schema/context"
       xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
                    http://www.springframework.org/schema/mvc http://www.springframework.org/schema/mvc/spring-mvc.xsd
                    http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context.xsd
">

    <!-- 1. mvc注解驱动 -->
    <mvc:annotation-driven/>

    <!-- 2. 内部资源视图解析器-->
    <bean class="org.springframework.web.servlet.view.InternalResourceViewResolver">
        <property name="prefix" value="/pages/"/>
        <property name="suffix" value=".jsp"/>
    </bean>

    <!-- 3. 静态资源放行 开放访问权限-->
    <mvc:default-servlet-handler/>

    <!-- 4. 组件扫描 扫描Controller-->
    <context:component-scan base-package="com.itheima.controller"/>

</beans>

在spring使用配置文件配置

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
        http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context.xsd
">


    <!-- 1. 加载jdbc.properties-->
    <context:property-placeholder location="classpath:jdbc.properties"/>

    <!-- 2. 配置数据源对象-->
    <bean id="dataSource" class="com.mchange.v2.c3p0.ComboPooledDataSource">
        <property name="driverClass" value="${jdbc.driver}"/>
        <property name="jdbcUrl" value="${jdbc.url}"/>
        <property name="user" value="${jdbc.username}"/>
        <property name="password" value="${jdbc.password}"/>
    </bean>

    <!-- 3. 配置jdbc模板对象-->
    <bean id="jdbcTemplate" class="org.springframework.jdbc.core.JdbcTemplate">
        <property name="dataSource" ref="dataSource"></property>
    </bean>

    <!--配置RoleService-->
    <bean id="roleService" class="com.itheima.service.impl.RoleServiceImpl">
        <property name="roleDao" ref="roleDao"/>
    </bean>

    <!--配置RoleDao-->
    <bean id="roleDao" class="com.itheima.dao.impl.RoleDaoImpl">
        <property name="jdbcTemplate" ref="jdbcTemplate"/>
    </bean>

</beans>

注意jsp文件的 name=‘roleDesc’要和Role。java类中的名字以一样，才能完成jsp的封装。

@RequestMapping("/save")
    public String save(Role role){
        roleService.save(role);
        return  "redirect:/role/list";
    }

@Override
    public void save(Role role) {
        roleDao.save(role);
    }

@Override
    public void save(Role role) {
        jdbcTemplate.update("insert into sys_role values (?,?,?)", null, role.getRoleName(), role.getRoleDesc());
    }

web.xml解决发送乱码的问题

<!--解决post发送乱码的过滤器-->
    <filter>
        <filter-name>CharacterEncodingFilter</filter-name>
        <filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
        <init-param>
            <param-name>encoding</param-name>
            <param-value>UTF-8</param-value>
        </init-param>
    </filter>
    <filter-mapping>
        <filter-name>CharacterEncodingFilter</filter-name>
        <url-pattern>/*</url-pattern>
    </filter-mapping>

3.1 用户列表展示
