[Java知识库]自定义MVC

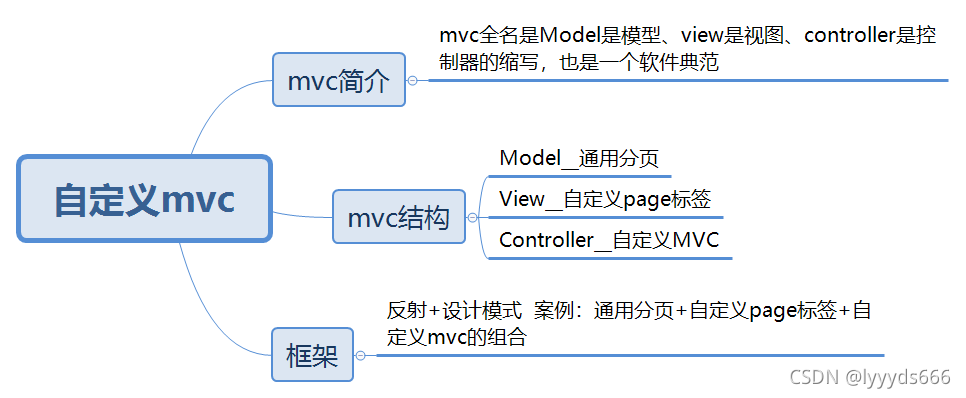

1.思维导图

?2.代码

?
<%@ page language="java" contentType="text/html; charset=UTF-8"
    pageEncoding="UTF-8"%>
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
<title>Insert title here</title>
</head>
<body>
目前多数人增删改查的代码
<a href="${pageContext.request.contextPath }/book/add">增加</a>
<a href="${pageContext.request.contextPath }/book/delete">删除</a>
<a href="${pageContext.request.contextPath }/book/edit">修改</a>
<a href="${pageContext.request.contextPath }/book/list">查询</a>
<hr>

增删改查的代码V2.0
<a href="${pageContext.request.contextPath }/book.action?methodName=add">增加</a>
<a href="${pageContext.request.contextPath }/book.action?methodName=delete">删除</a>
<a href="${pageContext.request.contextPath }/book.action?methodName=edit">修改</a>
<a href="${pageContext.request.contextPath }/book.action?methodName=list">查询</a>
<hr>
增删改查的代码V3.0
<a href="${pageContext.request.contextPath }/book.action?methodName=load">回显</a>
<a href="${pageContext.request.contextPath }/book.action?methodName=ref">关联</a>
</body>
</html>

package com.zking.framework;

import java.lang.reflect.Method;

import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

public class ActionSupport implements Action{

	@Override
	public void execute(HttpServletRequest req, HttpServletResponse resp) {

		String methodName = req.getParameter("methodName");
		try {
			Method m = this.getClass().getDeclaredMethod(methodName, HttpServletRequest.class,HttpServletResponse.class);
			m.setAccessible(true);//访问权限
			m.invoke(this, req,resp);
		} catch (Exception e) {
			e.printStackTrace();
		}
	}

}

package com.zking.framework;

import java.io.IOException;
import java.util.HashMap;
import java.util.Map;

import javax.servlet.ServletException;
import javax.servlet.annotation.WebServlet;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

import com.zking.web.BookAction;
/**
 * 目标：
 * 根据自定义mvc框架的原理图完成	框架的研发
 * @author zjjt
 *中央控制器
 *寻找子控制器
 */
@WebServlet("*.action")
public class DispatchServlet extends HttpServlet{

	//放子控制器的容器
	private Map<String, ActionSupport> actions=new HashMap<String, ActionSupport>();
	//初始化子控制器容器（集合）,经过初始化，actions容器内存就有了子控制器
	//init,service,destroy

	@Override
	public void init() throws ServletException {
		actions.put("/book", new BookAction());
		/*actions.put("/order", new BookAction());
		actions.put("/OrderItem", new BookAction());*/
	}

	@Override
	protected void doGet(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
		doPost(req, resp);
	}


	@Override
	protected void doPost(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
		//完成寻找子控制的过程
		//浏览器：http://localhost:8080/t266_mvc/book.action?methodName=add
		//目标：BookAction.add()..
		/**
		 * 思路：
		 * 1.从游览器URL中获取到“/book”字符串
		 * 2.在子控制器容器中拿到BookAction
		 * 3.BookAction.add()
		 */
		String uri = req.getRequestURI();
		uri = uri.substring(uri.lastIndexOf("/"),uri.lastIndexOf("."));
		//action=BookAction
		ActionSupport action = actions.get(uri);
		//ActionSupport action=new BookAction()
		action.execute(req, resp);
	}
}
