[Java知识库]SpringSecurity入门案例与基本原理

1、入门案例

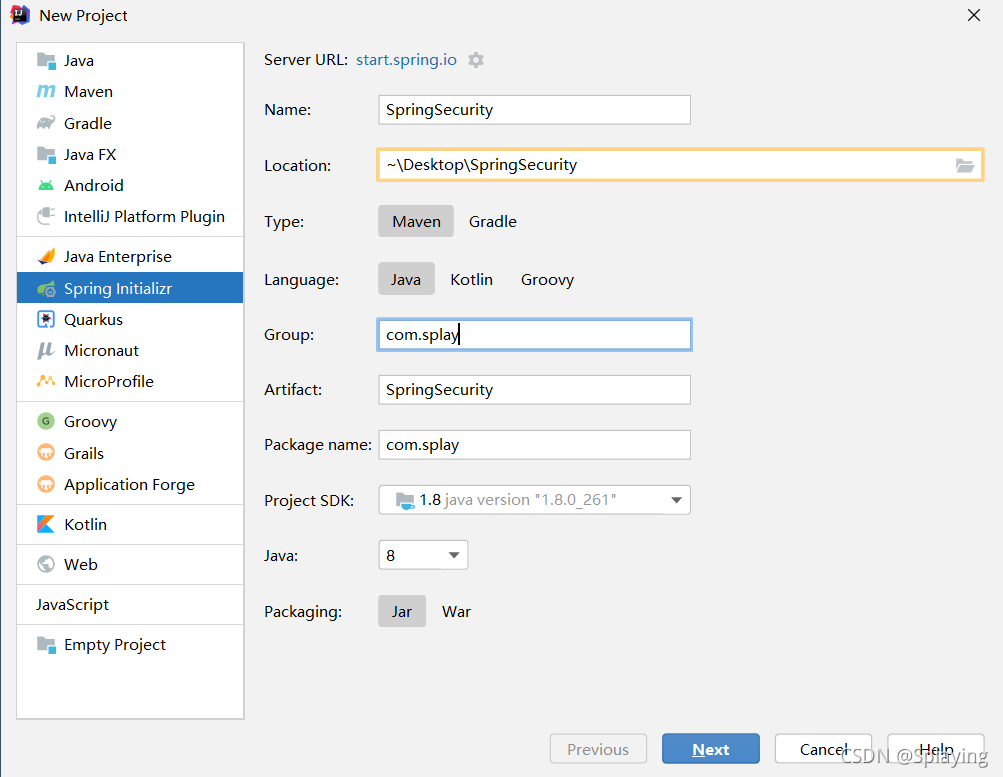

1.1、创建SpringBoot项目

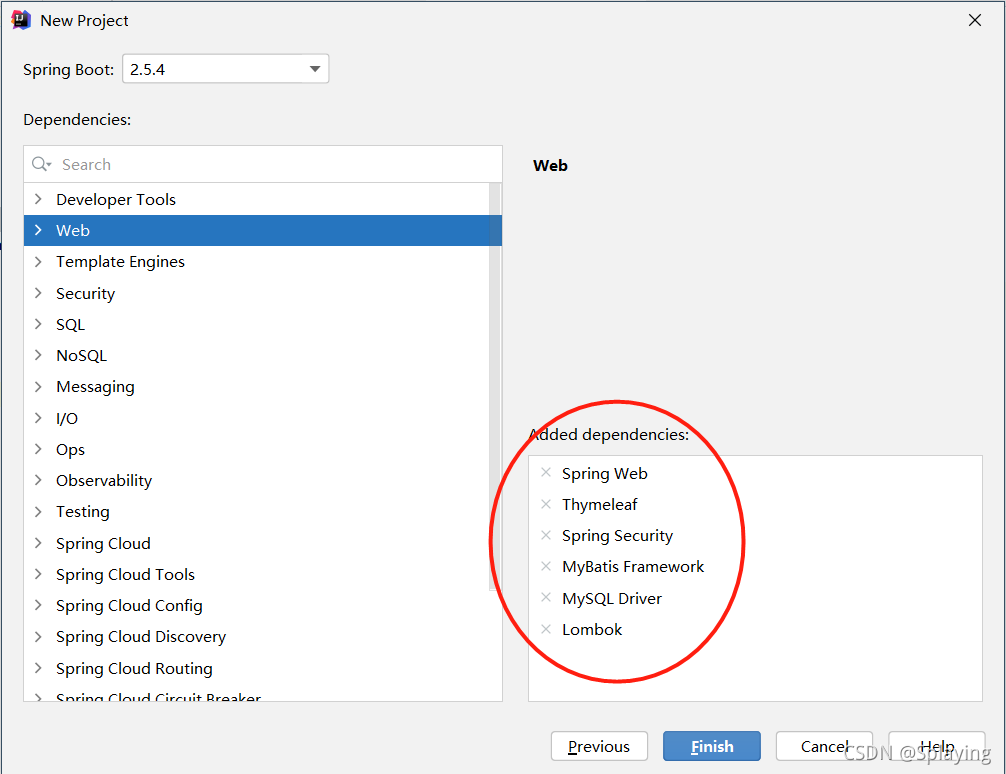

1.2、勾选对应的maven依赖

这里一些依赖可以没有，最主要是要有Web和Security两个依赖即可！

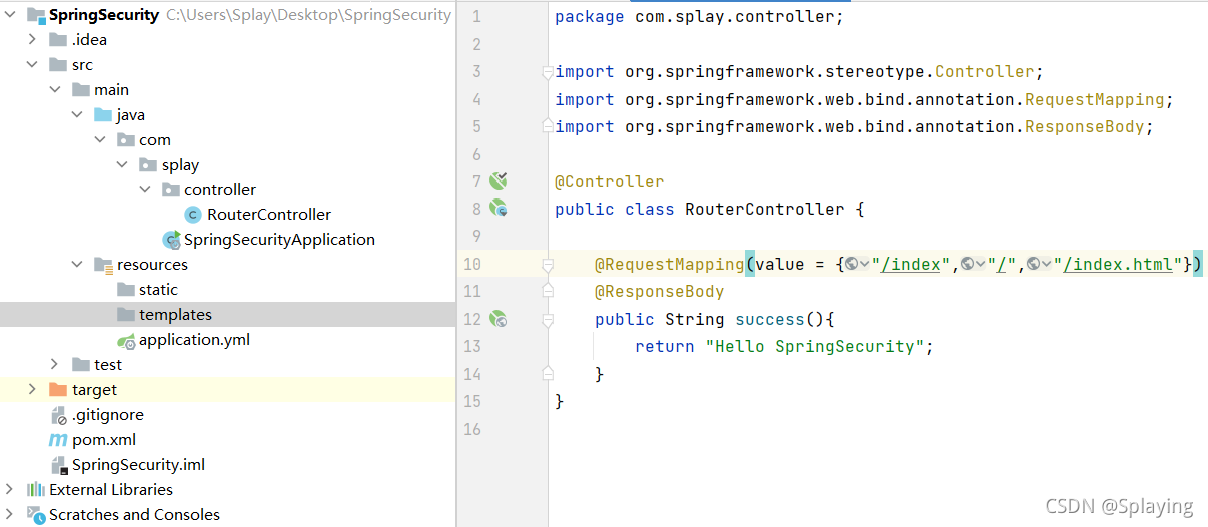

1.3、编写Controller路由

@Controller
public class RouterController {

    @RequestMapping(value = {"/index","/","/index.html"})
    @ResponseBody
    public String success(){
        return "Hello SpringSecurity";
    }
}

1.4、启动项目

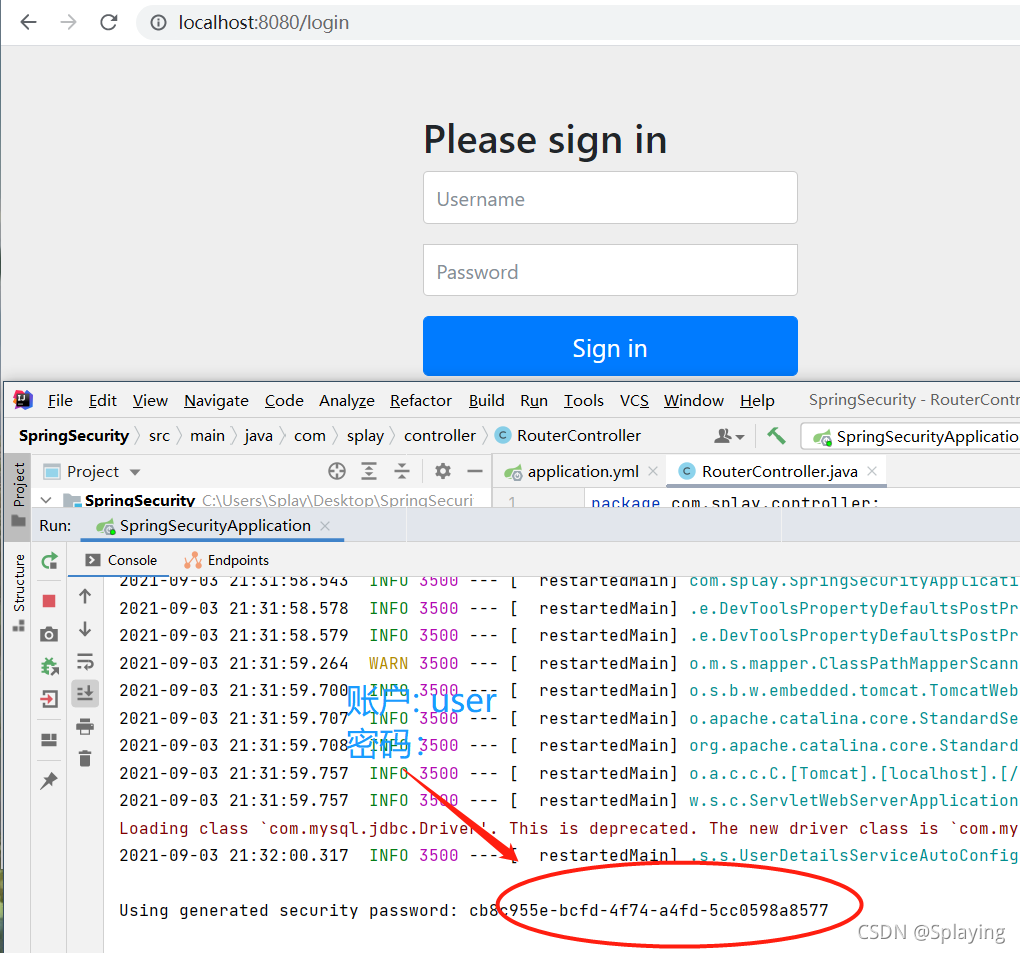

• 启动项目之后会发现自动来到了登录页面，这个登录页面并不是我们写的，是由Security自带的并且现在说明Security已经开启了用户认证。

• 可以在控制台拿到密码（随机），用户名为user；使用密码登录之后就能看到页面了！

2、基本原理

2.1、Security的本质

• SpringSecurity的本质是Interceptor拦截器 + Filter过滤器的执行链，而拦截器的本质是AOP。

• 可以在security包中看到大量的拦截器类、过滤器类等等，它们分别负责不同的功能。

org.springframework.security.web.context.request.async.WebAsyncManagerIntegrationFilter
org.springframework.security.web.context.SecurityContextPersistenceFilter
org.springframework.security.web.header.HeaderWriterFilter
org.springframework.security.web.csrf.CsrfFilter
org.springframework.security.web.authentication.logout.LogoutFilter
org.springframework.security.web.authentication.UsernamePasswordAuthenticationFilter
org.springframework.security.web.authentication.ui.DefaultLoginPageGeneratingFilter
org.springframework.security.web.authentication.ui.DefaultLogoutPageGeneratingFilter
org.springframework.security.web.savedrequest.RequestCacheAwareFilter
org.springframework.security.web.servletapi.SecurityContextHolderAwareRequestFilter
org.springframework.security.web.authentication.AnonymousAuthenticationFilter
org.springframework.security.web.session.SessionManagementFilter
org.springframework.security.web.access.ExceptionTranslationFilter
org.springframework.security.web.access.intercept.FilterSecurityInterceptor

2.2、Security装载过程（一）

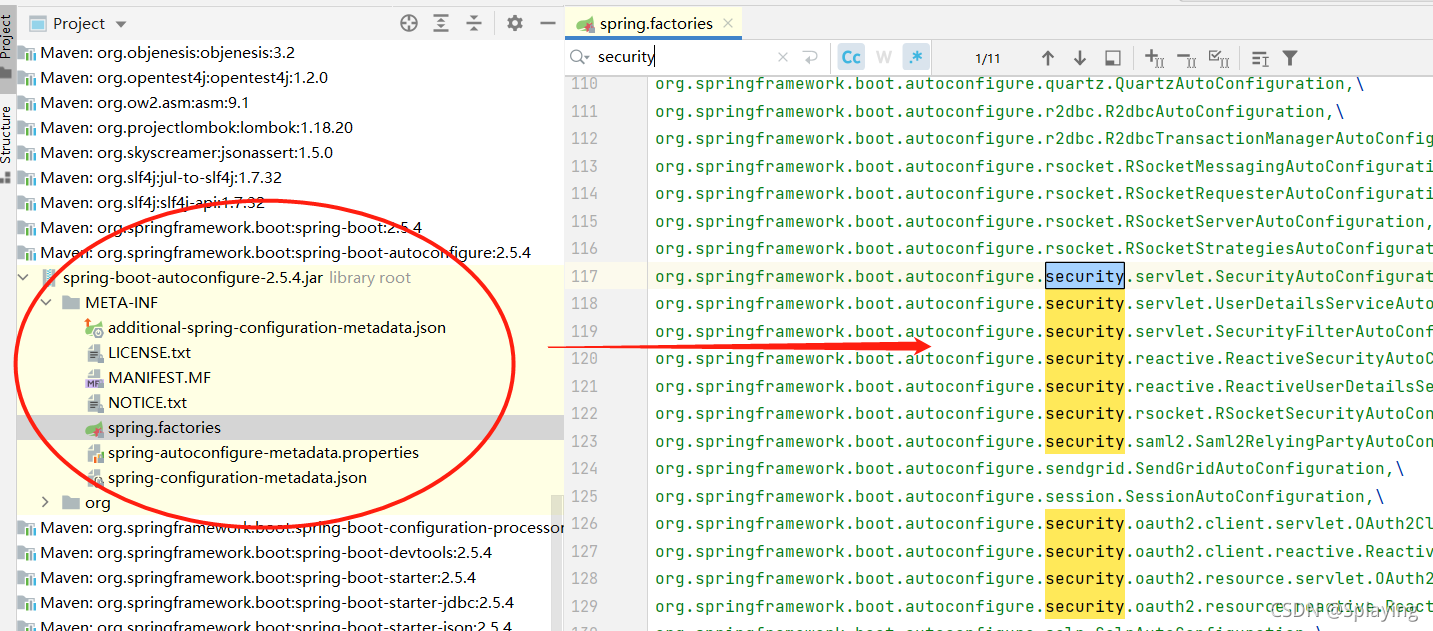

• 根据SpringBoot自动装配原理可以得知，SpringBoot在启动时会自动加载spring-boot-autoconfigure包下的spring.factories中的配置，其中有做安全认证的security组件！

• 虽然自动装配了security的组件，但是并没有完全生效，还需要导入security的依赖，这时才会根据@Condition进行条件装配bean。其中最主要的是会装载一个DelegatingFilterProxy类。

• DelegatingFilterProxy类的作用是将上述所有的过滤器进行串起来

// 过滤器执行链
public void doFilter(ServletRequest request, ServletResponse response, FilterChain filterChain) throws ServletException, IOException {
    Filter delegateToUse = this.delegate;
    if (delegateToUse == null) {
        synchronized(this.delegateMonitor) {
            delegateToUse = this.delegate;
            if (delegateToUse == null) {
                WebApplicationContext wac = this.findWebApplicationContext();
                if (wac == null) {
                    throw new IllegalStateException("No WebApplicationContext found: no ContextLoaderListener or DispatcherServlet registered?");
                }

                delegateToUse = this.initDelegate(wac);
            }

            this.delegate = delegateToUse;
        }
    }

    this.invokeDelegate(delegateToUse, request, response, filterChain);
}

protected Filter initDelegate(WebApplicationContext wac) throws ServletException {
    String targetBeanName = this.getTargetBeanName();			//FilterChainProxy
    Assert.state(targetBeanName != null, "No target bean name set");
    Filter delegate = (Filter)wac.getBean(targetBeanName, Filter.class);
    if (this.isTargetFilterLifecycle()) {
        delegate.init(this.getFilterConfig());
    }

    return delegate;
}

2.3、Security装载过程（二）

• initDelegate方法中的getTargetBeanName为springSecurityFilterChain，由FilterChainProxy类生成

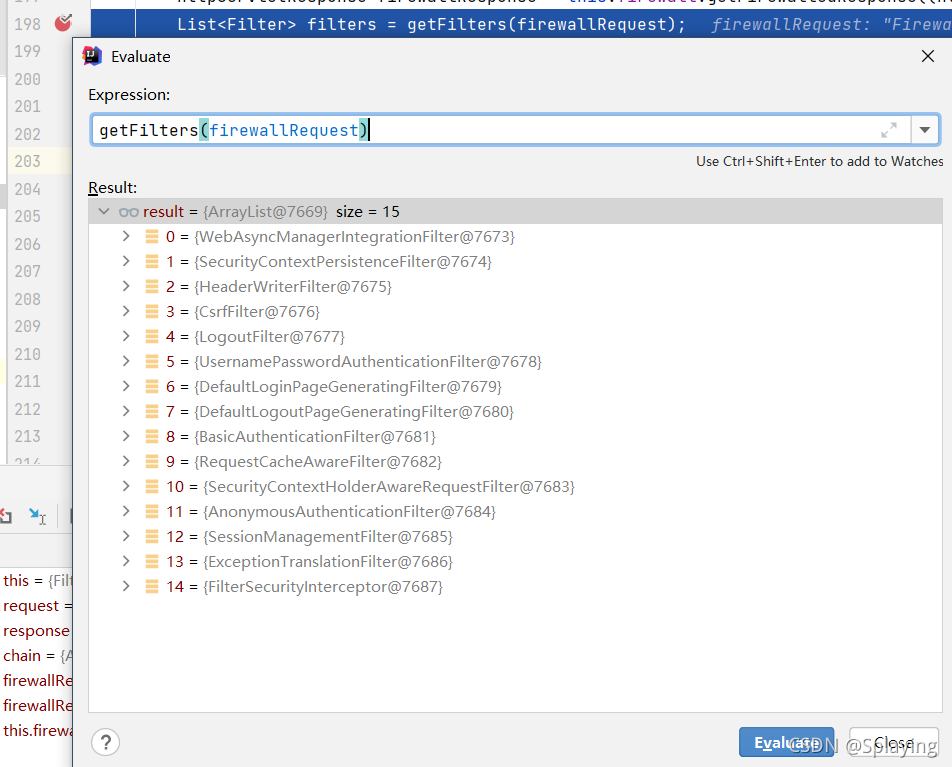

• 内部核心方法doFilterInternal中可以看到获取到的所有过滤器。

@Override
public void doFilter(ServletRequest request, ServletResponse response, FilterChain chain)
		throws IOException, ServletException {
	....
		doFilterInternal(request, response, chain);
	....
}

private void doFilterInternal(ServletRequest request, ServletResponse response, FilterChain chain)
		throws IOException, ServletException {
	...
	List<Filter> filters = getFilters(firewallRequest);
	...
}

• 一共有14个自动装配好的过滤器、拦截器

2.4、UsernamePasswordAuthenticationFilter过滤器

• 这是Security中的一个过滤器，用户对登录/login请求进行拦截验证的实现类。

@Override
public Authentication attemptAuthentication(HttpServletRequest request, HttpServletResponse response)
		throws AuthenticationException {
	if (this.postOnly && !request.getMethod().equals("POST")) {
		throw new AuthenticationServiceException("Authentication method not supported: " + request.getMethod());
	}
	String username = obtainUsername(request);
	username = (username != null) ? username : "";
	username = username.trim();
	String password = obtainPassword(request);
	password = (password != null) ? password : "";
	UsernamePasswordAuthenticationToken authRequest = new UsernamePasswordAuthenticationToken(username, password);
	// Allow subclasses to set the "details" property
	setDetails(request, authRequest);
	return this.getAuthenticationManager().authenticate(authRequest);
}

• 其中核心的方法是authenticate()方法，在这里对用户提交的账号和密码进行验证。
