[Java知识库]SpringBoot集成Spring Data JPA多数据源（二）

目录

1、引入依赖

2、application.yml配置文件

3、AtomikosJtaPlatform

4、事务管理器JPAAtomikosTransactionConfig

5、主数据源配置

6、其他数据源配置

7、controller层

8、service层

9、实现类

10、通用返回工具类

11、testdb包实体

12、testdb2包实体

13、testdb包持久层dao

14、testdb2包持久层dao

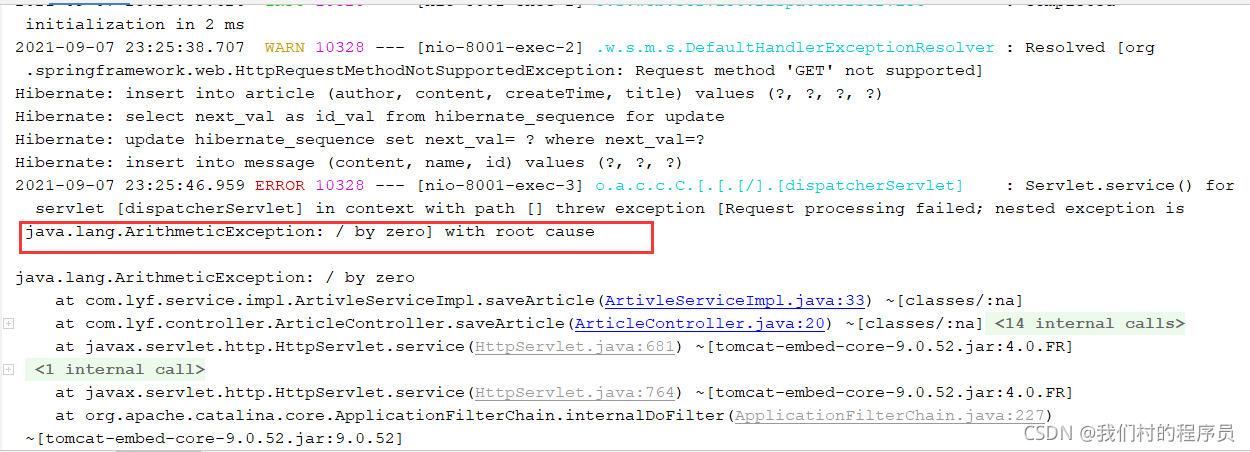

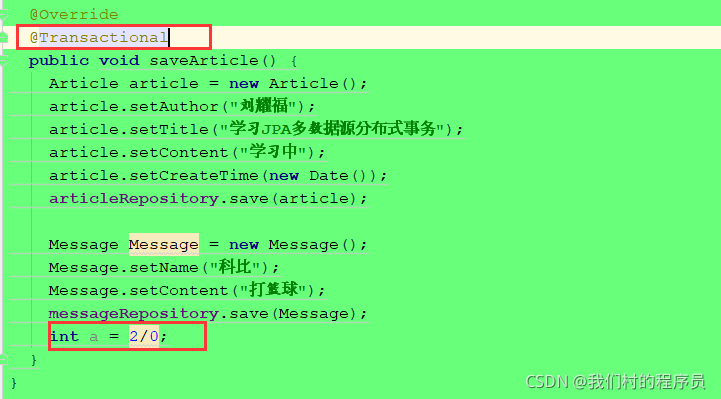

15、测试多数据源事务回滚

实现方式：不同的package下面的接口函数自动注入 不同的数据源

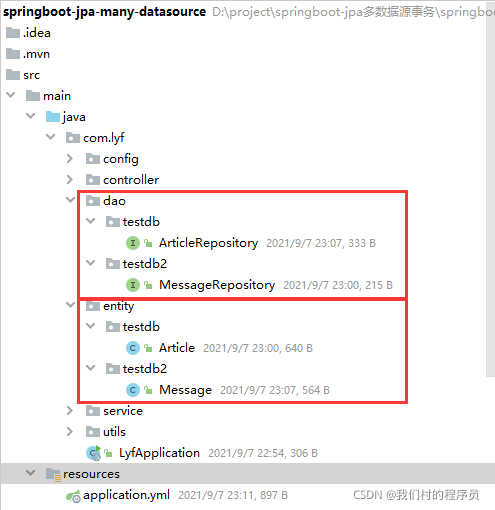

实体、dao分包存放

?数据创建两个库：test库、test2库

test库中创建表如下：

CREATE TABLE `article` ?(
? `id` bigint(32) NOT NULL AUTO_INCREMENT,
? `author` varchar(32) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
? `title` varchar(32) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
? `content` varchar(512) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
? `create_time` datetime(0) NULL DEFAULT NULL,
? `createTime` datetime(6) NULL DEFAULT NULL,
? PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 21 CHARACTER SET = utf8 COLLATE = utf8_general_ci ROW_FORMAT = Dynamic;
?

test2库中创建表如下：

CREATE TABLE `message` ?(
? `id` bigint(32) NOT NULL AUTO_INCREMENT COMMENT '主键',
? `name` varchar(32) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL COMMENT 'name',
? `content` varchar(32) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL COMMENT 'content',
? PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 7 CHARACTER SET = utf8 COLLATE = utf8_general_ci ROW_FORMAT = Dynamic;

1、引入依赖

<!--lombok-->
<dependency>
    <groupId>org.projectlombok</groupId>
    <artifactId>lombok</artifactId>
    <optional>true</optional>
</dependency>

<!--jpa-->
<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-data-jpa</artifactId>
</dependency>

<!-- mysql-->
<dependency>
    <groupId>mysql</groupId>
    <artifactId>mysql-connector-java</artifactId>
</dependency>

<!--JTA分布式事务-->
<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-jta-atomikos</artifactId>
</dependency>

2、application.yml配置文件

注：这里是url，不是jdbc-url

server:
  port: 8888
spring:
  jackson:
    date-format: yyyy-MM-dd HH:mm:ss
    time-zone: GMT+8
  datasource:
    primary:
      url: jdbc:mysql://localhost:3306/test?useUnicode=true&characterEncoding=utf-8&useSSL=false
      username: root
      password: '0407'
      driver-class-name: com.mysql.cj.jdbc.Driver
    secondary:
      url: jdbc:mysql://localhost:3306/test2?useUnicode=true&characterEncoding=utf-8&useSSL=false
      username: root
      password: '0407'
      driver-class-name: com.mysql.cj.jdbc.Driver
  jpa:
    database-platform: org.hibernate.dialect.MySQL5InnoDBDialect
    hibernate:
      ddl-auto: validate
    database: mysql
    show-sql: true
  #多数据源分布式事务
  jta:
    atomikos:
      datasource:
        max-pool-size: 20
        borrow-connection-timeout: 60
      connectionfactory:
        max-pool-size: 20
        borrow-connection-timeout: 60

3、AtomikosJtaPlatform

此类固定配置

package com.lyf.springboot.config;
import org.hibernate.engine.transaction.jta.platform.internal.AbstractJtaPlatform;
import javax.transaction.TransactionManager;
import javax.transaction.UserTransaction;

public class AtomikosJtaPlatform extends AbstractJtaPlatform {

    private static final long serialVersionUID = 1L;

    static TransactionManager transactionManager;
    static UserTransaction transaction;

    @Override
    protected TransactionManager locateTransactionManager() {
        return transactionManager;
    }

    @Override
    protected UserTransaction locateUserTransaction() {
        return transaction;
    }
}

4、事务管理器JPAAtomikosTransactionConfig

固定配置

package com.lyf.springboot.config;
import com.atomikos.icatch.jta.UserTransactionImp;
import com.atomikos.icatch.jta.UserTransactionManager;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.ComponentScan;
import org.springframework.context.annotation.Configuration;
import org.springframework.context.annotation.DependsOn;
import org.springframework.context.support.PropertySourcesPlaceholderConfigurer;
import org.springframework.orm.jpa.JpaVendorAdapter;
import org.springframework.orm.jpa.vendor.Database;
import org.springframework.orm.jpa.vendor.HibernateJpaVendorAdapter;
import org.springframework.transaction.PlatformTransactionManager;
import org.springframework.transaction.annotation.EnableTransactionManagement;
import org.springframework.transaction.jta.JtaTransactionManager;
import javax.transaction.TransactionManager;
import javax.transaction.UserTransaction;

@Configuration
@ComponentScan
@EnableTransactionManagement
public class JPAAtomikosTransactionConfig {

    @Bean
    public PropertySourcesPlaceholderConfigurer propertySourcesPlaceholderConfigurer() {
        return new PropertySourcesPlaceholderConfigurer();
    }

    //设置JPA特性
    @Bean
    public JpaVendorAdapter jpaVendorAdapter() {
        HibernateJpaVendorAdapter hibernateJpaVendorAdapter = new HibernateJpaVendorAdapter();
        //显示sql
        hibernateJpaVendorAdapter.setShowSql(true);
        //自动生成/更新表
        hibernateJpaVendorAdapter.setGenerateDdl(true);
        //设置数据库类型
        hibernateJpaVendorAdapter.setDatabase(Database.MYSQL);
        return hibernateJpaVendorAdapter;
    }

    @Bean(name = "userTransaction")
    public UserTransaction userTransaction() throws Throwable {
        UserTransactionImp userTransactionImp = new UserTransactionImp();
        userTransactionImp.setTransactionTimeout(10000);
        return userTransactionImp;
    }

    @Bean(name = "atomikosTransactionManager", initMethod = "init", destroyMethod = "close")
    public TransactionManager atomikosTransactionManager() throws Throwable {
        UserTransactionManager userTransactionManager = new UserTransactionManager();
        userTransactionManager.setForceShutdown(false);
        AtomikosJtaPlatform.transactionManager = userTransactionManager;
        return userTransactionManager;
    }

    @Bean(name = "transactionManager")
    @DependsOn({"userTransaction", "atomikosTransactionManager"})
    public PlatformTransactionManager transactionManager() throws Throwable {
        UserTransaction userTransaction = userTransaction();
        AtomikosJtaPlatform.transaction = userTransaction;
        TransactionManager atomikosTransactionManager = atomikosTransactionManager();
        return new JtaTransactionManager(userTransaction, atomikosTransactionManager);
    }

}

5、主数据源配置

注：修改标红的部分

package com.lyf.config;

import com.mysql.cj.jdbc.MysqlXADataSource;
import org.springframework.boot.autoconfigure.jdbc.DataSourceProperties;
import org.springframework.boot.context.properties.ConfigurationProperties;
import org.springframework.boot.jta.atomikos.AtomikosDataSourceBean;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.context.annotation.DependsOn;
import org.springframework.context.annotation.Primary;
import org.springframework.data.jpa.repository.config.EnableJpaRepositories;
import org.springframework.orm.jpa.JpaVendorAdapter;
import org.springframework.orm.jpa.LocalContainerEntityManagerFactoryBean;

import javax.annotation.Resource;
import javax.sql.DataSource;
import java.sql.SQLException;
import java.util.HashMap;

@Configuration
@DependsOn("transactionManager")
@EnableJpaRepositories(basePackages = "com.lyf.dao.testdb",  //注意这里
        entityManagerFactoryRef = "primaryEntityManager",
        transactionManagerRef = "transactionManager")
public class JPAPrimaryConfig {

    @Resource
    private JpaVendorAdapter jpaVendorAdapter;

    @Primary
    @Bean(name = "primaryDataSourceProperties")
    @ConfigurationProperties(prefix = "spring.datasource.primary")     //注意这里
    public DataSourceProperties primaryDataSourceProperties() {
        return new DataSourceProperties();
    }

    @Primary
    @Bean(name = "primaryDataSource", initMethod = "init", destroyMethod = "close")
    @ConfigurationProperties(prefix = "spring.datasource.primary")
    public DataSource primaryDataSource() throws SQLException {
        MysqlXADataSource mysqlXaDataSource = new MysqlXADataSource();
        mysqlXaDataSource.setUrl(primaryDataSourceProperties().getUrl());
        mysqlXaDataSource.setPinGlobalTxToPhysicalConnection(true);
        mysqlXaDataSource.setPassword(primaryDataSourceProperties().getPassword());
        mysqlXaDataSource.setUser(primaryDataSourceProperties().getUsername());
        AtomikosDataSourceBean xaDataSource = new AtomikosDataSourceBean();
        xaDataSource.setXaDataSource(mysqlXaDataSource);
        xaDataSource.setUniqueResourceName("primary");
        xaDataSource.setBorrowConnectionTimeout(60);
        xaDataSource.setMaxPoolSize(20);
        return xaDataSource;
    }

    @Primary
    @Bean(name = "primaryEntityManager")
    @DependsOn("transactionManager")
    public LocalContainerEntityManagerFactoryBean primaryEntityManager() throws Throwable {

        HashMap<String, Object> properties = new HashMap<String, Object>();
        properties.put("hibernate.transaction.jta.platform", AtomikosJtaPlatform.class.getName());
        properties.put("javax.persistence.transactionType", "JTA");
        LocalContainerEntityManagerFactoryBean entityManager = new LocalContainerEntityManagerFactoryBean();
        entityManager.setJtaDataSource(primaryDataSource());
        entityManager.setJpaVendorAdapter(jpaVendorAdapter);
        //这里要修改成主数据源的扫描包
        entityManager.setPackagesToScan("com.lyf.entity.testdb");
        entityManager.setPersistenceUnitName("primaryPersistenceUnit");
        entityManager.setJpaPropertyMap(properties);
        return entityManager;
    }
}

6、其他数据源配置

package com.lyf.config;

import com.mysql.cj.jdbc.MysqlXADataSource;
import org.springframework.boot.autoconfigure.jdbc.DataSourceProperties;
import org.springframework.boot.context.properties.ConfigurationProperties;
import org.springframework.boot.jta.atomikos.AtomikosDataSourceBean;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.context.annotation.DependsOn;
import org.springframework.data.jpa.repository.config.EnableJpaRepositories;
import org.springframework.orm.jpa.JpaVendorAdapter;
import org.springframework.orm.jpa.LocalContainerEntityManagerFactoryBean;

import javax.annotation.Resource;
import javax.sql.DataSource;
import java.sql.SQLException;
import java.util.HashMap;

@Configuration
@DependsOn("transactionManager")
@EnableJpaRepositories(basePackages = "com.lyf.dao.testdb2",   //注意这里
        entityManagerFactoryRef = "secondaryEntityManager",
        transactionManagerRef = "transactionManager")
public class JPASecondaryConfig {

    @Resource
    private JpaVendorAdapter jpaVendorAdapter;


    @Bean(name = "secondaryDataSourceProperties")
    @ConfigurationProperties(prefix = "spring.datasource.secondary")    //注意这里
    public DataSourceProperties masterDataSourceProperties() {
        return new DataSourceProperties();
    }


    @Bean(name = "secondaryDataSource", initMethod = "init", destroyMethod = "close")
    @ConfigurationProperties(prefix = "spring.datasource.secondary")
    public DataSource masterDataSource() throws SQLException {
        MysqlXADataSource mysqlXaDataSource = new MysqlXADataSource();
        mysqlXaDataSource.setUrl(masterDataSourceProperties().getUrl());
        mysqlXaDataSource.setPinGlobalTxToPhysicalConnection(true);
        mysqlXaDataSource.setPassword(masterDataSourceProperties().getPassword());
        mysqlXaDataSource.setUser(masterDataSourceProperties().getUsername());
        AtomikosDataSourceBean xaDataSource = new AtomikosDataSourceBean();
        xaDataSource.setXaDataSource(mysqlXaDataSource);
        xaDataSource.setUniqueResourceName("secondary");
        xaDataSource.setBorrowConnectionTimeout(60);
        xaDataSource.setMaxPoolSize(20);
        return xaDataSource;
    }

    @Bean(name = "secondaryEntityManager")
    @DependsOn("transactionManager")
    public LocalContainerEntityManagerFactoryBean masterEntityManager() throws Throwable {

        HashMap<String, Object> properties = new HashMap<String, Object>();
        properties.put("hibernate.transaction.jta.platform", AtomikosJtaPlatform.class.getName());
        properties.put("javax.persistence.transactionType", "JTA");
        LocalContainerEntityManagerFactoryBean entityManager = new LocalContainerEntityManagerFactoryBean();
        entityManager.setJtaDataSource(masterDataSource());
        entityManager.setJpaVendorAdapter(jpaVendorAdapter);
        //这里要修改成主数据源的扫描包
        entityManager.setPackagesToScan("com.lyf.entity.testdb2");
        entityManager.setPersistenceUnitName("secondaryPersistenceUnit");
        entityManager.setJpaPropertyMap(properties);
        return entityManager;
    }
}

7、controller层

package com.lyf.controller;
import com.lyf.service.ArticleService;
import com.lyf.utils.AjaxResponse;
import lombok.extern.slf4j.Slf4j;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.*;
import javax.annotation.Resource;

@Slf4j
@Controller
@RequestMapping("/rest")
public class ArticleController {

  @Resource
  private ArticleService articleService;

  //增加一篇Article ，使用POST方法
  @PostMapping("/articles")
  public @ResponseBody AjaxResponse saveArticle(){
    articleService.saveArticle();
    return AjaxResponse.success();
  }

}

8、service层

package com.lyf.service;
public interface ArticleService {

  void saveArticle();

}

9、实现类

package com.lyf.service.impl;
import com.lyf.dao.testdb.ArticleRepository;
import com.lyf.dao.testdb2.MessageRepository;
import com.lyf.entity.testdb.Article;
import com.lyf.entity.testdb2.Message;
import com.lyf.service.ArticleService;
import org.springframework.stereotype.Service;
import javax.annotation.Resource;
import java.util.Date;

@Service
public class ArtivleServiceImpl implements ArticleService {

  @Resource
  private ArticleRepository articleRepository;

  @Resource
  private MessageRepository messageRepository;

  @Override
  public void saveArticle() {
    Article article = new Article();
    article.setAuthor("刘耀福");
    article.setTitle("学习JPA多数据源分布式事务");
    article.setContent("学习中");
    article.setCreateTime(new Date());
    articleRepository.save(article);

    Message Message = new Message();
    Message.setName("科比");
    Message.setContent("打篮球");
    messageRepository.save(Message);
  }
}

?

10、通用返回工具类

package com.lyf.utils;
import lombok.Data;

@Data
public class AjaxResponse {
  private boolean isok;  //请求是否处理成功
  private int code; //请求响应状态码（200、400、500）
  private String message;  //请求结果描述信息
  private Object data; //请求结果数据（通常用于查询操作）

  private AjaxResponse(){}

  //请求成功的响应，不带查询数据（用于删除、修改、新增接口）
  public static AjaxResponse success(){
    AjaxResponse ajaxResponse = new AjaxResponse();
    ajaxResponse.setIsok(true);
    ajaxResponse.setCode(200);
    ajaxResponse.setMessage("请求响应成功!");
    return ajaxResponse;
  }

  //请求成功的响应，带有查询数据（用于数据查询接口）
  public static AjaxResponse success(Object obj){
    AjaxResponse ajaxResponse = new AjaxResponse();
    ajaxResponse.setIsok(true);
    ajaxResponse.setCode(200);
    ajaxResponse.setMessage("请求响应成功!");
    ajaxResponse.setData(obj);
    return ajaxResponse;
  }

  //请求成功的响应，带有查询数据（用于数据查询接口）
  public static AjaxResponse success(Object obj, String message){
    AjaxResponse ajaxResponse = new AjaxResponse();
    ajaxResponse.setIsok(true);
    ajaxResponse.setCode(200);
    ajaxResponse.setMessage(message);
    ajaxResponse.setData(obj);
    return ajaxResponse;
  }


}

11、testdb包实体

package com.lyf.entity.testdb;
import lombok.AllArgsConstructor;
import lombok.Builder;
import lombok.Data;
import lombok.NoArgsConstructor;
import javax.persistence.*;
import java.util.Date;

@Data
@Builder
@AllArgsConstructor
@NoArgsConstructor
@Entity
@Table(name="article")
public class Article {
  @Id
  @GeneratedValue(strategy= GenerationType.IDENTITY)
  private Long id;

  @Column(nullable = false,length = 32)
  private String author;

  @Column(nullable = false, unique = true,length = 32)
  private String title;

  @Column(length = 512)
  private String content;
  private Date createTime;
}

12、testdb2包实体

package com.lyf.entity.testdb2;

import lombok.AllArgsConstructor;
import lombok.Builder;
import lombok.Data;
import lombok.NoArgsConstructor;

import javax.persistence.*;

@Data
@Entity
@Builder
@AllArgsConstructor
@NoArgsConstructor
@Table(name="message")
public class Message {

    @Id
    @GeneratedValue
    private Long id;

    @Column(nullable = false)
    private String name;

    @Column(nullable = false)
    private String content;

}

13、testdb包持久层dao

package com.lyf.dao.testdb;
import com.lyf.entity.testdb.Article;
import org.springframework.data.jpa.repository.JpaRepository;
public interface ArticleRepository extends JpaRepository<Article, Long> {

}

14、testdb2包持久层dao

package com.lyf.dao.testdb2;
import com.lyf.entity.testdb2.Message;
import org.springframework.data.jpa.repository.JpaRepository;
public interface MessageRepository extends JpaRepository<Message, Long> {

}

15、测试多数据源事务回滚

????????

?

postman测试报错，我们看看控制台

?控制台使除0异常

?查看数据库事务回滚了没，回滚了

?

?springboot+spring data jpa 分布式事务回滚完结

?
