工具：

IDEA、JDK1.8、Maven

额外功能：

mybatis generator 自动生成代码插件

创建项目

[外链图片转存失败,源站可能有防盗链机制,建议将图片保存下来直接上传(img-D4hVFbPi-1631285378657)(模板笔记 - 副本.assets/image-20210910001518872.png)]

添加依赖：pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.5.4</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>
    <groupId>com.example</groupId>
    <artifactId>demo</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>demo</name>
    <description>Demo project for Spring Boot</description>
    <properties>
        <java.version>1.8</java.version>
    </properties>
    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-data-jdbc</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-thymeleaf</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.mybatis.spring.boot</groupId>
            <artifactId>mybatis-spring-boot-starter</artifactId>
            <version>2.2.0</version>
        </dependency>

        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <scope>runtime</scope>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>

        <!--添加下方依赖-->
        <dependency>
            <groupId>com.fasterxml.jackson.core</groupId>
            <artifactId>jackson-core</artifactId>
        </dependency>
        <dependency>
            <groupId>com.fasterxml.jackson.core</groupId>
            <artifactId>jackson-databind</artifactId>
        </dependency>
        <dependency>
            <groupId>com.fasterxml.jackson.datatype</groupId>
            <artifactId>jackson-datatype-joda</artifactId>
        </dependency>
        <dependency>
            <groupId>com.fasterxml.jackson.module</groupId>
            <artifactId>jackson-module-parameter-names</artifactId>
        </dependency>
        <!-- 分页插件 -->
        <dependency>
            <groupId>com.github.pagehelper</groupId>
            <artifactId>pagehelper-spring-boot-starter</artifactId>
            <version>1.2.5</version>
        </dependency>
        <!-- alibaba的druid数据库连接池 -->
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>druid-spring-boot-starter</artifactId>
            <version>1.1.9</version>
        </dependency>

    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>

            <!-- 添加 mybatis generator 自动生成代码插件 -->
            <plugin>
                <groupId>org.mybatis.generator</groupId>
                <artifactId>mybatis-generator-maven-plugin</artifactId>
                <version>1.3.2</version>
                <configuration>
                    <configurationFile>${basedir}/src/main/resources/generator/generatorConfig.xml</configurationFile>
                    <overwrite>true</overwrite>
                    <verbose>true</verbose>
                </configuration>
            </plugin>
        </plugins>
    </build>

</project>

application.yml

server:
  port: 8080

spring:
  datasource:
    name: test
    url: jdbc:mysql://localhost:3306/depot
    username: root
    password: root
    # 使用druid数据源
    type: com.alibaba.druid.pool.DruidDataSource
    driver-class-name: com.mysql.jdbc.Driver
    filters: stat
    maxActive: 20
    initialSize: 1
    maxWait: 60000
    minIdle: 1
    timeBetweenEvictionRunsMillis: 60000
    minEvictableIdleTimeMillis: 300000
    validationQuery: select 'x'
    testWhileIdle: true
    testOnBorrow: false
    testOnReturn: false
    poolPreparedStatements: true
    maxOpenPreparedStatements: 20
mybatis:
  mapper-locations: classpath:mapping/*.xml
  type-aliases-package: com.example.model

#pagehelper分页插件
pagehelper:
  helperDialect: mysql
  reasonable: true
  supportMethodsArguments: true
  params: count=countSql

使用mybatis generator 自动生成代码：

配置pom.xml中generator 插件所对应的配置文件${basedir}/src/main/resources/generator/generatorConfig.xml

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE generatorConfiguration
        PUBLIC "-//mybatis.org//DTD MyBatis Generator Configuration 1.0//EN"
        "http://mybatis.org/dtd/mybatis-generator-config_1_0.dtd">
<generatorConfiguration>
    <!-- 数据库驱动:选择你的本地硬盘上面的数据库驱动包-->
    <classPathEntry  location="E:\developer\mybatis-generator-core-1.3.2\lib\mysql-connector-java-5.1.25-bin.jar"/>
    <context id="DB2Tables"  targetRuntime="MyBatis3">
        <commentGenerator>
            <property name="suppressDate" value="true"/>
            <!-- 是否去除自动生成的注释 true：是 ： false:否 -->
            <property name="suppressAllComments" value="true"/>
        </commentGenerator>
        <!--数据库链接URL，用户名、密码 -->
        <jdbcConnection driverClass="com.mysql.jdbc.Driver" connectionURL="jdbc:mysql://127.0.0.1/mytest" userId="root" password="root">
        </jdbcConnection>
        <javaTypeResolver>
            <property name="forceBigDecimals" value="false"/>
        </javaTypeResolver>
        <!-- 生成模型的包名和位置-->
        <javaModelGenerator targetPackage="com.winter.model" targetProject="src/main/java">
            <property name="enableSubPackages" value="true"/>
            <property name="trimStrings" value="true"/>
        </javaModelGenerator>
        <!-- 生成映射文件的包名和位置-->
        <sqlMapGenerator targetPackage="mapping" targetProject="src/main/resources">
            <property name="enableSubPackages" value="true"/>
        </sqlMapGenerator>
        <!-- 生成DAO的包名和位置-->
        <javaClientGenerator type="XMLMAPPER" targetPackage="com.winter.mapper" targetProject="src/main/java">
            <property name="enableSubPackages" value="true"/>
        </javaClientGenerator>
        <!-- 要生成的表 tableName是数据库中的表名或视图名 domainObjectName是实体类名-->
        <table tableName="t_user" domainObjectName="User" enableCountByExample="false" enableUpdateByExample="false" enableDeleteByExample="false" enableSelectByExample="false" selectByExampleQueryId="false"></table>
    </context>
</generatorConfiguration>

点击run-Edit Configurations

[外链图片转存失败,源站可能有防盗链机制,建议将图片保存下来直接上传(img-A87YzQi3-1631285351475)(模板笔记 - 副本.assets/image-20210910205857926.png)]

[外链图片转存失败,源站可能有防盗链机制,建议将图片保存下来直接上传(img-lU46c9zj-1631285351476)(模板笔记 - 副本.assets/image-20210910210015325.png)]

[外链图片转存失败,源站可能有防盗链机制,建议将图片保存下来直接上传(img-yEBeJLTf-1631285351479)(模板笔记 - 副本.assets/image-20210910210105000.png)]
运行

[外链图片转存失败,源站可能有防盗链机制,建议将图片保存下来直接上传(img-uie9goWd-1631285351480)(模板笔记 - 副本.assets/image-20210910210214792.png)]

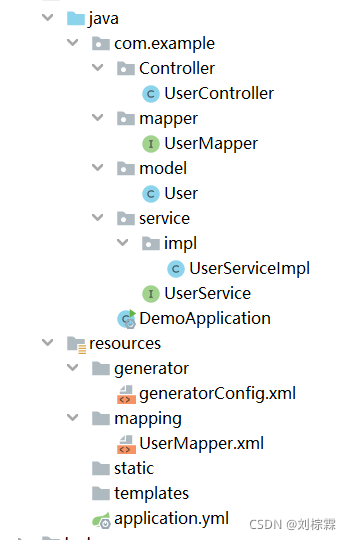

生成文件

UserService

package com.example.service;

import com.example.model.User;

import java.util.List;

public interface UserService {

    int addUser(User user);

    List<User> findAllUser(int pageNum, int pageSize);
}

UserServiceImpl

package com.example.service.impl;

import com.example.mapper.UserMapper;
import com.example.model.User;
import com.example.service.UserService;
import com.github.pagehelper.PageHelper;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

import java.util.List;

@Service(value = "userService")
public class UserServiceImpl implements UserService {

    @Autowired
    private UserMapper userMapper;//这里会报错，但是并不会影响

    @Override
    public int addUser(User user) {

        return userMapper.insertSelective(user);
    }

    @Override
    public List<User> findAllUser(int pageNum, int pageSize) {
        //将参数传给这个方法就可以实现物理分页了，非常简单。
        PageHelper.startPage(pageNum, pageSize);
        return userMapper.selectAllUser();
    }
}

UserController

package com.example.Controller;

import com.example.model.User;
import com.example.service.UserService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.ResponseBody;

@Controller
@RequestMapping(value = "/user")
public class UserController {

    @Autowired
    private UserService userService;

    // http://localhost:8080/user/add
    @ResponseBody
    @RequestMapping(value = "/add", produces = {"application/json;charset=UTF-8"})
    public int addUser(User user){
        return userService.addUser(user);
    }

    @ResponseBody
    @RequestMapping(value = "/all/{pageNum}/{pageSize}", produces = {"application/json;charset=UTF-8"})
    public Object findAllUser(@PathVariable("pageNum") int pageNum, @PathVariable("pageSize") int pageSize){

        return userService.findAllUser(pageNum,pageSize);
    }
}

启动类

package com.example;

import org.mybatis.spring.annotation.MapperScan;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

@SpringBootApplication
@MapperScan("com.example.mapper")       // 将项目中对应的 mapper类的路径加起来就可以了
public class DemoApplication {
    public static void main(String[] args) { SpringApplication.run(DemoApplication.class, args); }
}
