[Java知识库]Mybatis基于xml配置开发笔记

作者:AccountDao_625

创建项目并导入jar包位置

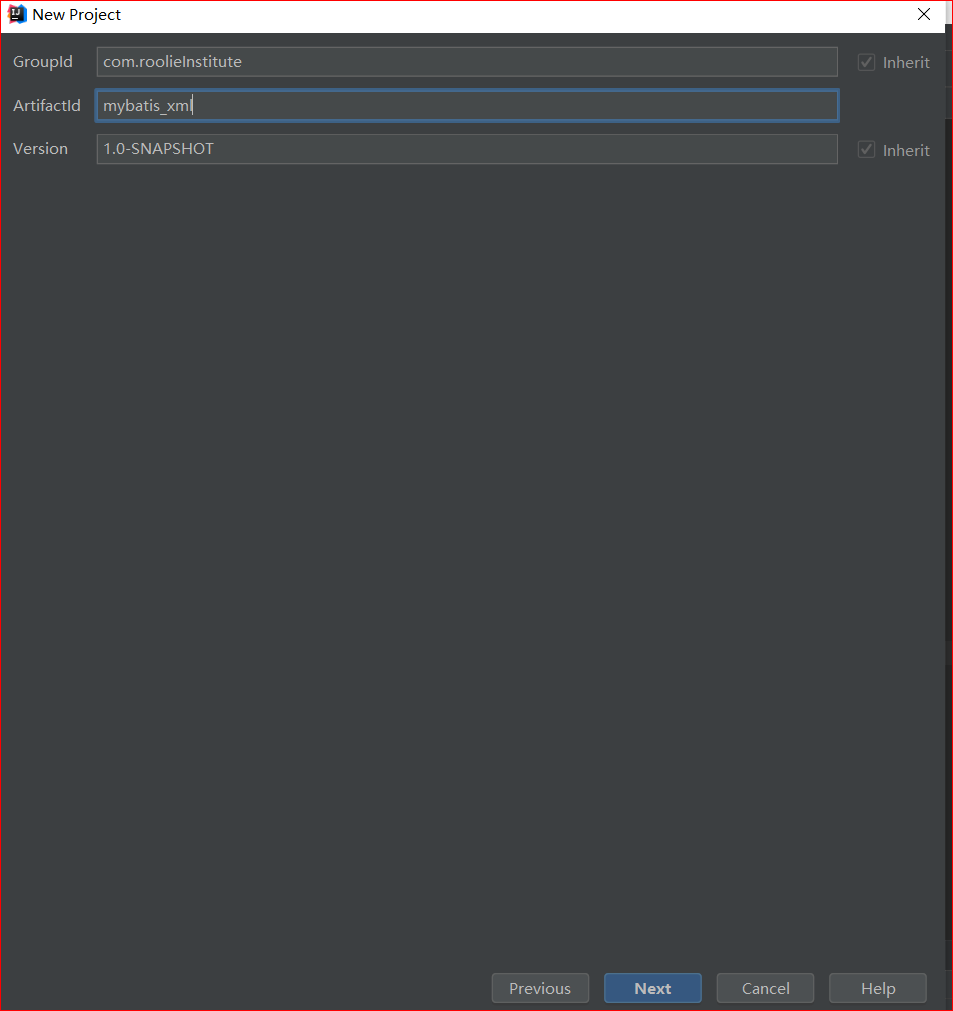

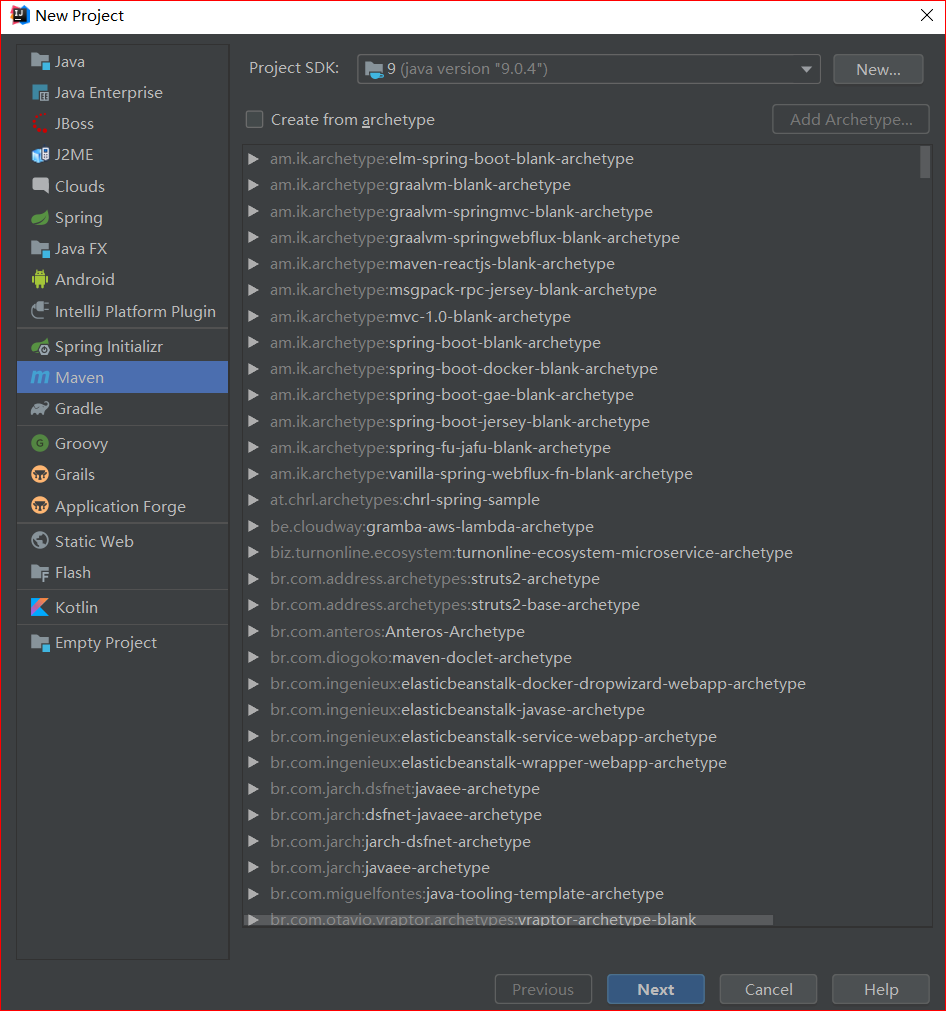

创建Maven项目

在这里插入图片描述

导入jar包位置

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>com.rookieInstitute</groupId>
    <artifactId>mybatis_xml</artifactId>
    <version>1.0-SNAPSHOT</version>
    <packaging>jar</packaging>

    <dependencies>
        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis</artifactId>
            <version>3.4.5</version>
        </dependency>
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>5.1.6</version>
        </dependency>
        <dependency>
            <groupId>log4j</groupId>
            <artifactId>log4j</artifactId>
            <version>1.2.12</version>
        </dependency>
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <version>4.10</version>
        </dependency>
    </dependencies>
</project>

编写mysql数据表和配置文件

编写mysql数据表

user表结构
数据表结构

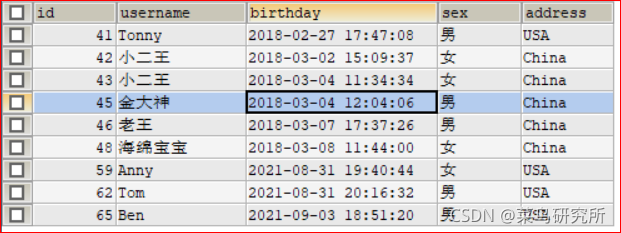

user表里的数据
表里数据
account表结构

account表数据

role表结构

role表数据

user_role表结构
user_role表结构描述
user_role表数据

配置文件

jdbcConfig.properties

存放数据连接的数据

jdbc.driver=com.mysql.jdbc.Driver
jdbc.url=jdbc:mysql://localhost:3306/自己建立的数据表
jdbc.username=自己写
jdbc.password=自己写

log4j.properties

# Set root category priority to INFO and its only appender to CONSOLE.
#log4j.rootCategory=INFO, CONSOLE            debug   info   warn error fatal
log4j.rootCategory=debug, CONSOLE, LOGFILE

# Set the enterprise logger category to FATAL and its only appender to CONSOLE.
log4j.logger.org.apache.axis.enterprise=FATAL, CONSOLE

# CONSOLE is set to be a ConsoleAppender using a PatternLayout.
log4j.appender.CONSOLE=org.apache.log4j.ConsoleAppender
log4j.appender.CONSOLE.layout=org.apache.log4j.PatternLayout
log4j.appender.CONSOLE.layout.ConversionPattern=%d{ISO8601} %-6r [%15.15t] %-5p %30.30c %x - %m\n

# LOGFILE is set to be a File appender using a PatternLayout.
log4j.appender.LOGFILE=org.apache.log4j.FileAppender
log4j.appender.LOGFILE.File=d:\axis.log
log4j.appender.LOGFILE.Append=true
log4j.appender.LOGFILE.layout=org.apache.log4j.PatternLayout
log4j.appender.LOGFILE.layout.ConversionPattern=%d{ISO8601} %-6r [%15.15t] %-5p %30.30c %x - %m\n

SqlMapConfig.xml

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE configuration
        PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>
    <!--配置properties
    可以在标签内部配置连接数据库的信息。也可以通过属性引用外部配置文件信息
    resource属性:
    用于指定配置文件的位置，是按照类路径的写法来写，并且必须存在于类路径下。
    url属性：
    是要求按照Url的写法来写地址
    URL:同意资源定位符。唯一标识一个资源的位置
    写法：
    http://localhost:8080/mybatisServer/demo1Servlet
    协议    主机      端口 URI
    URI:统一资源标识符。在应用中可以唯一定位一个资源-->
    <properties url="file:///D:/Java/mybatis_xml/src/main/resources/jdbcConfig.properties" ></properties>

    <!--使用typeAliases配置别名，它只能配置domain中类的别名-->
    <typeAliases>
        <!--用于指定要配置别名的包,当指定后该包下的实体类都会注册别名，并且类名就是别名，不在区分大小写-->
        <package name="com.rookieInstitute.domain"/>
    </typeAliases>
    <!--配置环境-->
    <environments default="mysql">
        <!--配置mysql环境-->
        <environment id="mysql">
            <!--配置事务-->
            <transactionManager type="JDBC"></transactionManager>
            <!--配置连接池-->
            <dataSource type="POOLED">
                <property name="driver" value="${jdbc.driver}"/>
                <property name="url" value="${jdbc.url}"/>
                <property name="username" value="${jdbc.username}"/>
                <property name="password" value="${jdbc.password}"/>
            </dataSource>
        </environment>
    </environments>
    <!--映射文件的位置-->
    <mappers>
        <!--package用于指定dao接口所在的包，当指定完之后就不需要再写mapper以及resource或者classl-->
        <package name="com.rookieInstitute.dao"/>
    </mappers>
</configuration>

CRUD的基础操作

查询所有

UserDao中添加：

	/**
     * @Description: 查询所有
     * @Param: []
     * @return: java.util.List<com.rookieInstitute.domain.User>
     * @Author: Mr.King
     * @Date: 2021/9/18
     */
    List<User> findAll();

UserDao.xml中添加：

	<!--查询所有-->
    <select id="findAll" resultMap="userMap" >
        select * from USER ;
    </select>

测试代码：

	/**
     * @Description: 测试查询所有
     * @Param: []
     * @return: void
     * @Author: Mr.King
     * @Date: 2021/9/18
     */
    @Test
    public void testFindAll(){
        //执行查询所有方法
        List<User> users = userDao.findAll();
        for (User user : users) {
            System.out.println(user);
        }
    }

结果展示:

2021-09-18 16:01:30,821 188    [           main] DEBUG ansaction.jdbc.JdbcTransaction  - Opening JDBC Connection
2021-09-18 16:01:31,008 375    [           main] DEBUG source.pooled.PooledDataSource  - Created connection 643290333.
2021-09-18 16:01:31,008 375    [           main] DEBUG ansaction.jdbc.JdbcTransaction  - Setting autocommit to false on JDBC Connection [com.mysql.jdbc.JDBC4Connection@2657d4dd]
2021-09-18 16:01:31,008 375    [           main] DEBUG eInstitute.dao.UserDao.findAll  - ==>  Preparing: select * from USER ;
2021-09-18 16:01:31,055 422    [           main] DEBUG eInstitute.dao.UserDao.findAll  - ==> Parameters:
2021-09-18 16:01:31,086 453    [           main] DEBUG eInstitute.dao.UserDao.findAll  - <==      Total: 9
User{username='Tonny', userId=41, userAddress='USA', userSex='男', userBirthday=Tue Feb 27 17:47:08 CST 2018}
User{username='小二王', userId=42, userAddress='China', userSex='女', userBirthday=Fri Mar 02 15:09:37 CST 2018}
User{username='小二王', userId=43, userAddress='China', userSex='女', userBirthday=Sun Mar 04 11:34:34 CST 2018}
User{username='金大神', userId=45, userAddress='China', userSex='男', userBirthday=Sun Mar 04 12:04:06 CST 2018}
User{username='老王', userId=46, userAddress='China', userSex='男', userBirthday=Wed Mar 07 17:37:26 CST 2018}
User{username='海绵宝宝', userId=48, userAddress='China', userSex='女', userBirthday=Thu Mar 08 11:44:00 CST 2018}
User{username='Anny', userId=59, userAddress='USA', userSex='女', userBirthday=Tue Aug 31 19:40:44 CST 2021}
User{username='Tom', userId=62, userAddress='USA', userSex='男', userBirthday=Tue Aug 31 20:16:32 CST 2021}
User{username='Ben', userId=65, userAddress='USA', userSex='男', userBirthday=Fri Sep 03 18:51:20 CST 2021}
2021-09-18 16:01:31,086 453    [           main] DEBUG ansaction.jdbc.JdbcTransaction  - Resetting autocommit to true on JDBC Connection [com.mysql.jdbc.JDBC4Connection@2657d4dd]
2021-09-18 16:01:31,086 453    [           main] DEBUG ansaction.jdbc.JdbcTransaction  - Closing JDBC Connection [com.mysql.jdbc.JDBC4Connection@2657d4dd]
2021-09-18 16:01:31,086 453    [           main] DEBUG source.pooled.PooledDataSource  - Returned connection 643290333 to pool.

根据id查询用户

UserDao中添加：

	/**
     * @Description: 根据id查询用户
     * @Param: [id]
     * @return: com.rookieInstitute.domain.User
     * @Author: Mr.King
     * @Date: 2021/9/18
     */
    User findUserById(Integer id);

UserDao.xml中添加：

	<!--根据id查询用户-->
    <select id="findUserById" resultMap="userMap" parameterType="int">
        select * from user where id=#{id};
    </select>

测试代码：

	/**
     * @Description: 测试根据id查询用户
     * @Param: []
     * @return: void
     * @Author: Mr.King
     * @Date: 2021/9/18
     */
    @Test
    public void testUserById(){
        //执行根据id查询用户方法
        User user = userDao.findUserById(45);
        System.out.println(user);
    }

结果展示:

2021-09-18 16:03:25,833 172    [           main] DEBUG ansaction.jdbc.JdbcTransaction  - Opening JDBC Connection
2021-09-18 16:03:26,005 344    [           main] DEBUG source.pooled.PooledDataSource  - Created connection 1899600175.
2021-09-18 16:03:26,005 344    [           main] DEBUG ansaction.jdbc.JdbcTransaction  - Setting autocommit to false on JDBC Connection [com.mysql.jdbc.JDBC4Connection@7139992f]
2021-09-18 16:03:26,005 344    [           main] DEBUG itute.dao.UserDao.findUserById  - ==>  Preparing: select * from user where id=?;
2021-09-18 16:03:26,036 375    [           main] DEBUG itute.dao.UserDao.findUserById  - ==> Parameters: 45(Integer)
2021-09-18 16:03:26,052 391    [           main] DEBUG itute.dao.UserDao.findUserById  - <==      Total: 1
User{username='金大神', userId=45, userAddress='China', userSex='男', userBirthday=Sun Mar 04 12:04:06 CST 2018}
2021-09-18 16:03:26,052 391    [           main] DEBUG ansaction.jdbc.JdbcTransaction  - Resetting autocommit to true on JDBC Connection [com.mysql.jdbc.JDBC4Connection@7139992f]
2021-09-18 16:03:26,052 391    [           main] DEBUG ansaction.jdbc.JdbcTransaction  - Closing JDBC Connection [com.mysql.jdbc.JDBC4Connection@7139992f]
2021-09-18 16:03:26,052 391    [           main] DEBUG source.pooled.PooledDataSource  - Returned connection 1899600175 to pool.

保存用户

UserDao中添加：

	/**
     * @Description: 保存用户
     * @Param: [user]
     * @return: void
     * @Author: Mr.King
     * @Date: 2021/9/18
     */
    void saveUser(User user);

UserDao.xml中添加：

	<!--保存用户-->
    <insert id="saveUser" parameterType="com.rookieInstitute.domain.User">
        insert into user(username,sex,address,birthday) values(#{username},#{userSex},#{userAddress},#{userBirthday});
    </insert>

测试代码：

	/**
     * @Description: 测试保存用户
     * @Param: []
     * @return: void
     * @Author: Mr.King
     * @Date: 2021/9/18
     */
    @Test
    public void testSaveUser(){
        //执行保存用户方法
        User user=new User();
        user.setUsername("saveOne");
        user.setUserSex("男");
        user.setUserAddress("jialidun");
        user.setUserBirthday(new Date());
        userDao.saveUser(user);

        testFindAll();
    }

结果展示:

2021-09-18 16:04:52,111 172    [           main] DEBUG ansaction.jdbc.JdbcTransaction  - Opening JDBC Connection
2021-09-18 16:04:52,267 328    [           main] DEBUG source.pooled.PooledDataSource  - Created connection 554348863.
2021-09-18 16:04:52,267 328    [           main] DEBUG ansaction.jdbc.JdbcTransaction  - Setting autocommit to false on JDBC Connection [com.mysql.jdbc.JDBC4Connection@210ab13f]
2021-09-18 16:04:52,267 328    [           main] DEBUG Institute.dao.UserDao.saveUser  - ==>  Preparing: insert into user(username,sex,address,birthday) values(?,?,?,?);
2021-09-18 16:04:52,298 359    [           main] DEBUG Institute.dao.UserDao.saveUser  - ==> Parameters: saveOne(String), 男(String), jialidun(String), 2021-09-18 16:04:52.095(Timestamp)
2021-09-18 16:04:52,298 359    [           main] DEBUG Institute.dao.UserDao.saveUser  - <==    Updates: 1
2021-09-18 16:04:52,298 359    [           main] DEBUG eInstitute.dao.UserDao.findAll  - ==>  Preparing: select * from USER ;
2021-09-18 16:04:52,298 359    [           main] DEBUG eInstitute.dao.UserDao.findAll  - ==> Parameters:
2021-09-18 16:04:52,314 375    [           main] DEBUG eInstitute.dao.UserDao.findAll  - <==      Total: 10
User{username='Tonny', userId=41, userAddress='USA', userSex='男', userBirthday=Tue Feb 27 17:47:08 CST 2018}
User{username='小二王', userId=42, userAddress='China', userSex='女', userBirthday=Fri Mar 02 15:09:37 CST 2018}
User{username='小二王', userId=43, userAddress='China', userSex='女', userBirthday=Sun Mar 04 11:34:34 CST 2018}
User{username='金大神', userId=45, userAddress='China', userSex='男', userBirthday=Sun Mar 04 12:04:06 CST 2018}
User{username='老王', userId=46, userAddress='China', userSex='男', userBirthday=Wed Mar 07 17:37:26 CST 2018}
User{username='海绵宝宝', userId=48, userAddress='China', userSex='女', userBirthday=Thu Mar 08 11:44:00 CST 2018}
User{username='Anny', userId=59, userAddress='USA', userSex='女', userBirthday=Tue Aug 31 19:40:44 CST 2021}
User{username='Tom', userId=62, userAddress='USA', userSex='男', userBirthday=Tue Aug 31 20:16:32 CST 2021}
User{username='Ben', userId=65, userAddress='USA', userSex='男', userBirthday=Fri Sep 03 18:51:20 CST 2021}
User{username='saveOne', userId=67, userAddress='jialidun', userSex='男', userBirthday=Sat Sep 18 16:04:52 CST 2021}
2021-09-18 16:04:52,314 375    [           main] DEBUG ansaction.jdbc.JdbcTransaction  - Committing JDBC Connection [com.mysql.jdbc.JDBC4Connection@210ab13f]
2021-09-18 16:04:52,330 391    [           main] DEBUG ansaction.jdbc.JdbcTransaction  - Resetting autocommit to true on JDBC Connection [com.mysql.jdbc.JDBC4Connection@210ab13f]
2021-09-18 16:04:52,330 391    [           main] DEBUG ansaction.jdbc.JdbcTransaction  - Closing JDBC Connection [com.mysql.jdbc.JDBC4Connection@210ab13f]
2021-09-18 16:04:52,330 391    [           main] DEBUG source.pooled.PooledDataSource  - Returned connection 554348863 to pool.

更新用户信息

UserDao中添加：

	/**
     * @Description: 更新用户信息
     * @Param: [user]
     * @return: void
     * @Author: Mr.King
     * @Date: 2021/9/18
     */
    void updateUser(User user);

UserDao.xml中添加：

	<!--更新用户信息-->
    <update id="updateUser" parameterType="com.rookieInstitute.domain.User">
        update user set username=#{username},address=#{userAddress},sex=#{userSex},birthday=#{userBirthday} where id=#{userId};
    </update>

测试代码：

 	/**
     * @Description: 测试更新用户信息
     * @Param: []
     * @return: void
     * @Author: Mr.King
     * @Date: 2021/9/18
     */
    @Test
    public void testUpdateUser(){
        //执行更新用户信息方法
        User user=new User();
        user.setUserId(66);
        user.setUsername("saveOne1");
        user.setUserSex("男");
        user.setUserAddress("jialidun");
        user.setUserBirthday(new Date());
        userDao.updateUser(user);

        testFindAll();
    }

结果展示:

2021-09-18 16:08:54,202 172    [           main] DEBUG ansaction.jdbc.JdbcTransaction  - Opening JDBC Connection
2021-09-18 16:08:54,374 344    [           main] DEBUG source.pooled.PooledDataSource  - Created connection 554348863.
2021-09-18 16:08:54,374 344    [           main] DEBUG ansaction.jdbc.JdbcTransaction  - Setting autocommit to false on JDBC Connection [com.mysql.jdbc.JDBC4Connection@210ab13f]
2021-09-18 16:08:54,374 344    [           main] DEBUG stitute.dao.UserDao.updateUser  - ==>  Preparing: update user set username=?,address=?,sex=?,birthday=? where id=?;
2021-09-18 16:08:54,421 391    [           main] DEBUG stitute.dao.UserDao.updateUser  - ==> Parameters: saveOne1(String), jialidun(String), 男(String), 2021-09-18 16:08:54.202(Timestamp), 67(Integer)
2021-09-18 16:08:54,421 391    [           main] DEBUG stitute.dao.UserDao.updateUser  - <==    Updates: 1
2021-09-18 16:08:54,421 391    [           main] DEBUG eInstitute.dao.UserDao.findAll  - ==>  Preparing: select * from USER ;
2021-09-18 16:08:54,421 391    [           main] DEBUG eInstitute.dao.UserDao.findAll  - ==> Parameters:
2021-09-18 16:08:54,437 407    [           main] DEBUG eInstitute.dao.UserDao.findAll  - <==      Total: 10
User{username='Tonny', userId=41, userAddress='USA', userSex='男', userBirthday=Tue Feb 27 17:47:08 CST 2018}
User{username='小二王', userId=42, userAddress='China', userSex='女', userBirthday=Fri Mar 02 15:09:37 CST 2018}
User{username='小二王', userId=43, userAddress='China', userSex='女', userBirthday=Sun Mar 04 11:34:34 CST 2018}
User{username='金大神', userId=45, userAddress='China', userSex='男', userBirthday=Sun Mar 04 12:04:06 CST 2018}
User{username='老王', userId=46, userAddress='China', userSex='男', userBirthday=Wed Mar 07 17:37:26 CST 2018}
User{username='海绵宝宝', userId=48, userAddress='China', userSex='女', userBirthday=Thu Mar 08 11:44:00 CST 2018}
User{username='Anny', userId=59, userAddress='USA', userSex='女', userBirthday=Tue Aug 31 19:40:44 CST 2021}
User{username='Tom', userId=62, userAddress='USA', userSex='男', userBirthday=Tue Aug 31 20:16:32 CST 2021}
User{username='Ben', userId=65, userAddress='USA', userSex='男', userBirthday=Fri Sep 03 18:51:20 CST 2021}
User{username='saveOne1', userId=67, userAddress='jialidun', userSex='男', userBirthday=Sat Sep 18 16:08:54 CST 2021}
2021-09-18 16:08:54,452 422    [           main] DEBUG ansaction.jdbc.JdbcTransaction  - Committing JDBC Connection [com.mysql.jdbc.JDBC4Connection@210ab13f]
2021-09-18 16:08:54,452 422    [           main] DEBUG ansaction.jdbc.JdbcTransaction  - Resetting autocommit to true on JDBC Connection [com.mysql.jdbc.JDBC4Connection@210ab13f]
2021-09-18 16:08:54,452 422    [           main] DEBUG ansaction.jdbc.JdbcTransaction  - Closing JDBC Connection [com.mysql.jdbc.JDBC4Connection@210ab13f]
2021-09-18 16:08:54,452 422    [           main] DEBUG source.pooled.PooledDataSource  - Returned connection 554348863 to pool.

根据id删除用户

UserDao中添加：

	/**
     * @Description: 根据id删除用户
     * @Param: [id]
     * @return: void
     * @Author: Mr.King
     * @Date: 2021/9/18
     */
    void deleteUserById(Integer id);

UserDao.xml中添加：

	<!--根据id删除用户-->
    <delete id="deleteUserById" parameterType="int">
        delete from user where id=#{id};
    </delete>

测试代码：

	/**
     * @Description: 测试通过id删除用户
     * @Param: []
     * @return: void
     * @Author: Mr.King
     * @Date: 2021/9/18
     */
    @Test
    public void testDeleteUserById(){
        //执行通过id删除用户方法
        userDao.deleteUserById(66);

        testFindAll();
    }

结果展示:

2021-09-18 16:09:58,051 177    [           main] DEBUG ansaction.jdbc.JdbcTransaction  - Opening JDBC Connection
2021-09-18 16:09:58,207 333    [           main] DEBUG source.pooled.PooledDataSource  - Created connection 554348863.
2021-09-18 16:09:58,207 333    [           main] DEBUG ansaction.jdbc.JdbcTransaction  - Setting autocommit to false on JDBC Connection [com.mysql.jdbc.JDBC4Connection@210ab13f]
2021-09-18 16:09:58,223 349    [           main] DEBUG ute.dao.UserDao.deleteUserById  - ==>  Preparing: delete from user where id=?;
2021-09-18 16:09:58,238 364    [           main] DEBUG ute.dao.UserDao.deleteUserById  - ==> Parameters: 66(Integer)
2021-09-18 16:09:58,238 364    [           main] DEBUG ute.dao.UserDao.deleteUserById  - <==    Updates: 0
2021-09-18 16:09:58,238 364    [           main] DEBUG eInstitute.dao.UserDao.findAll  - ==>  Preparing: select * from USER ;
2021-09-18 16:09:58,238 364    [           main] DEBUG eInstitute.dao.UserDao.findAll  - ==> Parameters:
2021-09-18 16:09:58,254 380    [           main] DEBUG eInstitute.dao.UserDao.findAll  - <==      Total: 10
User{username='Tonny', userId=41, userAddress='USA', userSex='男', userBirthday=Tue Feb 27 17:47:08 CST 2018}
User{username='小二王', userId=42, userAddress='China', userSex='女', userBirthday=Fri Mar 02 15:09:37 CST 2018}
User{username='小二王', userId=43, userAddress='China', userSex='女', userBirthday=Sun Mar 04 11:34:34 CST 2018}
User{username='金大神', userId=45, userAddress='China', userSex='男', userBirthday=Sun Mar 04 12:04:06 CST 2018}
User{username='老王', userId=46, userAddress='China', userSex='男', userBirthday=Wed Mar 07 17:37:26 CST 2018}
User{username='海绵宝宝', userId=48, userAddress='China', userSex='女', userBirthday=Thu Mar 08 11:44:00 CST 2018}
User{username='Anny', userId=59, userAddress='USA', userSex='女', userBirthday=Tue Aug 31 19:40:44 CST 2021}
User{username='Tom', userId=62, userAddress='USA', userSex='男', userBirthday=Tue Aug 31 20:16:32 CST 2021}
User{username='Ben', userId=65, userAddress='USA', userSex='男', userBirthday=Fri Sep 03 18:51:20 CST 2021}
User{username='saveOne1', userId=67, userAddress='jialidun', userSex='男', userBirthday=Sat Sep 18 16:08:54 CST 2021}
2021-09-18 16:09:58,254 380    [           main] DEBUG ansaction.jdbc.JdbcTransaction  - Committing JDBC Connection [com.mysql.jdbc.JDBC4Connection@210ab13f]
2021-09-18 16:09:58,254 380    [           main] DEBUG ansaction.jdbc.JdbcTransaction  - Resetting autocommit to true on JDBC Connection [com.mysql.jdbc.JDBC4Connection@210ab13f]
2021-09-18 16:09:58,254 380    [           main] DEBUG ansaction.jdbc.JdbcTransaction  - Closing JDBC Connection [com.mysql.jdbc.JDBC4Connection@210ab13f]
2021-09-18 16:09:58,254 380    [           main] DEBUG source.pooled.PooledDataSource  - Returned connection 554348863 to pool.

模糊查询

UserDao中添加：

	/**
     * @Description: 模糊查询
     * @Param: [username]
     * @return: java.util.List<com.rookieInstitute.domain.User>
     * @Author: Mr.King
     * @Date: 2021/9/18
     */
    List<User> findByUsername(String username);

UserDao.xml中添加：

	<!--模糊查询-->
    <select id="findByUsername" resultMap="userMap" parameterType="String">
        select * from user where username like #{username};
    </select>

测试代码：

	 /**
     * @Description: 测试模糊查询
     * @Param: []
     * @return: void
     * @Author: Mr.King
     * @Date: 2021/9/18
     */
    @Test
    public void testFindByName(){
        //执行模糊查询方法
        List<User> users = userDao.findByUsername("%王%");

        for (User user : users) {
            System.out.println(user);
        }
    }

结果展示:

2021-09-18 16:11:23,645 187    [           main] DEBUG ansaction.jdbc.JdbcTransaction  - Opening JDBC Connection
2021-09-18 16:11:23,802 344    [           main] DEBUG source.pooled.PooledDataSource  - Created connection 1899600175.
2021-09-18 16:11:23,802 344    [           main] DEBUG ansaction.jdbc.JdbcTransaction  - Setting autocommit to false on JDBC Connection [com.mysql.jdbc.JDBC4Connection@7139992f]
2021-09-18 16:11:23,802 344    [           main] DEBUG ute.dao.UserDao.findByUsername  - ==>  Preparing: select * from user where username like ?;
2021-09-18 16:11:23,833 375    [           main] DEBUG ute.dao.UserDao.findByUsername  - ==> Parameters: %王%(String)
2021-09-18 16:11:23,849 391    [           main] DEBUG ute.dao.UserDao.findByUsername  - <==      Total: 3
User{username='小二王', userId=42, userAddress='China', userSex='女', userBirthday=Fri Mar 02 15:09:37 CST 2018}
User{username='小二王', userId=43, userAddress='China', userSex='女', userBirthday=Sun Mar 04 11:34:34 CST 2018}
User{username='老王', userId=46, userAddress='China', userSex='男', userBirthday=Wed Mar 07 17:37:26 CST 2018}
2021-09-18 16:11:23,849 391    [           main] DEBUG ansaction.jdbc.JdbcTransaction  - Resetting autocommit to true on JDBC Connection [com.mysql.jdbc.JDBC4Connection@7139992f]
2021-09-18 16:11:23,849 391    [           main] DEBUG ansaction.jdbc.JdbcTransaction  - Closing JDBC Connection [com.mysql.jdbc.JDBC4Connection@7139992f]
2021-09-18 16:11:23,849 391    [           main] DEBUG source.pooled.PooledDataSource  - Returned connection 1899600175 to pool.

查询用户数目

UserDao中添加：

	/**
     * @Description: 查询用户数量
     * @Param: []
     * @return: int
     * @Author: Mr.King
     * @Date: 2021/9/18
     */
    int findTotal();

UserDao.xml中添加：

	<!--查询用户数目-->
    <select id="findTotal" resultType="int">
        select count(*) from user;
    </select>

测试代码：

	/**
     * @Description: 测试查询用户数目
     * @Param: []
     * @return: void
     * @Author: Mr.King
     * @Date: 2021/9/18
     */
    @Test
    public void testFindTotal(){
        //执行查询用户数目方法
        int num=userDao.findTotal();

        System.out.println("用户数目为："+num);
    }

结果展示:

2021-09-18 16:12:34,943 188    [           main] DEBUG ansaction.jdbc.JdbcTransaction  - Opening JDBC Connection
2021-09-18 16:12:35,130 375    [           main] DEBUG source.pooled.PooledDataSource  - Created connection 643290333.
2021-09-18 16:12:35,130 375    [           main] DEBUG ansaction.jdbc.JdbcTransaction  - Setting autocommit to false on JDBC Connection [com.mysql.jdbc.JDBC4Connection@2657d4dd]
2021-09-18 16:12:35,130 375    [           main] DEBUG nstitute.dao.UserDao.findTotal  - ==>  Preparing: select count(*) from user;
2021-09-18 16:12:35,161 406    [           main] DEBUG nstitute.dao.UserDao.findTotal  - ==> Parameters:
2021-09-18 16:12:35,193 438    [           main] DEBUG nstitute.dao.UserDao.findTotal  - <==      Total: 1
用户数目为：10
2021-09-18 16:12:35,193 438    [           main] DEBUG ansaction.jdbc.JdbcTransaction  - Resetting autocommit to true on JDBC Connection [com.mysql.jdbc.JDBC4Connection@2657d4dd]
2021-09-18 16:12:35,193 438    [           main] DEBUG ansaction.jdbc.JdbcTransaction  - Closing JDBC Connection [com.mysql.jdbc.JDBC4Connection@2657d4dd]
2021-09-18 16:12:35,193 438    [           main] DEBUG source.pooled.PooledDataSource  - Returned connection 643290333 to pool.

复杂关系操作

一对一

创建Account类，一个Account对象只可以对应一个User对象

Account

package com.rookieInstitute.domain;

import java.io.Serializable;

/**
 * @program: mybatis_xml
 * @description:
 * @author: Mr.King
 * @create: 2021-09-18 17:25
 **/

public class Account implements Serializable {
    private Integer id;
    private Integer uid;
    private Double money;

    //一对一,一个账户只可以赋予一个用户
    private User user;

    public User getUser() {
        return user;
    }

    public void setUser(User user) {
        this.user = user;
    }

    public Integer getId() {
        return id;
    }

    public void setId(Integer id) {
        this.id = id;
    }

    public Integer getUid() {
        return uid;
    }

    public void setUid(Integer uid) {
        this.uid = uid;
    }

    public Double getMoney() {
        return money;
    }

    public void setMoney(Double money) {
        this.money = money;
    }

    @Override
    public String toString() {
        return "Account{" +
                "id=" + id +
                ", uid=" + uid +
                ", money=" + money +
                '}';
    }
}

AccountDao

package com.rookieInstitute.dao;

import com.rookieInstitute.domain.Account;

import java.util.List;

/**
 * @program: mybatis_xml
 * @description:
 * @author: Mr.King
 * @create: 2021-09-18 17:32
 **/

public interface AccountDao {
    /**
     * @Description: 一对一查询
     * @Param: []
     * @return: java.util.List<com.rookieInstitute.domain.Account>
     * @Author: Mr.King
     * @Date: 2021/9/18
     */
    public List<Account> findAllAccount();
}

AccountDao.xml

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper
        PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-mapper.dtd">

<mapper namespace="com.rookieInstitute.dao.AccountDao">
    <!--定义封装account和user的result-->
    <resultMap id="accountUserMap" type="account">
        <id property="id" column="aid"></id>
        <result property="uid" column="uid"></result>
        <result property="money" column="money"></result>
        <!--一对一的关系映射，配置封装user的内容-->
        <association property="user" column="uid" javaType="user">
            <id property="userId" column="id"></id>
            <result property="username" column="username"></result>
            <result property="userAddress" column="address"></result>
            <result property="userSex" column="sex"></result>
            <result property="userBirthday" column="birthday"></result>
        </association>
    </resultMap>

    <!--一对一查询-->
    <select id="findAllAccount" resultMap="accountUserMap" >
        select u.*,a.aid as aid,a.uid,a.money from account a,user u where u.id=a.uid;
    </select>
</mapper>

测试代码：

    /**
     * @Description: 测试一对一查询
     * @Param: []
     * @return: void
     * @Author: Mr.King
     * @Date: 2021/9/18
     */
    @Test
    public void testFindAllAccount(){
        //执行一对一查询方法
        List<Account> accounts=accountDao.findAllAccount();
        for (Account account : accounts) {
            System.out.println(account);
            System.out.println(account.getUser());
        }
    }

测试结果:

2021-09-18 17:54:05,403 203    [           main] DEBUG ansaction.jdbc.JdbcTransaction  - Opening JDBC Connection
2021-09-18 17:54:05,575 375    [           main] DEBUG source.pooled.PooledDataSource  - Created connection 1552326679.
2021-09-18 17:54:05,575 375    [           main] DEBUG ansaction.jdbc.JdbcTransaction  - Setting autocommit to false on JDBC Connection [com.mysql.jdbc.JDBC4Connection@5c86a017]
2021-09-18 17:54:05,575 375    [           main] DEBUG .dao.AccountDao.findAllAccount  - ==>  Preparing: select u.*,a.aid as aid,a.uid,a.money from account a,user u where u.id=a.uid;
2021-09-18 17:54:05,590 390    [           main] DEBUG .dao.AccountDao.findAllAccount  - ==> Parameters:
2021-09-18 17:54:05,621 421    [           main] DEBUG .dao.AccountDao.findAllAccount  - <==      Total: 3
Account{id=1, uid=41, money=1000.0}
User{username='Tonny', userId=41, userAddress='USA', userSex='男', userBirthday=Tue Feb 27 17:47:08 CST 2018}
Account{id=2, uid=45, money=1000.0}
User{username='金大神', userId=45, userAddress='China', userSex='男', userBirthday=Sun Mar 04 12:04:06 CST 2018}
Account{id=3, uid=41, money=2000.0}
User{username='Tonny', userId=41, userAddress='USA', userSex='男', userBirthday=Tue Feb 27 17:47:08 CST 2018}
2021-09-18 17:54:05,621 421    [           main] DEBUG ansaction.jdbc.JdbcTransaction  - Resetting autocommit to true on JDBC Connection [com.mysql.jdbc.JDBC4Connection@5c86a017]
2021-09-18 17:54:05,621 421    [           main] DEBUG ansaction.jdbc.JdbcTransaction  - Closing JDBC Connection [com.mysql.jdbc.JDBC4Connection@5c86a017]
2021-09-18 17:54:05,621 421    [           main] DEBUG source.pooled.PooledDataSource  - Returned connection 1552326679 to pool.

一对多

创建Role类，一个Role对象可以对应多个User对象

Role

package com.rookieInstitute.domain;

import java.util.List;

/**
 * @program: mybatis_xml
 * @description:
 * @author: Mr.King
 * @create: 2021-09-18 16:14
 **/

public class Role {
    private int id;
    private String roleName;
    private String roleDesc;

    //一对多的关系映射，一个角色可以赋予多个用户
    private List<User> users;

    public List<User> getUsers() {
        return users;
    }

    public void setUsers(List<User> users) {
        this.users = users;
    }

    public int getId() {
        return id;
    }

    public void setId(int id) {
        this.id = id;
    }

    public String getRoleName() {
        return roleName;
    }

    public void setRoleName(String roleName) {
        this.roleName = roleName;
    }

    public String getRoleDesc() {
        return roleDesc;
    }

    public void setRoleDesc(String roleDesc) {
        this.roleDesc = roleDesc;
    }

    @Override
    public String toString() {
        return "Role{" +
                "id=" + id +
                ", roleName='" + roleName + '\'' +
                ", roleDesc='" + roleDesc + '\'' +
                '}';
    }
}

RoleDao

package com.rookieInstitute.dao;

import com.rookieInstitute.domain.Role;

import java.util.List;

/**
 * @program: mybatis_xml
 * @description:
 * @author: Mr.King
 * @create: 2021-09-18 17:23
 **/

public interface RoleDao {
    /**
     * @Description: 查询所有同时包含用户名和地址
     * @Param: []
     * @return: java.util.List<com.rookieInstitute.domain.Role>
     * @Author: Mr.King
     * @Date: 2021/9/18
     */
    List<Role> findAll();
}

RoleDao.xml

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper
        PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-mapper.dtd">

<mapper namespace="com.rookieInstitute.dao.RoleDao">
    <!--定义role表的resultMap-->
    <resultMap id="roleMap" type="role">
        <id property="id" column="rid"></id>
        <result property="roleName" column="role_name"></result>
        <result property="roleDesc" column="role_desc"></result>

        <collection property="users" ofType="user">
            <id property="userId" column="id"></id>
            <result property="username" column="username"></result>
            <result property="userSex" column="sex"></result>
            <result property="userAddress" column="address"></result>
            <result property="userBirthday" column="birthday"></result>
        </collection>
    </resultMap>

    <!--查询所有-->
    <select id="findAll" resultMap="roleMap">
        SELECT u.*,r.id AS rid,r.role_name,r.role_desc FROM role r
         LEFT OUTER JOIN user_role ur ON r.id=ur.rid
         LEFT OUTER JOIN USER u ON u.id=ur.uid;
    </select>

</mapper>

测试代码：

 /**
     * @Description: 查询所有
     * @Param: []
     * @return: void
     * @Author: Mr.King
     * @Date: 2021/9/18
     */
    @Test
    public void testFindAllAccountUser(){
        List<Role> roles=roleDao.findAll();
        for (Role role : roles) {
            System.out.println("-------每个用户的信息---------");
            System.out.println(role);
            System.out.println(role.getUsers());
        }
    }

测试结果：

2021-09-18 17:59:30,667 203    [           main] DEBUG ansaction.jdbc.JdbcTransaction  - Opening JDBC Connection
2021-09-18 17:59:30,820 356    [           main] DEBUG source.pooled.PooledDataSource  - Created connection 1552326679.
2021-09-18 17:59:30,820 356    [           main] DEBUG ansaction.jdbc.JdbcTransaction  - Setting autocommit to false on JDBC Connection [com.mysql.jdbc.JDBC4Connection@5c86a017]
2021-09-18 17:59:30,836 372    [           main] DEBUG eInstitute.dao.RoleDao.findAll  - ==>  Preparing: SELECT u.*,r.id AS rid,r.role_name,r.role_desc FROM role r LEFT OUTER JOIN user_role ur ON r.id=ur.rid LEFT OUTER JOIN USER u ON u.id=ur.uid;
2021-09-18 17:59:30,851 387    [           main] DEBUG eInstitute.dao.RoleDao.findAll  - ==> Parameters:
2021-09-18 17:59:30,873 409    [           main] DEBUG eInstitute.dao.RoleDao.findAll  - <==      Total: 4
-------每个用户的信息---------
Role{id=1, roleName='院长', roleDesc='管理整个学院'}
[User{username='Tonny', userId=41, userAddress='USA', userSex='男', userBirthday=Tue Feb 27 17:47:08 CST 2018}, User{username='金大神', userId=45, userAddress='China', userSex='男', userBirthday=Sun Mar 04 12:04:06 CST 2018}]
-------每个用户的信息---------
Role{id=2, roleName='总裁', roleDesc='管理整个公司'}
[User{username='Tonny', userId=41, userAddress='USA', userSex='男', userBirthday=Tue Feb 27 17:47:08 CST 2018}]
-------每个用户的信息---------
Role{id=3, roleName='校长', roleDesc='管理整个学校'}
[]
2021-09-18 17:59:30,889 425    [           main] DEBUG ansaction.jdbc.JdbcTransaction  - Resetting autocommit to true on JDBC Connection [com.mysql.jdbc.JDBC4Connection@5c86a017]
2021-09-18 17:59:30,890 426    [           main] DEBUG ansaction.jdbc.JdbcTransaction  - Closing JDBC Connection [com.mysql.jdbc.JDBC4Connection@5c86a017]
2021-09-18 17:59:30,890 426    [           main] DEBUG source.pooled.PooledDataSource  - Returned connection 1552326679 to pool.
