[Java知识库]springboot父子工程搭建

  父工程及子父工程打包pom，只做版本控制
  二级父工程可按照功能分类，给每类工程创建子父工程
???–api：存储所有数据库表对应的bean和feign接口
???–gateway：存储所有微服务网关
???–service：存储所有微服务工程
???–util：存储公共工程
???–web：存储所有和页面渲染有关的工程

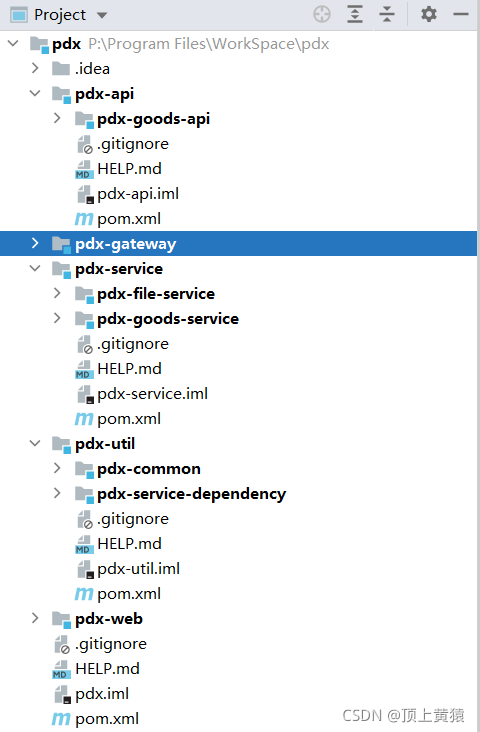

层级目录图

在这里插入图片描述

搭建父工程parent

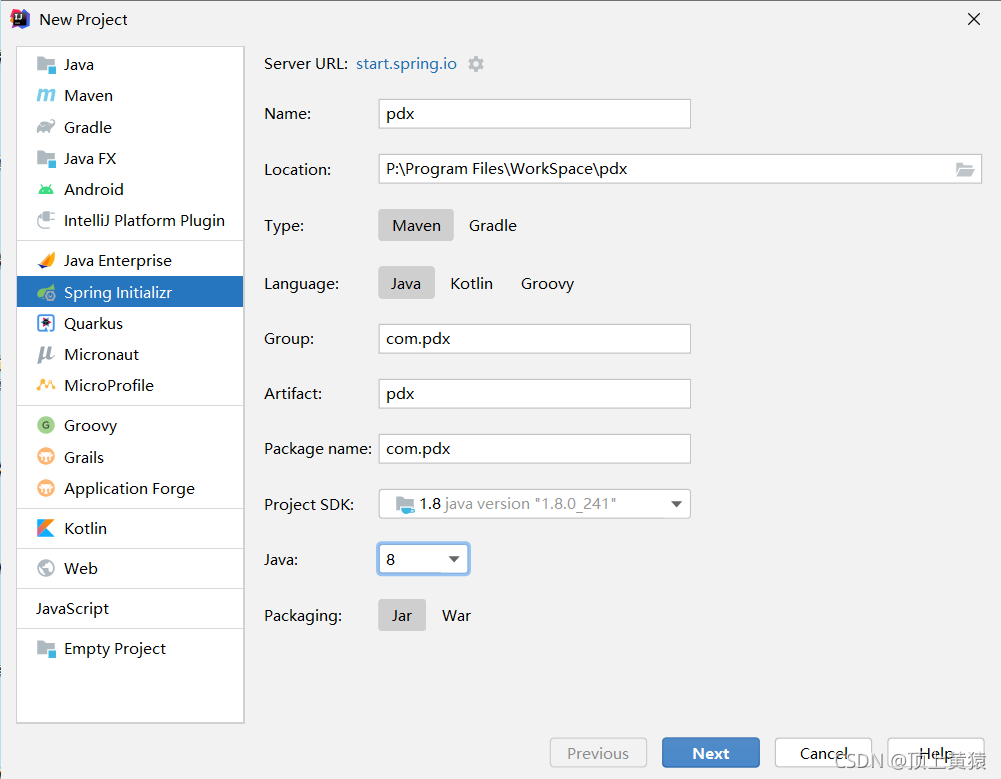

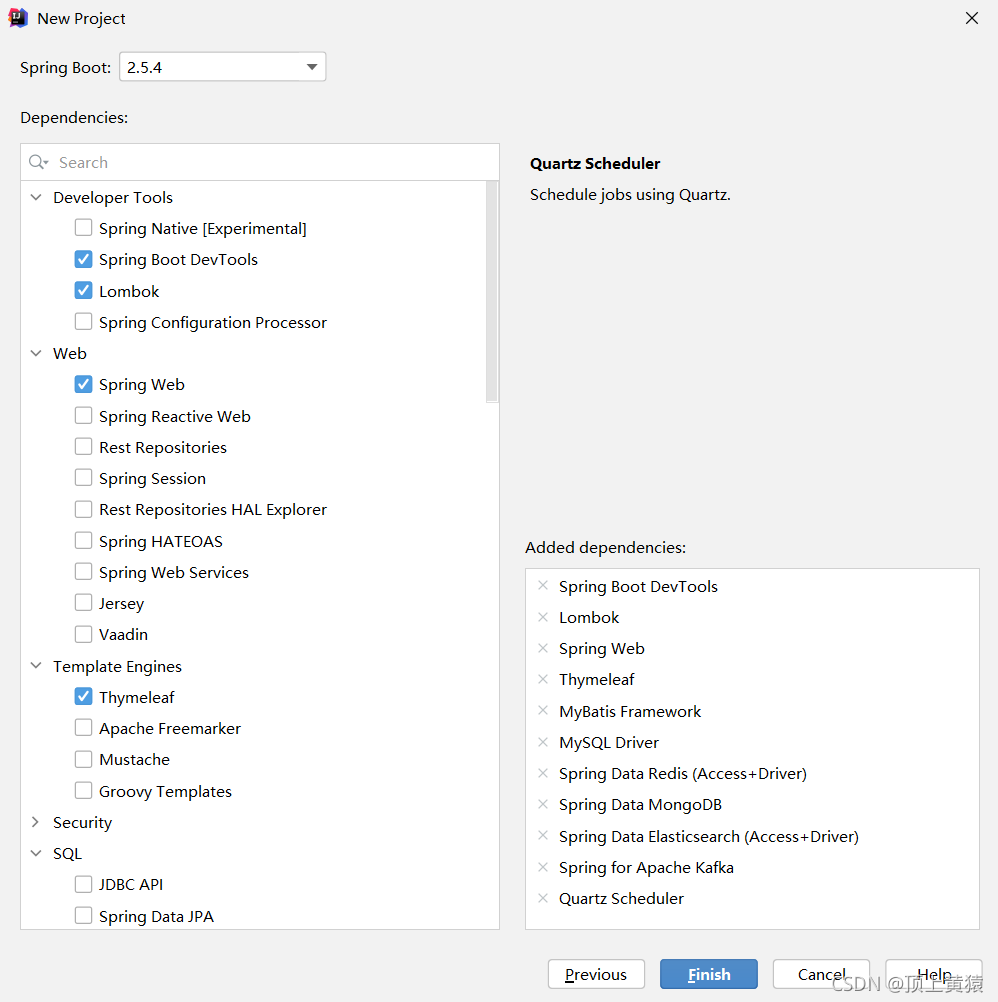

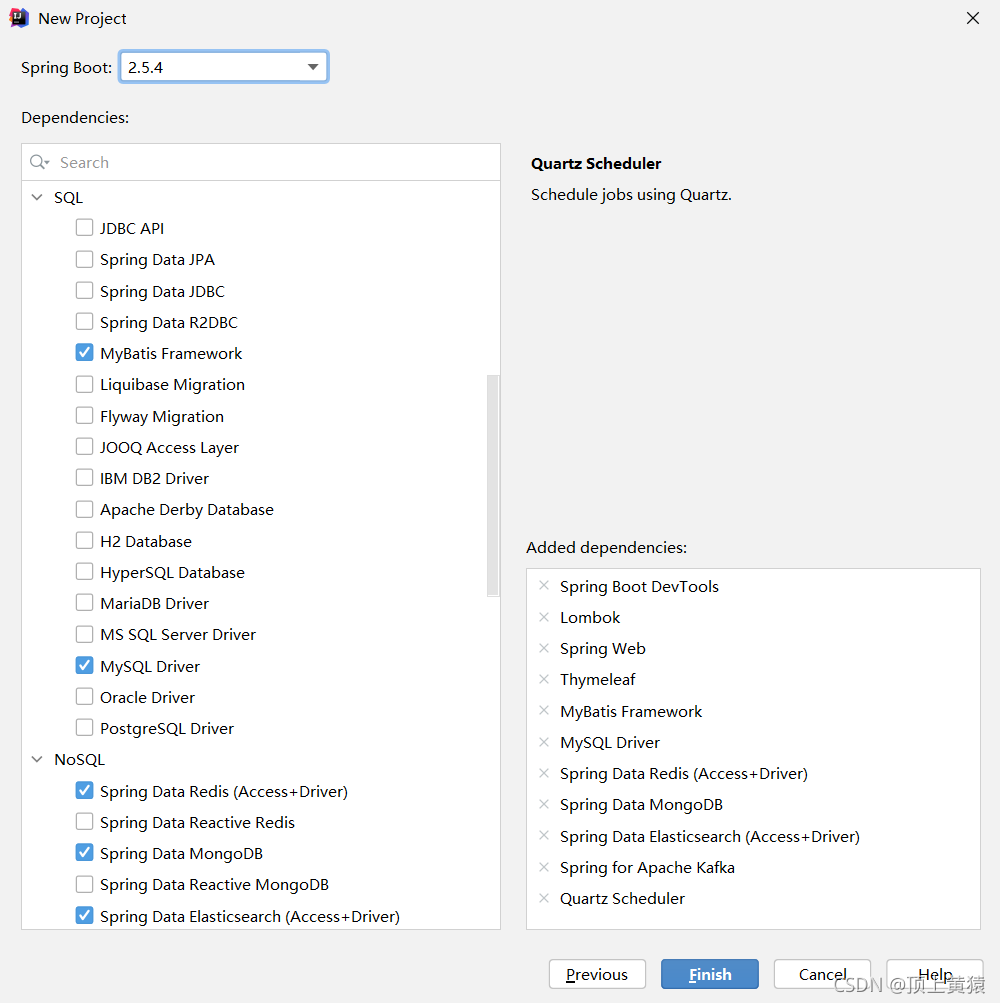

创建一个默认的spring框架的项目，推荐使用idea的自动构建
在这里插入图片描述

在这里插入图片描述

需要注意的

用到了Alibaba的依赖，需要springboot版本介于>=2.2.0，<2.3.0

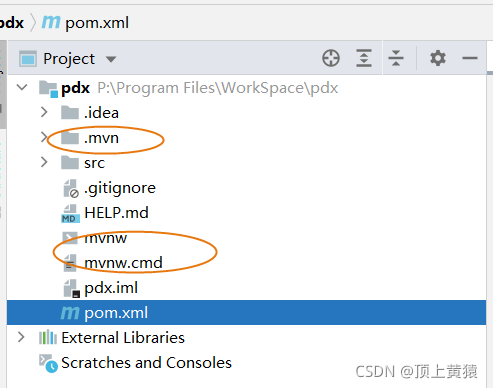

删除不用的文件及文件夹
父工程及子父工程都不需要写代码，只做版本管控制，src文件夹删掉

父工程pom

顶级父工程的pom，包含最顶级的依赖，很少，比如lombok、test

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <modules>
        <module>pdx-service</module>
        <module>pdx-api</module>
        <module>pdx-web</module>
        <module>pdx-gateway</module>
        <module>pdx-util</module>
    </modules>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.2.10.RELEASE</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>
    <groupId>com.pdx</groupId>
    <artifactId>pdx</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>pdx-parent</name>
    <description>pdx父工程（派大星）</description>
    <!--父工程pom只留所有模块都会引用的依赖-->
    <packaging>pom</packaging>
    <properties>
        <java.version>1.8</java.version>
        <spring-clould-alibaba.version>2.2.1.RELEASE</spring-clould-alibaba.version>
    </properties>
    <dependencies>
        <!--lombok-->
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>
        <!--slf4j-->
        <dependency>
            <groupId>org.slf4j</groupId>
            <artifactId>slf4j-api</artifactId>
        </dependency>
        <!--测试-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
        <!--fastjson-->
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>fastjson</artifactId>
            <version>1.2.60</version>
        </dependency>
    </dependencies>
    <!--alibaba-->
    <dependencyManagement>
        <dependencies>
            <dependency>
                <groupId>com.alibaba.cloud</groupId>
                <artifactId>spring-cloud-alibaba-dependencies</artifactId>
                <version>${spring-clould-alibaba.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
        </dependencies>
    </dependencyManagement>


</project>

抽取不常用的，但是组件中大部分需要依赖的，可以新拉一个文件，我放到pom.bak中

<dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-data-mongodb</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-data-redis</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-quartz</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-thymeleaf</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.mybatis.spring.boot</groupId>
            <artifactId>mybatis-spring-boot-starter</artifactId>
            <version>2.2.0</version>
        </dependency>
        <dependency>
            <groupId>org.springframework.kafka</groupId>
            <artifactId>spring-kafka</artifactId>
        </dependency>

        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <scope>runtime</scope>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>org.springframework.kafka</groupId>
            <artifactId>spring-kafka-test</artifactId>
            <scope>test</scope>
        </dependency>
    </dependencies>

搭建api工程

搭建api子父工程

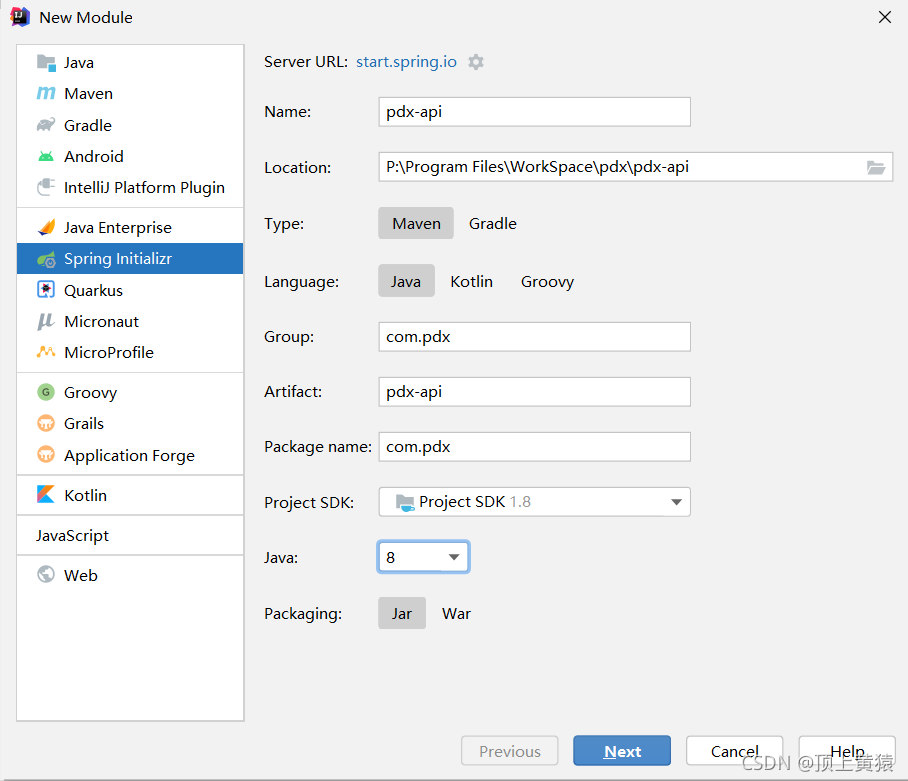

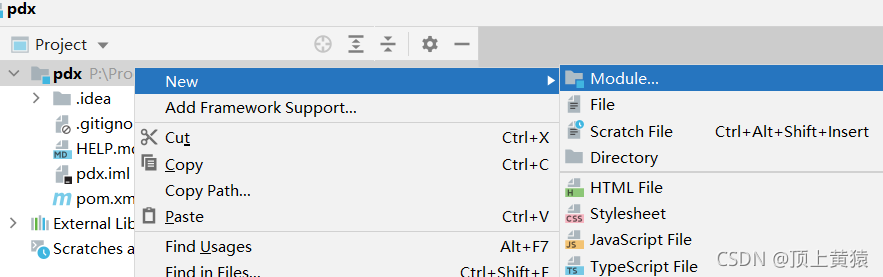

新建module
在这里插入图片描述

pom

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>pdx</artifactId>
        <groupId>com.pdx</groupId>
        <version>0.0.1-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>
    <packaging>pom</packaging>
    <modules>
        <module>pdx-goods-api</module>
    </modules>
    <artifactId>pdx-api</artifactId>
    <description>存储所有数据库表对应的bean和feign接口的子父工程</description>

    <dependencies>
        <!--MyBatis Plus-->
        <dependency>
            <groupId>com.baomidou</groupId>
            <artifactId>mybatis-plus-boot-starter</artifactId>
            <version>3.3.2</version>
            <!--scope指定provided：代表只是编译，并不是每次打包要打进去-->
            <scope>provided</scope>
        </dependency>
    </dependencies>
</project>

搭建api子工程

pom文件

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>pdx</artifactId>
        <groupId>com.pdx</groupId>
        <version>0.0.1-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>
    <packaging>pom</packaging>
    <modules>
        <module>pdx-goods-api</module>
    </modules>
    <artifactId>pdx-api</artifactId>
    <description>存储所有数据库表对应的bean和feign接口的子父工程</description>

    <dependencies>
        <!--MyBatis Plus-->
        <dependency>
            <groupId>com.baomidou</groupId>
            <artifactId>mybatis-plus-boot-starter</artifactId>
            <version>3.3.2</version>
            <!--scope指定provided：代表只是编译，并不是每次打包要打进去-->
            <scope>provided</scope>
        </dependency>
    </dependencies>
</project>

搭建网关gateway工程

pom

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>pdx</artifactId>
        <groupId>com.pdx</groupId>
        <version>0.0.1-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>
    <packaging>pom</packaging>
    <artifactId>pdx-gateway</artifactId>
    <description>存储所有微服务网关的子父工程</description>


</project>

搭建service工程

搭建service子父工程

pom

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>pdx</artifactId>
        <groupId>com.pdx</groupId>
        <version>0.0.1-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>
    <packaging>pom</packaging>
    <modules>
        <module>pdx-goods-service</module>
        <module>pdx-file-service</module>
    </modules>
    <artifactId>pdx-service</artifactId>
    <description>存储所有微服务工程的子父工程</description>

    <dependencies>
        <!--工具包依赖-->
        <dependency>
            <groupId>com.pdx</groupId>
            <artifactId>pdx-common</artifactId>
            <version>0.0.1-SNAPSHOT</version>
        </dependency>
        <!--jar依赖-->
        <dependency>
            <groupId>com.pdx</groupId>
            <artifactId>pdx-service-dependency</artifactId>
            <version>0.0.1-SNAPSHOT</version>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
                <configuration>
                    <excludes>
                        <exclude>
                            <groupId>org.projectlombok</groupId>
                            <artifactId>lombok</artifactId>
                        </exclude>
                    </excludes>
                </configuration>
            </plugin>
        </plugins>
    </build>
</project>

搭建子工程pdx-goods-service

pdx-goods-service.pom

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>pdx-service</artifactId>
        <groupId>com.pdx</groupId>
        <version>0.0.1-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>pdx-goods-service</artifactId>
    <description>实现goods的crud，对应数据库pdx_goods</description>

    <dependencies>
        <!--pdx-goods-api-->
        <dependency>
            <groupId>com.pdx</groupId>
            <artifactId>pdx-goods-api</artifactId>
            <version>0.0.1-SNAPSHOT</version>
        </dependency>
    </dependencies>
</project>

bootstrap.yml配置文件

server:
  port: 8082
spring:
  application:
    name: pdx-goods
  datasource:
    driver-class-name: com.mysql.cj.jdbc.Driver
    url: jdbc:mysql://???/shop_goods?useUnicode=true&characterEncoding=UTF-8&serverTimezone=UTC
    username: root
    password: root
  cloud:
    nacos:
      config:
        file-extension: yaml
        server-addr: localhost:8848
      discovery:
        server-addr: localhost:8848 #Nacos的注册地址

# ====================MybatisPlus====================
mybatis-plus:
  mapper-locations: mapper/*.xml #mapper-locations:复杂的操作可能需要自己写SQL，SQL可以写到xml文件中，这里指定和Dao对应的xml文件，此时我们需要在resources中创建一个mapper目录

  type-aliases-package: com.sb.mall.*.model #type-aliases-package:指定JavaBean的别名包，和MyBatis用法一样
  configuration:
    map-underscore-to-camel-case: true #map-underscore-to-camel-case:开启驼峰功能，数据库表列名如果有_，可以自动按驼峰命名规则转换
    log-impl: org.apache.ibatis.logging.stdout.StdOutImpl #log-impl:日志开启，方便测试

# ====================日志配置====================
logging:
  pattern:
    console: "%msg%n"

搭建子工程pdx-file-service

pdx-file-service.pom

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>pdx-service</artifactId>
        <groupId>com.pdx</groupId>
        <version>0.0.1-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>pdx-file-service</artifactId>
    <description>文件上传下载</description>

    <dependencies>
        <!-- Rados Java Api依赖 -->
        <dependency>
            <groupId>com.ceph</groupId>
            <artifactId>rados</artifactId>
            <version>0.6.0</version>
        </dependency>
        <!-- Cephfs 文件系统依赖 -->
        <dependency>
            <groupId>com.ceph</groupId>
            <artifactId>libcephfs</artifactId>
            <version>0.80.5</version>
        </dependency>
        <!--swift-->
        <dependency>
            <groupId>org.javaswift</groupId>
            <artifactId>joss</artifactId>
            <version>0.10.2</version>
        </dependency>
    </dependencies>

</project>

bootstrap.yml配置文件

server:
  port: 8082
spring:
  application:
    name: pdx-file
  cloud:
    nacos:
      config:
        file-extension: yaml
        server-addr: localhost:8848
      discovery:
        server-addr: localhost:8848 #Nacos的注册地址
# ====================ceph文件系统====================
ceph:
  username: cephtester:subtester #Ceph配置 主用户名：子用户名
  password: gupao #秘钥
  authUrl: http://192.168.100.131:7480/auth/1.0 #接口访问路径
  defaultContainerName: user_datainfo #默认容器名字

# ====================图片路径====================
cephurl: http://localhost:8082/file/download/

# ====================日志配置====================
logging:
  pattern:
    console: "%msg%n"

搭建公共工程util

需要用到的工具包也可以单独放到一个工程中，每次要用，直接依赖即可
pom

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>pdx</artifactId>
        <groupId>com.pdx</groupId>
        <version>0.0.1-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>
    <packaging>pom</packaging>
    <modules>
        <module>pdx-service-dependency</module>
        <module>pdx-common</module>
    </modules>
    <artifactId>pdx-util</artifactId>
    <description>存储公共工程的子父工程</description>


</project>

搭建common子父工程

pom

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>pdx-util</artifactId>
        <groupId>com.pdx</groupId>
        <version>0.0.1-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>pdx-common</artifactId>
    <description>公共工具包工程:需要用到的工具包单独放到一个工程中，每次要用，直接依赖即可</description>

    <!--cglib:对象拷贝BeanCopier-->
    <dependencies>
        <dependency>
            <groupId>cglib</groupId>
            <artifactId>cglib-nodep</artifactId>
            <version>3.3.0</version>
        </dependency>
        <!-- Spring的BeanUtils -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
            <exclusions>
                <exclusion>
                    <groupId>org.junit.vintage</groupId>
                    <artifactId>junit-vintage-engine</artifactId>
                </exclusion>
            </exclusions>
        </dependency>
        <!-- Apache的BeanUtils依赖 -->
        <dependency>
            <groupId>commons-beanutils</groupId>
            <artifactId>commons-beanutils</artifactId>
            <version>1.8.3</version>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-autoconfigure</artifactId>
        </dependency>
    </dependencies>
</project>

搭建service-dependency子父工程

pom

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>pdx-util</artifactId>
        <groupId>com.pdx</groupId>
        <version>0.0.1-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>pdx-service-dependency</artifactId>
    <description>所有service（微服务）工程公共依赖包、所有微服务工程公共配置类</description>


    <dependencies>
        <!--web包-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <!--MyBatis Plus-->
        <dependency>
            <groupId>com.baomidou</groupId>
            <artifactId>mybatis-plus-boot-starter</artifactId>
            <version>3.3.2</version>
        </dependency>
        <!--MySQL-->
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <scope>runtime</scope>
        </dependency>
        <!--Redis-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-data-redis</artifactId>
        </dependency>
        <!--Nacos-->
        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-nacos-config</artifactId>
        </dependency>
        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
            <!--discovery不加版本号会报红，无法引入，还会出现服务注册不上的问题-->
            <version>2.2.1.RELEASE</version>
        </dependency>
    </dependencies>
</project>

搭建web工程

pom

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>pdx</artifactId>
        <groupId>com.pdx</groupId>
        <version>0.0.1-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>
    <packaging>pom</packaging>
    <artifactId>pdx-web</artifactId>
    <description>存储所有和页面渲染有关工程的子父工程</description>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
                <configuration>
                    <excludes>
                        <exclude>
                            <groupId>org.projectlombok</groupId>
                            <artifactId>lombok</artifactId>
                        </exclude>
                    </excludes>
                </configuration>
            </plugin>
        </plugins>
    </build>
</project>

错误

打包报错repackage failed

Execution default of goal org.springframework.boot:spring-boot-maven-plugin: XXXX .RELEASE:repackage

只有服务模块生产可执行JAR包，其他几个模块是不需要可执行的，而我的根POM里，spring boot 默认帮我加入了如下build策略

<build>
    <plugins>
        <plugin>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-maven-plugin</artifactId>
            <configuration>
                <excludes>
                    <exclude>
                        <groupId>org.projectlombok</groupId>
                        <artifactId>lombok</artifactId>
                    </exclude>
                </excludes>
            </configuration>
        </plugin>
    </plugins>
</build>
