[Java知识库]springboot整合持久层

1. springboot整合jdbcTemplate

1.1 pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.5.5</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>
    <groupId>com.yl</groupId>
    <artifactId>jdbctemplate</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>jdbctemplate</name>
    <description>Demo project for Spring Boot</description>
    <properties>
        <java.version>1.8</java.version>
    </properties>
    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-jdbc</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <scope>runtime</scope>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>

</project>

1.2 application.properties

spring.datasource.url=jdbc:mysql://localhost:3306/demo?serverTimezone=Asia/Shanghai&useUnicode=true&characterEncoding=utf-8
spring.datasource.username=root
spring.datasource.password=root

1.3 model

package com.yl.jdbctemplate.model;

import java.io.Serializable;

public class Student implements Serializable {
    private Integer id;
    private String stuName;
    private String stuNo;
    private Integer age;
    private String stuMessage;

    @Override
    public String toString() {
        return "Student{" +
                "id=" + id +
                ", stuName='" + stuName + '\'' +
                ", stuNo='" + stuNo + '\'' +
                ", age=" + age +
                ", stuMessage='" + stuMessage + '\'' +
                '}';
    }

    public Integer getId() {
        return id;
    }

    public void setId(Integer id) {
        this.id = id;
    }

    public String getStuName() {
        return stuName;
    }

    public void setStuName(String stuName) {
        this.stuName = stuName;
    }

    public String getStuNo() {
        return stuNo;
    }

    public void setStuNo(String stuNo) {
        this.stuNo = stuNo;
    }

    public Integer getAge() {
        return age;
    }

    public void setAge(Integer age) {
        this.age = age;
    }

    public String getStuMessage() {
        return stuMessage;
    }

    public void setStuMessage(String stuMessage) {
        this.stuMessage = stuMessage;
    }
}

1.4 service

package com.yl.jdbctemplate.service;

import com.yl.jdbctemplate.model.Student;

import java.util.List;

public interface StudentService {

    int addStudent(Student student);

    int addStudent2(Student student);

    int updateStudent(Student student);

    int deleteStudentById(Integer id);

    List<Student> getAllStudent();

    List<Student> getAllStudent2();
}

1.5 serviceImpl,crud案例

package com.yl.jdbctemplate.service.impl;

import com.yl.jdbctemplate.model.Student;
import com.yl.jdbctemplate.service.StudentService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.jdbc.core.BeanPropertyRowMapper;
import org.springframework.jdbc.core.JdbcTemplate;
import org.springframework.jdbc.core.PreparedStatementCreator;
import org.springframework.jdbc.core.RowMapper;
import org.springframework.jdbc.support.GeneratedKeyHolder;
import org.springframework.stereotype.Service;

import java.sql.*;
import java.util.List;

@Service
public class StudentServiceImpl implements StudentService {
    @Autowired
    JdbcTemplate jdbcTemplate;

    @Override
    public int addStudent(Student student) {
        int result = jdbcTemplate.update("insert into student(stu_name,stu_no,age,stu_message) values(?,?,?,?) "
                ,student.getStuName(),student.getStuNo(),student.getAge(),student.getStuMessage());
        return result;
    }

    //插入数据，并且回写id
    @Override
    public int addStudent2(Student student) {
        GeneratedKeyHolder keyHolder = new GeneratedKeyHolder();
        int result = jdbcTemplate.update(new PreparedStatementCreator() {
            @Override
            public PreparedStatement createPreparedStatement(Connection con) throws SQLException {
                //插入数据后返回主键
                PreparedStatement ps = con.prepareStatement("insert into student(stu_name,stu_no,age,stu_message) values(?,?,?,?)"
                        , Statement.RETURN_GENERATED_KEYS);
                ps.setString(1,student.getStuName());
                ps.setString(2,student.getStuNo());
                ps.setInt(3,student.getAge());
                ps.setString(4,student.getStuMessage());
                return ps;
            }
        },keyHolder);
        student.setId(keyHolder.getKey().intValue());
        return result;
    }

    @Override
    public int updateStudent(Student student) {
        int result = jdbcTemplate.update("update student set stu_name=?,stu_no=?,age=?,stu_message=? where id = ?",
                student.getStuName(),student.getStuNo(),student.getAge(),student.getStuMessage(),student.getId());
        return result;
    }

    @Override
    public int deleteStudentById(Integer id) {
        int result = jdbcTemplate.update("delete from student where id = ?", id);
        return result;
    }

    //这种查询比较麻烦，要一个一个设值
    @Override
    public List<Student> getAllStudent() {
        List<Student> list = jdbcTemplate.query("select * from student", new RowMapper<Student>() {
            @Override
            public Student mapRow(ResultSet rs, int rowNum) throws SQLException {
                int id = rs.getInt("id");
                String stuName = rs.getString("stu_name");
                String stuNo = rs.getString("stu_no");
                int age = rs.getInt("age");
                String stuMessage = rs.getString("stu_message");
                Student student = new Student();
                student.setId(id);
                student.setStuName(stuName);
                student.setStuNo(stuNo);
                student.setAge(age);
                student.setStuMessage(stuMessage);
                return student;
            }
        });
        return list;
    }

    //这种方式比较方便，但是有一个前提：数据库表的字段和java实体类的属性名要完全一致
    //或者数据库表的字段下划线命名方式对应java实体类属性名的驼峰命名方式
    @Override
    public List<Student> getAllStudent2() {
        List<Student> list = jdbcTemplate.query("select * from student",new BeanPropertyRowMapper<>(Student.class));
        return list;
    }
}

2. jdbcTemplate配置多数据源

2.1 pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.5.5</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>
    <groupId>com.yl</groupId>
    <artifactId>jdbctemplateutil</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>jdbctemplateutil</name>
    <description>Demo project for Spring Boot</description>
    <properties>
        <java.version>1.8</java.version>
    </properties>
    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-jdbc</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <scope>runtime</scope>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>

</project>

2.2 application.properties

# springboot配置多数据源

spring.datasource.one.username=root
spring.datasource.one.password=root
spring.datasource.one.jdbcurl=jdbc:mysql://localhost:3306/demo?useUnicode=true&characterEncoding=utf-8&serverTimezone=Asia/Shanghai

spring.datasource.two.username=root
spring.datasource.two.password=root
spring.datasource.two.jdbcurl=jdbc:mysql://localhost:3306/test?useUnicode=true&characterEncoding=utf-8&serverTimezone=Asia/Shanghai

2.3 实体类

package com.yl.jdbctemplateutil.model;

import java.io.Serializable;

public class Student implements Serializable {
    private Integer id;
    private String stuName;
    private String stuNo;
    private Integer age;
    private String stuMessage;

    @Override
    public String toString() {
        return "Student{" +
                "id=" + id +
                ", stuName='" + stuName + '\'' +
                ", stuNo='" + stuNo + '\'' +
                ", age=" + age +
                ", stuMessage='" + stuMessage + '\'' +
                '}';
    }

    public Integer getId() {
        return id;
    }

    public void setId(Integer id) {
        this.id = id;
    }

    public String getStuName() {
        return stuName;
    }

    public void setStuName(String stuName) {
        this.stuName = stuName;
    }

    public String getStuNo() {
        return stuNo;
    }

    public void setStuNo(String stuNo) {
        this.stuNo = stuNo;
    }

    public Integer getAge() {
        return age;
    }

    public void setAge(Integer age) {
        this.age = age;
    }

    public String getStuMessage() {
        return stuMessage;
    }

    public void setStuMessage(String stuMessage) {
        this.stuMessage = stuMessage;
    }
}

2.4 数据源配置

package com.yl.jdbctemplateutil.config;

import com.zaxxer.hikari.HikariDataSource;
import org.springframework.boot.context.properties.ConfigurationProperties;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

import javax.sql.DataSource;

@Configuration
public class DatasourceConfig {

    @Bean
    @ConfigurationProperties(prefix = "spring.datasource.one")
    DataSource dsOne() {
        return new HikariDataSource();
    }

    @Bean
    @ConfigurationProperties(prefix = "spring.datasource.two")
    DataSource dsTwo() {
        return new HikariDataSource();
    }
}

2.5 jdbctemplate配置

package com.yl.jdbctemplateutil.config;

import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.jdbc.core.JdbcTemplate;

import javax.sql.DataSource;

@Configuration
public class JdbcTemplateConfig {
    @Bean
    JdbcTemplate jdbcTemplateOne(@Qualifier("dsOne")DataSource dataSource) {
        return new JdbcTemplate(dataSource);
    }

    @Bean
    JdbcTemplate jdbcTemplateTwo(@Qualifier("dsTwo")DataSource dataSource) {
        return new JdbcTemplate(dataSource);
    }
}

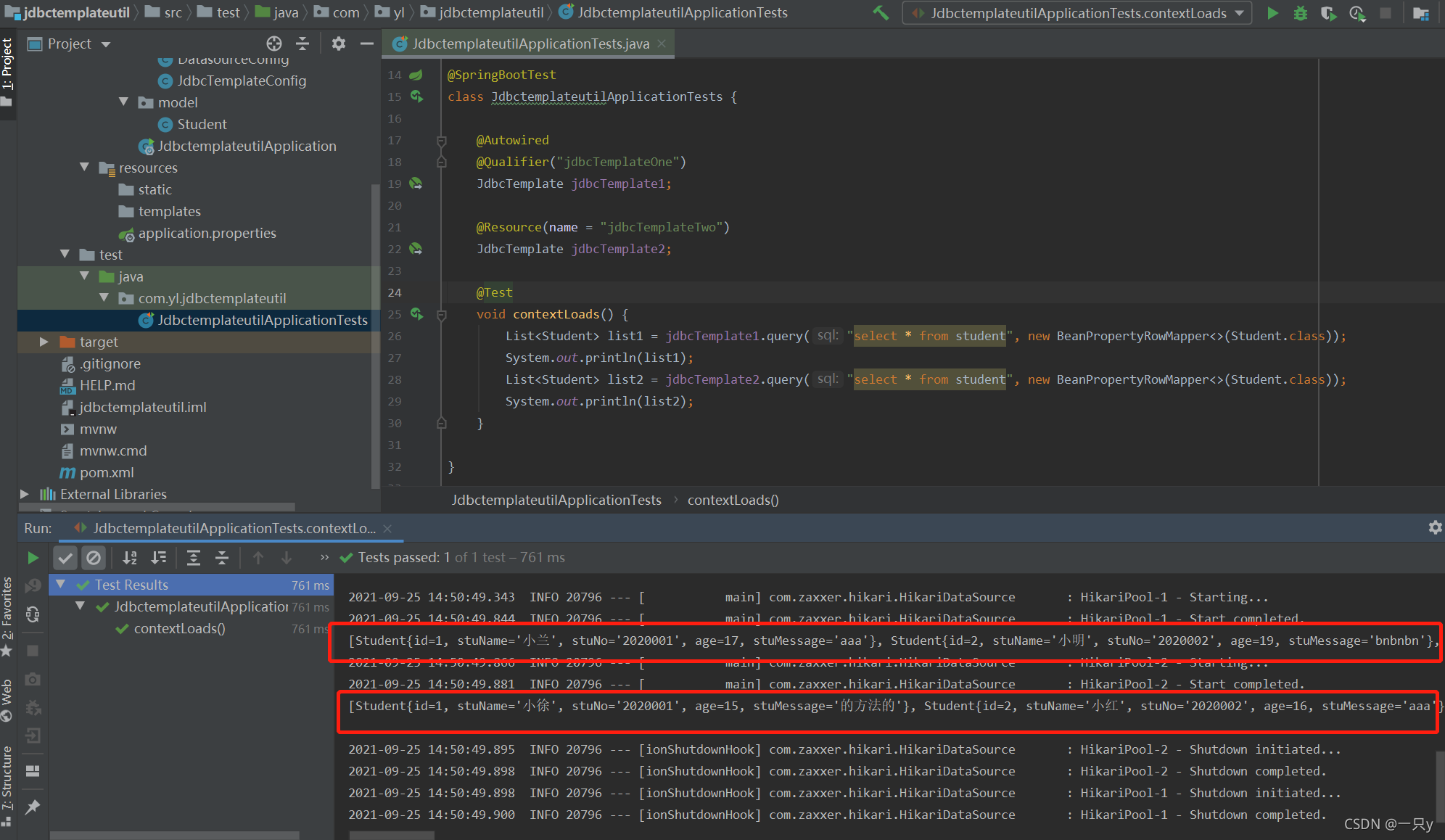

2.6 注入模板测试

在这里插入图片描述

3. springboot整合mybatis(注解方式)

3.1 pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.5.5</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>
    <groupId>com.yl</groupId>
    <artifactId>mybatis</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>mybatis</name>
    <description>Demo project for Spring Boot</description>
    <properties>
        <java.version>1.8</java.version>
    </properties>
    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.mybatis.spring.boot</groupId>
            <artifactId>mybatis-spring-boot-starter</artifactId>
            <version>2.2.0</version>
        </dependency>

        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <scope>runtime</scope>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>

</project>

3.2 application.properties

# 数据源配置
spring.datasource.username=root
spring.datasource.password=root
spring.datasource.url=jdbc:mysql://localhost:3306/demo?useUnicode=true&characterEncoding=utf-8&serverTimezone=Asia/Shanghai

3.3 实体类

package com.yl.mybatis.model;

import java.io.Serializable;

public class Student implements Serializable {
    private Integer id;
    private String stuName;
    private String stuNo;
    private Integer age;
    private String stuMessage;

    @Override
    public String toString() {
        return "Student{" +
                "id=" + id +
                ", stuName='" + stuName + '\'' +
                ", stuNo='" + stuNo + '\'' +
                ", age=" + age +
                ", stuMessage='" + stuMessage + '\'' +
                '}';
    }

    public Integer getId() {
        return id;
    }

    public void setId(Integer id) {
        this.id = id;
    }

    public String getStuName() {
        return stuName;
    }

    public void setStuName(String stuName) {
        this.stuName = stuName;
    }

    public String getStuNo() {
        return stuNo;
    }

    public void setStuNo(String stuNo) {
        this.stuNo = stuNo;
    }

    public Integer getAge() {
        return age;
    }

    public void setAge(Integer age) {
        this.age = age;
    }

    public String getStuMessage() {
        return stuMessage;
    }

    public void setStuMessage(String stuMessage) {
        this.stuMessage = stuMessage;
    }
}

3.4 mapper

package com.yl.mybatis.mapper;

import com.yl.mybatis.model.Student;
import org.apache.ibatis.annotations.*;

import java.util.List;

public interface StudentMapper {
    @Select("select * from student where id = #{id}")
    Student getStudentById(Integer id);

    @Insert("insert into student(stu_name,stu_no,age,stu_message) values(#{stuName},#{stuNo},#{age},#{stuMessage})")
    //回写id
    @SelectKey(statement = "select last_insert_id()",keyProperty = "id",before = false,resultType = Integer.class)
    Integer addStudent(Student student);

    //表字段和java实体属性映射
    @Results({
            @Result(property = "stuName",column = "stu_name"),
            @Result(property = "stuNo",column = "stu_no"),
            @Result(property = "stuMessage",column = "stu_message")
    })
    @Select("select * from student")
    List<Student> getAllStudent();

    @Delete("delete from student where id = #{id}")
    Integer deleteById(Integer id);

    @Update("update student set stu_name = #{stuName},stu_no = #{stuNo},age = #{age},stu_message = #{stuMessage} where id = #{id}")
    Integer updateByStudent(Student student);
}

3.5 service

package com.yl.mybatis.service;

import com.yl.mybatis.model.Student;

import java.util.List;

public interface StudentService {
    Student getStudentById(Integer id);

    Integer addStudent(Student student);

    List<Student> getAllStudent();

    Integer deleteById(Integer id);

    Integer updateById(Student student);
}

3.6 srviceImpl

package com.yl.mybatis.service.impl;

import com.yl.mybatis.mapper.StudentMapper;
import com.yl.mybatis.model.Student;
import com.yl.mybatis.service.StudentService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

import java.util.List;

@Service
public class StudentServiceImpl implements StudentService {
    @Autowired
    private StudentMapper studentMapper;

    @Override
    public Student getStudentById(Integer id) {
        return studentMapper.getStudentById(id);
    }

    @Override
    public Integer addStudent(Student student) {
        return studentMapper.addStudent(student);
    }

    @Override
    public List<Student> getAllStudent() {
        return studentMapper.getAllStudent();
    }

    @Override
    public Integer deleteById(Integer id) {
        return studentMapper.deleteById(id);
    }

    @Override
    public Integer updateById(Student student) {
        return studentMapper.updateByStudent(student);
    }
}

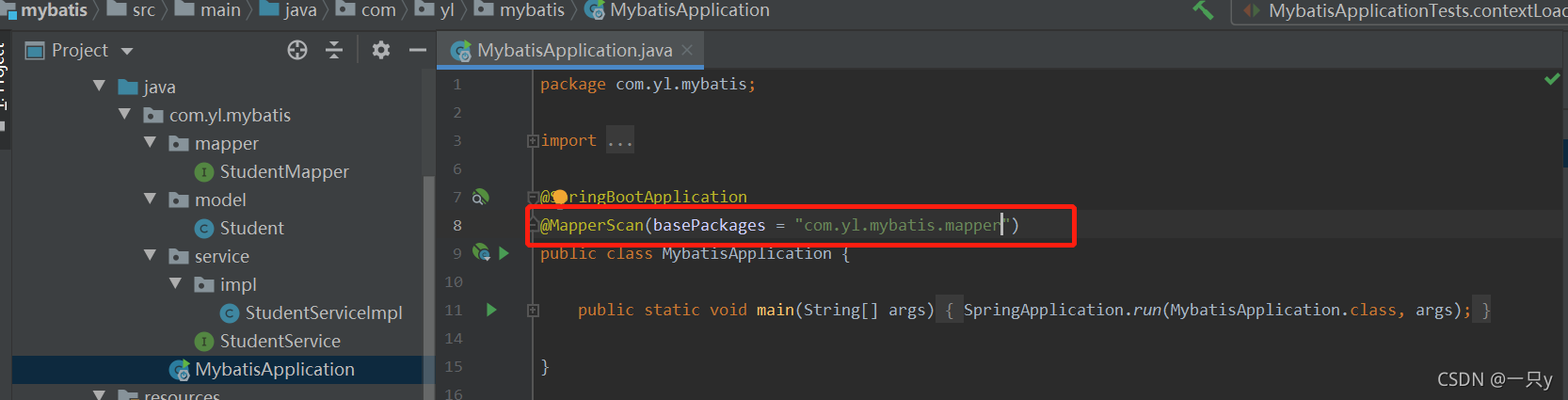

3.7 扫描mapper

在这里插入图片描述

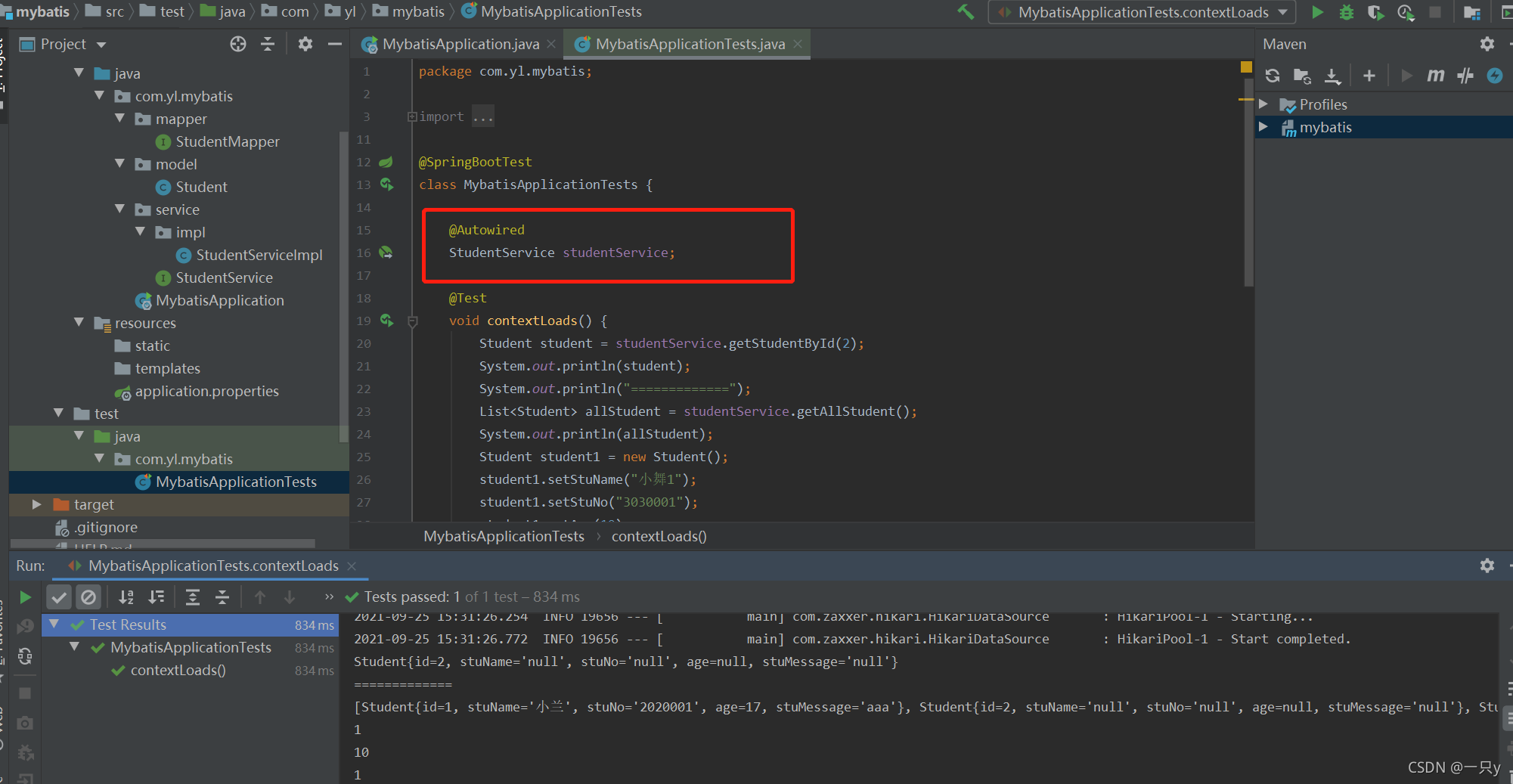

3.8 测试

在这里插入图片描述

4. springboot整合mybatis(xml方式)

4.1 pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.5.5</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>
    <groupId>com.yl</groupId>
    <artifactId>mybatis</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>mybatis</name>
    <description>Demo project for Spring Boot</description>
    <properties>
        <java.version>1.8</java.version>
    </properties>
    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.mybatis.spring.boot</groupId>
            <artifactId>mybatis-spring-boot-starter</artifactId>
            <version>2.2.0</version>
        </dependency>

        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <scope>runtime</scope>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>

</project>

4.2 application.xml

# 数据源配置
spring.datasource.username=root
spring.datasource.password=root
spring.datasource.url=jdbc:mysql://localhost:3306/demo?useUnicode=true&characterEncoding=utf-8&serverTimezone=Asia/Shanghai

# mybatis配置
# 扫描xml文件
mybatis.mapper-locations=classpath:mapper/*.xml

4.3 实体类

package com.yl.mybatis.model;

import java.io.Serializable;

public class Student implements Serializable {
    private Integer id;
    private String stuName;
    private String stuNo;
    private Integer age;
    private String stuMessage;

    @Override
    public String toString() {
        return "Student{" +
                "id=" + id +
                ", stuName='" + stuName + '\'' +
                ", stuNo='" + stuNo + '\'' +
                ", age=" + age +
                ", stuMessage='" + stuMessage + '\'' +
                '}';
    }

    public Integer getId() {
        return id;
    }

    public void setId(Integer id) {
        this.id = id;
    }

    public String getStuName() {
        return stuName;
    }

    public void setStuName(String stuName) {
        this.stuName = stuName;
    }

    public String getStuNo() {
        return stuNo;
    }

    public void setStuNo(String stuNo) {
        this.stuNo = stuNo;
    }

    public Integer getAge() {
        return age;
    }

    public void setAge(Integer age) {
        this.age = age;
    }

    public String getStuMessage() {
        return stuMessage;
    }

    public void setStuMessage(String stuMessage) {
        this.stuMessage = stuMessage;
    }
}

4.4 mapper

package com.yl.mybatis.mapper;

import com.yl.mybatis.model.Student;
import java.util.List;

public interface StudentMapper {

    Student getStudentById(Integer id);

    Integer addStudent(Student student);

    List<Student> getAllStudent();

    Integer deleteById(Integer id);

    Integer updateById(Student student);
}

4.5 mapper.xml

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.yl.mybatis.mapper.StudentMapper">

    <resultMap id="BaseResultMap" type="com.yl.mybatis.model.Student">
        <id property="id" column="id"/>
        <result property="stuName" column="stu_name"/>
        <result property="stuNo" column="stu_no"/>
        <result property="age" column="age"/>
        <result property="stuMessage" column="stu_message"/>
    </resultMap>

    <select id="getStudentById" resultMap="BaseResultMap">
        select * from student where id = #{id}
    </select>

    <select id="getAllStudent" resultMap="BaseResultMap">
        select * from student
    </select>

    <!--回写id-->
    <insert id="addStudent" useGeneratedKeys="true" keyProperty="id">
        insert into student(stu_name,stu_no,age,stu_message) values(#{stuName},#{stuNo},#{age},#{stuMessage})
    </insert>

    <delete id="deleteById" parameterType="java.lang.Integer">
        delete from student where id = #{id}
    </delete>

    <update id="updateById" parameterType="com.yl.mybatis.model.Student">
        update student set stu_name=#{stuName},stu_no=#{stuNo},age=#{age},stu_message=#{stuMessage} where id = #{id}
    </update>



</mapper>

4.6 service

package com.yl.mybatis.service;

import com.yl.mybatis.model.Student;

import java.util.List;

public interface StudentService {
    Student getStudentById(Integer id);

    Integer addStudent(Student student);

    List<Student> getAllStudent();

    Integer deleteById(Integer id);

    Integer updateById(Student student);
}

4.7 serviceImpl

package com.yl.mybatis.service.impl;

import com.yl.mybatis.mapper.StudentMapper;
import com.yl.mybatis.model.Student;
import com.yl.mybatis.service.StudentService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

import java.util.List;

@Service
public class StudentServiceImpl implements StudentService {
    @Autowired
    private StudentMapper studentMapper;

    @Override
    public Student getStudentById(Integer id) {
        return studentMapper.getStudentById(id);
    }

    @Override
    public Integer addStudent(Student student) {
        return studentMapper.addStudent(student);
    }

    @Override
    public List<Student> getAllStudent() {
        return studentMapper.getAllStudent();
    }

    @Override
    public Integer deleteById(Integer id) {
        return studentMapper.deleteById(id);
    }

    @Override
    public Integer updateById(Student student) {
        return studentMapper.updateById(student);
    }
}

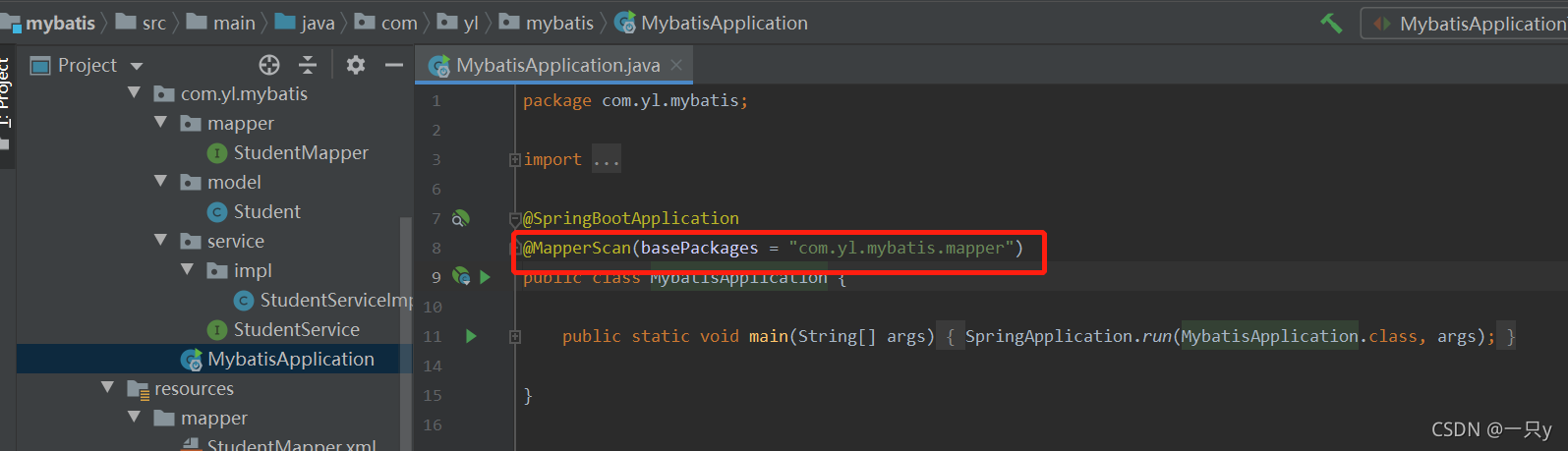

4.7 扫描mapper

在这里插入图片描述

5. mybatis整合多数据源

5.1 pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.5.5</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>
    <groupId>com.yl</groupId>
    <artifactId>mybatisutil</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>mybatisutil</name>
    <description>Demo project for Spring Boot</description>
    <properties>
        <java.version>1.8</java.version>
    </properties>
    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.mybatis.spring.boot</groupId>
            <artifactId>mybatis-spring-boot-starter</artifactId>
            <version>2.2.0</version>
        </dependency>

        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <scope>runtime</scope>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
    </dependencies>

    <build>
        <resources>
            <resource>
                <directory>src/main/java</directory>
                <includes>
                    <include>**/*.xml</include>
                </includes>
            </resource>
            <resource>
                <directory>src/main/resources</directory>
            </resource>
        </resources>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>

</project>

5.2 application.properties

# 数据源配置
spring.datasource.one.username=root
spring.datasource.one.password=root
spring.datasource.one.jdbcurl=jdbc:mysql://localhost:3306/demo?useUnicode=true&characterEncoding=utf-8&serverTimezone=Asia/Shanghai

spring.datasource.two.username=root
spring.datasource.two.password=root
spring.datasource.two.jdbcurl=jdbc:mysql://localhost:3306/test?useUnicode=true&characterEncoding=utf-8&serverTimezone=Asia/Shanghai

5.3 实体类

package com.yl.mybatisutil.model;

import java.io.Serializable;

public class Student implements Serializable {
    private Integer id;
    private String stuName;
    private String stuNo;
    private Integer age;
    private String stuMessage;

    @Override
    public String toString() {
        return "Student{" +
                "id=" + id +
                ", stuName='" + stuName + '\'' +
                ", stuNo='" + stuNo + '\'' +
                ", age=" + age +
                ", stuMessage='" + stuMessage + '\'' +
                '}';
    }

    public Integer getId() {
        return id;
    }

    public void setId(Integer id) {
        this.id = id;
    }

    public String getStuName() {
        return stuName;
    }

    public void setStuName(String stuName) {
        this.stuName = stuName;
    }

    public String getStuNo() {
        return stuNo;
    }

    public void setStuNo(String stuNo) {
        this.stuNo = stuNo;
    }

    public Integer getAge() {
        return age;
    }

    public void setAge(Integer age) {
        this.age = age;
    }

    public String getStuMessage() {
        return stuMessage;
    }

    public void setStuMessage(String stuMessage) {
        this.stuMessage = stuMessage;
    }
}

5.4 mapper1

package com.yl.mybatisutil.mapper1;

import com.yl.mybatisutil.model.Student;

import java.util.List;

public interface StudentMapper1 {
    List<Student> getAllStudent();
}

5.5 mapper2

package com.yl.mybatisutil.mapper2;

import com.yl.mybatisutil.model.Student;

import java.util.List;

public interface StudentMapper2 {
    List<Student> getAllStudent();
}

5.6 mapper1.xml

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.yl.mybatisutil.mapper1.StudentMapper1">
    <select id="getAllStudent" resultType="com.yl.mybatisutil.model.Student">
        select * from student
    </select>
</mapper>

5.7 mapper2.xml

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.yl.mybatisutil.mapper2.StudentMapper2">
    <select id="getAllStudent" resultType="com.yl.mybatisutil.model.Student">
        select * from student
    </select>
</mapper>

5.8 数据源配置

package com.yl.mybatisutil.config;

import com.zaxxer.hikari.HikariDataSource;
import org.springframework.boot.context.properties.ConfigurationProperties;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

import javax.sql.DataSource;

/**
 * 多数据源配置
 */
@Configuration
public class DataSourceConfig {

    @Bean
    @ConfigurationProperties(prefix = "spring.datasource.one")
    DataSource dsOne() {
        return new HikariDataSource();
    }
    @Bean
    @ConfigurationProperties(prefix = "spring.datasource.two")
    DataSource dsTwo() {
        return new HikariDataSource();
    }
}

5.9 mybatis配置1

package com.yl.mybatisutil.config;

import org.apache.ibatis.session.SqlSessionFactory;
import org.mybatis.spring.SqlSessionFactoryBean;
import org.mybatis.spring.SqlSessionTemplate;
import org.mybatis.spring.annotation.MapperScan;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

import javax.sql.DataSource;

/**
 *  mybatis的配置
 */
@Configuration
@MapperScan(basePackages = "com.yl.mybatisutil.mapper1",sqlSessionFactoryRef = "sqlSessionFactory1",sqlSessionTemplateRef = "sqlSessionTemplate1")
public class MyBatisConfigOne {
    @Qualifier("dsOne")
    @Autowired
    DataSource dataSource;

    @Bean
    SqlSessionFactory sqlSessionFactory1() {
        try {
            SqlSessionFactory sqlSessionFactory = null;
            SqlSessionFactoryBean sqlSessionFactoryBean = new SqlSessionFactoryBean();
            sqlSessionFactoryBean.setDataSource(dataSource);
            sqlSessionFactory = sqlSessionFactoryBean.getObject();
            return sqlSessionFactory;
        } catch (Exception e) {
            e.printStackTrace();
            return null;
        }
    }

    @Bean
    SqlSessionTemplate sqlSessionTemplate1() {
        return new SqlSessionTemplate(sqlSessionFactory1());
    }

}

5.10 mybatis配置2

package com.yl.mybatisutil.config;

import org.apache.ibatis.session.SqlSessionFactory;
import org.mybatis.spring.SqlSessionFactoryBean;
import org.mybatis.spring.SqlSessionTemplate;
import org.mybatis.spring.annotation.MapperScan;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

import javax.sql.DataSource;

/**
 *  mybatis的配置
 */
@Configuration
@MapperScan(basePackages = "com.yl.mybatisutil.mapper2",sqlSessionFactoryRef = "sqlSessionFactory2",sqlSessionTemplateRef = "sqlSessionTemplate2")
public class MyBatisConfigTwo {
    @Qualifier("dsTwo")
    @Autowired
    DataSource dataSource;

    @Bean
    SqlSessionFactory sqlSessionFactory2() {
        try {
            SqlSessionFactory sqlSessionFactory = null;
            SqlSessionFactoryBean sqlSessionFactoryBean = new SqlSessionFactoryBean();
            sqlSessionFactoryBean.setDataSource(dataSource);
            sqlSessionFactory = sqlSessionFactoryBean.getObject();
            return sqlSessionFactory;
        } catch (Exception e) {
            e.printStackTrace();
            return null;
        }
    }

    @Bean
    SqlSessionTemplate sqlSessionTemplate2() {
        return new SqlSessionTemplate(sqlSessionFactory2());
    }

}
