[Java知识库]spring源码-aop解析

spring aop 是通过动态代理实现的，具体是如何实现的那？spring通过一个切面类，在他类上加入了@Aspect注解，定义一个pointCut方法，最后定义一系列的增强方法。这样就完成了一个对象的切面操作。
基本的思路是
1.找到所有的切面类
2.解析出所有的advice并保存
3.创建一个动态代理类
4.调用被代理类方法时，找到所有的增强器，并增强当前方法

切面解析

spring通过@EnableAspectJAutoProxy开启aop切面，在注解上面发现@Import(AspectAutoProxyRegistrar.class),AspectJAutoProxyRegistrar实现了ImportBeanDefinitionRegistrar,所以他会通过registerBeanDefinitions方法为我们容器导入beanDefinition

@Target(ElementType.TYPE)
@Retention(RetentionPolicy.RUNTIME)
@Documented
@Import(AspectJAutoProxyRegistrar.class)//为容器中引入AspectJAutoProxyRegistrar
public @interface EnableAspectJAutoProxy {

	/**
	 * Indicate whether subclass-based (CGLIB) proxies are to be created as opposed
	 * to standard Java interface-based proxies. The default is {@code false}.
	 */
	boolean proxyTargetClass() default false;

	/**
	 * Indicate that the proxy should be exposed by the AOP framework as a {@code ThreadLocal}
	 * for retrieval via the {@link org.springframework.aop.framework.AopContext} class.
	 * Off by default, i.e. no guarantees that {@code AopContext} access will work.
	 * @since 4.3.1
	 */
	boolean exposeProxy() default false;

}

//实现了ImportBeanDefinitionRegistrar
class AspectJAutoProxyRegistrar implements ImportBeanDefinitionRegistrar {

	@Override
	public void registerBeanDefinitions(
			AnnotationMetadata importingClassMetadata, BeanDefinitionRegistry registry) {
AopConfigUtils.registerAspectJAnnotationAutoProxyCreatorIfNecessary(registry);
		}
	}
}
	@Nullable
	public static BeanDefinition registerAspectJAnnotationAutoProxyCreatorIfNecessary(BeanDefinitionRegistry registry) {
		return registerAspectJAnnotationAutoProxyCreatorIfNecessary(registry, null);
	}
	@Nullable
	public static BeanDefinition registerAspectJAnnotationAutoProxyCreatorIfNecessary(
			BeanDefinitionRegistry registry, @Nullable Object source) {

		return registerOrEscalateApcAsRequired(AnnotationAwareAspectJAutoProxyCreator.class, registry, source);
	}

最终引入了AnnotationAwareAspectJAutoProxyCreator.class类

解析切面的逻辑在spring 容器创建早起就开始调用了

postProcessBeforeInstantiation是在任意bean创建的时候就调用了 org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory#resolveBeforeInstantiation org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory#applyBeanPostProcessorsBeforeInstantiation org.springframework.beans.factory.config.InstantiationAwareBeanPostProcessor#postProcessBeforeInstantiation org.springframework.aop.framework.autoproxy.AbstractAutoProxyCreator#postProcessBeforeInstantiation

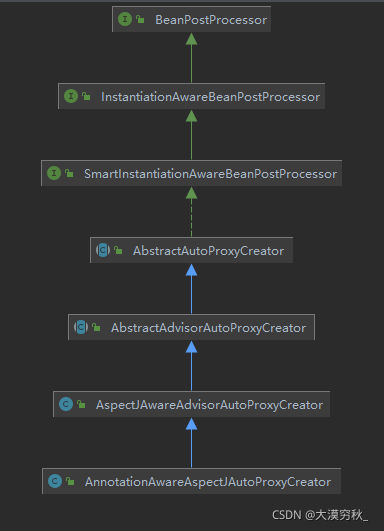

追踪一下源码可以看到最终导入AnnotationAwareAspectJAutoProxyCreator，我们看一下他的类继承关系图，发现它实现了两个重要 的接口，BeanPostProcessor和InstantiationAwareBeanPostProcessor，这两个是bean的后置处理器，在bean的生命周期创建中会执行，首先看InstantiationAwareBeanPostProcessor的postProcessBeforeInstantiation方法 Object postProcessBeforeInstantiation(Class<?> beanClass, String beanName)（InstantiationAwareBeanPostProcessor） org.springframework.aop.framework.autoproxy.AbstractAutoProxyCreator#postProcessBeforeInstantiation org.springframework.aop.aspectj.autoproxy.AspectJAwareAdvisorAutoProxyCreator#shouldSkip org.springframework.aop.aspectj.annotation.AnnotationAwareAspectJAutoProxyCreator#findCandidateAdvisors org.springframework.aop.aspectj.annotation.BeanFactoryAspectJAdvisorsBuilder#buildAspectJAdvisors

//在spring第一次创建bean的时候，缓存所有的切面
	public List<Advisor> buildAspectJAdvisors() {
		//获取缓存中的aspectBeanNames
		List<String> aspectNames = this.aspectBeanNames;

		if (aspectNames == null) {
			synchronized (this) {
				aspectNames = this.aspectBeanNames;
				if (aspectNames == null) {
					List<Advisor> advisors = new ArrayList<>();
					aspectNames = new ArrayList<>();
					//获取beanFactory中所有的beanNames
					String[] beanNames = BeanFactoryUtils.beanNamesForTypeIncludingAncestors(
							this.beanFactory, Object.class, true, false);
					for (String beanName : beanNames) {
						if (!isEligibleBean(beanName)) {
							continue;
						}
						// We must be careful not to instantiate beans eagerly as in this case they
						// would be cached by the Spring container but would not have been weaved.
						Class<?> beanType = this.beanFactory.getType(beanName, false);
						if (beanType == null) {
							continue;
						}
						//找出所有类上面含@Aspect注解的bean
						//提取aspect类中所有的advice方法，将结果缓存advisorsCache
						if (this.advisorFactory.isAspect(beanType)) {
							aspectNames.add(beanName);
							AspectMetadata amd = new AspectMetadata(beanType, beanName);
							if (amd.getAjType().getPerClause().getKind() == PerClauseKind.SINGLETON) {
								MetadataAwareAspectInstanceFactory factory =
										new BeanFactoryAspectInstanceFactory(this.beanFactory, beanName);
								//1.找到切面类的所有但是不包括@Pointcut注解的方法 33
								//2.筛选出来包含@Around, @Before, @After,@ AfterReturning， @AfterThrowing注解的方法 34
								//3.封装为List<Advisor>返回
								List<Advisor> classAdvisors = this.advisorFactory.getAdvisors(factory);
								if (this.beanFactory.isSingleton(beanName)) {
									//将上面找出来的Advisor按照key为beanName，value为List<Advisor>的形式存入advisorsCache,缓存中
									this.advisorsCache.put(beanName, classAdvisors);
								}
								else {
									this.aspectFactoryCache.put(beanName, factory);
								}
								advisors.addAll(classAdvisors);
							}
							else {
								// Per target or per this.
								if (this.beanFactory.isSingleton(beanName)) {
									throw new IllegalArgumentException("Bean with name '" + beanName +
											"' is a singleton, but aspect instantiation model is not singleton");
								}
								MetadataAwareAspectInstanceFactory factory =
										new PrototypeAspectInstanceFactory(this.beanFactory, beanName);
								this.aspectFactoryCache.put(beanName, factory);
								advisors.addAll(this.advisorFactory.getAdvisors(factory));
							}
						}
					}
					this.aspectBeanNames = aspectNames;
					return advisors;
				}
			}
		}

		if (aspectNames.isEmpty()) {
			return Collections.emptyList();
		}
		List<Advisor> advisors = new ArrayList<>();
		for (String aspectName : aspectNames) {
			//当再次进入该方法，会直接从advisorsCache缓存中获取
			List<Advisor> cachedAdvisors = this.advisorsCache.get(aspectName);
			if (cachedAdvisors != null) {
				advisors.addAll(cachedAdvisors);
			}
			else {
				MetadataAwareAspectInstanceFactory factory = this.aspectFactoryCache.get(aspectName);
				advisors.addAll(this.advisorFactory.getAdvisors(factory));
			}
		}
		return advisors;
	}

其中代码 List classAdvisors = this.advisorFactory.getAdvisors(factory);

	public List<Advisor> getAdvisors(MetadataAwareAspectInstanceFactory aspectInstanceFactory) {
		Class<?> aspectClass = aspectInstanceFactory.getAspectMetadata().getAspectClass();
		String aspectName = aspectInstanceFactory.getAspectMetadata().getAspectName();
		validate(aspectClass);

		// We need to wrap the MetadataAwareAspectInstanceFactory with a decorator
		// so that it will only instantiate once.
		MetadataAwareAspectInstanceFactory lazySingletonAspectInstanceFactory =
				new LazySingletonAspectInstanceFactoryDecorator(aspectInstanceFactory);

		List<Advisor> advisors = new ArrayList<>();
		for (Method method : getAdvisorMethods(aspectClass)) {
			Advisor advisor = getAdvisor(method, lazySingletonAspectInstanceFactory, 0, aspectName);
			if (advisor != null) {
				advisors.add(advisor);
			}
		}
		// Find introduction fields.
		for (Field field : aspectClass.getDeclaredFields()) {
			Advisor advisor = getDeclareParentsAdvisor(field);
			if (advisor != null) {
				advisors.add(advisor);
			}
		}

		return advisors;
	}

getAdvisorMethods

    //获取aspectj类下，所有的方法注解方法，除了pointCut
	private List<Method> getAdvisorMethods(Class<?> aspectClass) {
		final List<Method> methods = new ArrayList<>();
		ReflectionUtils.doWithMethods(aspectClass, method -> {
			// Exclude pointcuts
			if (AnnotationUtils.getAnnotation(method, Pointcut.class) == null) {
				methods.add(method);
			}
		}, ReflectionUtils.USER_DECLARED_METHODS);
		if (methods.size() > 1) {
			//按照这个进行排序Around.class, Before.class, After.class, AfterReturning.class, AfterThrowing.class
			methods.sort(METHOD_COMPARATOR);
		}
		return methods;
	}

这里把切面方法都获取到，放到List中
上面获取容器中所有的bean上带有@Aspect注解bean里的所有标识了@Around,@Before,@After,@AfterReturning,@AfterThrowing等相关的内容，缓存到了集合中，方便后面进行调用。

创建动态代理

入口方法

postProcessAfterInitialization是在bean创建完成之后执行的 org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory#doCreateBean org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory#initializeBean(java.lang.String, java.lang.Object, org.springframework.beans.factory.support.RootBeanDefinition)
org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory#applyBeanPostProcessorsAfterInitialization org.springframework.beans.factory.config.BeanPostProcessor#postProcessAfterInitialization org.springframework.aop.framework.autoproxy.AbstractAutoProxyCreator#postProcessAfterInitialization

public abstract class AbstractAutoProxyCreator extends ProxyProcessorSupport
		implements SmartInstantiationAwareBeanPostProcessor, BeanFactoryAware {
	@Override
	public Object postProcessAfterInitialization(@Nullable Object bean, String beanName) {
		if (bean != null) {
			Object cacheKey = getCacheKey(bean.getClass(), beanName);
			if (this.earlyProxyReferences.remove(cacheKey) != bean) {
				return wrapIfNecessary(bean, beanName, cacheKey);
			}
		}
		return bean;
	}
	}

获取advisors

创建代理前首先要判断当前bean是否满足被代理，所以需要将advisor从之前的缓存中拿出来和当前bean根据表达式匹配
Object postProcessAfterInitialization(@Nullable Object bean, String beanName)（BeanPostProcessor） org.springframework.aop.framework.autoproxy.AbstractAutoProxyCreator#postProcessAfterInitialization org.springframework.aop.framework.autoproxy.AbstractAutoProxyCreator#wrapIfNecessary org.springframework.aop.framework.autoproxy.AbstractAdvisorAutoProxyCreator#getAdvicesAndAdvisorsForBean org.springframework.aop.aspectj.annotation.AnnotationAwareAspectJAutoProxyCreator#findCandidateAdvisors 上述代码的链路最终到了findCandidateAdvisors，我们发现在postProcessBeforeInstantiation方法中对查找到的Advisors做了缓存， 所以这里只需要从缓存中取就好了 最后创建代理类，并将Advisors赋予代理类，缓存当前的代理类

	protected Object wrapIfNecessary(Object bean, String beanName, Object cacheKey) {
		if (StringUtils.hasLength(beanName) && this.targetSourcedBeans.contains(beanName)) {
			return bean;
		}
		if (Boolean.FALSE.equals(this.advisedBeans.get(cacheKey))) {
			return bean;
		}
		if (isInfrastructureClass(bean.getClass()) || shouldSkip(bean.getClass(), beanName)) {
			this.advisedBeans.put(cacheKey, Boolean.FALSE);
			return bean;
		}

		// Create proxy if we have advice.
		//根据bean找到我们要的advice
		Object[] specificInterceptors = getAdvicesAndAdvisorsForBean(bean.getClass(), beanName, null);
		if (specificInterceptors != DO_NOT_PROXY) {//如果当前bean的specificInterceptors不为空，说明符合代理条件，需要创建动态代理
			this.advisedBeans.put(cacheKey, Boolean.TRUE);//代理的bean放到缓存中
			Object proxy = createProxy(//执行实际的创建
					bean.getClass(), beanName, specificInterceptors, new SingletonTargetSource(bean));
			this.proxyTypes.put(cacheKey, proxy.getClass());
			return proxy;
		}

		this.advisedBeans.put(cacheKey, Boolean.FALSE);
		return bean;
	}

	protected Object[] getAdvicesAndAdvisorsForBean(
			Class<?> beanClass, String beanName, @Nullable TargetSource targetSource) {
		//有资格的advisors
		List<Advisor> advisors = findEligibleAdvisors(beanClass, beanName);
		if (advisors.isEmpty()) {
			return DO_NOT_PROXY;
		}
		return advisors.toArray();
	}

	protected List<Advisor> findEligibleAdvisors(Class<?> beanClass, String beanName) {
		List<Advisor> candidateAdvisors = findCandidateAdvisors();//查找所有的advisors
		//找到当前bean匹配的advisor,如果找到了说明满足创建动态代理的条件
		//查找的过程总分粗筛选，精筛，利用aspectj的切点表达式解析匹配能力
		List<Advisor> eligibleAdvisors = findAdvisorsThatCanApply(candidateAdvisors, beanClass, beanName);
		extendAdvisors(eligibleAdvisors);
		if (!eligibleAdvisors.isEmpty()) {
			eligibleAdvisors = sortAdvisors(eligibleAdvisors);//排序动态advisors代理
		}
		return eligibleAdvisors;
	}

org.springframework.aop.framework.autoproxy.AbstractAdvisorAutoProxyCreator#findAdvisorsThatCanApply org.springframework.aop.support.AopUtils#findAdvisorsThatCanApply org.springframework.aop.support.AopUtils#canApply(org.springframework.aop.Advisor, java.lang.Class<?>, boolean) 拿到PointCut org.springframework.aop.support.AopUtils#canApply(org.springframework.aop.Pointcut, java.lang.Class<?>, boolean) org.springframework.aop.ClassFilter#matches 粗筛 org.springframework.aop.IntroductionAwareMethodMatcher#matches 精筛

创建代理

找到了和当前bean匹配的advisor说明满足创建动态代理条件：
AbstractAutoProxyCreator.wrapIfNecessary.createProxy

Object proxy = createProxy(//执行实际的创建
					bean.getClass(), beanName, specificInterceptors, new SingletonTargetSource(bean));

	protected Object createProxy(Class<?> beanClass, @Nullable String beanName,
			@Nullable Object[] specificInterceptors, TargetSource targetSource) {

		if (this.beanFactory instanceof ConfigurableListableBeanFactory) {
			AutoProxyUtils.exposeTargetClass((ConfigurableListableBeanFactory) this.beanFactory, beanName, beanClass);
		}

		ProxyFactory proxyFactory = new ProxyFactory();
		proxyFactory.copyFrom(this);
		Advisor[] advisors = buildAdvisors(beanName, specificInterceptors);
		proxyFactory.addAdvisors(advisors);
		proxyFactory.setTargetSource(targetSource);
		customizeProxyFactory(proxyFactory);
		return proxyFactory.getProxy(getProxyClassLoader());
	}

proxyFactory.getProxy(getProxyClassLoader())

public Object getProxy(@Nullable ClassLoader classLoader) {
		return createAopProxy().getProxy(classLoader);
	}

protected final synchronized AopProxy createAopProxy() {
		if (!this.active) {
			activate();
		}
		return getAopProxyFactory().createAopProxy(this);
	}

创建代理

	public AopProxy createAopProxy(AdvisedSupport config) throws AopConfigException {
		if (config.isOptimize() || config.isProxyTargetClass() || hasNoUserSuppliedProxyInterfaces(config)) {
			Class<?> targetClass = config.getTargetClass();
			if (targetClass == null) {
				throw new AopConfigException("TargetSource cannot determine target class: " +
						"Either an interface or a target is required for proxy creation.");
			}
			if (targetClass.isInterface() || Proxy.isProxyClass(targetClass)) {
				//jdk动态代理，如果是类
				return new JdkDynamicAopProxy(config);
			}
			//cglib动态代理
			return new ObjenesisCglibAopProxy(config);
		}
		else {
			return new JdkDynamicAopProxy(config);
		}
	}

如果有接口使用jdk动态代理，如果没有接口使用cglig动态代理；

调用

前面分析可知，spring将找到的增强器advisors赋予了代理类，那么在执行时只要将这些增强器应用到被代理的类上面就可以了，那么spring具体怎么实现的那，以jdk代理为例：

	public Object invoke(Object proxy, Method method, Object[] args) throws Throwable {
		Object oldProxy = null;
		boolean setProxyContext = false;
		TargetSource targetSource = this.advised.targetSource;	//目标类
		Object target = null;

		try {// equals，hashcode等方法不做代理，直接调用
			if (!this.equalsDefined && AopUtils.isEqualsMethod(method)) {
				// The target does not implement the equals(Object) method itself.
				return equals(args[0]);
			}
			else if (!this.hashCodeDefined && AopUtils.isHashCodeMethod(method)) {
				// The target does not implement the hashCode() method itself.
				return hashCode();
			}

			Object retVal;

			if (this.advised.exposeProxy) {
				// Make invocation available if necessary.
				oldProxy = AopContext.setCurrentProxy(proxy);
				setProxyContext = true;
			}

			// Get as late as possible to minimize the time we "own" the target,
			// in case it comes from a pool.
			target = targetSource.getTarget();
			Class<?> targetClass = (target != null ? target.getClass() : null);

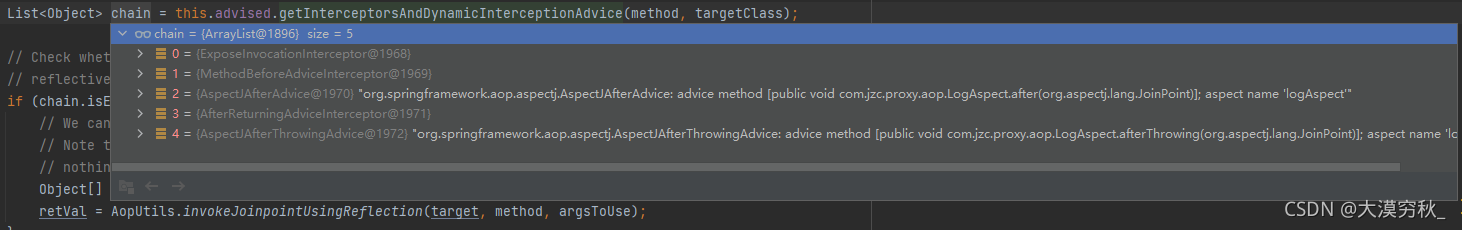

            // 将增强器转换为方法执行拦截器链条
			// Get the interception chain for this method.
			List<Object> chain = this.advised.getInterceptorsAndDynamicInterceptionAdvice(method, targetClass);

			// Check whether we have any advice. If we don't, we can fallback on direct
			// reflective invocation of the target, and avoid creating a MethodInvocation.
			if (chain.isEmpty()) {
				// We can skip creating a MethodInvocation: just invoke the target directly
				// Note that the final invoker must be an InvokerInterceptor so we know it does
				// nothing but a reflective operation on the target, and no hot swapping or fancy proxying.
				Object[] argsToUse = AopProxyUtils.adaptArgumentsIfNecessary(method, args);
				retVal = AopUtils.invokeJoinpointUsingReflection(target, method, argsToUse);
			}
			else {
				// We need to create a method invocation...
				MethodInvocation invocation =
						new ReflectiveMethodInvocation(proxy, target, method, args, targetClass, chain);
				// Proceed to the joinpoint through the interceptor chain.
				retVal = invocation.proceed();//执行拦截器链
			}

			// Massage return value if necessary.
			Class<?> returnType = method.getReturnType();
			if (retVal != null && retVal == target &&
					returnType != Object.class && returnType.isInstance(proxy) &&
					!RawTargetAccess.class.isAssignableFrom(method.getDeclaringClass())) {
				// Special case: it returned "this" and the return type of the method
				// is type-compatible. Note that we can't help if the target sets
				// a reference to itself in another returned object.
				retVal = proxy;
			}
			else if (retVal == null && returnType != Void.TYPE && returnType.isPrimitive()) {
				throw new AopInvocationException(
						"Null return value from advice does not match primitive return type for: " + method);
			}
			return retVal;
		}
		finally {
			if (target != null && !targetSource.isStatic()) {
				// Must have come from TargetSource.
				targetSource.releaseTarget(target);
			}
			if (setProxyContext) {
				// Restore old proxy.
				AopContext.setCurrentProxy(oldProxy);
			}
		}
	}

其中，this.advised.getInterceptorsAndDynamicInterceptionAdvice(method,targetClass);
将增强器转为了方法执行的拦截器链条，通过上面代码可知，将增强器装换为方法拦截器链，最终包装为ReflectiveMethodInvocation执行它的proceed方法

我们看下

	public Object proceed() throws Throwable {
		// We start with an index of -1 and increment early.
		//从-1开始，结束条件：执行目标方法是下标=拦截器-1（执行到了最后一个拦截器的时候）
		if (this.currentInterceptorIndex == this.interceptorsAndDynamicMethodMatchers.size() - 1) {
		//通过反射的方式执行目标类的目标方法，最后才会调用
			return invokeJoinpoint();
		}
		//获取集合当前需要运行的拦截器，每次递归回来加一个，获取下一个拦截器
		Object interceptorOrInterceptionAdvice =				this.interceptorsAndDynamicMethodMatchers.get(++this.currentInterceptorIndex);//currentInterceptorIndex 成员变量，每次加1
		if (interceptorOrInterceptionAdvice instanceof InterceptorAndDynamicMethodMatcher) {
			// Evaluate dynamic method matcher here: static part will already have
			// been evaluated and found to match.
			InterceptorAndDynamicMethodMatcher dm =
					(InterceptorAndDynamicMethodMatcher) interceptorOrInterceptionAdvice;
			Class<?> targetClass = (this.targetClass != null ? this.targetClass : this.method.getDeclaringClass());
			if (dm.methodMatcher.matches(this.method, targetClass, this.arguments)) {
				return dm.interceptor.invoke(this);
			}
			else {
				// Dynamic matching failed.
				// Skip this interceptor and invoke the next in the chain.
				return proceed();
			}
		}
		else {
			// It's an interceptor, so we just invoke it: The pointcut will have
			// been evaluated statically before this object was constructed.  //每一次把自己传入进去，通过++调用不同的链路
			return ((MethodInterceptor) interceptorOrInterceptionAdvice).invoke(this);
		}
	}

这样一看会感觉很蒙，其实追踪一下源码就很好理解了
org.springframework.aop.interceptor.ExposeInvocationInterceptor#invoke

	@Override
	public Object invoke(MethodInvocation mi) throws Throwable {
		MethodInvocation oldInvocation = invocation.get();
		invocation.set(mi);
		try {
			return mi.proceed();
		}
		finally {
			invocation.set(oldInvocation);
		}
	}

上面代码传的是((MethodInterceptor) interceptorOrInterceptionAdvice).invoke(this);
this代表了当前对象，所以mi.proceed()又回调回去了

org.springframework.aop.aspectj.AspectJAfterThrowingAdvice#invoke
异常拦截器，当前方法异常会执行

	@Override
	public Object invoke(MethodInvocation mi) throws Throwable {
		try {
			return mi.proceed();
		}
		catch (Throwable ex) {//只有异常才会执行
			if (shouldInvokeOnThrowing(ex)) {
				invokeAdviceMethod(getJoinPointMatch(), null, ex);
			}
			throw ex;
		}
	}

org.springframework.aop.framework.adapter.AfterReturningAdviceInterceptor#invoke
返回拦截器，方法执行失败，不会执行

	@Override
	public Object invoke(MethodInvocation mi) throws Throwable {//返回变量
		Object retVal = mi.proceed();
		this.advice.afterReturning(retVal, mi.getMethod(), mi.getArguments(), mi.getThis());
		return retVal;
	}

org.springframework.aop.aspectj.AspectJAfterAdvice#invoke
后置拦截器，总是执行，异常也执行

	@Override
	public Object invoke(MethodInvocation mi) throws Throwable {
		try {//先调用下面的链路，再调用finally方法，保证有异常也会调用后置处理器
			return mi.proceed();
		}
		finally {
			invokeAdviceMethod(getJoinPointMatch(), null, null);
		}
	}

org.springframework.aop.framework.adapter.MethodBeforeAdviceInterceptor#invoke
前置拦截器

	@Override
	public Object invoke(MethodInvocation mi) throws Throwable {//前置接口
		this.advice.before(mi.getMethod(), mi.getArguments(), mi.getThis());
		return mi.proceed();
	}

这里用了责任链的设计模式，递归调用排序好的拦截器链
当调用完成责任链后
执行目标方法 invokeJoinpoint()

if (this.currentInterceptorIndex == this.interceptorsAndDynamicMethodMatchers.size() - 1) {
			return invokeJoinpoint();//通过反射的方式执行目标类的目标方法
		}

完成任务
