[Java知识库]springboot 2.X 整合 xxl-job 定时任务调度

创建springboot工程

xxl-job-admin 为xxl-job控制中心
demo-job 执行器demo

集成xxl-job控制台

xxl-job官网
代码地址

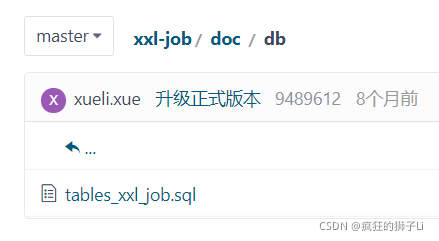

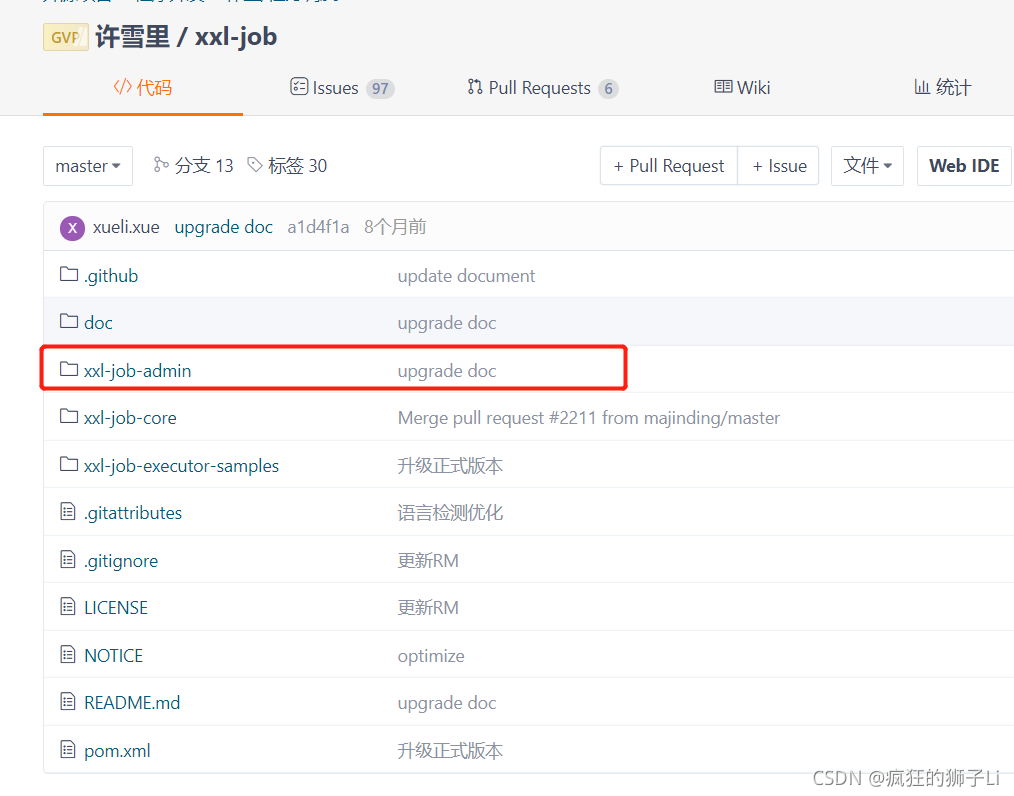

下载xxl-job控制台代码与sql文件

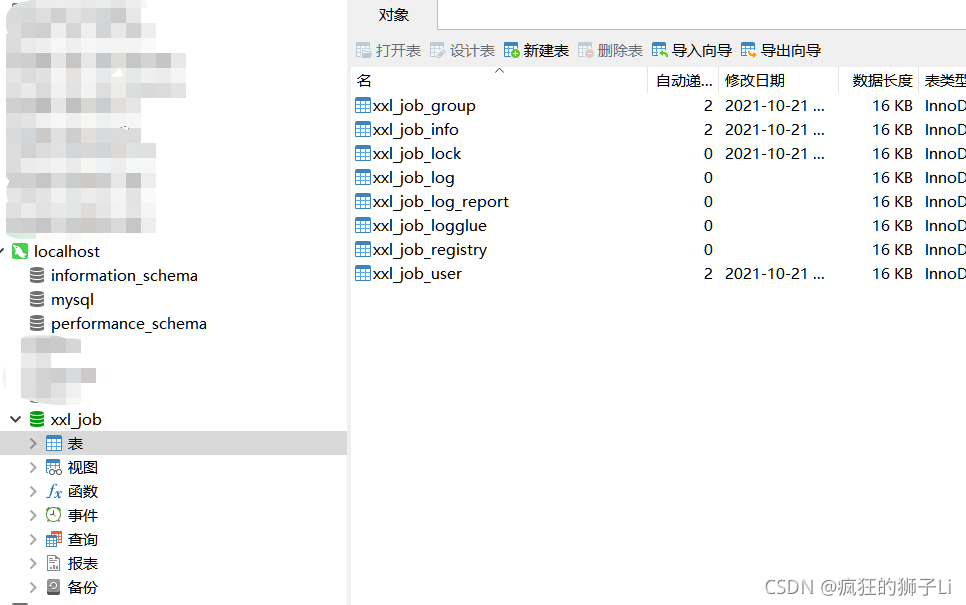

将sql导入到我们的数据库

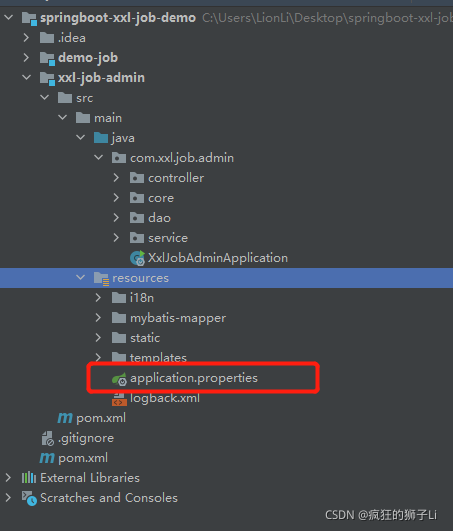

将xxl-job-admin导入我们的工程

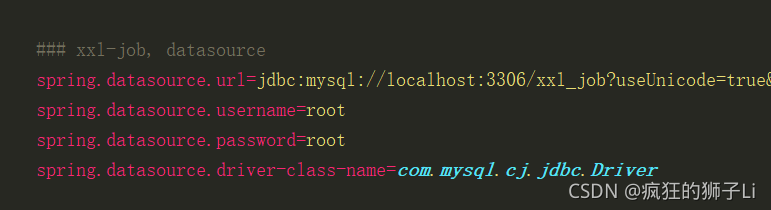

修改其配置文件

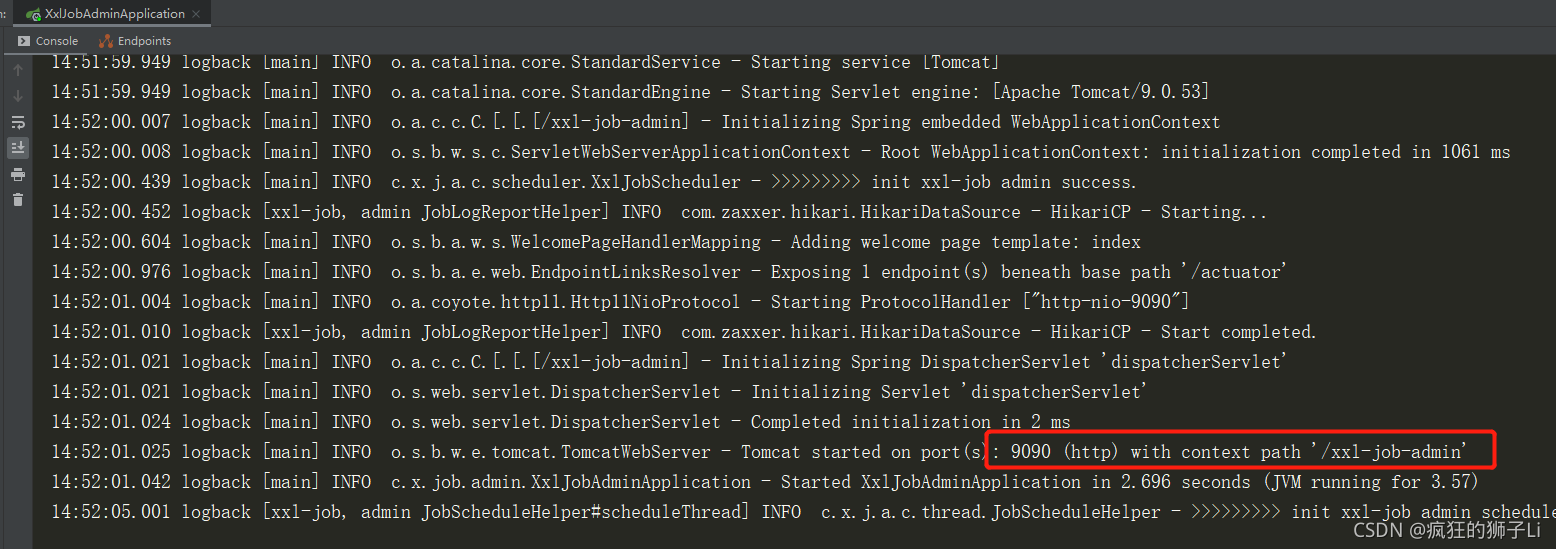

改好之后 启动应用即可

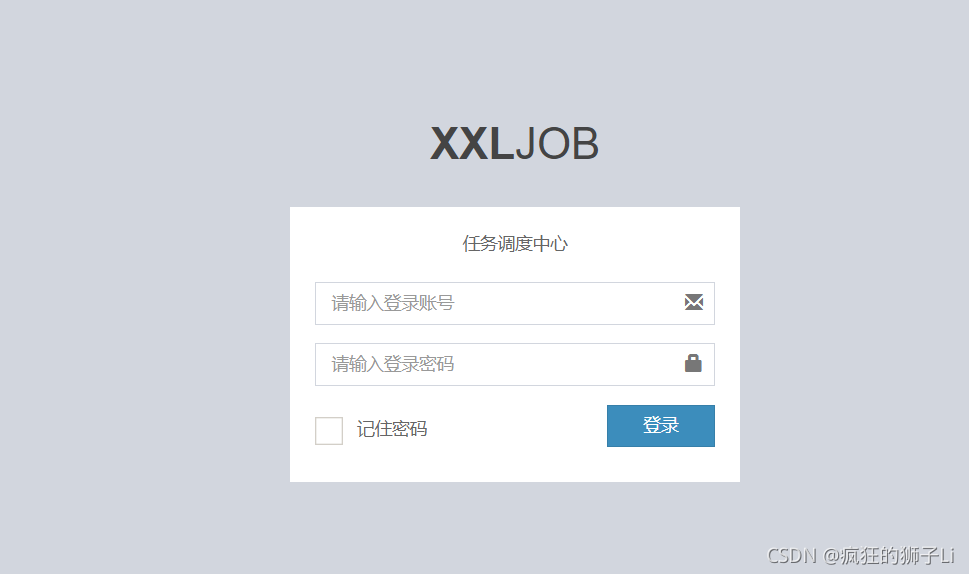

访问 http://localhost:9090/xxl-job-admin 进入控制台

默认账号密码为 admin/123456 可在用户头像处修改

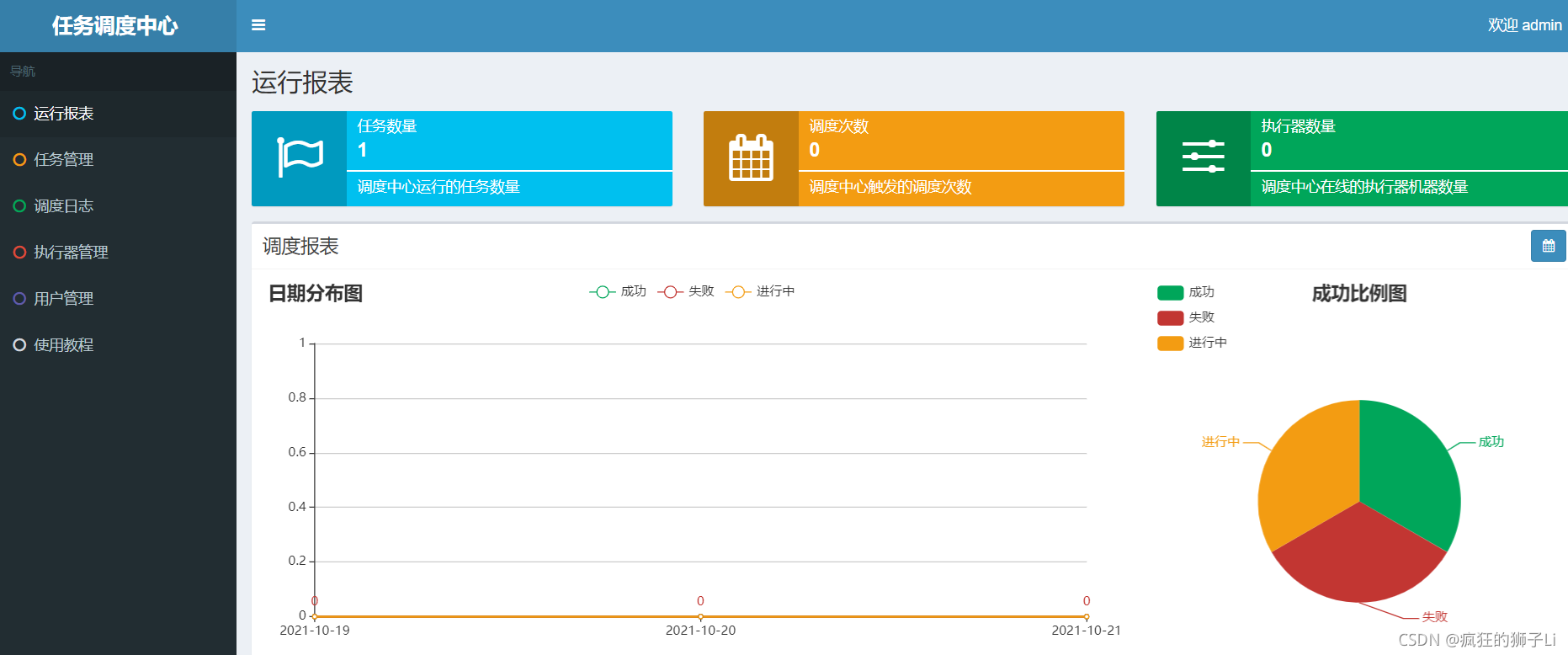

进入到这 控制台就启动成功了

集成xxl-job执行器配置

编写项目配置文件 application.yml

server:
  port: 8080
# xxl-job 配置
xxl:
  job:
    # 调度中心地址：如调度中心集群部署存在多个地址则用逗号分隔。
    admin-addresses: http://localhost:9090/xxl-job-admin
    # 执行器通讯TOKEN：非空时启用
    access-token:
    # 执行器配置
    executor:
      # 执行器AppName：执行器心跳注册分组依据；为空则关闭自动注册
      appname: xxl-job-executor-sample
      # 执行器端口号 执行器从9101开始往后写
      port: 9101
      # 执行器注册：默认IP:PORT
      address:
      # 执行器IP：默认自动获取IP
      ip:
      # 执行器运行日志文件存储磁盘路径
      logpath: ./logs/xxl-job
      # 执行器日志文件保存天数：大于3生效
      logretentiondays: 30

编写项目配置类 XxlJobProperties.java

/**
 * xxljob配置类
 *
 * @author Lion Li
 */
@Data
@ConfigurationProperties(prefix = "xxl.job")
public class XxlJobProperties {

    private String adminAddresses;

    private String accessToken;

    private Executor executor;

    @Data
    @NoArgsConstructor
    public static class Executor {

        private String appname;

        private String address;

        private String ip;

        private int port;

        private String logPath;

        private int logRetentionDays;
    }
}

XxlJobConfig.java

/**
 * xxl-job config
 *
 * @author Lion Li
 */
@Slf4j
@Configuration
@EnableConfigurationProperties(XxlJobProperties.class)
@AllArgsConstructor
public class XxlJobConfig {

    private final XxlJobProperties xxlJobProperties;

    @Bean
    public XxlJobSpringExecutor xxlJobExecutor() {
        log.info(">>>>>>>>>>> xxl-job config init.");
        XxlJobSpringExecutor xxlJobSpringExecutor = new XxlJobSpringExecutor();
        xxlJobSpringExecutor.setAdminAddresses(xxlJobProperties.getAdminAddresses());
        xxlJobSpringExecutor.setAccessToken(xxlJobProperties.getAccessToken());
        XxlJobProperties.Executor executor = xxlJobProperties.getExecutor();
        xxlJobSpringExecutor.setAppname(executor.getAppname());
        xxlJobSpringExecutor.setAddress(executor.getAddress());
        xxlJobSpringExecutor.setIp(executor.getIp());
        xxlJobSpringExecutor.setPort(executor.getPort());
        xxlJobSpringExecutor.setLogPath(executor.getLogPath());
        xxlJobSpringExecutor.setLogRetentionDays(executor.getLogRetentionDays());
        return xxlJobSpringExecutor;
    }

}

启动应用

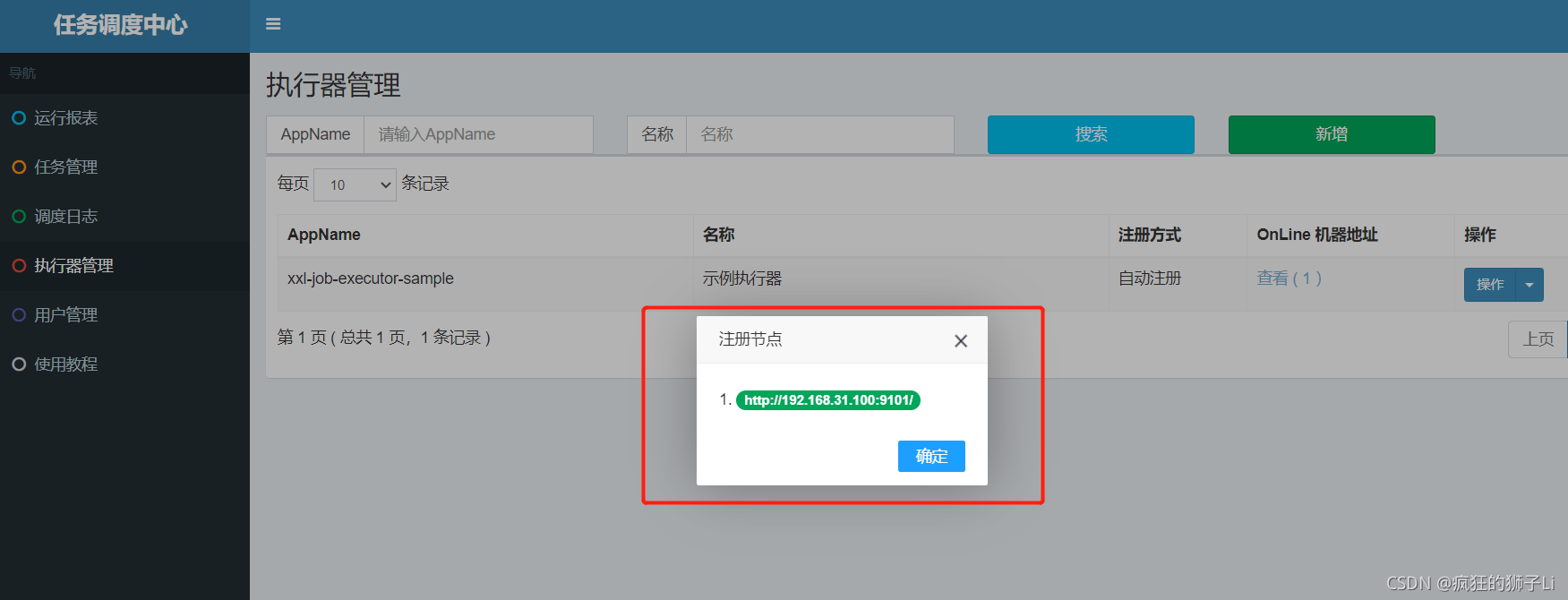

启动成功后 查看控制台 执行器界面

成功注册到 控制中心

编写测试方法

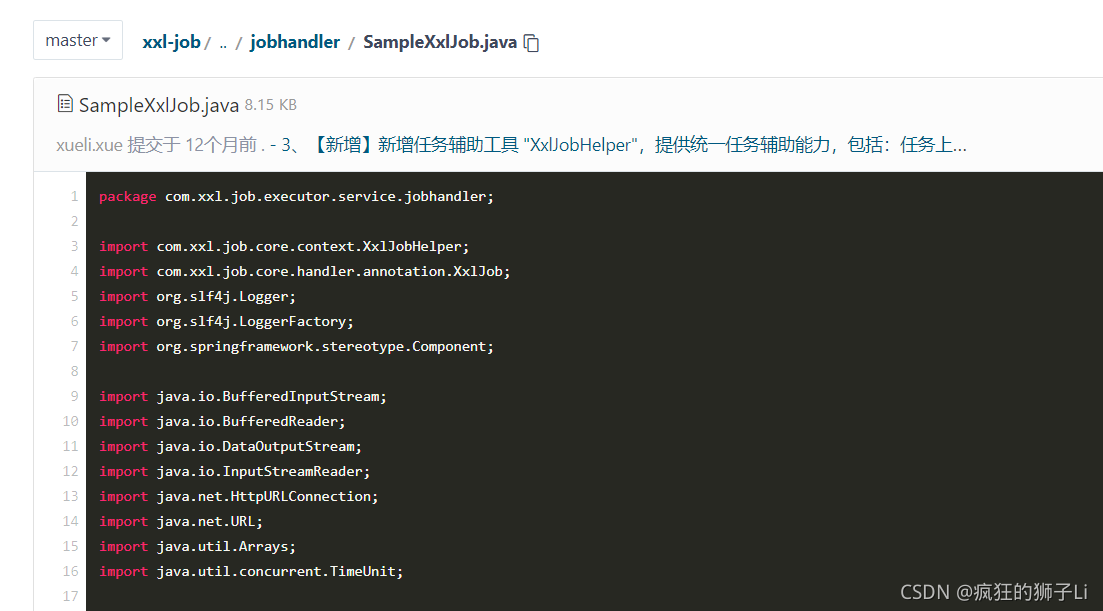

复制官方demo

创建 SampleService.java 将官方demo复制进来

/**
 * XxlJob开发示例（Bean模式）
 * <p>
 * 开发步骤：
 * 1、任务开发：在Spring Bean实例中，开发Job方法；
 * 2、注解配置：为Job方法添加注解 "@XxlJob(value="自定义jobhandler名称", init = "JobHandler初始化方法", destroy = "JobHandler销毁方法")"，注解value值对应的是调度中心新建任务的JobHandler属性的值。
 * 3、执行日志：需要通过 "XxlJobHelper.log" 打印执行日志；
 * 4、任务结果：默认任务结果为 "成功" 状态，不需要主动设置；如有诉求，比如设置任务结果为失败，可以通过 "XxlJobHelper.handleFail/handleSuccess" 自主设置任务结果；
 *
 * @author xuxueli 2019-12-11 21:52:51
 */
@Slf4j
@Service
public class SampleService {


    /**
     * 1、简单任务示例（Bean模式）
     */
    @XxlJob("demoJobHandler")
    public void demoJobHandler() throws Exception {
        XxlJobHelper.log("XXL-JOB, Hello World.");

        for (int i = 0; i < 5; i++) {
            XxlJobHelper.log("beat at:" + i);
            TimeUnit.SECONDS.sleep(2);
        }
        // default success
    }


    /**
     * 2、分片广播任务
     */
    @XxlJob("shardingJobHandler")
    public void shardingJobHandler() throws Exception {

        // 分片参数
        int shardIndex = XxlJobHelper.getShardIndex();
        int shardTotal = XxlJobHelper.getShardTotal();

        XxlJobHelper.log("分片参数：当前分片序号 = {}, 总分片数 = {}", shardIndex, shardTotal);

        // 业务逻辑
        for (int i = 0; i < shardTotal; i++) {
            if (i == shardIndex) {
                XxlJobHelper.log("第 {} 片, 命中分片开始处理", i);
            } else {
                XxlJobHelper.log("第 {} 片, 忽略", i);
            }
        }

    }


    /**
     * 3、命令行任务
     */
    @XxlJob("commandJobHandler")
    public void commandJobHandler() throws Exception {
        String command = XxlJobHelper.getJobParam();
        int exitValue = -1;

        BufferedReader bufferedReader = null;
        try {
            // command process
            ProcessBuilder processBuilder = new ProcessBuilder();
            processBuilder.command(command);
            processBuilder.redirectErrorStream(true);

            Process process = processBuilder.start();
            //Process process = Runtime.getRuntime().exec(command);

            BufferedInputStream bufferedInputStream = new BufferedInputStream(process.getInputStream());
            bufferedReader = new BufferedReader(new InputStreamReader(bufferedInputStream));

            // command log
            String line;
            while ((line = bufferedReader.readLine()) != null) {
                XxlJobHelper.log(line);
            }

            // command exit
            process.waitFor();
            exitValue = process.exitValue();
        } catch (Exception e) {
            XxlJobHelper.log(e);
        } finally {
            if (bufferedReader != null) {
                bufferedReader.close();
            }
        }

        if (exitValue == 0) {
            // default success
        } else {
            XxlJobHelper.handleFail("command exit value(" + exitValue + ") is failed");
        }

    }


    /**
     * 4、跨平台Http任务
     * 参数示例：
     * "url: http://www.baidu.com\n" +
     * "method: get\n" +
     * "data: content\n";
     */
    @XxlJob("httpJobHandler")
    public void httpJobHandler() throws Exception {

        // param parse
        String param = XxlJobHelper.getJobParam();
        if (param == null || param.trim().length() == 0) {
            XxlJobHelper.log("param[" + param + "] invalid.");

            XxlJobHelper.handleFail();
            return;
        }

        String[] httpParams = param.split("\n");
        String url = null;
        String method = null;
        String data = null;
        for (String httpParam : httpParams) {
            if (httpParam.startsWith("url:")) {
                url = httpParam.substring(httpParam.indexOf("url:") + 4).trim();
            }
            if (httpParam.startsWith("method:")) {
                method = httpParam.substring(httpParam.indexOf("method:") + 7).trim().toUpperCase();
            }
            if (httpParam.startsWith("data:")) {
                data = httpParam.substring(httpParam.indexOf("data:") + 5).trim();
            }
        }

        // param valid
        if (url == null || url.trim().length() == 0) {
            XxlJobHelper.log("url[" + url + "] invalid.");

            XxlJobHelper.handleFail();
            return;
        }
        if (method == null || !Arrays.asList("GET", "POST").contains(method)) {
            XxlJobHelper.log("method[" + method + "] invalid.");

            XxlJobHelper.handleFail();
            return;
        }
        boolean isPostMethod = method.equals("POST");

        // request
        HttpURLConnection connection = null;
        BufferedReader bufferedReader = null;
        try {
            // connection
            URL realUrl = new URL(url);
            connection = (HttpURLConnection) realUrl.openConnection();

            // connection setting
            connection.setRequestMethod(method);
            connection.setDoOutput(isPostMethod);
            connection.setDoInput(true);
            connection.setUseCaches(false);
            connection.setReadTimeout(5 * 1000);
            connection.setConnectTimeout(3 * 1000);
            connection.setRequestProperty("connection", "Keep-Alive");
            connection.setRequestProperty("Content-Type", "application/json;charset=UTF-8");
            connection.setRequestProperty("Accept-Charset", "application/json;charset=UTF-8");

            // do connection
            connection.connect();

            // data
            if (isPostMethod && data != null && data.trim().length() > 0) {
                DataOutputStream dataOutputStream = new DataOutputStream(connection.getOutputStream());
                dataOutputStream.write(data.getBytes("UTF-8"));
                dataOutputStream.flush();
                dataOutputStream.close();
            }

            // valid StatusCode
            int statusCode = connection.getResponseCode();
            if (statusCode != 200) {
                throw new RuntimeException("Http Request StatusCode(" + statusCode + ") Invalid.");
            }

            // result
            bufferedReader = new BufferedReader(new InputStreamReader(connection.getInputStream(), "UTF-8"));
            StringBuilder result = new StringBuilder();
            String line;
            while ((line = bufferedReader.readLine()) != null) {
                result.append(line);
            }
            String responseMsg = result.toString();

            XxlJobHelper.log(responseMsg);

            return;
        } catch (Exception e) {
            XxlJobHelper.log(e);

            XxlJobHelper.handleFail();
            return;
        } finally {
            try {
                if (bufferedReader != null) {
                    bufferedReader.close();
                }
                if (connection != null) {
                    connection.disconnect();
                }
            } catch (Exception e2) {
                XxlJobHelper.log(e2);
            }
        }

    }

    /**
     * 5、生命周期任务示例：任务初始化与销毁时，支持自定义相关逻辑；
     */
    @XxlJob(value = "demoJobHandler2", init = "init", destroy = "destroy")
    public void demoJobHandler2() throws Exception {
        XxlJobHelper.log("XXL-JOB, Hello World.");
    }

    public void init() {
        log.info("init");
    }

    public void destroy() {
        log.info("destory");
    }

}

官方demo涵盖了大部分的使用案例 大家一定要仔细阅读

执行测试

编写好代码后重启服务

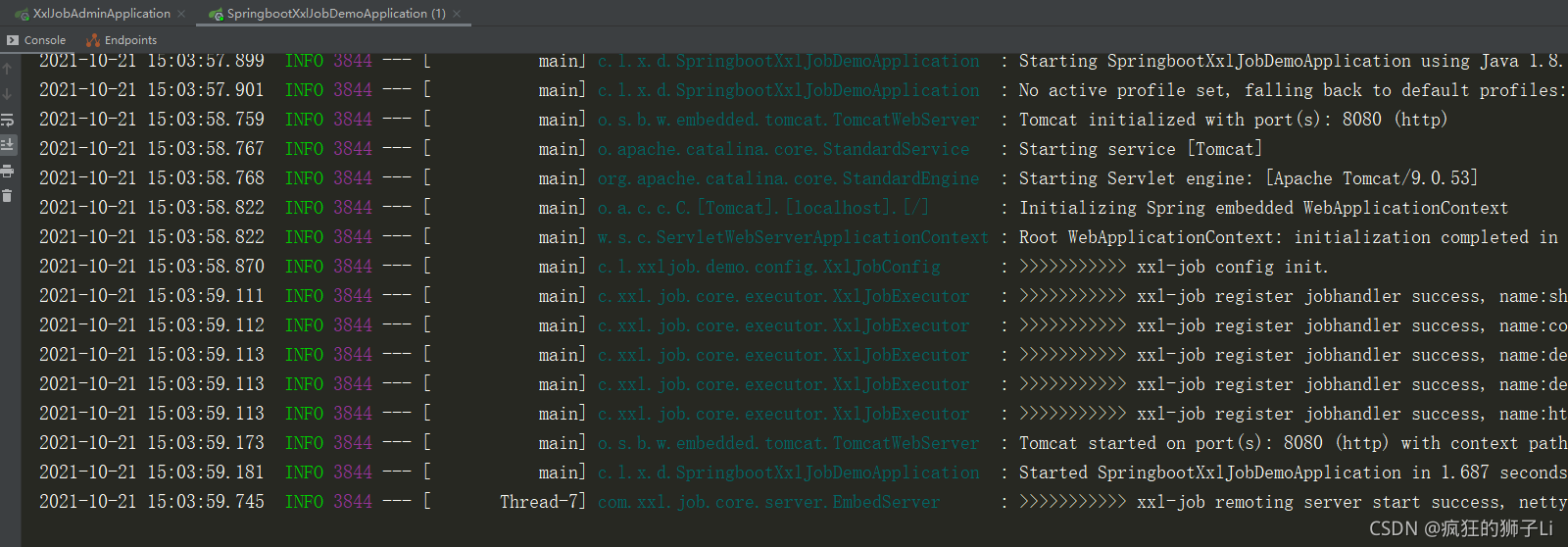

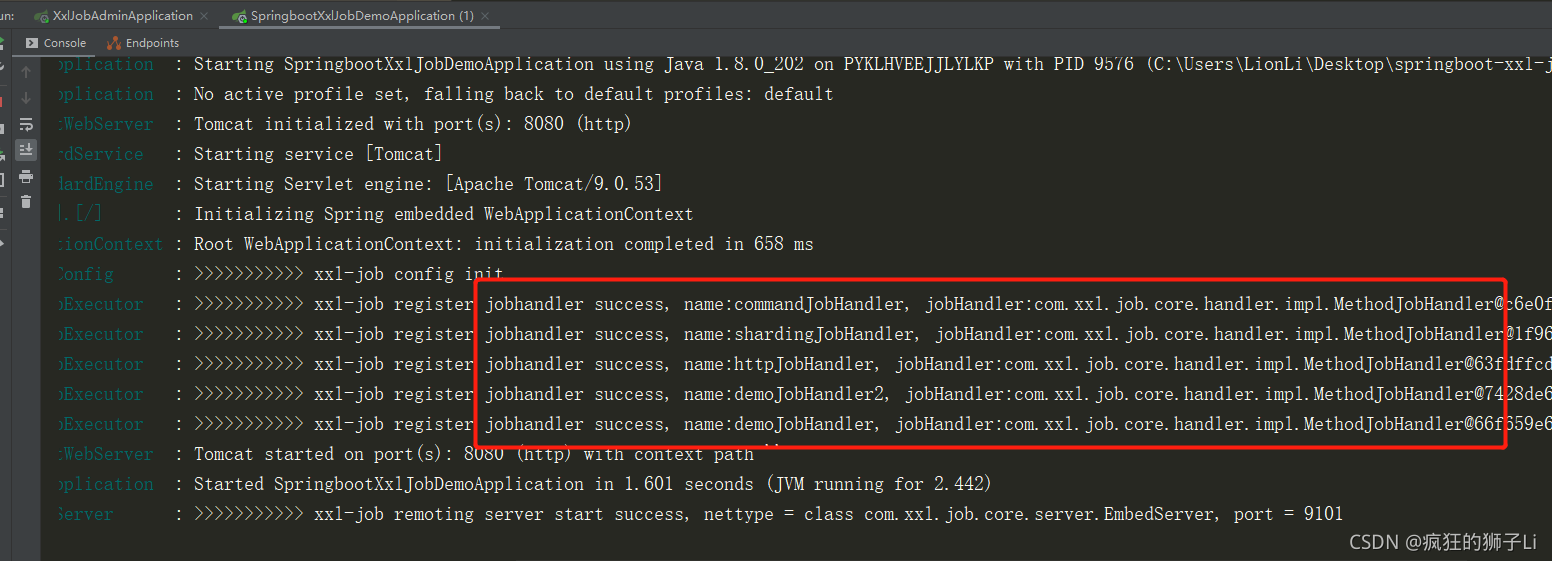

日志输出所有扫描到的demo案例

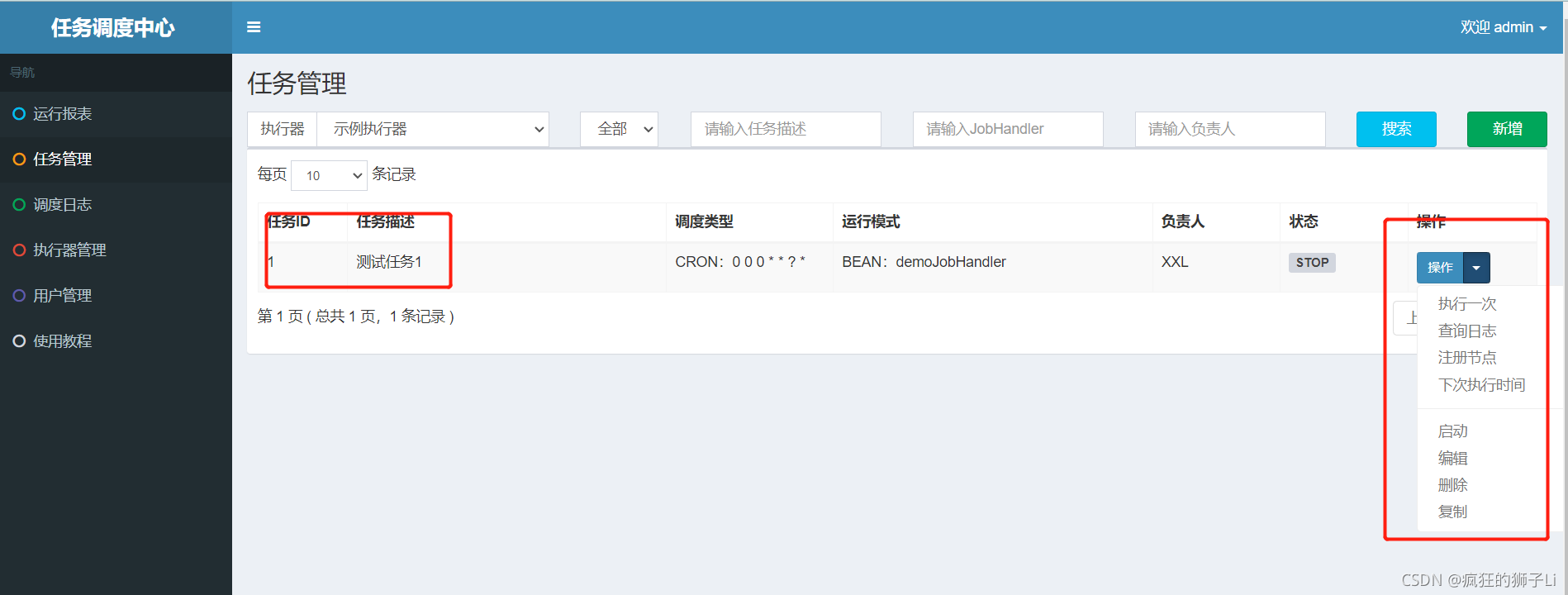

进入控制台 任务管理 执行案例

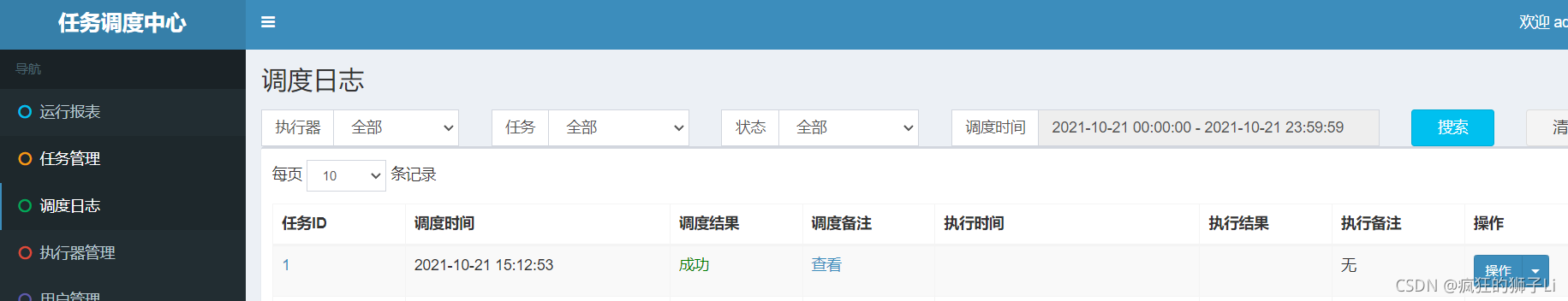

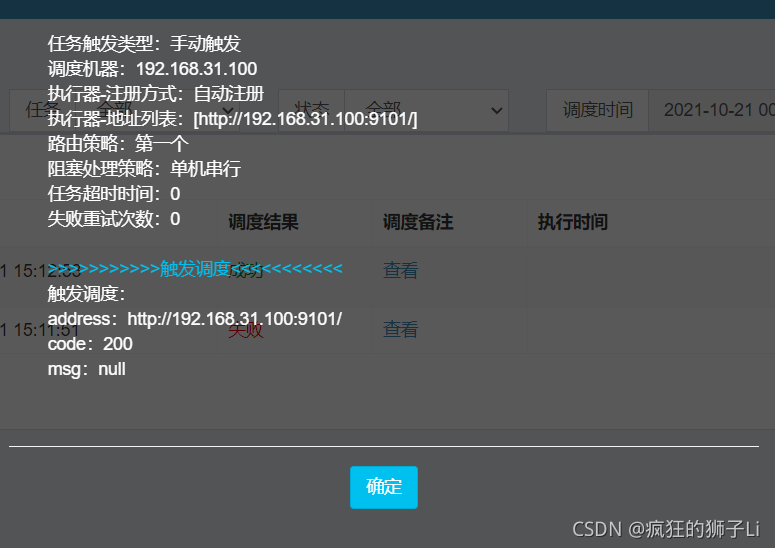

查看 调度日志 任务的执行状态和具体执行返回的内容等

项目地址

项目已上传到gitee
地址: springboot-xxl-job-demo
如果帮到您了,请帮忙点个star
