[Java知识库]SpringCloud Alibaba Seata处理分布式事务

目录

分布式介绍以及遇到的难题：?

Seata能干嘛：

?Seata怎么用：

编码：

?数据库准备：

三个微服务准备：

接下来进入测试环节：

分布式介绍以及遇到的难题：?

?

产生的问题：多个微服务数据一致性无法保证！！！

所以强大的阿里巴巴就打造了一款处理全局数据统一的框架Seata来解决此问题。

Seata能干嘛：

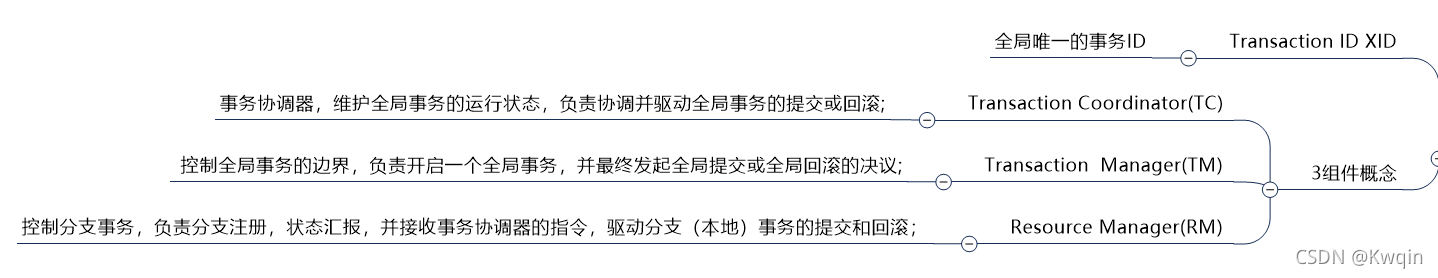

分布式事务处理过程中的ID＋三组件模型：

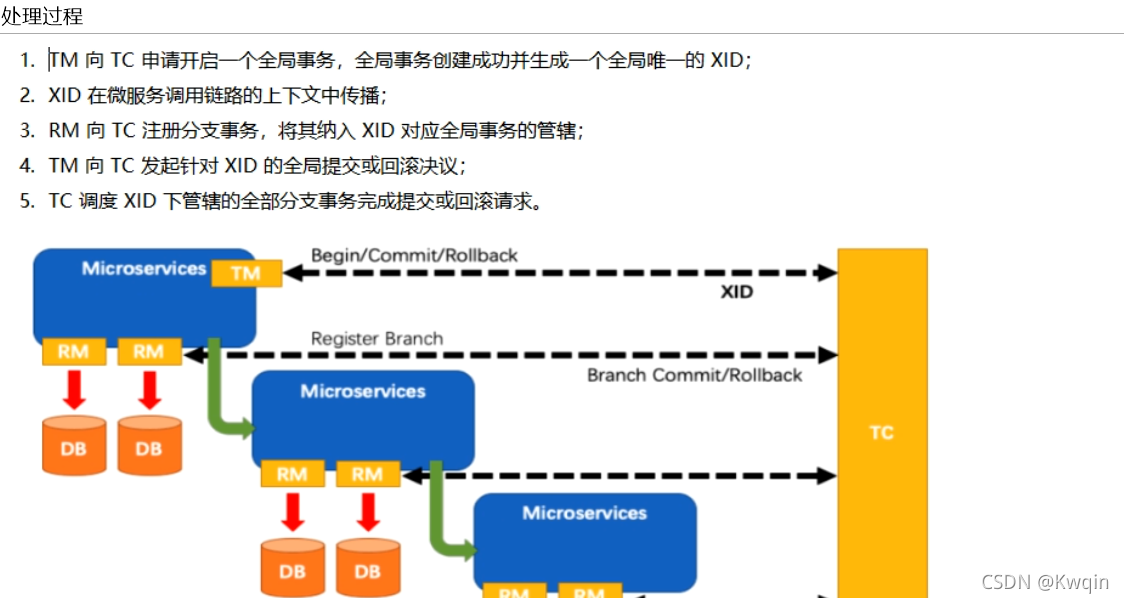

处理过程：

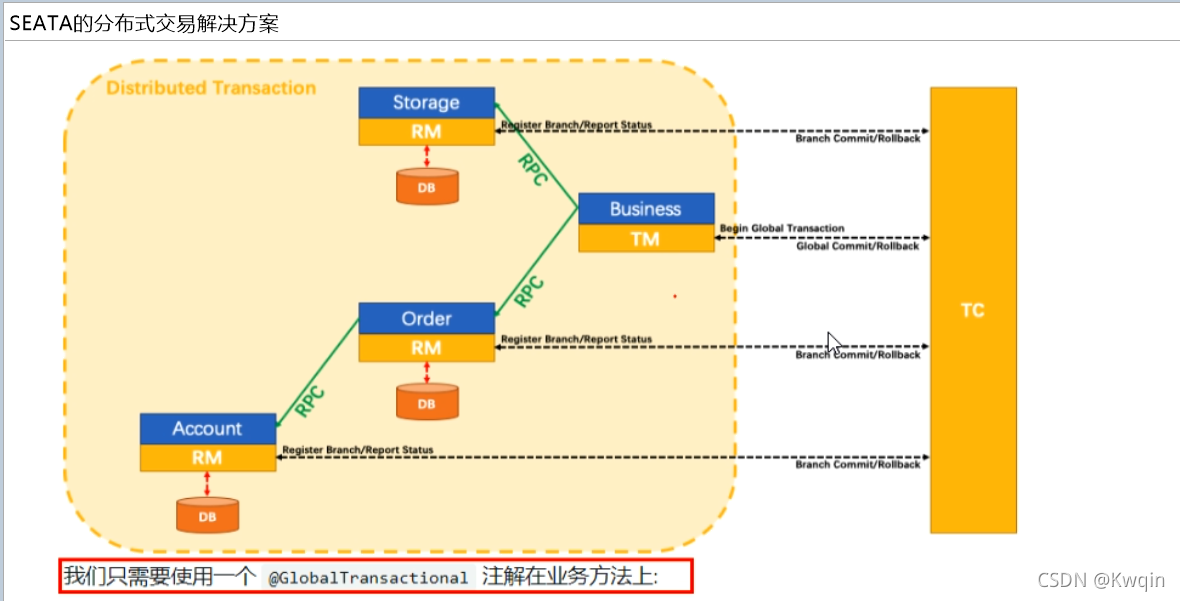

?Seata怎么用：

Seata的用法非常简单，甚至不用理解Seata的任何逻辑，但是如果你是大厂男孩，还是要懂下底层的hhh！！！

?Seata的安装这里就不讲了，因为Bean觉得不是重点，而且也没什么技术含量！！

Seata的原理和思想上面介绍完啦，那我们就进入代码编写环节吧！

编码：

以下演示都需要先开启Nacos再开启Seata，务必确保两者启动成功！

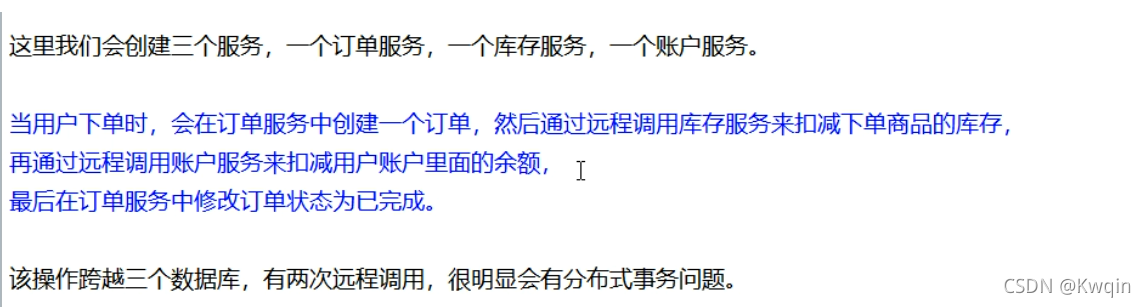

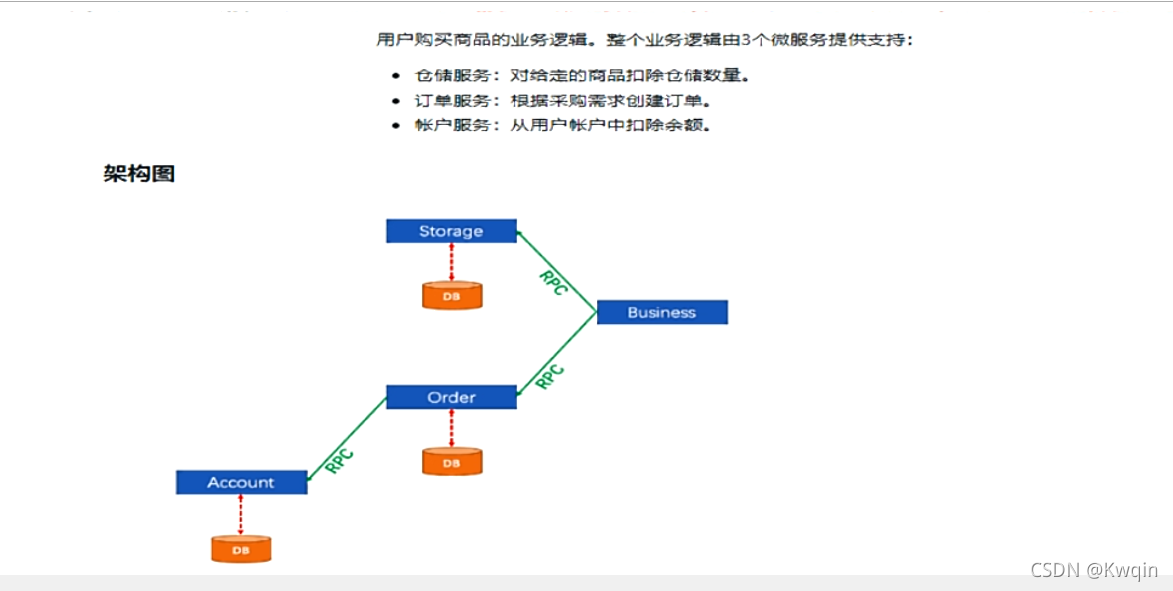

分布式事务业务说明：

?数据库准备：

CREATE DATABASE seata_order；

CREATE DATABASE seata_storage；

CREATE DATABASE seata_account；

根据上面的三个库建三张表：

CREATE TABLE t_order(
    `id` BIGINT(11) NOT NULL AUTO_INCREMENT PRIMARY KEY,
    `user_id` BIGINT(11) DEFAULT NULL COMMENT '用户id',
    `product_id` BIGINT(11) DEFAULT NULL COMMENT '产品id',
    `count` INT(11) DEFAULT NULL COMMENT '数量',
    `money` DECIMAL(11,0) DEFAULT NULL COMMENT '金额',
    `status` INT(1) DEFAULT NULL COMMENT '订单状态：0：创建中; 1：已完结'
) ENGINE=INNODB AUTO_INCREMENT=7 DEFAULT CHARSET=utf8;

SELECT * FROM t_order;

CREATE TABLE t_storage(
    `id` BIGINT(11) NOT NULL AUTO_INCREMENT PRIMARY KEY,
    `product_id` BIGINT(11) DEFAULT NULL COMMENT '产品id',
   `'total` INT(11) DEFAULT NULL COMMENT '总库存',
    `used` INT(11) DEFAULT NULL COMMENT '已用库存',
    `residue` INT(11) DEFAULT NULL COMMENT '剩余库存'
) ENGINE=INNODB AUTO_INCREMENT=2 DEFAULT CHARSET=utf8;

INSERT INTO seata_storage.t_storage(`id`,`product_id`,`total`,`used`,`residue`)
VALUES('1','1','100','0','100');


SELECT * FROM t_storage;

CREATE TABLE t_account(
    `id` BIGINT(11) NOT NULL AUTO_INCREMENT PRIMARY KEY COMMENT 'id',
    `user_id` BIGINT(11) DEFAULT NULL COMMENT '用户id',
    `total` DECIMAL(10,0) DEFAULT NULL COMMENT '总额度',
    `used` DECIMAL(10,0) DEFAULT NULL COMMENT '已用余额',
    `residue` DECIMAL(10,0) DEFAULT '0' COMMENT '剩余可用额度'
) ENGINE=INNODB AUTO_INCREMENT=2 DEFAULT CHARSET=utf8;

INSERT INTO seata_account.t_account(`id`,`user_id`,`total`,`used`,`residue`) VALUES('1','1','1000','0','1000')



SELECT * FROM t_account;

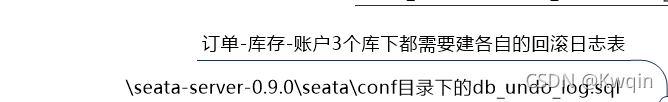

三个库中都需要建立各自的回滚日志表，对应seata中的conf目录下的db_undo_log.sql。

在这三个库中执行一次此sql即可！！！?

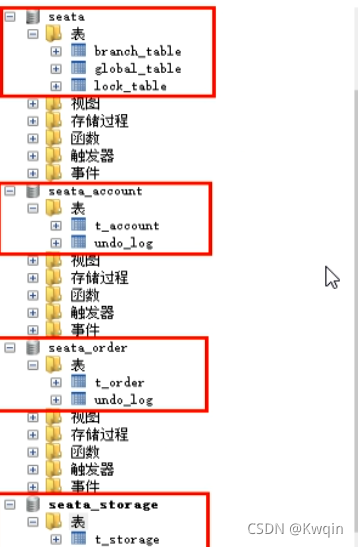

最终效果：

三个微服务准备：

?业务需求：下订单->减库存->扣余额->改(订单)状态

新建一个微服务模块seata-order-service2001

pom：

    <dependencies>
        <!--nacos-->
        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
        </dependency>
        <!--seata-->
        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-seata</artifactId>
            <exclusions>
                <exclusion>
                    <artifactId>seata-all</artifactId>
                    <groupId>io.seata</groupId>
                </exclusion>
            </exclusions>
        </dependency>
        <dependency>
            <groupId>io.seata</groupId>
            <artifactId>seata-all</artifactId>
            <version>0.9.0</version>
        </dependency>
        <!--feign-->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-openfeign</artifactId>
        </dependency>
        <!--web-actuator-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-actuator</artifactId>
        </dependency>
        <!--mysql-druid-->
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>5.1.37</version>
        </dependency>
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>druid-spring-boot-starter</artifactId>
            <version>1.1.10</version>
        </dependency>
        <dependency>
            <groupId>org.mybatis.spring.boot</groupId>
            <artifactId>mybatis-spring-boot-starter</artifactId>
            <version>2.0.0</version>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>
    </dependencies>

?yml

server:
  port: 2001

spring:
  application:
    name: seata-order-service
  cloud:
    alibaba:
      seata:
        #自定义事务组名称需要与seata-server中的对应
        tx-service-group: fsp_tx_group
    nacos:
      discovery:
        server-addr: localhost:8848
  datasource:
    driver-class-name: com.mysql.jdbc.Driver
    url: jdbc:mysql://localhost:3306/seata_order
    username: root
    password: 1111111

feign:
  hystrix:
    enabled: false

logging:
  level:
    io:
      seata: info

mybatis:
  mapperLocations: classpath:mapper/*.xml

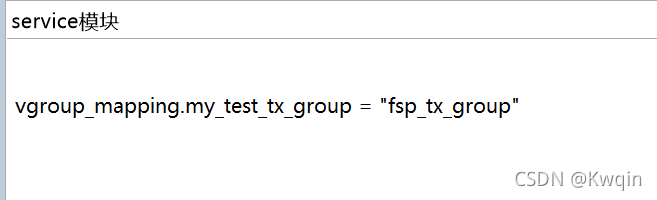

?tx-service-group的值取决于我们修改seata配置文件中file.conf的service模块的这个地方的值

?然后再resource中添加两个配置文件

file.conf：

transport {
  # tcp udt unix-domain-socket
  type = "TCP"
  #NIO NATIVE
  server = "NIO"
  #enable heartbeat
  heartbeat = true
  #thread factory for netty
  thread-factory {
    boss-thread-prefix = "NettyBoss"
    worker-thread-prefix = "NettyServerNIOWorker"
    server-executor-thread-prefix = "NettyServerBizHandler"
    share-boss-worker = false
    client-selector-thread-prefix = "NettyClientSelector"
    client-selector-thread-size = 1
    client-worker-thread-prefix = "NettyClientWorkerThread"
    # netty boss thread size,will not be used for UDT
    boss-thread-size = 1
    #auto default pin or 8
    worker-thread-size = 8
  }
  shutdown {
    # when destroy server, wait seconds
    wait = 3
  }
  serialization = "seata"
  compressor = "none"
}

service {

  vgroup_mapping.fsp_tx_group = "default"

  default.grouplist = "127.0.0.1:8091"
  enableDegrade = false
  disable = false
  max.commit.retry.timeout = "-1"
  max.rollback.retry.timeout = "-1"
  disableGlobalTransaction = false
}


client {
  async.commit.buffer.limit = 10000
  lock {
    retry.internal = 10
    retry.times = 30
  }
  report.retry.count = 5
  tm.commit.retry.count = 1
  tm.rollback.retry.count = 1
}

## transaction log store
store {
  ## store mode: file、db
  mode = "db"

  ## file store
  file {
    dir = "sessionStore"

    # branch session size , if exceeded first try compress lockkey, still exceeded throws exceptions
    max-branch-session-size = 16384
    # globe session size , if exceeded throws exceptions
    max-global-session-size = 512
    # file buffer size , if exceeded allocate new buffer
    file-write-buffer-cache-size = 16384
    # when recover batch read size
    session.reload.read_size = 100
    # async, sync
    flush-disk-mode = async
  }

  ## database store
  db {
    ## the implement of javax.sql.DataSource, such as DruidDataSource(druid)/BasicDataSource(dbcp) etc.
    datasource = "dbcp"
    ## mysql/oracle/h2/oceanbase etc.
    db-type = "mysql"
    driver-class-name = "com.mysql.jdbc.Driver"
    url = "jdbc:mysql://127.0.0.1:3306/seata"
    user = "root"
    password = "123456"
    min-conn = 1
    max-conn = 3
    global.table = "global_table"
    branch.table = "branch_table"
    lock-table = "lock_table"
    query-limit = 100
  }
}
lock {
  ## the lock store mode: local、remote
  mode = "remote"

  local {
    ## store locks in user's database
  }

  remote {
    ## store locks in the seata's server
  }
}
recovery {
  #schedule committing retry period in milliseconds
  committing-retry-period = 1000
  #schedule asyn committing retry period in milliseconds
  asyn-committing-retry-period = 1000
  #schedule rollbacking retry period in milliseconds
  rollbacking-retry-period = 1000
  #schedule timeout retry period in milliseconds
  timeout-retry-period = 1000
}

transaction {
  undo.data.validation = true
  undo.log.serialization = "jackson"
  undo.log.save.days = 7
  #schedule delete expired undo_log in milliseconds
  undo.log.delete.period = 86400000
  undo.log.table = "undo_log"
}

## metrics settings
metrics {
  enabled = false
  registry-type = "compact"
  # multi exporters use comma divided
  exporter-list = "prometheus"
  exporter-prometheus-port = 9898
}

support {
  ## spring
  spring {
    # auto proxy the DataSource bean
    datasource.autoproxy = false
  }
}



register.conf

registry {
  # file 、nacos 、eureka、redis、zk、consul、etcd3、sofa
  type = "nacos"

  nacos {
    serverAddr = "localhost:8848"
    namespace = ""
    cluster = "default"
  }
  eureka {
    serviceUrl = "http://localhost:8761/eureka"
    application = "default"
    weight = "1"
  }
  redis {
    serverAddr = "localhost:6379"
    db = "0"
  }
  zk {
    cluster = "default"
    serverAddr = "127.0.0.1:2181"
    session.timeout = 6000
    connect.timeout = 2000
  }
  consul {
    cluster = "default"
    serverAddr = "127.0.0.1:8500"
  }
  etcd3 {
    cluster = "default"
    serverAddr = "http://localhost:2379"
  }
  sofa {
    serverAddr = "127.0.0.1:9603"
    application = "default"
    region = "DEFAULT_ZONE"
    datacenter = "DefaultDataCenter"
    cluster = "default"
    group = "SEATA_GROUP"
    addressWaitTime = "3000"
  }
  file {
    name = "file.conf"
  }
}

config {
  # file、nacos 、apollo、zk、consul、etcd3
  type = "file"

  nacos {
    serverAddr = "localhost"
    namespace = ""
  }
  consul {
    serverAddr = "127.0.0.1:8500"
  }
  apollo {
    app.id = "seata-server"
    apollo.meta = "http://192.168.1.204:8801"
  }
  zk {
    serverAddr = "127.0.0.1:2181"
    session.timeout = 6000
    connect.timeout = 2000
  }
  etcd3 {
    serverAddr = "http://localhost:2379"
  }
  file {
    name = "file.conf"
  }
}

实体类：

@Data
@AllArgsConstructor
@NoArgsConstructor
public class CommonResult<T>
{
    private Integer code;
    private String  message;
    private T       data;

    public CommonResult(Integer code, String message)
    {
        this(code,message,null);
    }
}

@Data
@AllArgsConstructor
@NoArgsConstructor
public class Order
{
    private Long id;

    private Long userId;

    private Long productId;

    private Integer count;

    private BigDecimal money;

    private Integer status; //订单状态：0：创建中；1：已完结
}

dao


@Mapper
public interface OrderDao
{
    //新建订单
    void create(Order order);

    //修改订单状态，从零改为1
    void update(@Param("userId") Long userId,@Param("status") Integer status);
}


?mapper.xml

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd" >

<mapper namespace="com.atguigu.springcloud.alibaba.dao.OrderDao">

    <resultMap id="BaseResultMap" type="com.atguigu.springcloud.alibaba.domain.Order">
        <id column="id" property="id" jdbcType="BIGINT"/>
        <result column="user_id" property="userId" jdbcType="BIGINT"/>
        <result column="product_id" property="productId" jdbcType="BIGINT"/>
        <result column="count" property="count" jdbcType="INTEGER"/>
        <result column="money" property="money" jdbcType="DECIMAL"/>
        <result column="status" property="status" jdbcType="INTEGER"/>
    </resultMap>

    <insert id="create">
        insert into t_order (id,user_id,product_id,count,money,status)
        values (null,#{userId},#{productId},#{count},#{money},0);
    </insert>


    <update id="update">
        update t_order set status = 1
        where user_id=#{userId} and status = #{status};
    </update>

</mapper>




?service

public interface OrderService{
    void create(Order order);
}


@FeignClient(value = "seata-storage-service")
public interface StorageService{
    @PostMapping(value = "/storage/decrease")
    CommonResult decrease(@RequestParam("productId") Long productId, @RequestParam("count") Integer count);
}


@FeignClient(value = "seata-account-service")
public interface AccountService{
    @PostMapping(value = "/account/decrease")
    CommonResult decrease(@RequestParam("userId") Long userId, @RequestParam("money") BigDecimal money);
}


实现类：

@Service
@Slf4j
public class OrderServiceImpl implements OrderService
{
    @Resource
    private OrderDao orderDao;
    @Resource
    private StorageService storageService;
    @Resource
    private AccountService accountService;

    /**
     * 创建订单->调用库存服务扣减库存->调用账户服务扣减账户余额->修改订单状态
     */

    @Override
    public void create(Order order){
        log.info("----->开始新建订单");
        //新建订单
        orderDao.create(order);

        //扣减库存
        log.info("----->订单微服务开始调用库存，做扣减Count");
        storageService.decrease(order.getProductId(),order.getCount());
        log.info("----->订单微服务开始调用库存，做扣减end");

        //扣减账户
        log.info("----->订单微服务开始调用账户，做扣减Money");
        accountService.decrease(order.getUserId(),order.getMoney());
        log.info("----->订单微服务开始调用账户，做扣减end");


        //修改订单状态，从零到1代表已经完成
        log.info("----->修改订单状态开始");
        orderDao.update(order.getUserId(),0);
        log.info("----->修改订单状态结束");

        log.info("----->下订单结束了");

    }
}


controller

@RestController
public class OrderController{
    @Resource
    private OrderService orderService;


    @GetMapping("/order/create")
    public CommonResult create(Order order)
    {
        orderService.create(order);
        return new CommonResult(200,"订单创建成功");
    }
}


config

@Configuration
public class DataSourceProxyConfig {


    @Value("${mybatis.mapperLocations}")
    private String mapperLocations;


    @Bean
    @ConfigurationProperties(prefix = "spring.datasource")
    public DataSource druidDataSource(){
        return new DruidDataSource();
    }


    @Bean
    public DataSourceProxy dataSourceProxy(DataSource dataSource) {
        return new DataSourceProxy(dataSource);
    }


    @Bean
    public SqlSessionFactory sqlSessionFactoryBean(DataSourceProxy dataSourceProxy) throws Exception {
        SqlSessionFactoryBean sqlSessionFactoryBean = new SqlSessionFactoryBean();
        sqlSessionFactoryBean.setDataSource(dataSourceProxy);
        sqlSessionFactoryBean.setMapperLocations(new PathMatchingResourcePatternResolver().getResources(mapperLocations));
        sqlSessionFactoryBean.setTransactionFactory(new SpringManagedTransactionFactory());
        return sqlSessionFactoryBean.getObject();
    }

}


主启动类：

@EnableDiscoveryClient
@MapperScan({"com.atguigu.springcloud.alibaba.dao"})
@EnableFeignClients
@SpringBootApplication(exclude = DataSourceAutoConfiguration.class)//取消数据源自动创建的配置
public class SeataOrderMainApp2001{

    public static void main(String[] args)
    {
        SpringApplication.run(SeataOrderMainApp2001.class, args);
    }
}

库存模块和账户模块就自己写吧，这里Bean就不写出来了，逻辑很简单（体力活）！！！

接下来进入测试环节：

在AccountServiceImpl添加超时异常?

  /**
     * 扣减账户余额
     */
    @Override
    public void decrease(Long userId, BigDecimal money) {

         LOGGER.info("------->account-service中扣减账户余额开始");
        try { TimeUnit.SECONDS.sleep(20); } catch (InterruptedException e) { e.printStackTrace(); }
        accountDao.decrease(userId,money);
        LOGGER.info("------->account-service中扣减账户余额结束");
    }

然后访问：??????localhost:2001/order/create?userId=1&productId=1&count=10&money=100?

发现数据库产生了数据不一致的情况，

解决方案：

在业务类前面加个? @GlobalTransactional注解（如下图）

@Service
@Slf4j
public class OrderServiceImpl implements OrderService {
    @Resource
    private OrderDao orderDao;
    @Resource
    private StorageService storageService;
    @Resource
    private AccountService accountService;
    /**
     * 创建订单->调用库存服务扣减库存->调用账户服务扣减账户余额->修改订单状态
     */


    @Override
    @GlobalTransactional(name = "fsp-create-order",rollbackFor = Exception.class)
    public void create(Order order) {
        log.info("----->开始新建订单");
        //新建订单
        orderDao.create(order);

        //扣减库存
        log.info("----->订单微服务开始调用库存，做扣减Count");
        storageService.decrease(order.getProductId(),order.getCount());
        log.info("----->订单微服务开始调用库存，做扣减end");

        //扣减账户
        log.info("----->订单微服务开始调用账户，做扣减Money");
        accountService.decrease(order.getUserId(),order.getMoney());
        log.info("----->订单微服务开始调用账户，做扣减end");


        //修改订单状态，从零到1代表已经完成
        log.info("----->修改订单状态开始");
        orderDao.update(order.getUserId(),0);
        log.info("----->修改订单状态结束");

        log.info("----->下订单结束了");




    }
}

再次访问：??????localhost:2001/order/create?userId=1&productId=1&count=10&money=100?

发现数据都未能插入数据库，保证了全局数据的一致性！！！

好了，今天的Seata总结就到这啦！！！
