在eclipse中实现基于Mysql8.0版本下java学生信息管理系统
?开发小型的学生信息管理系统。
（1）用JAVA开发该系统的前端
（2）连接数据库
（3）要求该系统有对数据库的增、删、改、查和测试的功能。

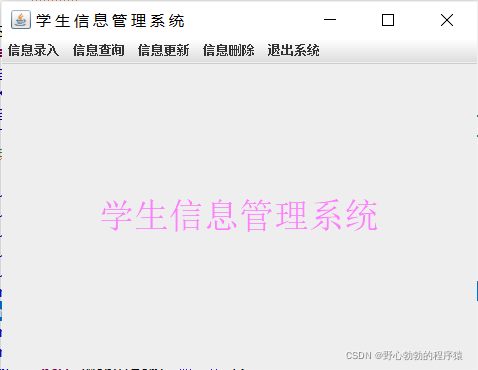

一、主界面
EX12_5_StudentManagement.java
package exp6;
import java.sql.*;
import java.awt.*;
import javax.swing.*;
import java.awt.event.*;
import javax.swing.border.*;
import javax.swing.JOptionPane;
public class EX12_5_StudentManagement extends JFrame implements ActionListener{
?? ?JMenuBar bar = null;
?? ?JMenu menu1,menu2,menu3,menu4,menu5;// ? ?菜单栏
?? ?JMenuItem item1,item2,item3,item4,item5;// ?项目栏 ?
?? ?EX12_6_StudentAdd zengjia;
?? ?EX12_7_StudentQuery chaxun;
?? ?EX12_8_StudentUpdate gengxin; ?//.............................
?? ?EX12_9_StudentDelete shanchu; ?//.............................
?? ?//JDBCTest ceshi;//...........................................自己添加
?? ??
?? ?EX12_5_StudentManagement(){
?? ??? ?super("学 生 信 息 管 理 系 统");
?? ??? ?zengjia = new EX12_6_StudentAdd();
?? ??? ?chaxun = new EX12_7_StudentQuery();
?? ??? ?gengxin = new EX12_8_StudentUpdate(); ?// ....................
?? ??? ?shanchu = new EX12_9_StudentDelete(); ? //.....................
?? ??? ?//ceshi = new JDBCTest();// ? ? ? ? ? ? 自己添加
?? ??? ?bar = new JMenuBar();
?? ??? ?menu1 = new JMenu("信息录入");
?? ??? ?menu2 = new JMenu("信息查询");
?? ??? ?menu3 = new JMenu("信息更新");
?? ??? ?menu4 = new JMenu("信息删除");
?? ??? ?menu5 = new JMenu("退出系统");
?? ??? ?item1 = new JMenuItem("录 ?入");
?? ??? ?item2 = new JMenuItem("查 ?询");
?? ??? ?item3 = new JMenuItem("更 ?新");
?? ??? ?item4 = new JMenuItem("删 ?除");
?? ??? ?item5 = new JMenuItem("退 ?出");
?? ??? ?menu1.add(item1);
?? ??? ?menu2.add(item2);
?? ??? ?menu3.add(item3);
?? ??? ?menu4.add(item4);
?? ??? ?menu5.add(item5);
?? ??? ?bar.add(menu1);
?? ??? ?bar.add(menu2);
?? ??? ?bar.add(menu3);
?? ??? ?bar.add(menu4);
?? ??? ?bar.add(menu5);
?? ??? ?setJMenuBar(bar);
?? ??? ?item1.addActionListener(this);
?? ??? ?item2.addActionListener(this);
?? ??? ?item3.addActionListener(this);
?? ??? ?item4.addActionListener(this);
?? ??? ?item5.addActionListener(this);
?? ??? ??? ??? ??? ?
?? ??? ?JLabel label = new JLabel("学生信息管理系统",JLabel.CENTER);
?? ??? ?label.setFont(new Font("学生信息管理系统",0,35));
?? ??? ?String s = " ";
?? ??? ?Font f = new Font(s,Font.BOLD,60);
?? ??? ?label.setBackground(new Color(0,255,255));
?? ??? ?label.setForeground(new Color(255,128,255));
?? ??? ?add(label,"Center");
?? ??? ?setVisible(true);
?? ??? ?setSize(350,300);
?? ?}
?? ?public void actionPerformed(ActionEvent e){
?? ??? ?if(e.getSource() == item1){
?? ??? ??? ?this.getContentPane().removeAll();
?? ??? ??? ?this.getContentPane().add(zengjia,"Center");
?? ??? ??? ?this.getContentPane().repaint();
?? ??? ??? ?this.getContentPane().validate();
?? ??? ??? ?
?? ??? ?}
?? ??? ?if(e.getSource() == item2){
?? ??? ??? ?this.getContentPane().removeAll();
?? ??? ??? ?this.getContentPane().add(chaxun,"Center");
?? ??? ??? ?this.getContentPane().repaint();
?? ??? ??? ?this.getContentPane().validate();
?? ??? ??? ?
?? ??? ?}
?? ??? ?
?? ??? ?
?? ??? ?if(e.getSource() == item3){
?? ??? ??? ?this.getContentPane().removeAll();
?? ??? ??? ?this.getContentPane().add(gengxin,"Center");
?? ??? ??? ?this.getContentPane().repaint();
?? ??? ??? ?this.getContentPane().validate();
?? ??? ??? ?
?? ??? ?
?? ?}
?? ??? ?if(e.getSource() == item4){
?? ??? ??? ?this.getContentPane().removeAll();
?? ??? ??? ?this.getContentPane().add(shanchu,"Center");
?? ??? ??? ?this.getContentPane().repaint();
?? ??? ??? ?this.getContentPane().validate();
?? ??? ?}
?? ?if(e.getSource() == item5){
?? ??? ?
?? ??? ?System.exit(0);
?? ?}
?? ?}
?? ?public static void main(String args[]){
?? ??? ?EX12_5_StudentManagement stuM = new EX12_5_StudentManagement();
?? ??? ?stuM.setVisible(true);
?? ??? ?
?? ??? ?stuM.addWindowListener(new WindowAdapter(){
?? ??? ??? ?public void windowClosing(WindowEvent e){
?? ??? ??? ??? ?System.exit(0);
?? ??? ??? ?}
?? ??? ?});
?? ??? ?}
?? ?}

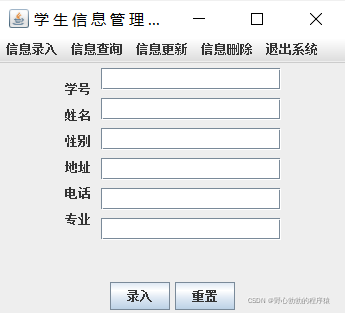

二、 信息录入界面
EX12_6_StudentAdd zengjia.java
EX12_6_StudentAdd zengjia.java
package exp6;
import java.sql.*;
import java.awt.*;
import javax.swing.*;
import java.awt.event.*;
import javax.swing.border.*;
import javax.swing.JOptionPane;
public class EX12_6_StudentAdd extends JPanel implements ActionListener{
? Connection con; //与特定数据库的连接（会话）。
? Statement sql; //用于执行静态 SQL 语句并返回它所生成结果的对象。
? JButton b1,b2;
? JTextField tf1,tf2,tf3,tf4,tf5,tf6;
? Box baseBox,bv1,bv2;
? EX12_6_StudentAdd(){
? ?try{?? ??? ??? ??? ??? ??? ??? ??? ??? ??? ?//错误处理机制
? ? Class.forName("com.mysql.cj.jdbc.Driver");?? ?//通过 Class.forName为数据库管理系统加载一个JDBC驱动程序。
? ? }
? ?catch(ClassNotFoundException e){}?? ??? ?//如果加载驱动失败 控制台抛出异常
? ? try{?? ??? ??? ??? ??? ??? ??? ??? ??? ?//如果加载驱动成功， 调用驱动连接特定数据库
? ? ?con=DriverManager.getConnection("jdbc:mysql://localhost:3306/university?characterEncoding=utf8","root","123456");
? ? ?sql=con.createStatement(); ? ? ?//调取con成员方法获取Statement对象
? ? }
? ? catch(SQLException ee){}
? ??
? ? //设置面板布局 为边框布局
? ?setLayout(new BorderLayout());
? ?JPanel p1=new JPanel();
? ?JPanel p2=new JPanel();
? ?tf1=new JTextField(16);
? ?tf2=new JTextField(16);
? ?tf3=new JTextField(16);
? ?tf4=new JTextField(16);
? ?tf5=new JTextField(16);
? ?tf6=new JTextField(16);
? ?b1=new JButton("录入"); ?
? ?b2=new JButton("重置");
? ?b1.addActionListener(this);
? ?b2.addActionListener(this);
? ?p1.add(b1);
? ?p1.add(b2);
? ?bv1=Box.createVerticalBox();
? ?bv1.add(new JLabel("学号"));
? ?bv1.add(Box.createVerticalStrut(8));
? ?bv1.add(new JLabel("姓名"));
? ?bv1.add(Box.createVerticalStrut(8));
? ?bv1.add(new JLabel("性别"));
? ?bv1.add(Box.createVerticalStrut(8));
? ?bv1.add(new JLabel("地址"));
? ?bv1.add(Box.createVerticalStrut(8));
? ?bv1.add(new JLabel("电话"));
? ?bv1.add(Box.createVerticalStrut(8));
? ?bv1.add(new JLabel("专业"));
? ?bv1.add(Box.createVerticalStrut(8));
? ?bv2=Box.createVerticalBox();
? ?bv2.add(tf1);
? ?bv2.add(Box.createVerticalStrut(8));
? ?bv2.add(tf2);
? ?bv2.add(Box.createVerticalStrut(8));
? ?bv2.add(tf3);
? ?bv2.add(Box.createVerticalStrut(8));
? ?bv2.add(tf4);
? ?bv2.add(Box.createVerticalStrut(8));
? ?bv2.add(tf5);
? ?bv2.add(Box.createVerticalStrut(8));
? ?bv2.add(tf6);
? ?bv2.add(Box.createVerticalStrut(8));
? ?baseBox=Box.createHorizontalBox();
? ?baseBox.add(bv1);
? ?baseBox.add(Box.createHorizontalStrut(10));
? ?baseBox.add(bv2);
? ?p2.add(baseBox);
? ?add(p1,"South");
? ?add(p2,"Center");
? ?setSize(350,300);
? ?setBackground(Color.pink);
? }
? public void actionPerformed(ActionEvent e){
? ?if(e.getSource()==b1){
? ? try{ insert();}
? ? catch(SQLException ee){}
? ? JOptionPane.showMessageDialog(this,"数据已入库!","提示对话框",JOptionPane.INFORMATION_MESSAGE);
? ?}
? ?else if(e.getSource()==b2){
? ? ? ?tf1.setText(" ");
? ? ? ?tf2.setText(" ");
? ? ? ?tf3.setText(" ");
? ? ? ?tf4.setText(" ");
? ? ? ?tf5.setText(" ");
? ? ? ?tf6.setText(" ");
? ?}
? }
? public void insert() throws SQLException{
? ?String s1="'"+tf1.getText().trim()+"'";
? ?String s2="'"+tf2.getText().trim()+"'";
? ?String s3="'"+tf3.getText().trim()+"'";
? ?String s4="'"+tf4.getText().trim()+"'";
? ?String s5="'"+tf5.getText().trim()+"'";
? ?String s6="'"+tf6.getText().trim()+"'";
? ?
? ? con=DriverManager.getConnection("jdbc:mysql://localhost:3306/university?characterEncoding=utf8","root","123456");
? ?
? ? String temp="INSERT INTO student VALUES ("+s1+","+s2+","+s3+","+s4+","+s5+","+s6+")";
? ? sql.executeUpdate(temp);
? ?con.close();
? }
}
?

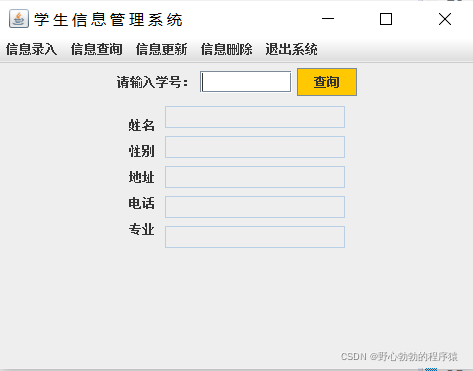

三、查询界面
EX12_7_StudentQuery chaxun.java
package exp6;
import java.sql.*;
import java.awt.*;
import javax.swing.*;
import java.awt.event.*;
import javax.swing.border.*;
//query 查询
public class EX12_7_StudentQuery extends JPanel implements ActionListener{
Connection con;
Statement sql;
JTextField t1,t2,t3,t4,t5,t6;
JButton b;
Box baseBox,bv1,bv2;
int flag = 0;
EX12_7_StudentQuery(){
try{
Class.forName("com.mysql.cj.jdbc.Driver");
}
catch(ClassNotFoundException e){}
try{
con = DriverManager.getConnection("jdbc:mysql://localhost:3306/university?characterEncoding=utf8","root","123456");
sql = con.createStatement();
}
catch(SQLException ee){}
setLayout (new BorderLayout());
b = new JButton("查询");
b.setBackground(Color.orange);
b.addActionListener(this);
t1 = new JTextField(8);
t2 = new JTextField(16);
t3 = new JTextField(16);
t4= new JTextField(16);
t5 = new JTextField(16);
t6 = new JTextField(16);
t2.setEditable(false);
t3.setEditable(false);
t4.setEditable(false);
t5.setEditable(false);
t6.setEditable(false);
JPanel p1 = new JPanel(),p2 = new JPanel();
p1.add(new JLabel("请输入学号："));
p1.add(t1);
p1.add(b);
bv1 = Box.createVerticalBox();
bv1.add(new JLabel("姓名"));
bv1.add(Box.createVerticalStrut(8));
bv1.add(new JLabel("性别"));
bv1.add(Box.createVerticalStrut(8));
bv1.add(new JLabel("地址"));
bv1.add(Box.createVerticalStrut(8));
bv1.add(new JLabel("电话"));
bv1.add(Box.createVerticalStrut(8));
bv1.add(new JLabel("专业"));
bv1.add(Box.createVerticalStrut(8));
bv2 = Box.createVerticalBox();
bv2.add(t2);
bv2.add(Box.createVerticalStrut(8));
bv2.add(t3);
bv2.add(Box.createVerticalStrut(8));
bv2.add(t4);
bv2.add(Box.createVerticalStrut(8));
bv2.add(t5);
bv2.add(Box.createVerticalStrut(8));
bv2.add(t6);
bv2.add(Box.createVerticalStrut(8));
baseBox = Box.createHorizontalBox();
baseBox.add(bv1);
baseBox.add(Box.createHorizontalStrut(10));
baseBox.add(bv2);
p2.add(baseBox);
add(p1,"North");
add(p2,"Center");
setSize(350,300);
setBackground(Color.white);
}
public void actionPerformed(ActionEvent e){
flag = 0;
try{query();}
catch(SQLException ee){}
}
public void query() throws SQLException{
String num,name,gender,address,phone,major;
con = DriverManager.getConnection("jdbc:mysql://localhost:3306/university?characterEncoding=utf8","root","123456");
num = t1.getText().trim();
ResultSet rs = sql.executeQuery("SELECT* FROM student WHERE id = '"+ num +"'");
if(rs.next()){
name = rs.getString("name");
gender = rs.getString("gender");
address = rs.getString("address");
phone = rs.getString("phone");
major = rs.getString("major");
t2.setText(name);
t3.setText(gender);
t4.setText(address);
t5.setText(phone);
t6.setText(major);
flag = 1;
}else{
JOptionPane.showMessageDialog(this,"没有该学生!","提示对话框",JOptionPane.INFORMATION_MESSAGE);
}
con.close();
if(flag == 0){t1.setText("没有该学生");}
}
}

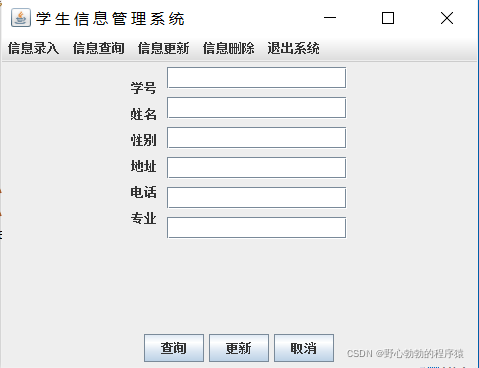

四、更新界面
EX12_8_StudentUpdate gengxin.java
package exp6;
import java.awt.event.*;
import java.sql.Connection;
import java.sql.DriverManager;
import java.sql.ResultSet;
import java.sql.SQLException;
import java.sql.Statement;
import java.awt.*;
import javax.swing.Box;
import javax.swing.JButton;
import javax.swing.JLabel;
import javax.swing.JOptionPane;
import javax.swing.JPanel;
import javax.swing.JTextField;
public class EX12_8_StudentUpdate extends JPanel implements ActionListener{
Connection con;
Statement sql;
JTextField t1,t2,t3,t4,t5,t6;
JButton b1,b2,b3;
Box baseBox,bv1,bv2;
EX12_8_StudentUpdate(){
try{
Class.forName("com.mysql.cj.jdbc.Driver");
}
catch(ClassNotFoundException e){}
try{
con = DriverManager.getConnection("jdbc:mysql://localhost:3306/university?characterEncoding=utf8","root","123456");
sql = con.createStatement();
}
catch(SQLException ee){}
//设置面板布局 为边框布局
setLayout(new BorderLayout());
JPanel p1=new JPanel();
JPanel p2=new JPanel();
t1=new JTextField(16);
t2=new JTextField(16);
t3=new JTextField(16);
t4=new JTextField(16);
t5=new JTextField(16);
t6=new JTextField(16);
b1=new JButton("查询");
b2=new JButton("更新");
b3=new JButton("取消");
b1.addActionListener(this);
b2.addActionListener(this);
b3.addActionListener(this);
p1.add(b1);
p1.add(b2);
p1.add(b3);
bv1=Box.createVerticalBox();
bv1.add(new JLabel("学号"));
bv1.add(Box.createVerticalStrut(8));
bv1.add(new JLabel("姓名"));
bv1.add(Box.createVerticalStrut(8));
bv1.add(new JLabel("性别"));
bv1.add(Box.createVerticalStrut(8));
bv1.add(new JLabel("地址"));
bv1.add(Box.createVerticalStrut(8));
bv1.add(new JLabel("电话"));
bv1.add(Box.createVerticalStrut(8));
bv1.add(new JLabel("专业"));
bv1.add(Box.createVerticalStrut(8));
bv2=Box.createVerticalBox();
bv2.add(t1);
bv2.add(Box.createVerticalStrut(8));
bv2.add(t2);
bv2.add(Box.createVerticalStrut(8));
bv2.add(t3);
bv2.add(Box.createVerticalStrut(8));
bv2.add(t4);
bv2.add(Box.createVerticalStrut(8));
bv2.add(t5);
bv2.add(Box.createVerticalStrut(8));
bv2.add(t6);
bv2.add(Box.createVerticalStrut(8));
baseBox=Box.createHorizontalBox();
baseBox.add(bv1);
baseBox.add(Box.createHorizontalStrut(10));
baseBox.add(bv2);
p2.add(baseBox);
add(p1,"South");
add(p2,"Center");
setSize(350,300);
setBackground(Color.pink);
}
@Override
public void actionPerformed(ActionEvent e) {
// TODO Auto-generated method stub
if(e.getSource()==b1) {
try {
String num,name,gender,address,phone,major;
con = DriverManager.getConnection("jdbc:mysql://localhost:3306/university?characterEncoding=utf8","root","123456");
num=t1.getText().trim();
ResultSet rs = sql.executeQuery("SELECT* FROM student WHERE id = '"+ num +"'");
if(rs.next()) {
//num=rs.getString("id");
name=rs.getString("name");
gender=rs.getString("gender");
address=rs.getString("address");
phone=rs.getString("phone");
major=rs.getString("major");
//if(num.equals(t1.getText().trim())) {
t2.setText(name);
t3.setText(gender);
t4.setText(address);
t5.setText(phone);
t6.setText(major);
//break;
//}
}else {
JOptionPane.showMessageDialog(this,"没有该学生!","提示对话框",JOptionPane.INFORMATION_MESSAGE);
}
con.close();
}
catch(SQLException ee) {}
}
if(e.getSource()==b2) {
try {
update();
}catch(SQLException ee) {}
}
if(e.getSource()==b3) {
t2.setText("");
t3.setText("");
t4.setText("");
t5.setText("");
t6.setText("");
}
}
public void update() throws SQLException{
String s1="'"+t1.getText().trim()+"'";
String s2="'"+t2.getText().trim()+"'";
String s3="'"+t3.getText().trim()+"'";
String s4="'"+t4.getText().trim()+"'";
String s5="'"+t5.getText().trim()+"'";
String s6="'"+t6.getText().trim()+"'";
String test ="UPDATE student SET name ="+s2+",gender="+s3+",address="+s4+",phone="+s5+",major="+s6+" WHERE id="+s1;
con = DriverManager.getConnection("jdbc:mysql://localhost:3306/university?characterEncoding=utf8","root","123456");
sql.executeUpdate(test);
JOptionPane.showMessageDialog(this,"修改成功！","提示对话框",JOptionPane.INFORMATION_MESSAGE);
con.close();
}
}

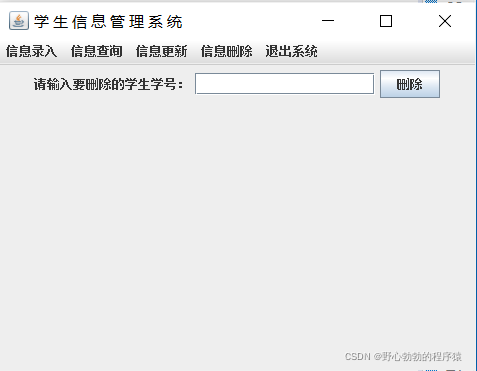

?五、删除界面
EX12_9_StudentDelete shanchu.java
package exp6;
import java.awt.BorderLayout;
import java.awt.Color;
import java.awt.event.ActionEvent;
import java.awt.event.ActionListener;
import java.sql.Connection;
import java.sql.DriverManager;
import java.sql.ResultSet;
import java.sql.SQLException;
import java.sql.Statement;
import javax.swing.Box;
import javax.swing.JButton;
import javax.swing.JLabel;
import javax.swing.JOptionPane;
import javax.swing.JPanel;
import javax.swing.JTextField;
public class EX12_9_StudentDelete extends JPanel implements ActionListener{
Connection con;
Statement sql;
JTextField t1,t2,t3,t4,t5,t6;
JButton b,b1,b2;
Box baseBox,bv1,bv2;
EX12_9_StudentDelete(){
try{
Class.forName("com.mysql.cj.jdbc.Driver");
}
catch(ClassNotFoundException e){}
try{
con = DriverManager.getConnection("jdbc:mysql://localhost:3306/university?characterEncoding=utf8","root","123456");
sql = con.createStatement();
}
catch(SQLException ee){}
//设置面板布局 为边框布局
setLayout(new BorderLayout());
JPanel p1=new JPanel();
JPanel p2=new JPanel();
t1=new JTextField(16);
t2=new JTextField(16);
t3=new JTextField(16);
t4=new JTextField(16);
t5=new JTextField(16);
t6=new JTextField(16);
b=new JButton("删除");
b.addActionListener(this);
p1.add(new JLabel("请输入要删除的学生学号："));
p1.add(t1);
p1.add(b);
add(p1,"North");
add(p2,"Center");
setSize(350,300);
setBackground(Color.pink);
}
@Override
public void actionPerformed(ActionEvent e) {
// TODO Auto-generated method stub
if(e.getSource()==t1) {
try {
delete();
}catch(SQLException ee) {}
}else if(e.getSource()==b) {
try {
delete();
}catch(SQLException ee) {}
int n=JOptionPane.showConfirmDialog(this, "确定要删除该学生的信息？","确定",JOptionPane.YES_NO_CANCEL_OPTION);
if(n==JOptionPane.YES_OPTION) {
try {
String s1=""+t1.getText().trim()+"";
String test="DELETE FROM student WHERE id="+s1;
System.out.println(test);
con = DriverManager.getConnection("jdbc:mysql://localhost:3306/university?characterEncoding=utf8","root","123456");
sql.executeUpdate(test);
JOptionPane.showMessageDialog(this,"已经删除成功！","提示对话框",JOptionPane.INFORMATION_MESSAGE);
con.close();
}catch(SQLException ee) {}
}else if(n==JOptionPane.NO_OPTION) {
}
}
}
public void delete() throws SQLException{
String num,name,gender,address,phone,major;
con = DriverManager.getConnection("jdbc:mysql://localhost:3306/university?characterEncoding=utf8","root","123456");
num=t1.getText().trim();
ResultSet rs = sql.executeQuery("SELECT* FROM student WHERE id = '"+ num +"'");
if(rs.next()) {
num=rs.getString("id");
name=rs.getString("name");
gender=rs.getString("gender");
address=rs.getString("address");
phone=rs.getString("phone");
major=rs.getString("major");
if(num.equals(t1.getText().trim())) {
t2.setText(name);
t3.setText(gender);
t4.setText(address);
t5.setText(phone);
t6.setText(major);
}
}else {
JOptionPane.showMessageDialog(this,"没有该学生!","提示对话框",JOptionPane.INFORMATION_MESSAGE);
}
con.close();
}
}

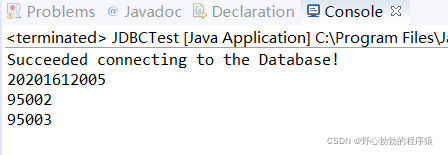

?六、JDBC连接测试类
package exp6;
import java.sql.Connection;
import java.sql.DriverManager;
import java.sql.PreparedStatement;
import java.sql.ResultSet;
import java.sql.SQLException;
import java.sql.Statement;
public class JDBCTest {
public static Connection getConnection() {
String driver = "com.mysql.cj.jdbc.Driver";
String url = "jdbc:mysql://localhost:3306/university";
String username = "root";
String pwd = "123456";
try {
Class.forName(driver);
Connection conn = DriverManager.getConnection(url, username, pwd);
return conn;
} catch (ClassNotFoundException e) {
e.printStackTrace();
return null;
} catch (SQLException e) {
e.printStackTrace();
return null;
}
}
public static void closeAll(Connection conn, PreparedStatement ps, ResultSet rs) {
try {
if (rs != null) {
rs.close();
}
} catch (SQLException e) {
e.printStackTrace();
}
try {
if (ps != null) {
ps.close();
}
} catch (SQLException e) {
e.printStackTrace();
}
try {
if (conn != null) {
conn.close();
}
} catch (SQLException e) {
e.printStackTrace();
}
}
public static void main(String[] args) throws SQLException {
Connection cc = JDBCTest.getConnection();
if (!cc.isClosed())
System.out.println("Succeeded connecting to the Database!");
Statement statement = cc.createStatement();
String sql = "select * from student";
ResultSet rs = statement.executeQuery(sql);
while (rs.next()) {
System.out.println(rs.getString("id") + "");
}
}
}
?注意:在实现用java连接数据库前先创建好相关的数据库。
