[Java知识库]Spring Security(一)初识Spring Security

一、 Spring Security概念

Spring Security是spring采用AOP思想，基于servlet过滤器实现的安全框架。它提供了完善的认证机制和方法级的
授权功能。是一款非常优秀的权限管理框架。

二、Spring Security简单入门

1、 创建web工程并导入jar包

Spring Security主要jar包功能介绍
① spring-security-core.jar
核心包，任何Spring Security功能都需要此包。
② spring-security-web.jar
web工程必备，包含过滤器和相关的Web安全基础结构代码。
③ spring-security-config.jar
用于解析xml配置文件，用到Spring Security的xml配置文件的就要用到此包。
④ spring-security-taglibs.jar
Spring Security提供的动态标签库，jsp页面可以用。
因为使用Maven管理依赖，MAVEN具有依赖传递的特性，实质上只需要引入最后两个依赖即可

<dependency>
	<groupId>org.springframework.security</groupId>
	<artifactId>spring-security-taglibs</artifactId>
	<version>5.1.5.RELEASE</version>
</dependency>
<dependency>
	 <groupId>org.springframework.security</groupId>
	 <artifactId>spring-security-config</artifactId>
	 <version>5.1.5.RELEASE</version>
</dependency>

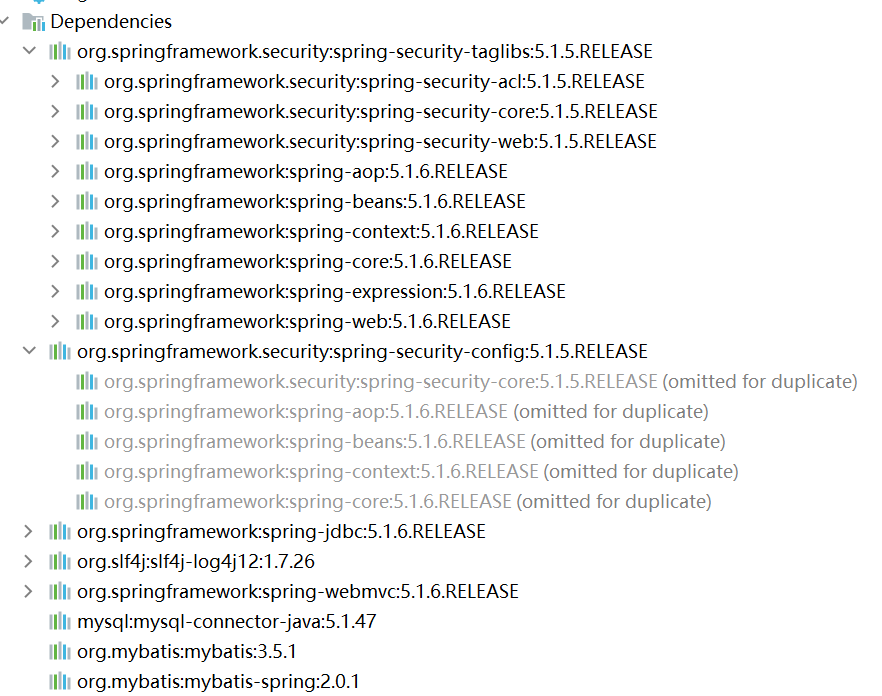

可以看到spring-security-config依赖包含了spring-security-core依赖和spring-security-web依赖

2、配置web.xml

加入Spring Security过滤器链

<web-app xmlns="http://java.sun.com/xml/ns/javaee"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://java.sun.com/xml/ns/javaee
          http://java.sun.com/xml/ns/javaee/web-app_3_0.xsd"
         version="3.0">
	<display-name>Archetype Created Web Application</display-name>

    <!--字符集过滤器-->
    <filter>
        <filter-name>encodingFilter</filter-name>
        <filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
        <init-param>
            <param-name>encoding</param-name>
            <param-value>UTF-8</param-value>
        </init-param>
    </filter>
    <filter-mapping>
        <filter-name>encodingFilter</filter-name>
        <url-pattern>/*</url-pattern>
    </filter-mapping>

    <!--springMVC-->
    <servlet>
        <servlet-name>springmvc</servlet-name>
        <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
        <init-param>
            <param-name>contextConfigLocation</param-name>
            <param-value>classpath:spring-mvc.xml</param-value>
        </init-param>
    </servlet>
    <servlet-mapping>
        <servlet-name>springmvc</servlet-name>
        <url-pattern>/</url-pattern>
    </servlet-mapping>

<!--    上下文加载-->
    <listener>
        <listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
    </listener>
    <context-param>
        <param-name>contextConfigLocation</param-name>
        <param-value>classpath:applicationContext.xml</param-value>
    </context-param>

    <!--springsecurity-->
    <!--Spring Security过滤器链，注意过滤器名称必须叫springSecurityFilterChain-->
    <filter>
        <filter-name>springSecurityFilterChain</filter-name>
        <filter-class>org.springframework.web.filter.DelegatingFilterProxy</filter-class>
    </filter>
    <filter-mapping>
        <filter-name>springSecurityFilterChain</filter-name>
        <url-pattern>/*</url-pattern>
    </filter-mapping>


</web-app>

3、配置spring-security.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:aop="http://www.springframework.org/schema/aop"
       xmlns:tx="http://www.springframework.org/schema/tx"
       xmlns:mvc="http://www.springframework.org/schema/mvc"
       xmlns:security="http://www.springframework.org/schema/security"
       xmlns:http="http://www.springframework.org/schema/c"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
			    http://www.springframework.org/schema/beans/spring-beans.xsd
			    http://www.springframework.org/schema/context
			    http://www.springframework.org/schema/context/spring-context.xsd
			    http://www.springframework.org/schema/aop
			    http://www.springframework.org/schema/aop/spring-aop.xsd
			    http://www.springframework.org/schema/tx
			    http://www.springframework.org/schema/tx/spring-tx.xsd
			    http://www.springframework.org/schema/mvc
			    http://www.springframework.org/schema/mvc/spring-mvc.xsd
                http://www.springframework.org/schema/security
                http://www.springframework.org/schema/security/spring-security.xsd">
    <!--tx：事务管理 context：注解支持  mvc：支持mvc注解驱动    aop：切面   增加的security:支持Spring-Security-->

    <!--
   auto-config="true"  表示自动加载springsecurity的配置文件
   use-expressions="true" 表示使用spring的el表达式来配置springsecurity
   -->
    <security:http auto-config="true" use-expressions="true">
        <!--拦截资源-->
        <!--
        pattern="/**" 表示拦截所有资源
        access="hasAnyRole('ROLE_USER')" 表示只有ROLE_USER角色才能访问资源
        hasAnyRole可以设置多个，hasRole只能设置一个角色，表示只有角色ROLE_USER才有权限
        -->
        <security:intercept-url pattern="/**" access="hasAnyRole('ROLE_USER')"/>
    </security:http>

    <!--设置Spring Security认证用户信息的来源
    Spring-Security默认是加密的，{noop}设置为不加密-->
    <security:authentication-manager>
        <security:authentication-provider>
            <security:user-service>
                <security:user name="user" password="{noop}user" authorities="ROLE_USER" />
                <security:user name="admin" password="{noop}admin" authorities="ROLE_ADMIN" />
            </security:user-service>
        </security:authentication-provider>
    </security:authentication-manager>

</beans>

将spring-security.xml配置文件引入到applicationContext.xml中

<!--引入SpringSecurity主配置文件-->
<!-- web服务器启动后会加载web.xml，web.xml又加载了applicationContext.xml，配置该行之后就可加载spring-security.xml   -->
<import resource="classpath:spring-security.xml"/>

运行结果

运行tomcat

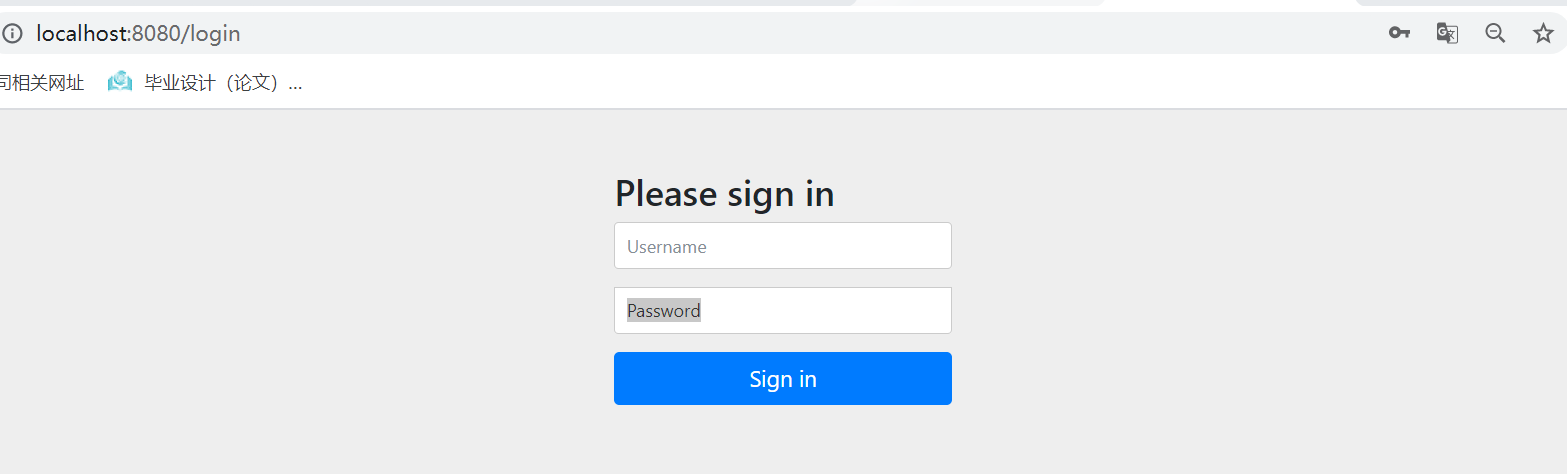

我们在这个登录页面上输入用户名user，密码user，点击Sign in，就可以看到首页了！
