[Java知识库]webservice接口发布和调用

接口发布

依赖包

<dependency>
	<groupId>org.apache.cxf</groupId>
	<artifactId>cxf-spring-boot-starter-jaxws</artifactId>
	<version>3.3.1</version>
</dependency>

接口层

//IdtpWebservice 发布服务的名称
//targetNamespace 服务的命名空间
@WebService(name = "IdtpWebservice",targetNamespace = "http://webservice.brt.com")
public interface IdtpWebservice {
//test 指定参数名称，不指定就是arg0、arg1....argn。
	@WebMethod
	String noParams(@WebParam(name = "test",targetNamespace = "http://webservice.brt.com")String transId);
	}

实现层

//endpointInterface 指向接口层的全路径
//targetNamespace 和接口层保持一致
//serviceName 接口层的名称
@WebService(endpointInterface = "com.brt.govInfoManager.infoEditing.core.service.idtp.IdtpWebservice",
			targetNamespace = "http://webservice.brt.com",
			serviceName = "IdtpWebservice")
@Component
public class IdtpWebserviceImpl implements IdtpWebservice{
	@Override
	public String noParams( String transId) {
		return "调用成功"+transId;
	}
}

配置

默认地址：http://ip:port/services/【服务名】?wsdl

@Configuration
public class idtpConfig {
	@Bean
	public ServletRegistrationBean CXFServlet() {
		//修改services为webservice
		return new ServletRegistrationBean(new CXFServlet(),"/webservice/*");
	}

	@Bean(name = Bus.DEFAULT_BUS_ID)
    public SpringBus springBus() {
      return new SpringBus();
	}
	 @Bean
	 public IdtpWebservice webService() {
		 return new IdtpWebserviceImpl();
	 }
	 @Bean
	   public Endpoint endpoint() {
	      EndpointImpl endpoint = new EndpointImpl(springBus(), webService());
	      //发布的服务名称
	      endpoint.publish("/IdtpWebservice");
	      return endpoint;
	   }

}

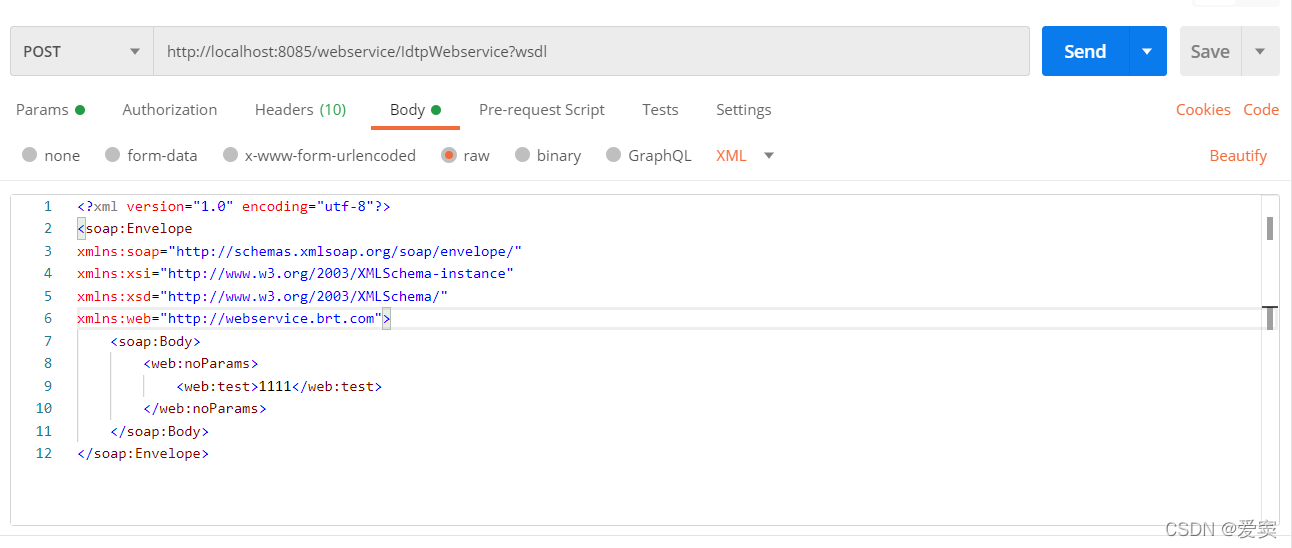

使用postman调用

web：命名空间，
noParams：方法的名称
test：参数的名称

<?xml version="1.0" encoding="utf-8"?>
<soap:Envelope
xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/"
xmlns:xsi="http://www.w3.org/2003/XMLSchema-instance"
xmlns:xsd="http://www.w3.org/2003/XMLSchema/"
xmlns:web="http://webservice.brt.com">
    <soap:Body>
        <web:noParams>
            <web:test>1111</web:test>
        </web:noParams>
    </soap:Body>
</soap:Envelope>

接口调用

cxf方式调用

依赖和上面一样

		JaxWsDynamicClientFactory dcf = JaxWsDynamicClientFactory.newInstance();
		Client client = dcf.createClient("服务地址:http://ip:port/服务名?wsdl");
		QName qName = new QName("命名空间", "方法名称");//待调整
		Object[] objects = null;
		try {
		//参数按照顺序传输，顺序可从wsdl文档查看。
			objects = client.invoke(qName,
					viewldtpFileSend.getTransId(),
					viewldtpFileSend.getFileType(),
					viewldtpFileSend.getFileName(),
					viewldtpFileSend.getFile(),
					viewldtpFileSend.getFragId(),
					viewldtpFileSend.getExt1());
		} catch (Exception e) {
			e.printStackTrace();
			return null;
		}

httpClient方式调用

			URL url = new URL(wsdl);
	        HttpURLConnection connection = (HttpURLConnection) url.openConnection();
	        //POST必须大写
	        connection.setRequestMethod("POST");
	        connection.setRequestProperty("content-type", "text/xml;charset=utf-8");
	      //设置输入输出，因为默认新创建的connection没有读写权限，
	        connection.setDoInput(true);
	        connection.setDoOutput(true);
	      //组织SOAP数据，发送请求
			String soapXML = this.getXML(viewldtpFormSend);
	      //将信息以流的方式发送出去
	        OutputStream os = connection.getOutputStream();
	        os.write(soapXML.getBytes());
	        //第五步：接收服务端响应，打印
	        int responseCode = connection.getResponseCode();
	        StringBuilder sb = new StringBuilder();
	      //获取当前连接请求返回的数据流
            InputStream is = connection.getInputStream();
            InputStreamReader isr = new InputStreamReader(is);
            BufferedReader br = new BufferedReader(isr);
            String temp = null;
            while(null != (temp = br.readLine())){
                sb.append(temp);
            }
            /**
             * 打印结果
             */
            is.close();
            isr.close();
            br.close();
            os.close();
            this.logger.info("单导发送至方法：{}，结果：{}",method,sb.toString());
	        if(200 == responseCode){//表示服务端响应成功
	            return true;
	        }

拼装XML数据：

	public String getXML(ViewldtpFormSend viewldtpFormSend) {
		String soapXML = "<?xml version=\"1.0\" encoding=\"utf-8\"?>"
	        +"<soap:Envelope xmlns:xsi=\"http://www.w3.org/2003/XMLSchema-instance\" "
			+"xmlns:web=\"http://webservice.brt.com\"  "
	        +"xmlns:xsd=\"http://www.w3.org/2003/XMLSchema\" "
			+"xmlns:soap=\"http://schemas.xmlsoap.org/soap/envelope/\">"
	            +"<soap:Body>"
	              +"<web:ldtpFormSend>"
	              +"<web:transId>"+viewldtpFormSend.getTransId()+"</web:transId>"
	              +"<web:appId>"+viewldtpFormSend.getAppId()+"</web:appId>"
	              +"<web:formType>"+viewldtpFormSend.getFormType()+"</web:formType>"
	              +"<web:form>"+viewldtpFormSend.getForm()+"</web:form>"
	              +"<web:ext1>"+viewldtpFormSend.getExt1()+"</web:ext1>"
	              +"</web:ldtpFormSend>"
	            +"</soap:Body>"
	        +"</soap:Envelope>";

		this.logger.info("ldtpFileSendXML"+soapXML);
		return soapXML;
    }
