完整的java的框架ssm练习

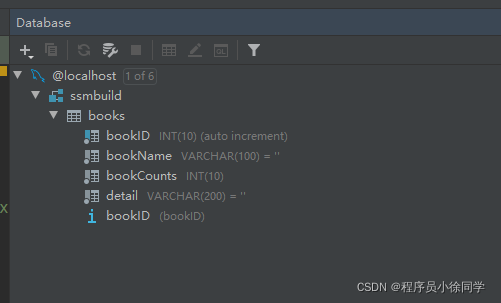

1.数据库信息

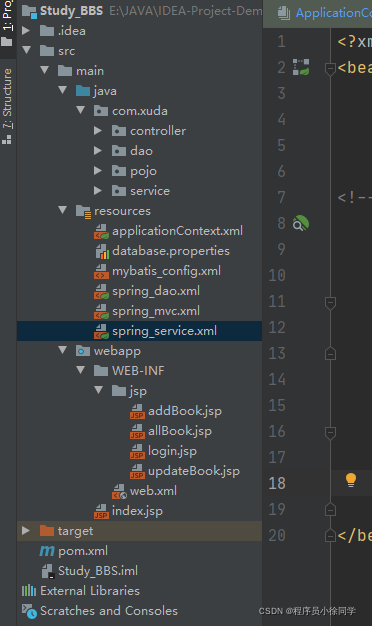

2.相关目录

3.配置信息pom.xml

<?xml version="1.0" encoding="UTF-8"?>

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
  <modelVersion>4.0.0</modelVersion>

  <groupId>org.example</groupId>
  <artifactId>Study_BBS</artifactId>
  <version>1.0-SNAPSHOT</version>
  <packaging>war</packaging>

  <name>Study_BBS Maven Webapp</name>
  <!-- FIXME change it to the project's website -->
  <url>http://www.example.com</url>

  <properties>
    <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    <maven.compiler.source>1.7</maven.compiler.source>
    <maven.compiler.target>1.7</maven.compiler.target>
  </properties>

  <dependencies>
    <dependency>
      <groupId>junit</groupId>
      <artifactId>junit</artifactId>
      <version>4.11</version>
    </dependency>
    <dependency>
      <groupId>mysql</groupId>
      <artifactId>mysql-connector-java</artifactId>
      <version>5.1.38</version>
    </dependency>
    <dependency>
      <groupId>com.mchange</groupId>
      <artifactId>c3p0</artifactId>
      <version>0.9.5.2</version>
    </dependency>
    <!--jsp-servlet-->
    <dependency>
      <groupId>javax.servlet</groupId>
      <artifactId>servlet-api</artifactId>
      <version>2.5</version>
    </dependency>
    <dependency>
      <groupId>javax.servlet.jsp</groupId>
      <artifactId>jsp-api</artifactId>
      <version>2.2</version>
    </dependency>
    <dependency>
      <groupId>javax.servlet</groupId>
      <artifactId>jstl</artifactId>
      <version>1.2</version>
    </dependency>
    <!--Mybatis-->
    <dependency>
      <groupId>org.mybatis</groupId>
      <artifactId>mybatis</artifactId>
      <version>3.5.2</version>
    </dependency>
    <dependency>
      <groupId>org.mybatis</groupId>
      <artifactId>mybatis-spring</artifactId>
      <version>2.0.2</version>
    </dependency>
    <!--spring-->
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-webmvc</artifactId>
      <version>5.1.9.RELEASE</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-jdbc</artifactId>
      <version>5.1.9.RELEASE</version>
    </dependency>
  </dependencies>

  <build>
    <resources>
      <resource>
        <directory>src/main/java</directory>
        <includes>
          <include>**/*.properties</include>
          <include>**/*.xml</include>
        </includes>
        <filtering>false</filtering>
      </resource>
      <resource>
        <directory>src/main/resources</directory>
        <includes>
          <include>**/*.properties</include>
          <include>**/*.xml</include>
        </includes>
        <filtering>false</filtering>
      </resource>
    </resources>
  </build>
</project>

4.数据库连接配置

datebase.properties

jdbc.driver=com.mysql.jdbc.Driver
jdbc.url=jdbc:mysql://localhost:3306/ssmbuild?useSSL=true&useUnicode=true&characterEncoding=utf8
jdbc.username=root
jdbc.password=

5.mybatis 配置

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration
        PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>
    <typeAliases>
        <package name="com.xuda.pojo"/>
    </typeAliases>
    <mappers>
        <mapper resource="com/xuda/dao/Mapper.xml"/>
    </mappers>
</configuration>

6.spring dao配置信息

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
        http://www.springframework.org/schema/beans/spring-beans.xsd
        http://www.springframework.org/schema/context
        https://www.springframework.org/schema/context/spring-context.xsd">
    <!-- 配置整合mybatis -->
    <!-- 1.关联数据库文件 -->
    <context:property-placeholder location="classpath:database.properties"/>
    <!-- 2.数据库连接池 -->
    <!--数据库连接池
        dbcp  半自动化操作  不能自动连接
        c3p0  自动化操作（自动的加载配置文件 并且设置到对象里面）
    -->
    <bean id="dataSource" class="com.mchange.v2.c3p0.ComboPooledDataSource">
        <!-- 配置连接池属性 -->
        <property name="driverClass" value="${jdbc.driver}"/>
        <property name="jdbcUrl" value="${jdbc.url}"/>
        <property name="user" value="${jdbc.username}"/>
        <property name="password" value="${jdbc.password}"/>
        <!-- c3p0连接池的私有属性 -->
        <property name="maxPoolSize" value="30"/>
        <property name="minPoolSize" value="10"/>
        <!-- 关闭连接后不自动commit -->
        <property name="autoCommitOnClose" value="false"/>
        <!-- 获取连接超时时间 -->
        <property name="checkoutTimeout" value="10000"/>
        <!-- 当获取连接失败重试次数 -->
        <property name="acquireRetryAttempts" value="2"/>
    </bean>
    <!-- 3.配置SqlSessionFactory对象 -->
    <bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
        <!-- 注入数据库连接池 -->
        <property name="dataSource" ref="dataSource"/>
        <!-- 配置MyBaties全局配置文件:mybatis-config.xml -->
        <property name="configLocation" value="classpath:mybatis_config.xml"/>
    </bean>
    <!-- 4.配置扫描Dao接口包，动态实现Dao接口注入到spring容器中 -->
    <!--解释 ： https://www.cnblogs.com/jpfss/p/7799806.html-->
    <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
        <!-- 注入sqlSessionFactory -->
        <property name="sqlSessionFactoryBeanName" value="sqlSessionFactory"/>
        <!-- 给出需要扫描Dao接口包 -->
        <property name="basePackage" value="com.xuda.dao"/>
    </bean>
</beans>

7.spring mvc配置信息

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:mvc="http://www.springframework.org/schema/mvc"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
    http://www.springframework.org/schema/beans/spring-beans.xsd
    http://www.springframework.org/schema/context
    http://www.springframework.org/schema/context/spring-context.xsd
    http://www.springframework.org/schema/mvc
    https://www.springframework.org/schema/mvc/spring-mvc.xsd">
    <!-- 配置SpringMVC -->
    <!-- 1.开启SpringMVC注解驱动 -->
  <mvc:annotation-driven/>
    <!--2.静态资源默认servlet配置-->
    <mvc:default-servlet-handler/>

    <!--3.配置jsp显示ViewResolver视图解析器-->
    <bean class="org.springframework.web.servlet.view.InternalResourceViewResolver">
        <property name="viewClass" value="org.springframework.web.servlet.view.JstlView"/>
        <property name="prefix" value="/WEB-INF/jsp/"/>
        <property name="suffix" value=".jsp"/>
    </bean>

    <!--4.扫描web相关的bean-->
    <context:component-scan base-package="com.xuda.controller"/>
</beans>

8.spring service配置信息

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
                           http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context.xsd">
<!--扫描service相关bean-->
    <context:component-scan base-package="com.xuda.service"/>

    <!--BookServiceImpl注入到IOC容器中-->
    <bean id="BookServiceImpl" class="com.xuda.service.BookServiceImpl">
        <property name="bookMapper" ref="bookMapper"/>
    </bean>

    <!--配置事物管理-->
    <bean id="transactionManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
        <!--注入数据库连接池-->
        <property name="dataSource" ref="dataSource"/>
    </bean>
</beans>

9.applicationconfig配置

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
        http://www.springframework.org/schema/beans/spring-beans.xsd">
<import resource="spring_dao.xml"/>
    <import resource="spring_mvc.xml"/>
    <import resource="spring_service.xml"/>

</beans>

10pojo配置信息

package com.xuda.pojo;

/**
 * @author ：程序员徐大大
 * @description：TODO
 * @date ：2022-02-25 15:07
 */
public class Books {
    private int bookID;
    private String bookName;
    private String bookCounts;
    private String detail;

    public Books() {
    }

    public Books(int bookID, String bookName, String bookCounts, String detail) {
        this.bookID = bookID;
        this.bookName = bookName;
        this.bookCounts = bookCounts;
        this.detail = detail;
    }

    public int getBookID() {
        return bookID;
    }

    public void setBookID(int bookID) {
        this.bookID = bookID;
    }

    public String getBookName() {
        return bookName;
    }

    public void setBookName(String bookName) {
        this.bookName = bookName;
    }

    public String getBookCounts() {
        return bookCounts;
    }

    public void setBookCounts(String bookCounts) {
        this.bookCounts = bookCounts;
    }

    public String getDetail() {
        return detail;
    }

    public void setDetail(String detail) {
        this.detail = detail;
    }

    @Override
    public String toString() {
        return "Books{" +
                "bookID=" + bookID +
                ", bookName='" + bookName + '\'' +
                ", bookCounts='" + bookCounts + '\'' +
                ", detail='" + detail + '\'' +
                '}';
    }
}

11.dao层

package com.xuda.dao;

import com.xuda.pojo.Books;

import java.util.List;

public interface BookMapper {
    //增加一个Book
    int addBook(Books book);

    //根据id删除一个Book
    int deleteBookById(int id);

    //更新Book
    int updateBook(Books books);

    //根据id查询返回一个Book
    Books queryBookById(int id);

    //查询全部Book，返回list集合
    List<Books> queryAllBook();

    //根据id查询,返回一个Book
    Books queryBookByName(String bookName);
}

12.mapper配置

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
        PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.xuda.dao.BookMapper">
  <!--增加一个Book-->
    <insert id="addBook" parameterType="Books">
        insert into ssmbuild.books(bookName,bookCounts,detail)
        values (#{bookName}, #{bookCounts}, #{detail})
    </insert>

    <!--根据id删除一个Book-->
    <delete id="deleteBookById" parameterType="int">
        delete from ssmbuild.books where bookID=#{bookID}
    </delete>

    <!--更新book-->
    <update id="updateBook" parameterType="Books">
        update ssmbuild.books set bookName = #{bookName},bookCounts = #{bookCounts},detail = #{detail} where bookID = #{bookID}
    </update>

    <!--根据id查询，返回一个Book-->
    <select id="queryBookById" resultType="Books">
        select * from ssmbuild.books where bookID = #{bookID}
    </select>

    <!--查询全部Book-->
    <select id="queryAllBook" resultType="Books">
        select * from ssmbuild.books
    </select>

    <!--根据书名查询,返回一个Book-->
    <select id="queryBookByName" resultType="Books">
    select * from ssmbuild.books
    where bookName = #{bookName}
</select>
</mapper>

13.bookservice层

package com.xuda.service;

import com.xuda.pojo.Books;

import java.util.List;

/**
 * @author ：程序员徐大大
 * @description：TODO
 * @date ：2022-02-25 15:28
 */
//BookService：底层需要去实现调用dao层
public interface BookService {
    //增加一个Book
    int addBook(Books book);

    //根据id删除一个Book
    int deleteBookById(int id);

    //更新Book
    int updateBook(Books books);

    //根据id查询返回一个Book
    Books queryBookById(int id);

    //查询全部Book，返回list集合
    List<Books> queryAllBook();
    //根据id查询,返回一个Book
    Books queryBookByName(String bookName);
}

14.bookserviceimpl层

package com.xuda.service;

import com.xuda.dao.BookMapper;
import com.xuda.pojo.Books;

import java.util.List;

/**
 * @author ：程序员徐大大
 * @description：TODO
 * @date ：2022-02-25 15:29
 */
public class BookServiceImpl implements BookService{

    //调用dao层的操作，设置一个set接口，方便spring管理
    private BookMapper bookMapper;

    public void setBookMapper(BookMapper bookMapper) {
        this.bookMapper = bookMapper;
    }

    @Override
    public int addBook(Books book) {
        return bookMapper.addBook(book);
    }

    @Override
    public int deleteBookById(int id) {
        return bookMapper.deleteBookById(id);
    }

    @Override
    public int updateBook(Books books) {
        return bookMapper.updateBook(books);
    }

    @Override
    public Books queryBookById(int id) {
        return bookMapper.queryBookById(id);
    }

    @Override
    public List<Books> queryAllBook() {
        return bookMapper.queryAllBook();
    }

    @Override
    public Books queryBookByName(String bookName) {
        return bookMapper.queryBookByName(bookName);
    }
}

15.controller层

package com.xuda.controller;

import com.xuda.pojo.Books;
import com.xuda.service.BookService;
import com.xuda.service.BookServiceImpl;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RequestMapping;

import java.util.ArrayList;
import java.util.List;

/**
 * @author ：程序员徐大大
 * @description：TODO
 * @date ：2022-02-25 16:06
 */
@Controller
@RequestMapping("book")
public class BookController {
    @Autowired
    @Qualifier("BookServiceImpl")
    private BookService bookService;

    @RequestMapping("/allBook")
    public String list(Model model) {
        List<Books> list = bookService.queryAllBook();
        model.addAttribute("list",list);
        return "allBook";
    }
    //跳转到增加书籍页面
    @RequestMapping("toAddBook")
    public String toAddPaper(){
        return "addBook";
    }

    @RequestMapping("/addBook")
    public String addPaper(Books books) {
        System.out.println(books);
        bookService.addBook(books);
        return "redirect:/book/allBook";
    }

    @RequestMapping("/toUpdateBook")
    public String toUpdateBook(Model model, int id) {
        Books books = bookService.queryBookById(id);
        System.out.println(books);
        model.addAttribute("book",books );
        return "updateBook";
    }

    @RequestMapping("/updateBook")
    public String updateBook(Model model, Books book) {
        System.out.println(book);
        bookService.updateBook(book);
        Books books = bookService.queryBookById(book.getBookID());
        model.addAttribute("books", books);
        return "redirect:/book/allBook";
    }

    @RequestMapping("/del/{bookId}")
    public String deleteBook(@PathVariable("bookId") int id) {
        bookService.deleteBookById(id);
        return "redirect:/book/allBook";
    }

//    @RequestMapping("/queryBook")
//    public String queryBook(String queryBookName,Model model){
//        System.out.println("要查询的书籍:"+queryBookName);
//        //业务逻辑还没有写
//        return "allBook";
//    }
    @RequestMapping("/queryBook")
    public String queryBook(String queryBookName,Model model){
        System.out.println("要查询的书籍:"+queryBookName);
        Books books = bookService.queryBookByName(queryBookName);
        List<Books> list = new ArrayList<Books>();
        list.add(books);
        model.addAttribute("list", list);
        return "allBook";
    }

    @RequestMapping("/login")
    public String login(){
        return "login";
    }
}

16.前端跳转页面

<%--
  Created by IntelliJ IDEA.
  User: 86176
  Date: 2022-02-25
  Time: 16:10
  To change this template use File | Settings | File Templates.
--%>
<%@ page language="java" contentType="text/html; charset=UTF-8" pageEncoding="UTF-8" %>
<!DOCTYPE HTML>
<html>
<head>
    <title>首页</title>
    <style type="text/css">
        a {
            text-decoration: none;
            color: black;
            font-size: 18px;
        }
        h3 {
            width: 180px;
            height: 38px;
            margin: 100px auto;
            text-align: center;
            line-height: 38px;
            background: deepskyblue;
            border-radius: 4px;
        }
    </style>
</head>
<body>
<h3>
    <a href="${pageContext.request.contextPath}/book/allBook">点击进入列表页</a>
    <a href="${pageContext.request.contextPath}/book/login">请登录</a>
</h3>
</body>
</html>

17.allBook页面

<%--
  Created by IntelliJ IDEA.
  User: 86176
  Date: 2022-02-25
  Time: 16:09
  To change this template use File | Settings | File Templates.
--%>
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
<%@ page contentType="text/html;charset=UTF-8" language="java" %>
<html>
<head>
    <title>书籍列表</title>
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <!-- 引入 Bootstrap -->
    <link href="https://cdn.bootcss.com/bootstrap/3.3.7/css/bootstrap.min.css" rel="stylesheet">
</head>
<body>
<div class="container">
    <div class="row clearfix">
        <div class="col-md-12 column">
            <div class="page-header">
                <h1>
                    <small>书籍列表 —— 显示所有书籍</small>
                </h1>
            </div>
        </div>
    </div>
    <div class="col-md-4 column"></div>
    <div class="col-md-4 column">
        <form class="form-inline" action="/book/queryBook" method="post" style="float: right">
            <input type="text" name="queryBookName" class="form-control" placeholder="输入查询书名" required>
            <input type="submit" value="查询" class="btn btn-primary">
        </form>
    </div>
    <div class="row">
        <div class="col-md-4 column">
            <a class="btn btn-primary" href="${pageContext.request.contextPath}/book/toAddBook">新增</a>
        </div>
    </div>
    <div class="row clearfix">
        <div class="col-md-12 column">
            <table class="table table-hover table-striped">
                <thead>
                <tr>
                    <th>书籍编号</th>
                    <th>书籍名字</th>
                    <th>书籍数量</th>
                    <th>书籍详情</th>
                    <th>操作</th>
                </tr>
                </thead>
                <tbody>
                <c:forEach var="book" items="${requestScope.get('list')}">
                    <tr>
                        <td>${book.getBookID()}</td>
                        <td>${book.getBookName()}</td>
                        <td>${book.getBookCounts()}</td>
                        <td>${book.getDetail()}</td>
                        <td>
                            <a href="${pageContext.request.contextPath}/book/toUpdateBook?id=${book.getBookID()}">更改</a> |
                            <a href="${pageContext.request.contextPath}/book/del/${book.getBookID()}">删除</a>
                        </td>
                    </tr>
                </c:forEach>
                </tbody>
            </table>
        </div>
    </div>
</div>

18.addbook页面

<%--
  Created by IntelliJ IDEA.
  User: 86176
  Date: 2022-02-25
  Time: 17:22
  To change this template use File | Settings | File Templates.
--%>
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
<%@ page contentType="text/html;charset=UTF-8" language="java" %>
<html>
<head>
    <title>新增书籍</title>
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <!-- 引入 Bootstrap -->
    <link href="https://cdn.bootcss.com/bootstrap/3.3.7/css/bootstrap.min.css" rel="stylesheet">
</head>
<body>
<div class="container">
    <div class="row clearfix">
        <div class="col-md-12 column">
            <div class="page-header">
                <h1>
                    <small>新增书籍</small>
                </h1>
            </div>
        </div>
    </div>
    <form action="${pageContext.request.contextPath}/book/addBook" method="post">
        书籍名称：<input type="text" name="bookName" required><br><br><br>
        书籍数量：<input type="text" name="bookCounts" required><br><br><br>
        书籍详情：<input type="text" name="detail" required><br><br><br>
        <input type="submit" value="添加">
    </form>
</div>

19update页面

<%--
  Created by IntelliJ IDEA.
  User: 86176
  Date: 2022-02-25
  Time: 17:28
  To change this template use File | Settings | File Templates.
--%>
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
<%@ page contentType="text/html;charset=UTF-8" language="java" %>
<html>
<head>
    <title>修改信息</title>
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <!-- 引入 Bootstrap -->
    <link href="https://cdn.bootcss.com/bootstrap/3.3.7/css/bootstrap.min.css" rel="stylesheet">
</head>
<body>
<div class="container">
    <div class="row clearfix">
        <div class="col-md-12 column">
            <div class="page-header">
                <h1>
                    <small>修改信息</small>
                </h1>
            </div>
        </div>
    </div>
    <form action="${pageContext.request.contextPath}/book/updateBook" method="post">
        <input type="hidden" name="bookID" value="${book.getBookID()}"/>
        书籍名称：<input type="text" name="bookName" value="${book.getBookName()}"/>
        书籍数量：<input type="text" name="bookCounts" value="${book.getBookCounts()}"/>
        书籍详情：<input type="text" name="detail" value="${book.getDetail() }"/>
        <input type="submit" value="提交"/>
    </form>
</div>

20.web.xml配置

<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns="http://xmlns.jcp.org/xml/ns/javaee"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_4_0.xsd"
         version="4.0">
  <!--DispatcherServlet-->
<servlet>
  <servlet-name>DispatcherServlet</servlet-name>
  <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
  <init-param>
    <param-name>contextConfigLocation</param-name>
    <!--我们这里加载的是总的配置文件-->
    <param-value>classpath:applicationContext.xml</param-value>
  </init-param>
  <load-on-startup>1</load-on-startup>
</servlet>
  <servlet-mapping>
    <servlet-name>DispatcherServlet</servlet-name>
    <url-pattern>/</url-pattern>
  </servlet-mapping>

  <!--encodingFilter-->
  <filter>
    <filter-name>encodingFilter</filter-name>
    <filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
    <init-param>
      <param-name>encoding</param-name>
      <param-value>utf-8</param-value>
    </init-param>
  </filter>
  <filter-mapping>
    <filter-name>encodingFilter</filter-name>
    <url-pattern>/*</url-pattern>
  </filter-mapping>

  <!--Session过期时间-->
  <session-config>
    <session-timeout>15</session-timeout>
  </session-config>

</web-app>
