spring security经常在项目中用到，但是平常只是简单的使用肯定是不够的，我们需要了解深层次的东西，才能在使用的过程中不畏惧，本次打算从demo入手，跟踪源码，剖析security内在

环境

springboot: 2.3.4.RELEASE
spring security :spring-boot-starter-security版本跟随springboot

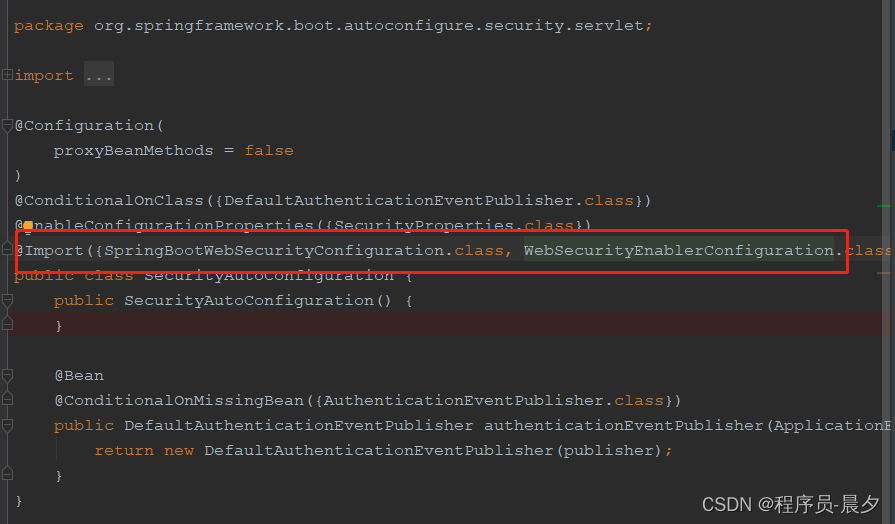

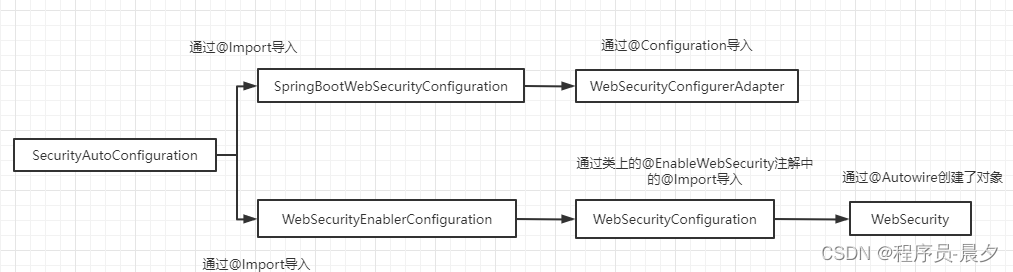

一、springboot默认自动配置了security,我们看下security相关类都是在什么情况下加载的

如上图，securityAutoConfiguration是spirngboot自动配置文件中的类

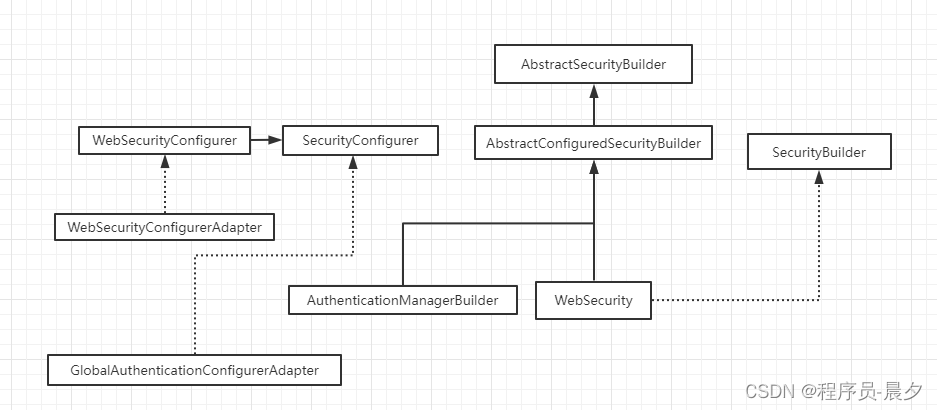

二、security各相关类的继承关系

三、服务启动创建相关对象

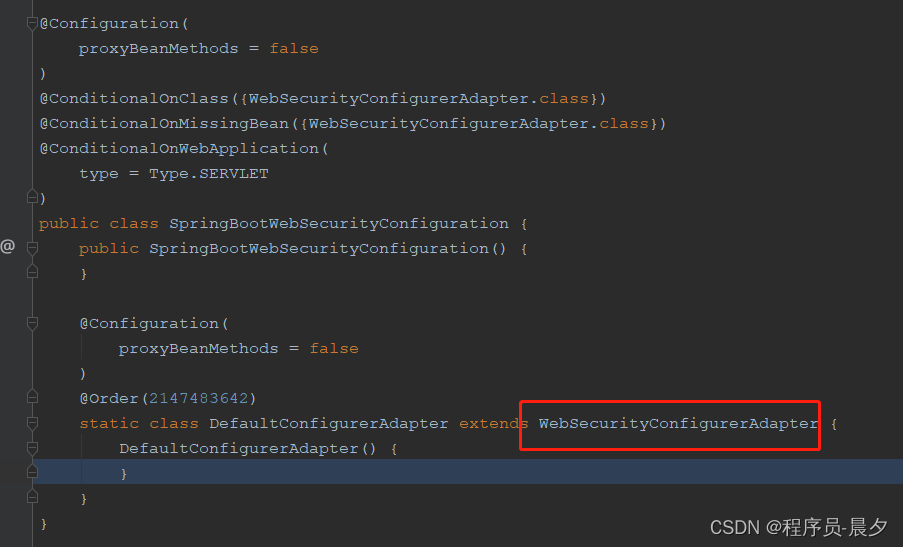

1、首先创建的是WebSecurityConfigurerAdapter对象

2、创建AuthenticationConfiguration对象，并根据@Bean注解分别创建了GlobalAuthenticationConfigurerAdapter 、InitializeUserDetailsBeanManagerConfigurer（继承GlobalAuthenticationConfigurerAdapter） 、InitializeAuthenticationProviderBeanManagerConfigurer(继承GlobalAuthenticationConfigurerAdapter)

@Configuration(proxyBeanMethods = false)
@Import(ObjectPostProcessorConfiguration.class)
public class AuthenticationConfiguration {

	private AtomicBoolean buildingAuthenticationManager = new AtomicBoolean();

	private ApplicationContext applicationContext;

	private AuthenticationManager authenticationManager;

	private boolean authenticationManagerInitialized;

	private List<GlobalAuthenticationConfigurerAdapter> globalAuthConfigurers = Collections
			.emptyList();

	private ObjectPostProcessor<Object> objectPostProcessor;

	@Bean
	public AuthenticationManagerBuilder authenticationManagerBuilder(
			ObjectPostProcessor<Object> objectPostProcessor, ApplicationContext context) {
		LazyPasswordEncoder defaultPasswordEncoder = new LazyPasswordEncoder(context);
		AuthenticationEventPublisher authenticationEventPublisher = getBeanOrNull(context, AuthenticationEventPublisher.class);

		DefaultPasswordEncoderAuthenticationManagerBuilder result = new DefaultPasswordEncoderAuthenticationManagerBuilder(objectPostProcessor, defaultPasswordEncoder);
		if (authenticationEventPublisher != null) {
			result.authenticationEventPublisher(authenticationEventPublisher);
		}
		return result;
	}

	@Bean
	public static GlobalAuthenticationConfigurerAdapter enableGlobalAuthenticationAutowiredConfigurer(
			ApplicationContext context) {
		return new EnableGlobalAuthenticationAutowiredConfigurer(context);
	}

	@Bean
	public static InitializeUserDetailsBeanManagerConfigurer initializeUserDetailsBeanManagerConfigurer(ApplicationContext context) {
		return new InitializeUserDetailsBeanManagerConfigurer(context);
	}

	@Bean
	public static InitializeAuthenticationProviderBeanManagerConfigurer initializeAuthenticationProviderBeanManagerConfigurer(ApplicationContext context) {
		return new InitializeAuthenticationProviderBeanManagerConfigurer(context);
	}

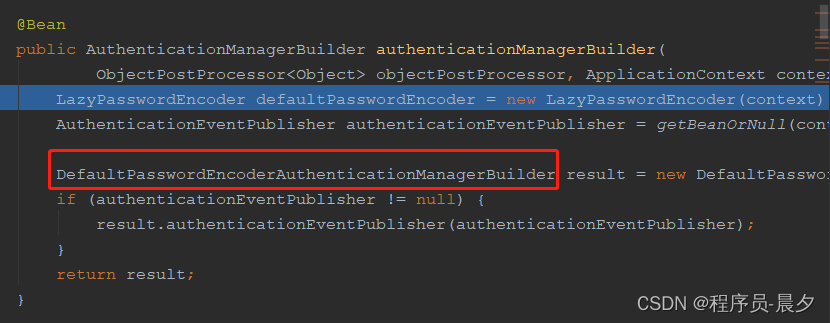

3、创建AuthenticationManagerBuilder ，如下图，创建DefaultPasswordEncoderAuthenticationManagerBuilder（内部类，继承AuthenticationManagerBuilder）

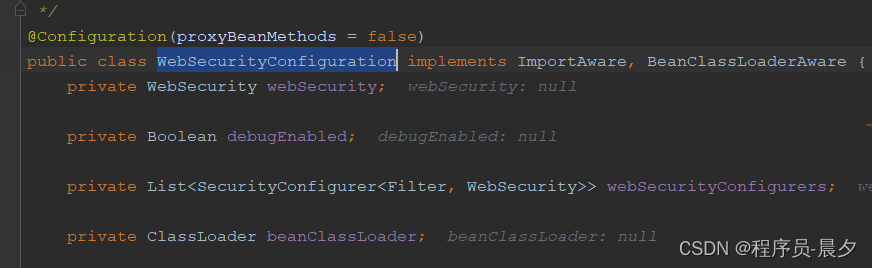

4、创建WebSecurityConfiguration

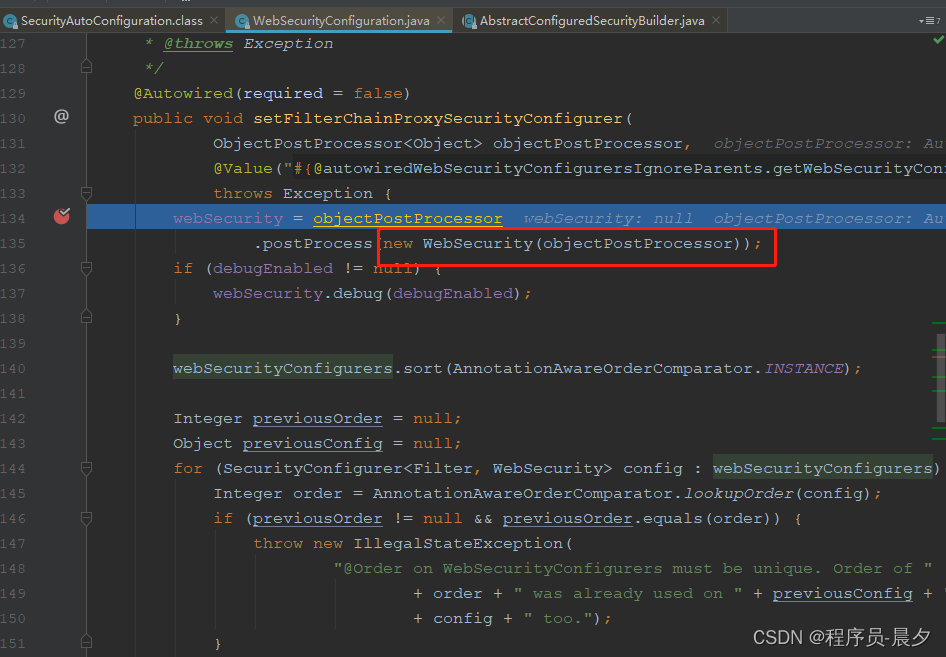

5、创建webSecurity

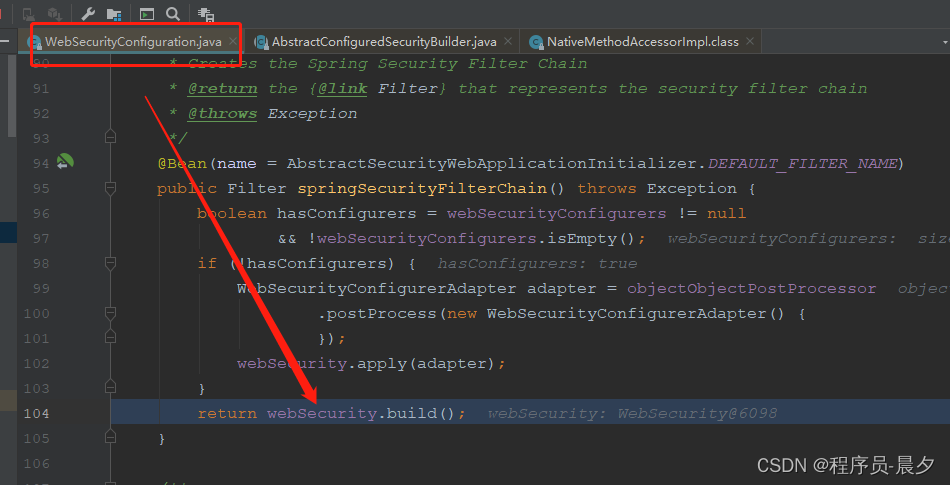

6、创建Filter（调用webSecutity的build方法）

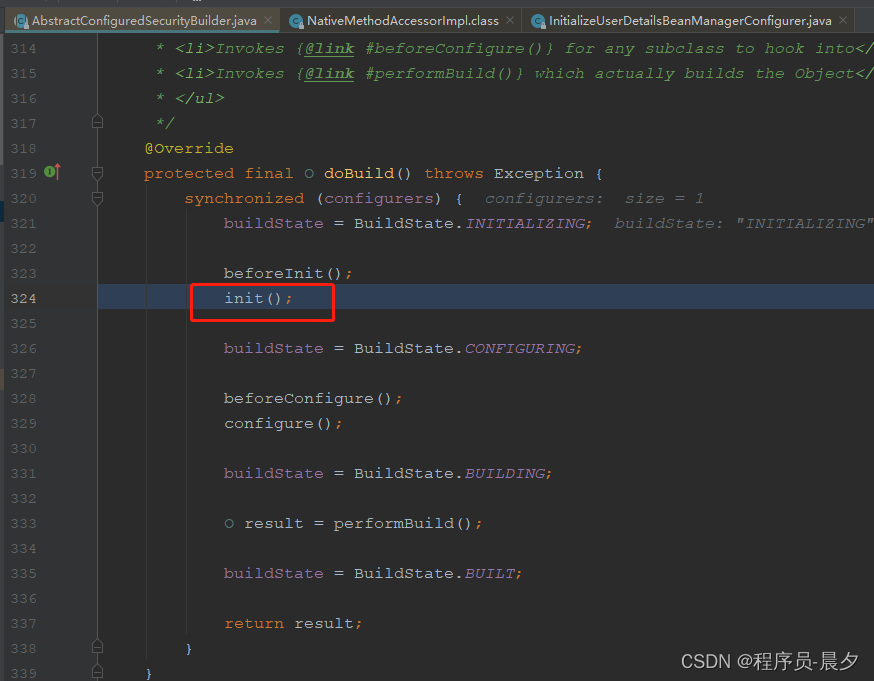

build方法会进入父类的doBuild

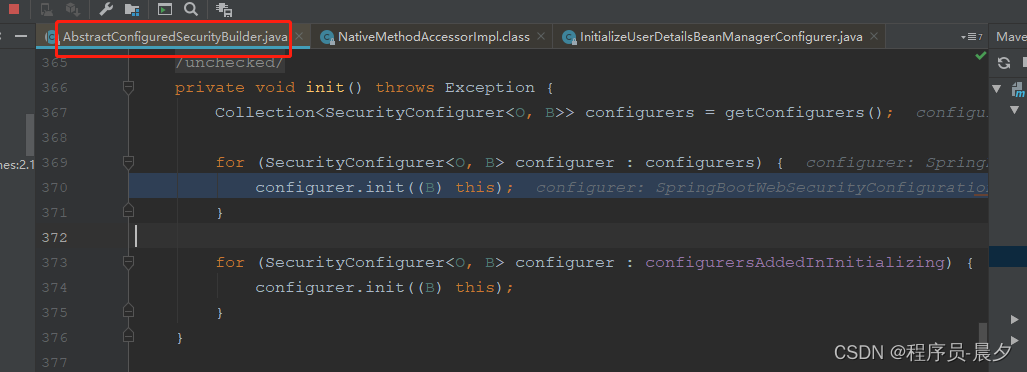

次时SecurityConfigurer类型的configurers只有webSecurityConfigurerAdapter

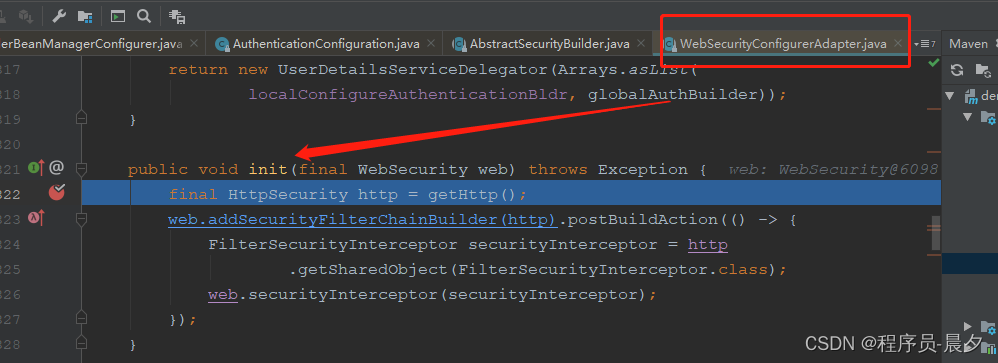

进入webSecurityConfigurerAdapter的init方法

进入getHttp方法

	protected final HttpSecurity getHttp() throws Exception {
		if (http != null) {
			return http;
		}


		//代码片段001
		AuthenticationManager authenticationManager = authenticationManager();
		authenticationBuilder.parentAuthenticationManager(authenticationManager);
		Map<Class<?>, Object> sharedObjects = createSharedObjects();

		http = new HttpSecurity(objectPostProcessor, authenticationBuilder,
				sharedObjects);
		if (!disableDefaults) {
			// @formatter:off
			http
				.csrf().and()
				.addFilter(new WebAsyncManagerIntegrationFilter())
				.exceptionHandling().and()
				.headers().and()
				.sessionManagement().and()
				.securityContext().and()
				.requestCache().and()
				.anonymous().and()
				.servletApi().and()
				.apply(new DefaultLoginPageConfigurer<>()).and()
				.logout();
			// @formatter:on
			ClassLoader classLoader = this.context.getClassLoader();
			List<AbstractHttpConfigurer> defaultHttpConfigurers =
					SpringFactoriesLoader.loadFactories(AbstractHttpConfigurer.class, classLoader);

			for (AbstractHttpConfigurer configurer : defaultHttpConfigurers) {
				http.apply(configurer);
			}
		}
		//可以留给子类重写
		configure(http);
		return http;
	}

=========================================================================================

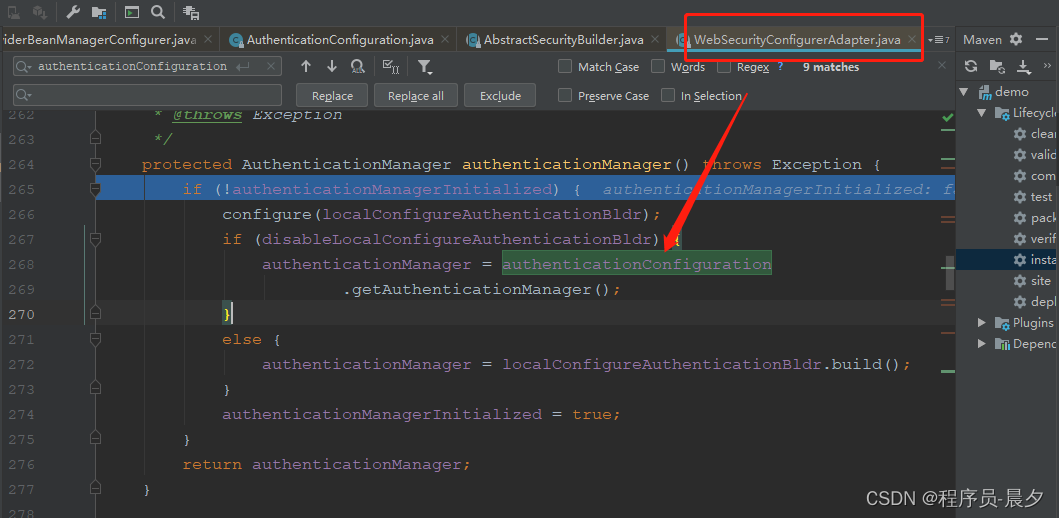

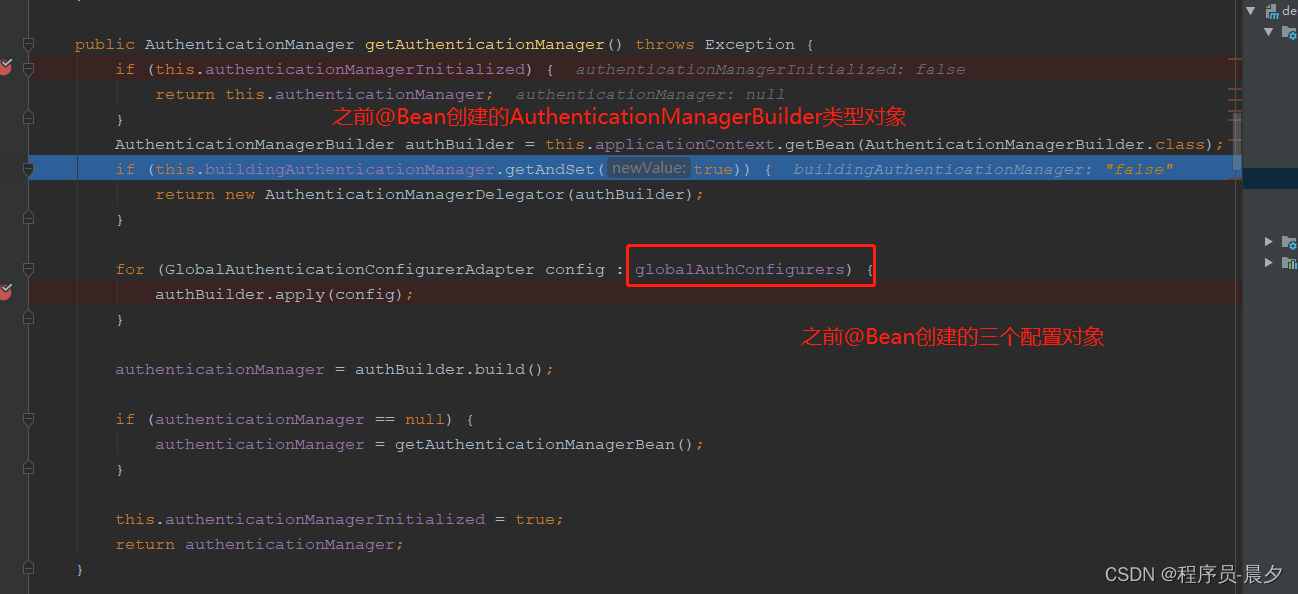

进入代码片段001

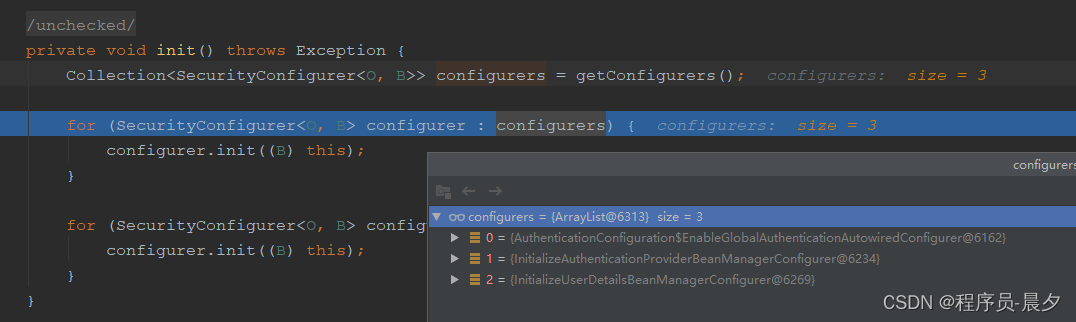

进入build方法类似之前进入的build,三个配置分别调用init方法

重点关注InitializeUserDetailsBeanManagerConfigurer的init方法，主要加载了UserDetailService接口实现类，以及PasswordEncoder接口实现类

至此，代码片段一基本结束
