[Java知识库]整合SSM完成增删查改(Mybatis Spring SpringMVC)

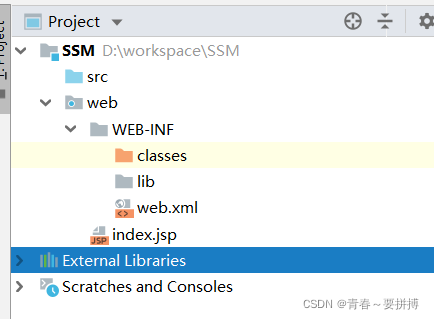

一创建新项目

二导入相关jar包

spring及springmvc的jar包

aspectjweaver.jar
spring-aop-4.3.25.RELEASE.jar
spring-aspects-4.3.25.RELEASE.jar
spring-beans-4.3.25.RELEASE.jar
spring-context-4.3.25.RELEASE.jar
spring-context-support-4.3.25.RELEASE.jar
spring-core-4.3.25.RELEASE.jar
spring-expression-4.3.25.RELEASE.jar
spring-jdbc-4.3.25.RELEASE.jar
spring-orm-4.3.25.RELEASE.jar
spring-tx-4.3.25.RELEASE.jar
spring-web-4.3.25.RELEASE.jar
spring-webmvc-4.3.25.RELEASE.jar

mybatis相关包

mybatis-3.5.2.jar ? ?//mybatis核心包
mybatis-spring-1.3.3.jar ?// ?spring 和 mybatis的整合包?

日志包 ?

commons-logging-1.2.jar
log4j-1.2.17.jar
log4j-api-2.11.2.jar
log4j-core-2.11.2.jar

数据库包

mysql-connector-java-5.1.47.jar?

分页插件包

jsqlparser-2.1.jar
pagehelper-5.1.10.jar?

连接池的包

druid-1.1.20.jar?

三数据库连接配置文件

jdbc.properties

#
jdbc.driver=com.mysql.jdbc.Driver
jdbc.url=jdbc:mysql://127.0.0.1:3306/1009-mybatis?useUnicode=true&characterEncoding=UTF-8&serverTimezone=UTC
jdbc.username=root
jdbc.password=root
#druid 内置监视器
jdbc.filters=stat,log4j,wall
# 最大连接数
jdbc.maxActive=20
# 最小连接数
jdbc.minIdle=1

日志的配置文件

log4j.properties

# Global logging configuration
log4j.rootLogger=DEBUG, stdout
# MyBatis logging configuration...
log4j.logger.org.mybatis.example.BlogMapper=TRACE
# Console output...
log4j.appender.stdout=org.apache.log4j.ConsoleAppender
log4j.appender.stdout.layout=org.apache.log4j.PatternLayout
log4j.appender.stdout.layout.ConversionPattern=%5p [%t] - %m%n

spring配置文件

1.spring-context.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:aop="http://www.springframework.org/schema/aop"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:mvc="http://www.springframework.org/schema/mvc"
       xmlns:tx="http://www.springframework.org/schema/tx"
       xsi:schemaLocation="http://www.springframework.org/schema/mvc https://www.springframework.org/schema/mvc/spring-mvc.xsd
		http://www.springframework.org/schema/beans https://www.springframework.org/schema/beans/spring-beans.xsd
		http://www.springframework.org/schema/context https://www.springframework.org/schema/context/spring-context.xsd
		http://www.springframework.org/schema/aop https://www.springframework.org/schema/aop/spring-aop.xsd
		http://www.springframework.org/schema/tx https://www.springframework.org/schema/tx/spring-tx.xsd">

   <import resource="classpath:spring-dao.xml"/>
   <import resource="classpath:spring-tx.xml"/>
   <import resource="classpath:spring-service.xml"/>
</beans>

2.spring-dao.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:aop="http://www.springframework.org/schema/aop"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:mvc="http://www.springframework.org/schema/mvc"
       xmlns:tx="http://www.springframework.org/schema/tx"
       xsi:schemaLocation="http://www.springframework.org/schema/mvc https://www.springframework.org/schema/mvc/spring-mvc.xsd
		http://www.springframework.org/schema/beans https://www.springframework.org/schema/beans/spring-beans.xsd
		http://www.springframework.org/schema/context https://www.springframework.org/schema/context/spring-context.xsd
		http://www.springframework.org/schema/aop https://www.springframework.org/schema/aop/spring-aop.xsd
		http://www.springframework.org/schema/tx https://www.springframework.org/schema/tx/spring-tx.xsd">

    <!-- 1. 引入数据库配置文件 -->
    <context:property-placeholder location="classpath:jdbc.properties" system-properties-mode="FALLBACK"></context:property-placeholder>
    <!-- 2.配置数据源 -->
    <bean id="dataSource" class="com.alibaba.druid.pool.DruidDataSource">
        <property name="driverClassName" value="${jdbc.driver}"></property>
        <property name="url" value="${jdbc.url}"></property>
        <property name="username" value="${jdbc.username}"></property>
        <property name="password" value="${jdbc.password}"></property>
        <property name="filters" value="${jdbc.filters}"></property>
        <property name="maxActive" value="${jdbc.maxActive}"></property>
        <property name="minIdle" value="${jdbc.minIdle}"></property>
    </bean>
    <!-- 3.获取SqlSessionFactory -->
    <bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
        <property name="dataSource" ref="dataSource"></property>
        <!-- mybatis相关配置信息 -->
        <!-- 配置mapper映射文件 -->
        <property name="mapperLocations" value="classpath:mapper/*Mapper.xml"></property>
        <!-- 配置别名 -->
        <property name="typeAliasesPackage" value="com.wxz.domain"></property>
        <!-- 配置插件 -->
        <property name="plugins">
            <array><bean class="com.github.pagehelper.PageInterceptor"></bean></array>
        </property>
    </bean>
    <!-- 4.使用SqlSessionFactory  生成mapper接口的代理类 -->
    <!-- 使用mapper扫描 -->
    <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
        <property name="basePackage" value="com.wxz.mapper"></property>
        <property name="sqlSessionFactoryBeanName" value="sqlSessionFactory"></property>
    </bean>
</beans>

3.spring-tx.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:aop="http://www.springframework.org/schema/aop"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:mvc="http://www.springframework.org/schema/mvc"
       xmlns:tx="http://www.springframework.org/schema/tx"
       xsi:schemaLocation="http://www.springframework.org/schema/mvc https://www.springframework.org/schema/mvc/spring-mvc.xsd
		http://www.springframework.org/schema/beans https://www.springframework.org/schema/beans/spring-beans.xsd
		http://www.springframework.org/schema/context https://www.springframework.org/schema/context/spring-context.xsd
		http://www.springframework.org/schema/aop https://www.springframework.org/schema/aop/spring-aop.xsd
		http://www.springframework.org/schema/tx https://www.springframework.org/schema/tx/spring-tx.xsd">

    <!-- 事务管理器 -->
   <bean  id="transactionManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
       <!-- 配置被管理的数据源 -->
       <property name="dataSource" ref="dataSource"></property>
   </bean>
    <!-- 启用声明式事务 -->
    <tx:annotation-driven transaction-manager="transactionManager"/>
</beans>

4.spring-service.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:aop="http://www.springframework.org/schema/aop"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:mvc="http://www.springframework.org/schema/mvc"
       xmlns:tx="http://www.springframework.org/schema/tx"
       xsi:schemaLocation="http://www.springframework.org/schema/mvc https://www.springframework.org/schema/mvc/spring-mvc.xsd
		http://www.springframework.org/schema/beans https://www.springframework.org/schema/beans/spring-beans.xsd
		http://www.springframework.org/schema/context https://www.springframework.org/schema/context/spring-context.xsd
		http://www.springframework.org/schema/aop https://www.springframework.org/schema/aop/spring-aop.xsd
		http://www.springframework.org/schema/tx https://www.springframework.org/schema/tx/spring-tx.xsd">

    <!-- service层的包扫描 -->
   <context:component-scan base-package="com.wxz.service.impl"></context:component-scan>
</beans>

springmvc配置文件

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:aop="http://www.springframework.org/schema/aop"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:mvc="http://www.springframework.org/schema/mvc"
       xmlns:tx="http://www.springframework.org/schema/tx"
       xsi:schemaLocation="http://www.springframework.org/schema/mvc https://www.springframework.org/schema/mvc/spring-mvc.xsd
		http://www.springframework.org/schema/beans https://www.springframework.org/schema/beans/spring-beans.xsd
		http://www.springframework.org/schema/context https://www.springframework.org/schema/context/spring-context.xsd
		http://www.springframework.org/schema/aop https://www.springframework.org/schema/aop/spring-aop.xsd
		http://www.springframework.org/schema/tx https://www.springframework.org/schema/tx/spring-tx.xsd">

    <!-- 开启包扫描 -->
    <context:component-scan base-package="com.wxz.controller"></context:component-scan>
    <!-- 开启mvc注解 -->
    <!-- 开启了注解式的映射器和适配器 -->
    <mvc:annotation-driven/>
</beans>

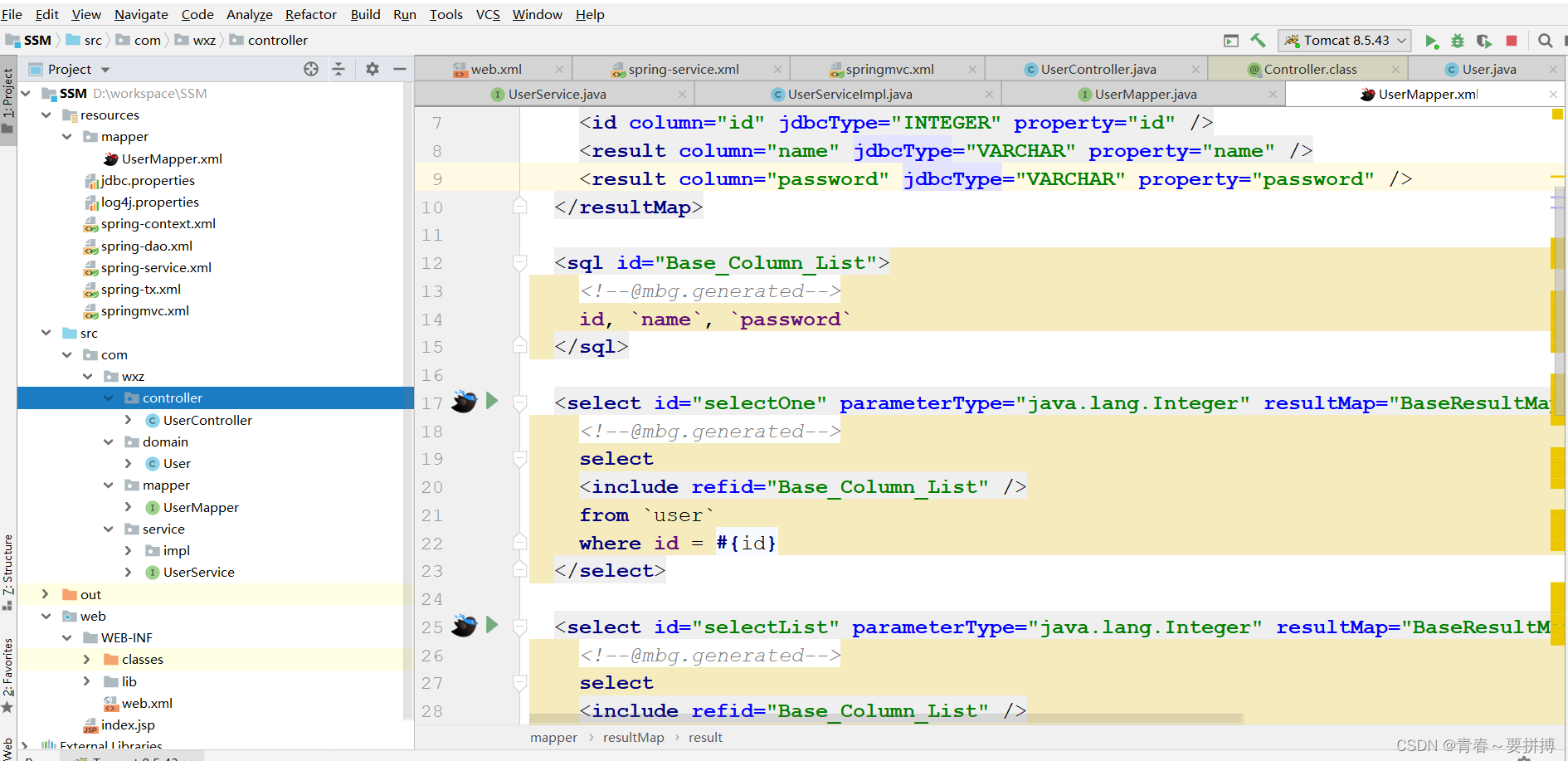

mybatis的mapper文件

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.wxz.mapper.UserMapper">
  <resultMap id="BaseResultMap" type="com.wxz.domain.User">
    <!--@mbg.generated-->
    <!--@Table `user`-->
    <id column="id" jdbcType="INTEGER" property="id" />
    <result column="name" jdbcType="VARCHAR" property="name" />
    <result column="password" jdbcType="VARCHAR" property="password" />
  </resultMap>

  <sql id="Base_Column_List">
    <!--@mbg.generated-->
    id, `name`, `password`
  </sql>

  <select id="selectOne" parameterType="java.lang.Integer" resultMap="BaseResultMap">
    <!--@mbg.generated-->
    select
    <include refid="Base_Column_List" />
    from `user`
    where id = #{id}
  </select>

  <select id="selectList" parameterType="java.lang.Integer" resultMap="BaseResultMap">
    <!--@mbg.generated-->
    select
    <include refid="Base_Column_List" />
    from `user`
  </select>

  <delete id="delete" parameterType="java.lang.Integer">
    <!--@mbg.generated-->
    delete from `user`
    where id = #{id}
  </delete>

  <insert id="insert" keyColumn="id" keyProperty="id" parameterType="com.wxz.domain.User" useGeneratedKeys="true">
    <!--@mbg.generated-->
    insert into `user` (`name`, `password`)
    values (#{name,jdbcType=VARCHAR}, #{password,jdbcType=VARCHAR})
  </insert>


  <update id="update" parameterType="com.wxz.domain.User">
    <!--@mbg.generated-->
    update `user`
    set `name` = #{name,jdbcType=VARCHAR},
      `password` = #{password,jdbcType=VARCHAR}
    where id = #{id}
  </update>
</mapper>

web.xml

<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns="http://xmlns.jcp.org/xml/ns/javaee"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_4_0.xsd"
         version="4.0">
    <!-- 配置listener   启动时 加载spring的配置文件 -->
    <listener>
        <listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
    </listener>
    <context-param>
        <param-name>contextConfigLocation</param-name>
        <param-value>classpath:spring-context.xml</param-value>
    </context-param>


    <!-- 配置springmvc -->
    <servlet>
        <servlet-name>springmvc</servlet-name>
        <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
        <init-param>
            <param-name>contextConfigLocation</param-name>
            <param-value>classpath:springmvc.xml</param-value>
        </init-param>
        <load-on-startup>1</load-on-startup>
    </servlet>
    <servlet-mapping>
        <servlet-name>springmvc</servlet-name>
        <url-pattern>*.do</url-pattern>
    </servlet-mapping>
    <!--  配置编码过滤器 -->
    <filter>
        <filter-name>charsetFilter</filter-name>
        <filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
        <init-param>
            <param-name>encoding</param-name>
            <param-value>UTF-8</param-value>
        </init-param>
    </filter>
    <filter-mapping>
        <filter-name>charsetFilter</filter-name>
        <servlet-name>springmvc</servlet-name>
    </filter-mapping>
    <!-- 配置druid监控页面 -->
    <servlet>
        <servlet-name>druid</servlet-name>
        <servlet-class>com.alibaba.druid.support.http.StatViewServlet</servlet-class>
    </servlet>
    <servlet-mapping>
        <servlet-name>druid</servlet-name>
        <url-pattern>/druid/*</url-pattern>
    </servlet-mapping>
</web-app>

相关类

domain

package com.wxz.domain;


public class User {
    private Integer id;

    private String name;

    private String password;

    public Integer getId() {
        return id;
    }

    public void setId(Integer id) {
        this.id = id;
    }

    public String getName() {
        return name;
    }

    public void setName(String name) {
        this.name = name;
    }

    public String getPassword() {
        return password;
    }

    public void setPassword(String password) {
        this.password = password;
    }

    @Override
    public String toString() {
        return "User{" +
                "id=" + id +
                ", name='" + name + '\'' +
                ", password='" + password + '\'' +
                '}';
    }

    public User(Integer id, String name, String password) {
        this.id = id;
        this.name = name;
        this.password = password;
    }

    public User() {
    }
}

mapper

package com.wxz.mapper;

import com.wxz.domain.User;

import java.util.List;

public interface UserMapper {


    int insert(User user);

    int delete(Integer id);

    User selectOne(Integer id);

    List<User> selectList();

    int update(User user);
}

service

package com.wxz.service;

import com.wxz.domain.User;

import java.util.List;

public interface UserService{

    int insert(User user);

    int delete(Integer id);

    User selectOne(Integer id);

    List<User> selectList();

    int update(User user);

}

impl

package com.wxz.service.impl;

import org.springframework.stereotype.Service;
import javax.annotation.Resource;
import com.wxz.mapper.UserMapper;
import com.wxz.domain.User;
import com.wxz.service.UserService;

import java.util.List;

@Service
public class UserServiceImpl implements UserService{

    @Resource
    private UserMapper userMapper;

    @Override
    public int insert(User user) {

        return userMapper.insert(user);
    }

    @Override
    public int delete(Integer id) {
        return userMapper.delete(id);
    }

    @Override
    public User selectOne(Integer id) {
        return userMapper.selectOne(id);
    }

    @Override
    public List<User> selectList() {
        return userMapper.selectList();
    }

    @Override
    public int update(User user) {
        return userMapper.update(user);
    }
}

controller

package com.wxz.controller;

import com.wxz.domain.User;
import com.wxz.service.UserService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RequestMapping;

import java.util.List;

/**
 * TODO
 *
 * @author wxz
 * @date 2022/2/23 22:35
 */
@Controller
@RequestMapping("/user")
public class UserController {

    @Autowired
    private UserService userService;

    @RequestMapping("/list.do")
    public void queryList(){
        List<User> users = userService.selectList();
        System.out.println(users);
    }

    @RequestMapping("/user.do")
    public void queryUser(Integer id){
        User user = userService.selectOne(2);
        System.out.println(user);
    }

    @RequestMapping("/add.do")
    public void addUser(User user){
        userService.insert(new User(1,"王一博","122323"));
        System.out.println("新增成功");
    }

    @RequestMapping("/delete.do")
    public void deleteUser(Integer id){
        userService.delete(7);
        System.out.println("删除成功");
    }

    @RequestMapping("/update.do")
    public void updateUser(User user){
        userService.update(new User(9,"赵丽颖","ttttt"));
        System.out.println("修改成功");
    }
}

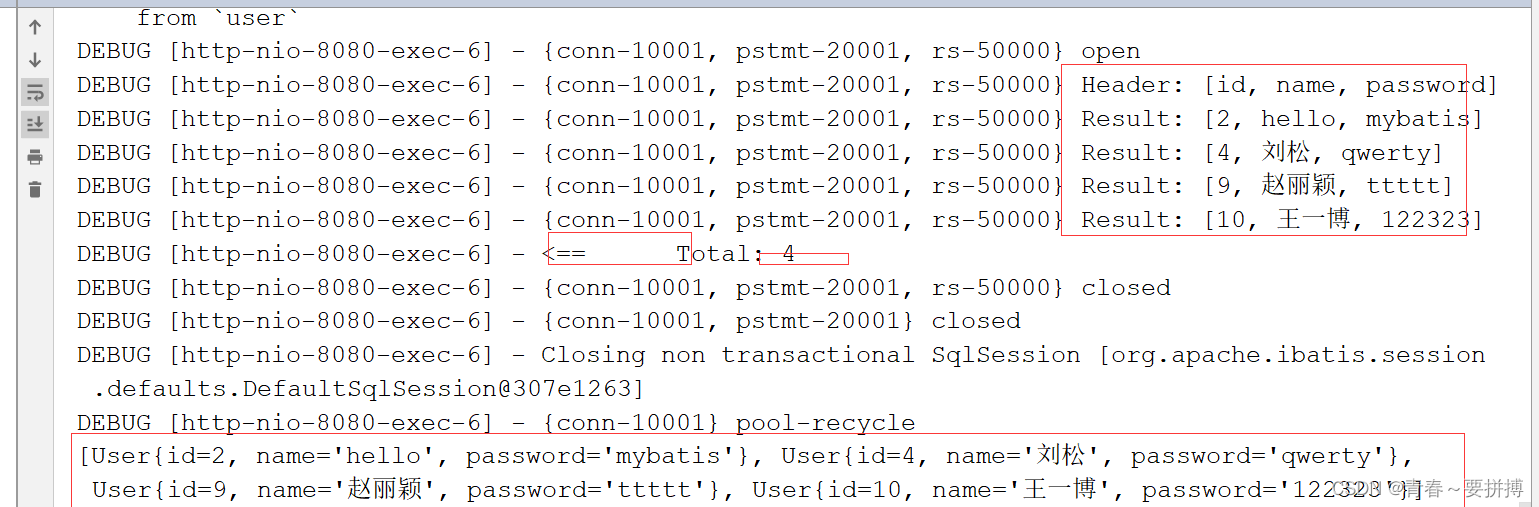

至此,ssm整合成功,可以进行crud一套

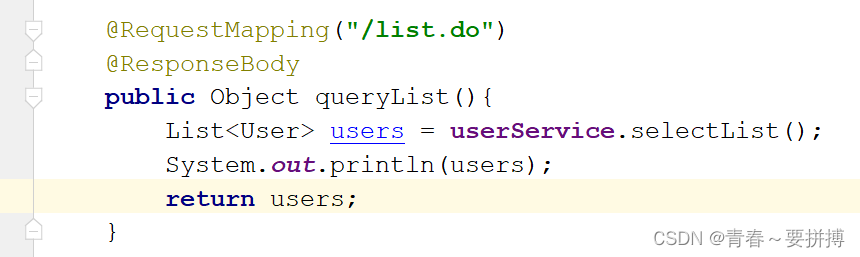

使用@ResponseBody，标识返回的结果是一个json字符串

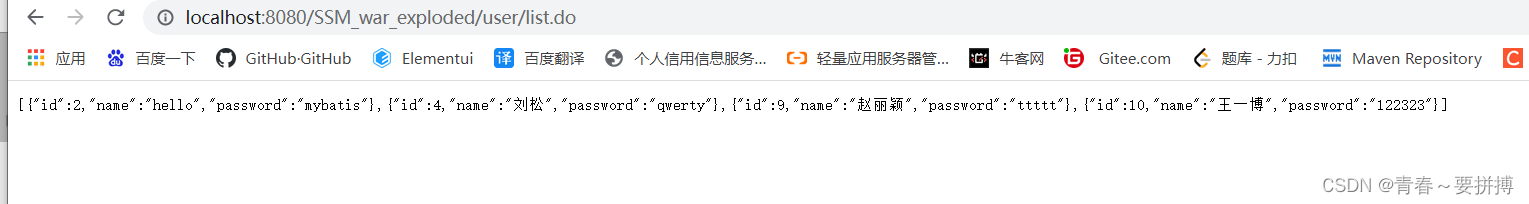

在springmvc中，springmvc默认是支持自动将对象转化为JSON字符串。且编码格式UTF-8.

但是springmvc默认支持json转化类，使用的jackson。需要主动的导入jackson的相关jar包。

jackson-annotations-2.9.9.jar
jackson-core-2.9.9.jar
jackson-databind-2.9.9.jar

?
