? 这一篇我们主要来分析下Broker里面的部分逻辑–Broker主要负责消息的存储、投递和查询以及服务高可用保证。下面我们就来大体梳理下其关于消息的投递、存储、拉取相关的一些逻辑。
? 我们知道broker实例时需要注册到namesrv中，然后其他的生产者、消费者再从namesrv中获取到对应的Broker实例信息，例如broker保存了哪些topic、topic对应的队列信息、此borker对应的ip信息等。
一、Broker的启动初始化

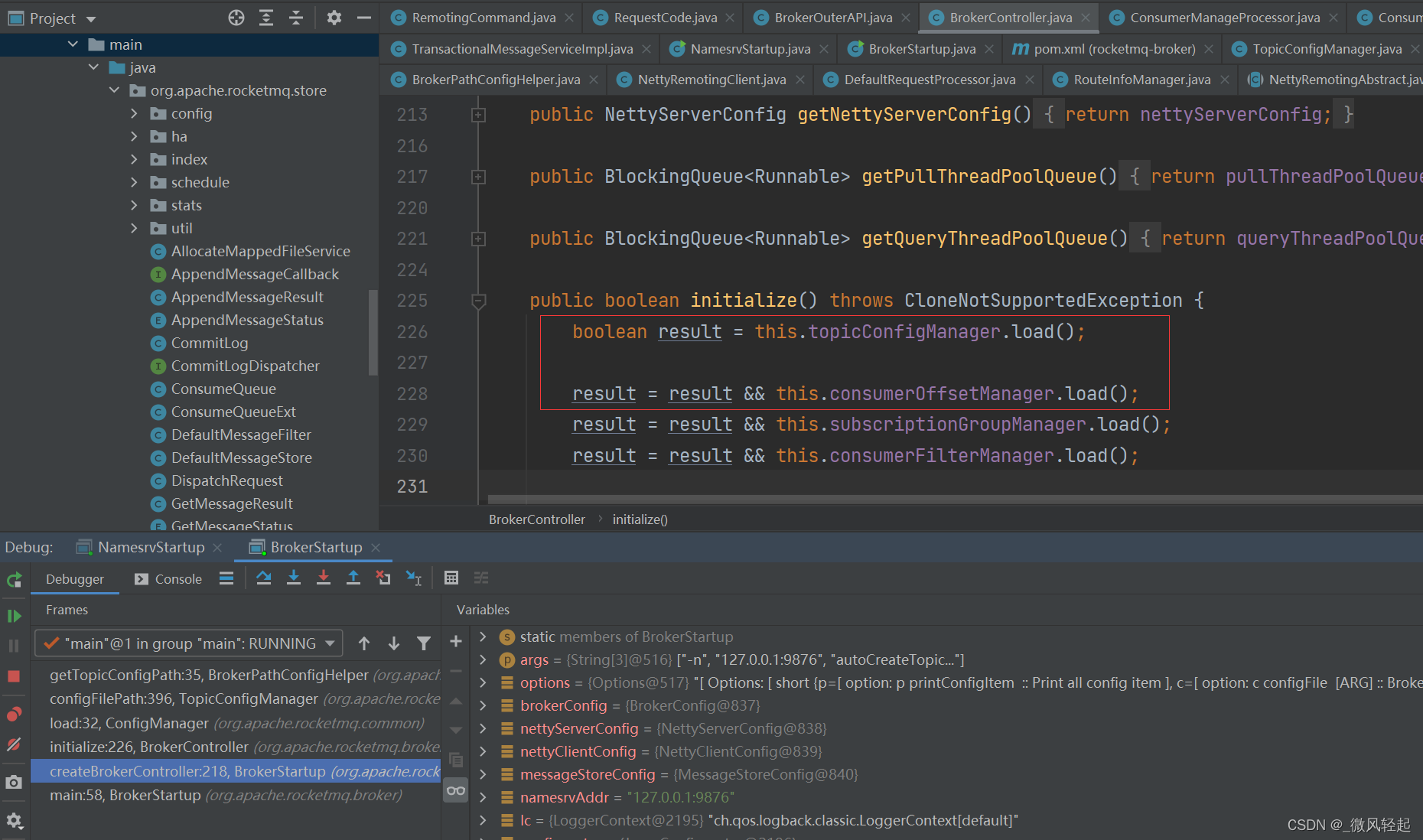

? 下面我们来看下broker启动后的初始化加载：
? 在这里初始化的时候，主要有两个信息的初始化加载，也就是topic信息、队列消费的offset信息，主要是加载持久化的文件信息。
1、topic信息文件
1）、topic的加载
this.topicConfigManager.load();

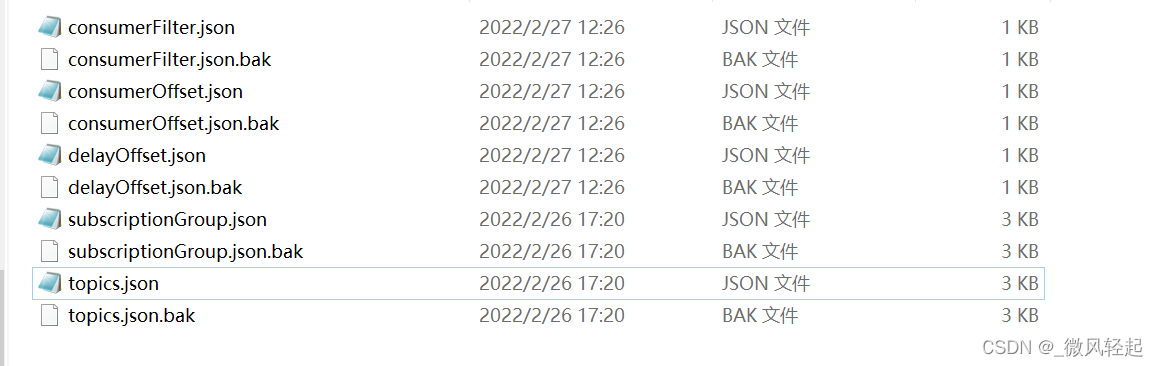

? 这里主要就是加载store\config下面的topics.json文件信息
public boolean load() {
String fileName = null;
try {
fileName = this.configFilePath();
String jsonString = MixAll.file2String(fileName);
if (null == jsonString || jsonString.length() == 0) {
return this.loadBak();
} else {
this.decode(jsonString);
log.info("load " + fileName + " OK");
return true;
}
} catch (Exception e) {
log.error("load " + fileName + " failed, and try to load backup file", e);
return this.loadBak();
}
}
? 如果找不到，就会再去加载部分文件。
public void decode(String jsonString) {
if (jsonString != null) {
TopicConfigSerializeWrapper topicConfigSerializeWrapper =
TopicConfigSerializeWrapper.fromJson(jsonString, TopicConfigSerializeWrapper.class);
if (topicConfigSerializeWrapper != null) {
this.topicConfigTable.putAll(topicConfigSerializeWrapper.getTopicConfigTable());
this.dataVersion.assignNewOne(topicConfigSerializeWrapper.getDataVersion());
this.printLoadDataWhenFirstBoot(topicConfigSerializeWrapper);
}
}
}
? 加载后就会将json转换为TopicConfigSerializeWrapper，再其放到topicConfigTable中。
public class TopicConfigSerializeWrapper extends RemotingSerializable {
private ConcurrentMap<String, TopicConfig> topicConfigTable =
new ConcurrentHashMap<String, TopicConfig>();
private DataVersion dataVersion = new DataVersion();
{
"dataVersion":{
"counter":5,
"timestamp":1645867253838
},
"topicConfigTable":{
"cluster_queue_topic2":{
"order":false,
"perm":6,
"readQueueNums":4,
"topicFilterType":"SINGLE_TAG",
"topicName":"cluster_queue_topic2",
"topicSysFlag":0,
"writeQueueNums":4
}
}
}
? 这上面就是topics.json文件中的信息（已删除其他的topic信息），可以看到其保存的当前topic的权限、读取的队列数量等。
2）、topic的添加
? 上面是加载文件，当我们知道这个文件在创建topic或者删除的时候是需要更新的，例如创建topic的时候。
public TopicConfig createTopicInSendMessageMethod(final String topic, final String defaultTopic,
final String remoteAddress, final int clientDefaultTopicQueueNums, final int topicSysFlag) {
TopicConfig topicConfig = null;
boolean createNew = false;
try {
if (this.lockTopicConfigTable.tryLock(LOCK_TIMEOUT_MILLIS, TimeUnit.MILLISECONDS)) {
try {
........
if (topicConfig != null) {
log.info("Create new topic by default topic:[{}] config:[{}] producer:[{}]",
defaultTopic, topicConfig, remoteAddress);
this.topicConfigTable.put(topic, topicConfig);
this.dataVersion.nextVersion();
createNew = true;
this.persist();
}
} finally {
this.lockTopicConfigTable.unlock();
}
}
} catch (InterruptedException e) {
log.error("createTopicInSendMessageMethod exception", e);
}
if (createNew) {
this.brokerController.registerBrokerAll(false, true,true);
}
return topicConfig;
}
? 例如新建topic后会将其添加到topicConfigTable中，然后再将其this.persist()添加到文件中，这个同样是ConfigManager的公共方法。同时如果这个topic是新建的，会再通过registerBrokerAll方法将其再更新到namesrv中，这个方法也是我们等下要梳理的。
2、消费的队列信息文件
消费队列是加载的store\config下面的consumerOffset.json文件信息

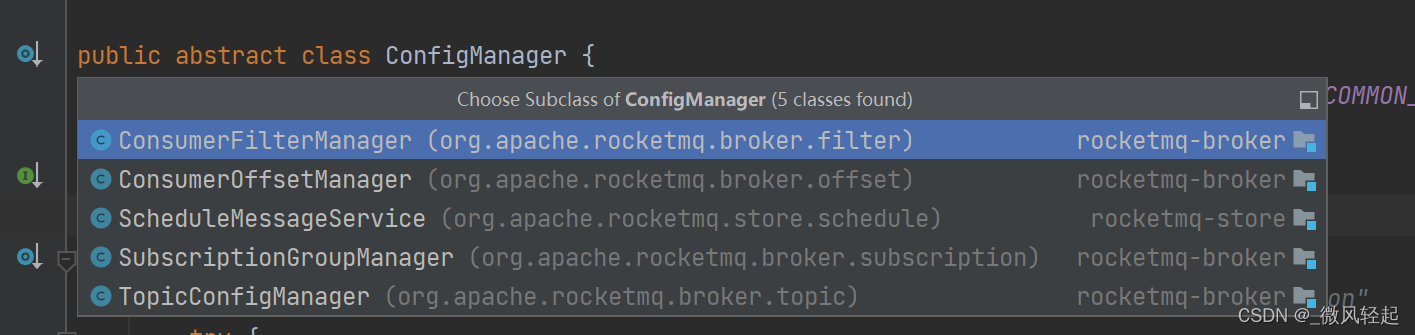

加载逻辑与后面的topic加载类似，都是同一个父类ConfigManager。
{
"offsetTable":{
"%RETRY%cluster_consumer_queue_group@cluster_consumer_queue_group":{0:0
},
"cluster_queue_topic2@cluster_consumer_queue_group":{0:102,1:102,2:85,3:84
},
"%RETRY%simple_batch_consumer_group@simple_batch_consumer_group":{0:0
}
}
}
? 这个文件主要是记录topic对应的queue队列的offset消费位置。例如例如上面的
cluster_queue_topic2@cluster_consumer_queue_group":{0:102,1:102,2:85,3:84}
就是记录了消费组cluster_consumer_queue_group对应的topic-cluster_queue_topic2下面的4个队列消费的offset位置。
二、Broker的注册
1、broker的逻辑
? broker启动后，会将其的信息注册到namesrv中。其是在broker的启动方法的调用类BrokerController中
public void start() throws Exception {
if (this.messageStore != null) {
this.messageStore.start();
}
if (this.remotingServer != null) {
this.remotingServer.start();
}
.......
if (this.brokerOuterAPI != null) {
this.brokerOuterAPI.start();
}
.......
this.registerBrokerAll(true, false, true);
........
}
public List<RegisterBrokerResult> registerBrokerAll(
final String clusterName,final String brokerAddr,final String brokerName,final long brokerId,
final String haServerAddr,final TopicConfigSerializeWrapper topicConfigWrapper,
final List<String> filterServerList,final boolean oneway,final int timeoutMills,
final boolean compressed) {
final List<RegisterBrokerResult> registerBrokerResultList = Lists.newArrayList();
List<String> nameServerAddressList = this.remotingClient.getNameServerAddressList();
if (nameServerAddressList != null && nameServerAddressList.size() > 0) {
final RegisterBrokerRequestHeader requestHeader = new RegisterBrokerRequestHeader();
requestHeader.setBrokerAddr(brokerAddr);
requestHeader.setBrokerId(brokerId);
requestHeader.setBrokerName(brokerName);
requestHeader.setClusterName(clusterName);
requestHeader.setHaServerAddr(haServerAddr);
requestHeader.setCompressed(compressed);
RegisterBrokerBody requestBody = new RegisterBrokerBody();
requestBody.setTopicConfigSerializeWrapper(topicConfigWrapper);
requestBody.setFilterServerList(filterServerList);
final byte[] body = requestBody.encode(compressed);
final int bodyCrc32 = UtilAll.crc32(body);
requestHeader.setBodyCrc32(bodyCrc32);
final CountDownLatch countDownLatch = new CountDownLatch(nameServerAddressList.size());
for (final String namesrvAddr : nameServerAddressList) {
brokerOuterExecutor.execute(new Runnable() {
@Override
public void run() {
try {
RegisterBrokerResult result = registerBroker(namesrvAddr,oneway, timeoutMills,requestHeader,body);54
.........
}
});
}
........
return registerBrokerResultList;
}
? 我们可以看到这里会将当前broker的ip、brokerName、clusterName、TopicConfigSerializeWrapper等信息告诉namesrv。同时我们可以看到for (final String namesrvAddr : nameServerAddressList)，如果多个namesrv的话，其都会进行注册。
2、namesrv逻辑
上面是broker注册的逻辑，下面我们就来看下namesrv的接收逻辑逻辑，其的处理逻辑主要是在DefaultRequestProcessor类做分发：
@Override
public RemotingCommand processRequest(ChannelHandlerContext ctx,
RemotingCommand request) throws RemotingCommandException {
.......
switch (request.getCode()) {
case RequestCode.PUT_KV_CONFIG:
return this.putKVConfig(ctx, request);
case RequestCode.GET_KV_CONFIG:
return this.getKVConfig(ctx, request);
case RequestCode.DELETE_KV_CONFIG:
return this.deleteKVConfig(ctx, request);
case RequestCode.QUERY_DATA_VERSION:
return queryBrokerTopicConfig(ctx, request);
case RequestCode.REGISTER_BROKER:
Version brokerVersion = MQVersion.value2Version(request.getVersion());
if (brokerVersion.ordinal() >= MQVersion.Version.V3_0_11.ordinal()) {
return this.registerBrokerWithFilterServer(ctx, request);
} else {
return this.registerBroker(ctx, request);
}
case RequestCode.UNREGISTER_BROKER:
return this.unregisterBroker(ctx, request);
case RequestCode.GET_ROUTEINTO_BY_TOPIC:
return this.getRouteInfoByTopic(ctx, request);
......
default:
break;
}
return null;
}
? 这里当前是走的registerBrokerWithFilterServer方法：
public RemotingCommand registerBrokerWithFilterServer(ChannelHandlerContext ctx, RemotingCommand request)
.........
RegisterBrokerResult result = this.namesrvController.getRouteInfoManager().registerBroker(
requestHeader.getClusterName(),
requestHeader.getBrokerAddr(),
requestHeader.getBrokerName(),
requestHeader.getBrokerId(),
requestHeader.getHaServerAddr(),
registerBrokerBody.getTopicConfigSerializeWrapper(),
registerBrokerBody.getFilterServerList(),
ctx.channel());
responseHeader.setHaServerAddr(result.getHaServerAddr());
responseHeader.setMasterAddr(result.getMasterAddr());
byte[] jsonValue = this.namesrvController.getKvConfigManager().getKVListByNamespace(NamesrvUtil.NAMESPACE_ORDER_TOPIC_CONFIG);
response.setBody(jsonValue);
response.setCode(ResponseCode.SUCCESS);
response.setRemark(null);
return response;
}
? 可以看到这里主要是将请求的信息交给RouteInfoManager来处理，RouteInfoManager主要是将这些信息保存到其的对应成员变量中，这些内容可以看前面写的一篇文章：RocketMQ源码解析-NameServer篇
三、consumer与broker的逻辑
? 我们知道broker是消息实际保存落地的地方，所以，consumer与producer都是从namesrv获取到broker的对应信息，然后直接再去broker推送、或者获取消息内容。
1、消费者demo
public static void main(String[] args) throws MQClientException {
DefaultMQPushConsumer defaultMQPushConsumer = new DefaultMQPushConsumer("cluster_consumer_queue_group");
defaultMQPushConsumer.setNamesrvAddr("127.0.0.1:9876");
defaultMQPushConsumer.setInstanceName("11");
String simpleTopic = "cluster_queue_topic2";
defaultMQPushConsumer.subscribe(simpleTopic,"*");
defaultMQPushConsumer.setConsumeFromWhere(ConsumeFromWhere.CONSUME_FROM_FIRST_OFFSET);
defaultMQPushConsumer.registerMessageListener(new MessageListenerConcurrently() {
@Override
public ConsumeConcurrentlyStatus consumeMessage(List<MessageExt> msgs, ConsumeConcurrentlyContext context) {
for (MessageExt messageExt : msgs) {
System.out.println("SimpleConsumer consumer Msg - " + JSONObject.toJSONString(messageExt));
}
return ConsumeConcurrentlyStatus.CONSUME_SUCCESS;
}
});
defaultMQPushConsumer.start();
}
2、消费者TopicRouteData获取
? 这里就是一个消费者基本运行。在其启动后会进行很多的初始化内容，例如从namesrv中获取对应的topic相关的队列信息，通过getTopicRouteInfoFromNameServer方法：
public boolean updateTopicRouteInfoFromNameServer(final String topic, boolean isDefault,
DefaultMQProducer defaultMQProducer) {
try {
if (this.lockNamesrv.tryLock(LOCK_TIMEOUT_MILLIS, TimeUnit.MILLISECONDS)) {
...........
} else {
topicRouteData = this.mQClientAPIImpl.getTopicRouteInfoFromNameServer(topic, 1000 * 3);
}
if (topicRouteData != null) {
TopicRouteData old = this.topicRouteTable.get(topic);
...........
if (changed) {
TopicRouteData cloneTopicRouteData = topicRouteData.cloneTopicRouteData();
for (BrokerData bd : topicRouteData.getBrokerDatas()) {
this.brokerAddrTable.put(bd.getBrokerName(), bd.getBrokerAddrs());
}
.....
..........
this.topicRouteTable.put(topic, cloneTopicRouteData);
return true;
}
}
.......
return false;
}

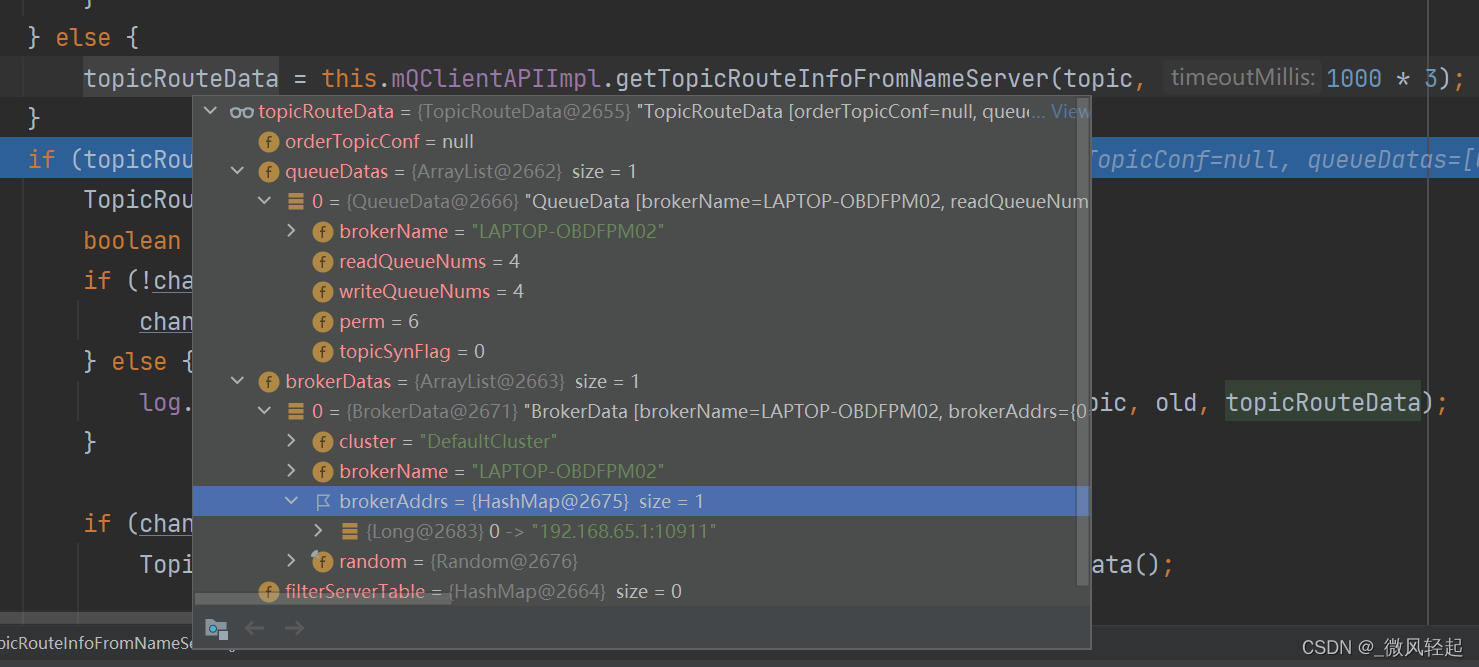

这里主要就是从namesrv中获取TopicRouteData信息，我们知道broker会将其的topic信息注册、更新到namesrv中。
public class TopicRouteData extends RemotingSerializable {
private String orderTopicConf;
private List<QueueData> queueDatas;
private List<BrokerData> brokerDatas;
private HashMap<String/* brokerAddr */, List<String>/* Filter Server */> filterServerTable;
其主要是topic的队列信息，以及这些在哪些broker上面（如果是多个broker集群，会有brokerName，及对应的ip信息），
public class BrokerData implements Comparable<BrokerData> {
private String cluster;
private String brokerName;
private HashMap<Long/* brokerId */, String/* broker address */> brokerAddrs;
3、offset获取
? 当获取到对应的broker对应的topic、queue队列相关的信息后，也需要获取queue对应的offset信息。
可以看到我们在demo中设置的是CONSUME_FROM_FIRST_OFFSET
@Override
public long computePullFromWhere(MessageQueue mq) {
long result = -1;
final ConsumeFromWhere consumeFromWhere = this.defaultMQPushConsumerImpl.getDefaultMQPushConsumer().getConsumeFromWhere();
final OffsetStore offsetStore = this.defaultMQPushConsumerImpl.getOffsetStore();
switch (consumeFromWhere) {
..........
case CONSUME_FROM_FIRST_OFFSET: {
long lastOffset = offsetStore.readOffset(mq, ReadOffsetType.READ_FROM_STORE);
if (lastOffset >= 0) {
result = lastOffset;
} else if (-1 == lastOffset) {
result = 0L;
} else {
result = -1;
}
break;
}
........
return result;
}
case READ_FROM_STORE: {
try {
long brokerOffset = this.fetchConsumeOffsetFromBroker(mq);
AtomicLong offset = new AtomicLong(brokerOffset);
this.updateOffset(mq, offset.get(), false);
return brokerOffset;
}
// No offset in broker
catch (MQBrokerException e) {
return -1;
}
//Other exceptions
catch (Exception e) {
log.warn("fetchConsumeOffsetFromBroker exception, " + mq, e);
return -2;
}
}
? 这里就是去这个MessageQueue对应的broker获取其的消费offset。
private long fetchConsumeOffsetFromBroker(MessageQueue mq) throws RemotingException, MQBrokerException,
InterruptedException, MQClientException {
FindBrokerResult findBrokerResult = this.mQClientFactory.findBrokerAddressInAdmin(mq.getBrokerName());
if (null == findBrokerResult) {
this.mQClientFactory.updateTopicRouteInfoFromNameServer(mq.getTopic());
findBrokerResult = this.mQClientFactory.findBrokerAddressInAdmin(mq.getBrokerName());
}
if (findBrokerResult != null) {
QueryConsumerOffsetRequestHeader requestHeader = new QueryConsumerOffsetRequestHeader();
requestHeader.setTopic(mq.getTopic());
requestHeader.setConsumerGroup(this.groupName);
requestHeader.setQueueId(mq.getQueueId());
return this.mQClientFactory.getMQClientAPIImpl().queryConsumerOffset(
findBrokerResult.getBrokerAddr(), requestHeader, 1000 * 5);
} else {
throw new MQClientException("The broker[" + mq.getBrokerName() + "] not exist", null);
}
}

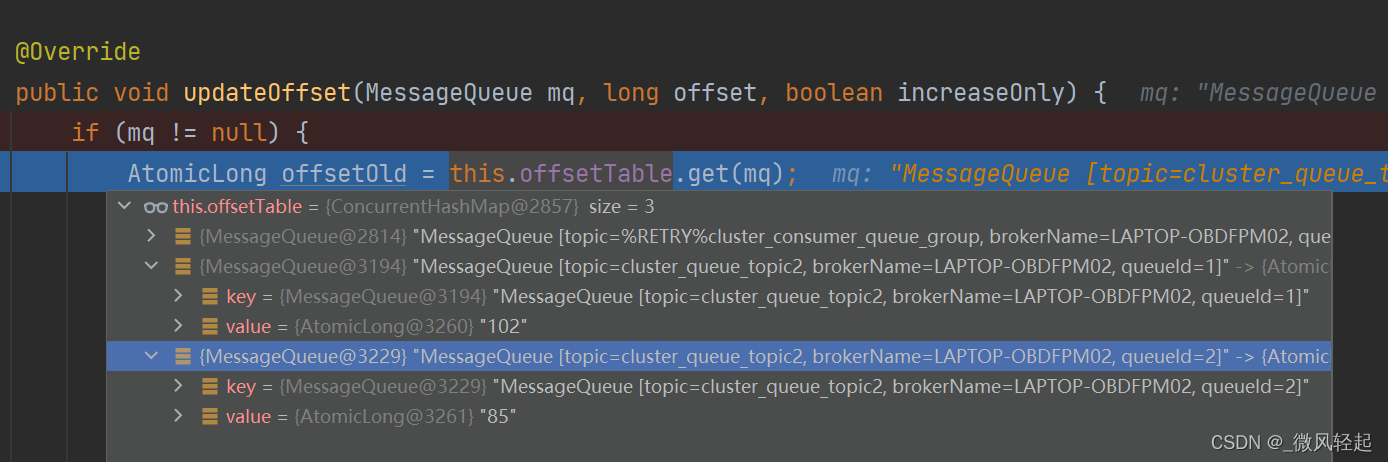

获取到offset或其再通过this.updateOffset(mq, offset.get(), false)，更新到offsetTable中：
private ConcurrentMap<MessageQueue, AtomicLong> offsetTable =
new ConcurrentHashMap<MessageQueue, AtomicLong>();
@Override
public void updateOffset(MessageQueue mq, long offset, boolean increaseOnly) {
if (mq != null) {
AtomicLong offsetOld = this.offsetTable.get(mq);
if (null == offsetOld) {
offsetOld = this.offsetTable.putIfAbsent(mq, new AtomicLong(offset));
}
if (null != offsetOld) {
if (increaseOnly) {
MixAll.compareAndIncreaseOnly(offsetOld, offset);
} else {
offsetOld.set(offset);
}
}
}
}
获取到MessageQueue后其再构建PullRequest集合，然后再去Broker拉取消息进行消费：
private boolean updateProcessQueueTableInRebalance(final String topic, final Set<MessageQueue> mqSet,
final boolean isOrder) {
boolean changed = false;
Iterator<Entry<MessageQueue, ProcessQueue>> it = this.processQueueTable.entrySet().iterator();
while (it.hasNext()) {
Entry<MessageQueue, ProcessQueue> next = it.next();
MessageQueue mq = next.getKey();
ProcessQueue pq = next.getValue();
.............
List<PullRequest> pullRequestList = new ArrayList<PullRequest>();
for (MessageQueue mq : mqSet) {
.......
this.removeDirtyOffset(mq);
ProcessQueue pq = new ProcessQueue();
long nextOffset = this.computePullFromWhere(mq);
if (nextOffset >= 0) {
ProcessQueue pre = this.processQueueTable.putIfAbsent(mq, pq);
if (pre != null) {
log.info("doRebalance, {}, mq already exists, {}", consumerGroup, mq);
} else {
log.info("doRebalance, {}, add a new mq, {}", consumerGroup, mq);
PullRequest pullRequest = new PullRequest();
pullRequest.setConsumerGroup(consumerGroup);
pullRequest.setNextOffset(nextOffset);
pullRequest.setMessageQueue(mq);
pullRequest.setProcessQueue(pq);
pullRequestList.add(pullRequest);
changed = true;
}
} else {
log.warn("doRebalance, {}, add new mq failed, {}", consumerGroup, mq);
}
}
}

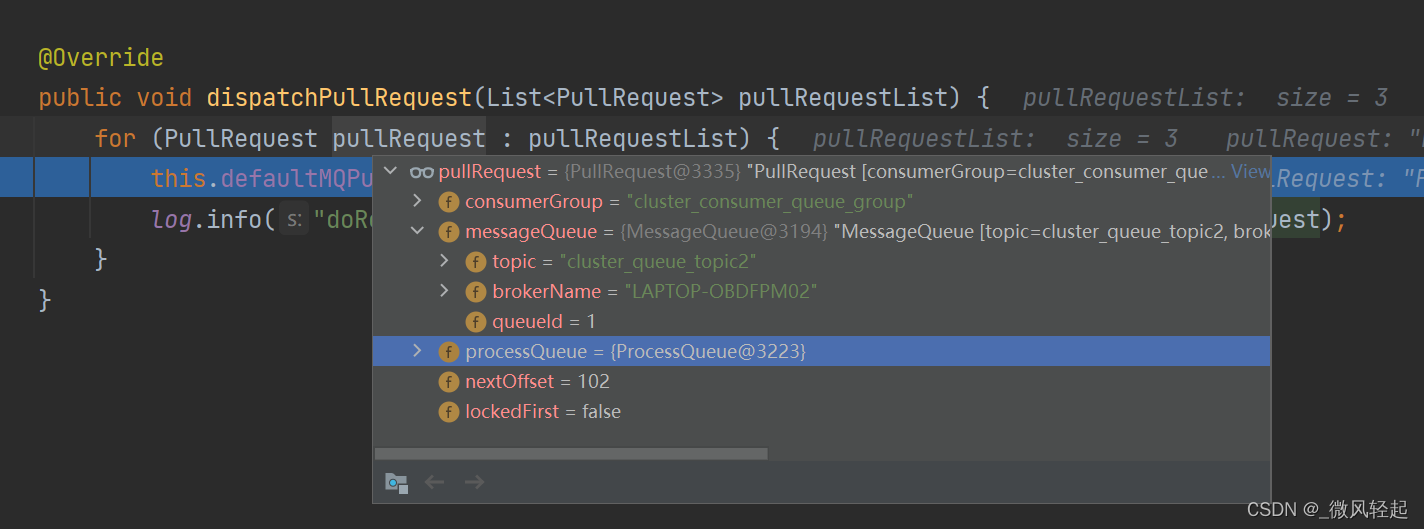

this.dispatchPullRequest(pullRequestList);
return changed;
}
public class PullMessageService extends ServiceThread {
private final InternalLogger log = ClientLogger.getLog();
private final LinkedBlockingQueue<PullRequest> pullRequestQueue = new LinkedBlockingQueue<PullRequest>();
.........
public void executePullRequestImmediately(final PullRequest pullRequest) {
try {
this.pullRequestQueue.put(pullRequest);
} catch (InterruptedException e) {
log.error("executePullRequestImmediately pullRequestQueue.put", e);
}
}
这样再通过run()遍历pullRequestQueue，就会去拉取这些PullRequest对应的broker拉取消息消费了。
public class PullMessageService extends ServiceThread {
private final InternalLogger log = ClientLogger.getLog();
private final LinkedBlockingQueue<PullRequest> pullRequestQueue = new LinkedBlockingQueue<PullRequest>();
..........
@Override
public void run() {
log.info(this.getServiceName() + " service started");
while (!this.isStopped()) {
try {
PullRequest pullRequest = this.pullRequestQueue.take();
this.pullMessage(pullRequest);
} catch (InterruptedException ignored) {
} catch (Exception e) {
log.error("Pull Message Service Run Method exception", e);
}
}
log.info(this.getServiceName() + " service end");
}
4、broker的推送逻辑
? broker的接收的处理主要是PullMessageProcessor类：
private RemotingCommand processRequest(final Channel channel, RemotingCommand request, boolean brokerAllowSuspend)
throws RemotingCommandException {
RemotingCommand response = RemotingCommand.createResponseCommand(PullMessageResponseHeader.class);
............
final GetMessageResult getMessageResult =
this.brokerController.getMessageStore().getMessage(requestHeader.getConsumerGroup(), requestHeader.getTopic(),
requestHeader.getQueueId(), requestHeader.getQueueOffset(), requestHeader.getMaxMsgNums(), messageFilter);
if (getMessageResult != null) {
response.setRemark(getMessageResult.getStatus().name());
responseHeader.setNextBeginOffset(getMessageResult.getNextBeginOffset());
responseHeader.setMinOffset(getMessageResult.getMinOffset());
responseHeader.setMaxOffset(getMessageResult.getMaxOffset());
..........
boolean storeOffsetEnable = brokerAllowSuspend;
storeOffsetEnable = storeOffsetEnable && hasCommitOffsetFlag;
storeOffsetEnable = storeOffsetEnable
&& this.brokerController.getMessageStoreConfig().getBrokerRole() != BrokerRole.SLAVE;
if (storeOffsetEnable) {
this.brokerController.getConsumerOffsetManager().commitOffset(RemotingHelper.parseChannelRemoteAddr(channel),
requestHeader.getConsumerGroup(), requestHeader.getTopic(), requestHeader.getQueueId(), requestHeader.getCommitOffset());
}
return response;
}
这里主要是获取Message，通过this.brokerController.getConsumerOffsetManager().commitOffset记录本次消费的offset。
获取消息逻辑主要是通过DefaultMessageStore来处理，其也是通过offset计算Message所在的CommitLog文件再从中获取：
public GetMessageResult getMessage(final String group, final String topic, final int queueId, final long offset,
final int maxMsgNums,
......
GetMessageResult getResult = new GetMessageResult();
ConsumeQueue consumeQueue = findConsumeQueue(topic, queueId);
if (consumeQueue != null) {
minOffset = consumeQueue.getMinOffsetInQueue();
maxOffset = consumeQueue.getMaxOffsetInQueue();
........
else {
SelectMappedBufferResult bufferConsumeQueue = consumeQueue.getIndexBuffer(offset);
if (bufferConsumeQueue != null) {
try {
status = GetMessageStatus.NO_MATCHED_MESSAGE;
............
SelectMappedBufferResult selectResult = this.commitLog.getMessage(offsetPy, sizePy);
................
this.storeStatsService.getGetMessageTransferedMsgCount().incrementAndGet();
getResult.addMessage(selectResult);
status = GetMessageStatus.FOUND;
nextPhyFileStartOffset = Long.MIN_VALUE;
}
........
nextBeginOffset = offset + (i / ConsumeQueue.CQ_STORE_UNIT_SIZE);
.........
} else {
status = GetMessageStatus.OFFSET_FOUND_NULL;
nextBeginOffset = nextOffsetCorrection(offset, consumeQueue.rollNextFile(offset));
log.warn("consumer request topic: " + topic + "offset: " + offset + " minOffset: " + minOffset + " maxOffset: "
+ maxOffset + ", but access logic queue failed.");
}
}
} else {
status = GetMessageStatus.NO_MATCHED_LOGIC_QUEUE;
nextBeginOffset = nextOffsetCorrection(offset, 0);
}
..........
getResult.setStatus(status);
getResult.setNextBeginOffset(nextBeginOffset);
getResult.setMaxOffset(maxOffset);
getResult.setMinOffset(minOffset);
return getResult;
}
? 这里主要是从commitLog文件中获取，这个在前面RocketMQ源码解析-Store篇有介绍。以上就是关于Broker与Consumer、namesrv的一般流程交互的逻辑梳理。
