1 Shiro简介

权限管理属于系统安全的范畴，权限管理实现对用户访问系统的控制。权限管理包括身份认证和授权两部分。对于需要访问控制资源的用户首先经过身份认证，认证通过后用户具有该资源的访问权限才可访问。

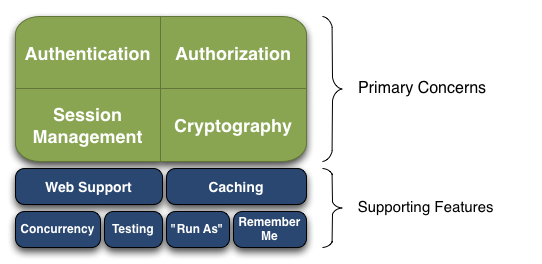

Apache Shiro，依赖性低，可以独立运行不依赖Spring，当然也可以容易地集成到Spring，属于轻量级框架。提供了包括认证、授权、加密、会话管理等功能。安全有时候是很复杂的，与Spring Security 相比，Shiro使用了比较简单易懂易于使用的授权方式。

Authentication（认证）：用户身份识别，通常被称为用户“登录”。
Authorization（授权）：访问控制，某个用户是否具有某个操作的使用权限。
Session Management（会话管理）：特定于用户的会话管理，甚至在非web 应用程序。
Cryptography（加密）：在对数据源使用加密算法加密的同时，保证易于使用。

**Subject：**代表当前用户，可以是一个人，也可以是第三方服务。在单应用中，可将其视为User的同义词。包含Principals和Credentials两个信息。Pricipals:代表身份。可以是用户名、邮件、手机号码等等，用来标识一个登陆主题的身份。Credentials:代表凭证。常见的有密码、数字证书等等。也就是说两者代表了认证的内容，最常见就是用户名密码了。用Shiro进行身份认证，其中就包括主体认证。
**SecurityManager：**管理所有Subject，对于 Web 应用一般使用DefaultWebSecurityManager。
**Realms：**用于进行权限信息的验证，我们自己实现。是一个执行者，负责真正的认证和鉴权。

我们需要实现Realms的Authentication 和 Authorization。其中 Authentication 是用来验证用户身份。Authorization是授权访问控制，用于对用户进行的操作授权，证明该用户是否允许进行当前操作，如访问某个链接，某个资源文件等。

首先配置maven文件：

      <dependency>
            <groupId>org.apache.shiro</groupId>
            <artifactId>shiro-core</artifactId>
            <version>1.4.1</version>
        </dependency>

环境搭建

2.1 配置数据库

2.1.1 User(用户)

SET NAMES utf8mb4;
SET FOREIGN_KEY_CHECKS = 0;

-- ----------------------------
-- Table structure for user
-- ----------------------------
DROP TABLE IF EXISTS `user`;
CREATE TABLE `user`  (
  `id` bigint(20) NOT NULL AUTO_INCREMENT,
  `password` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
  `username` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
  `account` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
  PRIMARY KEY (`id`) USING BTREE
) ENGINE = MyISAM AUTO_INCREMENT = 4 CHARACTER SET = utf8 COLLATE = utf8_general_ci ROW_FORMAT = Dynamic;

-- ----------------------------
-- Records of user
-- ----------------------------
INSERT INTO `user` VALUES (1, 'root', '超级用户', 'root');
INSERT INTO `user` VALUES (2, 'user', '普通用户', 'user');
INSERT INTO `user` VALUES (3, 'vip', 'VIP用户', 'vip');

SET FOREIGN_KEY_CHECKS = 1;

2.1.2 Role(角色)

SET NAMES utf8mb4;
SET FOREIGN_KEY_CHECKS = 0;

-- ----------------------------
-- Table structure for role
-- ----------------------------
DROP TABLE IF EXISTS `role`;
CREATE TABLE `role`  (
  `id` int(11) NOT NULL AUTO_INCREMENT,
  `role` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
  `desc` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
  PRIMARY KEY (`id`) USING BTREE
) ENGINE = MyISAM AUTO_INCREMENT = 4 CHARACTER SET = utf8 COLLATE = utf8_general_ci ROW_FORMAT = Dynamic;

-- ----------------------------
-- Records of role
-- ----------------------------
INSERT INTO `role` VALUES (1, 'admin', '超级管理员');
INSERT INTO `role` VALUES (2, 'user', '普通用户');
INSERT INTO `role` VALUES (3, 'vip_user', 'VIP用户');

SET FOREIGN_KEY_CHECKS = 1;

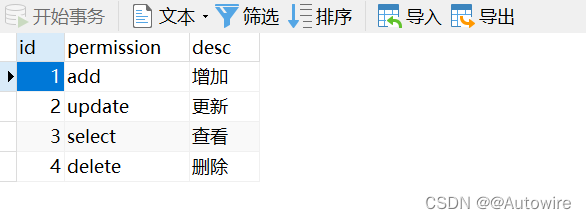

2.1.3 Permission(权限)

SET NAMES utf8mb4;
SET FOREIGN_KEY_CHECKS = 0;

-- ----------------------------
-- Table structure for permission
-- ----------------------------
DROP TABLE IF EXISTS `permission`;
CREATE TABLE `permission`  (
  `id` int(11) NOT NULL AUTO_INCREMENT,
  `permission` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL COMMENT '权限名称',
  `desc` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL COMMENT '权限描述',
  PRIMARY KEY (`id`) USING BTREE
) ENGINE = MyISAM AUTO_INCREMENT = 5 CHARACTER SET = utf8 COLLATE = utf8_general_ci ROW_FORMAT = Dynamic;

-- ----------------------------
-- Records of permission
-- ----------------------------
INSERT INTO `permission` VALUES (1, 'add', '增加');
INSERT INTO `permission` VALUES (2, 'update', '更新');
INSERT INTO `permission` VALUES (3, 'select', '查看');
INSERT INTO `permission` VALUES (4, 'delete', '删除');

SET FOREIGN_KEY_CHECKS = 1;

2.1.4 User_Role(用户-角色)

SET NAMES utf8mb4;
SET FOREIGN_KEY_CHECKS = 0;

-- ----------------------------
-- Table structure for user_role
-- ----------------------------
DROP TABLE IF EXISTS `user_role`;
CREATE TABLE `user_role`  (
  `id` int(11) NOT NULL AUTO_INCREMENT,
  `user_id` int(11) NULL DEFAULT NULL,
  `role_id` int(11) NULL DEFAULT NULL,
  PRIMARY KEY (`id`) USING BTREE
) ENGINE = MyISAM AUTO_INCREMENT = 4 CHARACTER SET = utf8 COLLATE = utf8_general_ci ROW_FORMAT = Fixed;

-- ----------------------------
-- Records of user_role
-- ----------------------------
INSERT INTO `user_role` VALUES (1, 1, 1);
INSERT INTO `user_role` VALUES (2, 2, 2);
INSERT INTO `user_role` VALUES (3, 3, 3);

SET FOREIGN_KEY_CHECKS = 1;

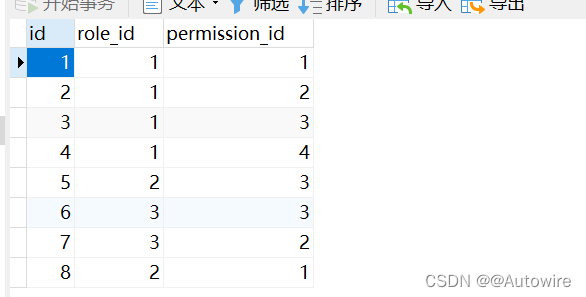

2.1.5 Role_Permission(角色-权限)

SET NAMES utf8mb4;
SET FOREIGN_KEY_CHECKS = 0;

-- ----------------------------
-- Table structure for role_permission
-- ----------------------------
DROP TABLE IF EXISTS `role_permission`;
CREATE TABLE `role_permission`  (
  `id` int(11) NOT NULL AUTO_INCREMENT,
  `role_id` int(11) NULL DEFAULT NULL,
  `permission_id` int(255) NULL DEFAULT NULL,
  PRIMARY KEY (`id`) USING BTREE
) ENGINE = MyISAM AUTO_INCREMENT = 9 CHARACTER SET = utf8 COLLATE = utf8_general_ci ROW_FORMAT = Fixed;

-- ----------------------------
-- Records of role_permission
-- ----------------------------
INSERT INTO `role_permission` VALUES (1, 1, 1);
INSERT INTO `role_permission` VALUES (2, 1, 2);
INSERT INTO `role_permission` VALUES (3, 1, 3);
INSERT INTO `role_permission` VALUES (4, 1, 4);
INSERT INTO `role_permission` VALUES (5, 2, 3);
INSERT INTO `role_permission` VALUES (6, 3, 3);
INSERT INTO `role_permission` VALUES (7, 3, 2);
INSERT INTO `role_permission` VALUES (8, 2, 1);

SET FOREIGN_KEY_CHECKS = 1;

2.2 配置项目

首先配置maven文件：

 <dependency>
        <groupId>org.apache.shiro</groupId>
        <artifactId>shiro-spring</artifactId>
        <version>1.4.0</version>
 </dependency>

package com.zs.config;

import com.zs.shiro.UserRealm;
import org.apache.shiro.mgt.DefaultSecurityManager;
import org.apache.shiro.spring.security.interceptor.AuthorizationAttributeSourceAdvisor;
import org.apache.shiro.spring.web.ShiroFilterFactoryBean;
import org.apache.shiro.web.mgt.DefaultWebSecurityManager;
import org.springframework.aop.framework.autoproxy.DefaultAdvisorAutoProxyCreator;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

import java.util.LinkedHashMap;
import java.util.Map;

@Configuration
public class ShiroConfig {

    // 将自己的验证方式加入容器
    @Bean
    public UserRealm userRealm() {
        return new UserRealm();
    }
    // 权限管理，配置主要是Realm的管理认证
    @Bean
    public DefaultWebSecurityManager getDefaultWebSecurityManager(@Qualifier("userRealm") UserRealm userRealm) {
        DefaultWebSecurityManager securityManager = new DefaultWebSecurityManager();
        // 关联realm
        securityManager.setRealm(userRealm);
        return securityManager;
    }
    /**
     * 路径过滤规则
     *
     * @return
     */
    @Bean
    public ShiroFilterFactoryBean shiroFilter(@Qualifier("getDefaultWebSecurityManager") DefaultWebSecurityManager securityManager) {
        ShiroFilterFactoryBean shiroFilterFactoryBean = new ShiroFilterFactoryBean();
        shiroFilterFactoryBean.setSecurityManager(securityManager);

        shiroFilterFactoryBean.setLoginUrl("/login"); // 登录
        shiroFilterFactoryBean.setSuccessUrl("/"); // 首页
        Map<String, String> map = new LinkedHashMap<>();
        // 有先后顺序
        //map.put("/login", "anon");      // 无需认证就可以访问
        map.put("/**", "authc");        // 进行身份认证后才能访问
        shiroFilterFactoryBean.setFilterChainDefinitionMap(map);
        return shiroFilterFactoryBean;
    }

    /**
     * 开启Shiro注解模式，可以在Controller中的方法上添加注解
     *
     * @param securityManager
     * @return
     */
    @Bean
    public AuthorizationAttributeSourceAdvisor authorizationAttributeSourceAdvisor(@Qualifier("getDefaultWebSecurityManager") DefaultSecurityManager securityManager) {
        AuthorizationAttributeSourceAdvisor authorizationAttributeSourceAdvisor = new AuthorizationAttributeSourceAdvisor();
        authorizationAttributeSourceAdvisor.setSecurityManager(securityManager);
        return authorizationAttributeSourceAdvisor;
    }
    @Bean
    public DefaultAdvisorAutoProxyCreator advisorAutoProxyCreator() {
        DefaultAdvisorAutoProxyCreator advisorAutoProxyCreator = new DefaultAdvisorAutoProxyCreator();
        advisorAutoProxyCreator.setProxyTargetClass(true);
        return advisorAutoProxyCreator;
    }
}

package com.zs.shiro;

import com.zs.pojo.Role;
import com.zs.pojo.User;
import com.zs.service.PermissionService;
import com.zs.service.RoleService;
import com.zs.service.UserService;
import org.apache.shiro.authc.*;
import org.apache.shiro.authz.AuthorizationInfo;
import org.apache.shiro.authz.SimpleAuthorizationInfo;
import org.apache.shiro.realm.AuthorizingRealm;
import org.apache.shiro.subject.PrincipalCollection;
import org.springframework.beans.factory.annotation.Autowired;

import java.util.ArrayList;
import java.util.HashSet;
import java.util.List;
import java.util.Set;

public class UserRealm extends AuthorizingRealm {
    @Autowired
    private UserService userService;

    @Autowired
    private RoleService roleService;

    @Autowired
    private PermissionService permissionService;

    // 用户授权
    protected AuthorizationInfo doGetAuthorizationInfo(PrincipalCollection principalCollection) {
        System.out.println("==============================================doGetAuthorizationInfo");
        User user = (User) principalCollection.getPrimaryPrincipal(); // 获取登录用户名
        List<Role> roleList = roleService.findRoleByUserId(user.getId());
        Set<String> roleSet = new HashSet<>();
        List<Integer> roleIds = new ArrayList<>();
        for (Role role : roleList) {
            roleSet.add(role.getRole());
            roleIds.add(role.getId());
        }
        // 放入角色信息
        SimpleAuthorizationInfo authorizationInfo = new SimpleAuthorizationInfo();
        authorizationInfo.setRoles(roleSet);
        // 放入权限信息
        List<String> permissionList = permissionService.findByRoleId(roleIds);
        authorizationInfo.setStringPermissions(new HashSet<>(permissionList));
        return authorizationInfo;
    }

    // 用户认证
    protected AuthenticationInfo doGetAuthenticationInfo(AuthenticationToken authToken) throws AuthenticationException {
        System.out.println("==============================================doGetAuthenticationInfo");
        UsernamePasswordToken token = (UsernamePasswordToken) authToken;
        User user = userService.findByAccount(token.getUsername());
        if (user == null) {
            return null;
        }
        return new SimpleAuthenticationInfo(user, user.getPassword(), getName());
    }
}

package com.zs.controller;

import com.zs.tool.ServerResponseEnum;
import com.zs.tool.ServerResponseVO;
import org.apache.shiro.SecurityUtils;
import org.apache.shiro.authc.DisabledAccountException;
import org.apache.shiro.authc.IncorrectCredentialsException;
import org.apache.shiro.authc.UnknownAccountException;
import org.apache.shiro.authc.UsernamePasswordToken;
import org.apache.shiro.authz.annotation.Logical;
import org.apache.shiro.authz.annotation.RequiresPermissions;
import org.apache.shiro.authz.annotation.RequiresRoles;
import org.apache.shiro.subject.Subject;
import org.springframework.web.bind.annotation.*;

@RestController
@RequestMapping("")
public class LoginController {

    @PostMapping("/login")
    public ServerResponseVO login(@RequestParam(value = "account") String account,
                                  @RequestParam(value = "password") String password) {
        Subject userSubject = SecurityUtils.getSubject();
        UsernamePasswordToken token = new UsernamePasswordToken(account, password);
        try {
            // 登录验证
            userSubject.login(token);
            return ServerResponseVO.success();
        } catch (UnknownAccountException e) {
            return ServerResponseVO.error(ServerResponseEnum.ACCOUNT_NOT_EXIST);
        } catch (DisabledAccountException e) {
            return ServerResponseVO.error(ServerResponseEnum.ACCOUNT_IS_DISABLED);
        } catch (IncorrectCredentialsException e) {
            return ServerResponseVO.error(ServerResponseEnum.INCORRECT_CREDENTIALS);
        } catch (Throwable e) {
            e.printStackTrace();
            return ServerResponseVO.error(ServerResponseEnum.ERROR);
        }
    }

    @GetMapping("/login")
    public ServerResponseVO login() {
        return ServerResponseVO.error(ServerResponseEnum.NOT_LOGIN_IN);
    }

    @GetMapping("/auth")
    public String auth() {
        return "已成功登录";
    }

    @GetMapping("/role")
    @RequiresRoles("vip")
    public String role() {
        Subject userSubject = SecurityUtils.getSubject();
        return "测试Vip角色";
    }

    @GetMapping("/permission")
    @RequiresPermissions(value = {"add", "update"}, logical = Logical.AND)
    public String permission() {
        return "测试Add和Update权限";
    }
}

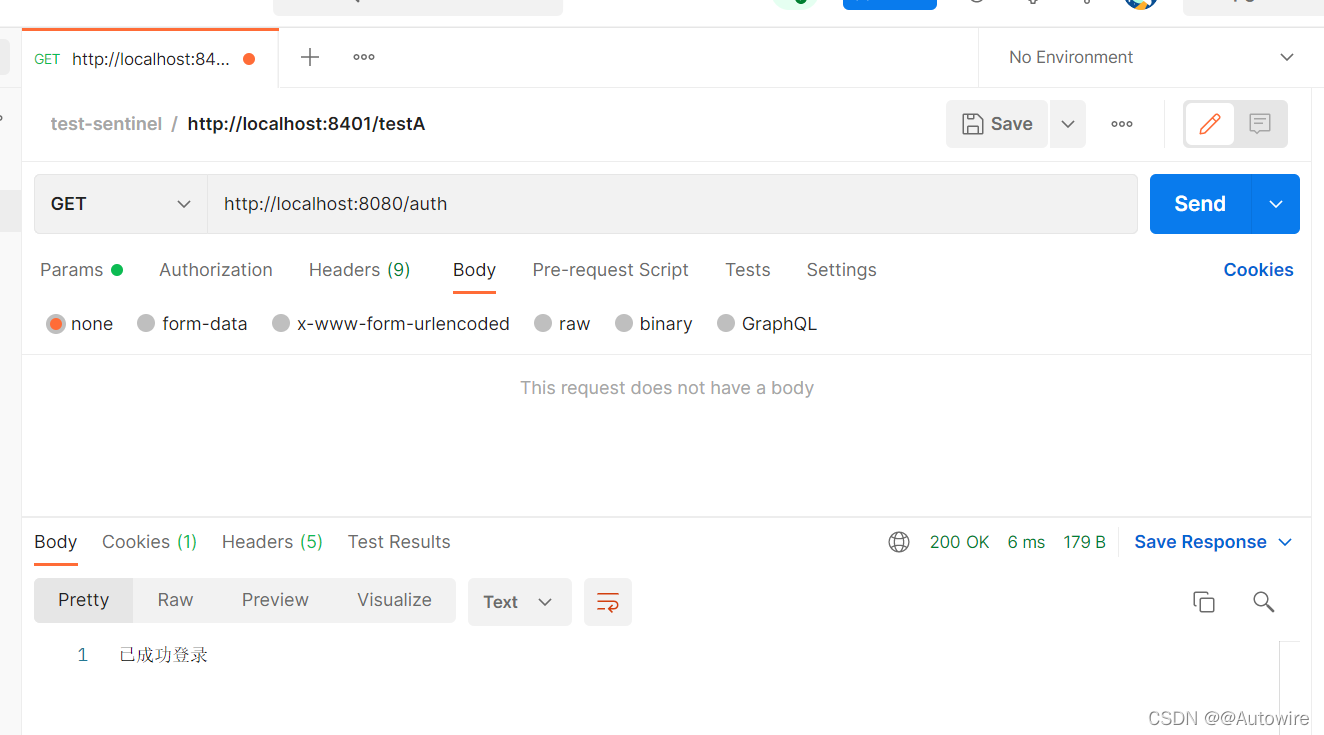

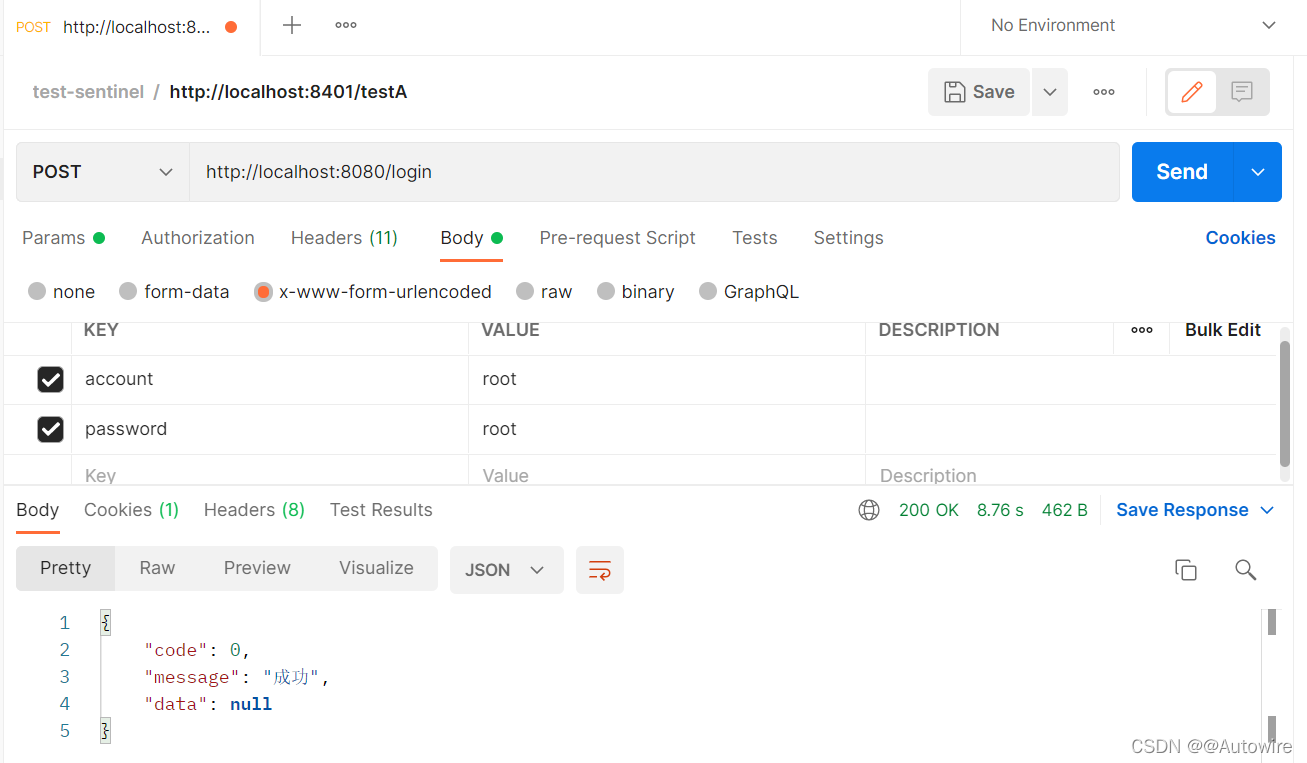

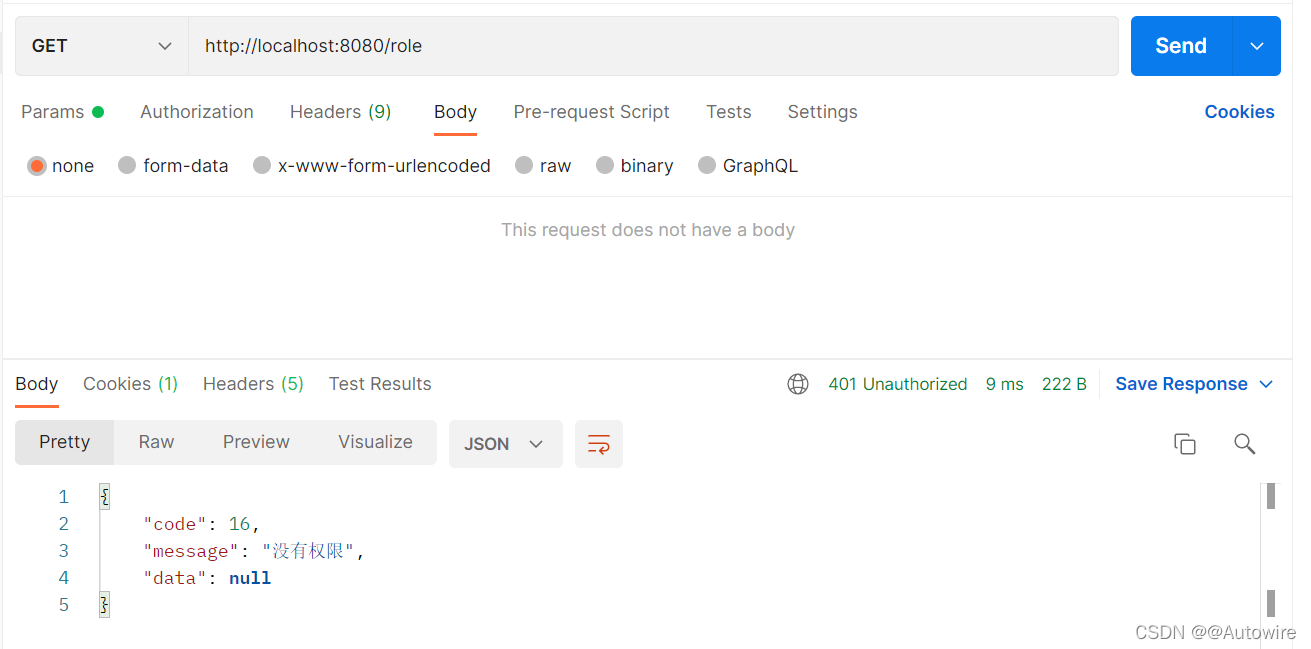

测试：
