receiver一子模块

receiver负责接收外部请求,并由集群进行所有节点流式处理
receiver基于插件方式实现,高度可扩展

maven子模块	功能概述
skywalking-register-receiver-plugin	agent注册,同步信息等信息的接收模块
skywalking-sharing-server-plugin	额外的服务器模块,依据配置决定另起grpc和jetty服务,亦或是共用core模块的grpc与jetty
skywalking-trace-receiver-plugin	链路trace数据上报的receiver模块
skywalking-jvm-receiver-plugin	jvm进程上报Metrics的receiver模块
…	其他子模块

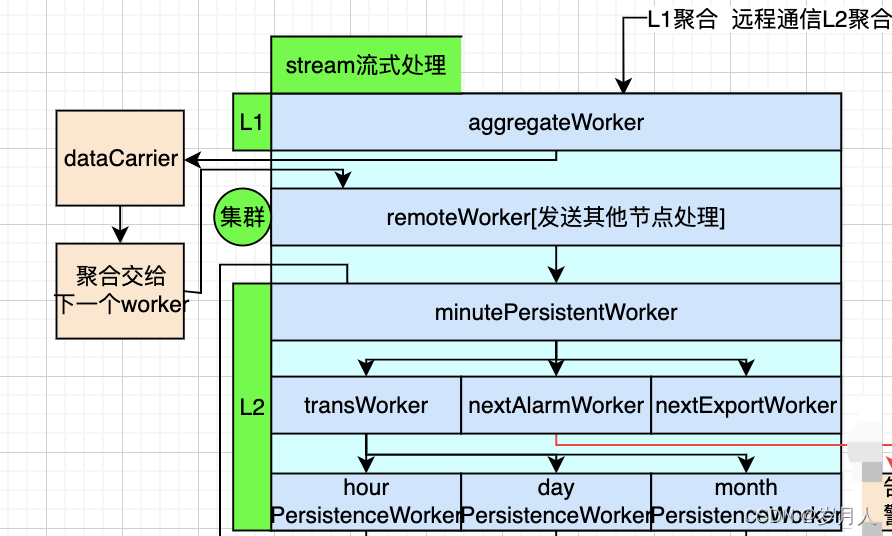

流式处理简介

流式处理由StreamProcessor触发
StreamProcessor内含有一个worker责任链
数据在worker节点之间流动处理,所以称为流式处理
此外worker中可能存在remoteworker会将数据发往其他oapServer进行处理
remoteWorker之前的worker工作一般称为L1聚合
remoteWorker之后的worker工作一般称为L2聚合
worker名称会指明是L1还是L2

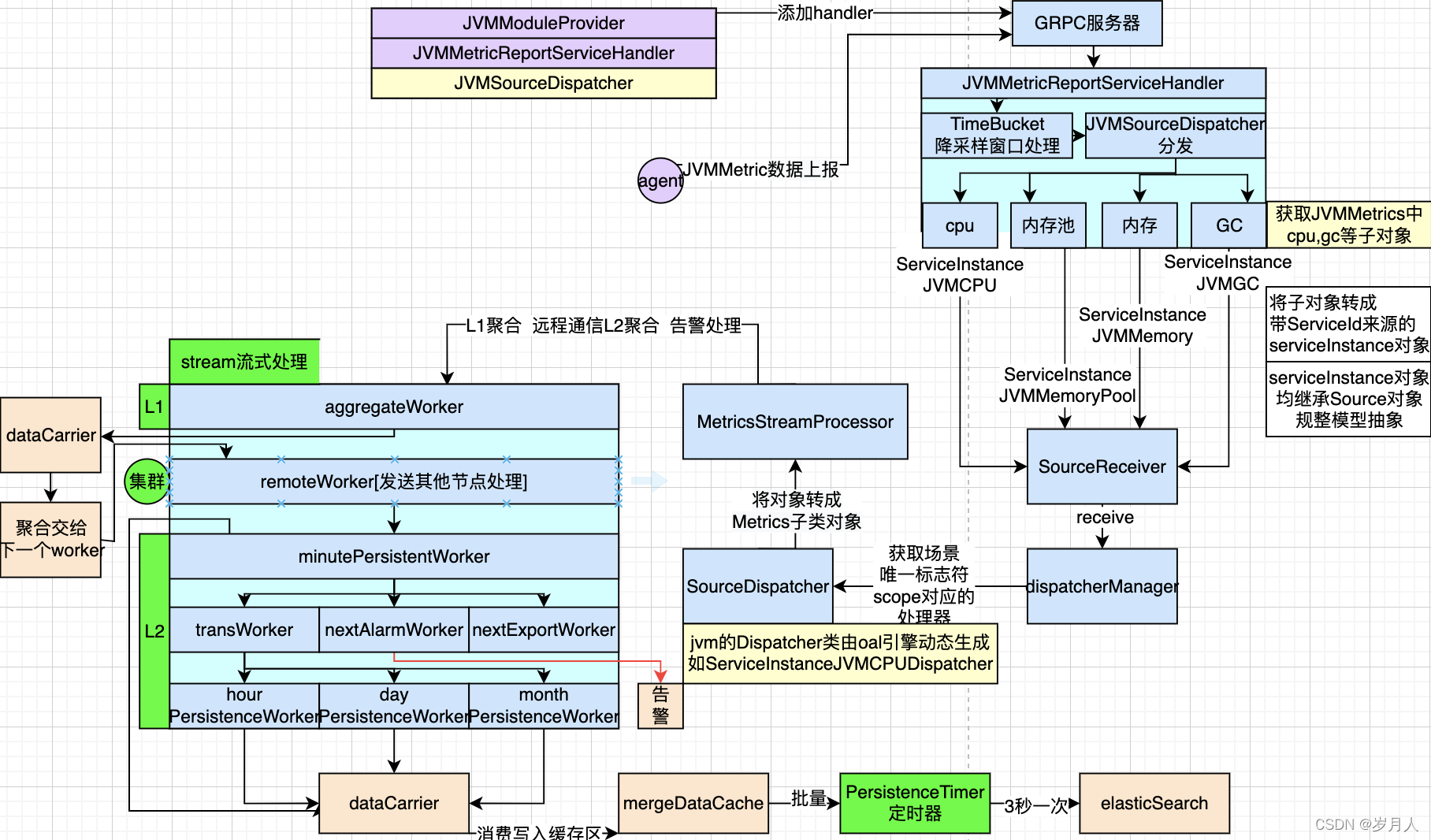

JVM一Metrics模块工作原理图

在这里插入图片描述

源码分析一JVMModule

JVMModuleProvider启动时向GRPC服务器注册JVMMetricReportServiceHandler
JVMMetricReportServiceHandler负责接收agent上报的JVMMetrics信息

public class JVMModuleProvider extends ModuleProvider {
    @Override public void start() {
        GRPCHandlerRegister grpcHandlerRegister = getManager().find(SharingServerModule.NAME).provider().getService(GRPCHandlerRegister.class);
        // 旧版本处理器 [可看做网络协议grpc更上层协议client-server交互]
        grpcHandlerRegister.addHandler(new JVMMetricsServiceHandler(getManager()));
        v2版本处理器 [本文分析内容]
        grpcHandlerRegister.addHandler(new JVMMetricReportServiceHandler(getManager()));
    }

}

源码分析一JVMMetricReportServiceHandler

根据时间计算出分钟级降采样窗口
jvmSourceDispatcher负责区分cpu和内存池,内存和GC执行请求分发


public class JVMMetricReportServiceHandler extends JVMMetricReportServiceGrpc.JVMMetricReportServiceImplBase implements GRPCHandler {
    grpc协议 agent批量上报JVMMetric调用该方法处理
    @Override public void collect(JVMMetricCollection request, StreamObserver<Commands> responseObserver) {
        int serviceInstanceId = request.getServiceInstanceId();

        request.getMetricsList().forEach(metrics -> {
            根据时间计算出分钟级降采样窗口
            long minuteTimeBucket = TimeBucket.getMinuteTimeBucket(metrics.getTime());
            jvmSourceDispatcher负责区分cpu和内存池,内存和GC执行分发
            jvmSourceDispatcher.sendMetric(serviceInstanceId, minuteTimeBucket, metrics);
        });
        responseObserver.onNext(Commands.newBuilder().build());
        responseObserver.onCompleted();
    }

}

源码分析一JVMSourceDispatcher

根据服务id获取agent机器节点实例id
依据agent度量模型构建包含serviceId,serviceInstanceId的服务端度量模型ServiceInstanceJVMXXX
sourceReceiver.receive 处理度量信息


public class JVMSourceDispatcher {
    void sendMetric(int serviceInstanceId, long minuteTimeBucket, JVMMetric metrics) {
        根据服务id获取agent机器节点实例id
        ServiceInstanceInventory serviceInstanceInventory = instanceInventoryCache.get(serviceInstanceId);
        int serviceId;
        if (Objects.nonNull(serviceInstanceInventory)) {
            serviceId = serviceInstanceInventory.getServiceId();
        } else {
            logger.warn("Can't find service by service instance id from cache, service instance id is: {}", serviceInstanceId);
            return;
        }

        构建ServiceInstanceJVMCPU,交给sourceReceiver.receive处理
        this.sendToCpuMetricProcess(serviceId, serviceInstanceId, minuteTimeBucket, metrics.getCpu());
        构建ServiceInstanceJVMMemory,交给sourceReceiver.receive处理
        this.sendToMemoryMetricProcess(serviceId, serviceInstanceId, minuteTimeBucket, metrics.getMemoryList());
        构建ServiceInstanceJVMMemoryPool,交给sourceReceiver.receive处理
        this.sendToMemoryPoolMetricProcess(serviceId, serviceInstanceId, minuteTimeBucket, metrics.getMemoryPoolList());
        构建ServiceInstanceJVMGC,交给sourceReceiver.receive处理
        this.sendToGCMetricProcess(serviceId, serviceInstanceId, minuteTimeBucket, metrics.getGcList());

        ServiceInstanceJVMCPU  ServiceInstanceJVMMemory ServiceInstanceJVMMemoryPool ServiceInstanceJVMGC
        继承Source 同时相比jvm的度量信息多了serviceId,serviceInstanceId等来源信息
        sourceReceiver.receive统一处理source信息
    }

    private void sendToCpuMetricProcess(int serviceId, int serviceInstanceId, long timeBucket, CPU cpu) {
        ServiceInstanceJVMXXX 完成JVMMetrics内部度量比如CPU的模型转换,由agent客户端模型转成oapServer服务端模型
        ServiceInstanceJVMCPU serviceInstanceJVMCPU = new ServiceInstanceJVMCPU();
        serviceInstanceJVMCPU.setId(serviceInstanceId);
        serviceInstanceJVMCPU.setName(Const.EMPTY_STRING);
        serviceInstanceJVMCPU.setServiceId(serviceId);
        serviceInstanceJVMCPU.setServiceName(Const.EMPTY_STRING);
        serviceInstanceJVMCPU.setUsePercent(cpu.getUsagePercent());
        serviceInstanceJVMCPU.setTimeBucket(timeBucket);
        sourceReceiver.receive(serviceInstanceJVMCPU);
    }
}

源码分析一DispatcherManager执行颁发

SourceReceiver交由dispatcherManager执行转发
dispatcherManager根据Source.scope查找指定dispatcher进行处理
scope代表一个唯一确定的业务场景

public class SourceReceiverImpl implements SourceReceiver {
    @Override public void receive(Source source) {
        OAL动态生成和源码的分发器集合 [OAL引擎解析official_analysis.oal中配置的Metrics和Dispatcher]
        dispatcherManager.forward(source);
    }
}


public class DispatcherManager implements DispatcherDetectorListener {
    public void forward(Source source) {
        获取当前监控的场景唯一标志符scope
        List<SourceDispatcher> dispatchers = dispatcherMap.get(source.scope());
        dispatchers完成Source到Metrics模型转换并处理StreamProcessor流式处理
        if (dispatchers != null) {
            for (SourceDispatcher dispatcher : dispatchers) {
                dispatcher.dispatch(source);
            }
        }
    }
}

源码分析一Dispatcher.dispatch

JVMMetrics的Dispatcher一般有OALEngine动态生成
Dispatcher的作用是完成source模型到Metrics模型转换
调用StreamProcessor.in进行流式处理

public class ServiceInstanceJVMCPUDispatcher implements SourceDispatcher<ServiceInstanceJVMCPU> {
    // OAL动态生成class
    private void doInstanceJvmCpu(ServiceInstanceJVMCPU var1) {
        将服务端source模型转成服务端Metrics模型
        InstanceJvmCpuMetrics var2 = new InstanceJvmCpuMetrics();
        var2.setTimeBucket(var1.getTimeBucket());
        var2.setEntityId(var1.getEntityId());
        var2.setServiceId(var1.getServiceId());
        var2.combine(var1.getUsePercent(), (long)1);
        执行Stream流式处理
        MetricsStreamProcessor.getInstance().in(var2);
    }

    public void dispatch(Source var1) {
        ServiceInstanceJVMCPU var2 = (ServiceInstanceJVMCPU)var1;
        this.doInstanceJvmCpu(var2);
    }
}
