前言

? ? ? ? ?继前一篇文章关于task被supervisor创建的过程分析，那么task被创建后是怎样分配给zk的呢？task选择middlemanager的策略又是什么？

上图

? ? ? ?supervisor创建完task后，会将task扔到一个由TaskMaster创建的TaskQueue中。此后的事情就是如果将TaskQueue中的task进行分配运行了。?

? ? ? TaskQueue会启动一个线程一直运行，用来读取taskqueue队列中的tasks，对于已经准备好的task通过TaskRunner进行run()。而TaskRunner是 在TaskMaster中创建的。

? ? ? ?TaskRunner中会判断task的状态是否为pending状态，如果是就会对该task进行分配work, 而分配策略默认是根据middlemanager的slot最大空闲数分配的。让后会将work信息、task信息通过jsonMapper进行序列化为byte写到zk的一个能被work识别的路径下面。

?上代码

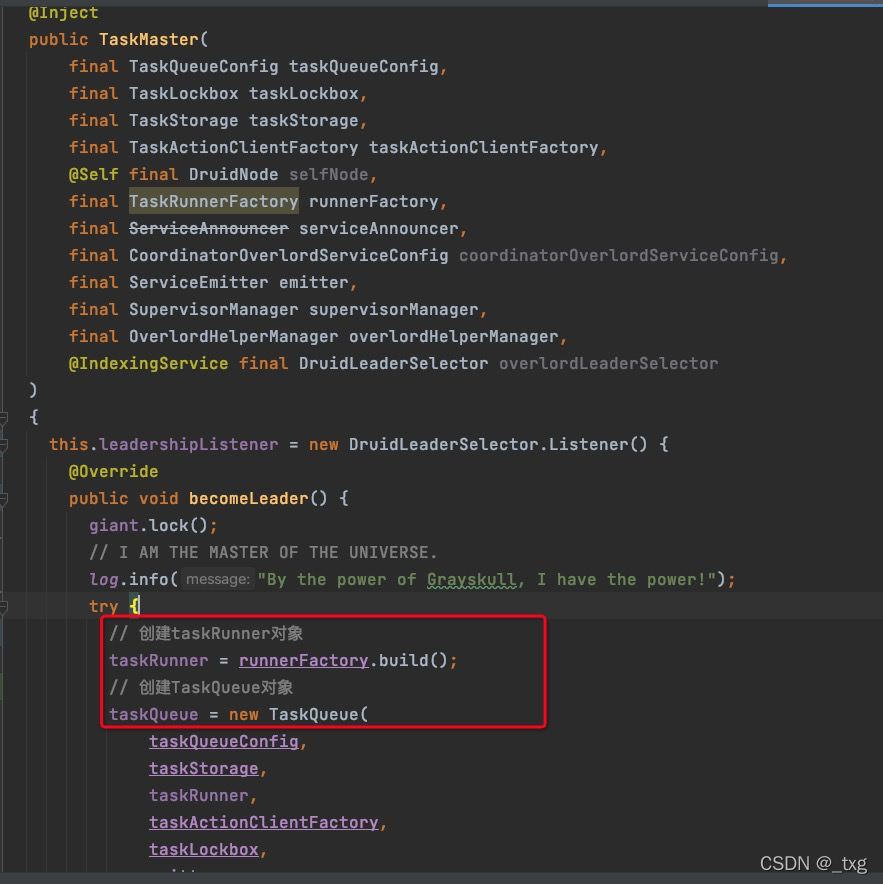

? ? ? ? 首先从TaskMaster入手，因为TaskMaster是被注入的对象，它管理着TaskQueue和TaskRunner两大对象。

? ? ? ?其中TaskRunner是被taskRunnerFactory创建的，而TaskRunner包括：ForkingTaskRunner，RemoteTaskRunner, HttpRemoteTaskRunner?。至于使用哪一个是通过在overload的配置文件中配置的，配置项为：druid.indexer.runner.type=remote/loacl/httpRemote

• local表示从本地运行任务
• remote表示分配到分布式系统中
• httpRemote是在试用期的功能(目前是根据0.16版本分析的)，和remote功能一样，只是httpRemote不通过zk而是直接和middlemanager交互

?

? ? ? 然后此时创建完TaskQueue之后，taskQueue会进行启动并创建一个持续运行的线程。该线程的作用就是不断的轮询判断taskqueue中的task进行处理，调用taskRunner的run()方法做分配task的处理。

/**
   * Main task runner management loop. Meant to run forever, or, at least until we're stopped.
   */
  private void manage() throws InterruptedException
  {
    log.info("Beginning management in %s.", config.getStartDelay());
    Thread.sleep(config.getStartDelay().getMillis());

    // Ignore return value- we'll get the IDs and futures from getKnownTasks later.
    taskRunner.restore();

    while (active) {
      giant.lock();

      try {
        // Task futures available from the taskRunner
        final Map<String, ListenableFuture<TaskStatus>> runnerTaskFutures = new HashMap<>();
        for (final TaskRunnerWorkItem workItem : taskRunner.getKnownTasks()) {
          runnerTaskFutures.put(workItem.getTaskId(), workItem.getResult());
        }
        // Attain futures for all active tasks (assuming they are ready to run).
        // Copy tasks list, as notifyStatus may modify it.
        for (final Task task : ImmutableList.copyOf(tasks)) {
          if (!taskFutures.containsKey(task.getId())) {
            final ListenableFuture<TaskStatus> runnerTaskFuture;
            if (runnerTaskFutures.containsKey(task.getId())) {
              runnerTaskFuture = runnerTaskFutures.get(task.getId());
            } else {
              // Task should be running, so run it.
              final boolean taskIsReady;
              try {
                taskIsReady = task.isReady(taskActionClientFactory.create(task));
              }
              catch (Exception e) {
                log.warn(e, "Exception thrown during isReady for task: %s", task.getId());
                notifyStatus(task, TaskStatus.failure(task.getId()), "failed because of exception[%s]", e.getClass());
                continue;
              }
              if (taskIsReady) {
                log.info("Asking taskRunner to run: %s", task.getId());
                // 该部分是已分配给taskrunner管理且没有被运行的
                runnerTaskFuture = taskRunner.run(task);
              } else {
                continue;
              }
            }
            taskFutures.put(task.getId(), attachCallbacks(task, runnerTaskFuture));
          } else if (isTaskPending(task)) {
            // if the taskFutures contain this task and this task is pending, also let the taskRunner
            // to run it to guarantee it will be assigned to run
            // see https://github.com/apache/incubator-druid/pull/6991
            // 判断task是否处于pending状态，如果是就进行分配运行
            taskRunner.run(task);
          }
        }
        // Kill tasks that shouldn't be running
        final Set<String> tasksToKill = Sets.difference(
            runnerTaskFutures.keySet(),
            ImmutableSet.copyOf(
                Lists.transform(
                    tasks,
                    new Function<Task, Object>()
                    {
                      @Override
                      public String apply(Task task)
                      {
                        return task.getId();
                      }
                    }
                )
            )
        );
        if (!tasksToKill.isEmpty()) {
          log.info("Asking taskRunner to clean up %,d tasks.", tasksToKill.size());
          for (final String taskId : tasksToKill) {
            try {
              taskRunner.shutdown(
                  taskId,
                  "task is not in runnerTaskFutures[%s]",
                  runnerTaskFutures.keySet()
              );
            }
            catch (Exception e) {
              log.warn(e, "TaskRunner failed to clean up task: %s", taskId);
            }
          }
        }
        // awaitNanos because management may become necessary without this condition signalling,
        // due to e.g. tasks becoming ready when other folks mess with the TaskLockbox.
        managementMayBeNecessary.awaitNanos(MANAGEMENT_WAIT_TIMEOUT_NANOS);
      }
      finally {
        giant.unlock();
      }
    }
  }

? ? ?此时决定运行的task时候，让taskRunnner根据策略去寻找work进行分配。判断出处于pending状态的task进行分配。

/**
   * This method uses a multi-threaded executor to extract all pending tasks and attempt to run them. Any tasks that
   * are successfully assigned to a worker will be moved from pendingTasks to runningTasks. This method is thread-safe.
   * This method should be run each time there is new worker capacity or if new tasks are assigned.
   */
  private void runPendingTasks()
  {
    runPendingTasksExec.submit(
        new Callable<Void>()
        {
          @Override
          public Void call()
          {
            try {
              // make a copy of the pending tasks because tryAssignTask may delete tasks from pending and move them
              // into running status
              List<RemoteTaskRunnerWorkItem> copy = Lists.newArrayList(pendingTasks.values());
              sortByInsertionTime(copy);

              for (RemoteTaskRunnerWorkItem taskRunnerWorkItem : copy) {
                String taskId = taskRunnerWorkItem.getTaskId();
                if (tryAssignTasks.putIfAbsent(taskId, taskId) == null) {
                  try {
                    //this can still be null due to race from explicit task shutdown request
                    //or if another thread steals and completes this task right after this thread makes copy
                    //of pending tasks. See https://github.com/apache/incubator-druid/issues/2842 .
                    Task task = pendingTaskPayloads.get(taskId);
                    // 试图去分配task
                    if (task != null && tryAssignTask(task, taskRunnerWorkItem)) {
                      pendingTaskPayloads.remove(taskId);
                    }
                  }
                  catch (Exception e) {
                    log.makeAlert(e, "Exception while trying to assign task")
                       .addData("taskId", taskRunnerWorkItem.getTaskId())
                       .emit();
                    RemoteTaskRunnerWorkItem workItem = pendingTasks.remove(taskId);
                    if (workItem != null) {
                      taskComplete(workItem, null, TaskStatus.failure(taskId));
                    }
                  }
                  finally {
                    tryAssignTasks.remove(taskId);
                  }
                }
              }
            }
            catch (Exception e) {
              log.makeAlert(e, "Exception in running pending tasks").emit();
            }

            return null;
          }
        }
    );
  }

? ? ?根据策略以及过滤条件得到task要分配的work的信息：

/**
   * Ensures no workers are already running a task before assigning the task to a worker.
   * It is possible that a worker is running a task that the RTR has no knowledge of. This occurs when the RTR
   * needs to bootstrap after a restart.
   *
   * @param taskRunnerWorkItem - the task to assign
   *
   * @return true iff the task is now assigned
   */
  private boolean tryAssignTask(final Task task, final RemoteTaskRunnerWorkItem taskRunnerWorkItem) throws Exception
  {
    Preconditions.checkNotNull(task, "task");
    Preconditions.checkNotNull(taskRunnerWorkItem, "taskRunnerWorkItem");
    Preconditions.checkArgument(task.getId().equals(taskRunnerWorkItem.getTaskId()), "task id != workItem id");

    if (runningTasks.containsKey(task.getId()) || findWorkerRunningTask(task.getId()) != null) {
      log.info("Task[%s] already running.", task.getId());
      return true;
    } else {
      // Nothing running this task, announce it in ZK for a worker to run it
      WorkerBehaviorConfig workerConfig = workerConfigRef.get();
      //  确定分配的策略
      WorkerSelectStrategy strategy;
      if (workerConfig == null || workerConfig.getSelectStrategy() == null) {
        strategy = WorkerBehaviorConfig.DEFAULT_STRATEGY;
        log.debug("No worker selection strategy set. Using default of [%s]", strategy.getClass().getSimpleName());
      } else {
        strategy = workerConfig.getSelectStrategy();
      }

      ZkWorker assignedWorker = null;
      final ImmutableWorkerInfo immutableZkWorker;
      try {
        synchronized (workersWithUnacknowledgedTask) {
          immutableZkWorker = strategy.findWorkerForTask(
              config,
              ImmutableMap.copyOf(
                  Maps.transformEntries(
                      Maps.filterEntries(
                          zkWorkers,
                          new Predicate<Map.Entry<String, ZkWorker>>()
                          {
                            @Override
                            public boolean apply(Map.Entry<String, ZkWorker> input)
                            {
                              return !lazyWorkers.containsKey(input.getKey()) &&
                                     !workersWithUnacknowledgedTask.containsKey(input.getKey()) &&
                                     !blackListedWorkers.contains(input.getValue());
                            }
                          }
                      ),
                      (String key, ZkWorker value) -> value.toImmutable()
                  )
              ),
              task
          );

          if (immutableZkWorker != null &&
              workersWithUnacknowledgedTask.putIfAbsent(immutableZkWorker.getWorker().getHost(), task.getId())
              == null) {
            assignedWorker = zkWorkers.get(immutableZkWorker.getWorker().getHost());
          }
        }

        if (assignedWorker != null) {
          // 得到work信息后进行发布到zk上
          return announceTask(task, assignedWorker, taskRunnerWorkItem);
        } else {
          log.debug(
              "Unsuccessful task-assign attempt for task [%s] on workers [%s]. Workers to ack tasks are [%s].",
              task.getId(),
              zkWorkers.values(),
              workersWithUnacknowledgedTask
          );
        }

        return false;
      }
      finally {
        if (assignedWorker != null) {
          workersWithUnacknowledgedTask.remove(assignedWorker.getWorker().getHost());
          //if this attempt won the race to run the task then other task might be able to use this worker now after task ack.
          runPendingTasks();
        }
      }
    }
  }

? ? ? 根据task信息和work信息写入zk的相应路径下面：

/**
   * Creates a ZK entry under a specific path associated with a worker. The worker is responsible for
   * removing the task ZK entry and creating a task status ZK entry.
   *
   * @param theZkWorker        The worker the task is assigned to
   * @param taskRunnerWorkItem The task to be assigned
   *
   * @return boolean indicating whether the task was successfully assigned or not
   */
  private boolean announceTask(
      final Task task,
      final ZkWorker theZkWorker,
      final RemoteTaskRunnerWorkItem taskRunnerWorkItem
  ) throws Exception
  {
    Preconditions.checkArgument(task.getId().equals(taskRunnerWorkItem.getTaskId()), "task id != workItem id");
    final String worker = theZkWorker.getWorker().getHost();
    synchronized (statusLock) {
      if (!zkWorkers.containsKey(worker) || lazyWorkers.containsKey(worker)) {
        // the worker might have been killed or marked as lazy
        log.info("Not assigning task to already removed worker[%s]", worker);
        return false;
      }
      log.info("Coordinator asking Worker[%s] to add task[%s]", worker, task.getId());

      // 将task的信息写到相应的的zk路径下面
      CuratorUtils.createIfNotExists(
          cf,
          JOINER.join(indexerZkConfig.getTasksPath(), worker, task.getId()),
          CreateMode.EPHEMERAL,
          jsonMapper.writeValueAsBytes(task),
          config.getMaxZnodeBytes()
      );

     // ....
  }

END

? ? 至此，要运行的task得到分配的work写到zk路径的核心代码以及过程就如上文所述。为了保证task能够准确无误的运行起来会很多细节性的逻辑判断，状态存储。
