[Java知识库]（一）前后端分离项目Springboot+Vue开发博客

1.Java后端接口开发

1.1初始环境配置

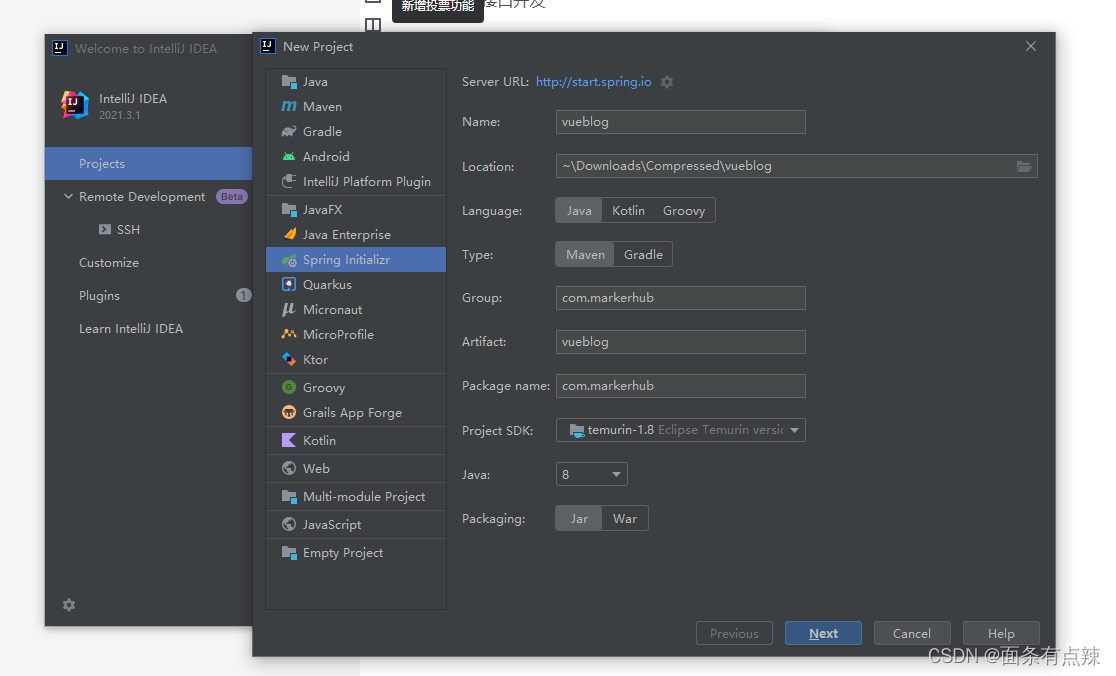

??新建springboot项目

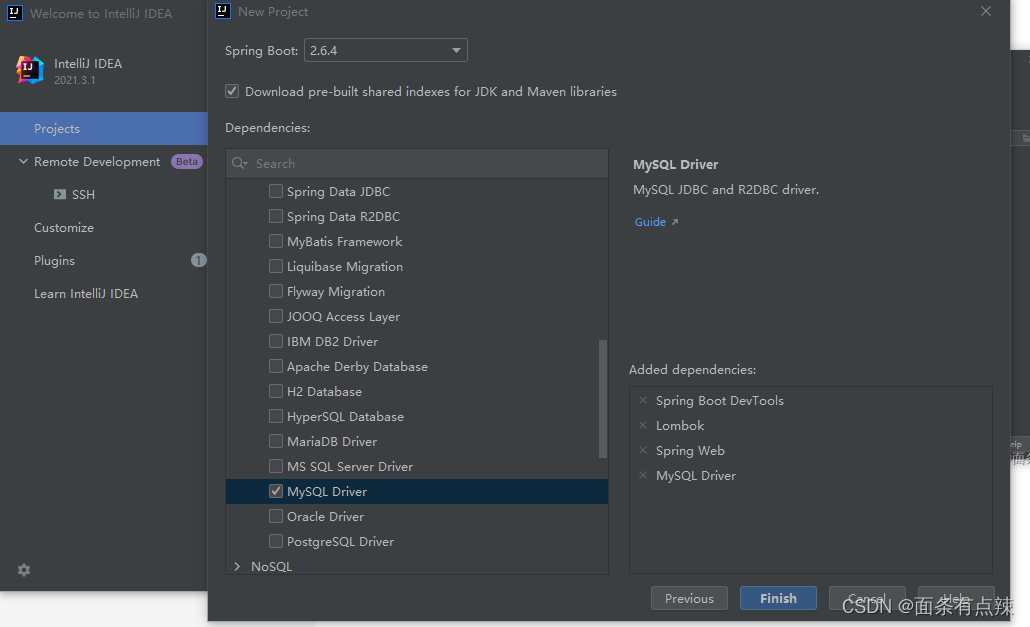

??选择相应的依赖

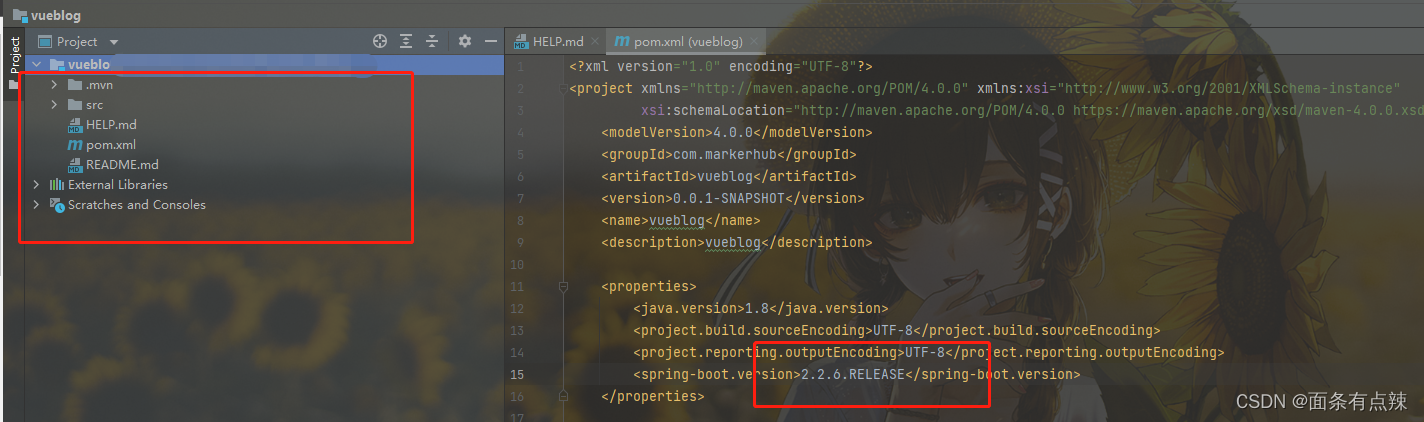

??删除不必要文件和更改Pom.xml内容

??整合mybatis plus
??导入jar包

<!--mp-->
<dependency>
    <groupId>com.baomidou</groupId>
    <artifactId>mybatis-plus-boot-starter</artifactId>
    <version>3.2.0</version>
</dependency>
<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-freemarker</artifactId>
</dependency>
<dependency>
    <groupId>mysql</groupId>
    <artifactId>mysql-connector-java</artifactId>
    <scope>runtime</scope>
</dependency>
<!--mp代码生成器-->
<dependency>
    <groupId>com.baomidou</groupId>
    <artifactId>mybatis-plus-generator</artifactId>
    <version>3.2.0</version>
</dependency>

??写配置文件.yml

# DataSource Config
spring:
  datasource:
    driver-class-name: com.mysql.cj.jdbc.Driver
    url: jdbc:mysql://localhost:3306/vueblog?useUnicode=true&useSSL=false&characterEncoding=utf8&serverTimezone=Asia/Shanghai
    username: root
    password: admin
mybatis-plus:
  mapper-locations: classpath*:/mapper/**Mapper.xml

??新建MybatisPlusConfig配置

@Configuration
@EnableTransactionManagement
@MapperScan("com.markerhub.mapper")
public class MybatisPlusConfig {
    @Bean
    public PaginationInterceptor paginationInterceptor() {
        PaginationInterceptor paginationInterceptor = new PaginationInterceptor();
        return paginationInterceptor;
    }
}

??使用MybatisPlus的CodeGeneator插件根据配置的数据库自动生成接口和类，这里要重新在CodeGeneator里进行配置数据库。
??CodeGeneator.java代码如下：

package com.markerhub;

import com.baomidou.mybatisplus.core.exceptions.MybatisPlusException;
import com.baomidou.mybatisplus.core.toolkit.StringPool;
import com.baomidou.mybatisplus.core.toolkit.StringUtils;
import com.baomidou.mybatisplus.generator.AutoGenerator;
import com.baomidou.mybatisplus.generator.InjectionConfig;
import com.baomidou.mybatisplus.generator.config.*;
import com.baomidou.mybatisplus.generator.config.po.TableInfo;
import com.baomidou.mybatisplus.generator.config.rules.NamingStrategy;
import com.baomidou.mybatisplus.generator.engine.FreemarkerTemplateEngine;

import java.util.ArrayList;
import java.util.List;
import java.util.Scanner;

// 演示例子，执行 main 方法控制台输入模块表名回车自动生成对应项目目录中
public class CodeGenerator {

    /**
     * <p>
     * 读取控制台内容
     * </p>
     */
    public static String scanner(String tip) {
        Scanner scanner = new Scanner(System.in);
        StringBuilder help = new StringBuilder();
        help.append("请输入" + tip + "：");
        System.out.println(help.toString());
        if (scanner.hasNext()) {
            String ipt = scanner.next();
            if (StringUtils.isNotEmpty(ipt)) {
                return ipt;
            }
        }
        throw new MybatisPlusException("请输入正确的" + tip + "！");
    }

    public static void main(String[] args) {
        // 代码生成器
        AutoGenerator mpg = new AutoGenerator();

        // 全局配置
        GlobalConfig gc = new GlobalConfig();
        String projectPath = System.getProperty("user.dir");
        gc.setOutputDir(projectPath + "/src/main/java");
//        gc.setOutputDir("D:\\test");
        gc.setAuthor("关注公众号：MarkerHub");
        gc.setOpen(false);
        // gc.setSwagger2(true); 实体属性 Swagger2 注解
        gc.setServiceName("%sService");
        mpg.setGlobalConfig(gc);

        // 数据源配置
        DataSourceConfig dsc = new DataSourceConfig();
        dsc.setUrl("jdbc:mysql://localhost:3306/vueblog?useUnicode=true&useSSL=false&characterEncoding=utf8&serverTimezone=UTC");
        // dsc.setSchemaName("public");
        dsc.setDriverName("com.mysql.cj.jdbc.Driver");
        dsc.setUsername("root");
        dsc.setPassword("root");
        mpg.setDataSource(dsc);

        // 包配置
        PackageConfig pc = new PackageConfig();
        pc.setModuleName(null);
        pc.setParent("com.markerhub");
        mpg.setPackageInfo(pc);

        // 自定义配置
        InjectionConfig cfg = new InjectionConfig() {
            @Override
            public void initMap() {
                // to do nothing
            }
        };

        // 如果模板引擎是 freemarker
        String templatePath = "/templates/mapper.xml.ftl";
        // 如果模板引擎是 velocity
        // String templatePath = "/templates/mapper.xml.vm";

        // 自定义输出配置
        List<FileOutConfig> focList = new ArrayList<>();
        // 自定义配置会被优先输出
        focList.add(new FileOutConfig(templatePath) {
            @Override
            public String outputFile(TableInfo tableInfo) {
                // 自定义输出文件名 ， 如果你 Entity 设置了前后缀、此处注意 xml 的名称会跟着发生变化！！
                return projectPath + "/src/main/resources/mapper/"
                        + "/" + tableInfo.getEntityName() + "Mapper" + StringPool.DOT_XML;
            }
        });

        cfg.setFileOutConfigList(focList);
        mpg.setCfg(cfg);

        // 配置模板
        TemplateConfig templateConfig = new TemplateConfig();

        templateConfig.setXml(null);
        mpg.setTemplate(templateConfig);

        // 策略配置
        StrategyConfig strategy = new StrategyConfig();
        strategy.setNaming(NamingStrategy.underline_to_camel);
        strategy.setColumnNaming(NamingStrategy.underline_to_camel);
        strategy.setEntityLombokModel(true);
        strategy.setRestControllerStyle(true);
        strategy.setInclude(scanner("表名，多个英文逗号分割").split(","));
        strategy.setControllerMappingHyphenStyle(true);
        strategy.setTablePrefix("m_");
        mpg.setStrategy(strategy);
        mpg.setTemplateEngine(new FreemarkerTemplateEngine());
        mpg.execute();
    }
}

??数据库代码：

CREATE TABLE `m_user`(
	`id` BIGINT (20) NOT NULL AUTO_INCREMENT,
	`username` VARCHAR (64)DEFAULT NULL,
	`avatar` VARCHAR (255) DEFAULT NULL,
	`email` VARCHAR (64) DEFAULT NULL,
	`password` VARCHAR (64)DEFAULT NULL,
	`status` INT(5) NOT NULL,
	`created` DATETIME DEFAULT NULL,
	`last_login` DATETIME DEFAULT NULL,
	PRIMARY KEY( `id` ),
	KEY `UK_USERNAME` (`username`)USING BTREE
	)ENGINE=INNODB AUTO_INCREMENT=2 DEFAULT CHARSET=utf8;

CREATE TABLE `m_blog`(
	`id` BIGINT (20)NOT NULL AUTO_INCREMENT,
	`user_id` BIGINT (20)NOT NULL,
	`title` VARCHAR (255)NOT NULL,
	`desription` VARCHAR (255) NOT NULL,
	`content` LONGTEXT,
	`created` DATETIME NOT NULL ON UPDATE CURRENT_TIMESTAMP,
	`status` TINYINT (4) DEFAULT NULL,
	PRIMARY KEY ( `id`)
	)ENGINE=INNODB AUTO_INCREMENT=11 DEFAULT CHARSET=utf8mb4;

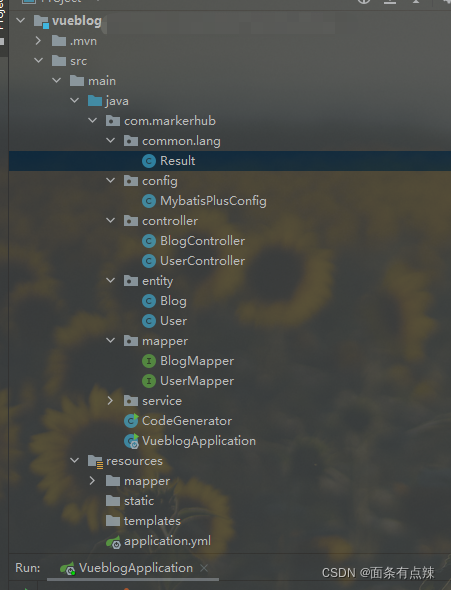

??最后得到以下架构：

1.2用户业务

??新建Result类进行最终传递给前端的结果展示。

package com.markerhub.common.lang;
import lombok.Data;
import java.io.Serializable;
@Data //注解get和set方法,tostring
public class Result implements Serializable {
    private int code; //200是正常，非200表示返回异常数据
    private String msg;
    private Object data;
    public static Result succ(Object data){
        return succ(200,"操作成功",data);
    }
    public static Result succ(int code,String msg,Object data){
        Result r = new Result(); //可以用AllargsConstructor和NoArgsConstructor解决
        r.setCode(code);
        r.setMsg(msg);
        r.setData(data);
        return r;
    }
    public static Result fail(String msg,Object data){
        return fail(400,msg,null);
    }
    public static Result fail(int code,String msg,Object data){
        Result r = new Result(); //可以用AllargsConstructor和NoArgsConstructor解决
        r.setCode(code);
        r.setMsg(msg);
        r.setData(data);
        return r;
    }
}

??写用户操作接口

package com.markerhub.controller;
import com.markerhub.common.lang.Result;
import com.markerhub.entity.User;
import com.markerhub.service.UserService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;
/**
 * <p>
 *  前端控制器
 * </p>
 */
@RestController
@RequestMapping("/user")
public class UserController {
    @Autowired
    UserService userService;
    @GetMapping("/index")
    public Object index(){
        User user = userService.getById(2L);
        return Result.succ(user);
    }
}

??配置完成后运行springboot application，输入spingboot的默认8080端口

http://localhost:8080/user/index

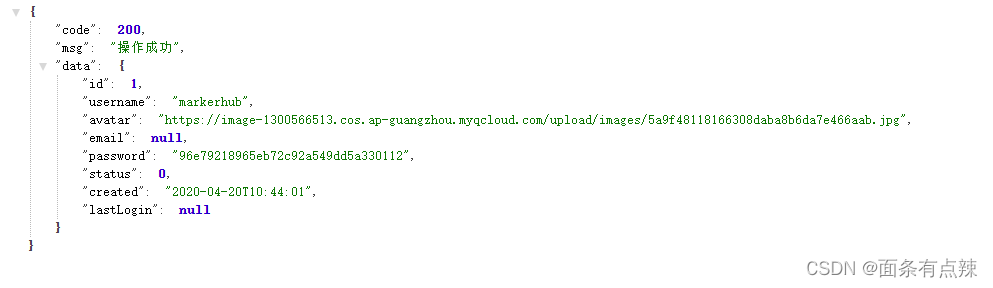

??可以看到读取到了数据库里的数据，同时返回了给前端可以获取的code和message。
??JSON展示插件可以下载JSONVIEW，谷歌插件商店里下载。

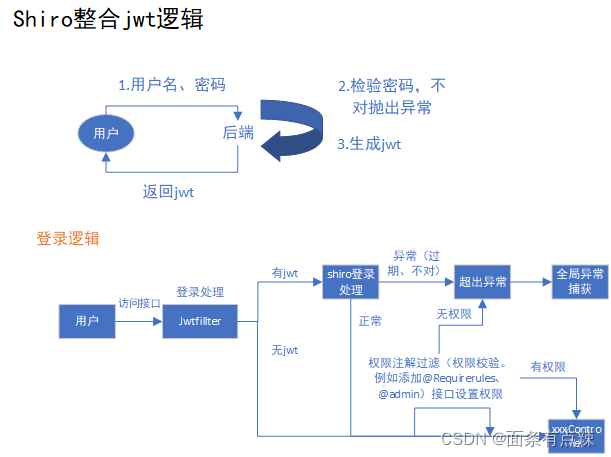

1.3 shiro整合jwt逻辑

??后面需要做集群、负载均衡，因此用到会话共享，采用redis存储shiro的缓存和会话信息。开源项目shiro-redis整合了这两个模块。
整合第一步：
导入jar包

<dependency>
    <groupId>org.crazycake</groupId>
    <artifactId>shiro-redis-spring-boot-starter</artifactId>
    <version>3.2.1</version>
</dependency>
<!-- hutool工具类-->
<dependency>
    <groupId>cn.hutool</groupId>
    <artifactId>hutool-all</artifactId>
    <version>5.3.3</version>
</dependency>
<!-- jwt -->
<dependency>
    <groupId>io.jsonwebtoken</groupId>
    <artifactId>jjwt</artifactId>
    <version>0.9.1</version>
</dependency>
