[Java知识库]Prometheus通过rocketmq-exporter监控Rocketmq

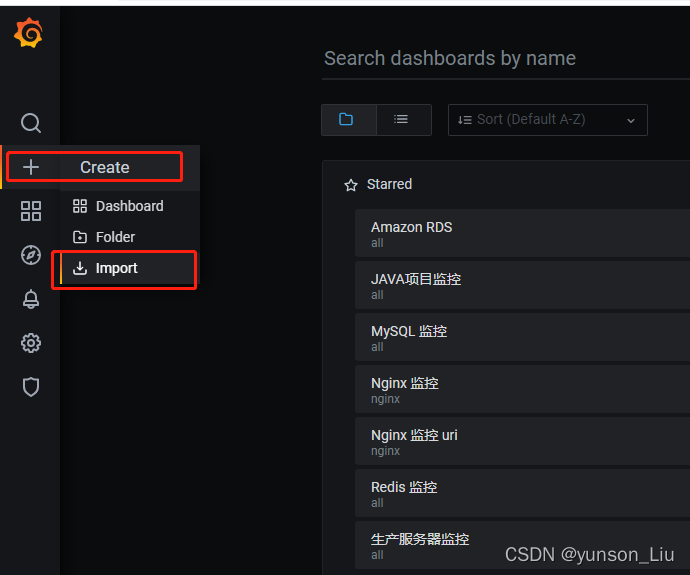

1、点击create然后选择import

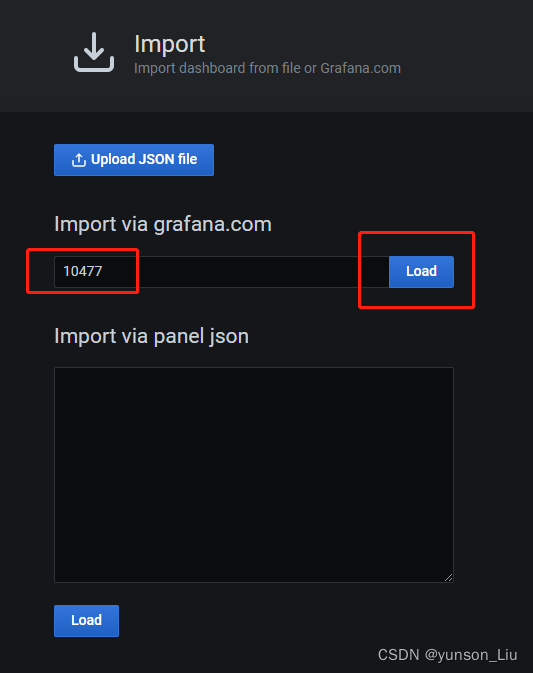

2、输入10477，然后点击load,如下

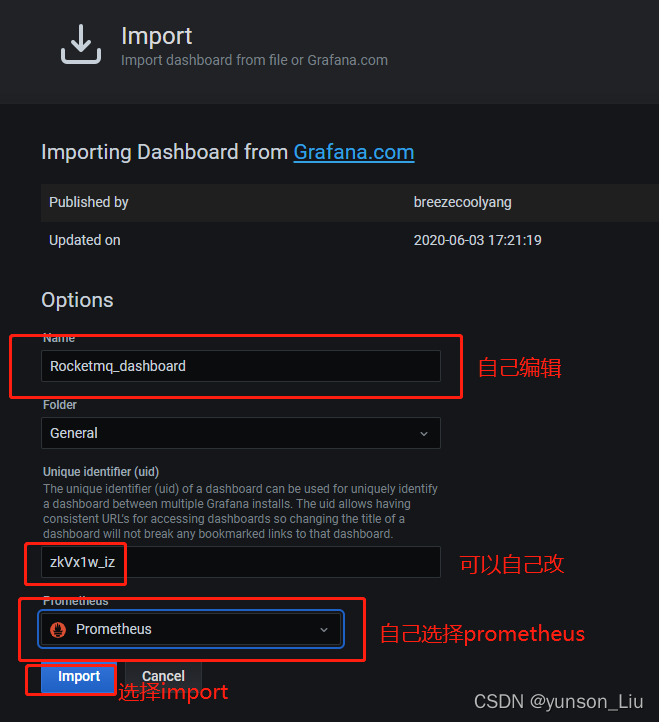

3、更改如下最后输入import

4、更改pemetheus.yml

  - job_name: 'rocketmq'
    file_sd_configs:
      - files:
        - prod/rocketmq.yml

5、更改prod/rocketmq.yml

- targets:
  - '172.63.11.214:5557'
  - '172.63.11.161:5557'
  labels:
    env: prod
    project: datacenter_rocketmq
    name: datacenter_rocketmq
    cluster: datacenter_cluster

6、部署rocketmq-exporter

git clone https://github.com/apache/rocketmq-exporter
cd rocketmq-exporter
mvn clean install

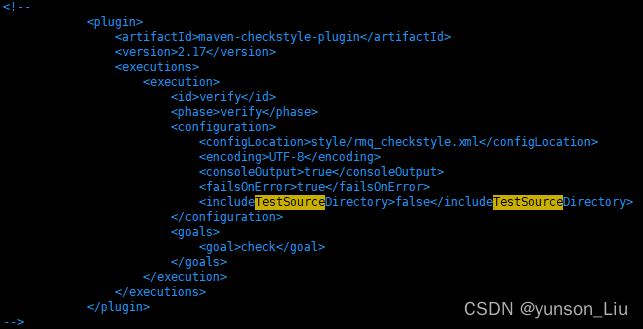

其中要注意将pom.xml注释掉做更改后再操作

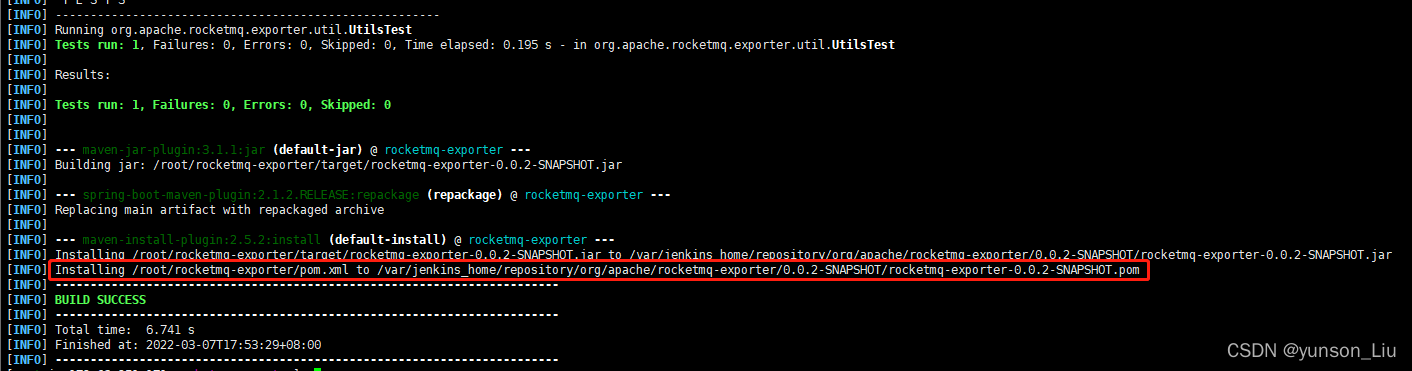

编译后包路径如下

ll -h /var/jenkins_home/repository/org/apache/rocketmq-exporter/0.0.2-SNAPSHOT/
total 31M
-rw-r--r-- 1 root root  713 Mar  7 17:53 maven-metadata-local.xml
-rw-r--r-- 1 root root  218 Mar  7 17:53 _remote.repositories
-rw-r--r-- 1 root root  31M Mar  7 17:53 rocketmq-exporter-0.0.2-SNAPSHOT.jar
-rw-r--r-- 1 root root 4.3K Mar  7 14:40 rocketmq-exporter-0.0.2-SNAPSHOT.pom

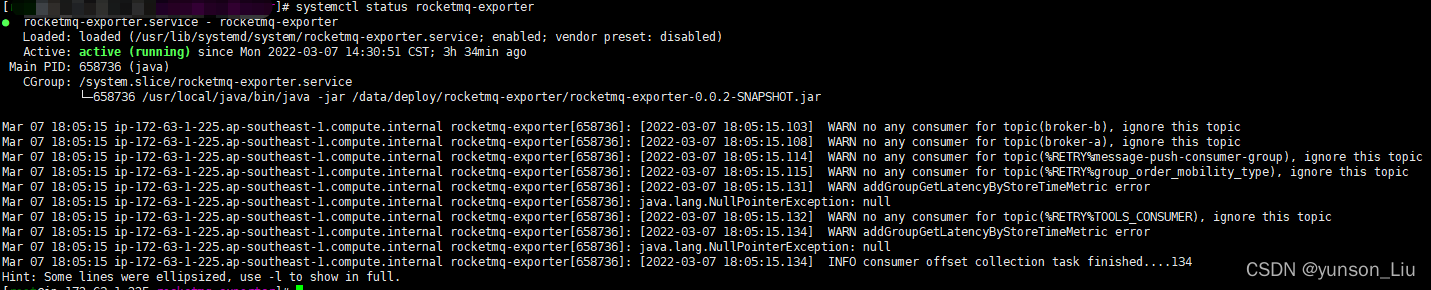

7、启动rocketmq-exporter

# cat /lib/systemd/system/rocketmq-exporter.service
[Unit]
Description=rocketmq-exporter
After=network.target

[Service]
Type=simple
StandardOutput=syslog
StandardError=syslog
SyslogIdentifier=rocketmq-exporter
User=root
WorkingDirectory=/data/deploy/rocketmq-exporter
ExecStart=/usr/local/java/bin/java -jar /data/deploy/rocketmq-exporter/rocketmq-exporter-0.0.2-SNAPSHOT.jar
KillMode=process
TimeoutStopSec=60
Restart=on-failure
RestartSec=5
RemainAfterExit=no

[Install]
WantedBy=multi-user.target

# systemctl enable rocketmq-exporter
# systemctl start rocketmq-exporter

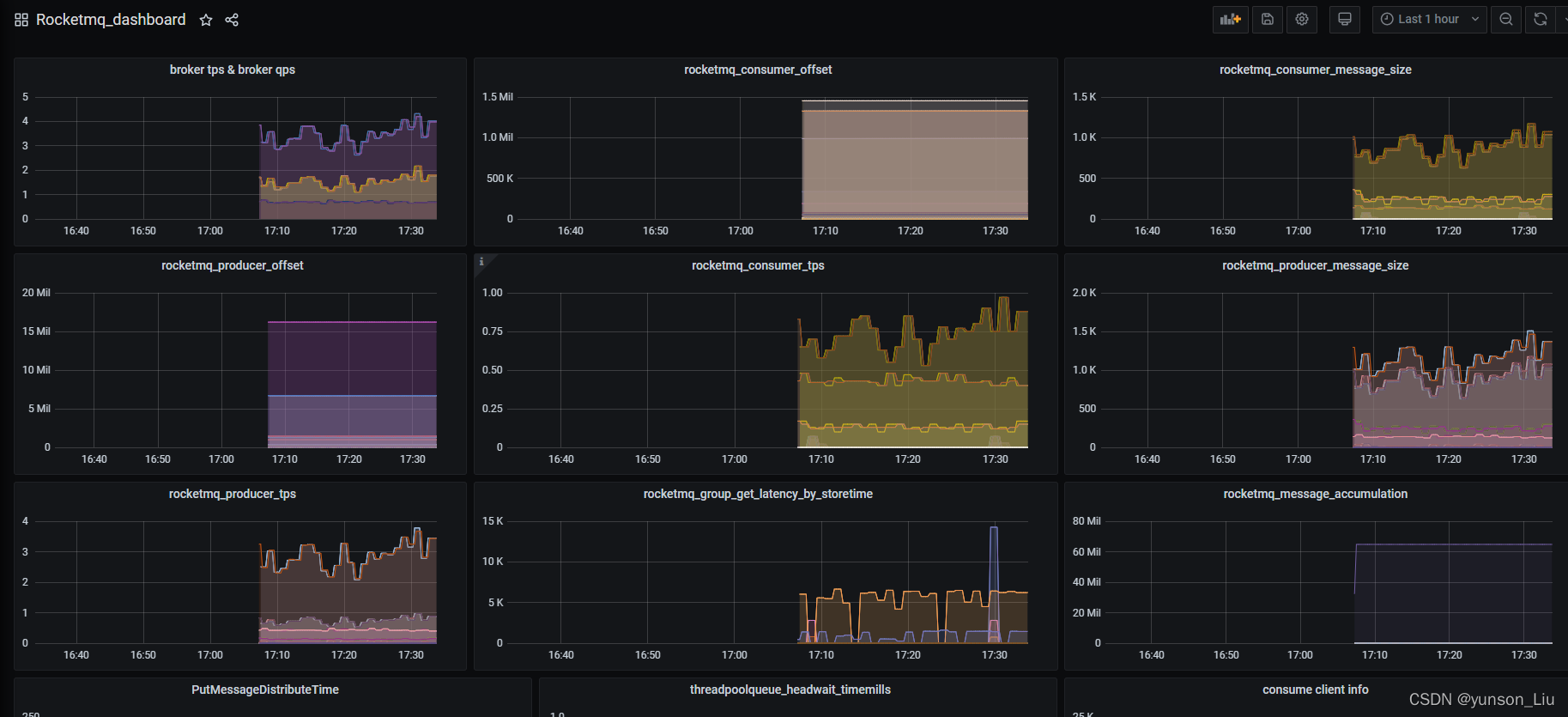

8、最后我们在granfa上查看我们的实例图

9、配置监控告警
配置prometheus.yml

rule_files:
  - rule/*.yml

配置rules_rocketmq.yml

cat rule/rules_rocketmq.yml
# rules_rocketmq.yml
groups:
- name: rocketmq
  rules:
  - alert: RocketMQ Exporter is Down
    expr: up{job="rocketmq"} == 0
    for: 20s
    labels:
      severity: '灾难'
    annotations:
      summary: RocketMQ {{ $labels.instance }} is down
  - alert: RocketMQ 存在消息积压
    expr: (sum(irate(rocketmq_producer_offset[1m])) by (topic)  - on(topic) group_right sum(irate(rocketmq_consumer_offset[1m])) by (group,topic)) > 5
    for: 5m
    labels:
      severity: '警告'
    annotations:
      summary: RocketMQ (group={{ $labels.group }} topic={{ $labels.topic }})积压数 = {{ .Value }}
  - alert: GroupGetLatencyByStoretime 消费组的消费延时时间过高
    expr: rocketmq_group_get_latency_by_storetime/1000  > 10 and rate(rocketmq_group_get_latency_by_storetime[5m]) >0
    for: 3m
    labels:
      severity: 警告
    annotations:
      description: 'consumer {{$labels.group}} on {{$labels.broker}}, {{$labels.topic}} consume time lag behind message store time
        and (behind value is {{$value}}).'
      summary: 消费组的消费延时时间过高
  - alert: RocketMQClusterProduceHigh 集群TPS > 20
    expr: sum(rocketmq_producer_tps) by (cluster) >= 20
    for: 3m
    labels:
      severity: 警告
    annotations:
      description: '{{$labels.cluster}} Sending tps too high. now TPS = {{ .Value }}'
      summary: cluster send tps too high

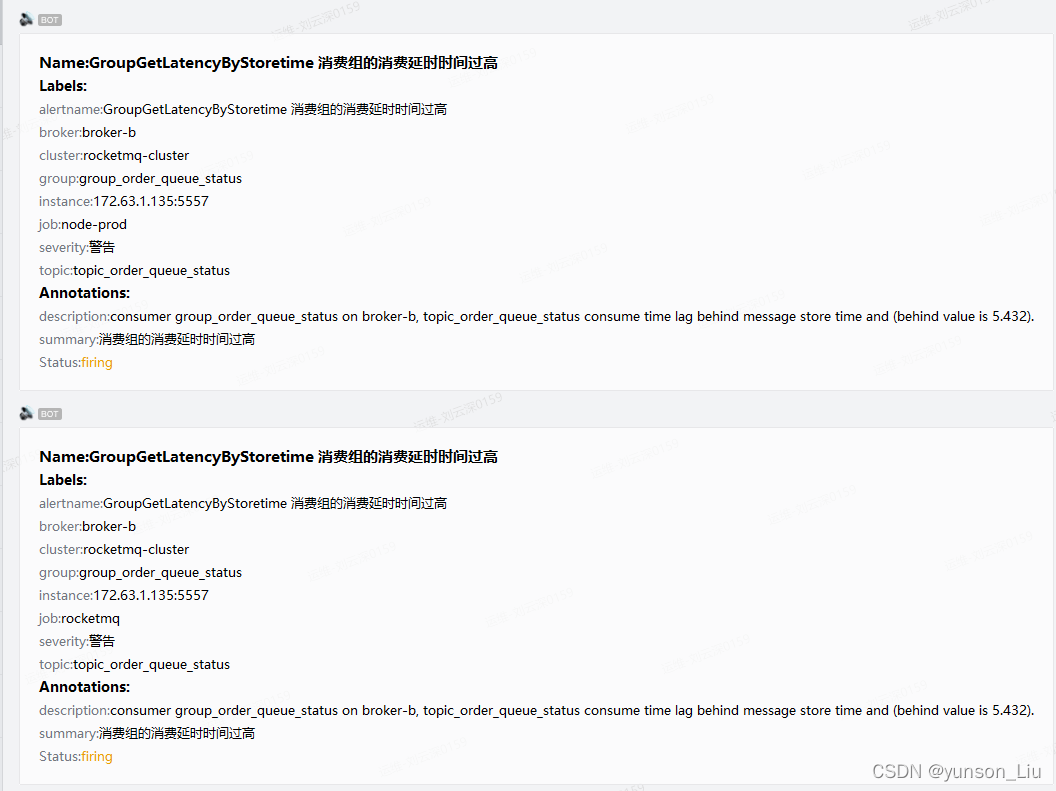

查看告警信息

另外的一个配置告警规则

groups:
- name: GaleraAlerts
  rules:
  - alert: RocketMQClusterProduceHigh
    expr: sum(rocketmq_producer_tps) by (cluster) >= 10
    for: 3m
    labels:
      severity: warning
    annotations:
      description: '{{$labels.cluster}} Sending tps too high.'
      summary: cluster send tps too high
  - alert: RocketMQClusterProduceLow
    expr: sum(rocketmq_producer_tps) by (cluster) < 1
    for: 3m
    labels:
      severity: warning
    annotations:
      description: '{{$labels.cluster}} Sending tps too low.'
      summary: cluster send tps too low
  - alert: RocketMQClusterConsumeHigh
    expr: sum(rocketmq_consumer_tps) by (cluster) >= 10
    for: 3m
    labels:
      severity: warning
    annotations:
      description: '{{$labels.cluster}} consuming tps too high.'
      summary: cluster consume tps too high
  - alert: RocketMQClusterConsumeLow
    expr: sum(rocketmq_consumer_tps) by (cluster) < 1
    for: 3m
    labels:
      severity: warning
    annotations:
      description: '{{$labels.cluster}} consuming tps too low.'
      summary: cluster consume tps too low
  - alert: ConsumerFallingBehind
    expr: (sum(rocketmq_producer_offset) by (topic) - on(topic)  group_right  sum(rocketmq_consumer_offset) by (group,topic)) - ignoring(group) group_left sum (avg_over_time(rocketmq_producer_tps[5m])) by (topic)*5*60 > 0
    for: 3m
    labels:
      severity: warning
    annotations:
      description: 'consumer {{$labels.group}} on {{$labels.topic}} lag behind
        and is falling behind (behind value {{$value}}).'
      summary: consumer lag behind
  - alert: GroupGetLatencyByStoretime
    expr: rocketmq_group_get_latency_by_storetime > 1000
    for: 3m
    labels:
      severity: warning
    annotations:
      description: 'consumer {{$labels.group}} on {{$labels.broker}}, {{$labels.topic}} consume time lag behind message store time
        and (behind value is {{$value}}).'
      summary: message consumes time lag behind message store time too much

监控指标	                                     含义
rocketmq_broker_tps	broker              每秒生产消息数量
rocketmq_broker_qps	broker              每秒消费消息数量
rocketmq_producer_tps	                某个topic每秒生产的消息数量
rocketmq_producer_put_size	            某个topic每秒生产的消息大小(字节)
rocketmq_producer_offset	            某个topic的生产消息的进度
rocketmq_consumer_tps	                某个消费组每秒消费的消息数量
rocketmq_consumer_get_size	            某个消费组每秒消费的消息大小(字节)
rocketmq_consumer_offset	            某个消费组的消费消息的进度
rocketmq_group_get_latency_by_storetime 某个消费组的消费延时时间
rocketmq_message_accumulation（rocketmq_producer_offset-rocketmq_consumer_offset）	消息堆积量（生产进度-消费进度）
rocketmq_message_accumulation           是一个聚合指标，需要根据其它上报指标聚合生成。


告警指标	                                            含义
sum(rocketmq_producer_tps) by (cluster) >= 10	集群发送tps太高
sum(rocketmq_producer_tps) by (cluster) < 1	    集群发送tps太低
sum(rocketmq_consumer_tps) by (cluster) >= 10	集群消费tps太高
sum(rocketmq_consumer_tps) by (cluster) < 1	    集群消费tps太低
rocketmq_group_get_latency_by_storetime > 1000	集群消费延时告警
rocketmq_message_accumulation > value	        消费堆积告警
