[Java知识库]Mybatis源码分析

一.Mybatis 自动配置装配类 MybatisAutoConfiguration ，需要依赖SqlSessionFactory

@org.springframework.context.annotation.Configuration
@ConditionalOnClass({ SqlSessionFactory.class, SqlSessionFactoryBean.class })
@ConditionalOnSingleCandidate(DataSource.class)
@EnableConfigurationProperties(MybatisProperties.class)
@AutoConfigureAfter({ DataSourceAutoConfiguration.class, MybatisLanguageDriverAutoConfiguration.class })
public class MybatisAutoConfiguration implements InitializingBean {

二. SqlSessionFactoryBean 创建 SqlSessionFactory 类

@Bean
  @ConditionalOnMissingBean
  public SqlSessionFactory sqlSessionFactory(DataSource dataSource) throws Exception {
    // 1. 创建SqlSessionFactoryBean
    SqlSessionFactoryBean factory = new SqlSessionFactoryBean();
    factory.setDataSource(dataSource);
    factory.setVfs(SpringBootVFS.class);
    // 2. 设置mybatis xml 配置文件（Location of MyBatis xml config file）
    if (StringUtils.hasText(this.properties.getConfigLocation())) {
      factory.setConfigLocation(this.resourceLoader.getResource(this.properties.getConfigLocation()));
    }
    applyConfiguration(factory);
    if (this.properties.getConfigurationProperties() != null) {
      factory.setConfigurationProperties(this.properties.getConfigurationProperties());
    }
    if (!ObjectUtils.isEmpty(this.interceptors)) {
      factory.setPlugins(this.interceptors);
    }
    if (this.databaseIdProvider != null) {
      factory.setDatabaseIdProvider(this.databaseIdProvider);
    }
    if (StringUtils.hasLength(this.properties.getTypeAliasesPackage())) {
      factory.setTypeAliasesPackage(this.properties.getTypeAliasesPackage());
    }
    if (this.properties.getTypeAliasesSuperType() != null) {
      factory.setTypeAliasesSuperType(this.properties.getTypeAliasesSuperType());
    }
    if (StringUtils.hasLength(this.properties.getTypeHandlersPackage())) {
      factory.setTypeHandlersPackage(this.properties.getTypeHandlersPackage());
    }
    if (!ObjectUtils.isEmpty(this.typeHandlers)) {
      factory.setTypeHandlers(this.typeHandlers);
    }
    if (!ObjectUtils.isEmpty(this.properties.resolveMapperLocations())) {
      factory.setMapperLocations(this.properties.resolveMapperLocations());
    }
    Set<String> factoryPropertyNames = Stream
        .of(new BeanWrapperImpl(SqlSessionFactoryBean.class).getPropertyDescriptors()).map(PropertyDescriptor::getName)
        .collect(Collectors.toSet());
    Class<? extends LanguageDriver> defaultLanguageDriver = this.properties.getDefaultScriptingLanguageDriver();
    if (factoryPropertyNames.contains("scriptingLanguageDrivers") && !ObjectUtils.isEmpty(this.languageDrivers)) {
      // Need to mybatis-spring 2.0.2+
      factory.setScriptingLanguageDrivers(this.languageDrivers);
      if (defaultLanguageDriver == null && this.languageDrivers.length == 1) {
        defaultLanguageDriver = this.languageDrivers[0].getClass();
      }
    }
    if (factoryPropertyNames.contains("defaultScriptingLanguageDriver")) {
      // Need to mybatis-spring 2.0.2+
      factory.setDefaultScriptingLanguageDriver(defaultLanguageDriver);
    }
    applySqlSessionFactoryBeanCustomizers(factory);
    return factory.getObject();
  }

三 factory.getObject() 获取真正的 SqlSessionFactory

SqlSessionFactoryBean 没有交给Spring容器管理，是new 出来的，所以需要手动调用触发

  @Override
  public SqlSessionFactory getObject() throws Exception {
    if (this.sqlSessionFactory == null) {

      afterPropertiesSet();
    }

    return this.sqlSessionFactory;
  }

  @Override
  public void afterPropertiesSet() throws Exception {
    notNull(dataSource, "Property 'dataSource' is required");
    notNull(sqlSessionFactoryBuilder, "Property 'sqlSessionFactoryBuilder' is required");
    state((configuration == null && configLocation == null) || !(configuration != null && configLocation != null),
        "Property 'configuration' and 'configLocation' can not specified with together");

    this.sqlSessionFactory = buildSqlSessionFactory();
  }

主要是解析configuration ，最后构造方法创建SqlSessionFactory

protected SqlSessionFactory buildSqlSessionFactory() throws Exception {

    final Configuration targetConfiguration;

    XMLConfigBuilder xmlConfigBuilder = null;
    if (this.configuration != null) {
      targetConfiguration = this.configuration;
      if (targetConfiguration.getVariables() == null) {
        targetConfiguration.setVariables(this.configurationProperties);
      } else if (this.configurationProperties != null) {
        targetConfiguration.getVariables().putAll(this.configurationProperties);
      }
    } else if (this.configLocation != null) {
      xmlConfigBuilder = new XMLConfigBuilder(this.configLocation.getInputStream(), null, this.configurationProperties);
      targetConfiguration = xmlConfigBuilder.getConfiguration();
    } else {
      LOGGER.debug(
          () -> "Property 'configuration' or 'configLocation' not specified, using default MyBatis Configuration");
      targetConfiguration = new Configuration();
      Optional.ofNullable(this.configurationProperties).ifPresent(targetConfiguration::setVariables);
    }

    Optional.ofNullable(this.objectFactory).ifPresent(targetConfiguration::setObjectFactory);
    Optional.ofNullable(this.objectWrapperFactory).ifPresent(targetConfiguration::setObjectWrapperFactory);
    Optional.ofNullable(this.vfs).ifPresent(targetConfiguration::setVfsImpl);

    if (hasLength(this.typeAliasesPackage)) {
      scanClasses(this.typeAliasesPackage, this.typeAliasesSuperType).stream()
          .filter(clazz -> !clazz.isAnonymousClass()).filter(clazz -> !clazz.isInterface())
          .filter(clazz -> !clazz.isMemberClass()).forEach(targetConfiguration.getTypeAliasRegistry()::registerAlias);
    }

    if (!isEmpty(this.typeAliases)) {
      Stream.of(this.typeAliases).forEach(typeAlias -> {
        targetConfiguration.getTypeAliasRegistry().registerAlias(typeAlias);
        LOGGER.debug(() -> "Registered type alias: '" + typeAlias + "'");
      });
    }

    if (!isEmpty(this.plugins)) {
      Stream.of(this.plugins).forEach(plugin -> {
        targetConfiguration.addInterceptor(plugin);
        LOGGER.debug(() -> "Registered plugin: '" + plugin + "'");
      });
    }

    if (hasLength(this.typeHandlersPackage)) {
      scanClasses(this.typeHandlersPackage, TypeHandler.class).stream().filter(clazz -> !clazz.isAnonymousClass())
          .filter(clazz -> !clazz.isInterface()).filter(clazz -> !Modifier.isAbstract(clazz.getModifiers()))
          .forEach(targetConfiguration.getTypeHandlerRegistry()::register);
    }

    if (!isEmpty(this.typeHandlers)) {
      Stream.of(this.typeHandlers).forEach(typeHandler -> {
        targetConfiguration.getTypeHandlerRegistry().register(typeHandler);
        LOGGER.debug(() -> "Registered type handler: '" + typeHandler + "'");
      });
    }

    targetConfiguration.setDefaultEnumTypeHandler(defaultEnumTypeHandler);

    if (!isEmpty(this.scriptingLanguageDrivers)) {
      Stream.of(this.scriptingLanguageDrivers).forEach(languageDriver -> {
        targetConfiguration.getLanguageRegistry().register(languageDriver);
        LOGGER.debug(() -> "Registered scripting language driver: '" + languageDriver + "'");
      });
    }
    Optional.ofNullable(this.defaultScriptingLanguageDriver)
        .ifPresent(targetConfiguration::setDefaultScriptingLanguage);

    if (this.databaseIdProvider != null) {// fix #64 set databaseId before parse mapper xmls
      try {
        targetConfiguration.setDatabaseId(this.databaseIdProvider.getDatabaseId(this.dataSource));
      } catch (SQLException e) {
        throw new NestedIOException("Failed getting a databaseId", e);
      }
    }

    Optional.ofNullable(this.cache).ifPresent(targetConfiguration::addCache);

    if (xmlConfigBuilder != null) {
      try {
        xmlConfigBuilder.parse();
        LOGGER.debug(() -> "Parsed configuration file: '" + this.configLocation + "'");
      } catch (Exception ex) {
        throw new NestedIOException("Failed to parse config resource: " + this.configLocation, ex);
      } finally {
        ErrorContext.instance().reset();
      }
    }

    targetConfiguration.setEnvironment(new Environment(this.environment,
        this.transactionFactory == null ? new SpringManagedTransactionFactory() : this.transactionFactory,
        this.dataSource));

    if (this.mapperLocations != null) {
      if (this.mapperLocations.length == 0) {
        LOGGER.warn(() -> "Property 'mapperLocations' was specified but matching resources are not found.");
      } else {
        for (Resource mapperLocation : this.mapperLocations) {
          if (mapperLocation == null) {
            continue;
          }
          try {
            XMLMapperBuilder xmlMapperBuilder = new XMLMapperBuilder(mapperLocation.getInputStream(),
                targetConfiguration, mapperLocation.toString(), targetConfiguration.getSqlFragments());
            xmlMapperBuilder.parse();
          } catch (Exception e) {
            throw new NestedIOException("Failed to parse mapping resource: '" + mapperLocation + "'", e);
          } finally {
            ErrorContext.instance().reset();
          }
          LOGGER.debug(() -> "Parsed mapper file: '" + mapperLocation + "'");
        }
      }
    } else {
      LOGGER.debug(() -> "Property 'mapperLocations' was not specified.");
    }

    return this.sqlSessionFactoryBuilder.build(targetConfiguration);
  }

构建 DefaultSqlSessionFactory，并传入configuration

  public SqlSessionFactory build(Configuration config) {
    return new DefaultSqlSessionFactory(config);
  }

三. Mapper 接口生成代理类执行接口方法

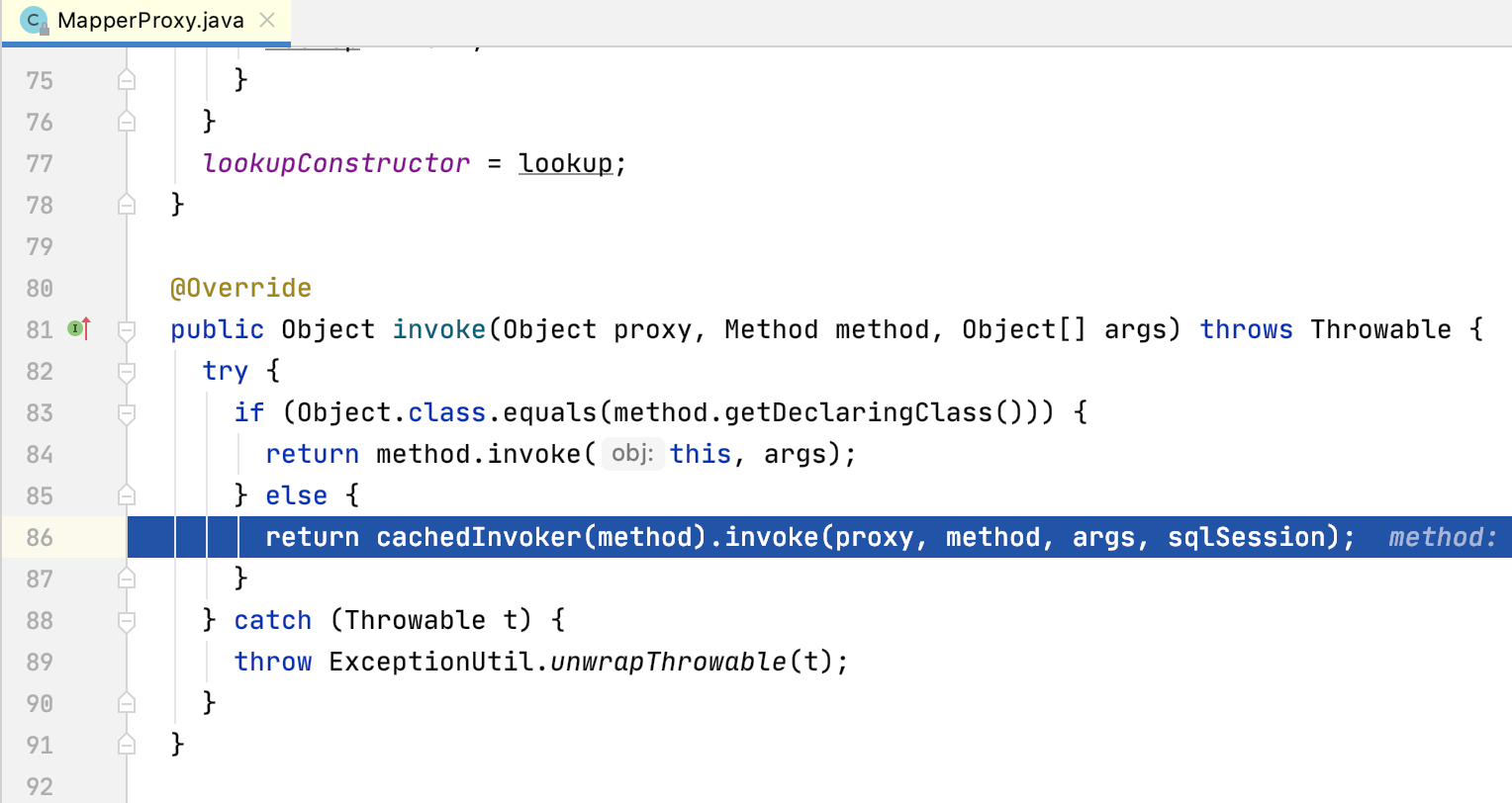

Mapper 被MapperProxy代理，执行InvocationHandler接口的Invoke方法

执行invoke方法

    @Override
    public Object invoke(Object proxy, Method method, Object[] args, SqlSession sqlSession) throws Throwable {
      return mapperMethod.execute(sqlSession, args);
    }

执行MapperMethod 的execute方法

public Object execute(SqlSession sqlSession, Object[] args) {
    Object result;
    switch (command.getType()) {
      case INSERT: {
        Object param = method.convertArgsToSqlCommandParam(args);
        result = rowCountResult(sqlSession.insert(command.getName(), param));
        break;
      }
      case UPDATE: {
        Object param = method.convertArgsToSqlCommandParam(args);
        result = rowCountResult(sqlSession.update(command.getName(), param));
        break;
      }
      case DELETE: {
        Object param = method.convertArgsToSqlCommandParam(args);
        result = rowCountResult(sqlSession.delete(command.getName(), param));
        break;
      }
      case SELECT:
        if (method.returnsVoid() && method.hasResultHandler()) {
          executeWithResultHandler(sqlSession, args);
          result = null;
        } else if (method.returnsMany()) {
          result = executeForMany(sqlSession, args);
        } else if (method.returnsMap()) {
          result = executeForMap(sqlSession, args);
        } else if (method.returnsCursor()) {
          result = executeForCursor(sqlSession, args);
        } else {
          Object param = method.convertArgsToSqlCommandParam(args);
          result = sqlSession.selectOne(command.getName(), param);
          if (method.returnsOptional()
              && (result == null || !method.getReturnType().equals(result.getClass()))) {
            result = Optional.ofNullable(result);
          }
        }
        break;
      case FLUSH:
        result = sqlSession.flushStatements();
        break;
      default:
        throw new BindingException("Unknown execution method for: " + command.getName());
    }
    if (result == null && method.getReturnType().isPrimitive() && !method.returnsVoid()) {
      throw new BindingException("Mapper method '" + command.getName()
          + " attempted to return null from a method with a primitive return type (" + method.getReturnType() + ").");
    }
    return result;
  }

获取sqlSession 执行invoke方法

private class SqlSessionInterceptor implements InvocationHandler {
    @Override
    public Object invoke(Object proxy, Method method, Object[] args) throws Throwable {
      SqlSession sqlSession = getSqlSession(SqlSessionTemplate.this.sqlSessionFactory,
          SqlSessionTemplate.this.executorType, SqlSessionTemplate.this.exceptionTranslator);
      try {
        Object result = method.invoke(sqlSession, args);
        if (!isSqlSessionTransactional(sqlSession, SqlSessionTemplate.this.sqlSessionFactory)) {
          // force commit even on non-dirty sessions because some databases require
          // a commit/rollback before calling close()
          sqlSession.commit(true);
        }
        return result;
      } catch (Throwable t) {
        Throwable unwrapped = unwrapThrowable(t);
        if (SqlSessionTemplate.this.exceptionTranslator != null && unwrapped instanceof PersistenceException) {
          // release the connection to avoid a deadlock if the translator is no loaded. See issue #22
          closeSqlSession(sqlSession, SqlSessionTemplate.this.sqlSessionFactory);
          sqlSession = null;
          Throwable translated = SqlSessionTemplate.this.exceptionTranslator
              .translateExceptionIfPossible((PersistenceException) unwrapped);
          if (translated != null) {
            unwrapped = translated;
          }
        }
        throw unwrapped;
      } finally {
        if (sqlSession != null) {
          closeSqlSession(sqlSession, SqlSessionTemplate.this.sqlSessionFactory);
        }
      }
    }
  }

整个sql 执行流程如上所诉
