[Java知识库]spark-webui添加用户名和密码认证

spark-webui为监控spark程序运行以及查看程序运行信息提供了很大的方便性，在默认配置下，查看信息不需要任何的认证信息，这在开发环境没有问题，但是在测试环境和生产环境就不合适了。

添加认证的方法是通过filter方式增加认证：

1. 创建认证filter对应的jar包

在idea中通过maven编译源码方式。

1.1 添加maven依赖

创建maven项目后，添加如下依赖：

<dependencies>

        <dependency>
            <groupId>commons-codec</groupId>
            <artifactId>commons-codec</artifactId>
            <version>1.10</version>
        </dependency>

        <dependency>
            <groupId>org.slf4j</groupId>
            <artifactId>slf4j-api</artifactId>
            <version>1.7.35</version>
        </dependency>

        <!-- logback 依赖 -->
        <dependency>
            <groupId>ch.qos.logback</groupId>
            <artifactId>logback-classic</artifactId>
            <version>1.2.3</version>
        </dependency>

        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>javax.servlet-api</artifactId>
            <version>4.0.1</version>
            <scope>provided</scope>
        </dependency>

    </dependencies>

1.2 filter代码

package com.demo;


import org.apache.commons.codec.binary.Base64;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;

import javax.servlet.Filter;
import javax.servlet.FilterChain;
import javax.servlet.FilterConfig;
import javax.servlet.ServletException;
import javax.servlet.ServletRequest;
import javax.servlet.ServletResponse;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.io.IOException;
import java.io.UnsupportedEncodingException;
import java.util.StringTokenizer;

public class SparkAuthFilter implements Filter {

    /**
     * Logger
     */
    private static final Logger LOG = LoggerFactory.getLogger(SparkAuthFilter.class);

    private String username = "";

    private String password = "";

    private String realm = "Protected";

    @Override
    public void init(FilterConfig filterConfig) throws ServletException {
        username = filterConfig.getInitParameter("username");
        password = filterConfig.getInitParameter("password");
    }

    @Override
    public void doFilter(ServletRequest servletRequest, ServletResponse servletResponse, FilterChain filterChain)
            throws IOException, ServletException {

        HttpServletRequest request = (HttpServletRequest) servletRequest;
        HttpServletResponse response = (HttpServletResponse) servletResponse;

        String authHeader = request.getHeader("Authorization");
        if (authHeader != null) {

            StringTokenizer st = new StringTokenizer(authHeader);
            if (st.hasMoreTokens()) {

                String basic = st.nextToken();

                if (basic.equalsIgnoreCase("Basic")) {

                    try {
                        String credentials = new String(Base64.decodeBase64(st.nextToken()), "UTF-8");
                        LOG.debug("Credentials: " + credentials);

                        int p = credentials.indexOf(":");
                        if (p != -1) {
                            String _username = credentials.substring(0, p).trim();
                            String _password = credentials.substring(p + 1).trim();


                            if (!username.equals(_username) || !password.equals(_password)) {
                                unauthorized(response, "Bad credentials");
                            }

                            filterChain.doFilter(servletRequest, servletResponse);
                        } else {
                            unauthorized(response, "Invalid authentication token");
                        }
                    } catch (UnsupportedEncodingException e) {
                        throw new Error("Couldn't retrieve authentication", e);
                    }
                }
            }
        } else {
            unauthorized(response);
        }
    }

    @Override
    public void destroy() {
    }

    private void unauthorized(HttpServletResponse response, String message) throws IOException {
        response.setHeader("WWW-Authenticate", "Basic realm=\"" + realm + "\"");
        response.sendError(401, message);
    }

    private void unauthorized(HttpServletResponse response) throws IOException {
        unauthorized(response, "Unauthorized");
    }

    public static void main(String[] args) {

    }

}

将代码打包成jar包

2. 执行配置

1. 将jar包上传到spark的jars目录。

2.?spark-defaults.conf配置文件中，增加如下配置：

spark.ui.filters=com.demo.SparkAuthFilter
spark.com.demo.SparkAuthFilter.param.username=test
spark.com.demo.SparkAuthFilter.param.password=password
spark.acls.enable=true

配置规则为：

spark.filter路径.param.参数名

3. 测试验证

重启spark集群；

./stop-all
./start-all

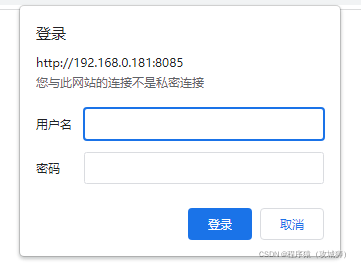

通过浏览器访问时，出现如下的提示。?
