[Java知识库]SpringMVC学习（五）——SSM整合

SSM整合

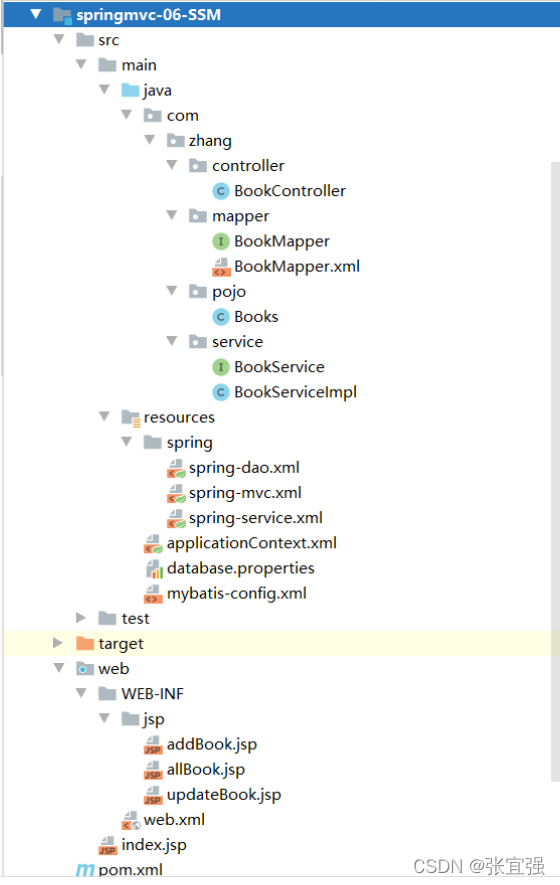

项目结构

数据库环境

创建数据库表

CREATE DATABASE `ssmbuild`;

USE `ssmbuild`;

DROP TABLE IF EXISTS `books`;

CREATE TABLE `books` (
`bookID` INT(10) NOT NULL AUTO_INCREMENT COMMENT '书id',
`bookName` VARCHAR(100) NOT NULL COMMENT '书名',
`bookCounts` INT(11) NOT NULL COMMENT '数量',
`detail` VARCHAR(200) NOT NULL COMMENT '描述',
KEY `bookID` (`bookID`)
) ENGINE=INNODB DEFAULT CHARSET=utf8;

INSERT  INTO `books`(`bookID`,`bookName`,`bookCounts`,`detail`)VALUES
(1,'Java',1,'从入门到放弃'),
(2,'MySQL',10,'从删库到跑路'),
(3,'Linux',5,'从进门到进牢');

项目搭建

创建Maven项目

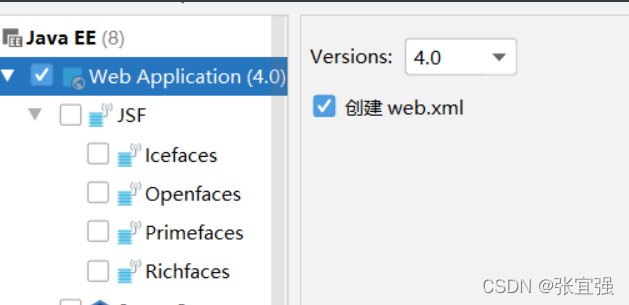

• 创建Maven项目，添加web框架支持

• 导入依赖和资源过滤设置

<dependencies>
    <!--Junit-->
    <dependency>
        <groupId>junit</groupId>
        <artifactId>junit</artifactId>
        <version>4.12</version>
    </dependency>
    <!--数据库驱动-->
    <dependency>
        <groupId>mysql</groupId>
        <artifactId>mysql-connector-java</artifactId>
        <version>8.0.21</version>
    </dependency>
    <!-- 数据库连接池 -->
    <dependency>
        <groupId>com.mchange</groupId>
        <artifactId>c3p0</artifactId>
        <version>0.9.5.2</version>
    </dependency>

    <!--Servlet - JSP -->
    <dependency>
        <groupId>javax.servlet</groupId>
        <artifactId>servlet-api</artifactId>
        <version>2.5</version>
    </dependency>
    <dependency>
        <groupId>javax.servlet.jsp</groupId>
        <artifactId>jsp-api</artifactId>
        <version>2.2</version>
    </dependency>
    <dependency>
        <groupId>javax.servlet</groupId>
        <artifactId>jstl</artifactId>
        <version>1.2</version>
    </dependency>

    <!--Mybatis-->
    <dependency>
        <groupId>org.mybatis</groupId>
        <artifactId>mybatis</artifactId>
        <version>3.5.2</version>
    </dependency>
    <dependency>
        <groupId>org.mybatis</groupId>
        <artifactId>mybatis-spring</artifactId>
        <version>2.0.2</version>
    </dependency>

    <!--Spring-->
    <dependency>
        <groupId>org.springframework</groupId>
        <artifactId>spring-webmvc</artifactId>
        <version>5.1.9.RELEASE</version>
    </dependency>
    <dependency>
        <groupId>org.springframework</groupId>
        <artifactId>spring-jdbc</artifactId>
        <version>5.1.9.RELEASE</version>
    </dependency>

</dependencies>

<build>
    <resources>
        <resource>
            <directory>src/main/java</directory>
            <includes>
                <include>**/*.properties</include>
                <include>**/*.xml</include>
            </includes>
            <filtering>false</filtering>
        </resource>
        <resource>
            <directory>src/main/resources</directory>
            <includes>
                <include>**/*.properties</include>
                <include>**/*.xml</include>
            </includes>
            <filtering>false</filtering>
        </resource>
    </resources>
</build>

Mybatis环境

database.properties

jdbc.driver = com.mysql.cj.jdbc.Driver
jdbc.url = jdbc:mysql://localhost:3306/ssmbuild?serverTimezone=UTC&characterEncoding=UTF-8&useSSL=false
jdbc.username = root
jdbc.password = 123456

mybatis-config.xml

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration
        PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>

</configuration>

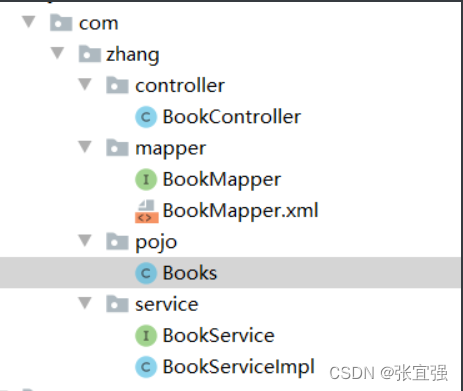

创建包

com.zhang.pojo

com.zhang.mapper

com.zhang.service

com.zhang.controller

创建实体类Books

package com.zhang.pojo;

/**
 * @title: Books
 * @Author 张宜强
 * @Date: 2021/8/2 17:20
 * @Effect:
 */
public class Books {

    private int bookID;
    private String bookName;
    private int bookCounts;
    private String detail;

    public Books() {
    }

    public Books(int bookID, String bookName, int bookCounts, String detail) {
        this.bookID = bookID;
        this.bookName = bookName;
        this.bookCounts = bookCounts;
        this.detail = detail;
    }

    public int getBookID() {
        return bookID;
    }

    public void setBookID(int bookID) {
        this.bookID = bookID;
    }

    public String getBookName() {
        return bookName;
    }

    public void setBookName(String bookName) {
        this.bookName = bookName;
    }

    public int getBookCounts() {
        return bookCounts;
    }

    public void setBookCounts(int bookCounts) {
        this.bookCounts = bookCounts;
    }

    public String getDetail() {
        return detail;
    }

    public void setDetail(String detail) {
        this.detail = detail;
    }
}

编写Mapper接口

package com.zhang.mapper;

import com.zhang.pojo.Books;

import java.util.List;

/**
 * @title: BookMapper
 * @Author 张宜强
 * @Date: 2021/8/2 17:35
 * @Effect:
 */
public interface BookMapper {
    //增加一个Book
    void addBook(Books book);

    //根据id删除一个Book
    void deleteBookById(int id);

    //更新Book
    void updateBook(Books books);

    //根据id查询,返回一个Book
    Books queryBookById(int id);

    //查询全部Book,返回list集合
    List<Books> queryAllBook();

}

编写mapper.xml文件。

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
        PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-mapper.dtd">

<mapper namespace="com.zhang.mapper.BookMapper">

    <insert id="addBook" parameterType="com.zhang.pojo.Books">
        insert books (bookName,bookCounts,detail) values (#{bookName},#{bookCounts},#{detail})
    </insert>

    <delete id="deleteBookById" parameterType="int">
        delete from books where bookID = #{id}
    </delete>

    <update id="updateBook">
        update books set bookName = #{bookName},bookCounts = #{bookCounts},detail = #{detail} where bookID = #{bookID}
    </update>

    <select id="queryBookById" resultType="com.zhang.pojo.Books">
        select * from books where bookID = #{id}
    </select>

    <select id="queryAllBook" resultType="com.zhang.pojo.Books">
        select * from books
    </select>


</mapper>

编写service和service实现类

package com.zhang.service;
import com.zhang.pojo.Books;

import java.util.List;

/**
 * @title: BookService
 * @Author 张宜强
 * @Date: 2021/8/2 17:45
 * @Effect:
 */
public interface BookService{
    //增加一个Book
    void addBook(Books book);
    //根据id删除一个Book
    void deleteBookById(int id);
    //更新Book
    void updateBook(Books books);
    //根据id查询,返回一个Book
    Books queryBookById(int id);
    //查询全部Book,返回list集合
    List<Books> queryAllBook();
}

bookMapper用Spring装配

package com.zhang.service;

import com.zhang.mapper.BookMapper;
import com.zhang.pojo.Books;

import java.util.List;

public class BookServiceImpl implements BookService{
    private BookMapper bookMapper;

    public void setBookMapper(BookMapper bookMapper) {
        this.bookMapper = bookMapper;
    }

    @Override
    public void addBook(Books book) {
        bookMapper.addBook(book);
    }

    @Override
    public void deleteBookById(int id) {
        bookMapper.deleteBookById(id);
    }

    @Override
    public void updateBook(Books books) {
        bookMapper.updateBook(books);
    }

    @Override
    public Books queryBookById(int id) {
        return bookMapper.queryBookById(id);
    }

    @Override
    public List<Books> queryAllBook() {
        return bookMapper.queryAllBook();
    }
}

编写controller文件

@Controller
@RequestMapping("/book")
public class BookController {}

Spring配置

spring-dao.xml

整合mybatis，配置SqlSessionFactory对象

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
       http://www.springframework.org/schema/beans/spring-beans.xsd
       http://www.springframework.org/schema/context
       https://www.springframework.org/schema/context/spring-context.xsd">

    <!-- 配置整合mybatis -->
    <!-- 1.关联数据库文件 -->
    <context:property-placeholder location="classpath:database.properties"/>

    <!-- 2.数据库连接池 -->
    <!--数据库连接池
        dbcp 半自动化操作 不能自动连接
        c3p0 自动化操作（自动的加载配置文件 并且设置到对象里面）
    -->
    <bean id="dataSource" class="com.mchange.v2.c3p0.ComboPooledDataSource">
        <!-- 配置连接池属性 -->
        <property name="driverClass" value="${jdbc.driver}"/>
        <property name="jdbcUrl" value="${jdbc.url}"/>
        <property name="user" value="${jdbc.username}"/>
        <property name="password" value="${jdbc.password}"/>

        <!-- c3p0连接池的私有属性 -->
        <property name="maxPoolSize" value="30"/>
        <property name="minPoolSize" value="10"/>
        <!-- 关闭连接后不自动commit -->
        <property name="autoCommitOnClose" value="false"/>
        <!-- 获取连接超时时间 -->
        <property name="checkoutTimeout" value="10000"/>
        <!-- 当获取连接失败重试次数 -->
        <property name="acquireRetryAttempts" value="2"/>
    </bean>

    <!-- 3.配置SqlSessionFactory对象 -->
    <bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
        <!-- 注入数据库连接池 -->
        <property name="dataSource" ref="dataSource"/>
        <!-- 配置MyBaties全局配置文件:mybatis-config.xml -->
        <property name="configLocation" value="classpath:mybatis-config.xml"/>
    </bean>

    <!-- 4.配置扫描Dao接口包，动态实现Dao接口注入到spring容器中 -->
    <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
        <!-- 注入sqlSessionFactory -->
        <property name="sqlSessionFactoryBeanName" value="sqlSessionFactory"/>
        <!-- 给出需要扫描Dao接口包 -->
        <property name="basePackage" value="com.zhang.mapper"/>
    </bean>

</beans>

spring-service.xml

注册service相关bean

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
   http://www.springframework.org/schema/beans/spring-beans.xsd
   http://www.springframework.org/schema/context
   http://www.springframework.org/schema/context/spring-context.xsd">

    <!-- 扫描service相关的bean -->
    <context:component-scan base-package="com.zhang.service" />

    <!--BookServiceImpl注入到IOC容器中-->
    <bean id="BookServiceImpl" class="com.zhang.service.BookServiceImpl">
        <property name="bookMapper" ref="bookMapper"/>
    </bean>

    <!-- 配置事务管理器 -->
    <bean id="transactionManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
        <!-- 注入数据库连接池 -->
        <property name="dataSource" ref="dataSource" />
    </bean>

</beans>

spring-mvc.xml

配置视图解析器

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:mvc="http://www.springframework.org/schema/mvc"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
   http://www.springframework.org/schema/beans/spring-beans.xsd
   http://www.springframework.org/schema/context
   http://www.springframework.org/schema/context/spring-context.xsd
   http://www.springframework.org/schema/mvc
   https://www.springframework.org/schema/mvc/spring-mvc.xsd">

    <!-- 配置SpringMVC -->
    <!-- 1.开启SpringMVC注解驱动 -->
    <mvc:annotation-driven />
    <!-- 2.静态资源默认servlet配置-->
    <mvc:default-servlet-handler/>

    <!-- 3.配置jsp 显示ViewResolver视图解析器 -->
    <bean class="org.springframework.web.servlet.view.InternalResourceViewResolver">
        <property name="viewClass" value="org.springframework.web.servlet.view.JstlView" />
        <property name="prefix" value="/WEB-INF/jsp/" />
        <property name="suffix" value=".jsp" />
    </bean>

    <!-- 4.扫描web相关的bean -->
    <context:component-scan base-package="com.zhang.controller" />

</beans>

applicationContext.xml

整合三个配置文件

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
       http://www.springframework.org/schema/beans/spring-beans.xsd">

    <import resource="spring/spring-dao.xml"/>
    <import resource="spring/spring-service.xml"/>
    <import resource="spring/spring-mvc.xml"/>

</beans>

web.xml

<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns="http://xmlns.jcp.org/xml/ns/javaee"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_4_0.xsd"
         version="4.0">

    <!--DispatcherServlet-->
    <servlet>
        <servlet-name>DispatcherServlet</servlet-name>
        <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
        <init-param>
            <param-name>contextConfigLocation</param-name>
            <!--一定要注意:我们这里加载的是总的配置文件，之前被这里坑了！-->
            <param-value>classpath:applicationContext.xml</param-value>
        </init-param>
        <load-on-startup>1</load-on-startup>
    </servlet>
    <servlet-mapping>
        <servlet-name>DispatcherServlet</servlet-name>
        <url-pattern>/</url-pattern>
    </servlet-mapping>

    <!--encodingFilter-->
    <filter>
        <filter-name>encodingFilter</filter-name>
        <filter-class>
            org.springframework.web.filter.CharacterEncodingFilter
        </filter-class>
        <init-param>
            <param-name>encoding</param-name>
            <param-value>utf-8</param-value>
        </init-param>
    </filter>
    <filter-mapping>
        <filter-name>encodingFilter</filter-name>
        <url-pattern>/*</url-pattern>
    </filter-mapping>

    <!--Session过期时间-->
    <session-config>
        <session-timeout>15</session-timeout>
    </session-config>

</web-app>

Controller和视图层编写

首页

<%@ page language="java" contentType="text/html; charset=UTF-8" pageEncoding="UTF-8" %>
<!DOCTYPE HTML>
<html>
<head>
  <title>首页</title>
  <style type="text/css">
    a {
      text-decoration: none;
      color: black;
      font-size: 18px;
    }
    h3 {
      width: 180px;
      height: 38px;
      margin: 100px auto;
      text-align: center;
      line-height: 38px;
      background: deepskyblue;
      border-radius: 4px;
    }
  </style>
</head>
<body>

<h3>
  <a href="${pageContext.request.contextPath}/book/allBook">点击进入列表页</a>
</h3>
</body>
</html>

所有书籍

controller层注入BookServiceImpl，使用BookServiceImpl的方法

@Autowired
@Qualifier("BookServiceImpl")
private BookService bookService;

@RequestMapping("/allBook")
public String allBook(Model model) {
    List<Books> list = bookService.queryAllBook();
    model.addAttribute("list",list);
    return "allBook";
}

allBook.jsp

<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
<%@ page contentType="text/html;charset=UTF-8" language="java" %>
<html>
<head>
    <title>书籍列表</title>
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <!-- 引入 Bootstrap -->
    <link href="https://cdn.bootcss.com/bootstrap/3.3.7/css/bootstrap.min.css" rel="stylesheet">
</head>
<body>

<div class="container">

    <div class="row clearfix">
        <div class="col-md-12 column">
            <div class="page-header">
                <h1>
                    <small>书籍列表 —— 显示所有书籍</small>
                </h1>
            </div>
        </div>
    </div>

    <div class="row">
        <div class="col-md-4 column">
            <a class="btn btn-primary" href="${pageContext.request.contextPath}/book/toAddBook">新增</a>
        </div>
    </div>

    <div class="row clearfix">
        <div class="col-md-12 column">
            <table class="table table-hover table-striped">
                <thead>
                <tr>
                    <th>书籍编号</th>
                    <th>书籍名字</th>
                    <th>书籍数量</th>
                    <th>书籍详情</th>
                    <th>操作</th>
                </tr>
                </thead>

                <tbody>
                <c:forEach var="book" items="${requestScope.get('list')}">
                    <tr>
                        <td>${book.getBookID()}</td>
                        <td>${book.getBookName()}</td>
                        <td>${book.getBookCounts()}</td>
                        <td>${book.getDetail()}</td>
                        <td>
                            <a href="${pageContext.request.contextPath}/book/toUpdateBook?id=${book.getBookID()}">更改</a> |
                            <a href="${pageContext.request.contextPath}/book/del/${book.getBookID()}">删除</a>
                        </td>
                    </tr>
                </c:forEach>
                </tbody>
            </table>
        </div>
    </div>
</div>

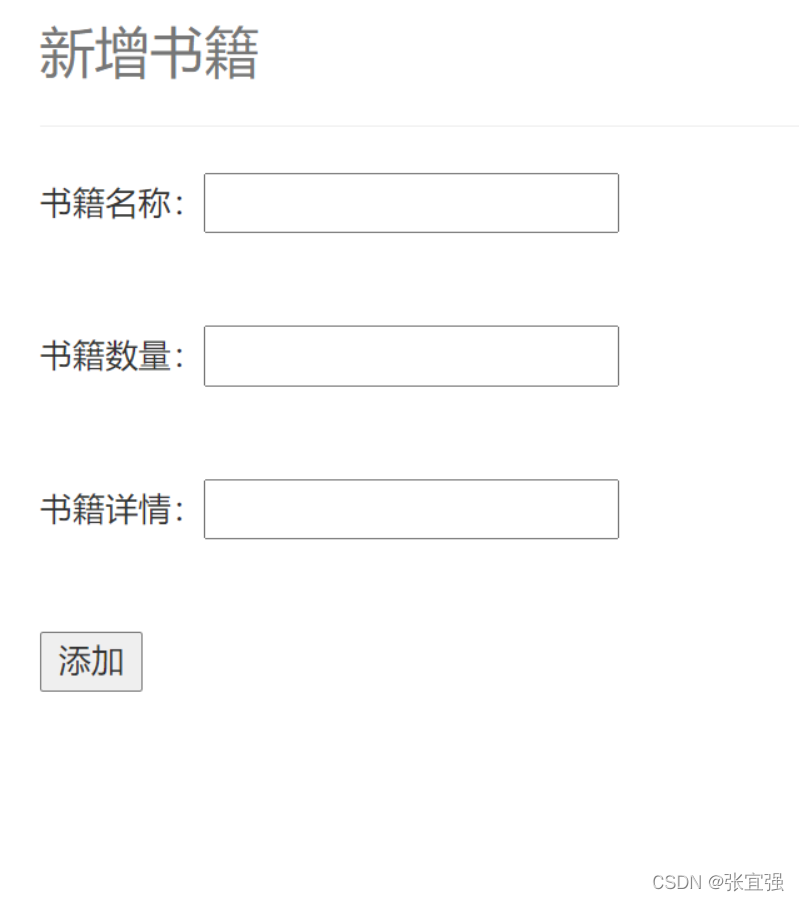

增加书籍

@RequestMapping("/toAddBook")
public String toAddPaper() {
    return "addBook";
}

@RequestMapping("/addBook")
public String addBook(Books books) {
    bookService.addBook(books);
    return "redirect:/book/allBook";
}

addBook.jsp

<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
<%@ page contentType="text/html;charset=UTF-8" language="java" %>

<html>
<head>
    <title>新增书籍</title>
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <!-- 引入 Bootstrap -->
    <link href="https://cdn.bootcss.com/bootstrap/3.3.7/css/bootstrap.min.css" rel="stylesheet">
</head>
<body>
<div class="container">

    <div class="row clearfix">
        <div class="col-md-12 column">
            <div class="page-header">
                <h1>
                    <small>新增书籍</small>
                </h1>
            </div>
        </div>
    </div>
    <form action="${pageContext.request.contextPath}/book/addBook" method="post">
        书籍名称：<input type="text" name="bookName"><br><br><br>
        书籍数量：<input type="text" name="bookCounts"><br><br><br>
        书籍详情：<input type="text" name="detail"><br><br><br>
        <input type="submit" value="添加">
    </form>

</div>

更新书籍

@RequestMapping("/toUpdateBook")
public String toUpdateBook(Model model,int id) {
    Books books = bookService.queryBookById(id);
    System.out.println(books);
    model.addAttribute("book",books );
    return "updateBook";

}
@RequestMapping("/updateBook")
    public String updateBook(Model model, Books book) {
        System.out.println(book);
        bookService.updateBook(book);
        Books books = bookService.queryBookById(book.getBookID());
        model.addAttribute("books", books);
        return "redirect:/book/allBook";
    }

updateBook.jsp

<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
<%@ page contentType="text/html;charset=UTF-8" language="java"%>
<html>
<head>
    <title>修改信息</title>
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <!-- 引入 Bootstrap -->
    <link href="https://cdn.bootcss.com/bootstrap/3.3.7/css/bootstrap.min.css" rel="stylesheet">
</head>
<body>
    <div class="container">

        <div class="row clearfix">
            <div class="col-md-12 column">
                <div class="page-header">
                    <h1>
                        <small>修改信息</small>
                    </h1>
                </div>
            </div>
        </div>

        <form action="${pageContext.request.contextPath}/book/updateBook" method="post">
            <input type="hidden" name="bookID" value="${book.getBookID()}"/>
            书籍名称：<input type="text" name="bookName" value="${book.getBookName()}"/>
            书籍数量：<input type="text" name="bookCounts" value="${book.getBookCounts()}"/>
            书籍详情：<input type="text" name="detail" value="${book.getDetail() }"/>
            <input type="submit" value="提交"/>
        </form>

    </div>
</body>
</html>

删除书籍

@RequestMapping("/del/{bookId}")
public String deleteBook(@PathVariable("bookId")int id) {
    bookService.deleteBookById(id);
    return "redirect:/book/allBook";
}

运行项目

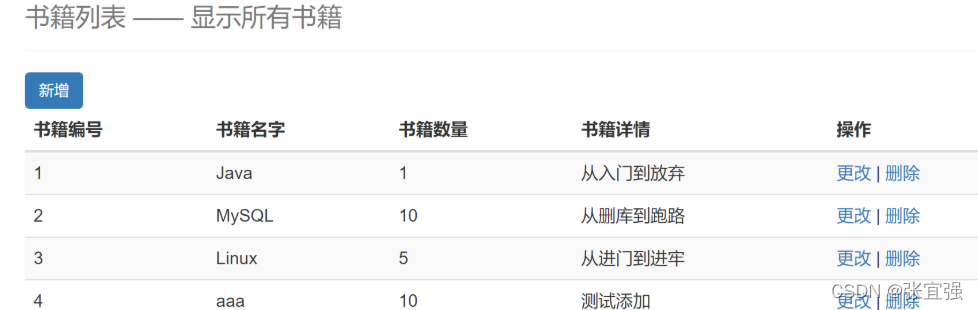

配置tomcat，运行项目，项目运行图：

可能遇到的问题

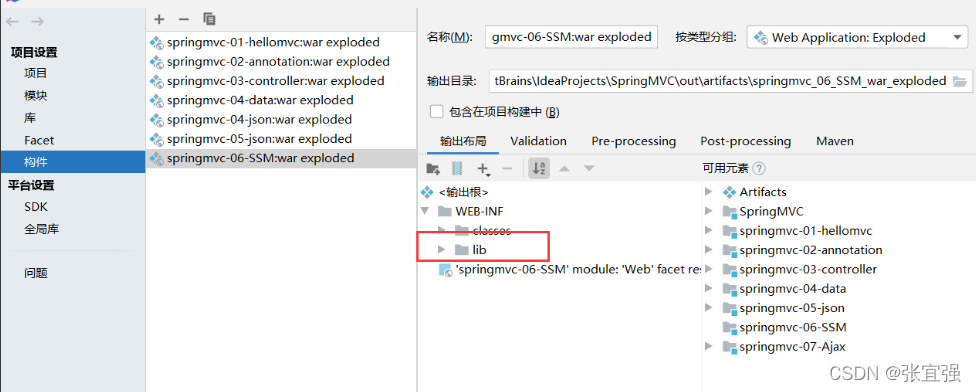

项目结构没有lib包

此时手动创建lib包，在lib包下添加所有库文件。

有时候也会出现有lib包但缺少库文件的情况，可以选择lib包添加所有库文件即可。
