1.简介
SpringCloud Config 服务配置中心，将所有的服务的配置文件放到本地或远程仓库，配置中心负责读取仓库的配置文件，其他服务向被指中心读取配置文件。

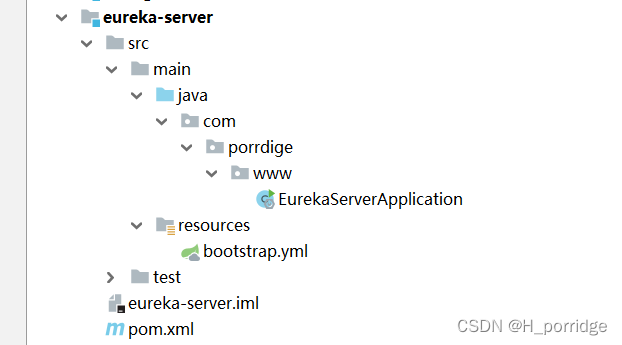

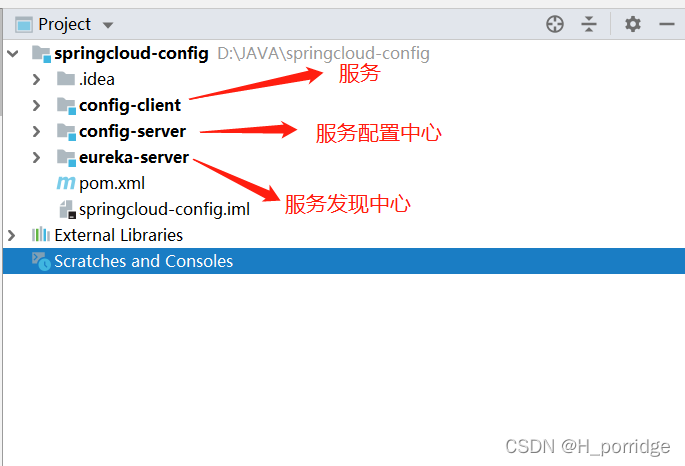

2.项目目录
3. 服务发现中心（eureka-server）
3.1 pom文件
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
<parent>
<artifactId>springcloud-config</artifactId>
<groupId>com.porridge.www</groupId>
<version>1.0-SNAPSHOT</version>
</parent>
<modelVersion>4.0.0</modelVersion>
<artifactId>eureka-server</artifactId>
<dependencies>
<dependency>
<groupId>org.springframework.cloud</groupId>
<artifactId>spring-cloud-starter-netflix-eureka-server</artifactId>
<version>2.1.0.RELEASE</version>
</dependency>
<dependency>
<groupId>com.google.code.gson</groupId>
<artifactId>gson</artifactId>
<version>2.8.5</version>
</dependency>
</dependencies>
</project>
3.2 bootstrap.yml 配置文件
bootstrap 加载优先于 applicaton。bootstrap 主要用于从额外的资源来加载配置信息，还可以在本地外部配置文件中解密属性。这两个上下文共用一个环境，它是任何Spring应用程序的外部属性的来源。bootstrap 里面的属性会优先加载，它们默认也不能被本地相同配置覆盖。
server:
port: 8761
eureka:
instance:
hostname: localhost
client:
register-with-eureka: false #禁止自己当做服务注册
fetch-registry: false #屏蔽注册信息
serviceUrl:
defaultZone: http://${eureka.instance.hostname}:${server.port}/eureka/
spring:
application:
name: eurka-server
3.3 EurekaServerApplication 启动类
@SpringBootApplication
//开启eureka注册发现
@EnableEurekaServer
public class EurekaServerApplication {
public static void main(String[] args) {
SpringApplication.run(EurekaServerApplication.class,args);
}
}

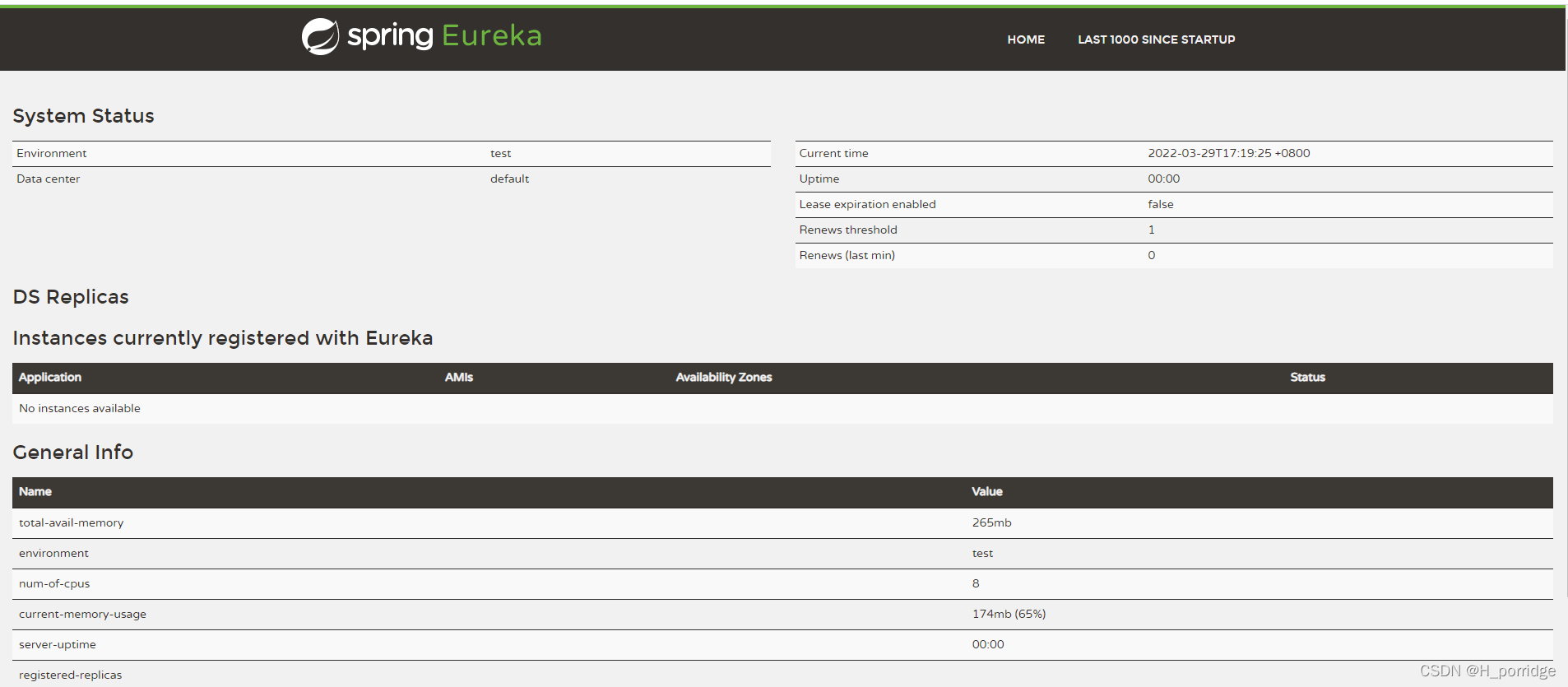

访问locahost:8761
3. 服务配置中心（config-server）

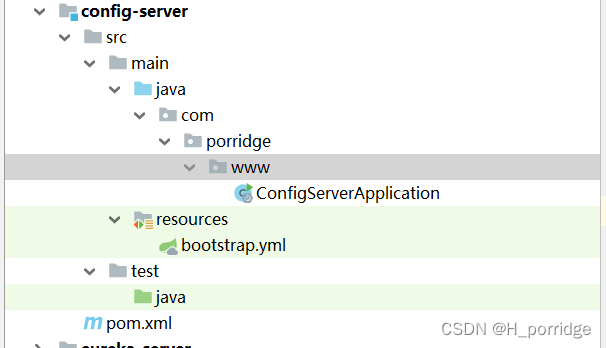

项目目录
在这里笔者使用的是远程仓库Gitee，所以笔者先配置了Gitee所需的仓库

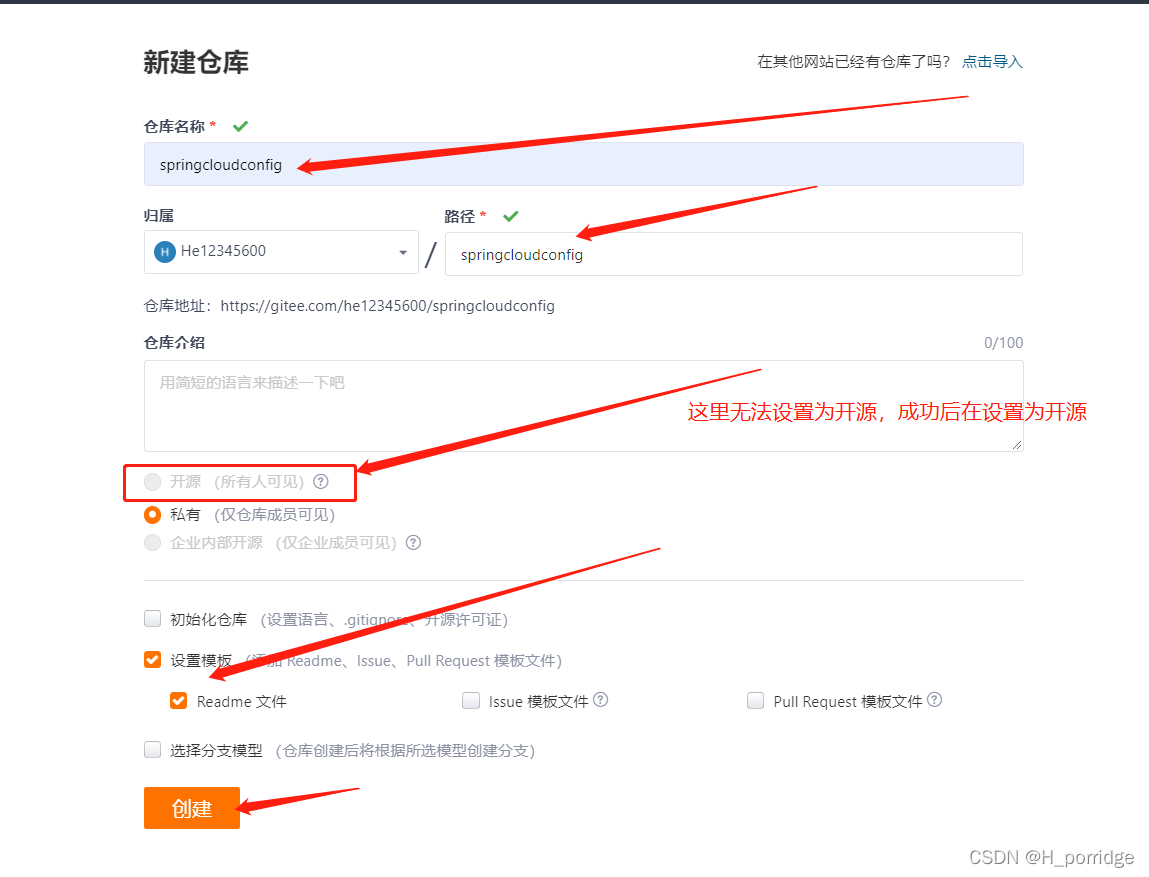

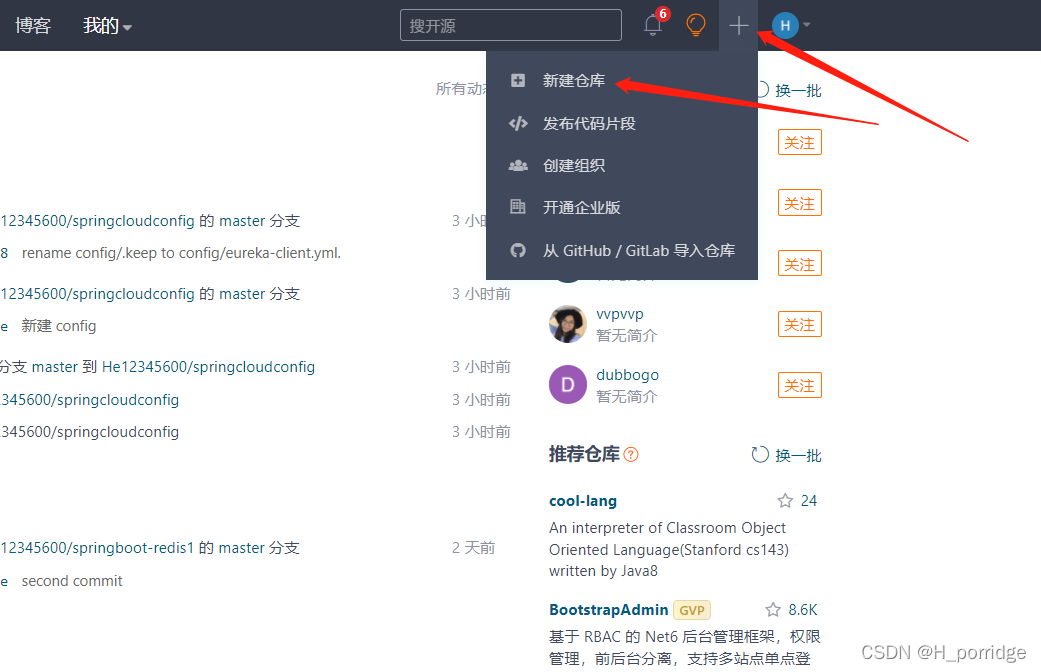

新建仓库

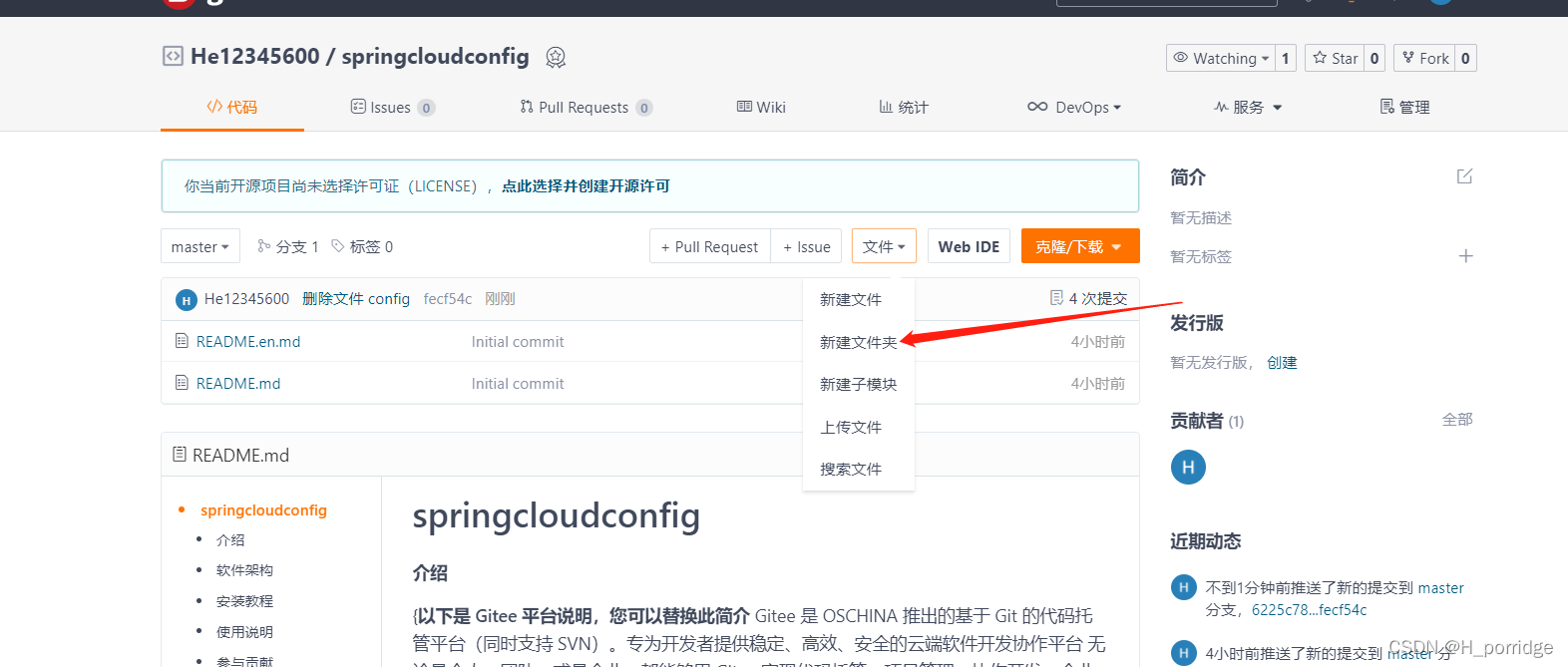

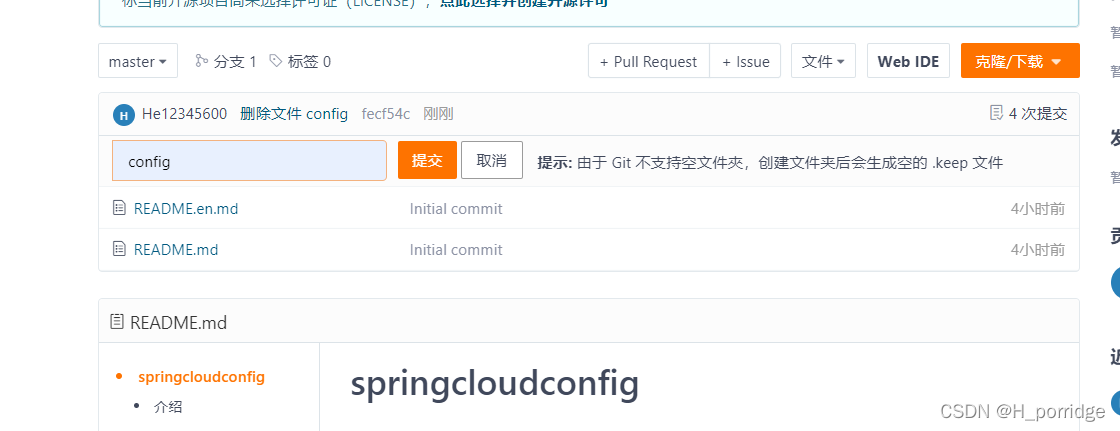

新建文件夹
3.1 pom文件
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
<parent>
<artifactId>springcloud-config</artifactId>
<groupId>com.porridge.www</groupId>
<version>1.0-SNAPSHOT</version>
</parent>
<modelVersion>4.0.0</modelVersion>
<artifactId>config-server</artifactId>
<dependencies>
<dependency>
<groupId>org.springframework.cloud</groupId>
<artifactId>spring-cloud-config-server</artifactId>
<version>2.1.0.RELEASE</version>
</dependency>
<dependency>
<groupId>org.springframework.cloud</groupId>
<artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
<version>2.1.0.RELEASE</version>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
<version>2.1.0.RELEASE</version>
</dependency>
<dependency>
<groupId>com.google.code.gson</groupId>
<artifactId>gson</artifactId>
<version>2.8.5</version>
</dependency>
</dependencies>
</project>

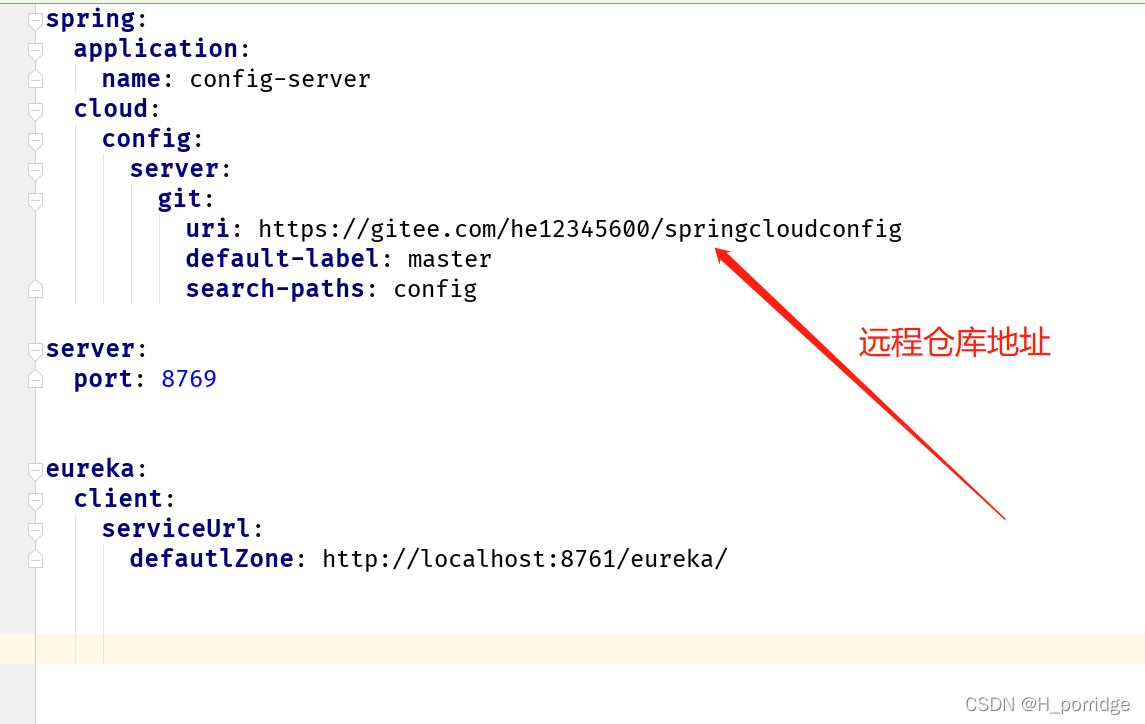

3.2 bootstrap.yml 配置文件
spring:
application:
name: config-server
cloud:
config:
server:
git:
uri: https://gitee.com/he12345600/springcloudconfig
default-label: master
search-paths: config
server:
port: 8769
eureka:
client:
serviceUrl:
defautlZone: http://localhost:8761/eureka/
3.3 ConfigServerApplication 启动类
@SpringBootApplication
@EnableConfigServer
//开启向eureka注册功能
@EnableEurekaClient
public class ConfigServerApplication {
public static void main(String[] args) {
SpringApplication.run(ConfigServerApplication.class, args);
}
}

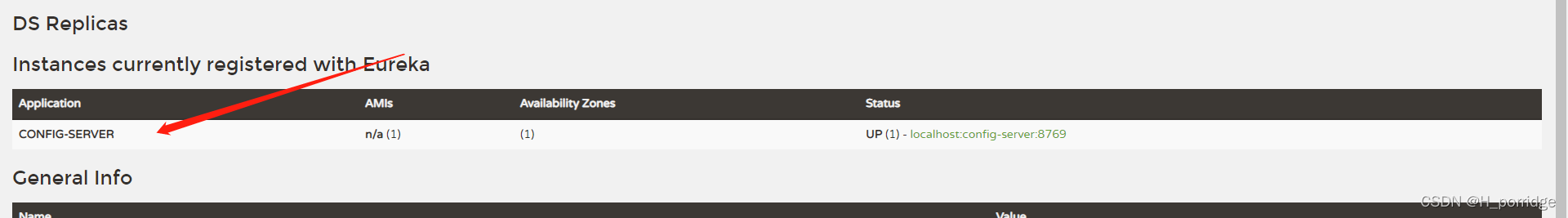

继续访问localhost:8761
3. 服务（config-client）

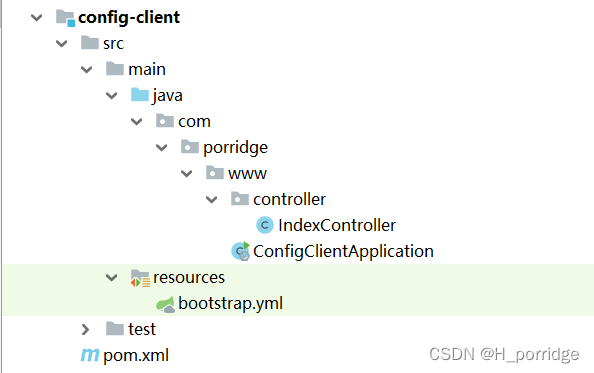

项目结构

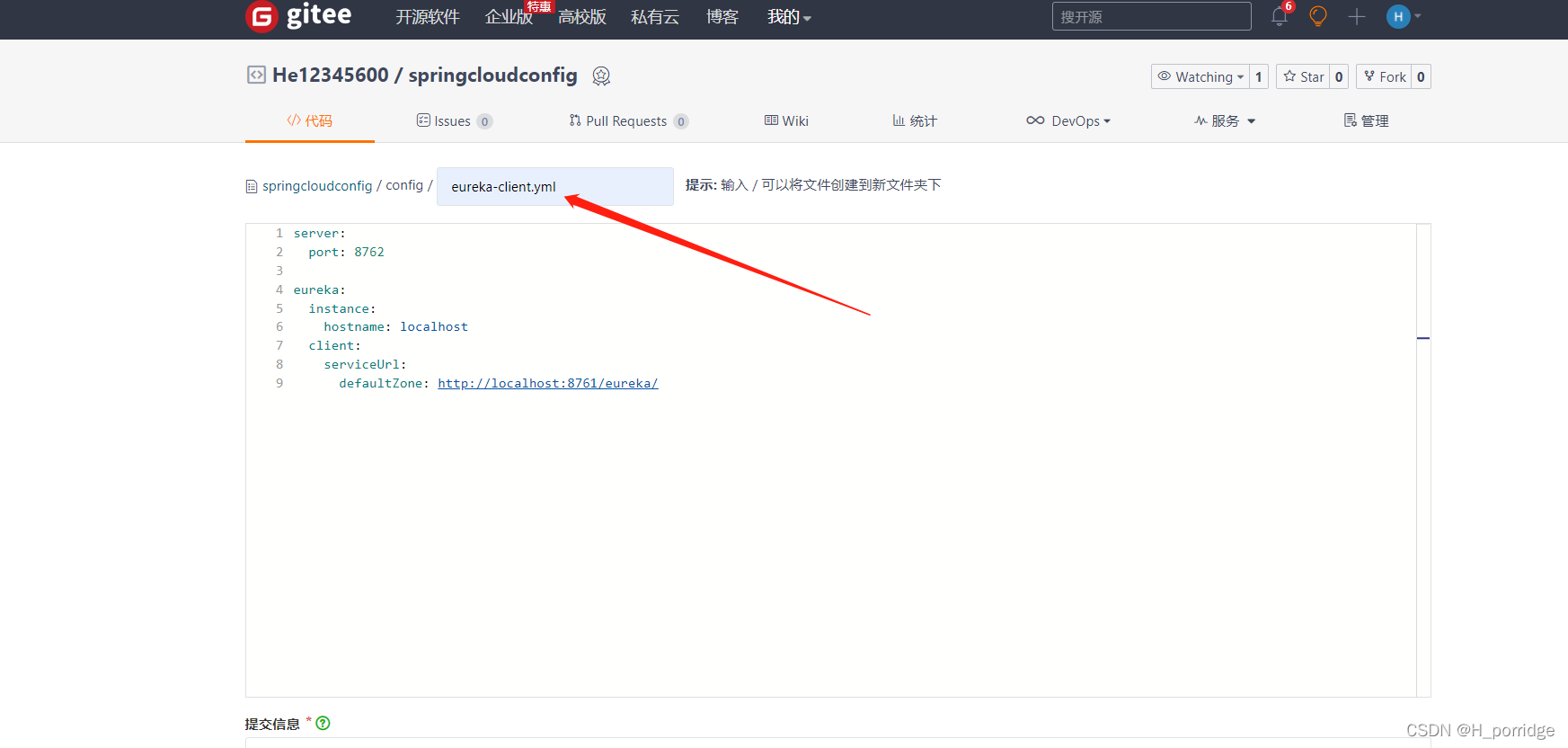

在这里回到Gitee中config文件夹下创建文件eureka-client.yml
server:
port: 8762
eureka:
instance:
hostname: localhost
client:
serviceUrl:
defaultZone: http://localhost:8761/eureka/
3.1 pom文件
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
<parent>
<artifactId>springcloud-config</artifactId>
<groupId>com.porridge.www</groupId>
<version>1.0-SNAPSHOT</version>
</parent>
<modelVersion>4.0.0</modelVersion>
<artifactId>config-client</artifactId>
<dependencies>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
<version>2.1.0.RELEASE</version>
</dependency>
<dependency>
<groupId>org.springframework.cloud</groupId>
<artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
<version>2.1.0.RELEASE</version>
</dependency>
<dependency>
<groupId>org.springframework.cloud</groupId>
<artifactId>spring-cloud-config-client</artifactId>
<version>2.1.0.RELEASE</version>
</dependency>
<dependency>
<groupId>com.google.code.gson</groupId>
<artifactId>gson</artifactId>
<version>2.8.5</version>
</dependency>
</dependencies>
</project>
3.2 bootstrap.yml 配置文件
spring:
application:
name: eureka-client # 当前服务应用名
cloud:
config:
label: master
discovery:
enabled: true # 开启config服务发现与注册
serviceId: config-server # 配置中心应用名
3.3 ConfigClientApplication 启动类
@SpringBootApplication
@EnableEurekaClient
public class ConfigClientApplication {
public static void main(String[] args) {
SpringApplication.run(ConfigClientApplication.class,args);
}
}
3.4 IndexController 控制器
@RestController
public class IndexController {
@RequestMapping("/")
public String index(){
return "this is index()";
}
}

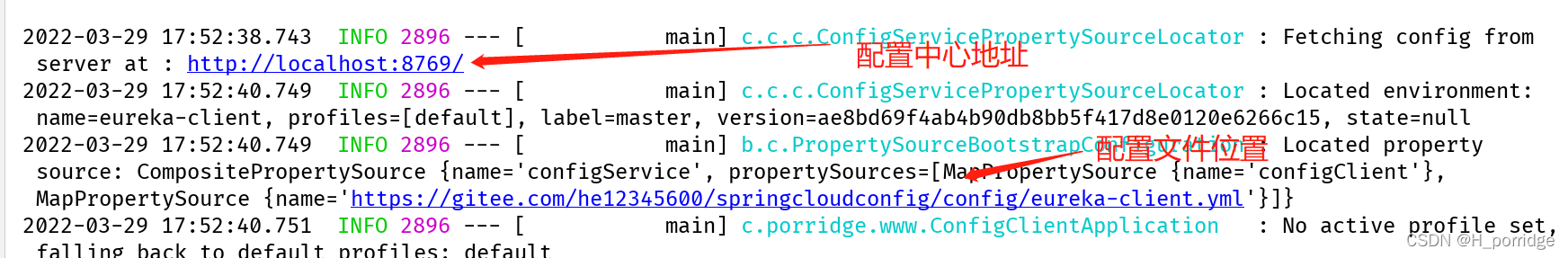

4.测试
访问locahost:8761

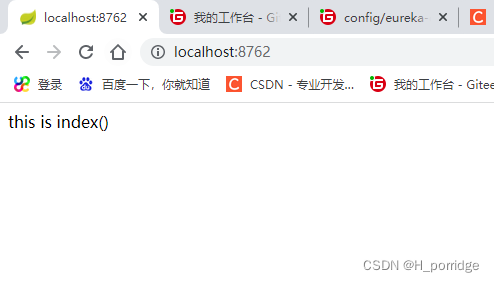

访问localhost:8762
