[Java知识库]实验七 ssm框架搭建

第一步(创建maven项目)

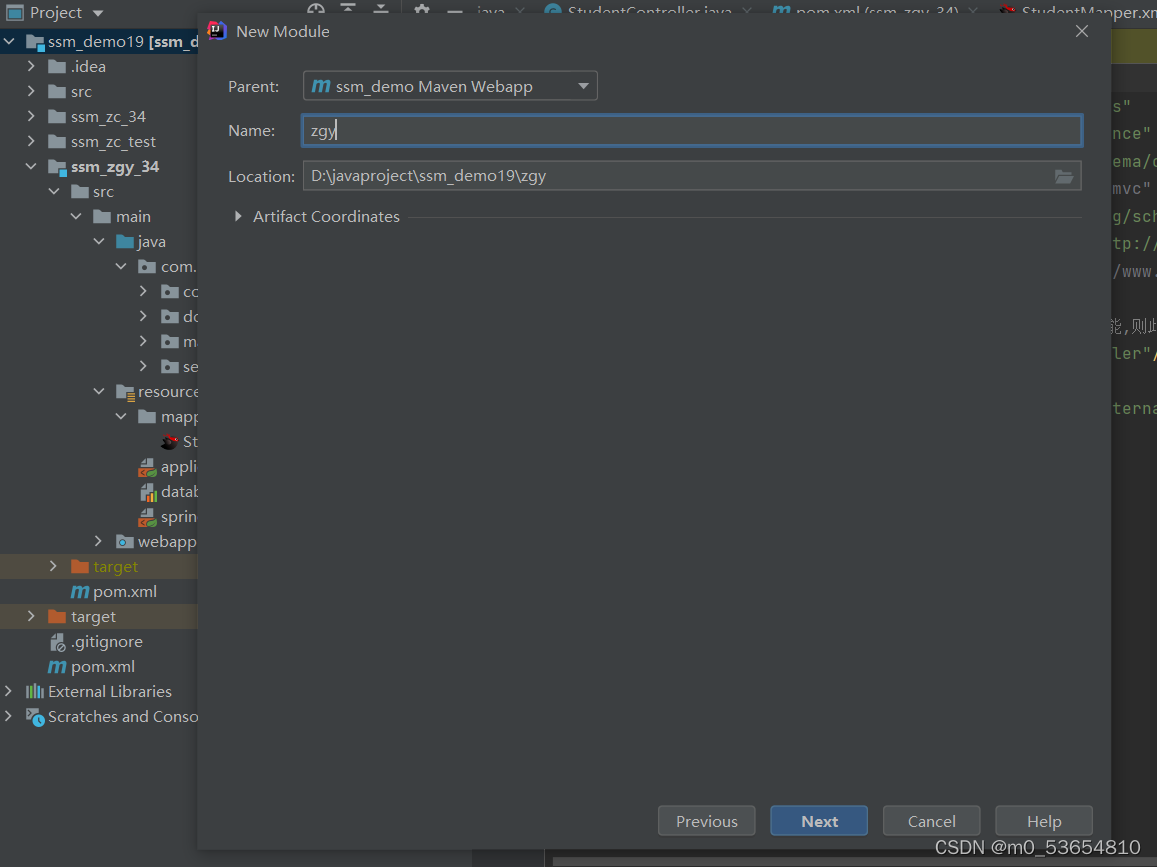

创建一个项目

选择maven模板

设置项目名称(组名即包名)

?

?选择maven存储路径?

第二步(新建相应的目录结构)

打开后发现目录结构只有webapp，则新建java和resource文件

将java和resource文件分别设为sources和resource
点击file-》project structure，进入此页面，设置完成后点击apply在点击OK

第三步(添加项目所需的依赖)

配置pom.xml文件

<properties>
  <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
  <spring.version>4.3.14.RELEASE</spring.version>
  <maven.compiler.source>1.8</maven.compiler.source>
  <maven.compiler.target>1.8</maven.compiler.target>
</properties>

<dependencies>
  <!--spring-->
  <dependency>
    <groupId>org.springframework</groupId>
    <artifactId>spring-core</artifactId>
    <version>${spring.version}</version>
  </dependency>
  <dependency>
    <groupId>org.springframework</groupId>
    <artifactId>spring-beans</artifactId>
    <version>${spring.version}</version>
  </dependency>
  <dependency>
    <groupId>org.springframework</groupId>
    <artifactId>spring-context</artifactId>
    <version>${spring.version}</version>
  </dependency>
  <dependency>
    <groupId>org.springframework</groupId>
    <artifactId>spring-tx</artifactId>
    <version>${spring.version}</version>
  </dependency>
  <dependency>
    <groupId>org.springframework</groupId>
    <artifactId>spring-web</artifactId>
    <version>${spring.version}</version>
  </dependency>
  <dependency>
    <groupId>org.springframework</groupId>
    <artifactId>spring-webmvc</artifactId>
    <version>${spring.version}</version>
  </dependency>
  <dependency>
    <groupId>org.springframework</groupId>
    <artifactId>spring-aop</artifactId>
    <version>${spring.version}</version>
  </dependency>
  <dependency>
    <groupId>org.springframework</groupId>
    <artifactId>spring-expression</artifactId>
    <version>${spring.version}</version>
  </dependency>
  <dependency>
    <groupId>org.springframework</groupId>
    <artifactId>spring-jdbc</artifactId>
    <version>${spring.version}</version>
  </dependency>
  <dependency>
    <groupId>org.springframework</groupId>
    <artifactId>spring-test</artifactId>
    <version>${spring.version}</version>
    <scope>test</scope>
  </dependency>
  <!--spring完-->

  <!--mysql-->
  <dependency>
    <groupId>mysql</groupId>
    <artifactId>mysql-connector-java</artifactId>
    <version>5.1.45</version>
  </dependency>
  <!--junit-->
  <dependency>
    <groupId>junit</groupId>
    <artifactId>junit</artifactId>
    <version>4.12</version>
    <scope>test</scope>
  </dependency>
  <!--spring依赖-->
  <dependency>
    <groupId>org.aspectj</groupId>
    <artifactId>aspectjweaver</artifactId>
    <version>1.8.10</version>
  </dependency>
  <dependency>
    <groupId>org.aspectj</groupId>
    <artifactId>aspectjrt</artifactId>
    <version>1.8.10</version>
  </dependency>
  <!--文件上传-->
  <dependency>
    <groupId>commons-fileupload</groupId>
    <artifactId>commons-fileupload</artifactId>
    <version>1.3.3</version>
  </dependency>
  <!--mybatis
  <dependency>
    <groupId>org.mybatis</groupId>
    <artifactId>mybatis</artifactId>
    <version>3.4.5</version>
  </dependency>
  <dependency>
    <groupId>org.mybatis</groupId>
    <artifactId>mybatis-spring</artifactId>
    <version>1.3.1</version>
  </dependency>-->

  <!--dbcp连接池-->
  <dependency>
    <groupId>commons-dbcp</groupId>
    <artifactId>commons-dbcp</artifactId>
    <version>1.4</version>
  </dependency>
  <dependency>
    <groupId>commons-pool</groupId>
    <artifactId>commons-pool</artifactId>
    <version>1.6</version>
  </dependency>
  <!-- json配置-->
  <dependency>
    <groupId>com.fasterxml.jackson.core</groupId>
    <artifactId>jackson-core</artifactId>
    <version>2.9.0.pr3</version>
  </dependency>
  <dependency>
    <groupId>com.fasterxml.jackson.core</groupId>
    <artifactId>jackson-databind</artifactId>
    <version>2.9.0.pr3</version>
  </dependency>
  <dependency>
    <groupId>com.fasterxml.jackson.core</groupId>
    <artifactId>jackson-annotations</artifactId>
    <version>2.9.0.pr3</version>
  </dependency>
  <!-- google的json格式支持 -->
  <dependency>
    <groupId>com.google.code.gson</groupId>
    <artifactId>gson</artifactId>
    <version>2.8.2</version>
  </dependency>
  <!--阿里fastJson-->
  <dependency>
    <groupId>com.alibaba</groupId>
    <artifactId>fastjson</artifactId>
    <version>1.2.28</version>
  </dependency>


  <!--servlet-->
  <dependency>
    <groupId>javax.servlet</groupId>
    <artifactId>javax.servlet-api</artifactId>
    <version>3.1.0</version>
    <scope>provided</scope>
  </dependency>
  <!--jstl-->
  <dependency>
    <groupId>javax.servlet</groupId>
    <artifactId>jstl</artifactId>
    <version>1.2</version>
  </dependency>


  <dependency>
    <groupId>org.projectlombok</groupId>
    <artifactId>lombok</artifactId>
    <version>1.16.10</version>
    <scope>provided</scope>
  </dependency>
  <dependency>
    <groupId>com.baomidou</groupId>
    <artifactId>mybatis-plus</artifactId>
    <version>3.3.2</version>
  </dependency>
  <dependency>
    <groupId>commons-codec</groupId>
    <artifactId>commons-codec</artifactId>
    <version>1.15</version>
  </dependency>
</dependencies>

第四步(添加项目所需的配置文件和业务文件)

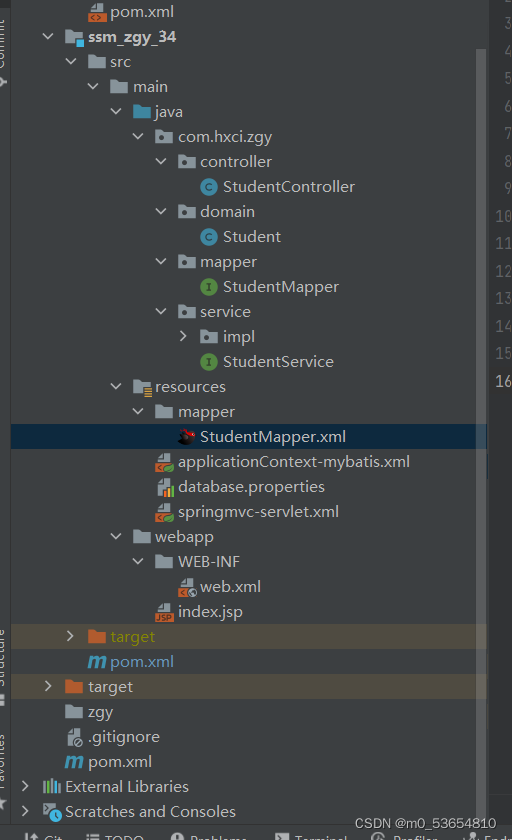

新建相应的文件目录和文件

配置文件内容如下

1.database.properties文件

driver=com.mysql.jdbc.Driver
url=jdbc:mysql://127.0.0.1:3306/mybatis?useUnicode=true&characterEncoding=utf-8
user=root
password=x5
minIdle=45
maxIdle=50
initialSize=5
maxActive=100
maxWait=100
removeAbandonedTimeout=180
removeAbandoned=true

?2.log4j.properties文件(不使用可不配置)

log4j.rootLogger = debug, console, R
log4j.appender.console = org.apache.log4j.ConsoleAppender
log4j.appender.console.layout = org.apache.log4j.PatternLayout
log4j.appender.console.layout.ConversionPattern = %-d{yyyy-MM-dd HH:mm:ss} [%p][%c{1}] - %m%n
log4j.appender.R = org.apache.log4j.RollingFileAppender
log4j.appender.R.File = F:/IDEAworkspace/log.txt
log4j.appender.R.MaxFileSize = 1MB
log4j.appender.R.MaxBackupIndex = 1
log4j.appender.R.layout = org.apache.log4j.PatternLayout
log4j.appender.R.layout.ConversionPattern=%-d{yyyy-MM-dd HH:mm:ss} [%p]-%c{1} - %m%n

### sql ###
log4j.logger.java.sql.Connection=DEBUG
log4j.logger.java.sql.PreparedStatement=DEBUG
log4j.logger.java.sql.ResultSet=DEBUG
?

3.springmvc-servlet.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:mvc="http://www.springframework.org/schema/mvc"
       xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-4.3.xsd
      http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.3.xsd
      http://www.springframework.org/schema/mvc http://www.springframework.org/schema/mvc/spring-mvc-4.3.xsd
      ">
    <!--需要扫描的包,注意,若spring配置文件 中不配置相关包的扫描功能,则此处只到cn.wedding,否则会报错:错误的创建bean-->
    <context:component-scan base-package="com.**.controller"/>
    <!--配置试图解析器-->
    <bean class="org.springframework.web.servlet.view.InternalResourceViewResolver">
        <property name="prefix" value="/"/>
        <property name="suffix" value=".jsp"/>
    </bean>


</beans>

4.applicationContext-mybatis.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:mvc="http://www.springframework.org/schema/mvc"
       xmlns:tx="http://www.springframework.org/schema/tx"
       xmlns:context="http://www.springframework.org/schema/context"
       xsi:schemaLocation="http://www.springframework.org/schema/mvc http://www.springframework.org/schema/mvc/spring-mvc-4.3.xsd
      http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-4.3.xsd
      http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.3.xsd
      http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx-4.3.xsd">
    <!--若springmvc中只扫描controller,则需要加上service,和dao的扫描功能-->
    <context:component-scan base-package="com.hxci"/>
    <context:property-placeholder location="classpath:database.properties"/>
    <bean id="dataSource"  class="org.apache.commons.dbcp.BasicDataSource"  destroy-method="close" scope="singleton">
        <property name="driverClassName" value="${driver}" />
        <property name="url" value="${url}" />
        <property name="username" value="${user}" />
        <property name="password" value="${password}" />
        <property name="initialSize" value="${initialSize}"/>
        <property name="maxActive" value="${maxActive}"/>
        <property name="maxIdle" value="${maxIdle}"/>
        <property name="minIdle" value="${minIdle}"/>
        <property name="maxWait" value="${maxWait}"/>
        <property name="removeAbandonedTimeout" value="${removeAbandonedTimeout}"/>
        <property name="removeAbandoned" value="${removeAbandoned}"/>
        <!-- sql 心跳 -->
        <property name= "testWhileIdle" value="true"/>
        <property name= "testOnBorrow" value="false"/>
        <property name= "testOnReturn" value="false"/>
        <property name= "validationQuery" value="select 1"/>
        <property name= "timeBetweenEvictionRunsMillis" value="60000"/>
        <property name= "numTestsPerEvictionRun" value="${maxActive}"/>
    </bean>
    <!--配置sqlSessionFactory-->
    <bean id="sqlSessionFactory" class="com.baomidou.mybatisplus.extension.spring.MybatisSqlSessionFactoryBean">
        <property name="dataSource" ref="dataSource"/>
        <!--<property name="configLocation" value="classpath:mybatis-config.xml"/>-->
        <property name="typeAliasesPackage" value="com.zc.pojo" ></property>
        <property name="mapperLocations" value="classpath:mapper/*.xml"></property>
    </bean>
    <!--扫描映射文件(mapper动态代理)-->
    <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
        <property name="basePackage"  value="com.**.mapper"/>
    </bean>
    <!-- 配置事务管理器 -->
    <bean id="transactionManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
        <property name="dataSource" ref="dataSource"/>
    </bean>

    <!-- 开启注解 -->
    <mvc:annotation-driven/>
    <!--transaction-manager="transactionManager"一定要加上,否则会报错,该配置是以事物的方式开启注解-->
    <tx:annotation-driven transaction-manager="transactionManager"/>


</beans>

5.StudentMapper.xml

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.hxci.zgy.mapper.StudentMapper">
  <resultMap id="BaseResultMap" type="com.hxci.zgy.domain.Student">
    <!--@mbg.generated-->
    <!--@Table student-->
    <id column="id" jdbcType="INTEGER" property="id" />
    <result column="username" jdbcType="VARCHAR" property="username" />
    <result column="school" jdbcType="VARCHAR" property="school" />
    <result column="phone" jdbcType="VARCHAR" property="phone" />
  </resultMap>
  <sql id="Base_Column_List">
    <!--@mbg.generated-->
    id, username, school, phone
  </sql>
</mapper>

业务逻辑文件使用MybatisCodeHelper插件完成

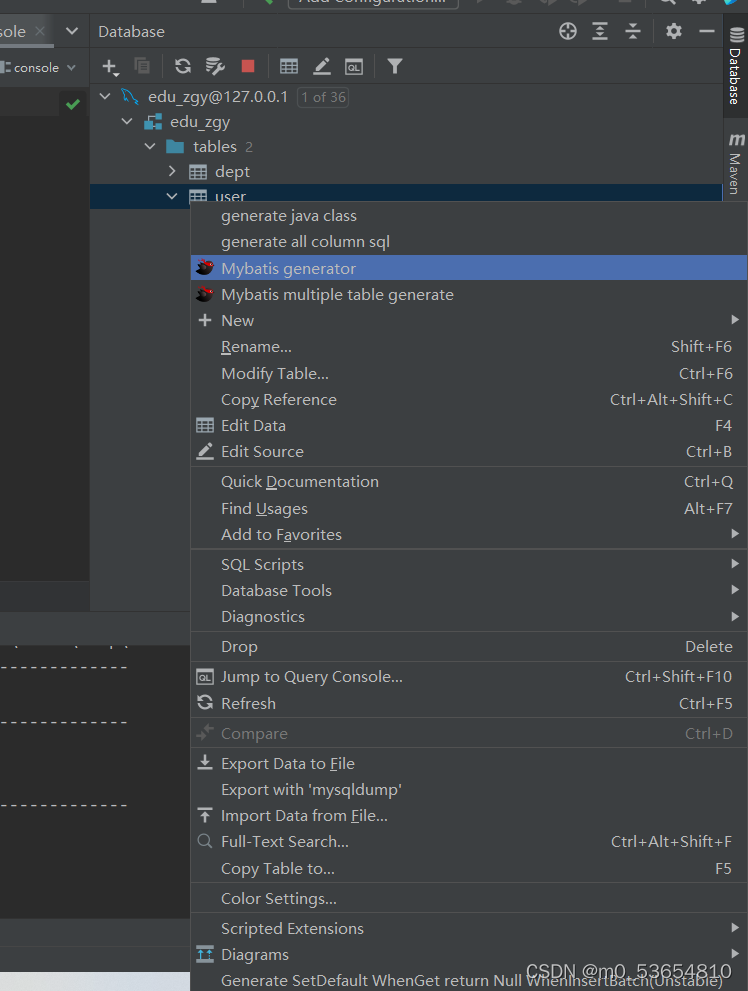

1.?右键user表

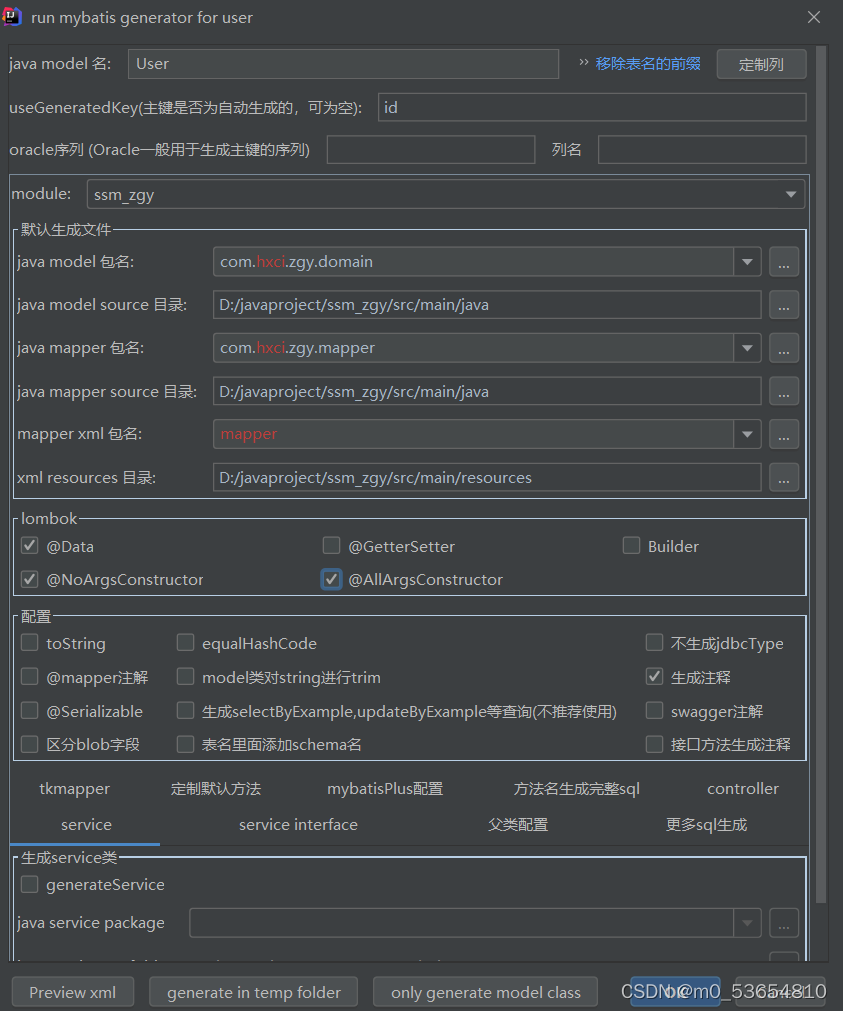

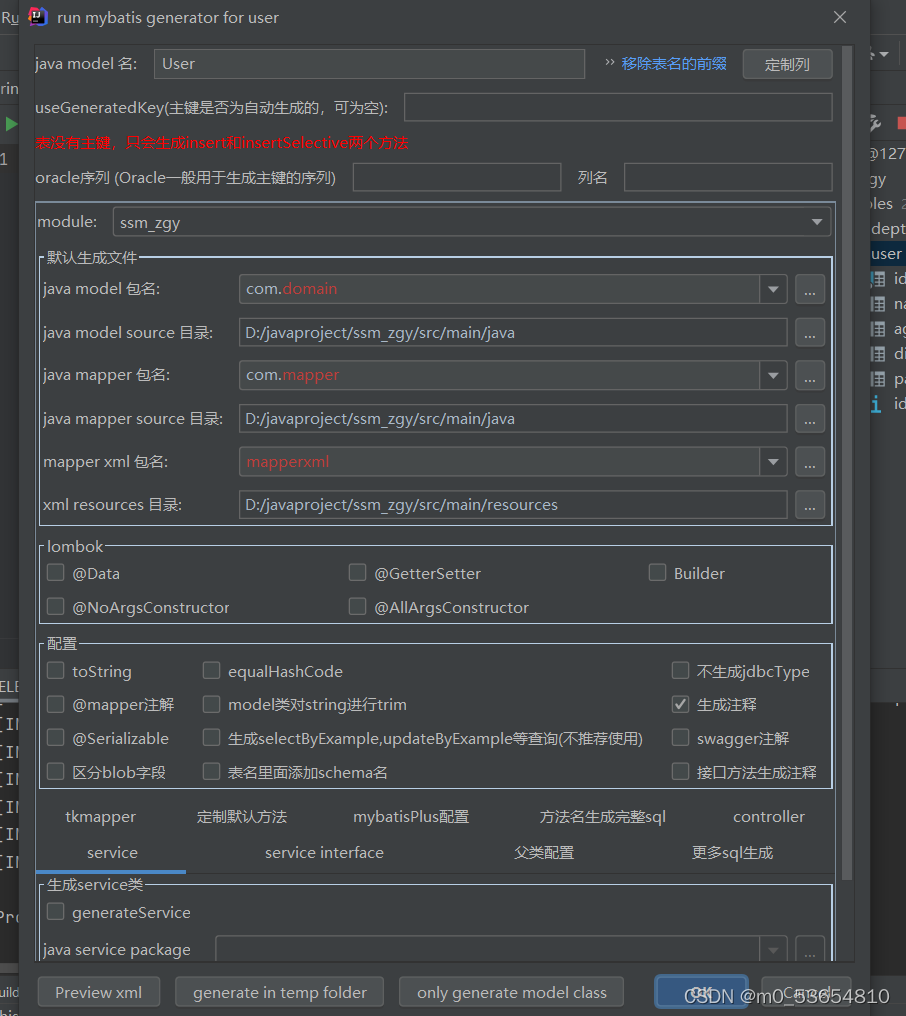

?2.点击Mybatis generator。出现如下表格

?3.?

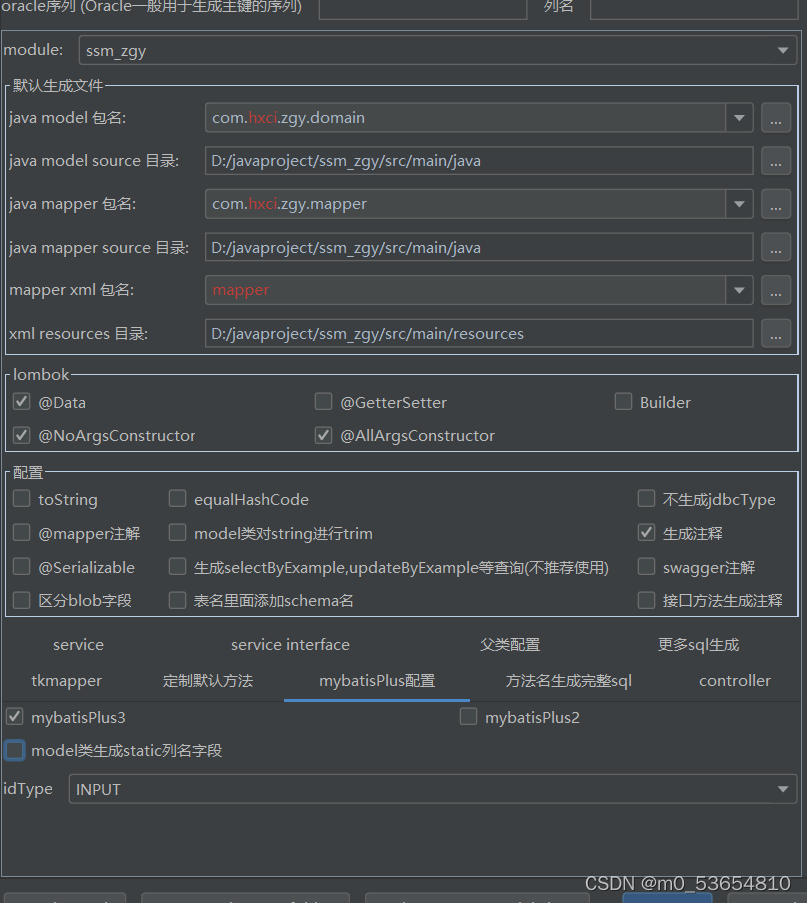

4.mybatisPlus配置将mybatisPlus3勾选

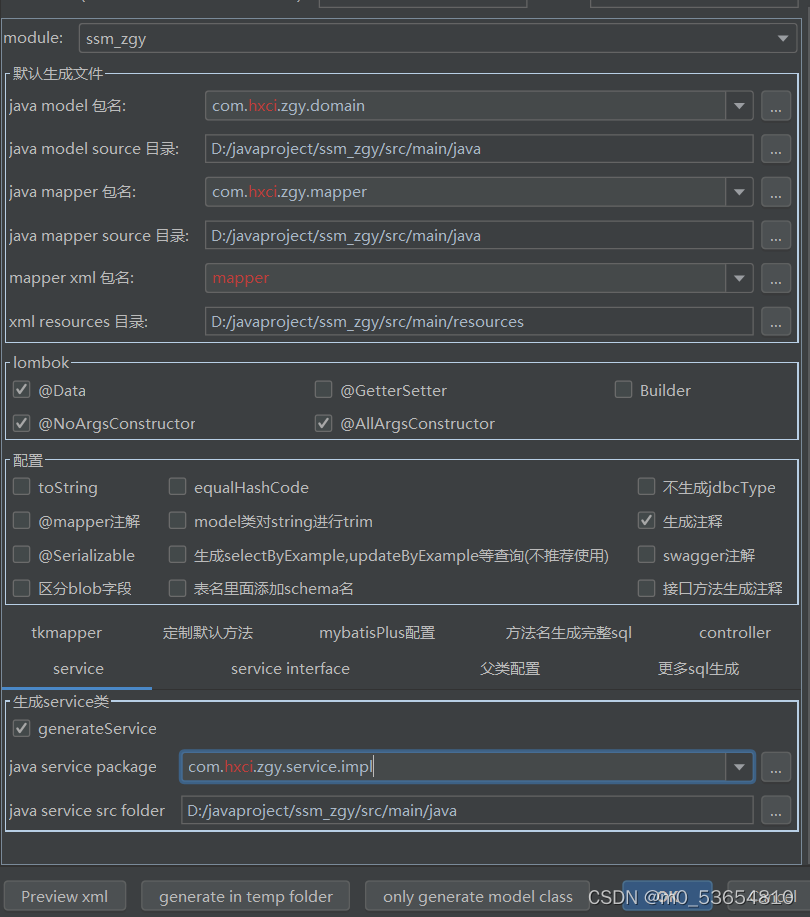

?5.填写service包路径

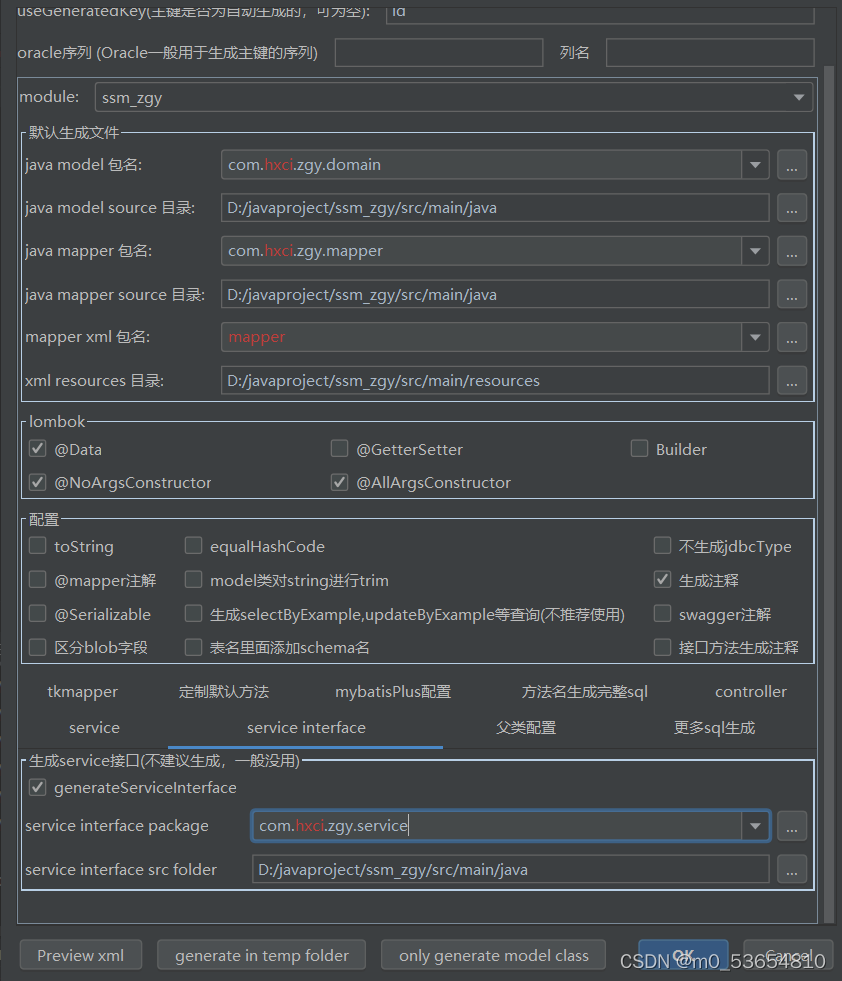

?6.填写service?interface包路径

?7.点击ok就可以生成我们想要的文件了

controller层包下的文件

?StudentController文件

package com.hxci.zgy.controller;

import com.hxci.zgy.domain.Student;
import com.hxci.zgy.service.StudentService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;

import java.util.List;

@Controller
@RequestMapping("stu")
public class StudentController {
    @Autowired
    StudentService service;

    @RequestMapping("query")
    public String query(){
        List<Student> list = service.list();
        System.out.println(list );
        return null;
    }
    @RequestMapping("add")
    public String add(){
        Student stu = new Student();
        stu.setUsername("吴彦祖");
        stu.setPhone("12344");
        service.save(stu);
        return null;
    }


}

第五步(配置Tomcat)

配置Tomcat


选择Tomcat版本

添加部署文件

选择运行的文件

选择完毕后点击ok即可

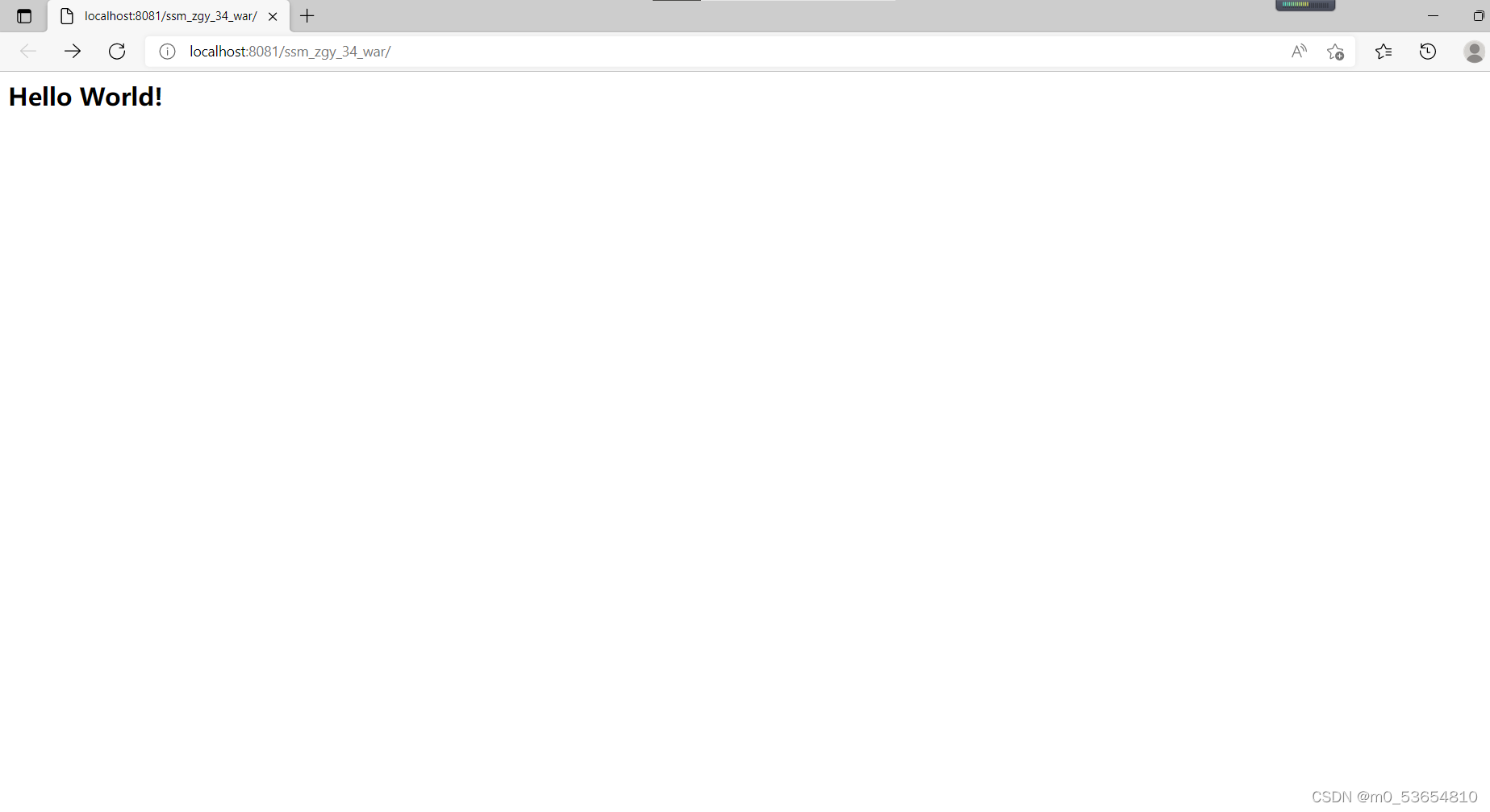

第六步(启动项目,并进行测试)
