[Java知识库]SpringBoot中WEB的启动

想必大家都体验过springboot的便捷，以前想要运行web项目，我们首先需要将项目打成war包，然后再运行Tomcat启动项目，不过自从有了springboot，我们可以像启动jar包一样简单的启动一个web项目，今天我们就来分析下springboot启动web项目整个流程。

老规矩，我们从spring.factories文件开始。

spring-boot-starter-web下没有spring.factories文件

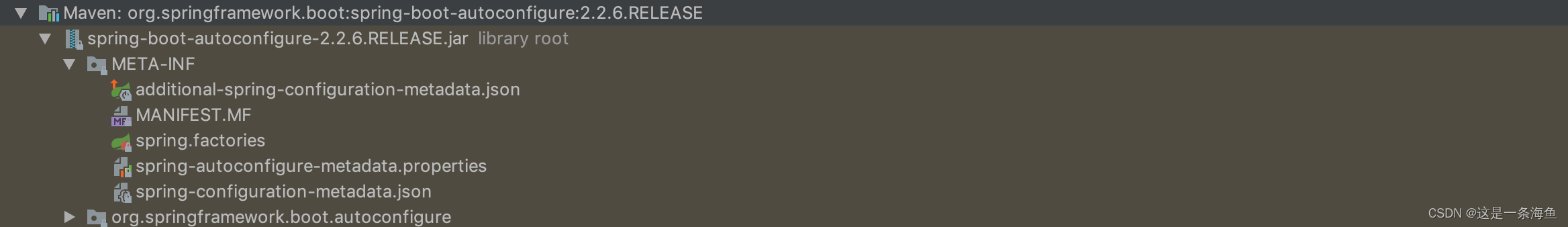

所以我们从spring-boot-autoconfigure下的spring.factories开始

一、DispatcherServlet的注册

1.1 把DispatcherServlet注入IOC容器

DispatcherServlet是通过DispatcherServletAutoConfiguration注册的

@AutoConfigureOrder(Ordered.HIGHEST_PRECEDENCE)
@Configuration(proxyBeanMethods = false)
@ConditionalOnWebApplication(type = Type.SERVLET)
@ConditionalOnClass(DispatcherServlet.class)
@AutoConfigureAfter(ServletWebServerFactoryAutoConfiguration.class)
public class DispatcherServletAutoConfiguration {

	public static final String DEFAULT_DISPATCHER_SERVLET_BEAN_NAME = "dispatcherServlet";

	public static final String DEFAULT_DISPATCHER_SERVLET_REGISTRATION_BEAN_NAME = "dispatcherServletRegistration";

	@Configuration(proxyBeanMethods = false)
	@Conditional(DefaultDispatcherServletCondition.class)
	@ConditionalOnClass(ServletRegistration.class)
	@EnableConfigurationProperties({ HttpProperties.class, WebMvcProperties.class })
	protected static class DispatcherServletConfiguration {

		@Bean(name = DEFAULT_DISPATCHER_SERVLET_BEAN_NAME)
		public DispatcherServlet dispatcherServlet(HttpProperties httpProperties, WebMvcProperties webMvcProperties) {
			DispatcherServlet dispatcherServlet = new DispatcherServlet();
			dispatcherServlet.setDispatchOptionsRequest(webMvcProperties.isDispatchOptionsRequest());
			dispatcherServlet.setDispatchTraceRequest(webMvcProperties.isDispatchTraceRequest());
			dispatcherServlet.setThrowExceptionIfNoHandlerFound(webMvcProperties.isThrowExceptionIfNoHandlerFound());
			dispatcherServlet.setPublishEvents(webMvcProperties.isPublishRequestHandledEvents());
			dispatcherServlet.setEnableLoggingRequestDetails(httpProperties.isLogRequestDetails());
			return dispatcherServlet;
		}

		@Bean
		@ConditionalOnBean(MultipartResolver.class)
		@ConditionalOnMissingBean(name = DispatcherServlet.MULTIPART_RESOLVER_BEAN_NAME)
		public MultipartResolver multipartResolver(MultipartResolver resolver) {
			// Detect if the user has created a MultipartResolver but named it incorrectly
			return resolver;
		}

	}

	@Configuration(proxyBeanMethods = false)
	@Conditional(DispatcherServletRegistrationCondition.class)
	@ConditionalOnClass(ServletRegistration.class)
	@EnableConfigurationProperties(WebMvcProperties.class)
	@Import(DispatcherServletConfiguration.class)
	protected static class DispatcherServletRegistrationConfiguration {

		@Bean(name = DEFAULT_DISPATCHER_SERVLET_REGISTRATION_BEAN_NAME)
		@ConditionalOnBean(value = DispatcherServlet.class, name = DEFAULT_DISPATCHER_SERVLET_BEAN_NAME)
		public DispatcherServletRegistrationBean dispatcherServletRegistration(DispatcherServlet dispatcherServlet,
				WebMvcProperties webMvcProperties, ObjectProvider<MultipartConfigElement> multipartConfig) {
			DispatcherServletRegistrationBean registration = new DispatcherServletRegistrationBean(dispatcherServlet,
					webMvcProperties.getServlet().getPath());
			registration.setName(DEFAULT_DISPATCHER_SERVLET_BEAN_NAME);
			registration.setLoadOnStartup(webMvcProperties.getServlet().getLoadOnStartup());
			multipartConfig.ifAvailable(registration::setMultipartConfig);
			return registration;
		}

	}

	@Order(Ordered.LOWEST_PRECEDENCE - 10)
	private static class DefaultDispatcherServletCondition extends SpringBootCondition {

		@Override
		public ConditionOutcome getMatchOutcome(ConditionContext context, AnnotatedTypeMetadata metadata) {
			ConditionMessage.Builder message = ConditionMessage.forCondition("Default DispatcherServlet");
			ConfigurableListableBeanFactory beanFactory = context.getBeanFactory();
			List<String> dispatchServletBeans = Arrays
					.asList(beanFactory.getBeanNamesForType(DispatcherServlet.class, false, false));
			if (dispatchServletBeans.contains(DEFAULT_DISPATCHER_SERVLET_BEAN_NAME)) {
				return ConditionOutcome
						.noMatch(message.found("dispatcher servlet bean").items(DEFAULT_DISPATCHER_SERVLET_BEAN_NAME));
			}
			if (beanFactory.containsBean(DEFAULT_DISPATCHER_SERVLET_BEAN_NAME)) {
				return ConditionOutcome.noMatch(
						message.found("non dispatcher servlet bean").items(DEFAULT_DISPATCHER_SERVLET_BEAN_NAME));
			}
			if (dispatchServletBeans.isEmpty()) {
				return ConditionOutcome.match(message.didNotFind("dispatcher servlet beans").atAll());
			}
			return ConditionOutcome.match(message.found("dispatcher servlet bean", "dispatcher servlet beans")
					.items(Style.QUOTE, dispatchServletBeans)
					.append("and none is named " + DEFAULT_DISPATCHER_SERVLET_BEAN_NAME));
		}

	}

	@Order(Ordered.LOWEST_PRECEDENCE - 10)
	private static class DispatcherServletRegistrationCondition extends SpringBootCondition {

		@Override
		public ConditionOutcome getMatchOutcome(ConditionContext context, AnnotatedTypeMetadata metadata) {
			ConfigurableListableBeanFactory beanFactory = context.getBeanFactory();
			ConditionOutcome outcome = checkDefaultDispatcherName(beanFactory);
			if (!outcome.isMatch()) {
				return outcome;
			}
			return checkServletRegistration(beanFactory);
		}

		private ConditionOutcome checkDefaultDispatcherName(ConfigurableListableBeanFactory beanFactory) {
			List<String> servlets = Arrays
					.asList(beanFactory.getBeanNamesForType(DispatcherServlet.class, false, false));
			boolean containsDispatcherBean = beanFactory.containsBean(DEFAULT_DISPATCHER_SERVLET_BEAN_NAME);
			if (containsDispatcherBean && !servlets.contains(DEFAULT_DISPATCHER_SERVLET_BEAN_NAME)) {
				return ConditionOutcome.noMatch(
						startMessage().found("non dispatcher servlet").items(DEFAULT_DISPATCHER_SERVLET_BEAN_NAME));
			}
			return ConditionOutcome.match();
		}

		private ConditionOutcome checkServletRegistration(ConfigurableListableBeanFactory beanFactory) {
			ConditionMessage.Builder message = startMessage();
			List<String> registrations = Arrays
					.asList(beanFactory.getBeanNamesForType(ServletRegistrationBean.class, false, false));
			boolean containsDispatcherRegistrationBean = beanFactory
					.containsBean(DEFAULT_DISPATCHER_SERVLET_REGISTRATION_BEAN_NAME);
			if (registrations.isEmpty()) {
				if (containsDispatcherRegistrationBean) {
					return ConditionOutcome.noMatch(message.found("non servlet registration bean")
							.items(DEFAULT_DISPATCHER_SERVLET_REGISTRATION_BEAN_NAME));
				}
				return ConditionOutcome.match(message.didNotFind("servlet registration bean").atAll());
			}
			if (registrations.contains(DEFAULT_DISPATCHER_SERVLET_REGISTRATION_BEAN_NAME)) {
				return ConditionOutcome.noMatch(message.found("servlet registration bean")
						.items(DEFAULT_DISPATCHER_SERVLET_REGISTRATION_BEAN_NAME));
			}
			if (containsDispatcherRegistrationBean) {
				return ConditionOutcome.noMatch(message.found("non servlet registration bean")
						.items(DEFAULT_DISPATCHER_SERVLET_REGISTRATION_BEAN_NAME));
			}
			return ConditionOutcome.match(message.found("servlet registration beans").items(Style.QUOTE, registrations)
					.append("and none is named " + DEFAULT_DISPATCHER_SERVLET_REGISTRATION_BEAN_NAME));
		}

		private ConditionMessage.Builder startMessage() {
			return ConditionMessage.forCondition("DispatcherServlet Registration");
		}

	}

}

这也是SpringBoot中IOC容器和WEB容器是同一个的原因

Spring把DispatcherServlet放到容器中后，在DispatcherServlet的初始化中会执行ApplicationContextAwareProcessor的postProcessBeforeInitialization方法，而其postProcessBeforeInitialization底层如下

private void invokeAwareInterfaces(Object bean) {
		if (bean instanceof EnvironmentAware) {
			((EnvironmentAware) bean).setEnvironment(this.applicationContext.getEnvironment());
		}
		if (bean instanceof EmbeddedValueResolverAware) {
			((EmbeddedValueResolverAware) bean).setEmbeddedValueResolver(this.embeddedValueResolver);
		}
		if (bean instanceof ResourceLoaderAware) {
			((ResourceLoaderAware) bean).setResourceLoader(this.applicationContext);
		}
		if (bean instanceof ApplicationEventPublisherAware) {
			((ApplicationEventPublisherAware) bean).setApplicationEventPublisher(this.applicationContext);
		}
		if (bean instanceof MessageSourceAware) {
			((MessageSourceAware) bean).setMessageSource(this.applicationContext);
		}
		if (bean instanceof ApplicationContextAware) {
			((ApplicationContextAware) bean).setApplicationContext(this.applicationContext);
		}
	}

而DispatcherServlet是一个ApplicationContextAware，所以会执行其setApplicationContext方法，设置其属性webApplicationContext

@Override
	public void setApplicationContext(ApplicationContext applicationContext) {
	   //传入ioc容器
		if (this.webApplicationContext == null && applicationContext instanceof WebApplicationContext) {
			this.webApplicationContext = (WebApplicationContext) applicationContext;
			this.webApplicationContextInjected = true;
		}
	}

所以在web容器启动过程会把web容器设置成和ioc容器一样，springMVC容器创建代码如下，参考文章springMVC全注解启动和容器的初始化

protected WebApplicationContext initWebApplicationContext() {
		WebApplicationContext rootContext =
				WebApplicationContextUtils.getWebApplicationContext(getServletContext());
		WebApplicationContext wac = null;

        //因为webApplicationContext这里有值了，所以会进入这里
		if (this.webApplicationContext != null) {
	        //把web容器设置成和ioc容器一样
			wac = this.webApplicationContext;
			if (wac instanceof ConfigurableWebApplicationContext) {
				ConfigurableWebApplicationContext cwac = (ConfigurableWebApplicationContext) wac;
				if (!cwac.isActive()) {
					if (cwac.getParent() == null)
						cwac.setParent(rootContext);
					}
					configureAndRefreshWebApplicationContext(cwac);
				}
			}
		}
		if (wac == null) {
			wac = findWebApplicationContext();
		}
		if (wac == null) {
			wac = createWebApplicationContext(rootContext);
		}

		if (!this.refreshEventReceived) {
			synchronized (this.onRefreshMonitor) {
				onRefresh(wac);
			}
		}

		if (this.publishContext) {
			String attrName = getServletContextAttributeName();
			getServletContext().setAttribute(attrName, wac);
		}
		return wac;
	}

这里可能要有人问了，为什么在springMVC环境中，this.webApplicationContext为null,因为在springMVC中DispatcherServlet没有通过spring容器管理

protected void registerDispatcherServlet(ServletContext servletContext) {
		String servletName = getServletName();
		Assert.hasLength(servletName, "getServletName() must not return null or empty");
        //创建web容器
		WebApplicationContext servletAppContext = createServletApplicationContext();
		Assert.notNull(servletAppContext, "createServletApplicationContext() must not return null");
        //创建DispatcherServlet对象
		FrameworkServlet dispatcherServlet = createDispatcherServlet(servletAppContext);
		Assert.notNull(dispatcherServlet, "createDispatcherServlet(WebApplicationContext) must not return null");
		dispatcherServlet.setContextInitializers(getServletApplicationContextInitializers());
        //把dispatcherServlet作为Servlet注册到上下文中
		ServletRegistration.Dynamic registration = servletContext.addServlet(servletName, dispatcherServlet);
		if (registration == null) {
			throw new IllegalStateException("Failed to register servlet with name '" + servletName + "'. " +
					"Check if there is another servlet registered under the same name.");
		}
        //容器在启动的时候加载这个servlet，其优先级为1（正数的值越小，该servlet的优先级越高，应用启动时就越先加载）
		registration.setLoadOnStartup(1);
		//设置Servlet映射mapping路径
		//getServletMappings()是模版方法，需要我们自己配置
		registration.addMapping(getServletMappings());
		//设置是否支持异步请求
		//isAsyncSupported默认是true
		registration.setAsyncSupported(isAsyncSupported());
        //处理自定义的Filter进来，一般我们Filter不这么加进来，而是自己@WebFilter，或者借助Spring，
        //备注：这里添加进来的Filter都仅仅只拦截过滤上面注册的dispatchServlet
		Filter[] filters = getServletFilters();
		if (!ObjectUtils.isEmpty(filters)) {
			for (Filter filter : filters) {
				registerServletFilter(servletContext, filter);
			}
		}
		//这个很清楚：调用者若相对dispatcherServlet有自己更个性化的参数设置，复写此方法即可
		customizeRegistration(registration);
	}

1.1 把DispatcherServlet注入Servlet容器

SpringBoot中容器是AnnotationConfigServletWebServerApplicationContext，其onRefresh()方法如下

@Override
protected void onRefresh() {
	super.onRefresh();
	try {
		createWebServer(); //创建Servlet容器
	}
	catch (Throwable ex) {
		throw new ApplicationContextException("Unable to start web server", ex);
	}
}

private void createWebServer() {
		WebServer webServer = this.webServer;
		ServletContext servletContext = getServletContext();
		if (webServer == null && servletContext == null) {
			ServletWebServerFactory factory = getWebServerFactory();
			this.webServer = factory.getWebServer(getSelfInitializer());//创建容器，并执行所有ServletContextInitializer的onStartup
		}
		else if (servletContext != null) {
			try {
				getSelfInitializer().onStartup(servletContext);
			}
			catch (ServletException ex) {
				throw new ApplicationContextException("Cannot initialize servlet context", ex);
			}
		}
		initPropertySources();
	}

注意，这里他不会执行SpringServletContainerInitializer。

流程如下
1、通过getSelfInitializer()方法执行容器中所有的ServletContextInitializer

private org.springframework.boot.web.servlet.ServletContextInitializer getSelfInitializer() {
	return this::selfInitialize;
}
private void selfInitialize(ServletContext servletContext) throws ServletException {
	prepareWebApplicationContext(servletContext);
	registerApplicationScope(servletContext);
	WebApplicationContextUtils.registerEnvironmentBeans(getBeanFactory(), servletContext);
	for (ServletContextInitializer beans : getServletContextInitializerBeans()) {
		beans.onStartup(servletContext);
	}
}

而ServletContextInitializer有个子类ServletRegistrationBean，通过其addRegistration方法注入Servlet容器中

@Override
protected ServletRegistration.Dynamic addRegistration(String description, ServletContext servletContext) {
	String name = getServletName();
	return servletContext.addServlet(name, this.servlet);
}
