小伙伴们，你们好，我是老寇

目录

一、职责链模式

二、装饰器模式

三、观察者模式

四、webmagic

五、微服务集成

六、测试

一、职责链模式

介绍

顾名思义，职责链模式是为请求创建一个接收者对象的链，对请求的发送者和接收者进行解耦。

举个例子，比如说，公司请假，根据请假时长不同，递交到公司领导的级别也不一样，这种层级递交的关系就是一种链式结构

实现

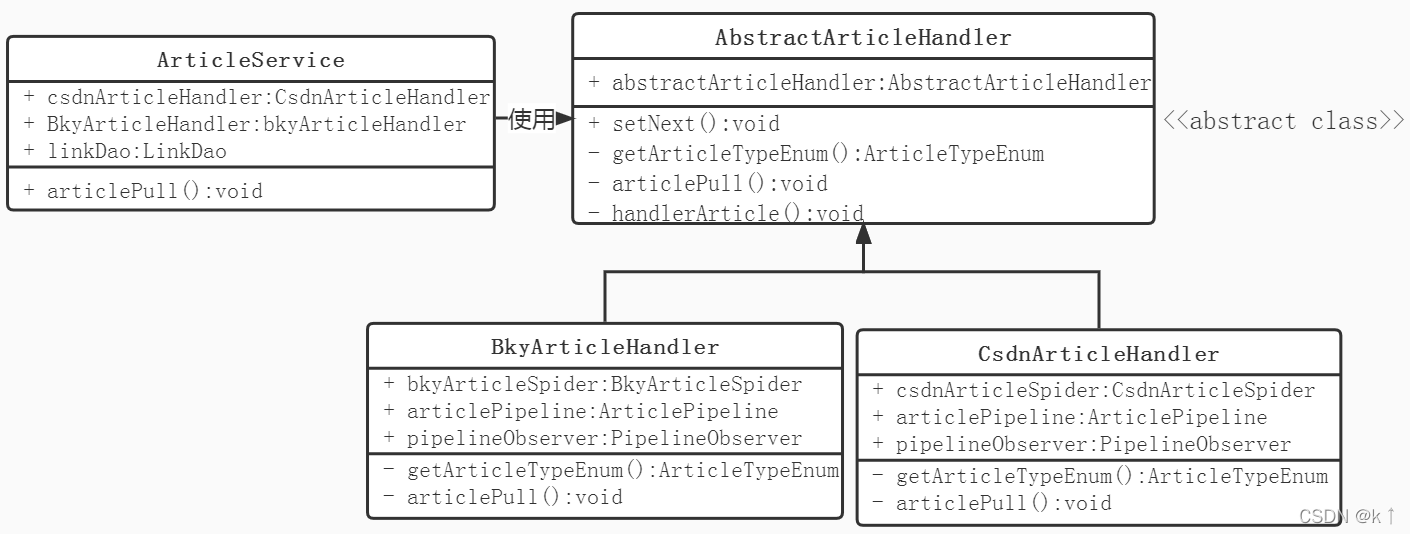

创建抽象类AbstractArticleHandler，创建两种类型的文章处理类，都扩展了AbstractArticleHandler，每个文章处理类都有自己的逻辑，通过文章类型判断，如果是则执行相应文章处理类，否则把消息传给下一个文章处理类

步骤1

创建抽象的文章处理类

public abstract class AbstractArticleHandler {

    /**
     * 下一个处理者
     */
    private AbstractArticleHandler abstractArticleHandler;

    /**
     * 获取articleType
     * @return
     */
    protected abstract ArticleTypeEnum getArticleTypeEnum();

    /**
     * 拉取文章
     * @param uris 链接数组
     * @return
     */
    protected abstract void articlePull(String[] uris);

    public final void handlerArticle(final List<String> links,final String articleType) {
        if (this.getArticleTypeEnum().getValue().equals(articleType)) {
            this.articlePull(links.toArray(new String[links.size()]));
        } else {
            if (this.abstractArticleHandler != null) {
                this.abstractArticleHandler.handlerArticle(links, articleType);
            }
        }
    }

    public void setNext(AbstractArticleHandler abstractArticleHandler) {
        this.abstractArticleHandler = abstractArticleHandler;
    }

}

enum ArticleTypeEnum {

    CSDN("csdn"),
    BKY("bky");

    private final String value;

    ArticleTypeEnum(String value) {
        this.value = value;
    }

    public String getValue() {
        return value;
    }

}

步骤2

创建扩展文章处理类

public class CsdnArticleHandler extends AbstractArticleHandler{

    @Override
    protected ArticleTypeEnum getArticleTypeEnum() {
        return ArticleTypeEnum.CSDN;
    }

    @Autowired
    private PipelineObserver pipelineObserver;

    @Override
    protected void articlePull(String[] uris) {

    }
}

public class BkyArticleHandler extends AbstractArticleHandler{

    @Override
    protected ArticleTypeEnum getArticleTypeEnum() {
        return ArticleTypeEnum.BKY;
    }

    @Override
    protected void articlePull(String[] uris) {

    }
}

步骤3

添加文章处理器，形成链式调用

public class ArticleService {

    public static void main(String[] args) {
        AbstractArticleHandler a1 = new CsdnArticleHandler();
        AbstractArticleHandler a2 = new BkyArticleHandler();
        a1.setNext(a2);
        a1.handlerArticle("链接地址","csdn");
    }
}

二、装饰器模式

介绍

装饰器模式允许向一个现有的对象添加新的功能，同时又不修改其结构

举个例子，比如说，手机有没有贴膜，都是是可以使用，手机贴上膜，不影响手机的使用

实现

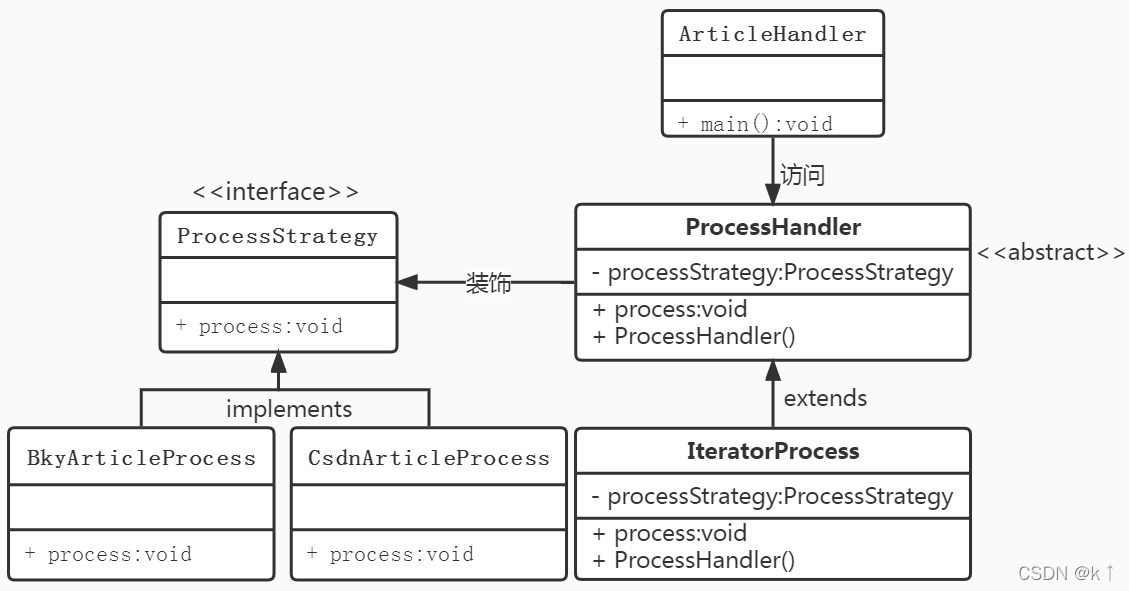

创建ProcessStrategy接口和实现了ProcessStrategy接口的实体类，然后创建一个实现ProcessStrategy接口的抽象装饰类ProcessHandler，并把processStrategy对象作为它的实例变量，IteratorProcess实现ProcessHandler实体类，ArticleHandler类使用ProcessHandler来装饰ProcessStrategy

步骤1

创建接口

/**
 * @author Kou Shenhai
 * @version 1.0
 * @date 2021/4/24 0024 下午 3:44
 */
public interface ProcessStrategy {

    /**
     * 爬虫具体执行方法
     * @param page
     */
     void process(Page page);

}

步骤2

创建实现接口的实现类

/**
 *
 * @author Kou Shenhai
 * @version 1.0
 * @date 2021/4/24 0024 下午 4:05
 */
public class BkyArticleProcess implements ProcessStrategy{

    @Override
    public void process(Page page) {

    }

}

/**
 *
 * @author Kou Shenhai
 * @version 1.0
 * @date 2021/4/24 0024 下午 4:05
 */
public class CsdnArticleProcess implements ProcessStrategy{

    @Override
    public void process(Page page) {

    }

}

步骤3

创建实现ProcessStrategy接口的抽象装饰类

/**
 * 装饰类 ，伪实现类
 * @author Kou Shenhai
 * @version 1.0
 * @date 2021/4/24 0024 下午 4:01
 */
public abstract class ProcessHandler implements ProcessStrategy{

    protected volatile ProcessStrategy processStrategy;

    public ProcessHandler(ProcessStrategy processStrategy) {
        this.processStrategy = processStrategy;
    }

    @Override
    public void process(Page page) {
        processStrategy.process(page);
    }

}

步骤4

扩展ProcessHandler类的实体装饰类

/**
 * 装饰者，用来装饰csdn文章
 * @author Kou Shenhai
 * @version 1.0
 * @date 2021/4/24 0024 下午 4:15
 */
public class IteratorProcess extends ProcessHandler{

    public IteratorProcess(ProcessStrategy processStrategy) {
        super(processStrategy);
    }

}

步骤5

使用IteratorProcess来装饰ProcessStrategy对象

public class ArticleHandler{

public static void main(String[] args) {
    //装饰
    IteratorProcess process = new IteratorProcess(new BkyArticleProcess());
}

}

三、观察者模式

介绍

当对象存在一对多关系时，则使用观察者模式。

举个例子，比如说一个对象的数据发生变更，则会自动通知依赖它的对象

注：jdk有对观察者模式的支持类

实现（采用jdk自带的观察者模式并进行扩展）

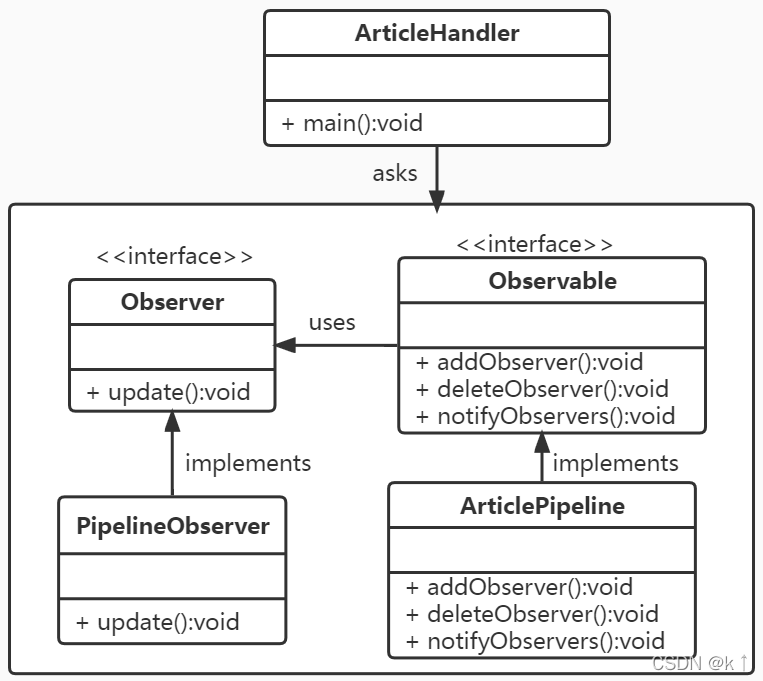

观察者模式使用三个类，ArticleObserver、Observer和Observable（由具体的类来实现）。Observable对象带有绑定观察者到ArticleObserver对象和从Client对象解绑观察者的方法。我们创建Observable类、Observer接口和实现Observer类的实体类

步骤1

创建Observable类

/**
 * 参考java.util.Observable
 * 让具体的实现类实现相关逻辑，^秒啊^
 * @author Kou Shenhai
 */
public interface Observable {

    /**
     * 加入观察者
     * @param o
     */
    void addObserver(Observer o);

    /**
     * 通知观察者
     * @param arg
     */
    void notifyObservers(Object arg);

    /**
     * 解绑观察者
     * @param o
     */
    void deleteObserver(Observer o);

}

步骤2

实现Observable类

public class ArticlePipeline implements Observable{

    private Vector<Observer> obs;

    public ArticlePipeline() {
        obs = new Vector<>(1);
    }

    @Override
    public void process(ResultItems resultItems, Task task) {
        notifyObservers(resultItems.getAll());
    }

    @Override
    public synchronized void addObserver(Observer o) {
        if (o == null) {
            throw new NullPointerException();
        }
        if (!obs.contains(o)) {
            obs.addElement(o);
        }
    }

    @Override
    public synchronized void notifyObservers(Object arg) {
        Object[] arrLocal;
        synchronized (this) {
            arrLocal = obs.toArray();
        }
        for (int i = arrLocal.length - 1; i >= 0; i--) {
            ((Observer)arrLocal[i]).update(this, arg);
        }
    }

    @Override
    public synchronized void deleteObserver(Observer o) {
        obs.removeElement(o);
    }

}

步骤3

创建 Observer 类

/**
 * 参考{@link java.util.Observer}设计
 * @author Kou Shenhai
 */
public interface Observer {

    /**
     * 信息变更
     * @param o
     * @param data
     */
    void update(Observable o, Object data);

}

步骤4

创建实体观察类

public class PipelineObserver implements Observer {

    @Override
    public void update(Observable o, Object data) {

    }
}

步骤5

使用Observable和实体观察者对象

public class ArticleHandler{
public static void main(String[] args) {
    Observer o = new PipelineObserver();
    Observable ob = new ArticlePipeline();
    ob.addObserver(o);
}
}

四、webmagic

官方文档

介绍

webmagic的是参考业界最优秀爬虫Scrapy来实现的，使用了HttpClient、Jsoup等Java世界最成熟的工具

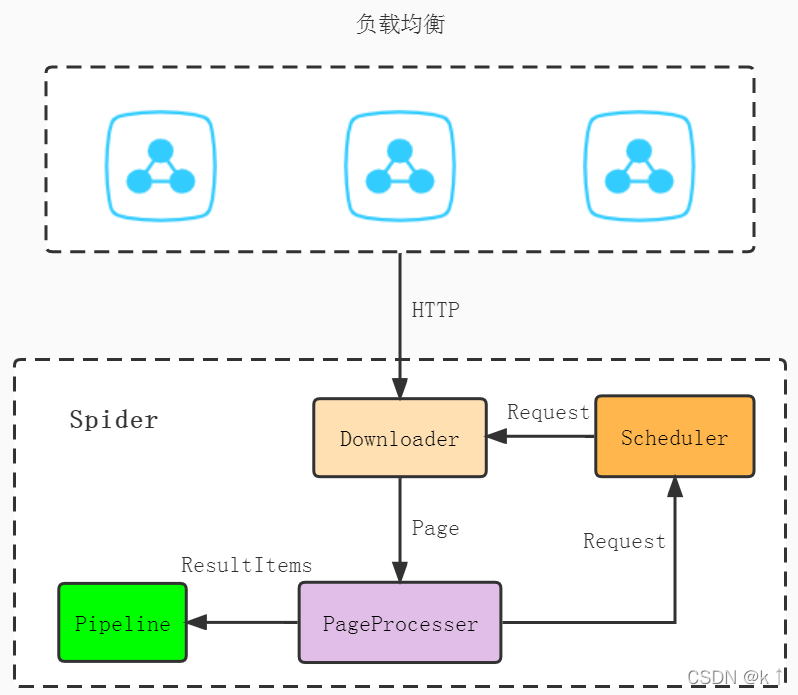

架构

WebMagic的结构分为Downloader（下载）、PageProcessor（处理）、Scheduler（管理）、Pipeline（持久化）四个组件，并由Spider（容器）将它们彼此组织起来，可以互相交互、流程化的执行，总体架构图如下

组件

Downloader

• 负责从网络上下载页面，以便后续处理，webmagic默认使用httpclient

PageProcessor

• 负责解析页面，抽取有用信息，以及发现新的链接，使用Jsoup来解析HTML

Scheduler

• 负责管理待抓取URL，以及一些去重工作。webmagic默认使用JDK自带的内存队列来管理URL，用集合去重，支持redis分布式管理

Pipeline

• 负责抽取结果的处理，包括计算、持久化到文件、数据库等

XSoup

• 基于Jsoup开发的一款XPath解析器

五、微服务集成

数据库表设计

-- ----------------------------
-- Table structure for boot_link
-- ----------------------------
DROP TABLE IF EXISTS `boot_link`;
CREATE TABLE `boot_link`  (
  `id` bigint(20) NOT NULL COMMENT 'id',
  `uri` varchar(400) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '文章链接',
  `type` varchar(20) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '网站类型',
  PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB CHARACTER SET = utf8mb4 COLLATE = utf8mb4_general_ci ROW_FORMAT = Dynamic;

INSERT INTO `boot_link` VALUES ('11', 'https://www.cnblogs.com/koushenhai/p/12595630.html', 'bky');
INSERT INTO `boot_link` VALUES ('12', 'https://kcloud.blog.csdn.net/article/details/118633942', 'csdn');
INSERT INTO `boot_link` VALUES ('20', 'https://kcloud.blog.csdn.net/article/details/121491124', 'csdn');
INSERT INTO `boot_link` VALUES ('33', 'https://kcloud.blog.csdn.net/article/details/82109656', 'csdn');
INSERT INTO `boot_link` VALUES ('41', 'https://kcloud.blog.csdn.net/article/details/117769662', 'csdn');
INSERT INTO `boot_link` VALUES ('49', 'https://kcloud.blog.csdn.net/article/details/118660073', 'csdn');
INSERT INTO `boot_link` VALUES ('57', 'https://kcloud.blog.csdn.net/article/details/119720174', 'csdn');
INSERT INTO `boot_link` VALUES ('65', 'https://kcloud.blog.csdn.net/article/details/123179670', 'csdn');
INSERT INTO `boot_link` VALUES ('66', 'https://kcloud.blog.csdn.net/article/details/117635759', 'csdn');
INSERT INTO `boot_link` VALUES ('74', 'https://kcloud.blog.csdn.net/article/details/117771583', 'csdn');
INSERT INTO `boot_link` VALUES ('78', 'https://kcloud.blog.csdn.net/article/details/123039609', 'csdn');
INSERT INTO `boot_link` VALUES ('79', 'https://kcloud.blog.csdn.net/article/details/82588914', 'csdn');
INSERT INTO `boot_link` VALUES ('96', 'https://kcloud.blog.csdn.net/article/details/108021143', 'csdn');
INSERT INTO `boot_link` VALUES ('118', 'https://kcloud.blog.csdn.net/article/details/121305244', 'csdn');
INSERT INTO `boot_link` VALUES ('128', 'https://kcloud.blog.csdn.net/article/details/82110125', 'csdn');
INSERT INTO `boot_link` VALUES ('129', 'https://kcloud.blog.csdn.net/article/details/123630814', 'csdn');
INSERT INTO `boot_link` VALUES ('130', 'https://kcloud.blog.csdn.net/article/details/116420798', 'csdn');
INSERT INTO `boot_link` VALUES ('131', 'https://kcloud.blog.csdn.net/article/details/123484520', 'csdn');
INSERT INTO `boot_link` VALUES ('132', 'https://kcloud.blog.csdn.net/article/details/123013305', 'csdn');
INSERT INTO `boot_link` VALUES ('133', 'https://kcloud.blog.csdn.net/article/details/123390833', 'csdn');
INSERT INTO `boot_link` VALUES ('134', 'https://kcloud.blog.csdn.net/article/details/123311487', 'csdn');
INSERT INTO `boot_link` VALUES ('135', 'https://kcloud.blog.csdn.net/article/details/123292276', 'csdn');
INSERT INTO `boot_link` VALUES ('136', 'https://kcloud.blog.csdn.net/article/details/123123229', 'csdn');
INSERT INTO `boot_link` VALUES ('137', 'https://kcloud.blog.csdn.net/article/details/116704223', 'csdn');
INSERT INTO `boot_link` VALUES ('145', 'https://kcloud.blog.csdn.net/article/details/123739314', 'csdn');
INSERT INTO `boot_link` VALUES ('146', 'https://kcloud.blog.csdn.net/article/details/123688809', 'csdn');
INSERT INTO `boot_link` VALUES ('147', 'https://kcloud.blog.csdn.net/article/details/123673741', 'csdn');
INSERT INTO `boot_link` VALUES ('148', 'https://kcloud.blog.csdn.net/article/details/123628721', 'csdn');
INSERT INTO `boot_link` VALUES ('149', 'https://kcloud.blog.csdn.net/article/details/123599384', 'csdn');
INSERT INTO `boot_link` VALUES ('150', 'https://kcloud.blog.csdn.net/article/details/122181814', 'csdn');
INSERT INTO `boot_link` VALUES ('151', 'https://kcloud.blog.csdn.net/article/details/121557788', 'csdn');
INSERT INTO `boot_link` VALUES ('159', 'https://kcloud.blog.csdn.net/article/details/116449621', 'csdn');
INSERT INTO `boot_link` VALUES ('160', 'https://kcloud.blog.csdn.net/article/details/83623118', 'csdn');
INSERT INTO `boot_link` VALUES ('161', 'https://kcloud.blog.csdn.net/article/details/84777724', 'csdn');
INSERT INTO `boot_link` VALUES ('162', 'https://kcloud.blog.csdn.net/article/details/105587614', 'csdn');
INSERT INTO `boot_link` VALUES ('163', 'https://kcloud.blog.csdn.net/article/details/83515122', 'csdn');
INSERT INTO `boot_link` VALUES ('164', 'https://kcloud.blog.csdn.net/article/details/83451040', 'csdn');
INSERT INTO `boot_link` VALUES ('165', 'https://kcloud.blog.csdn.net/article/details/117252826', 'csdn');
INSERT INTO `boot_link` VALUES ('166', 'https://kcloud.blog.csdn.net/article/details/84826176', 'csdn');
INSERT INTO `boot_link` VALUES ('167', 'https://kcloud.blog.csdn.net/article/details/120031600', 'csdn');
INSERT INTO `boot_link` VALUES ('168', 'https://kcloud.blog.csdn.net/article/details/119685953', 'csdn');
INSERT INTO `boot_link` VALUES ('169', 'https://kcloud.blog.csdn.net/article/details/120147123', 'csdn');
INSERT INTO `boot_link` VALUES ('170', 'https://kcloud.blog.csdn.net/article/details/120245035', 'csdn');
INSERT INTO `boot_link` VALUES ('171', 'https://kcloud.blog.csdn.net/article/details/120190383', 'csdn');
INSERT INTO `boot_link` VALUES ('179', 'https://kcloud.blog.csdn.net/article/details/94590629', 'csdn');
INSERT INTO `boot_link` VALUES ('187', 'https://kcloud.blog.csdn.net/article/details/116949872', 'csdn');
INSERT INTO `boot_link` VALUES ('192', 'https://kcloud.blog.csdn.net/article/details/123789292', 'csdn');
INSERT INTO `boot_link` VALUES ('193', 'https://kcloud.blog.csdn.net/article/details/123780832', 'csdn');
INSERT INTO `boot_link` VALUES ('194', 'https://kcloud.blog.csdn.net/article/details/123771040', 'csdn');
INSERT INTO `boot_link` VALUES ('195', 'https://kcloud.blog.csdn.net/article/details/122522290', 'csdn');
INSERT INTO `boot_link` VALUES ('196', 'https://kcloud.blog.csdn.net/article/details/123833614', 'csdn');

DROP TABLE IF EXISTS `boot_article`;
CREATE TABLE `boot_article`  (
  `id` bigint(20) NOT NULL COMMENT 'id',
  `title` varchar(200) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '文章链接',
  `content` longtext CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '网站类型',
  PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB CHARACTER SET = utf8mb4 COLLATE = utf8mb4_general_ci ROW_FORMAT = Dynamic;

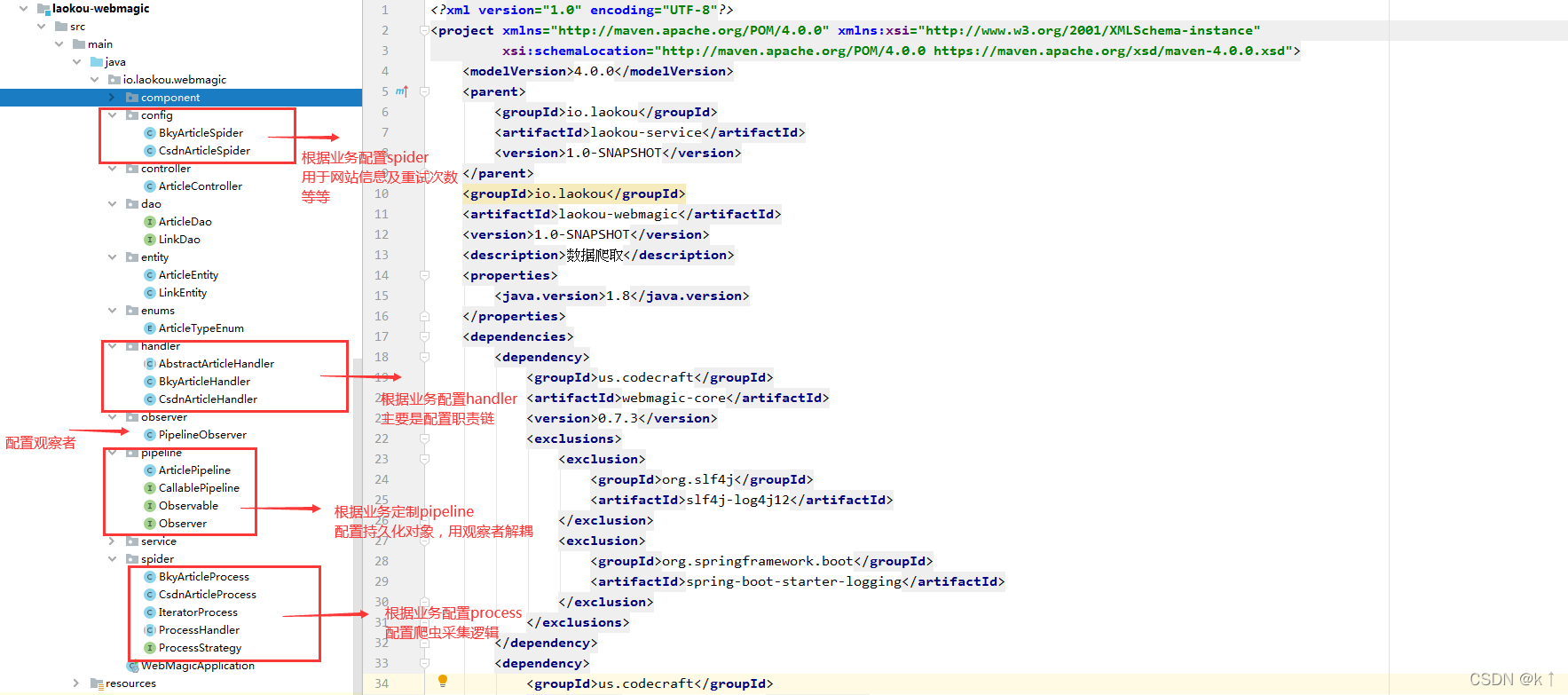

微服务

引入依赖

        <dependency>
            <groupId>us.codecraft</groupId>
            <artifactId>webmagic-core</artifactId>
            <version>0.7.3</version>
            <exclusions>
                <exclusion>
                    <groupId>org.slf4j</groupId>
                    <artifactId>slf4j-log4j12</artifactId>
                </exclusion>
                <exclusion>
                    <groupId>org.springframework.boot</groupId>
                    <artifactId>spring-boot-starter-logging</artifactId>
                </exclusion>
            </exclusions>
        </dependency>
        <dependency>
            <groupId>us.codecraft</groupId>
            <artifactId>webmagic-extension</artifactId>
            <version>0.7.3</version>
            <exclusions>
                <exclusion>
                    <groupId>org.slf4j</groupId>
                    <artifactId>slf4j-log4j12</artifactId>
                </exclusion>
                <exclusion>
                    <groupId>org.slf4j</groupId>
                    <artifactId>slf4j-api</artifactId>
                </exclusion>
                <exclusion>
                    <groupId>org.springframework.boot</groupId>
                    <artifactId>spring-boot-starter-logging</artifactId>
                </exclusion>
            </exclusions>
        </dependency>
        <dependency>
            <groupId>com.esotericsoftware</groupId>
            <artifactId>reflectasm</artifactId>
            <version>1.11.7</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-aspects</artifactId>
        </dependency>

代码架构

核心代码（以采集csdn为例）
创建CsdnArticleSpider类

/**
 * 爬虫默认实现
 * @author Kou Shenhai
 * @version 1.0
 * @date 2020/11/15 0015 下午 4:40
 */
@Configuration
@Slf4j
public class CsdnArticleSpider implements PageProcessor {

    private ProcessStrategy processStrategy;

    private static final int SLEEP_TIME = 3000;

    private static final int TIMEOUT = 3000;

    private static final int RETRY_TIMES = 10;

    private static final int RETRY_SLEEP_TIME = 3000;

    private static final String CHARSET = "utf-8";

    private static final String DOMAIN = "csdn.net";

    private static final String USER_AGENT = "Mozilla/5.0 (Windows NT 6.1; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/92.0.4515.131 Safari/537.36";

    /**
     *
     * @param site 抓取网站的相关配置，包括编码、重试次数、抓取间隔
     */
    private Site site = Site
            .me()
            .setRetryTimes(RETRY_TIMES)
            .setRetrySleepTime(RETRY_SLEEP_TIME)
            .setDomain(DOMAIN)
            .setSleepTime(SLEEP_TIME)
            .setTimeOut(TIMEOUT)
            .setCharset(CHARSET)
            .setUserAgent(USER_AGENT)
            .addHeader("Cookie","");

    public void setProcessStrategy(ProcessStrategy processStrategy) {
        this.processStrategy = processStrategy;
    }

    /**
     *
     * @param page process是定制爬虫逻辑的核心接口，在这里编写抽取逻辑
     */
    @Override
    public void process(Page page) {
        if (processStrategy == null) {
            throw new NullPointerException();
        }
        /**
         * 开始
         */
        preProcess(page);

        //策略模式
        processStrategy.process(page);

        /**
         * 结束
         */
        afterProcess(page);
    }

    @Override
    public Site getSite() {
        return site;
    }

    public Spider getSpider() {
        return Spider.create(this);
    }

    /**
     * 下面两个方法用于扩展自定义的process方法，比如加入迭代url等等，主要逻辑放在processStategy
     */

    protected void preProcess(Page page) {
        log.info("开始爬取...");
    }

    protected void afterProcess(Page page) {
        log.info("完成爬取...");
    }

}

创建CsdnArticleHandler

/**
 * @author Kou Shenhai
 */
@Component
public class CsdnArticleHandler extends AbstractArticleHandler{

    @Autowired
    private CsdnArticleSpider csdnArticleSpider;

    @Autowired
    private ArticlePipeline articlePipeline;

    @Override
    protected ArticleTypeEnum getArticleTypeEnum() {
        return ArticleTypeEnum.CSDN;
    }

    @Autowired
    private PipelineObserver pipelineObserver;

    @Override
    @Async
    protected void articlePull(String[] uris) {
        HttpClientDownloader httpClientDownloader = new HttpClientDownloader();
        articlePipeline.addObserver(pipelineObserver);
        csdnArticleSpider.setProcessStrategy(new IteratorProcess(new CsdnArticleProcess()));
        csdnArticleSpider.getSpider().addUrl(uris)
                .setDownloader(httpClientDownloader)
                // 开启线程抓取
                .thread(2 * Runtime.getRuntime().availableProcessors())
                .addPipeline(articlePipeline)
                //启动爬虫
                .start();
    }
}

创建ArticlePipeline

public class ArticlePipeline implements CallablePipeline{

    private Vector<Observer> obs;

    public ArticlePipeline() {
        obs = new Vector<>(1);
    }

    @Override
    public void process(ResultItems resultItems, Task task) {
        notifyObservers(resultItems.getAll());
    }

    @Override
    public synchronized void addObserver(Observer o) {
        if (o == null) {
            throw new NullPointerException();
        }
        if (!obs.contains(o)) {
            obs.addElement(o);
        }
    }

    @Override
    public synchronized void notifyObservers(Object arg) {
        Object[] arrLocal;
        synchronized (this) {
            arrLocal = obs.toArray();
        }
        for (int i = arrLocal.length - 1; i >= 0; i--) {
            ((Observer)arrLocal[i]).update(this, arg);
        }
    }

    @Override
    public synchronized void deleteObserver(Observer o) {
        obs.removeElement(o);
    }

}

创建CsdnArticleProcess

/**
 *
 * @author Kou Shenhai
 * @version 1.0
 * @date 2021/4/24 0024 下午 4:05
 */
public class CsdnArticleProcess implements ProcessStrategy{

    @Override
    public void process(Page page) {
        String content = page.getHtml().xpath("//*[@id='mainBox']/main/div[1]/article").get();
        String title = page.getHtml().xpath("//*[@id='articleContentId']/text()").get();
        page.putField("content",content);
        page.putField("title",title);
    }

}

六、测试

码云源码，点点我

数据采集运行概况

参考教程：菜鸟教程-设计模式

参考教程：webmagic文档

参考项目：牛客项目-网络爬虫

本项目仅作为技术学习研究使用，禁止用于任何商业用途，禁止任何损害网站利益的行为

本项目仅作为技术学习研究使用，禁止用于任何商业用途，禁止任何损害网站利益的行为

本项目仅作为技术学习研究使用，禁止用于任何商业用途，禁止任何损害网站利益的行为
