[Java知识库]Spring系列之AOP工作过程详解二

引言

还是一星期一更的经典栏目，如约而至
在这里插入图片描述
上回我们说到了AOP的xml解析过程，今天这篇文章，我们来讲解“代理子类生成”

入口

代理子类的生成的核心类AspectJAwareAdvisorAutoProxyCreator，这个类是在解析“proxy-target-class”这个属性的时候进行注册,也就是ConfigBeanDefinitionParser的configureAutoProxyCreator方法中注册：

public static void registerAspectJAutoProxyCreatorIfNecessary(
			ParserContext parserContext, Element sourceElement) {
		//也就是在这里进行的AspectJAwareAdvisorAutoProxyCreator类的注册工作
		BeanDefinition beanDefinition = AopConfigUtils.registerAspectJAutoProxyCreatorIfNecessary(
				parserContext.getRegistry(), parserContext.extractSource(sourceElement));
		useClassProxyingIfNecessary(parserContext.getRegistry(), sourceElement);
		registerComponentIfNecessary(beanDefinition, parserContext);
	}

现在已经知道代理子类的核心的注入到spring中的过程，那么这个类的真正工作过程在哪呢？

在这里插入图片描述

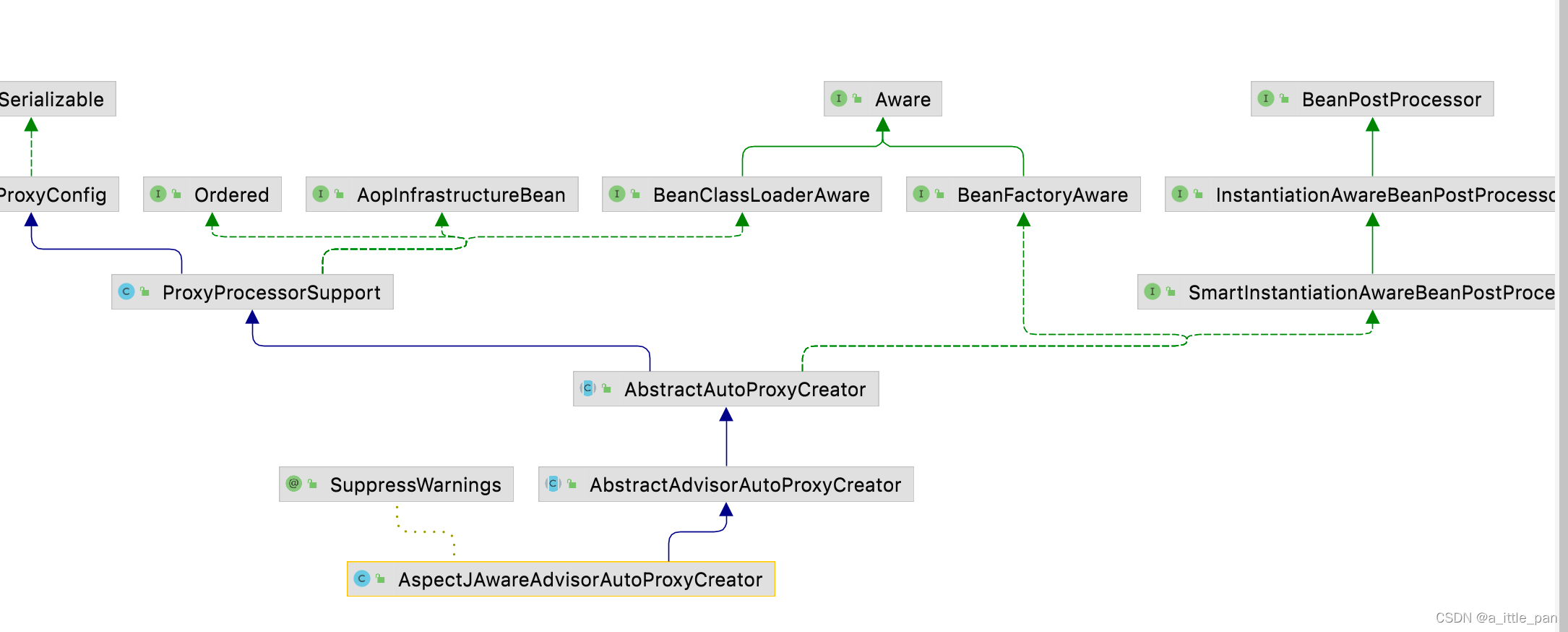

看AspectJAwareAdvisorAutoProxyCreator的类图，我们可以知道，这个类实现了SmartInstantiationAwareBeanPostProcessor，所以很容易想到入口应该位于此接口及其父接口(BeanPostProcessor)的相关方法中。实际上确实是这样的。

postProcessBeforeInstantiation（前置处理回调）

调用时机

不知道各位还是否记得之前在spring的IOC系列中Bean创建的过程中的调用时机，如果不记得自己回去再看一下（默认大家都记得😄）

AbstractAutowireCapableBeanFactory#createBean:

 Give BeanPostProcessors a chance to return a proxy instead of the target bean instance.
Object bean = resolveBeforeInstantiation(beanName, mbdToUse);
if (bean != null) {
    return bean;
}
Object beanInstance = doCreateBean(beanName, mbdToUse, args);

可以看出，调用发生在Bean实例的创建之前。

工作源码

AbstractAutoProxyCreator#postProcessBeforeInstantiation

@Override
	public Object postProcessBeforeInstantiation(Class<?> beanClass, String beanName) throws BeansException {
		Object cacheKey = getCacheKey(beanClass, beanName);

		if (beanName == null || !this.targetSourcedBeans.contains(beanName)) {
			if (this.advisedBeans.containsKey(cacheKey)) {
				return null;
			}
			if (isInfrastructureClass(beanClass) || shouldSkip(beanClass, beanName)) {
				this.advisedBeans.put(cacheKey, Boolean.FALSE);
				return null;
			}
		}

		// Create proxy here if we have a custom TargetSource.
		// Suppresses unnecessary default instantiation of the target bean:
		// The TargetSource will handle target instances in a custom fashion.
		if (beanName != null) {
			TargetSource targetSource = getCustomTargetSource(beanClass, beanName);
			if (targetSource != null) {
				this.targetSourcedBeans.add(beanName);
				Object[] specificInterceptors = getAdvicesAndAdvisorsForBean(beanClass, beanName, targetSource);
				Object proxy = createProxy(beanClass, beanName, specificInterceptors, targetSource);
				this.proxyTypes.put(cacheKey, proxy.getClass());
				return proxy;
			}
		}

		return null;
	}

这个方法逻辑有点复杂，我们还是分部分去讲解：

是否代理

Spring首先会对当前的beanClass进行检查(是否应该/可以对其进行代理)。

不应该代理的类分为两种情况:

用于实现AOP的Spring基础类，此种情况在isInfrastructureClass方法中完成检测(单词Infrastructure正是基础设施的意思)。
子类定义的应该跳过的类，默认AbstractAutoProxyCreator的实现直接返回false，即都不应该跳过

对应代码：

if (beanName == null || !this.targetSourcedBeans.contains(beanName)) {
			if (this.advisedBeans.containsKey(cacheKey)) {
				return null;
			}
			if (isInfrastructureClass(beanClass) || shouldSkip(beanClass, beanName)) {
				this.advisedBeans.put(cacheKey, Boolean.FALSE);
				return null;
			}
		}

其中AbstractAutoProxyCreator.isInfrastructureClass()方法返回给定的 bean 类是否代表一个不应该被代理的基础设施类。
默认实现将 Advices、Advisors 和 AopInfrastructureBeans 视为基础设施类。

protected boolean isInfrastructureClass(Class<?> beanClass) {
		boolean retVal = Advice.class.isAssignableFrom(beanClass) ||
				Pointcut.class.isAssignableFrom(beanClass) ||
				Advisor.class.isAssignableFrom(beanClass) ||
				AopInfrastructureBean.class.isAssignableFrom(beanClass);
		if (retVal && logger.isTraceEnabled()) {
			logger.trace("Did not attempt to auto-proxy infrastructure class [" + beanClass.getName() + "]");
		}
		return retVal;
	}

AbstractAutoProxyCreator#shouldSkip()如果给定的 bean 不应被此后处理器考虑自动代理，则子类应覆盖此方法以返回true 。
有时我们需要能够避免这种情况发生，如果它会导致循环引用。此实现返回false

protected boolean shouldSkip(Class<?> beanClass, String beanName) {
		return false;
	}

那么此方法跳过的是谁呢？其实就是我们通过aop:aspect标签配置的切面，即:

<bean id="aopAdvice" class="base.aop.AopDemoAdvice" />
<aop:config>
    <aop:aspect ref="aopAdvice">
    </aop:aspect>
</aop:config>

里的aopAdvice。

这体现在AspectJAwareAdvisorAutoProxyCreator重写其父类的shouldSkip方法中

@Override
	protected boolean shouldSkip(Class<?> beanClass, String beanName) {
		// TODO: Consider optimization by caching the list of the aspect names
		List<Advisor> candidateAdvisors = findCandidateAdvisors();
		for (Advisor advisor : candidateAdvisors) {
			if (advisor instanceof AspectJPointcutAdvisor) {
				if (((AbstractAspectJAdvice) advisor.getAdvice()).getAspectName().equals(beanName)) {
					return true;
				}
			}
		}
		return super.shouldSkip(beanClass, beanName);
	}

从前面的aop:aspect标签的解析过程，Spring对于aop:config的解析其实是把aop:before/after等标签解析成为了AspectJPointcutAdvisor类型的BeanDefinition，而aopAdvice以AbstractAspectJAdvice的类型保存在其中。

我们不难得出: Spring跳过的是适用于当前bean的Advisor的Advice/Aspect对象

到这里，我们可以将AOP的逻辑归纳一下，
如下图所示：
在这里插入图片描述
Advisor寻找

关键便是findCandidateAdvisors方法，最终调用BeanFactoryAdvisorRetrievalHelper.findAdvisorBeans:

    public List<Advisor> findAdvisorBeans() {
		// Determine list of advisor bean names, if not cached already.
		String[] advisorNames = null;
		synchronized (this) {
			//结果缓存
			advisorNames = this.cachedAdvisorBeanNames;
			if (advisorNames == null) {
				//去容器中寻找，不要在这里初始化 FactoryBeans：我们需要让所有常规 bean 保持未初始化状态，以便让自动代理创建者应用到它们
				advisorNames = BeanFactoryUtils.beanNamesForTypeIncludingAncestors(
						this.beanFactory, Advisor.class, true, false);
				this.cachedAdvisorBeanNames = advisorNames;
			}
		}
		if (advisorNames.length == 0) {
			return new LinkedList<Advisor>();
		}

		List<Advisor> advisors = new LinkedList<Advisor>();
		for (String name : advisorNames) {
			if (isEligibleBean(name)) {
				if (this.beanFactory.isCurrentlyInCreation(name)) {
					if (logger.isDebugEnabled()) {
						logger.debug("Skipping currently created advisor '" + name + "'");
					}
				}
				else {
					try {
						advisors.add(this.beanFactory.getBean(name, Advisor.class));
					}
					catch (BeanCreationException ex) {
						Throwable rootCause = ex.getMostSpecificCause();
						if (rootCause instanceof BeanCurrentlyInCreationException) {
							BeanCreationException bce = (BeanCreationException) rootCause;
							if (this.beanFactory.isCurrentlyInCreation(bce.getBeanName())) {
								if (logger.isDebugEnabled()) {
									logger.debug("Skipping advisor '" + name +
											"' with dependency on currently created bean: " + ex.getMessage());
								}
								// Ignore: indicates a reference back to the bean we're trying to advise.
								// We want to find advisors other than the currently created bean itself.
								continue;
							}
						}
						throw ex;
					}
				}
			}
		}
		return advisors;
	}

可以看出，首先是从容器中获取到所有的Advisor示例，然后调用isEligibleBean方法逐一判断Advisor是否适用于当前bean

适用性检测

确定具有给定名称的方面 bean 是否符合条件。默认实现总是返回true 。

protected boolean isEligibleAdvisorBean(String beanName) {
    return true;
}

而AbstractAdvisorAutoProxyCreator的子类AspectJAwareAdvisorAutoProxyCreator并没有覆盖此方法，所以此处会对容器中所有的Advisor的Advice进行跳过。

检测结果缓存
因为postProcessBeforeInstantiation方法会在每个bean初始化之前被调用，所以没有必要每次都真的进行基础类检测和跳过类检测，Spring使用了advisedBeans作为缓存用以提高性能，advisedBeans是通过ConcurrentHashMap实现的一个容器，初始容量为256。

private final Map<Object, Boolean> advisedBeans = new ConcurrentHashMap<Object, Boolean>(256);

TargetSource
从源码中可以看出，对于自定义的TargetSource，Spring会立即执行代理子类的创建。Spring的代理其实是针对TargetSource的

//如果我们有自定义 TargetSource，请在此处创建代理。
//抑制目标 bean 的不必要的默认实例化：
//TargetSource 将以自定义方式处理目标实例
if (beanName != null) {
			//为 bean 实例创建目标源。如果设置，则使用任何 TargetSourceCreators。如果不应使用自定义 TargetSource，则返回null 。
			//此实现使用“customTargetSourceCreators”属性。子类可以重写此方法以使用不同的机制
			TargetSource targetSource = getCustomTargetSource(beanClass, beanName);
			if (targetSource != null) {
				this.targetSourcedBeans.add(beanName);
				//返回是否要代理给定的 bean、要应用的附加建议（例如 AOP 联盟拦截器）和顾问
				Object[] specificInterceptors = getAdvicesAndAdvisorsForBean(beanClass, beanName, targetSource);
				//为给定的 bean 创建一个 AOP 代理
				Object proxy = createProxy(beanClass, beanName, specificInterceptors, targetSource);
				this.proxyTypes.put(cacheKey, proxy.getClass());
				return proxy;
			}
		}

到这里，beanpostprocessor中的前置处理回调就讲解完毕，那么我们来看看后置处理的逻辑是怎么样的：

postProcessAfterInitialization（后置处理回调）

AbstractAutoProxyCreator#postProcessAfterInitialization：

@Override
	public Object postProcessAfterInitialization(Object bean, String beanName) throws BeansException {
		if (bean != null) {
			Object cacheKey = getCacheKey(bean.getClass(), beanName);
			if (!this.earlyProxyReferences.contains(cacheKey)) {
				return wrapIfNecessary(bean, beanName, cacheKey);
			}
		}
		return bean;
	}

wrapIfNecessary：

如有必要，包装给定的bean，即如果它有资格被代理

protected Object wrapIfNecessary(Object bean, String beanName, Object cacheKey) {
		//自定义TargetSource，已经进行过代理子类生成
		if (beanName != null && this.targetSourcedBeans.contains(beanName)) {
			return bean;
		}
		if (Boolean.FALSE.equals(this.advisedBeans.get(cacheKey))) {
			return bean;
		}
		if (isInfrastructureClass(bean.getClass()) || shouldSkip(bean.getClass(), beanName)) {
			this.advisedBeans.put(cacheKey, Boolean.FALSE);
			return bean;
		}

		// Create proxy if we have advice.
		Object[] specificInterceptors = getAdvicesAndAdvisorsForBean(bean.getClass(), beanName, null);
		if (specificInterceptors != DO_NOT_PROXY) {
			this.advisedBeans.put(cacheKey, Boolean.TRUE);
			Object proxy = createProxy(
					bean.getClass(), beanName, specificInterceptors, new SingletonTargetSource(bean));
			this.proxyTypes.put(cacheKey, proxy.getClass());
			return proxy;
		}

		this.advisedBeans.put(cacheKey, Boolean.FALSE);
		return bean;
	}

Advisor寻找
即getAdvicesAndAdvisorsForBean方法，这里进行的便是去容器中寻找适用于当前bean的Advisor，最终调用的是

AbstractAdvisorAutoProxyCreator.findEligibleAdvisors:

protected List<Advisor> findEligibleAdvisors(Class<?> beanClass, String beanName) {
		//findCandidateAdvisors这个方法之前已经说过了，查找出所有的增强
		List<Advisor> candidateAdvisors = findCandidateAdvisors();
		//搜索给定的候选顾问以查找可以应用于指定 bean 的所有顾问
		List<Advisor> eligibleAdvisors = findAdvisorsThatCanApply(candidateAdvisors, beanClass, beanName);
		//给定迄今为止获得的排序顾问，子类可以覆盖以注册其他顾问的扩展挂钩。默认实现为空。通常用于添加顾问，这些顾问公开一些后来的顾问所需的上下文信息
		extendAdvisors(eligibleAdvisors);
		if (!eligibleAdvisors.isEmpty()) {
		//对所有的增强进行排序
			eligibleAdvisors = sortAdvisors(eligibleAdvisors);
		}
		return eligibleAdvisors;
	}

适用性判断
findAdvisorsThatCanApply最终调用AopUtils.findAdvisorsThatCanApply:

public static List<Advisor> findAdvisorsThatCanApply(List<Advisor> candidateAdvisors, Class<?> clazz) {
		if (candidateAdvisors.isEmpty()) {
			return candidateAdvisors;
		}
		List<Advisor> eligibleAdvisors = new LinkedList<Advisor>();
		for (Advisor candidate : candidateAdvisors) {
			if (candidate instanceof IntroductionAdvisor && canApply(candidate, clazz)) {
				eligibleAdvisors.add(candidate);
			}
		}
		boolean hasIntroductions = !eligibleAdvisors.isEmpty();
		for (Advisor candidate : candidateAdvisors) {
			if (candidate instanceof IntroductionAdvisor) {
				// already processed
				continue;
			}
			if (canApply(candidate, clazz, hasIntroductions)) {
				eligibleAdvisors.add(candidate);
			}
		}
		return eligibleAdvisors;
	}

canApply：
IntroductionAdvisor在Advisor链中总是位于非IntroductionAdvisor前面

public static boolean canApply(Advisor advisor, Class<?> targetClass, boolean hasIntroductions) {
		if (advisor instanceof IntroductionAdvisor) {
			return ((IntroductionAdvisor) advisor).getClassFilter().matches(targetClass);
		}
		else if (advisor instanceof PointcutAdvisor) {
			PointcutAdvisor pca = (PointcutAdvisor) advisor;
			return canApply(pca.getPointcut(), targetClass, hasIntroductions);
		}
		else {
			// It doesn't have a pointcut so we assume it applies.
			return true;
		}
	}

很明显，对于引入Advisor与其它Advisor是两种不同的判断方式。
引入
引入的概念在下面aop:scoped-proxy中有提到。因为引入的目的在于动态地向一个类添加另一种功能(接口)，所以只要判断给定的类是否是要引入到的类即可
其它
AopUtils.canApply:

public static boolean canApply(Pointcut pc, Class<?> targetClass, boolean hasIntroductions) {
		Assert.notNull(pc, "Pointcut must not be null");
		//是否Pointcut可以匹配当前类
		if (!pc.getClassFilter().matches(targetClass)) {
			return false;
		}
		//是否Pointcut可以匹配所有方法
		MethodMatcher methodMatcher = pc.getMethodMatcher();
		if (methodMatcher == MethodMatcher.TRUE) {
			// No need to iterate the methods if we're matching any method anyway...
			return true;
		}

		IntroductionAwareMethodMatcher introductionAwareMethodMatcher = null;
		if (methodMatcher instanceof IntroductionAwareMethodMatcher) {
			introductionAwareMethodMatcher = (IntroductionAwareMethodMatcher) methodMatcher;
		}

		Set<Class<?>> classes = new LinkedHashSet<Class<?>>(ClassUtils.getAllInterfacesForClassAsSet(targetClass));
		classes.add(targetClass);
		for (Class<?> clazz : classes) {
			Method[] methods = ReflectionUtils.getAllDeclaredMethods(clazz);
			for (Method method : methods) {
				if ((introductionAwareMethodMatcher != null &&
						introductionAwareMethodMatcher.matches(method, targetClass, hasIntroductions)) ||
						methodMatcher.matches(method, targetClass)) {
					return true;
				}
			}
		}

		return false;
	}

Advisor扩展
AbstractAdvisorAutoProxyCreator.extendAdvisors允许子类向Advisor链表中添加自己的Advisor。最终调用AspectJProxyUtils.makeAdvisorChainAspectJCapableIfNecessary方法。

方法中的逻辑：如果Advisor链表中的Advisor含有AspectJ Advice，那么将会把一个ExposeInvocationInterceptor添加到链表的表头，目的在于将MethodInvocation以ThreadLocal的方式暴露给后面所有的Advisor

public static boolean makeAdvisorChainAspectJCapableIfNecessary(List<Advisor> advisors) {
		// Don't add advisors to an empty list; may indicate that proxying is just not required
		if (!advisors.isEmpty()) {
			boolean foundAspectJAdvice = false;
			for (Advisor advisor : advisors) {
				// Be careful not to get the Advice without a guard, as
				// this might eagerly instantiate a non-singleton AspectJ aspect
				if (isAspectJAdvice(advisor)) {
					foundAspectJAdvice = true;
				}
			}
			if (foundAspectJAdvice && !advisors.contains(ExposeInvocationInterceptor.ADVISOR)) {
				advisors.add(0, ExposeInvocationInterceptor.ADVISOR);
				return true;
			}
		}
		return false;
	}

排序
即sortAdvisors方法，用于对实现了Ordered接口的Advisor进行排序。

protected List<Advisor> sortAdvisors(List<Advisor> advisors) {
		AnnotationAwareOrderComparator.sort(advisors);
		return advisors;
	}

创建
这里省去了一些非关键的内容，这里的入口是在wrapIfNecessary方法中。
AbstractAutoProxyCreator#createProxy

protected Object createProxy(
			Class<?> beanClass, String beanName, Object[] specificInterceptors, TargetSource targetSource) {

		if (this.beanFactory instanceof ConfigurableListableBeanFactory) {
			AutoProxyUtils.exposeTargetClass((ConfigurableListableBeanFactory) this.beanFactory, beanName, beanClass);
		}

		ProxyFactory proxyFactory = new ProxyFactory();
		proxyFactory.copyFrom(this);

		if (!proxyFactory.isProxyTargetClass()) {
			if (shouldProxyTargetClass(beanClass, beanName)) {
				proxyFactory.setProxyTargetClass(true);
			}
			else {
				evaluateProxyInterfaces(beanClass, proxyFactory);
			}
		}
		//将interceptor适配为Advisor
		Advisor[] advisors = buildAdvisors(beanName, specificInterceptors);
		proxyFactory.addAdvisors(advisors);
		proxyFactory.setTargetSource(targetSource);
		customizeProxyFactory(proxyFactory);

		proxyFactory.setFrozen(this.freezeProxy);
		if (advisorsPreFiltered()) {
			proxyFactory.setPreFiltered(true);
		}

		return proxyFactory.getProxy(getProxyClassLoader());
	}

spring通过两种方式去创建代理类，一种是jdk动态代理（需要实现接口），一种是cglib动态代理（生成一个代理子类），如何决定用那种方式去创建动态代理，则是由DefaultAopProxyFactory.createAopProxy方法决定。

public AopProxy createAopProxy(AdvisedSupport config) throws AopConfigException {
    if (config.isOptimize() || config.isProxyTargetClass() ||
            hasNoUserSuppliedProxyInterfaces(config)) {
        Class<?> targetClass = config.getTargetClass();
        if (targetClass.isInterface() || Proxy.isProxyClass(targetClass)) {
            return new JdkDynamicAopProxy(config);
        }
        return new ObjenesisCglibAopProxy(config);
    } else {
        return new JdkDynamicAopProxy(config);
    }
}

逻辑很明显，如果指定了(proxy-target-classs设为true)使用Cglib，那么就会使用Cglib的方式，如果没有指定(或为false)，那么先回检测被代理类是否实现了自己的接口，如果实现了，那么就采用JDK动态代理的方式。

jdk动态代理实现：
JdkDynamicAopProxy#getProxy:

@Override
public Object getProxy(ClassLoader classLoader) {
    //找到可以用来进行代理的接口
    Class<?>[] proxiedInterfaces = AopProxyUtils.completeProxiedInterfaces(this.advised, true);
    //用来代理的接口中是否定义了equals或者是hashCode方法?
    //结果保存在内部equalsDefined和hashCodeDefined两个成员变量中
    findDefinedEqualsAndHashCodeMethods(proxiedInterfaces);
    return Proxy.newProxyInstance(classLoader, proxiedInterfaces, this);
}

cglib动态代理实现

@Override
	public Object getProxy(ClassLoader classLoader) {
		if (logger.isDebugEnabled()) {
			logger.debug("Creating CGLIB proxy: target source is " + this.advised.getTargetSource());
		}

		try {
			Class<?> rootClass = this.advised.getTargetClass();
			Assert.state(rootClass != null, "Target class must be available for creating a CGLIB proxy");

			Class<?> proxySuperClass = rootClass;
			if (ClassUtils.isCglibProxyClass(rootClass)) {
				proxySuperClass = rootClass.getSuperclass();
				Class<?>[] additionalInterfaces = rootClass.getInterfaces();
				for (Class<?> additionalInterface : additionalInterfaces) {
					this.advised.addInterface(additionalInterface);
				}
			}

			// Validate the class, writing log messages as necessary.
			validateClassIfNecessary(proxySuperClass, classLoader);

			// Configure CGLIB Enhancer...
			Enhancer enhancer = createEnhancer();
			if (classLoader != null) {
				enhancer.setClassLoader(classLoader);
				if (classLoader instanceof SmartClassLoader &&
						((SmartClassLoader) classLoader).isClassReloadable(proxySuperClass)) {
					enhancer.setUseCache(false);
				}
			}
			enhancer.setSuperclass(proxySuperClass);
			enhancer.setInterfaces(AopProxyUtils.completeProxiedInterfaces(this.advised));
			enhancer.setNamingPolicy(SpringNamingPolicy.INSTANCE);
			enhancer.setStrategy(new ClassLoaderAwareUndeclaredThrowableStrategy(classLoader));

			Callback[] callbacks = getCallbacks(rootClass);
			Class<?>[] types = new Class<?>[callbacks.length];
			for (int x = 0; x < types.length; x++) {
				types[x] = callbacks[x].getClass();
			}
			// fixedInterceptorMap only populated at this point, after getCallbacks call above
			enhancer.setCallbackFilter(new ProxyCallbackFilter(
					this.advised.getConfigurationOnlyCopy(), this.fixedInterceptorMap, this.fixedInterceptorOffset));
			enhancer.setCallbackTypes(types);

			// Generate the proxy class and create a proxy instance.
			return createProxyClassAndInstance(enhancer, callbacks);
		}
		catch (CodeGenerationException ex) {
			throw new AopConfigException("Could not generate CGLIB subclass of " + this.advised.getTargetClass() +
					": Common causes of this problem include using a final class or a non-visible class",
					ex);
		}
		catch (IllegalArgumentException ex) {
			throw new AopConfigException("Could not generate CGLIB subclass of " + this.advised.getTargetClass() +
					": Common causes of this problem include using a final class or a non-visible class",
					ex);
		}
		catch (Throwable ex) {
			// TargetSource.getTarget() failed
			throw new AopConfigException("Unexpected AOP exception", ex);
		}
	}

这里对两种代理的实现没有去非常详细的说明，如果有感兴趣的小伙伴可以自己去跟一下代码。

好了，终于在清明假期的最后一天把这篇文章赶出来了，整个假期在忙着本地和云服务器的项目集成elk日志框架（mac和linux会过程细节有些许不同），期间遇到了很多的坑，下个星期可能会加一篇文章来描述我在集成elk日志框架的时候碰到的一些问题和如何集成elk的过程描述一下，最后看到elk成功跑起来的时候，那一瞬间的感动，真的无法言语。
在这里插入图片描述
