[Java知识库]3 SpringBoot静态资源配置原理

在 SpringBoot 中, 默认访问主页(index.html)可以配置在 resources/static or resources/templates 下, 容器启动后, 可以默认去访问 index.html 文件, 其中的原理是什么?

默认访问规则

SpringBoot启动时会加载 xxxAutoConfiguration 类 (自动配置类), 关于 SpringMvc 的自动配置类是 WebMvcAutoConfiguration

@Configuration(proxyBeanMethods = false)
@ConditionalOnWebApplication(type = Type.SERVLET)
@ConditionalOnClass({ Servlet.class, DispatcherServlet.class, WebMvcConfigurer.class })
@ConditionalOnMissingBean(WebMvcConfigurationSupport.class)
@AutoConfigureOrder(Ordered.HIGHEST_PRECEDENCE + 10)
@AutoConfigureAfter({ DispatcherServletAutoConfiguration.class, TaskExecutionAutoConfiguration.class, ValidationAutoConfiguration.class })
public class WebMvcAutoConfiguration {
}

@ConditionalOnClass({ Servlet.class, DispatcherServlet.class, WebMvcConfigurer.class })

当容器中存在 Servlet, DispatcherServlet, WebMvcConfigurer 类时, WebMvcAutoConfiguration 才会生效, 显然是存在的

@ConditionalOnMissingBean(WebMvcConfigurationSupport.class)

当容器中不存在 WebMvcConfigurationSupport 才会生效

那么WebMvcAutoConfiguration中干了什么, 容器启动时才可以默认访问 Index.html 静态资源

我们发现 WebMvcAutoConfiguration 类中有一个实现了 WebMvcConfigurer 的接口 -> WebMvcAutoConfigurationAdapter 静态内部类

@Configuration(proxyBeanMethods = false)
@Import(EnableWebMvcConfiguration.class)
@EnableConfigurationProperties({ WebMvcProperties.class, ResourceProperties.class })
@Order(0)
public static class WebMvcAutoConfigurationAdapter implements WebMvcConfigurer {
}

@EnableConfigurationProperties({ WebMvcProperties.class, ResourceProperties.class }): 注入了两个配置类

WebMvcProperties:
@ConfigurationProperties(prefix = "spring.mvc")
public class WebMvcProperties {
}
跟配置文件 spring.mvc 开头的属性绑定

ResourceProperties:
@ConfigurationProperties(prefix = "spring.resources", ignoreUnknownFields = false)
public class ResourceProperties {
}
跟配置文件 spring.resources 开头的属性绑定

当上述条件都生效, 则意味着WebMvcAutoConfigurationAdapter 也会去执行自己的逻辑

@Configuration(proxyBeanMethods = false)
@Import(EnableWebMvcConfiguration.class)
@EnableConfigurationProperties({ WebMvcProperties.class, ResourceProperties.class })
@Order(0)
public static class WebMvcAutoConfigurationAdapter implements WebMvcConfigurer {

   // WebMvcAutoConfigurationAdapter 构造器, 参数详解见下段代码
   public WebMvcAutoConfigurationAdapter(ResourceProperties resourceProperties,
                                         WebMvcProperties mvcProperties,
										 ListableBeanFactory beanFactory,
                                         ObjectProvider<HttpMessageConverters> messageConvertersProvider,
										 ObjectProvider<ResourceHandlerRegistrationCustomizer> r,
										 ObjectProvider<DispatcherServletPath> dispatcherServletPath,
										 ObjectProvider<ServletRegistrationBean<?>> servletRegistrations)
   {

       this.resourceProperties = resourceProperties;
       this.mvcProperties = mvcProperties;
       this.beanFactory = beanFactory;
       this.messageConvertersProvider = messageConvertersProvider;
       this.resourceHandlerRegistrationCustomizer = r.getIfAvailable();
       this.dispatcherServletPath = dispatcherServletPath;
       this.servletRegistrations = servletRegistrations;
   }

   // 添加资源处理器
   @Override
    public void addResourceHandlers(ResourceHandlerRegistry registry) {
        // addMappings(是否默认的资源映射): 默认为true, 所以此if进不去
        // 如果不想访问静态资源, 则在配置文件中设置 add-mappings: false
        if (!this.resourceProperties.isAddMappings()) {
            logger.debug("Default resource handling disabled");
            return;
        }

        // -----静态资源默认配置规则-----

        // 获取静态资源缓存时间, 默认为0
        Duration cachePeriod = this.resourceProperties.getCache().getPeriod();
        CacheControl cacheControl = this.resourceProperties.getCache().getCachecontrol().toHttpCacheControl();

        /* 设置 /webjars/** 规则
         * 如果访问此路径, 则在 classpath:/META-INF/resources/webjars/ 路径下寻找对应的静态资源,
         * 找到后并缓存之前设置的缓存时间
         */
        if (!registry.hasMappingForPattern("/webjars/**")) {
            customizeResourceHandlerRegistration(registry.addResourceHandler("/webjars/**")
                                                 .addResourceLocations("classpath:/META-INF/resources/webjars/")
                                                .setCachePeriod(getSeconds(cachePeriod)).setCacheControl(cacheControl));
        }

        // 获取自动注入类 WebMvcProperties 的属性 staticPathPattern, 默认为 "/**", 可以通过配置文件修改
        String staticPathPattern = this.mvcProperties.getStaticPathPattern();
        // 是否给此路径配置了处理程序, 显然, "/**" 没有对应的处理程序
        if (!registry.hasMappingForPattern(staticPathPattern)) {
            // 和webjars处理规则一样, 去getResourceLocations(this.resourceProperties.getStaticLocations())获取资源路径
            // 详解见下段代码
            customizeResourceHandlerRegistration(registry.addResourceHandler(staticPathPattern)
            .addResourceLocations(getResourceLocations(this.resourceProperties.getStaticLocations()))
                         .setCachePeriod(getSeconds(cachePeriod)).setCacheControl(cacheControl));
        }
    }
}

WebMvcAutoConfigurationAdapter 构造器参数:

ResourceProperties: 对应WebMvcAutoConfiguration 注入的 ResourceProperties, 绑定了 spring.resources 的值
WebMvcProperties: 对应WebMvcAutoConfiguration 注入的 WebMvcProperties, 绑定了 spring.mvc 的值
ListableBeanFactory: Bean 容器, 实现了 BeanFactory
ObjectProvider<HttpMessageConverters>: 消息转换器
ObjectProvider<ResourceHandlerRegistrationCustomizer>: 自定义资源处理器
ObjectProvider<DispatcherServletPath>: 请求分发处理器
ObjectProvider<ServletRegistrationBean<?>>: 给应用注册原生的 Servlet 等组件

/** 资源访问规则(getResourceLocations(this.resourceProperties.getStaticLocations())):

this.resourceProperties.getStaticLocations():

resourceProperties 对应上文所注入的 ResourceProperties, getStaticLocations
?????获取到对应的值为静态常量: CLASSPATH_RESOURCE_LOCATIONS

CLASSPATH_RESOURCE_LOCATIONS =
????????????????????????????????????????{
??????????????????????????????????????????“classpath:/META-INF/resources/”,
??????????????????????????????????????????“classpath:/resources/”,
??????????????????????????????????????????“classpath:/static/”,
??????????????????????????????????????????“classpath:/public/”
????????????????????????????????????????};

getResourceLocations(this.resourceProperties.getStaticLocations()):

那 getResourceLocations 又干了什么事呢?
static String[] getResourceLocations(String[] staticLocations) {
    String[] locations = new String[staticLocations.length + SERVLET_LOCATIONS.length];
    System.arraycopy(staticLocations, 0, locations, 0, staticLocations.length);
    System.arraycopy(SERVLET_LOCATIONS, 0, locations, staticLocations.length, SERVLET_LOCATIONS.length);
    return locations;
}

// 其中 SERVLET_LOCATIONS = { "/" };
这个时候我们明白了, "/**"的访问规则有 5 种

分别是: “/”, “classpath:/META-INF/resources/”, “classpath:/resources/”, “classpath:/static/”, “classpath:/public/”

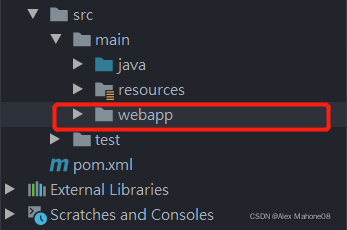

注意: "/" 代表项目目录下的 webapp 文件夹

所以SpringBoot静态资源默认访问是 “/”, “classpath:/META-INF/resources/”, “classpath:/resources/”, “classpath:/static/”, “classpath:/public/”

欢迎页访问规则

讲完了SpringBoot默认静态资源访问规则, 再来看看欢迎页的规则

在 WebMvcAutoConfiguration 中注册了 WelcomePageHandlerMapping Bean

@Bean
public WelcomePageHandlerMapping welcomePageHandlerMapping(ApplicationContext applicationContext,
                                                           FormattingConversionService mvcConversionService,
                                                           ResourceUrlProvider mvcResourceUrlProvider) {
    WelcomePageHandlerMapping welcomePageHandlerMapping = new WelcomePageHandlerMapping(
        new TemplateAvailabilityProviders(applicationContext), applicationContext, getWelcomePage(),
        this.mvcProperties.getStaticPathPattern());
    welcomePageHandlerMapping.setInterceptors(getInterceptors(mvcConversionService, mvcResourceUrlProvider));
    welcomePageHandlerMapping.setCorsConfigurations(getCorsConfigurations());
    return welcomePageHandlerMapping;
}

打开 WelcomePageHandlerMapping 构造器

WelcomePageHandlerMapping(TemplateAvailabilityProviders templateAvailabilityProviders,
                          ApplicationContext applicationContext, Optional<Resource> welcomePage, String
                          staticPathPattern) {
    if (welcomePage.isPresent() && "/**".equals(staticPathPattern)) {
        logger.info("Adding welcome page: " + welcomePage.get());
        setRootViewName("forward:index.html");
    }
    else if (welcomeTemplateExists(templateAvailabilityProviders, applicationContext)) {
        logger.info("Adding welcome page template: index");
        setRootViewName("index");
    }
}
